Chopstick Rehabilitation


According to studies, risks of suffering from deteriorating hand movement would highly increase after the age of fifty, with weaker arm muscles and fragile bones. By training nerves' reflection, symptoms could be ameliorated. By combining fun games with therapy could enhance the effectiveness through the lighter atmosphere created, which increases the efficiency with laughter.

創作目的:
改善老年人復健時的心態及效率,帶給病患更適合的復健方式

作品內容:
社會照顧,以創意小遊戲幫助老人復健。

作品設計:
以簡單的裝置及易懂的規則為主要設計概念,搭配scratch小遊戲,設計出有創意和意義的裝置。

操作方式:
利用筷子,根據燈泡顯示出來的顏色,將所對應的物品投入相對顏色的孔洞。scratch小遊戲則會與病患互動

作品特色:
加入燈光效果使老年人能更清楚指令,同時配合scratch小遊戲增加遊戲趣味,並以簡單的操作方式搭配日常生活用品(筷子),增添便利性。



with scratch:

Supplies

1. resistance*9

2. solderless breadboard*2

3. Arduino Leonardo*1

4. led light bulb ( blue*1 red*1 green*1 PWM*1)

5. wire*31

6. tape

7. photoresistor*3

8. wooden sticks*12

9. cartons

10. table tennis ball*1

11. few cardboards

12. tools for cutting

13. USB-B

14. plastic pad*2

1.電阻* 9

2.無焊麵包板* 2

3. Arduino Leonardo* 1

4. led燈泡(藍色* 1紅色* 1綠色* 1 PWM * 1)

5.電線* 31

6.膠帶

7.光敏電阻* 3

8.木棍* 12

9.紙箱

10.乒乓球* 1

11.些許紙板

12.切割工具

13. USB-B

14.透明板* 2

Type the Code

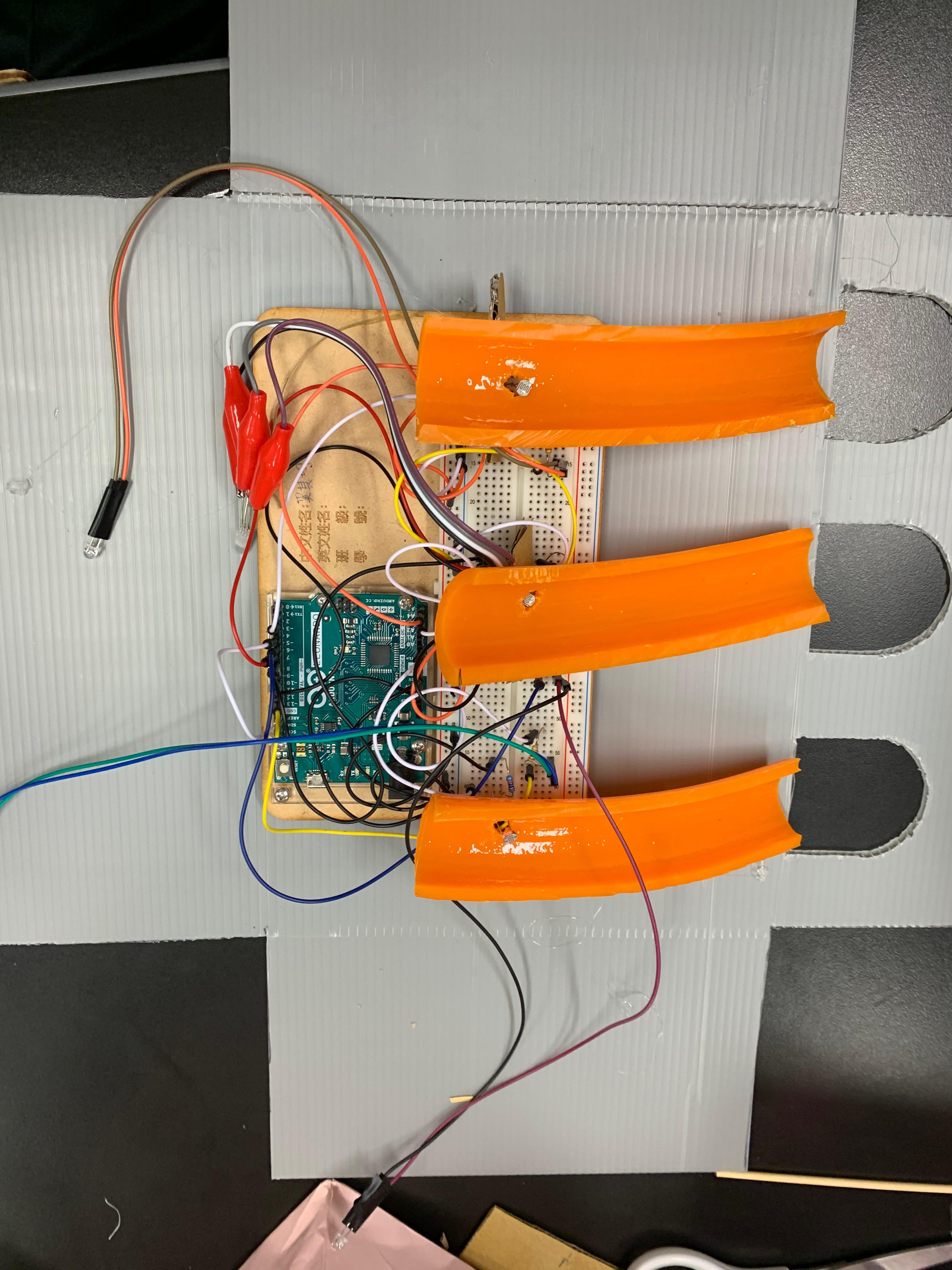

Set Up the Bread Board

Daring Wolt (1).png

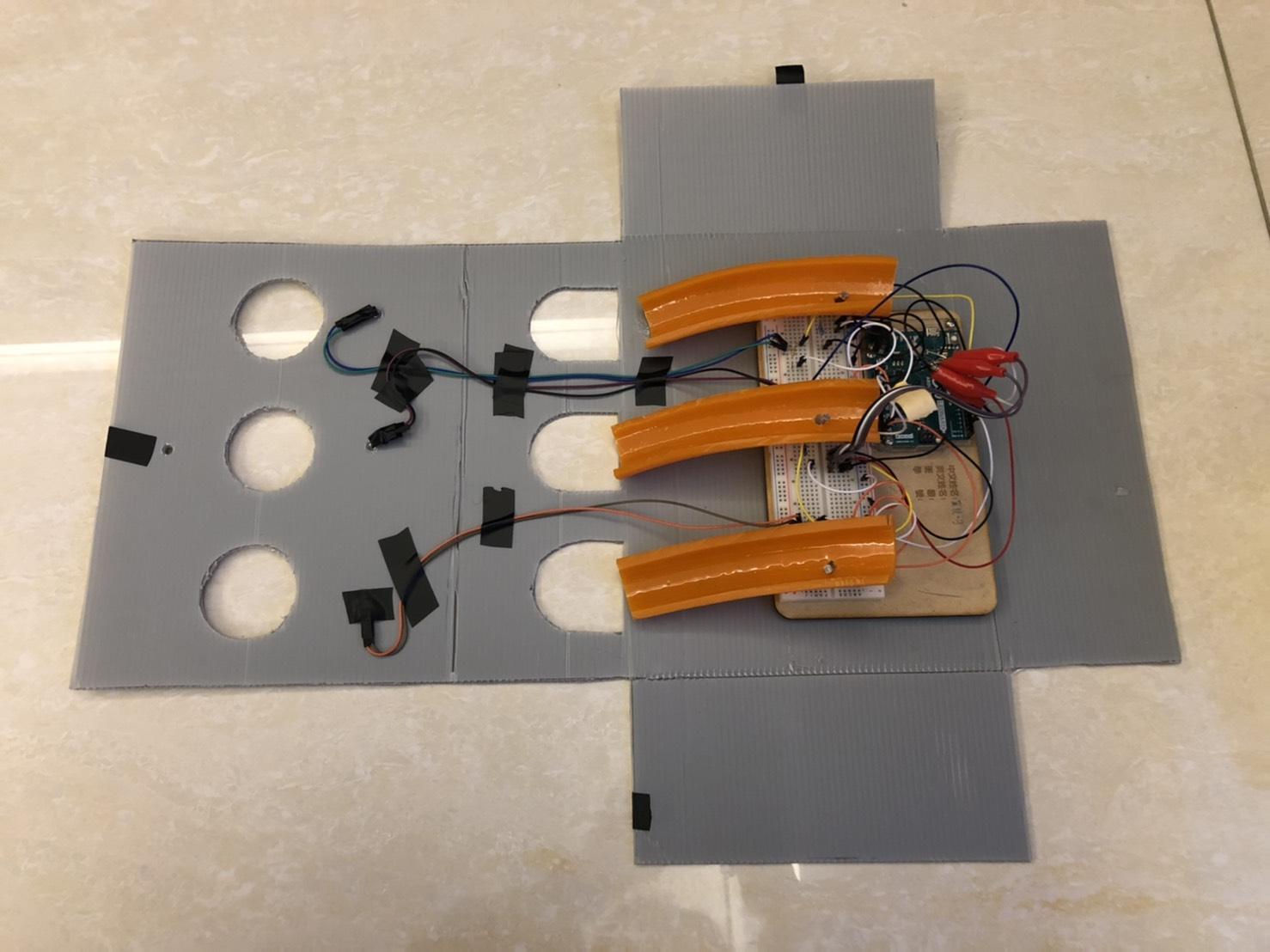

Set Up the Appearance


Scratch Coding

螢幕快照 2020-12-31 下午9.56.38.png
螢幕快照 2020-12-31 下午9.56.36.png
螢幕快照 2020-12-31 下午9.56.34.png
螢幕快照 2020-12-31 下午9.56.43.png

Connecting the device with scratch, would enhance the challenge of the game, which further provide a better atmosphere.

將此裝置連接至 Scratch,增加遊戲趣味性,進而增進復健效率。

Enjoy the Game

1. prepare a pair of chopsticks

2. starts the device and scratch

3. look at the color of the light and put the ball in the selected hole

4. play until the winner is out

1.準備一雙筷子

2.啟動設備並從頭開始

3.對應燈光的顏色並將球放入選定的孔中

4.玩至獲勝出來
