1995 Chevy Lumina Water Pump
How to properly remove and replace a water pump on a 1995 chevy lumina.
Tools Requiered
10mm socket
8mm socket
1/4" racket
torque wrench
Tools Requiered
10mm socket
8mm socket
1/4" racket
torque wrench
This is a product of students attending the Calhoun Area Carrer Center. The students include Nate West, Maxwell Tobey, Xandon Taylor and Brandon McElhenie.
Take Off Plastic Cover

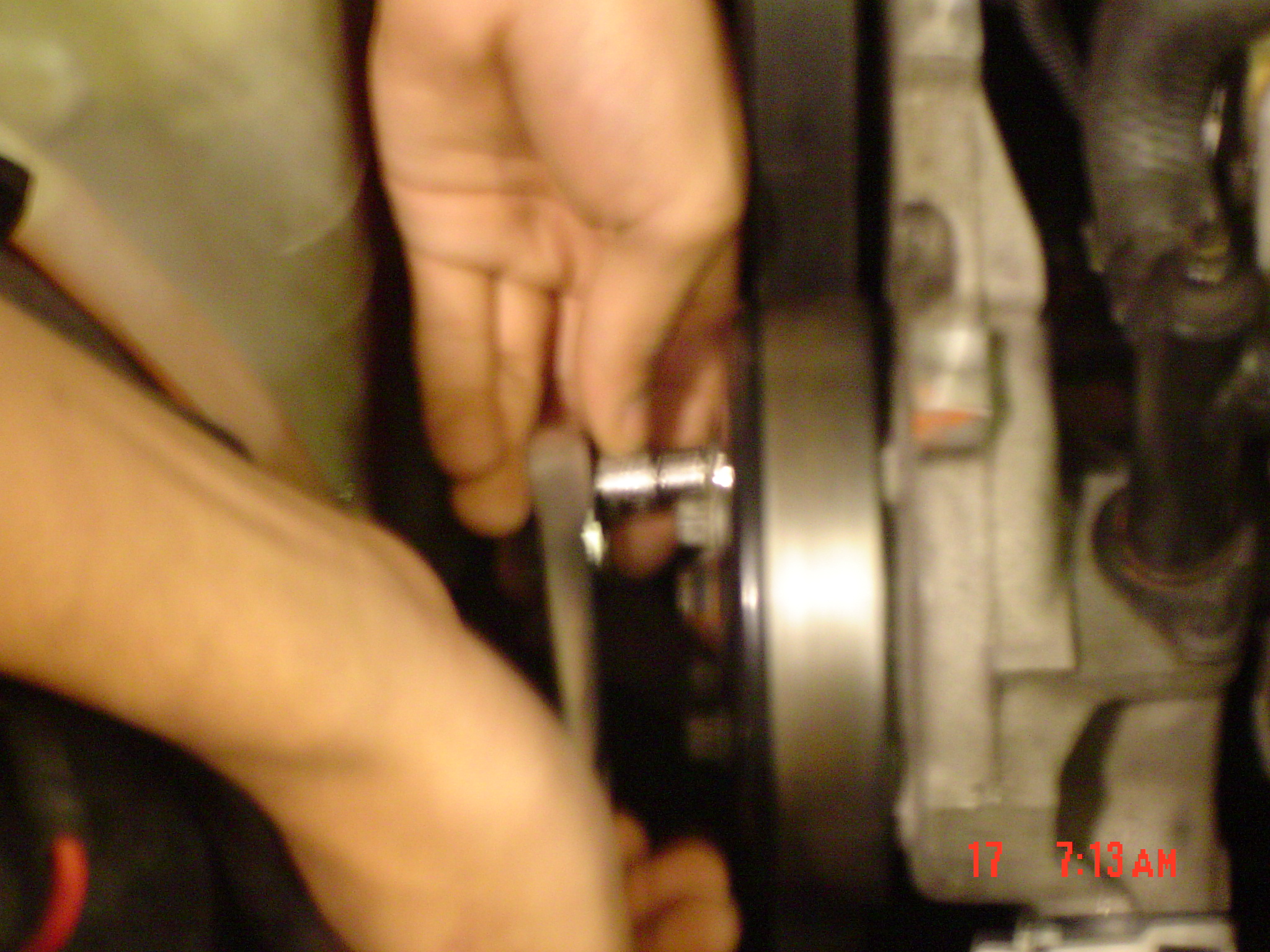

Loosen Bolts on Pulley
Release Tension on Belt and Remove.

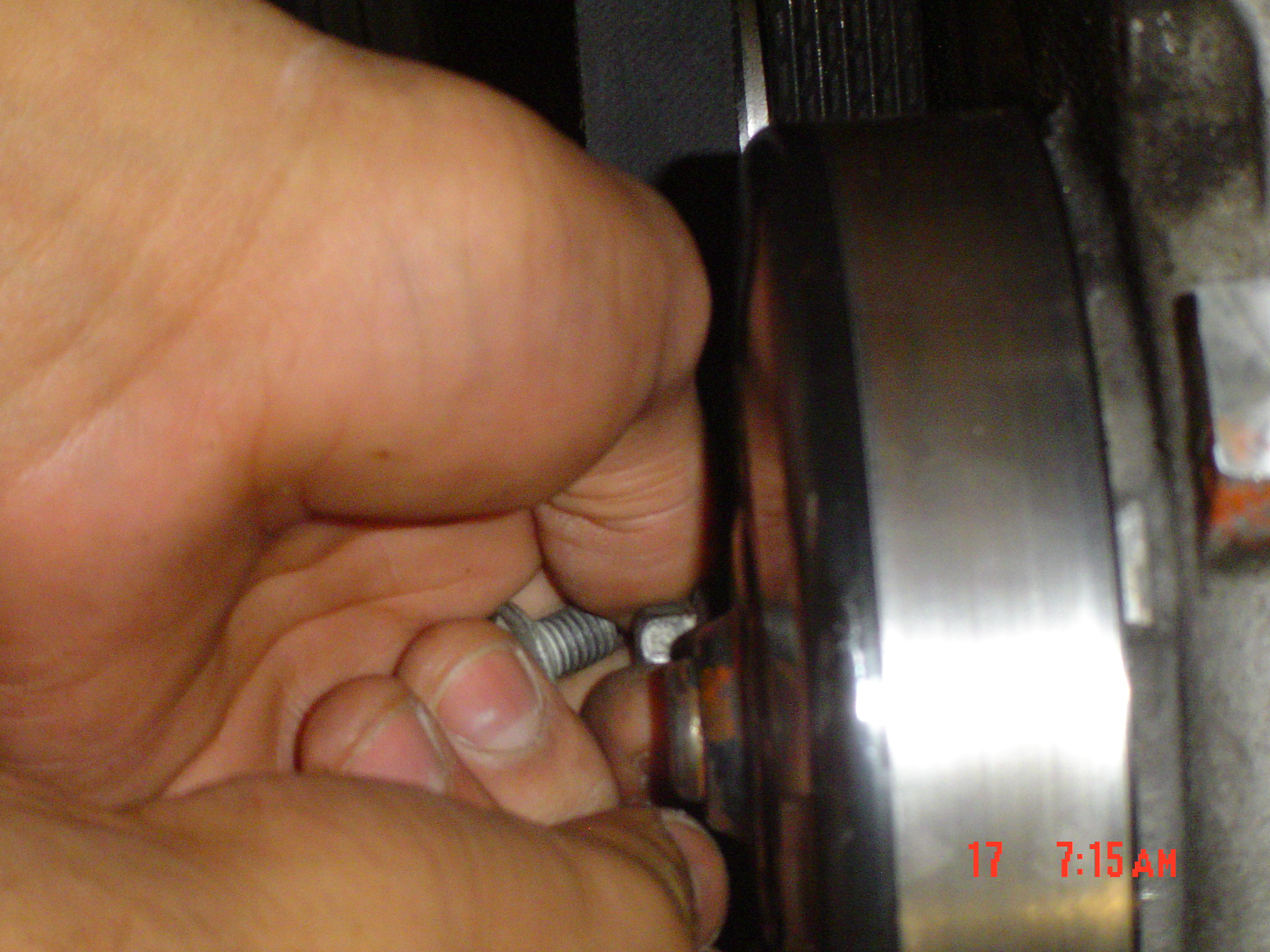

Remove Bolts on Pulley

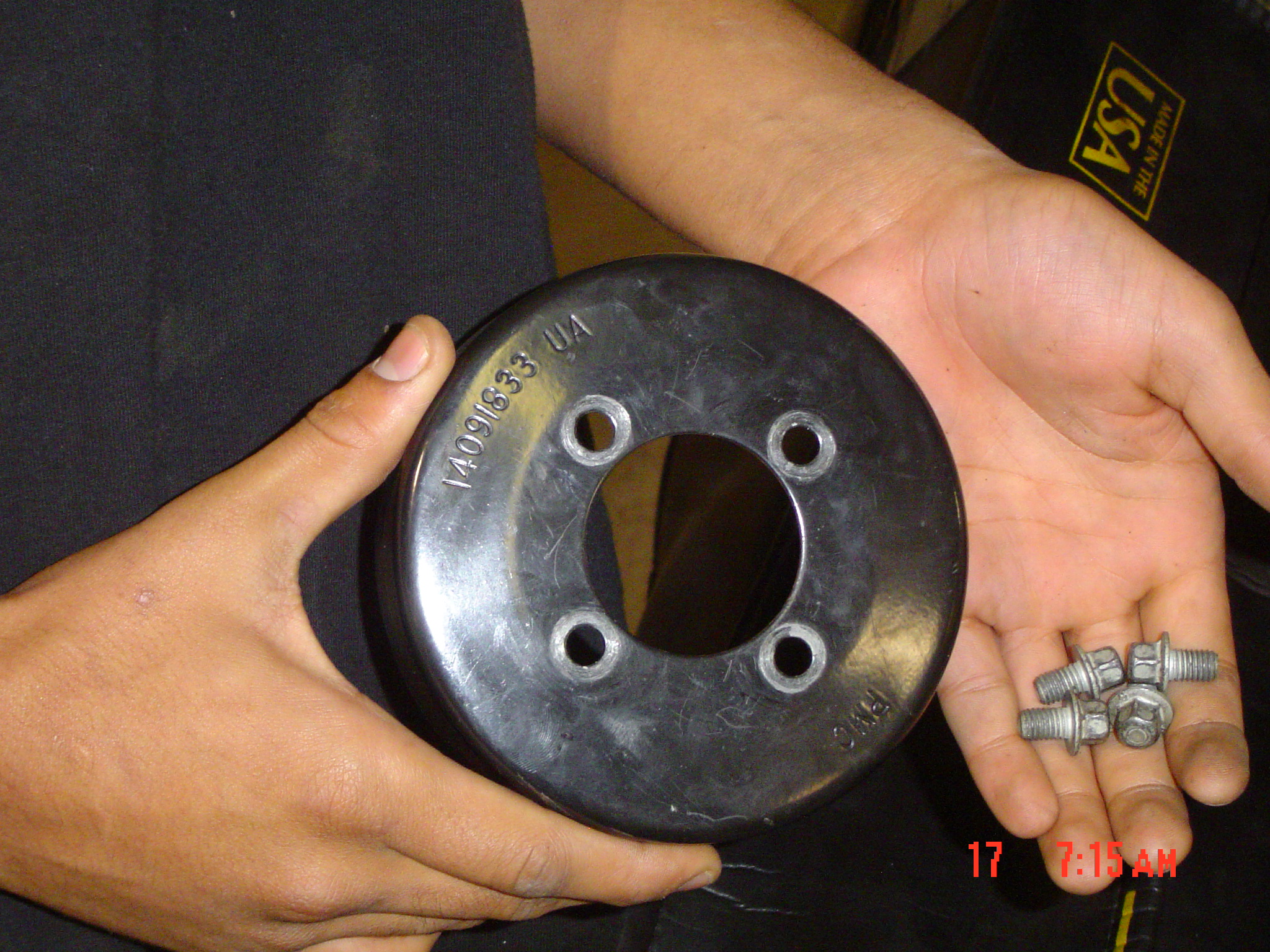

Remove Pulley
Take Off Water Pump Bolts
Remove Water Pump

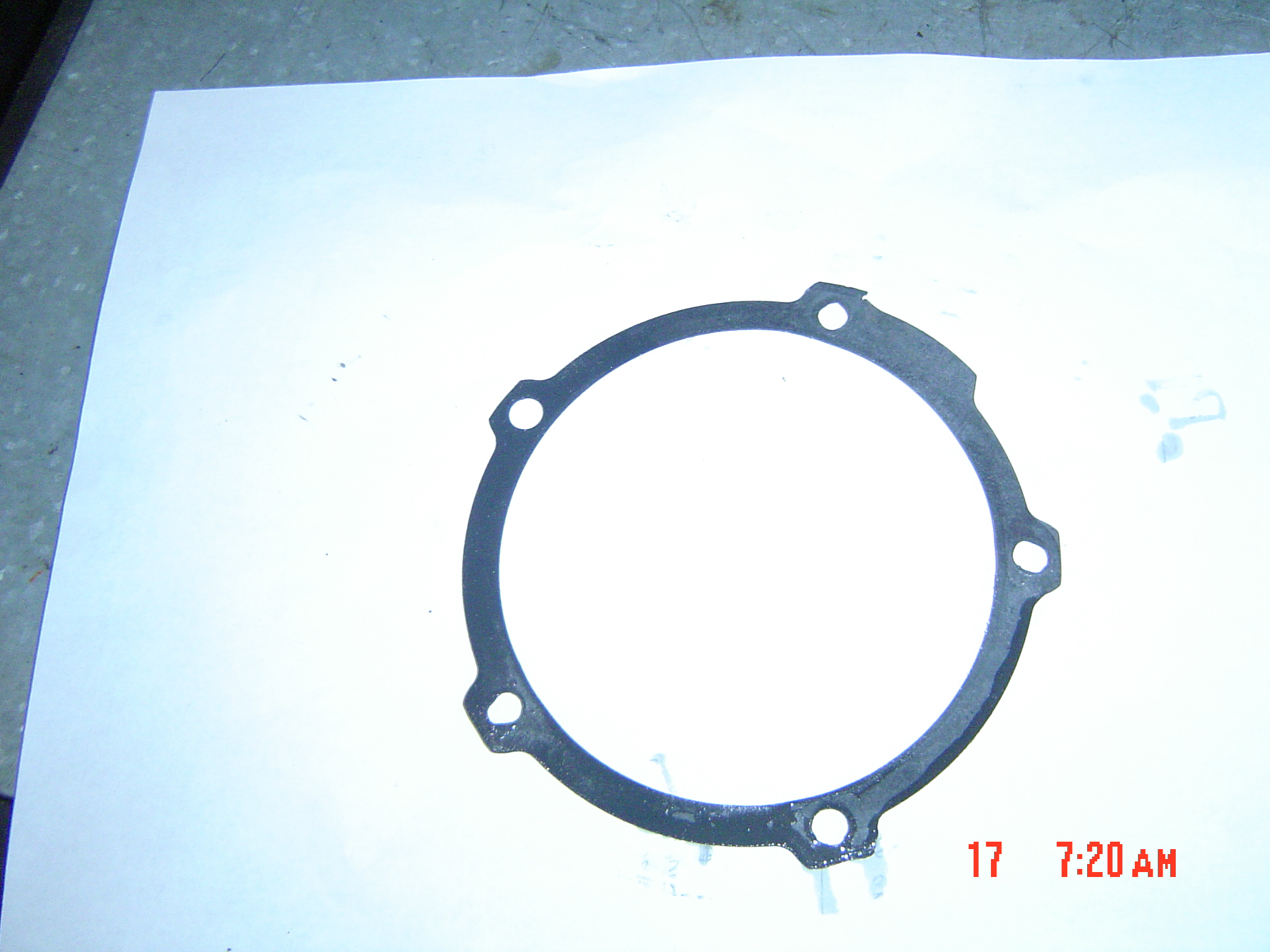

Make Sure Gasket Is in Good Condition (if Not Replace)

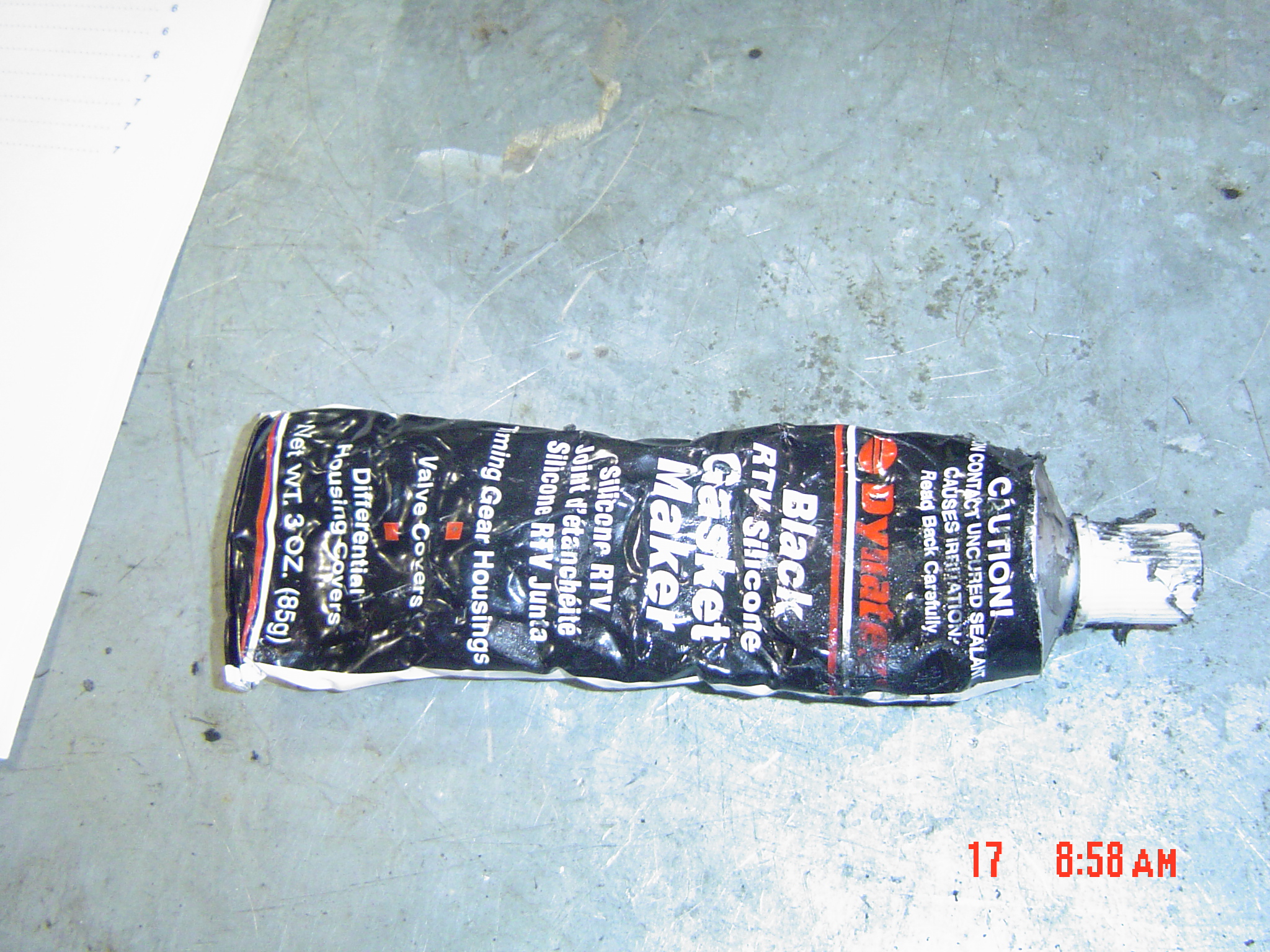

If Needed Add Some R.T.V.

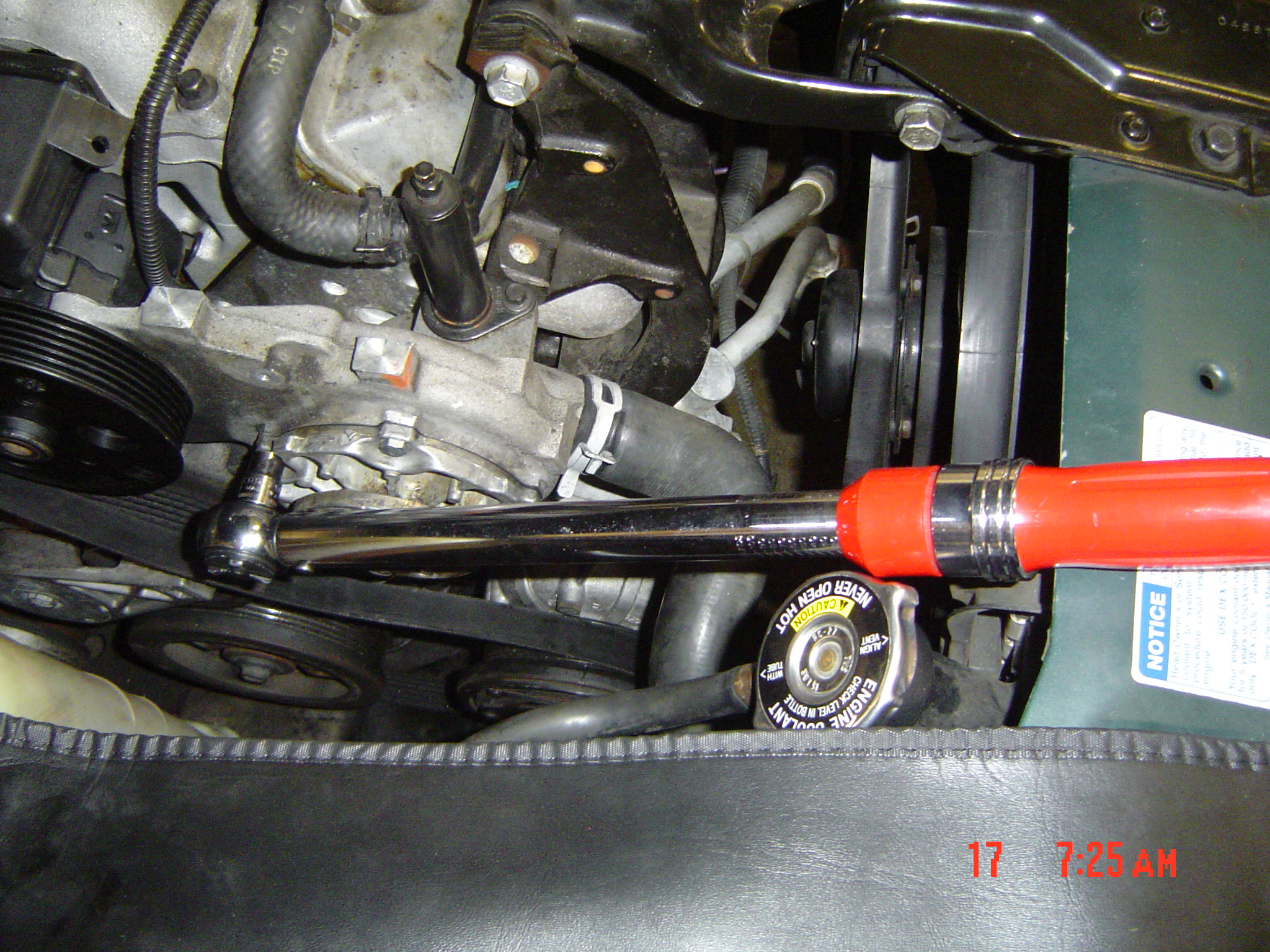

Replace Water Pump and Gasket Torque to 20 Ft. Pounds
Put Pulley Back On
Torque Bolts to 20 Ft. Pounds
Put on Serpentine Belt (make Sure It Is on Correctly)
Put Plastic Cover Back on and Tighten to 15 Ft. Pounds
