Chess Pawn

This tutorial will be on how to create a minimalist chess pawn design in Fusion 360
Supplies
Autodesk Fusion 360

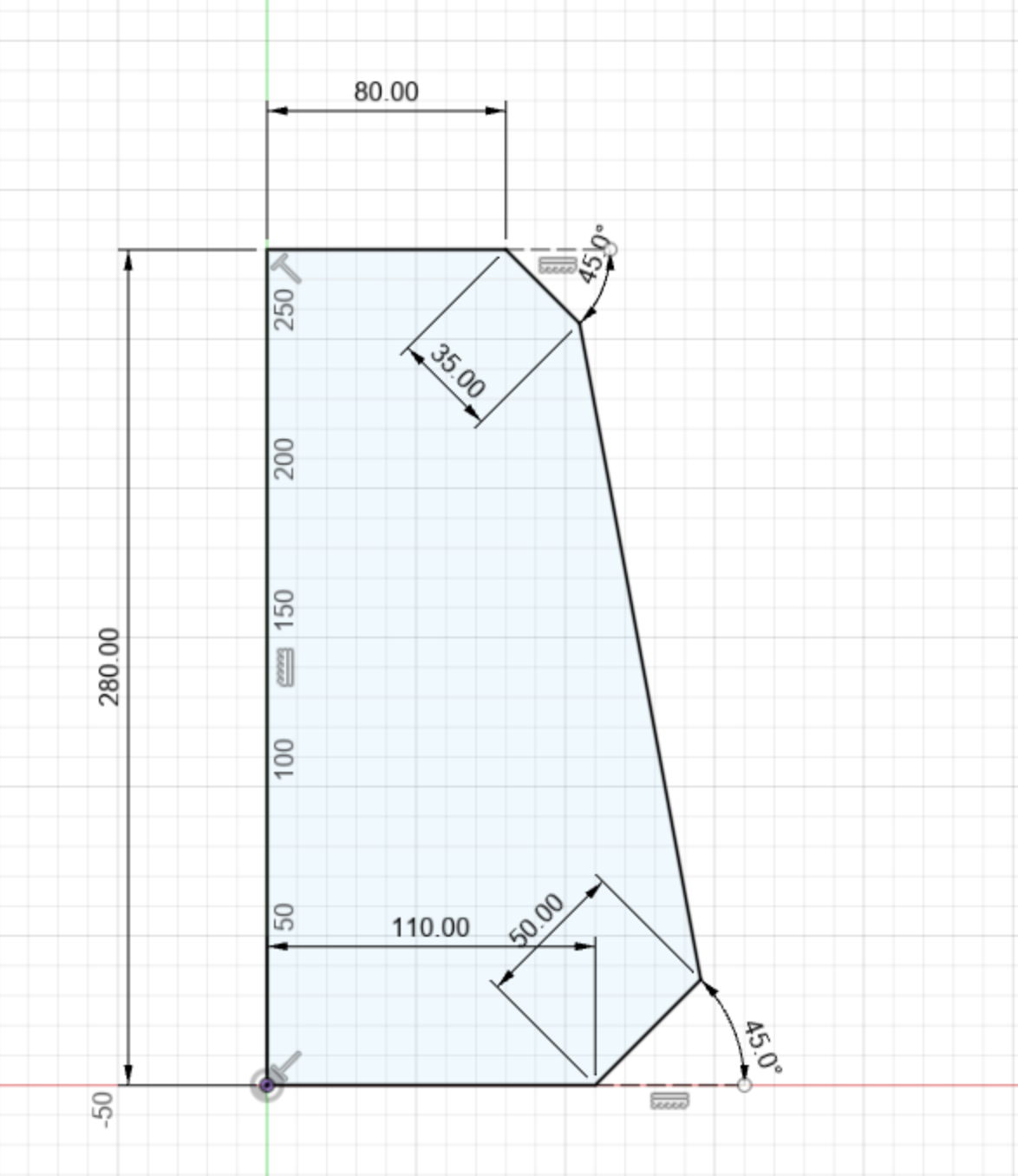

Sketch the Shape of the Base



- Select the XY plane
- Draw a vertical line from the center that is 280 mm long
- Draw a horizontal line from the end of the first line that is 80 mm long
- Create a diagonal line 45° from the horizontal line that is 35 mm long
Sketch the Shape of the Base(part 2)




- Create a new horizontal line on the x-axis that is 110 mm long
- Draw a line from the end of the bottom line that is 50 mm long at 45°
- Connect the endpoints of both diagonal lines
- Finish the sketch
Create the Base

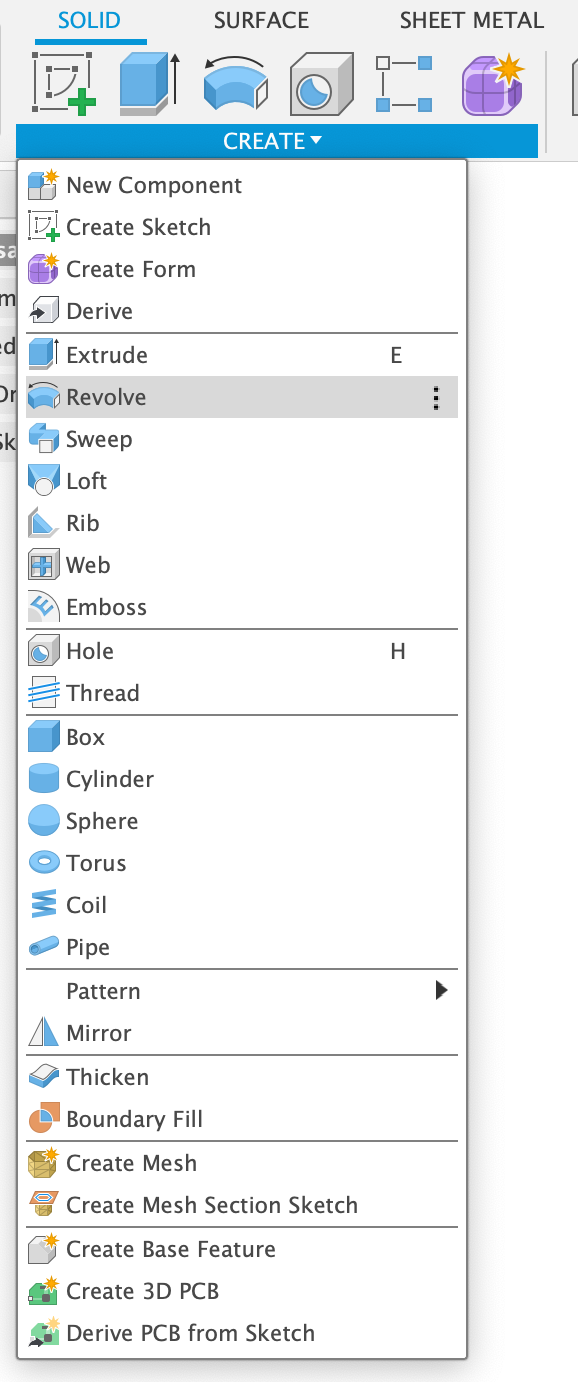

- Select the revolve tool, located under create
- Select the sketch as the "face"
- Select the vertical line as the "axis"
- Change the angle to 360°, the type to "angle", the direction to "one side", and the operation to "new body"
- Confirm
Create a Sphere




- Select "sphere" under "create"
- Select the bottom plane
- Change the diameter to 230 mm
- Change the operation to "new body"
- Confirm
Move the Sphere




- Select "move/copy" located under modify
- Select the sphere
- Change the "y distance" to 340 mm
- Confirm
