Chess Bishop 3D Printing Challenge
![WIN_20230517_10_46_51_Pro.jpg](/proxy/?url=https://content.instructables.com/FMN/7XDK/LHRPRNGS/FMN7XDKLHRPRNGS.jpg&filename=WIN_20230517_10_46_51_Pro.jpg)
![WIN_20230517_10_53_56_Pro.jpg](/proxy/?url=https://content.instructables.com/FJJ/YJG7/LHRPRNIR/FJJYJG7LHRPRNIR.jpg&filename=WIN_20230517_10_53_56_Pro.jpg)
![Screenshot (1).png](/proxy/?url=https://content.instructables.com/FE0/96AU/LHRPRNMF/FE096AULHRPRNMF.png&filename=Screenshot (1).png)
My name is Felipe Miranda, and I attend Dalton High School in Dalton, Georgia. I was tasked with using Fusion 360 to demonstrate my creativity and technical expertise while building something I'm passionate about. Due to my passion for the game of Chess, I ultimately decided to create a piece for it. I ended up deciding to make a bishop because it's my favorite piece. This design had constraints given by my teacher and the 3D printing challenge.
- You must use Fusion 360.
- Be submitted to my Engineering Teacher before May 19th.
- Has to be 3D printed.
- Show a full understanding of the Engineering Design Process.
Supplies
![WIN_20230519_10_54_08_Pro.jpg](/proxy/?url=https://content.instructables.com/FDZ/3NIB/LHUKMY7W/FDZ3NIBLHUKMY7W.jpg&filename=WIN_20230519_10_54_08_Pro.jpg)
- I used two different Dell laptops
- Fusion 360 software
- My teacher's Ender-5 Pro 3D printer
Fusion Design/prototype
![Screenshot (2).png](/proxy/?url=https://content.instructables.com/FP9/XAQW/LHRPRQ6G/FP9XAQWLHRPRQ6G.png&filename=Screenshot (2).png)
![Screenshot (3).png](/proxy/?url=https://content.instructables.com/FE7/SMM0/LHUKN132/FE7SMM0LHUKN132.png&filename=Screenshot (3).png)

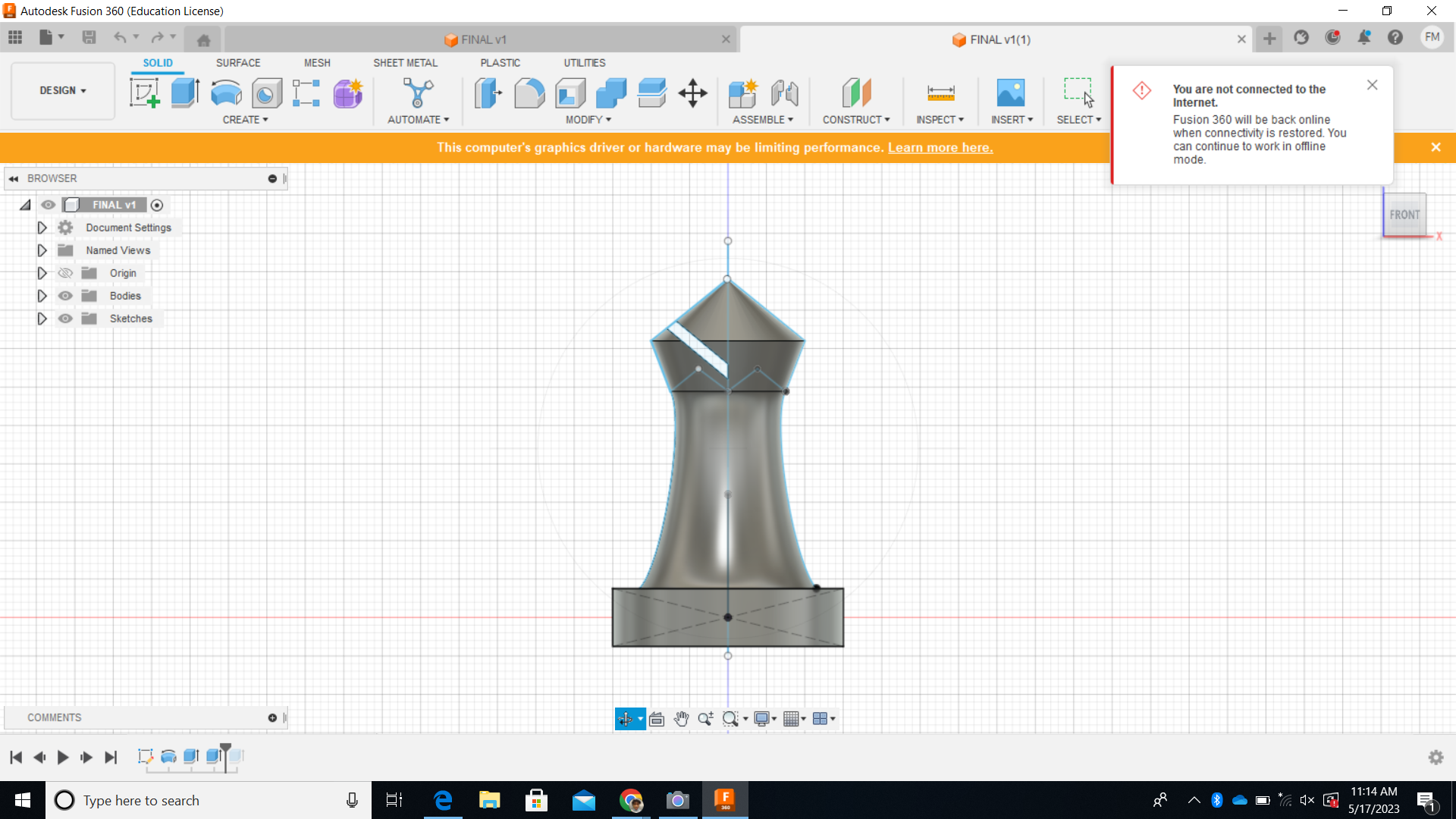

I was forced to use Fusion 360 (My preferred software anyways). I started off the design by building the base of the piece I ended up making the base using a center point rectangle making it 30x7.518mm. The next step was to make the body of the piece, I started this by making a conic curve on top of the base, 3.5mm away from the edge. My conic curve was 25.973mm, my next step was to make a little crown head. I made a slanted line and made it 4.686mm and made another line from the previous line slanted down being 4.893mm. Next, I made a line from the top of the conic curve being slanted slightly outwards going up 7.046mm, and from the previous line once again I made a line go slightly slanted up 12.1913mm. Finally, I made a line down the middle of the design and revolved it around the center point line.
Extrusion
![Screenshot (1).png](/proxy/?url=https://content.instructables.com/FU1/ULVP/LHUKN13R/FU1ULVPLHUKN13R.png&filename=Screenshot (1).png)
![Screenshot (5).png](/proxy/?url=https://content.instructables.com/FTH/UII4/LHUKN1H8/FTHUII4LHUKN1H8.png&filename=Screenshot (5).png)
![Screenshot (4).png](/proxy/?url=https://content.instructables.com/F1A/Y80Y/LHUKN1HL/F1AY80YLHUKN1HL.png&filename=Screenshot (4).png)
The last step of the design was to extrude a thin piece in the top crown as all bishop pieces have. I went to the middle of the left side of a crown and made a line 1.573mm wide and made the line go down to the center of the design. I then extruded it all the way through the design giving it the opening bishops have.
Modification
I sent the Design to my teacher so it could be printed he scaled it up 200% as I asked him to do so because I believed this would bring the piece more to life.
Print/Presentation
![FDZ3NIBLHUKMY7W.jpg](/proxy/?url=https://content.instructables.com/FCI/EZSP/LHUKNTHA/FCIEZSPLHUKNTHA.jpg&filename=FDZ3NIBLHUKMY7W.jpg)

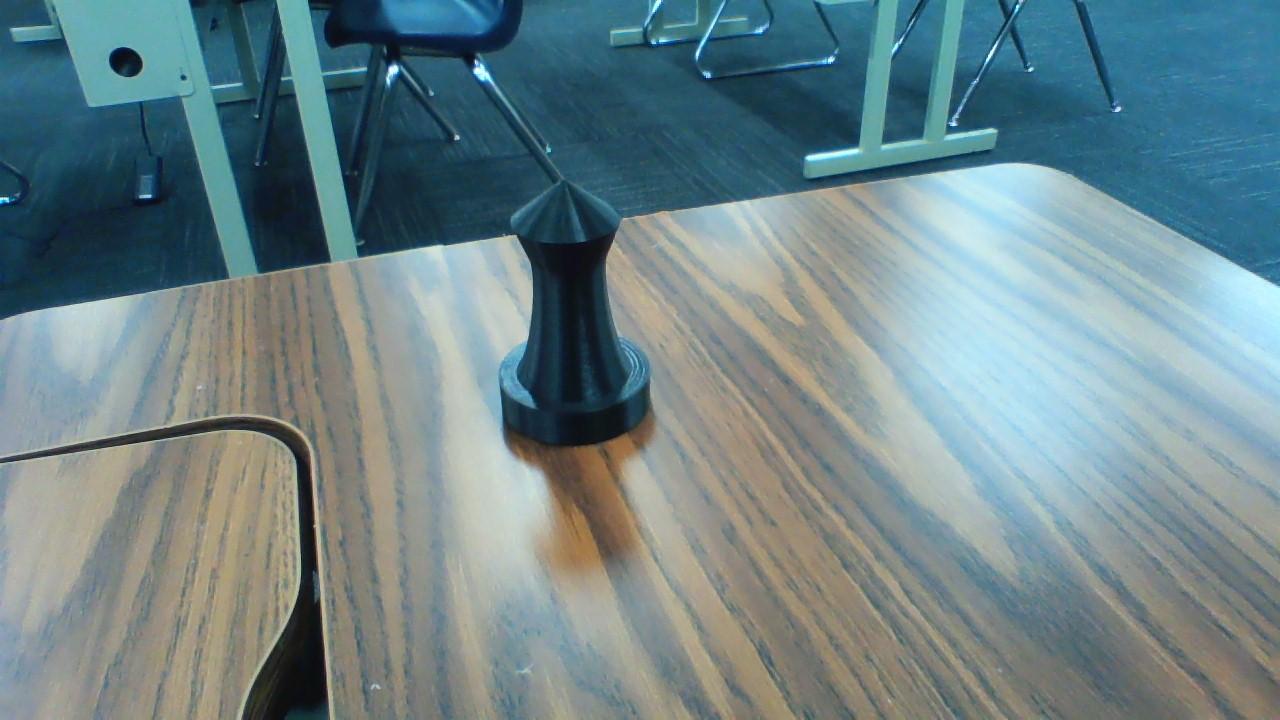

After the modification process which was simply scaling the size up by 200%, I was finally ready to print my design. I just had to send it to my teacher who printed it for me on his 3d printer and I was able to pick up my 3D print the next day. I can confidently say I'm happy with the way it printed especially in the crown area making it look very similar to a real bishop in chess.
Downloads
Conclusion
![FMN7XDKLHRPRNGS.jpg](/proxy/?url=https://content.instructables.com/F7B/ESG5/LHUKNTG2/F7BESG5LHUKNTG2.jpg&filename=FMN7XDKLHRPRNGS.jpg)
![FJJYJG7LHRPRNIR.jpg](/proxy/?url=https://content.instructables.com/FDX/78BO/LHUKNTG3/FDX78BOLHUKNTG3.jpg&filename=FJJYJG7LHRPRNIR.jpg)
![FTHUII4LHUKN1H8.png](/proxy/?url=https://content.instructables.com/FQC/JN8R/LHUKNTG5/FQCJN8RLHUKNTG5.png&filename=FTHUII4LHUKN1H8.png)
![FE096AULHRPRNMF.png](/proxy/?url=https://content.instructables.com/FGI/YTI8/LHUKNTG4/FGIYTI8LHUKNTG4.png&filename=FE096AULHRPRNMF.png)
![F1AY80YLHUKN1HL.png](/proxy/?url=https://content.instructables.com/F33/51G8/LHUKNTG6/F3351G8LHUKNTG6.png&filename=F1AY80YLHUKN1HL.png)
I hope I was able to provide a detailed explanation along with a good design to show my skill in 3D printing and what I've learned over the past two years in my class. It was a fun final project and I hope I was able to make more people interested in chess through my design, and I hope whoever sees my work enjoys it.
