Cheap and Easy IPhone Video Camera Mount
Have you ever wanted to take video of your iPhone because:
With this quick and easy (and cheap) Instructable, you will be able to shoot fabulous video of the iPhone in action. No more motion sickness!
Check out more tips and tricks at TechDiY.net
- you want to show off a cool trick
- you want want to demonstrate your new app
- you want to review an iPhone app
- you are bored and thought it would be cool
With this quick and easy (and cheap) Instructable, you will be able to shoot fabulous video of the iPhone in action. No more motion sickness!
Check out more tips and tricks at TechDiY.net
Stuff You Will Need
Tools - Some of this stuff you may not need and you might have to make adjustments in the drill bit size for your camera / tripod.
- Drill / driver
- 1/4 drill bit
- 3/16 drill bit
- Vice or some way to bend the shelf brace
- Hammer
- Screw driver
- Pliers

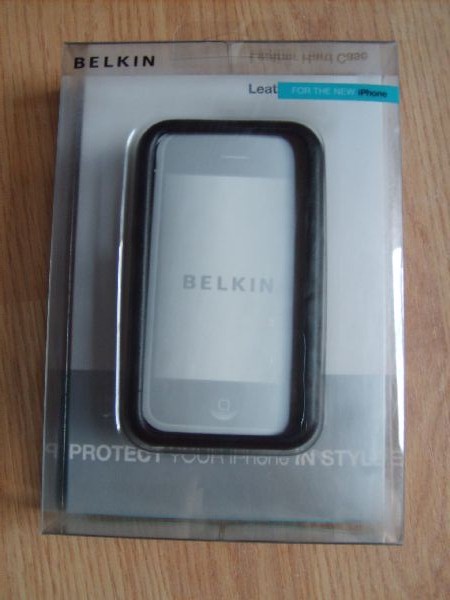

- Cheap iPhone case - my wife found this one at the Dollar Tree for (yep) a dollar!

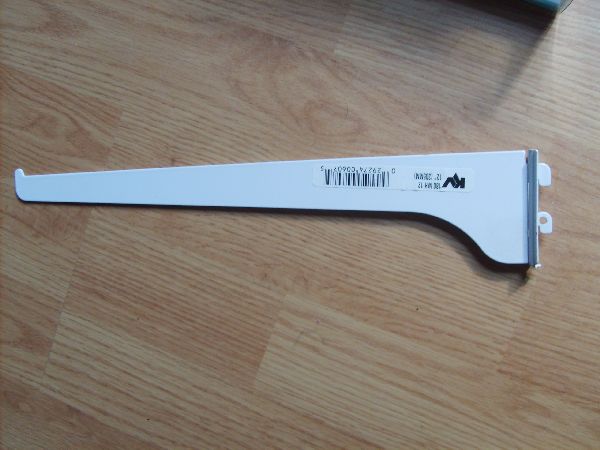

- Shelf bracket

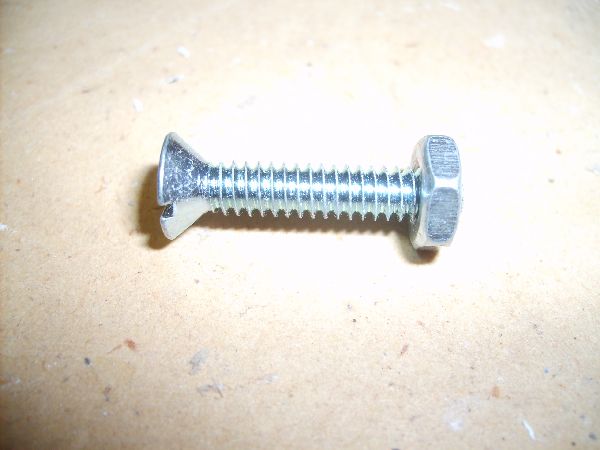

- Bolt for tapped hole and nut

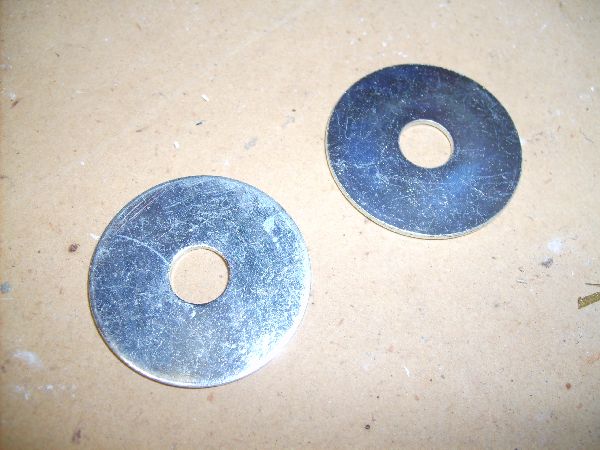

- Two washers
- Some duct tape (what's an Instructable without duct tape)
- iPhone
- Video or photo camera
- Tripod
Measure and Drill

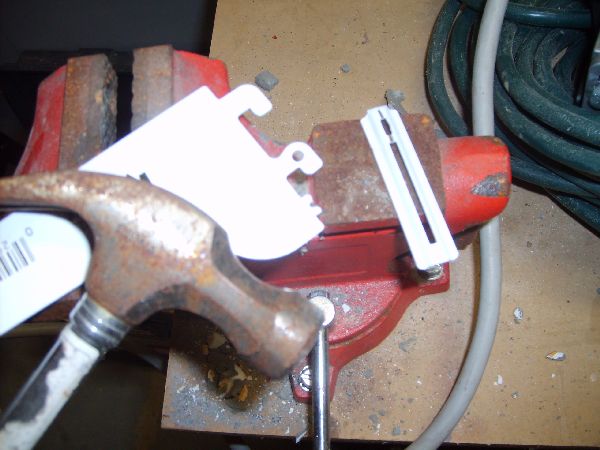

My shelf bracket had a weird piece on the end, but it was easy enough to get rid of with the help of the trusty hammer.
You need to make 3 holes in the shelf bracket. Two are for placing the bracket between the camera and tripod. One to mount the cheap iPhone case.

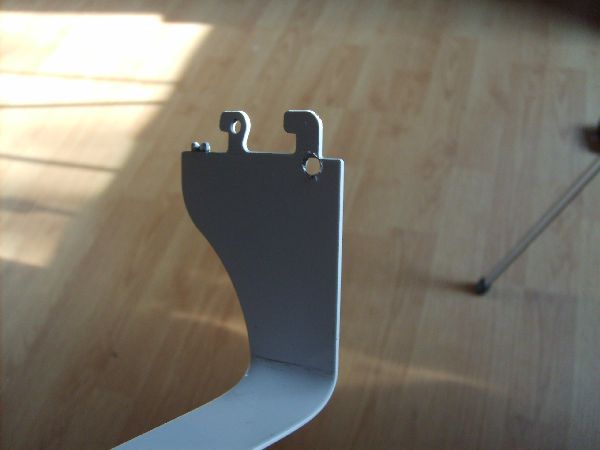

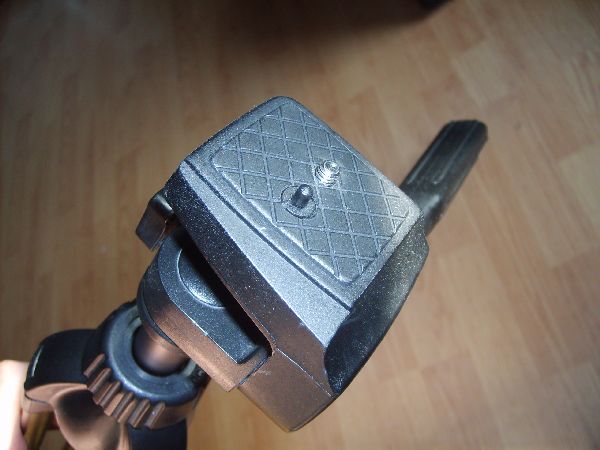

Measure out the 2 holes on the tripod. Notice one is larger than the other. Drill the two holes in the skinny end of the bracket (as shown in the picture).
Drill another hole in the wide end of the bracket for the iPhone case (as shown in the picture).
You need to make 3 holes in the shelf bracket. Two are for placing the bracket between the camera and tripod. One to mount the cheap iPhone case.
Measure out the 2 holes on the tripod. Notice one is larger than the other. Drill the two holes in the skinny end of the bracket (as shown in the picture).
Drill another hole in the wide end of the bracket for the iPhone case (as shown in the picture).
Bend the Bracket and Mount the Case
Mark where you want to bend the bracket. You will want to make sure that the case has plenty of room to swivel from side to side. Test this a few times before you make the bend!
Once you bent it (I used a vice to get a clean bend), it is time to mount the case. Simply drill a hole in the case, push the screw through the case and washers in this order:
Bolt ==> case - washer - bracket - washer - nut
Tighten it down enough to make the bolt be somewhat flush with the inside of the case, but loose enough that it can still turn pretty easily. Don't get it too loose or it will not hold itself in position.

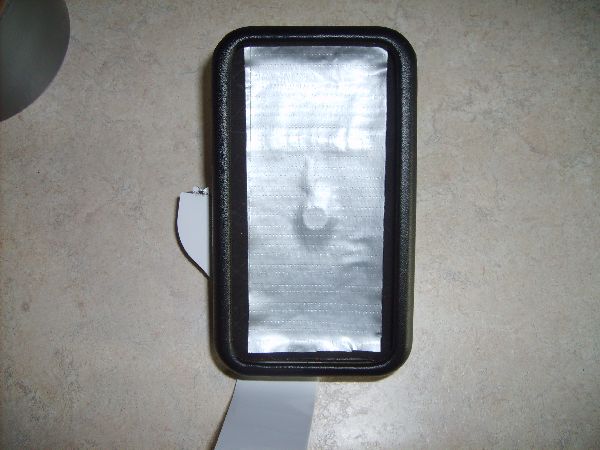

You probably want to put some tape over the bolt so it does not scratch up the back of your iPhone.
Once you bent it (I used a vice to get a clean bend), it is time to mount the case. Simply drill a hole in the case, push the screw through the case and washers in this order:
Bolt ==> case - washer - bracket - washer - nut
Tighten it down enough to make the bolt be somewhat flush with the inside of the case, but loose enough that it can still turn pretty easily. Don't get it too loose or it will not hold itself in position.
You probably want to put some tape over the bolt so it does not scratch up the back of your iPhone.
Bolt Onto Tripod and Enjoy

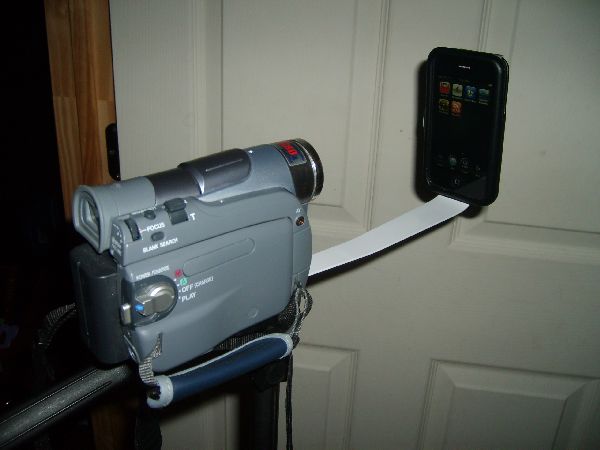

Place the bracket over the holes in the tripod. Then place the camera on the bracket and tighten it to the tripod.
Done! Now you can enjoy a steady(er) iPhone video shoot.
Check out more tips and tricks at TechDiY.net
Done! Now you can enjoy a steady(er) iPhone video shoot.
