Cheap WiFi Range Extender for IoT

How to build your own WiFi extender from a cheap $2-$8 ESP8266 WiFi module

***EDIT: Since the writing of this instructable, the firmware has been improved greatly, with the additional of a GUI settings page (like a normal router), firewall, power management, indicator LED, and automatic mesh networking (connect multiple units together) features! I will update this instructable at some point, but meanwhile, check out the details at Martin's GitHub page: link***

Notes: It will have slower connection speeds the farther the extender is away from your router, but fast speeds are not necessary for many IoT projects.

I needed a cheap way to increase WiFi range so that a IoT snail mail alert device could reach a distant WiFi router to connect to the internet and send notification to my phone. I stumbled upon Martin Ger's WiFi NAT Router firmware for the ESP8266 WiFi module, flashed it onto my $2 ESP-01 WiFi module, and it works quite well.

The router my extender connects to only reaches about 20 feet due to a wall, but with the extender plugged in 10 feet to 50 feet away from it, the connection reaches 310 feet and is just fast enough to stream YouTube!

Download the .zip file called "ESP8266Extend.zip" from http://makersa.ga which contains the firmware files and software tools you will need.

Unzip a.k.a. extract the zip you just downloaded to a location on your computer that is easy to find.

On Windows, this is done by right-clicking on the zip, and clicking "extract all".

You will need to acquire a few parts. the shopping links are below. You might be able to find cheaper identical parts somewhere else.

ESP8266 ESP01 + USB Adapter Pair - DealExtreme

In order to get the USB adapter talking to the computer, you may need to install the CH340 driver.

The subfolder from the zip you downloaded and extracted is called "CH341SER_win" for Windows or "CH34x_Install_mac" for Macs.

Simply open the program in the folder and install the drivers.

Plug the ESP01 into the USB adapter, plug it all into your computer, and flip the physical switch to "Prog" programming mode not "UART" mode.

Wait a minute for the drivers to initialize, then open up the program in the subfolder called "flash_download_tools_v3.4.1_win".

Open the next subfolder called "_MACOSX" if you are using a Mac, or open the subfolder called "FLASH_DOWNLOAD_TOOLS_V3.4.1_WIN" if you are on a Windows PC.

Run the application called "ESPFlashDownloadTool_v3.4.1" and select "ESP8266" after that.

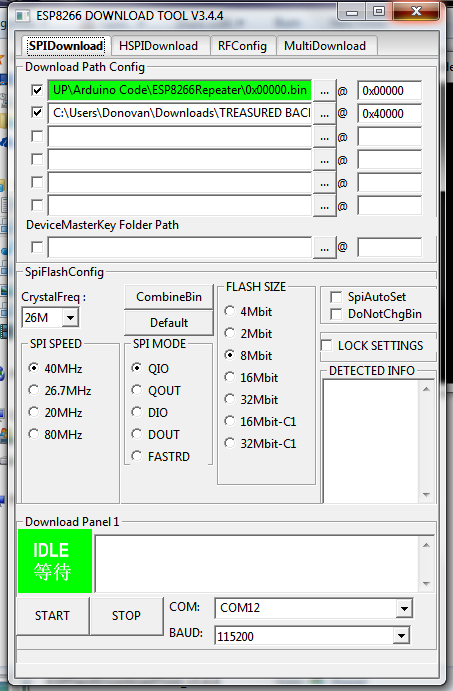

Setup that program to the setting shown in the screenshot below if you are using the ESP01 from the earlier shopping step:

1. If you are using a NodeMCU or Wemos D1 Mini module instead of the ESP01 or ESP07, switch the part that says "8Mbit" to "32Mbit" instead

2. For the ESP01 or ESP07, under "Download Path Config", click the three dots button for each section and browse to find the "firmware_sdk_1.5.4". Click each one and type out their names to the right as shown in the screenshot e.g. "0x00000" and "0x40000"

2.2. If you are using a different ESP8266 module variant instead of the esp01 I suggested, use the folder named "firmware" and use those .bins instead with their corresponding names to the right.

3. Select the COM port you want, and set the baud rate to "115200", then click "start", "flash" or "connect".

4. When it says "finish", unplug your adapter and ESP8266 module from your computer.

5. Flip the physical switch on the USB Adapter back to non-programming non-flash mode. This is important!

You must connect a computer to your extender in order to configure it. You can do this by using a serial terminal app such as the Arduino IDE serial monitor, or a program such as Putty.exe, setting the baud rate to "115200" with NL&CR (new line and carriage return) enabled then physically plugging the extender into your computer, OR you can use a connect wirelessly by connecting your device to the extender's WiFi (default name is "MyAP") and then use a Telnet app such as Putty.exe or JuiceSSH and adding a new connection on the ip address "192.168.4.1" with the TCP port set to "7777".

I have used the JuiceSSH app for Android and Arduino IDE Serial Monitor without hiccups

Once you have connected over telnet or serial, type the following bolded commands each followed with hitting the enter key:

(Without quotes, and replacing the hashtag symbols with you desired settings.)

set ssid #### This sets to the name of the router hotspot you want the extender to extend.

set password ##### This sets the password of the router hotspot you want the extender to extend.

set ap_ssid ##### This sets the name of the extender's hotspot.

set ap_password #### This sets the password of the extender's hotspot. NOTE: the password must be more than 8 characters long!

set ap_open 0 This turns password protection ON so only people who know the password can connect to the extender.

save This saves your settings.

quit This terminates a remote session.

So for example:

set ssid homewifi
set password 12345678
set ap_ssid makerextender
set ap_password 1234
set ap_open 0
save
quit

Unplug the extender. That's it for setup!

Tips:

You ought to wait a couple seconds between typing in each command, and you might need to type save after each command!

If you need to wipe all your settings back to default, you can type reset factory followed by save

For a master list of all possible commands, you can type help.

To see your configuration, you can type show .

EDIT: If you are using the Instructables mobile app, the bolding of commands in this step might not show as bolded. Let me know if that is the case!

You can use an plastic container to house your extender.

I plugged the extender (both the esp01 and the usb adapter) into a USB charger, and stuffed it all into half of a tootbrush travel case, then hot glued a seal to rain proof it.
