Cheap Food Mixing Robot

13, 7:26 PM.jpg
I'm 14 and ever since I was little I wanted to make a robot to mix my batter or risotto or whatever. I actually spent nothing for this project I just used parts an things I had lying around.

The Motor System

13, 7:26 PM.jpg
13, 7:26 PM.jpg
I used the motor from a robot called the "Smart Robot" which was a ball that spun around. I took the motor, gears, battery holder, wires and switch from it and wired it like it had been. I housed it in an Altoid's tin because I had a bunch lying around.

The Spoon and Mixing Mechanism

13, 7:26 PM.jpg
13, 7:26 PM.jpg
13, 7:26 PM.jpg

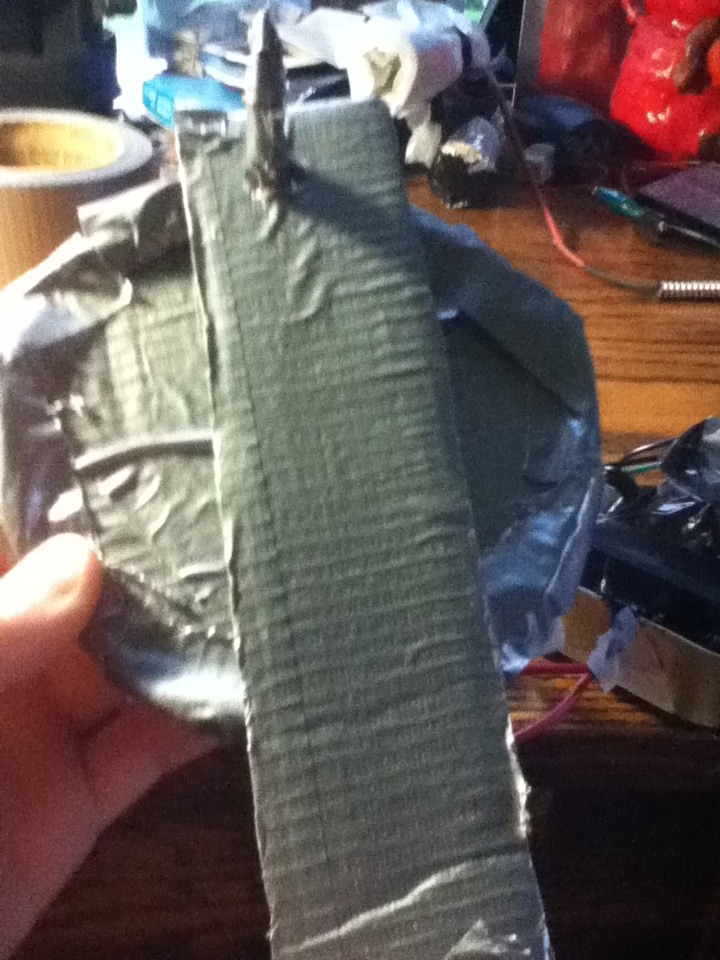

I cut out a circle and rectangle out of cardboard and covering them in duct tape to give it a sleek look. Then I made a hole in the center of the circle and both ends of the rectangle. I put a cylinder of cardboard on one end of the circle and slid the rectangle on through one of its holes. Then I slip on a spoon in the other hole in the cardboard and taped it on. I weighted each side of the circle with various items to make it balanced: a battery, a Chapstick container, and the weight from the robot. I put the motor's gear through the hole in the center of the circle and voila!!! A mixing robot
