Cheap Diy 3d Printer Made of MDF
by kumawatprem in Workshop > 3D Printing
3187 Views, 40 Favorites, 0 Comments

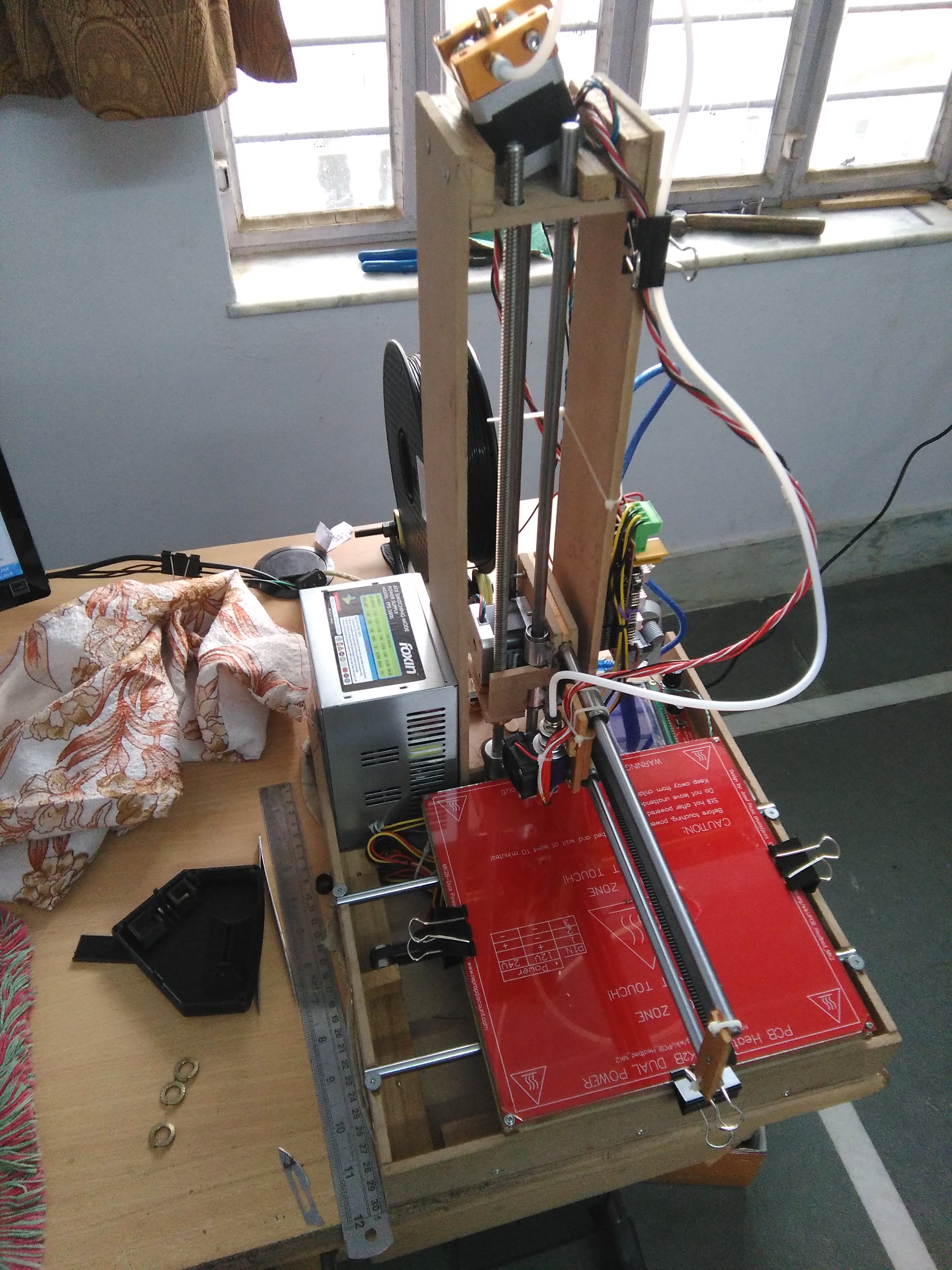

Cheap Diy 3d Printer Made of MDF
![PHOTO_20180728_172900.jpg](/proxy/?url=https://content.instructables.com/FM2/EBK1/JPN3PHJ0/FM2EBK1JPN3PHJ0.jpg&filename=PHOTO_20180728_172900.jpg)
![PHOTO_20180728_172921.jpg](/proxy/?url=https://content.instructables.com/FMY/KT3G/JPN3PHJ1/FMYKT3GJPN3PHJ1.jpg&filename=PHOTO_20180728_172921.jpg)
![PHOTO_20180728_172912.jpg](/proxy/?url=https://content.instructables.com/F3Q/FA5M/JPN3PHJ2/F3QFA5MJPN3PHJ2.jpg&filename=PHOTO_20180728_172912.jpg)
![PHOTO_20180722_214512.jpg](/proxy/?url=https://content.instructables.com/F19/S4CD/JPN3PHJ5/F19S4CDJPN3PHJ5.jpg&filename=PHOTO_20180722_214512.jpg)

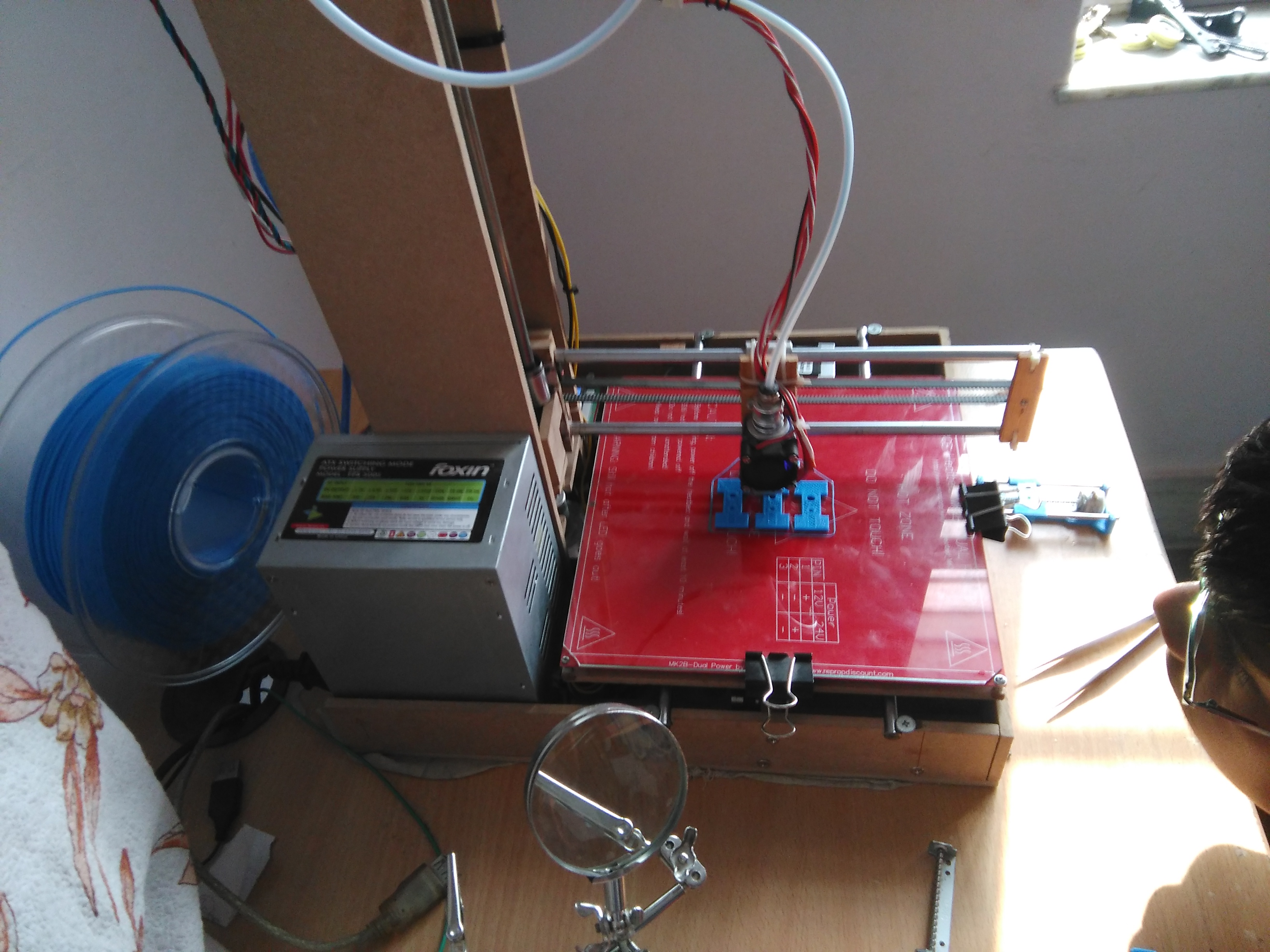

3d printing is really a awesome process because you can make anything you wants to make just design it and printer it but when it comes to a 3d printer it is a quite expensive in this instructables I will show you how to make a 3d printer So it's been a long time I wants to make a 3d printer I wants it to be cheap and compact and I went with cartesian type 3d printer I found it easy and simple to make and I don't have so many machines to build parts of it. So it is a completely hand made Diy 3d printer I try to make it a cheap as possible
Gather All the Components and Electronics
![PHOTO_20180715_103832.jpg](/proxy/?url=https://content.instructables.com/F2U/F4KS/JPLIZSXL/F2UF4KSJPLIZSXL.jpg&filename=PHOTO_20180715_103832.jpg)
![PHOTO_20180715_103844.jpg](/proxy/?url=https://content.instructables.com/F9C/LZOR/JPLIZSY7/F9CLZORJPLIZSY7.jpg&filename=PHOTO_20180715_103844.jpg)
![PHOTO_20180713_144538.jpg](/proxy/?url=https://content.instructables.com/FD8/X5H7/JPLIZSYI/FD8X5H7JPLIZSYI.jpg&filename=PHOTO_20180713_144538.jpg)
![PHOTO_20180716_110818.jpg](/proxy/?url=https://content.instructables.com/FE9/HS4E/JPLIZSYT/FE9HS4EJPLIZSYT.jpg&filename=PHOTO_20180716_110818.jpg)
![PHOTO_20180716_150350.jpg](/proxy/?url=https://content.instructables.com/FAX/K38D/JPLIZSYW/FAXK38DJPLIZSYW.jpg&filename=PHOTO_20180716_150350.jpg)
![downloadfile.jpg](/proxy/?url=https://content.instructables.com/FYQ/RI3H/JPLIZSYX/FYQRI3HJPLIZSYX.jpg&filename=downloadfile.jpg)
![3D-Printer-All-metal-Volcano-J-head-Hotend-Wade-Short-distance-Extruder-12V-Thermistor-Aluminum-Heat.jpg_640x640.jpg](/proxy/?url=https://content.instructables.com/FPL/N5R8/JPLIZSYY/FPLN5R8JPLIZSYY.jpg&filename=3D-Printer-All-metal-Volcano-J-head-Hotend-Wade-Short-distance-Extruder-12V-Thermistor-Aluminum-Heat.jpg_640x640.jpg)
![3d-printer-MK2B-Heat-Bed-iFuture-baroda-vadodara-gujarat-india.jpg](/proxy/?url=https://content.instructables.com/FSY/8FD8/JPLIZSZ1/FSY8FD8JPLIZSZ1.jpg&filename=3d-printer-MK2B-Heat-Bed-iFuture-baroda-vadodara-gujarat-india.jpg)
![IMG_20181215_093948.jpg](/proxy/?url=https://content.instructables.com/FSA/0020/JPN3RC14/FSA0020JPN3RC14.jpg&filename=IMG_20181215_093948.jpg)
- I Choose MDF for frame construction because it is lighter and strong (6mm thick)

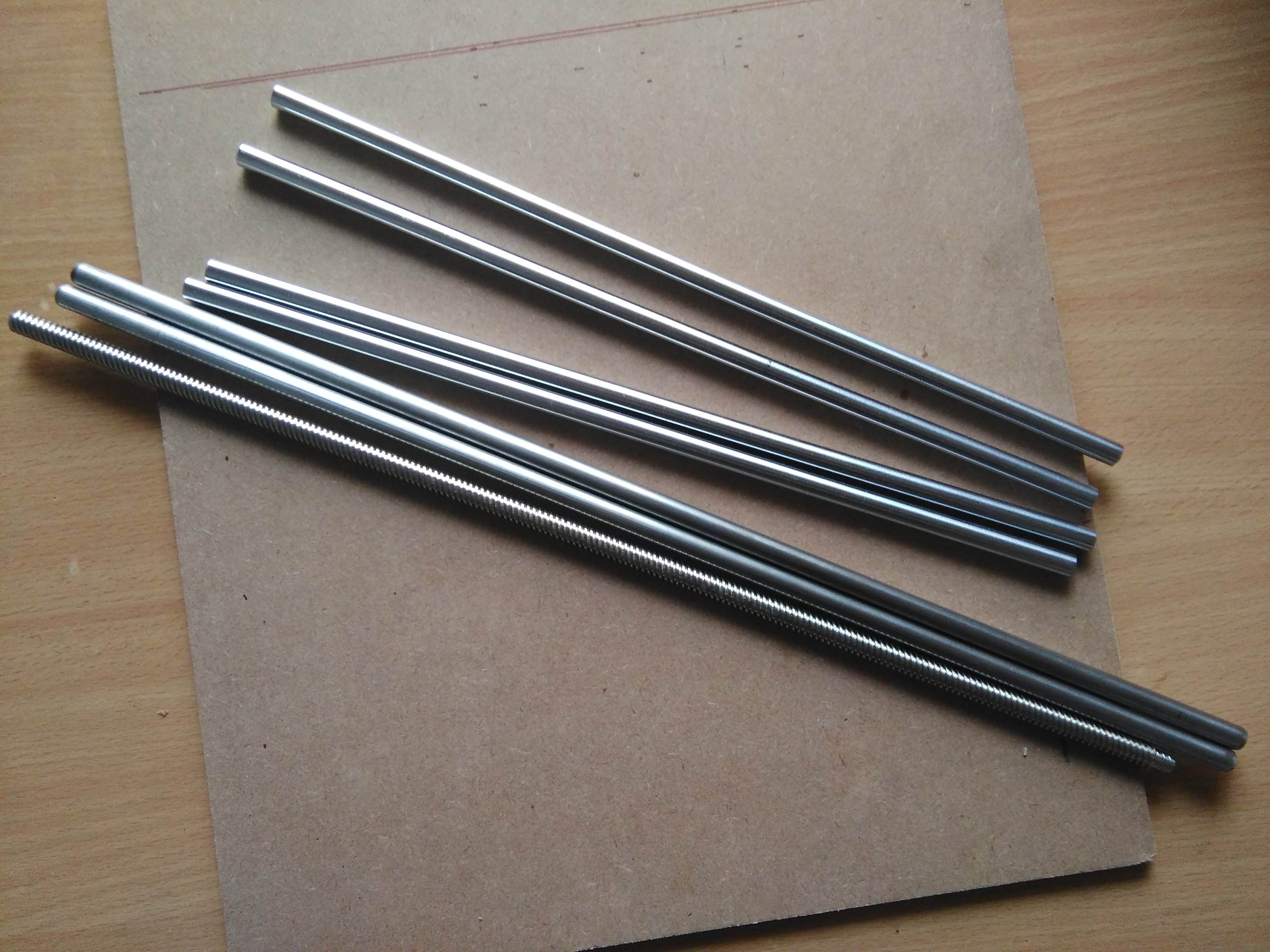

- 8mm standard ss rods 2x400mm,4x300mm
- 8mm linear bearing (LM8UU) 8pcs.
- 4 nema 17 stepper motor 1.7amp 4.2kg-cm
- Ramps 1.4 kit with Arduino mega
- Heatbed mk2
- Aluminum hotend v6
- Gt2 belt 2meter 6mm
- 2 ,20 tooth pulley
- Nema 14 flexible coupling
- Leadscrew 400mm
- Mostly parte I bought for eBay
- 2 100k thermistor
- Smps power supply of a PC should be about 450w
X Carriage
![PHOTO_20180710_103846.jpg](/proxy/?url=https://content.instructables.com/FRY/NEZD/JPN3N0EX/FRYNEZDJPN3N0EX.jpg&filename=PHOTO_20180710_103846.jpg)
![PHOTO_20180710_103753.jpg](/proxy/?url=https://content.instructables.com/FEU/KURV/JPN3N0F7/FEUKURVJPN3N0F7.jpg&filename=PHOTO_20180710_103753.jpg)
![PHOTO_20180710_103837.jpg](/proxy/?url=https://content.instructables.com/F85/FRTM/JPN3N0FJ/F85FRTMJPN3N0FJ.jpg&filename=PHOTO_20180710_103837.jpg)
![PHOTO_20180710_135810.jpg](/proxy/?url=https://content.instructables.com/FJR/6LSJ/JPN3N0G0/FJR6LSJJPN3N0G0.jpg&filename=PHOTO_20180710_135810.jpg)
![PHOTO_20180710_135824.jpg](/proxy/?url=https://content.instructables.com/F95/XCW5/JPN3N0GN/F95XCW5JPN3N0GN.jpg&filename=PHOTO_20180710_135824.jpg)
![PHOTO_20180711_125454.jpg](/proxy/?url=https://content.instructables.com/F1M/GFI3/JPN3N0GZ/F1MGFI3JPN3N0GZ.jpg&filename=PHOTO_20180711_125454.jpg)
![PHOTO_20180711_125354.jpg](/proxy/?url=https://content.instructables.com/F8G/T7TY/JPN3N0HD/F8GT7TYJPN3N0HD.jpg&filename=PHOTO_20180711_125354.jpg)
![PHOTO_20180711_125414.jpg](/proxy/?url=https://content.instructables.com/FB7/2B7K/JPN3N0HM/FB72B7KJPN3N0HM.jpg&filename=PHOTO_20180711_125414.jpg)
![PHOTO_20180711_125236.jpg](/proxy/?url=https://content.instructables.com/FA3/DJ2Y/JPN3N0I1/FA3DJ2YJPN3N0I1.jpg&filename=PHOTO_20180711_125236.jpg)

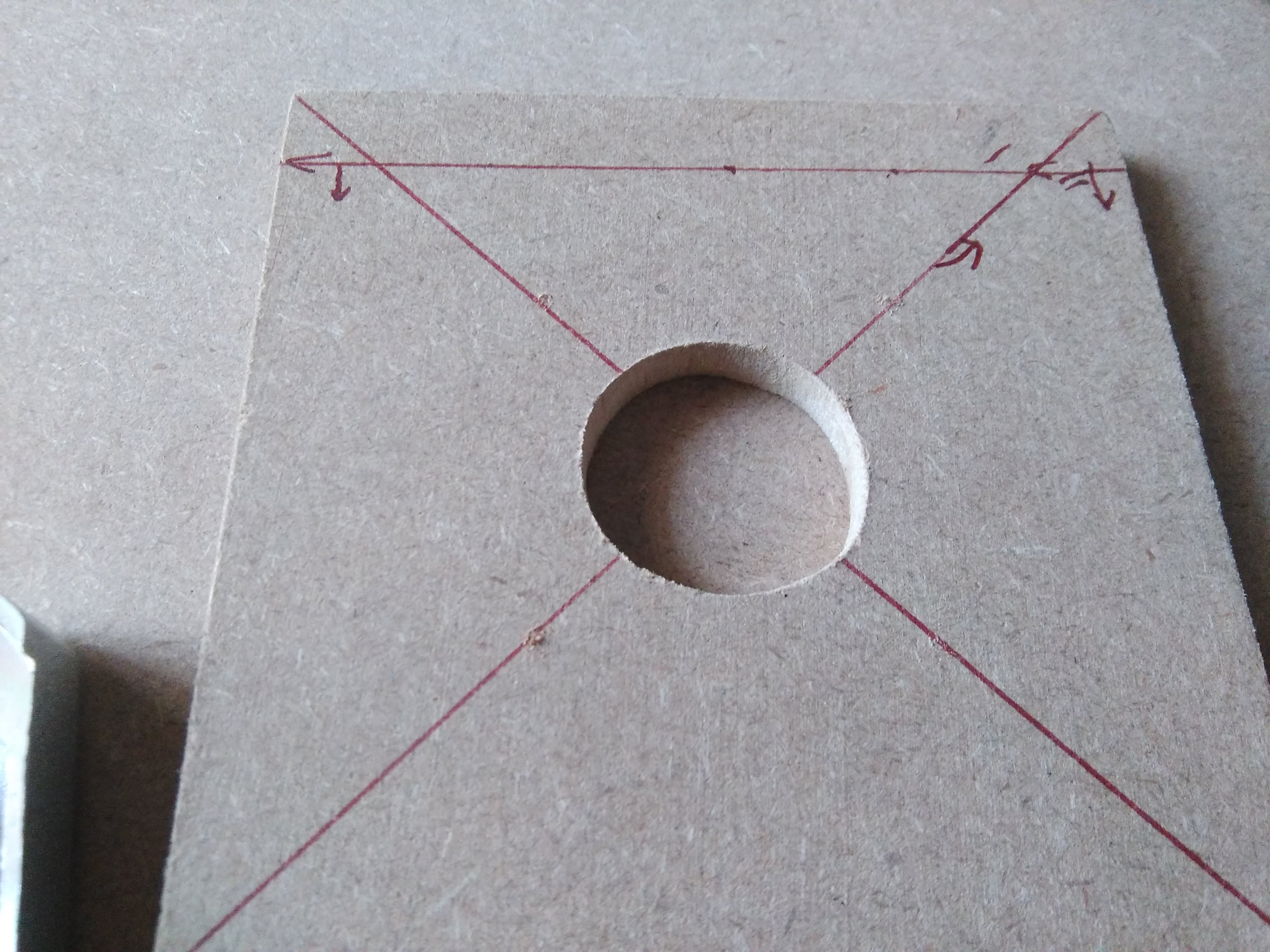

- First cut two pieces of 8x8 cm pick one and drill hole in middle A/Q first picture.

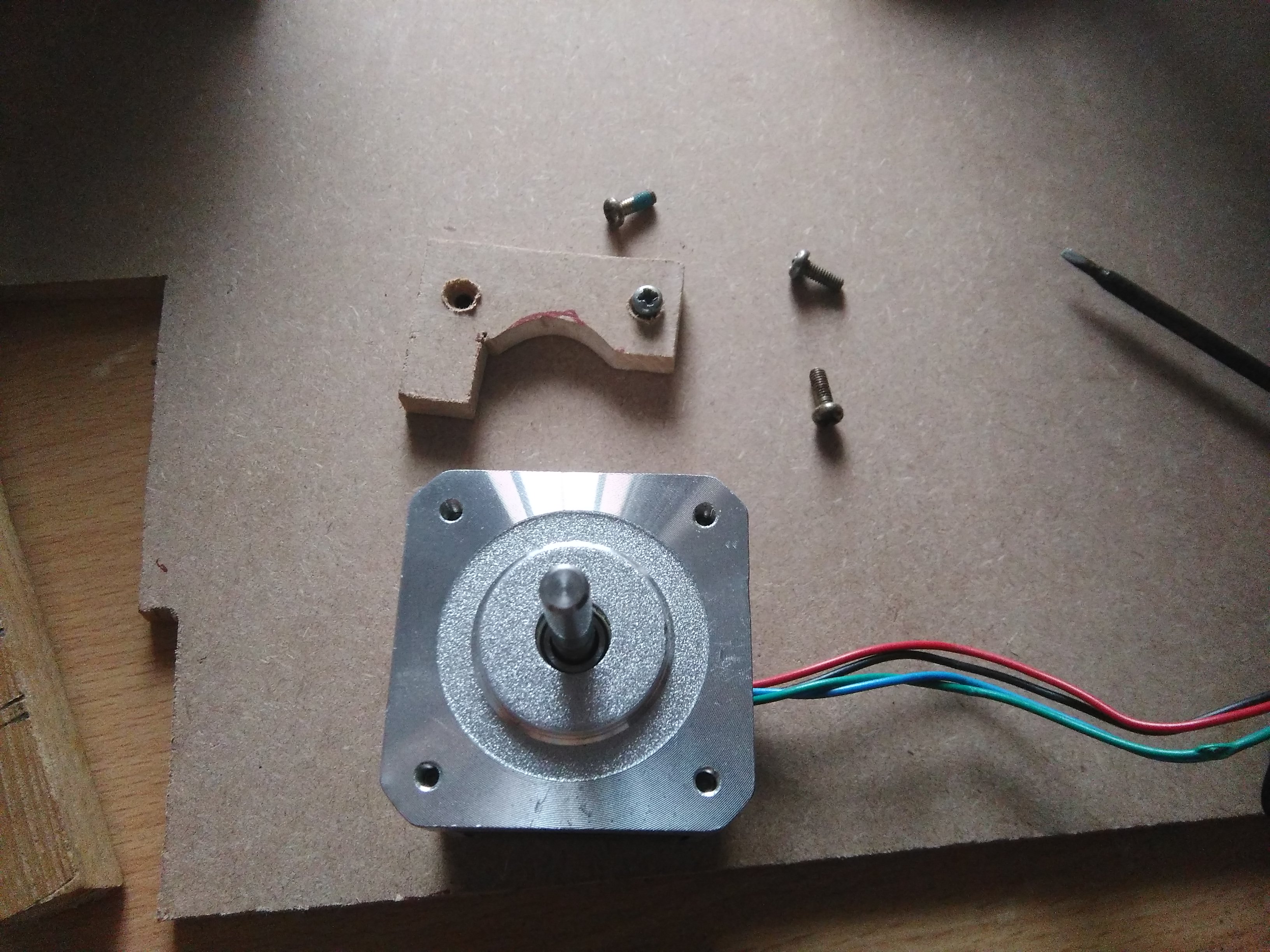

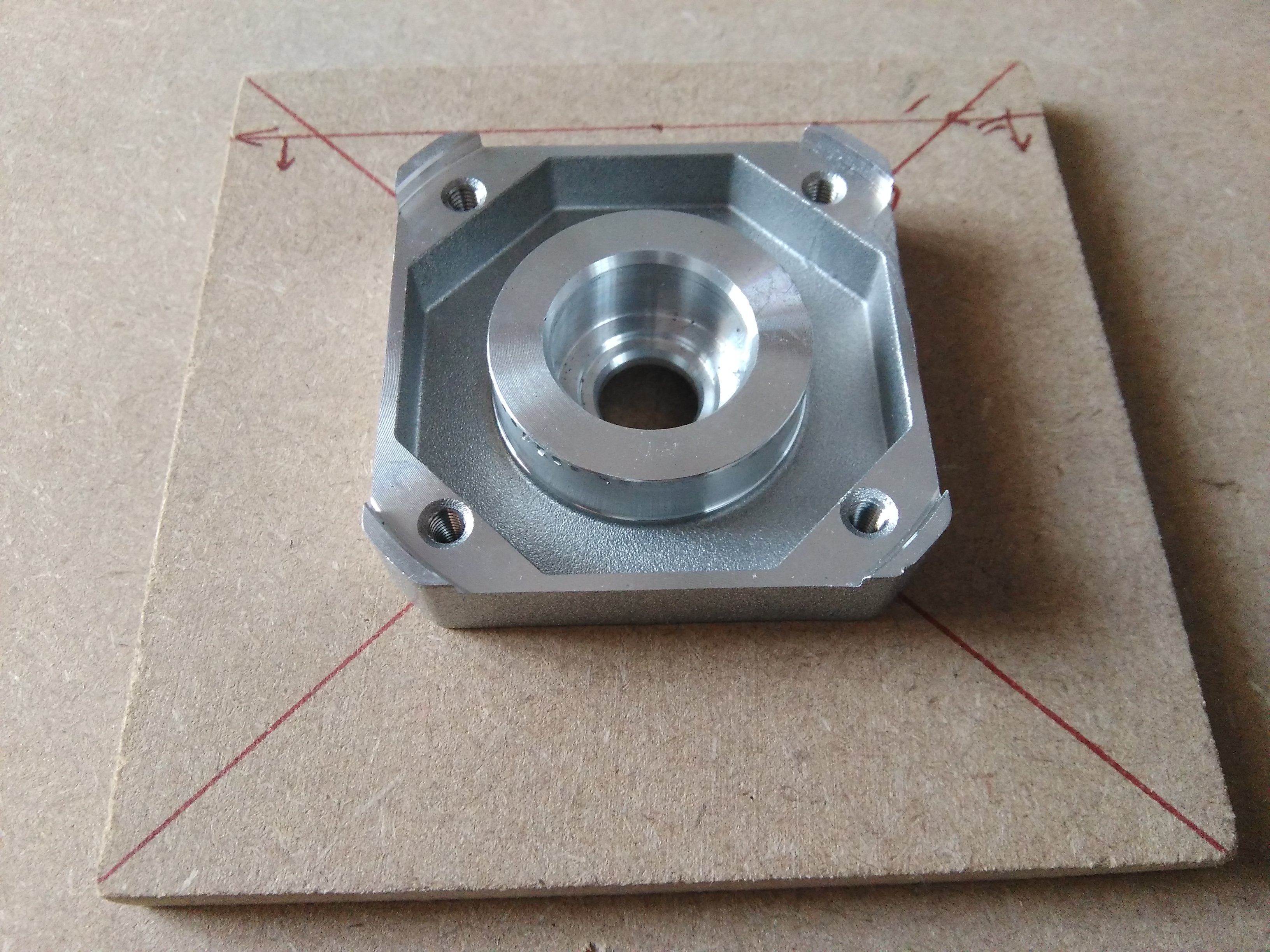

- Screw the stepper motor in it as shown in 2nd picture and tight the all 4 screws.
- Now mount all 3 LM8UU bearings with brackets which I made with aluminum sheet.

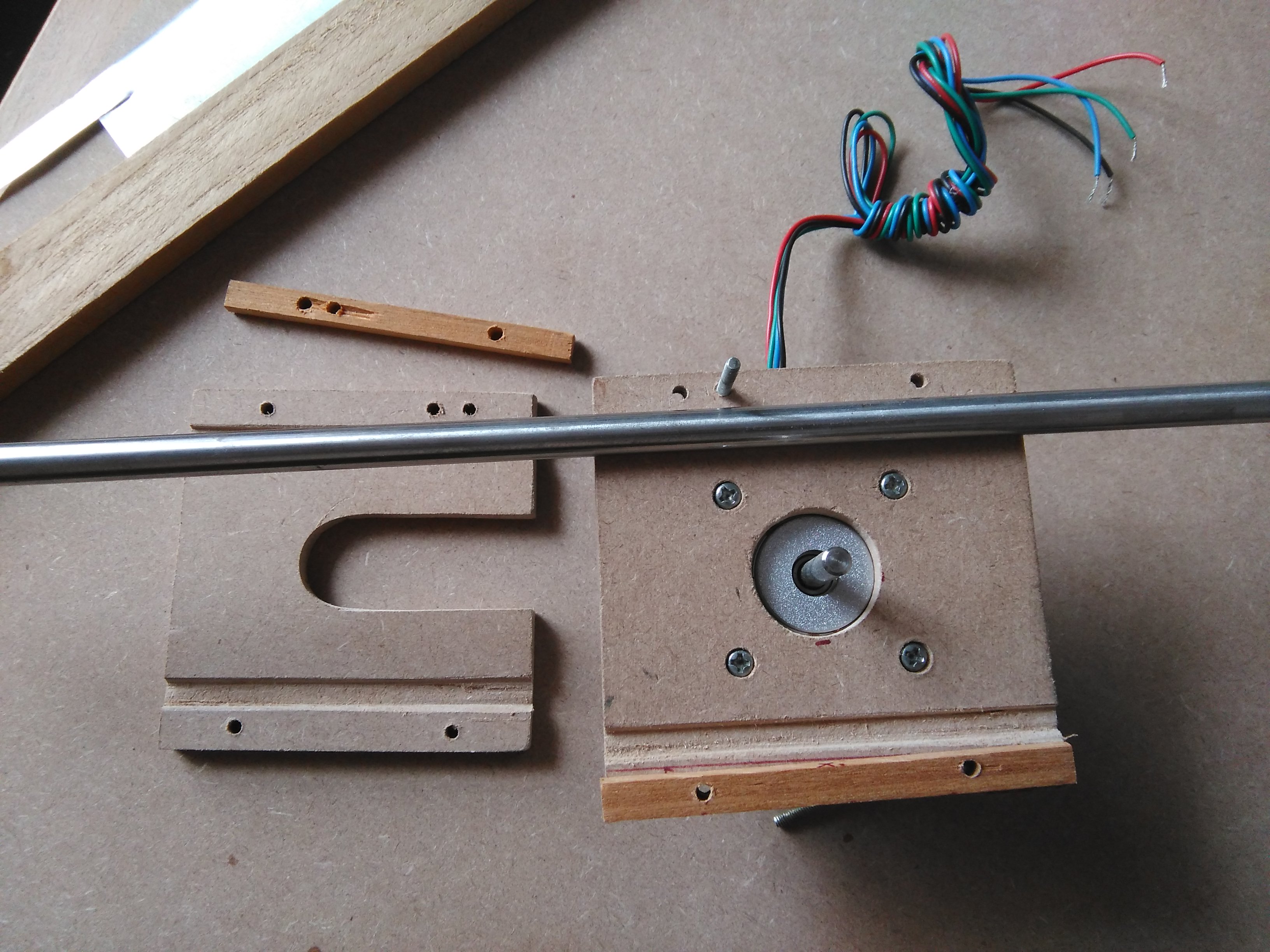

- Cut a U shape from one end to middle to make a way for gt2 pully A/Q to picture 6.
- I make a two keyways in each piece to support the rods with 2 washers and 4 nuts and bolts.
- These keyways should be parallal to each other and perpendicular to bearings in addition to avoid any mis aligment.
- Drill all the holes in both pieces to gather so that these pieces should screw well in a perfectly Alignment.
Y Carriage
![PHOTO_20180708_165400.jpg](/proxy/?url=https://content.instructables.com/F4G/ADJU/JPN3N4GQ/F4GADJUJPN3N4GQ.jpg&filename=PHOTO_20180708_165400.jpg)
![PHOTO_20180708_165411.jpg](/proxy/?url=https://content.instructables.com/FOS/9B3S/JPN3N4HP/FOS9B3SJPN3N4HP.jpg&filename=PHOTO_20180708_165411.jpg)
![PHOTO_20180708_165521.jpg](/proxy/?url=https://content.instructables.com/FW9/4RLM/JPN3N4IM/FW94RLMJPN3N4IM.jpg&filename=PHOTO_20180708_165521.jpg)
![PHOTO_20180708_165454.jpg](/proxy/?url=https://content.instructables.com/FJ9/6NZ6/JPN3N4JL/FJ96NZ6JPN3N4JL.jpg&filename=PHOTO_20180708_165454.jpg)
- Cut a piece of MDF of same dimensions of bed with 2mm allowance to each side.
- Glue two pieces of margen parallal to each other to support the bearings .
- Mount 3 linear bearing as in picture and screw them with aluminum brackets and bolts.
- Than drill 4 holes at the corners and mount the bed with 4 springs to label the bed.
- Add a glass of 2mm on the bed of same size.
Z Carriage
![PHOTO_20180712_114306.jpg](/proxy/?url=https://content.instructables.com/FIG/M08G/JPN3PHOP/FIGM08GJPN3PHOP.jpg&filename=PHOTO_20180712_114306.jpg)
![PHOTO_20180712_122243.jpg](/proxy/?url=https://content.instructables.com/F3J/8YUY/JPN3PHOY/F3J8YUYJPN3PHOY.jpg&filename=PHOTO_20180712_122243.jpg)
![PHOTO_20180712_135659.jpg](/proxy/?url=https://content.instructables.com/FKK/ESGM/JPN3PHP4/FKKESGMJPN3PHP4.jpg&filename=PHOTO_20180712_135659.jpg)
![PHOTO_20180712_135709.jpg](/proxy/?url=https://content.instructables.com/F0G/WA8O/JPN3PHP5/F0GWA8OJPN3PHP5.jpg&filename=PHOTO_20180712_135709.jpg)
![PHOTO_20180712_135725.jpg](/proxy/?url=https://content.instructables.com/FU3/2QO6/JPN3PHP7/FU32QO6JPN3PHP7.jpg&filename=PHOTO_20180712_135725.jpg)
![PHOTO_20180712_170112.jpg](/proxy/?url=https://content.instructables.com/F4X/AIQC/JPN3PHPB/F4XAIQCJPN3PHPB.jpg&filename=PHOTO_20180712_170112.jpg)
![PHOTO_20180712_170127.jpg](/proxy/?url=https://content.instructables.com/FQP/QKYP/JPN3PHPE/FQPQKYPJPN3PHPE.jpg&filename=PHOTO_20180712_170127.jpg)
- Cut two pieces of MDF of 42x9 cm A/Q to picture 1st .
- Than cut two square pieces of 9x9cm.
- Cut two pieces of margen and screw them together one by one with screws A/Q to picture 5.
- Drill two holes for the rods at a distance of 3.5 cm from one side on both pieces of 9x9 cm .
- Distance between these two rods varies according to the distance of x carriage bearings.

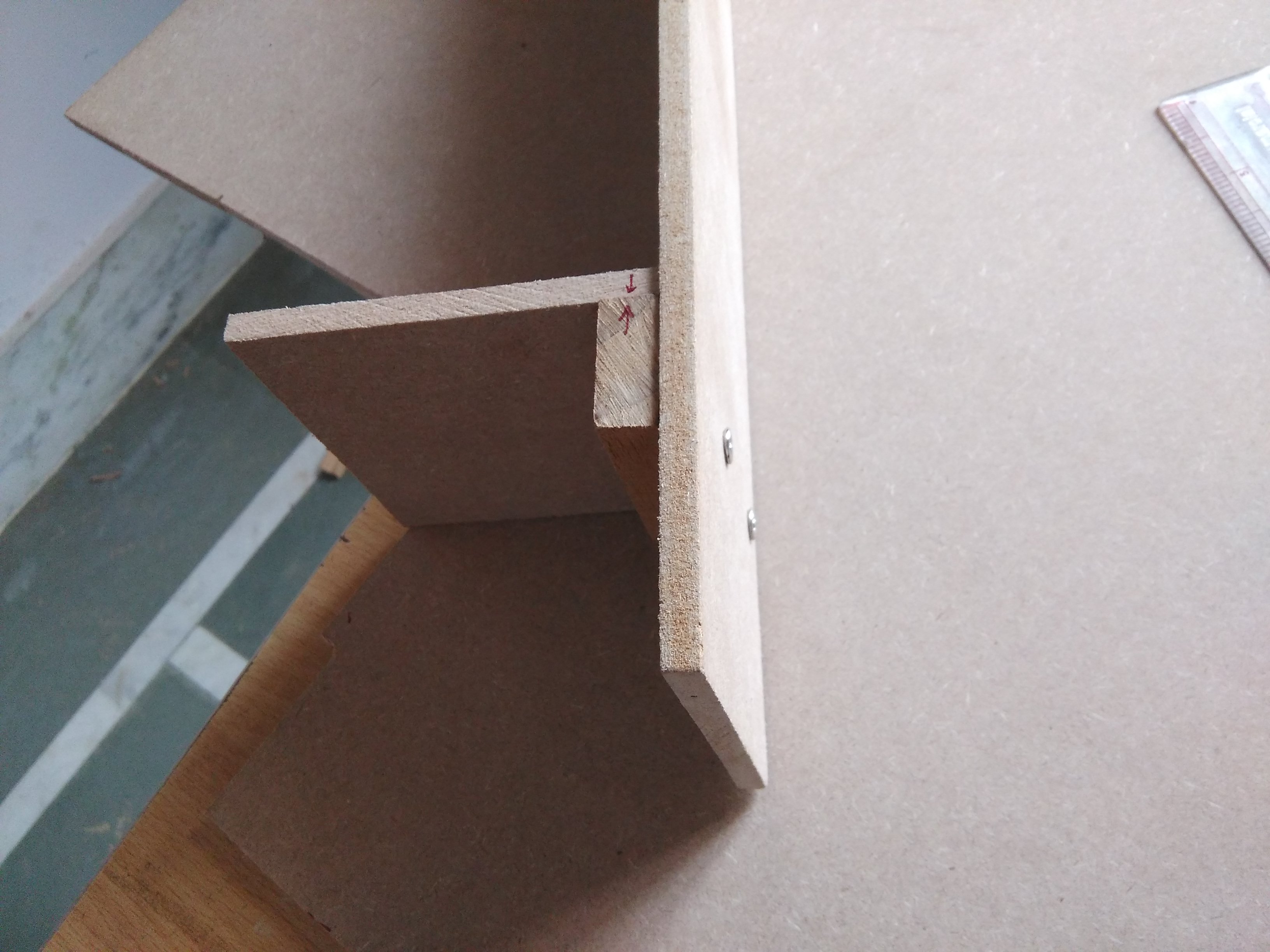

- Now screw another piece of 42x9 cm on another side and complete the tower.(picture 7).
Building the Base and Structure for Y Carriage
![PHOTO_20180715_144946.jpg](/proxy/?url=https://content.instructables.com/FDI/6SP1/JPN3PJCN/FDI6SP1JPN3PJCN.jpg&filename=PHOTO_20180715_144946.jpg)
![PHOTO_20180715_152522.jpg](/proxy/?url=https://content.instructables.com/FBE/OQGG/JPN3PJCO/FBEOQGGJPN3PJCO.jpg&filename=PHOTO_20180715_152522.jpg)
![PHOTO_20180715_152532.jpg](/proxy/?url=https://content.instructables.com/FT3/NI8J/JPN3PJE1/FT3NI8JJPN3PJE1.jpg&filename=PHOTO_20180715_152532.jpg)
![PHOTO_20180713_155745.jpg](/proxy/?url=https://content.instructables.com/FYP/Y85K/JPN3PJE2/FYPY85KJPN3PJE2.jpg&filename=PHOTO_20180713_155745.jpg)
![PHOTO_20180716_144831.jpg](/proxy/?url=https://content.instructables.com/F8R/WTED/JPN3PJE3/F8RWTEDJPN3PJE3.jpg&filename=PHOTO_20180716_144831.jpg)
![PHOTO_20180716_145851.jpg](/proxy/?url=https://content.instructables.com/F18/I67V/JPN3PJE4/F18I67VJPN3PJE4.jpg&filename=PHOTO_20180716_145851.jpg)
![PHOTO_20180717_115802.jpg](/proxy/?url=https://content.instructables.com/F00/HSU6/JPN3PJE7/F00HSU6JPN3PJE7.jpg&filename=PHOTO_20180717_115802.jpg)
![PHOTO_20180718_112924.jpg](/proxy/?url=https://content.instructables.com/F9I/MR6F/JPN3PK2J/F9IMR6FJPN3PK2J.jpg&filename=PHOTO_20180718_112924.jpg)
![PHOTO_20180718_112902.jpg](/proxy/?url=https://content.instructables.com/FZD/JES5/JPN3PK2K/FZDJES5JPN3PK2K.jpg&filename=PHOTO_20180718_112902.jpg)

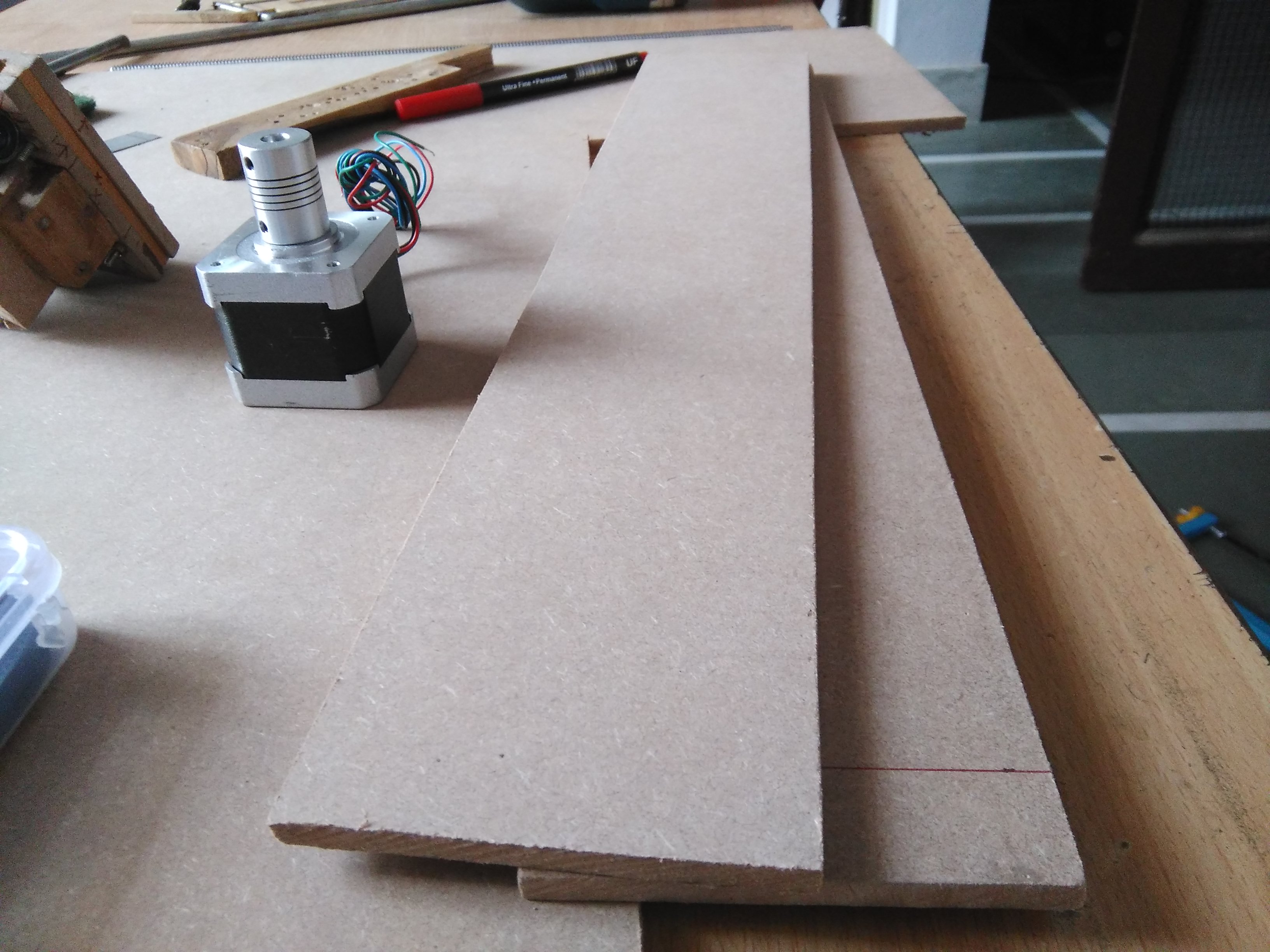

- Cut one piece of 30x34cm of same MDF for the base.
- Cut three stpips of MDF of 4.5x30 (1 piece ),4.5x33.5(2 pieces).
- Screw them with the help of screws.

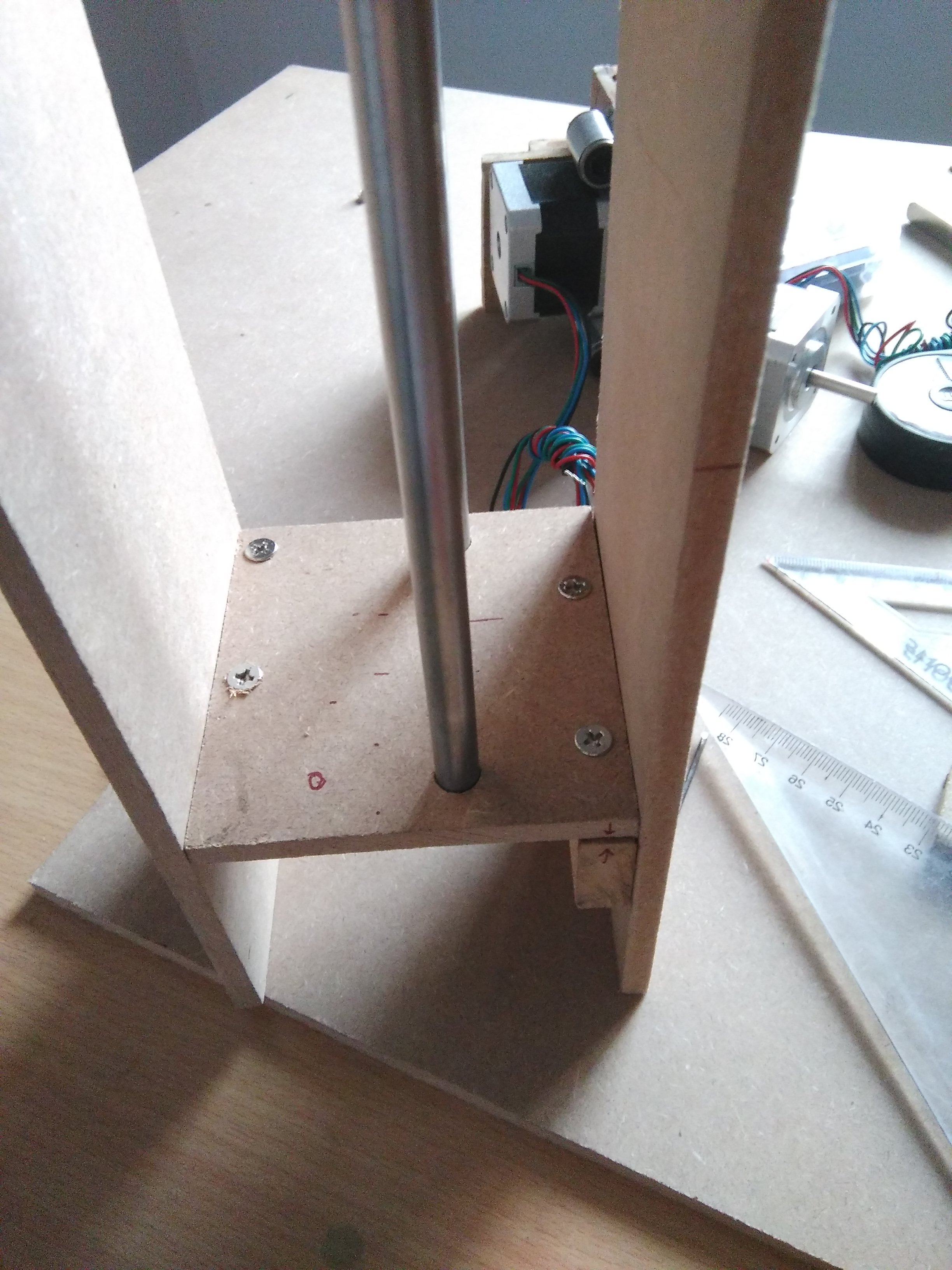

- Next is to mount a stepper motor for Y axis according to picture 4&5.
- And add a bearing to support the gt2 belt as picture 6(I got this bearing from a old hard drive of a computer).
- Now mount the bed and tighten the belt .

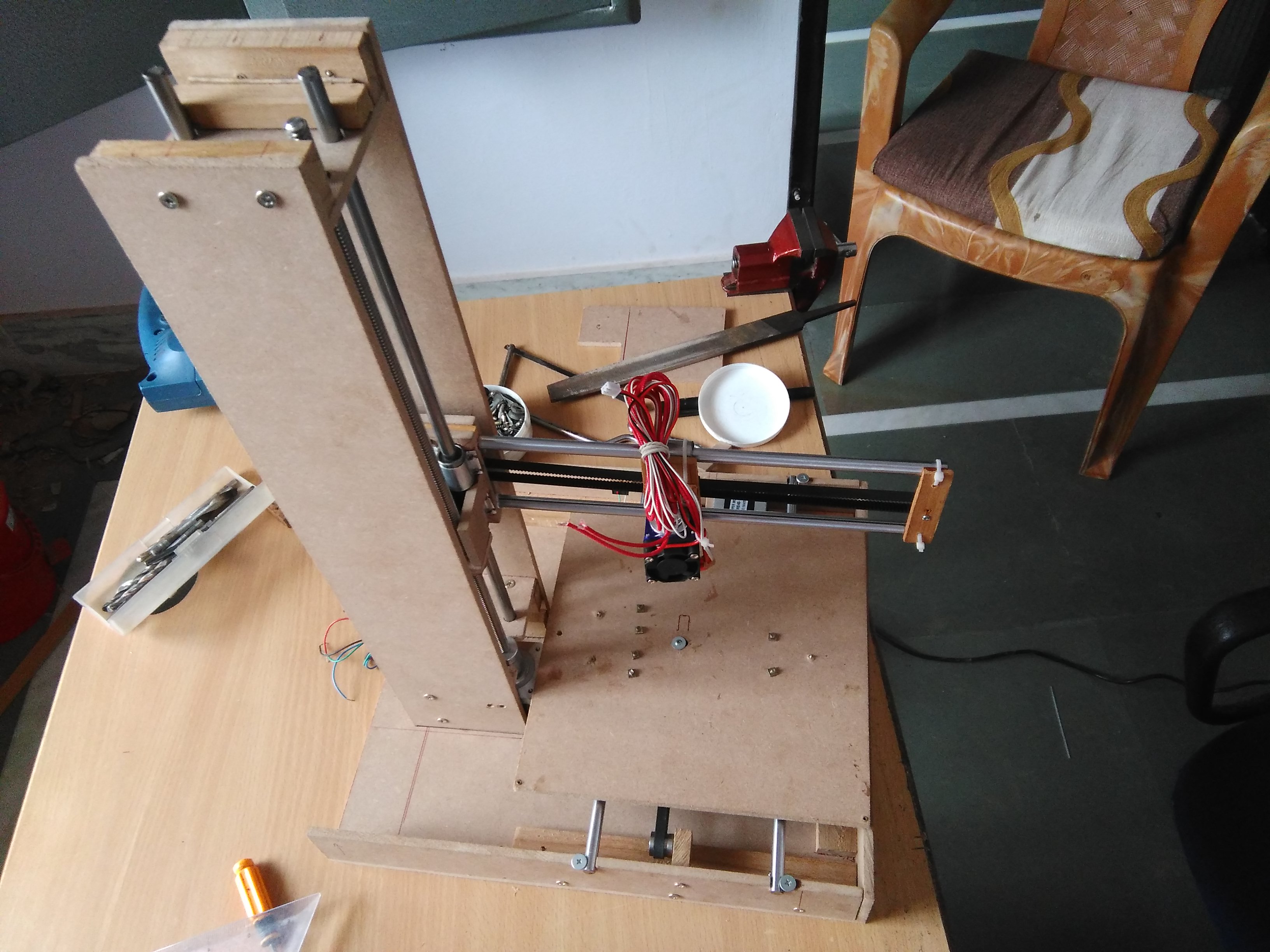

- Next step is to screw the tower.
Assembling the Another Components
![PHOTO_20180718_113233.jpg](/proxy/?url=https://content.instructables.com/FY2/BAPM/JPN3PLKY/FY2BAPMJPN3PLKY.jpg&filename=PHOTO_20180718_113233.jpg)
![PHOTO_20180718_113436.jpg](/proxy/?url=https://content.instructables.com/F9U/YNRZ/JPN3PLL7/F9UYNRZJPN3PLL7.jpg&filename=PHOTO_20180718_113436.jpg)
![PHOTO_20180719_111906.jpg](/proxy/?url=https://content.instructables.com/FTC/I2PD/JPN3PLLG/FTCI2PDJPN3PLLG.jpg&filename=PHOTO_20180719_111906.jpg)
![PHOTO_20180719_111916.jpg](/proxy/?url=https://content.instructables.com/FE4/ASL1/JPN3PLLX/FE4ASL1JPN3PLLX.jpg&filename=PHOTO_20180719_111916.jpg)
![PHOTO_20180715_110414.jpg](/proxy/?url=https://content.instructables.com/FT2/FXAM/JPN3PLLZ/FT2FXAMJPN3PLLZ.jpg&filename=PHOTO_20180715_110414.jpg)
![PHOTO_20180715_131842.jpg](/proxy/?url=https://content.instructables.com/FWE/AK8B/JPN3PLM3/FWEAK8BJPN3PLM3.jpg&filename=PHOTO_20180715_131842.jpg)
![PHOTO_20180715_125229.jpg](/proxy/?url=https://content.instructables.com/F8W/M6DC/JPN3PLM4/F8WM6DCJPN3PLM4.jpg&filename=PHOTO_20180715_125229.jpg)
![PHOTO_20180715_133442.jpg](/proxy/?url=https://content.instructables.com/FUW/4U2C/JPN3PLM7/FUW4U2CJPN3PLM7.jpg&filename=PHOTO_20180715_133442.jpg)
![PHOTO_20180719_111916.jpg](/proxy/?url=https://content.instructables.com/FGK/6JKW/JPN3PLMB/FGK6JKWJPN3PLMB.jpg&filename=PHOTO_20180719_111916.jpg)
- Mount X carriage on tower by inserting the both rods on bearing.
- Than mount the stepper with leadscrew and nut .
- Mount the metal hotend with the help of two brackets .

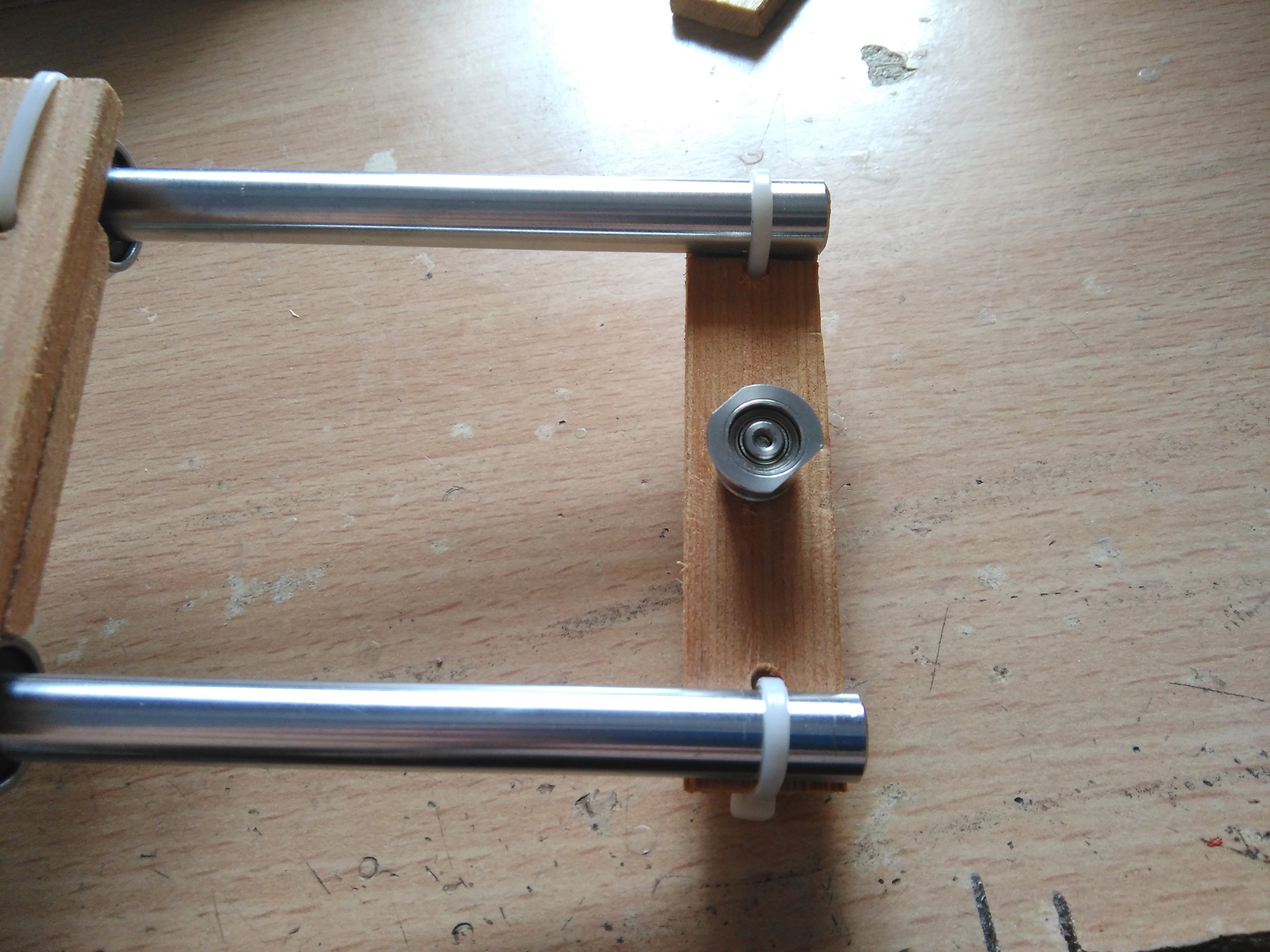

- Mount the another bearing to the another side of X carriage to support the belt and I screw the belt on the carriage.
- Insert the hotend slide on X carriage.
- I mount linear bearing with the help of zip ties .
Mounting All the Electronics and Power Supply
![PHOTO_20180713_144538.jpg](/proxy/?url=https://content.instructables.com/FS7/EZYS/JPN3PMXS/FS7EZYSJPN3PMXS.jpg&filename=PHOTO_20180713_144538.jpg)
![PHOTO_20180713_144550.jpg](/proxy/?url=https://content.instructables.com/F6Q/4BPL/JPN3PMY1/F6Q4BPLJPN3PMY1.jpg&filename=PHOTO_20180713_144550.jpg)
![PHOTO_20180721_185331.jpg](/proxy/?url=https://content.instructables.com/FLY/B821/JPN3PMY3/FLYB821JPN3PMY3.jpg&filename=PHOTO_20180721_185331.jpg)
![PHOTO_20180721_185951.jpg](/proxy/?url=https://content.instructables.com/FBI/NB9H/JPN3PMYE/FBINB9HJPN3PMYE.jpg&filename=PHOTO_20180721_185951.jpg)
![PHOTO_20180718_171802.jpg](/proxy/?url=https://content.instructables.com/FPL/GDKC/JPN3PMYF/FPLGDKCJPN3PMYF.jpg&filename=PHOTO_20180718_171802.jpg)
![PHOTO_20180718_175001.jpg](/proxy/?url=https://content.instructables.com/FAO/KUME/JPN3PMYI/FAOKUMEJPN3PMYI.jpg&filename=PHOTO_20180718_175001.jpg)
![PHOTO_20180722_114348.jpg](/proxy/?url=https://content.instructables.com/FSJ/H8CH/JPN3PMYL/FSJH8CHJPN3PMYL.jpg&filename=PHOTO_20180722_114348.jpg)
![PHOTO_20180722_114337.jpg](/proxy/?url=https://content.instructables.com/FYO/I66F/JPN3PNS5/FYOI66FJPN3PNS5.jpg&filename=PHOTO_20180722_114337.jpg)
![PHOTO_20180728_172906.jpg](/proxy/?url=https://content.instructables.com/F2N/B8IC/JPN3PNSU/F2NB8ICJPN3PNSU.jpg&filename=PHOTO_20180728_172906.jpg)
- Insert all the jumpera on ramps 1.4 to select micro stepping.
- Insert all the a4988 stepper drivers on board with Arduino.

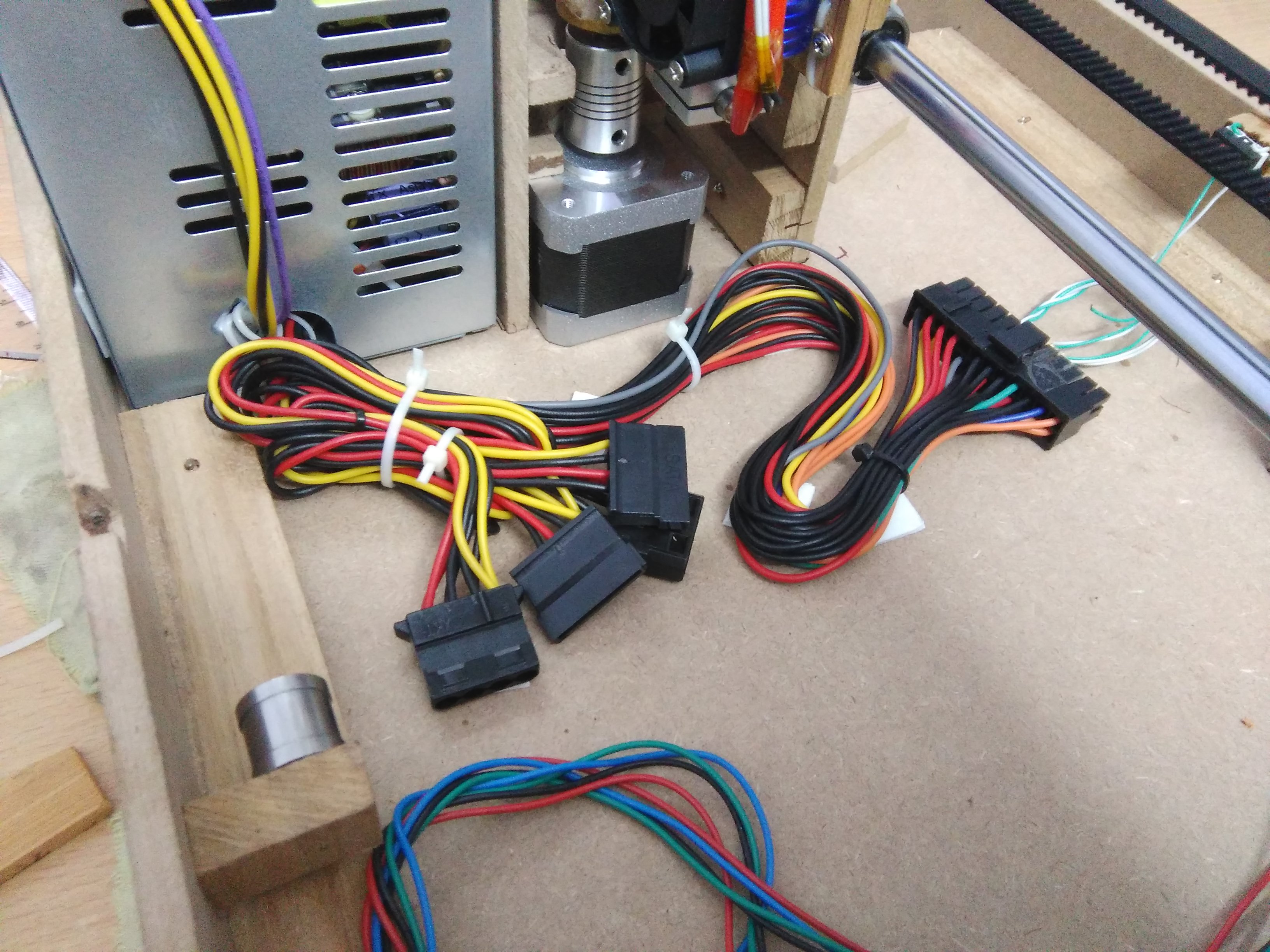

- Mount the power supply with double sided tape and secure the cable with zip ties .
- Now wire up all the components . It is open source so you found schematic and videos on internet .
- I mount ramps board on side of tower with zip ties
Testing and Trouble Shooting
![PHOTO_20180728_172921.jpg](/proxy/?url=https://content.instructables.com/FKV/D5AK/JPN3R7EE/FKVD5AKJPN3R7EE.jpg&filename=PHOTO_20180728_172921.jpg)
![PHOTO_20180728_180146.jpg](/proxy/?url=https://content.instructables.com/FO7/B2DG/JPN3R7EI/FO7B2DGJPN3R7EI.jpg&filename=PHOTO_20180728_180146.jpg)
![IMG_20180729_153259.jpg](/proxy/?url=https://content.instructables.com/FCF/WPDK/JPN3R7EJ/FCFWPDKJPN3R7EJ.jpg&filename=IMG_20180729_153259.jpg)
![IMG_20180729_151723.jpg](/proxy/?url=https://content.instructables.com/F7G/4NCX/JPN3R7EK/F7G4NCXJPN3R7EK.jpg&filename=IMG_20180729_151723.jpg)
![IMG_20181115_140118.jpg](/proxy/?url=https://content.instructables.com/F75/T61Z/JPN3R7EM/F75T61ZJPN3R7EM.jpg&filename=IMG_20181115_140118.jpg)
- Adjust the height of bed .
- Calibrate the extruder and motors untill you get movement as per input .
- I printed many things and I have to say that the quality of print is quite good as compared to price of printer
- I printed these parts at the speed of 120mm /min and prints come out just fine .
- So this is all about my printer it took me about 2 weeks to completely build it up.
- So with this printer I will print the parts for my next hypercube .
- I am done here if you like the instructables please like and Vote.
- Thanks
