Cheap DIY WiFi Booster for Router Antenna
by Zayyaan in Workshop > Science
275 Views, 2 Favorites, 0 Comments
Cheap DIY WiFi Booster for Router Antenna
![FV749XGKU9T4C05.jpeg](/proxy/?url=https://content.instructables.com/FCU/4IBE/KU9T4C06/FCU4IBEKU9T4C06.jpg&filename=FV749XGKU9T4C05.jpeg)
Cheap, Simple & Effective WIFI Antenna Signal Booster
Downloads

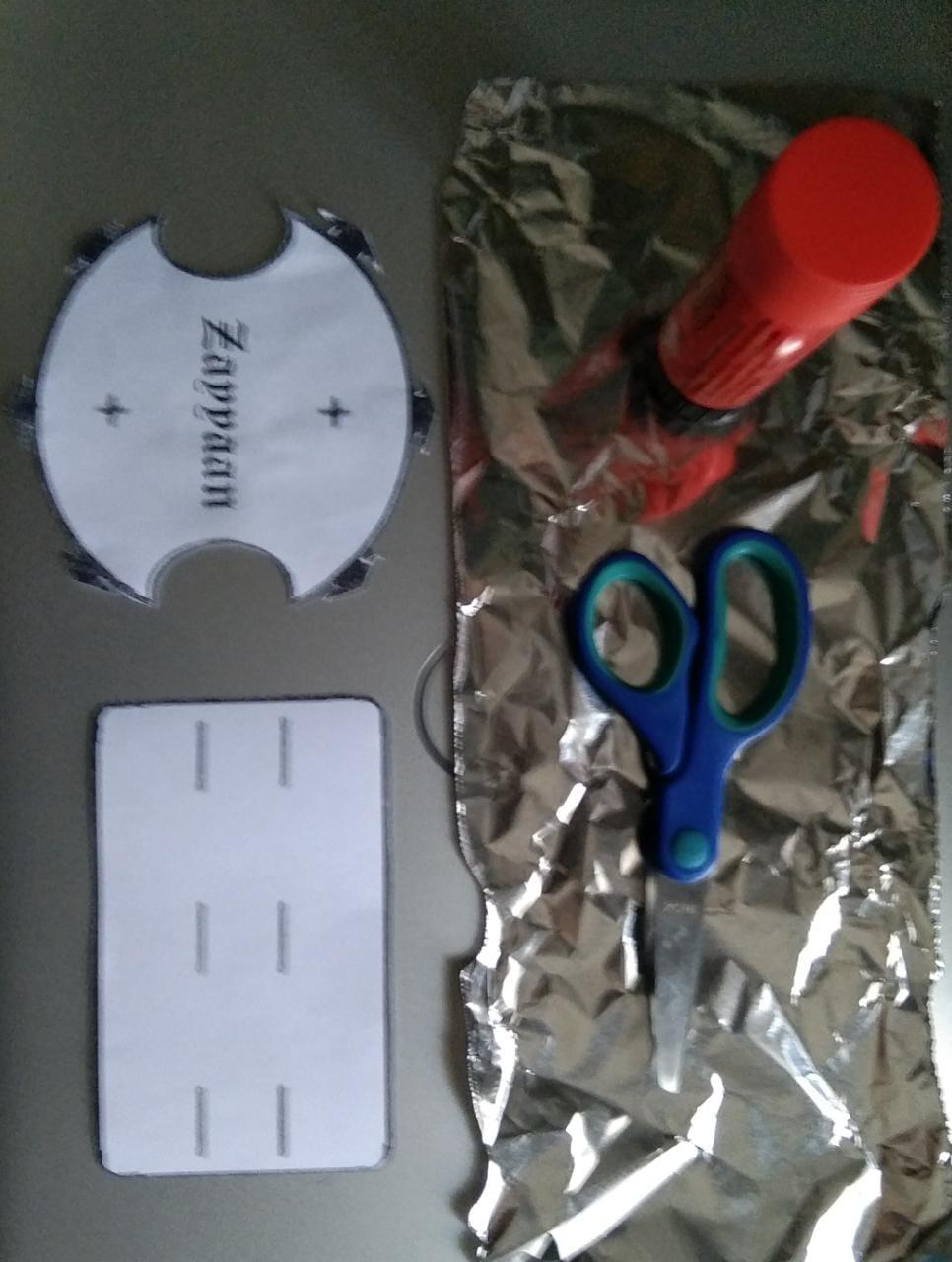

Supplies
![Items required.jpeg](/proxy/?url=https://content.instructables.com/FTD/CYNT/KU9T4AVT/FTDCYNTKU9T4AVT.jpg&filename=Items required.jpeg)
Attached Template
Glue Stick
Scissor
Foil
Downloads

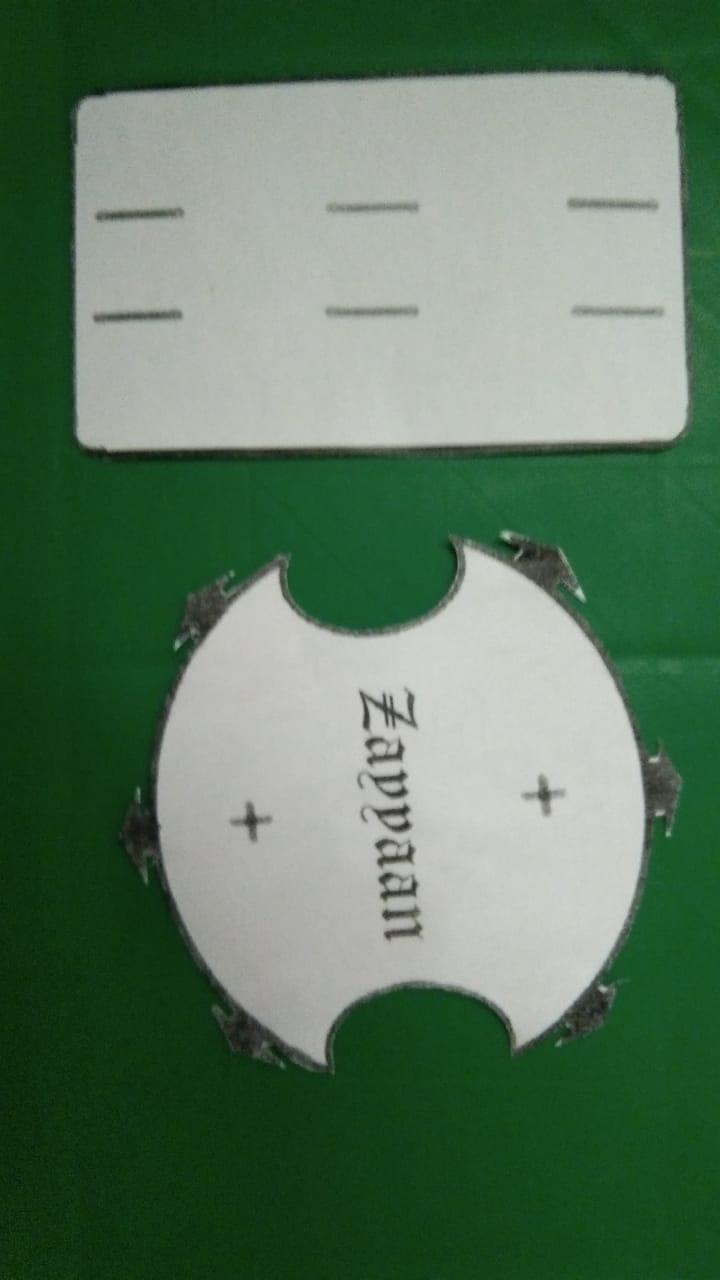

Cut Out Template
![Cut out Template.jpeg](/proxy/?url=https://content.instructables.com/FDF/9NY6/KU9T4AXX/FDF9NY6KU9T4AXX.jpg&filename=Cut out Template.jpeg)
Cut out Template as in picture

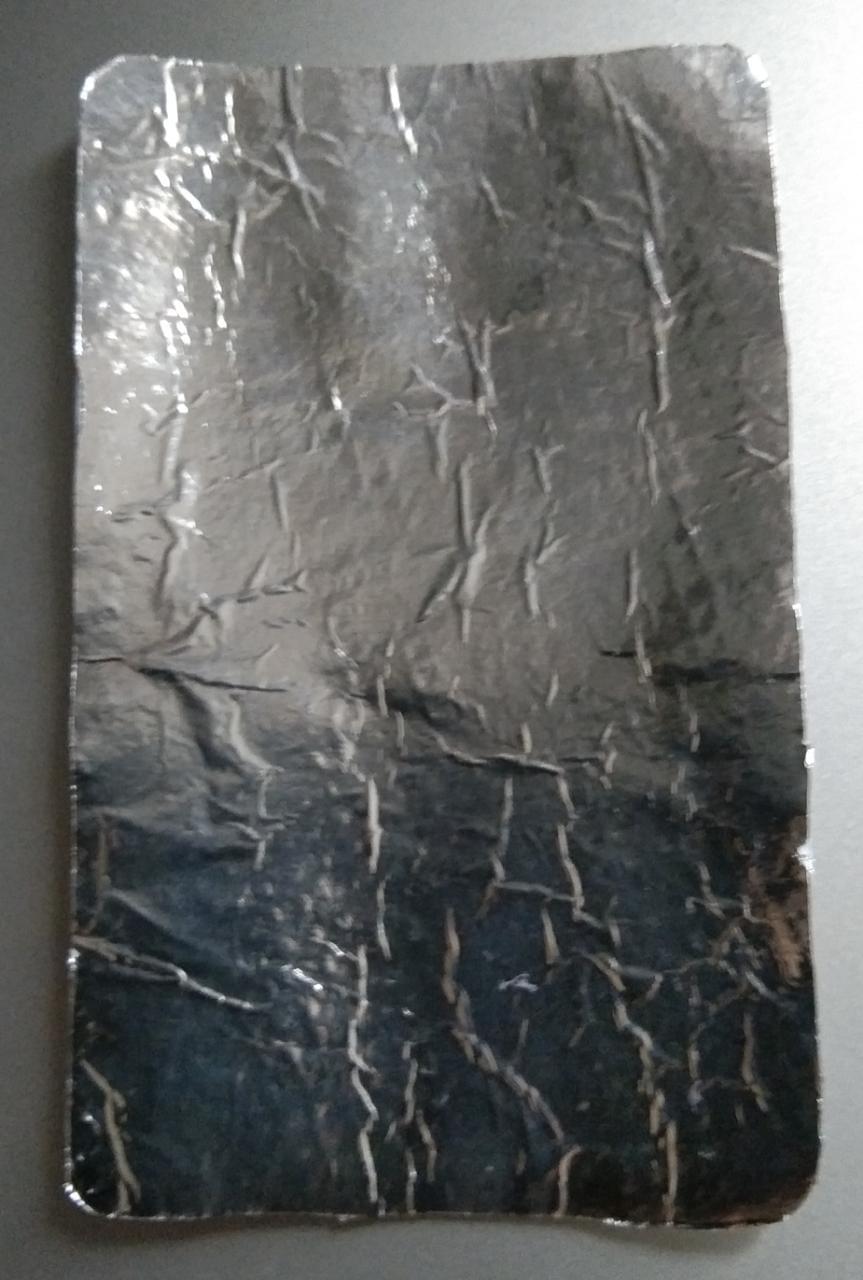

Glue Foil
![Step 1.jpeg](/proxy/?url=https://content.instructables.com/FBB/GCVM/KU9T4B0X/FBBGCVMKU9T4B0X.jpg&filename=Step 1.jpeg)
Glue foil to rectangle as shown in image

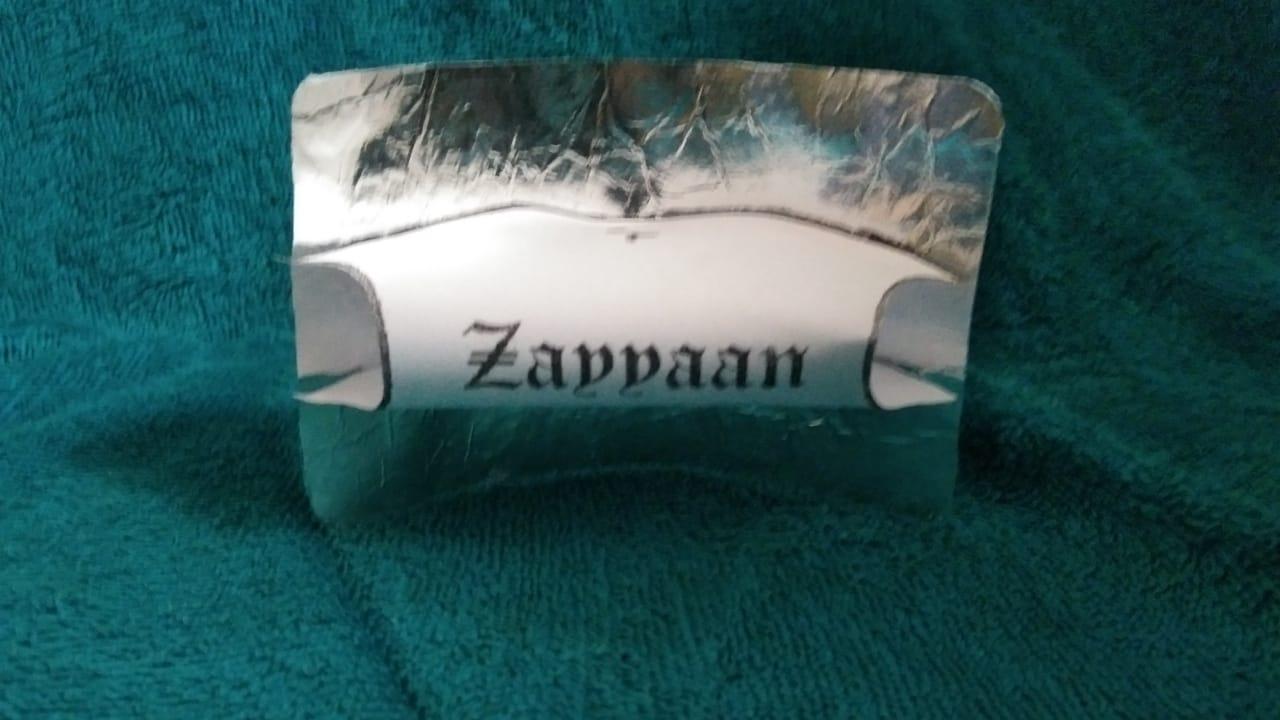

Assembly of Parabolic Antenna Booster
![Step 3.1.jpeg](/proxy/?url=https://content.instructables.com/F54/09G0/KU9T4BDM/F5409G0KU9T4BDM.jpg&filename=Step 3.1.jpeg)
![Step 3.jpeg](/proxy/?url=https://content.instructables.com/FV8/D7AW/KU9T4BDN/FV8D7AWKU9T4BDN.jpg&filename=Step 3.jpeg)

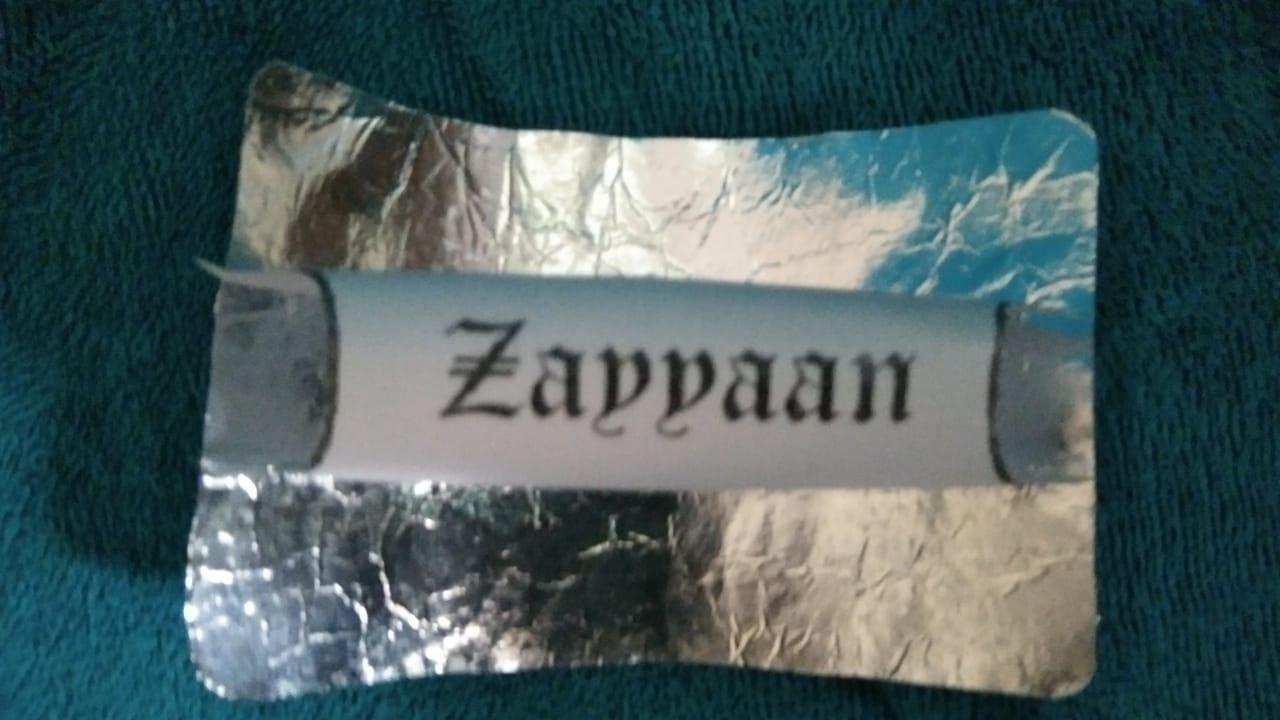

Attach part A (foil) to part B (Zayyaan)

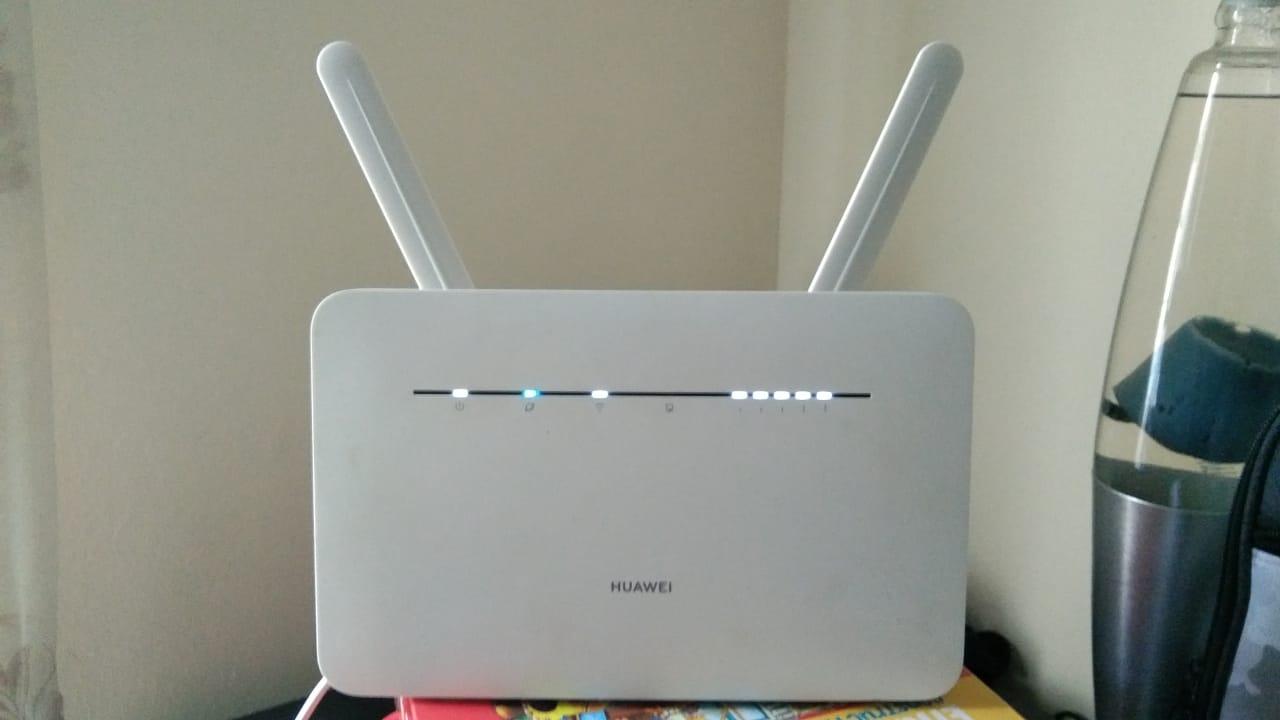

Antennae
![Router With Out.jpeg](/proxy/?url=https://content.instructables.com/FWO/ZHV3/KU9T4BIP/FWOZHV3KU9T4BIP.jpg&filename=Router With Out.jpeg)
![Speed test with out.jpeg](/proxy/?url=https://content.instructables.com/F93/LH4F/KU9T4BIW/F93LH4FKU9T4BIW.jpg&filename=Speed test with out.jpeg)

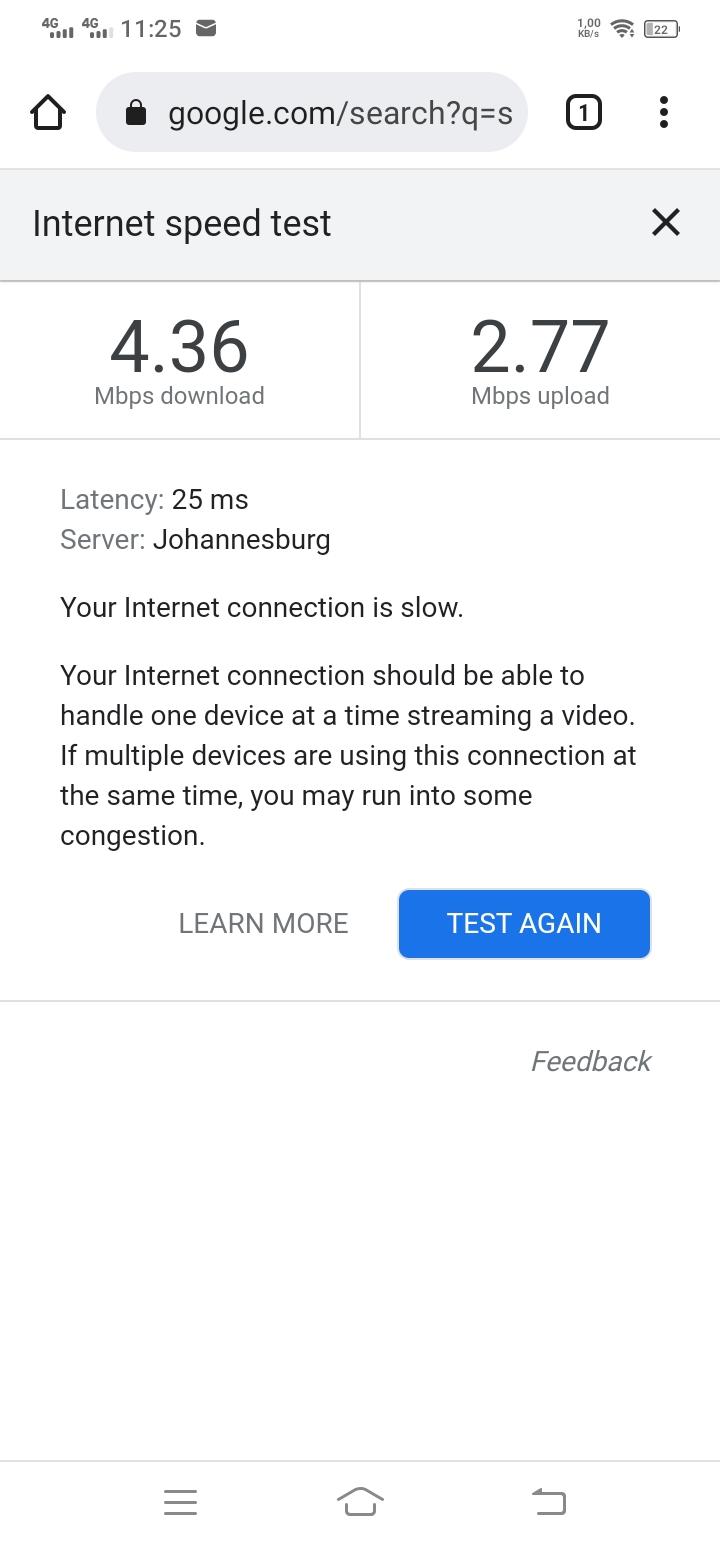

Speed test with out booster

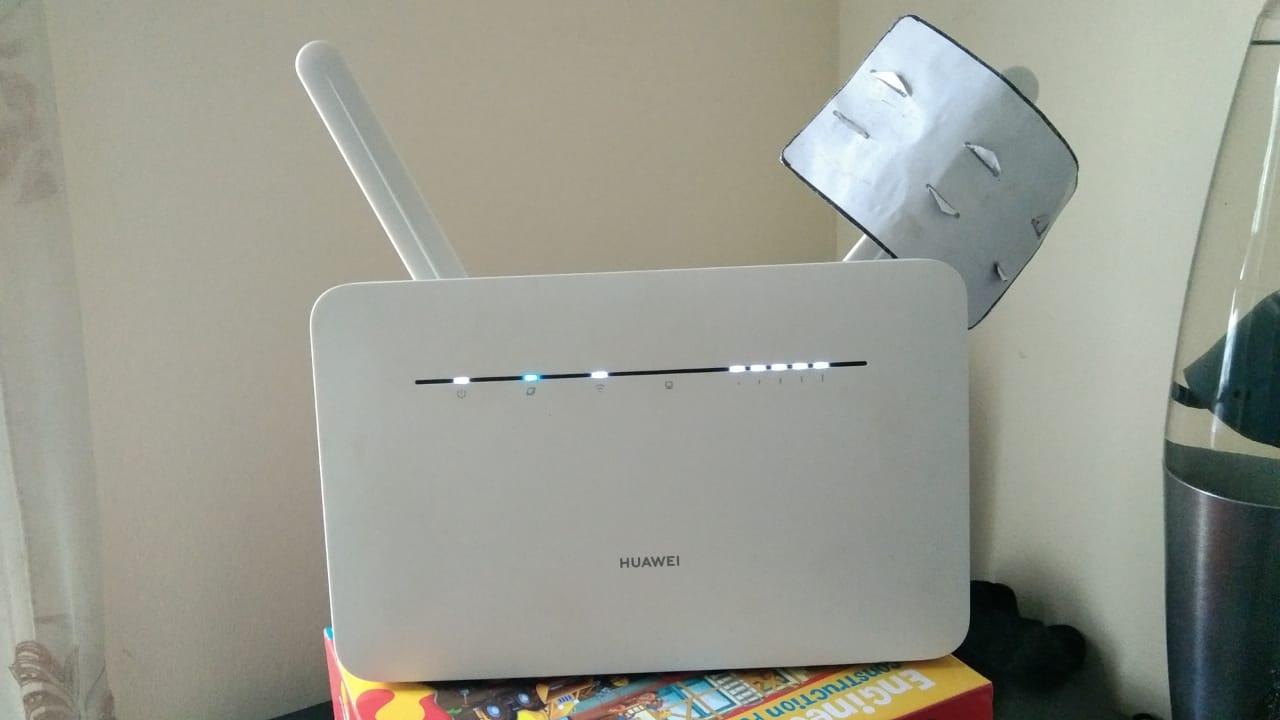

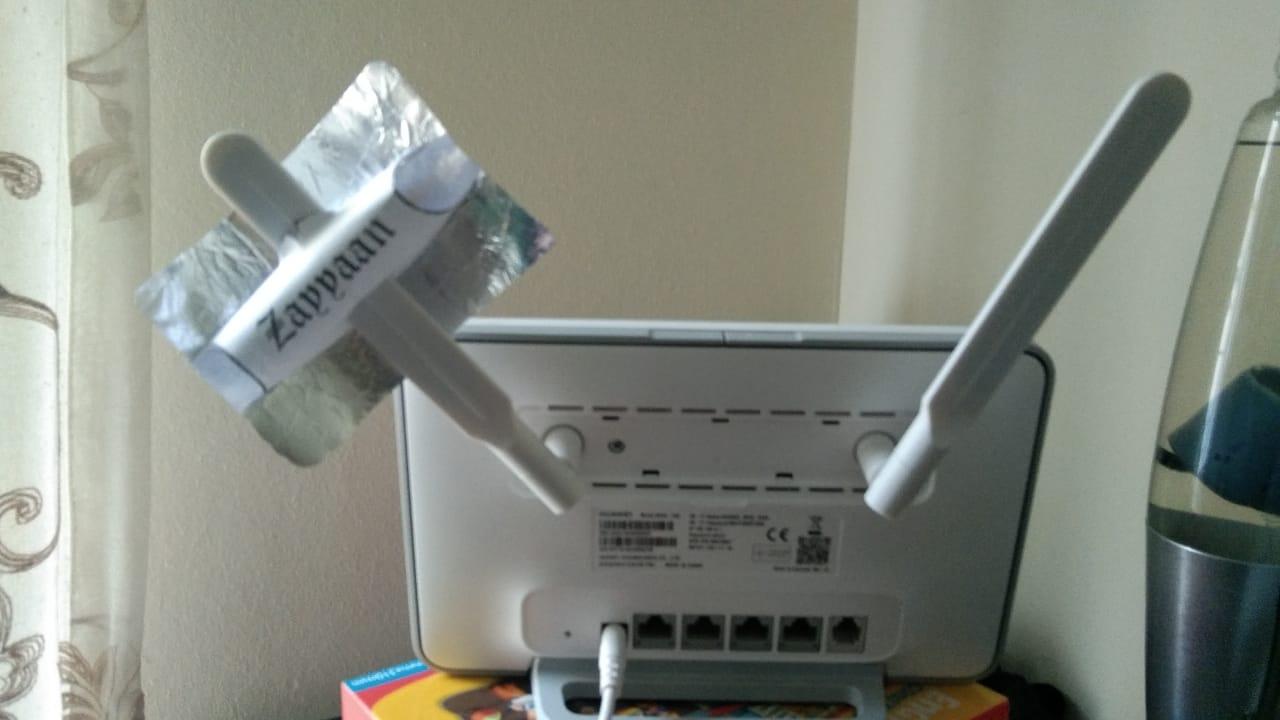

Attach to Antennae
![Router with 1.jpeg](/proxy/?url=https://content.instructables.com/FNG/RC9L/KU9T4BL6/FNGRC9LKU9T4BL6.jpg&filename=Router with 1.jpeg)
![Router with.jpeg](/proxy/?url=https://content.instructables.com/F1M/Z2AP/KU9T4BL7/F1MZ2APKU9T4BL7.jpg&filename=Router with.jpeg)
![Speed test with.jpeg](/proxy/?url=https://content.instructables.com/FN9/ZPFB/KU9T4BL8/FN9ZPFBKU9T4BL8.jpg&filename=Speed test with.jpeg)
Speed test with booster and adjusting no router settings
It appears Aluminum foil blocks the signal from going in one direction and concentrating it in the other direction, hence increasing their range and also their strength.
In the process, you get to experience faster internet speed.
This is very useful as it doesn't cost much.
