Cheap AC-cooler 3D-printed

As the summer is here the heat is also here! So i thought for myself, lets build a cheap and an exclusive AC-cooler, this is the cheap one I will publish the exclusive one next week.

You will need these tools:
3D-printer - https://goo.gl/OHhp14
Gluegun - https://goo.gl/tqisEb
Cutting Plier - https://goo.gl/HxB7kO

Material:
12V DC-adapter - https://goo.gl/U3vJH3
DC jack - https://goo.gl/h7RRRo
or you can use this one, both fits
https://goo.gl/eoS5ir
Fan controller - https://goo.gl/24qXXK
Fan 120 mm - https://goo.gl/annsV0
Magnets - https://goo.gl/rHznO5

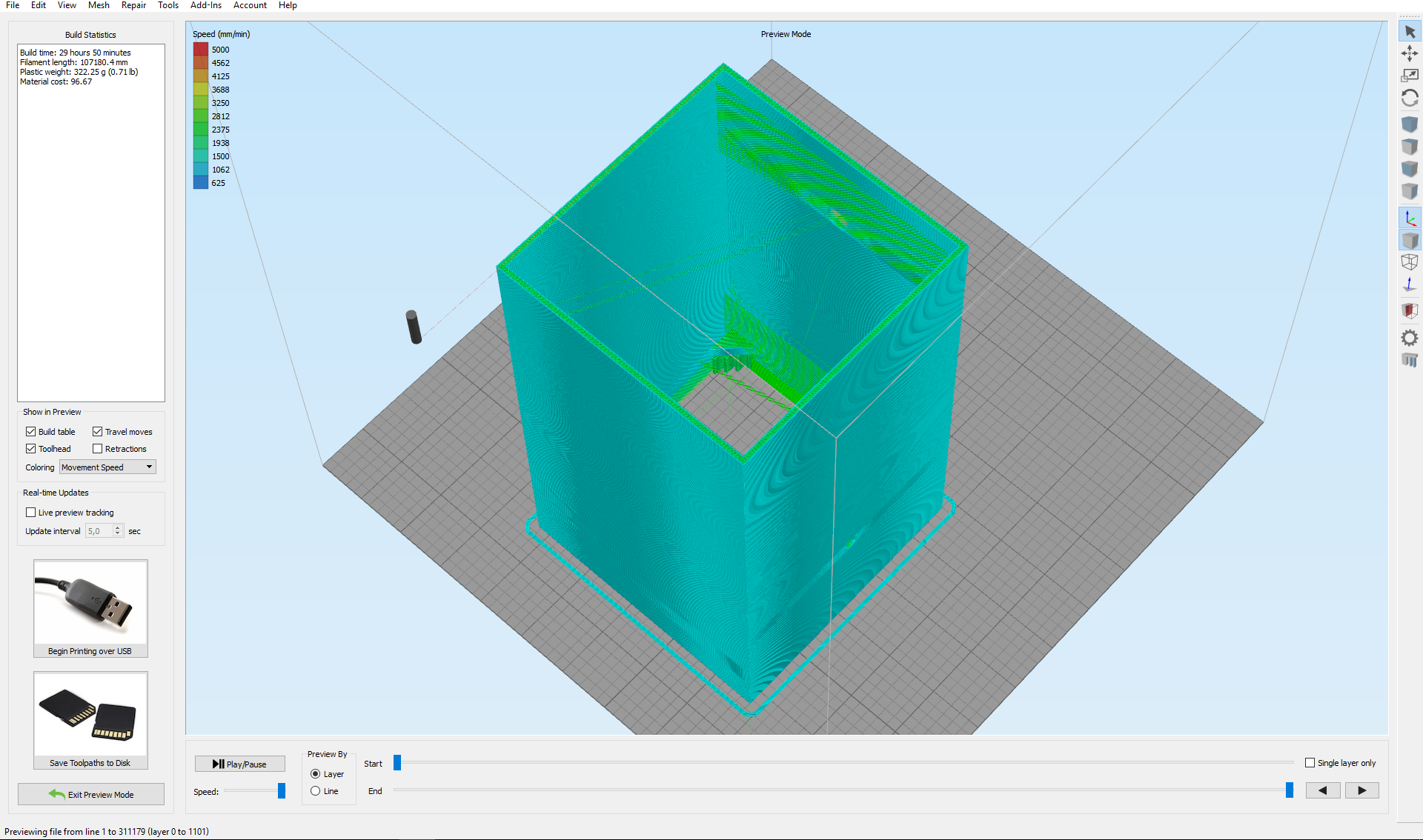

print all the needed parts, use support for the body, 2 outer perimeters is good enough with 15-20% infill.

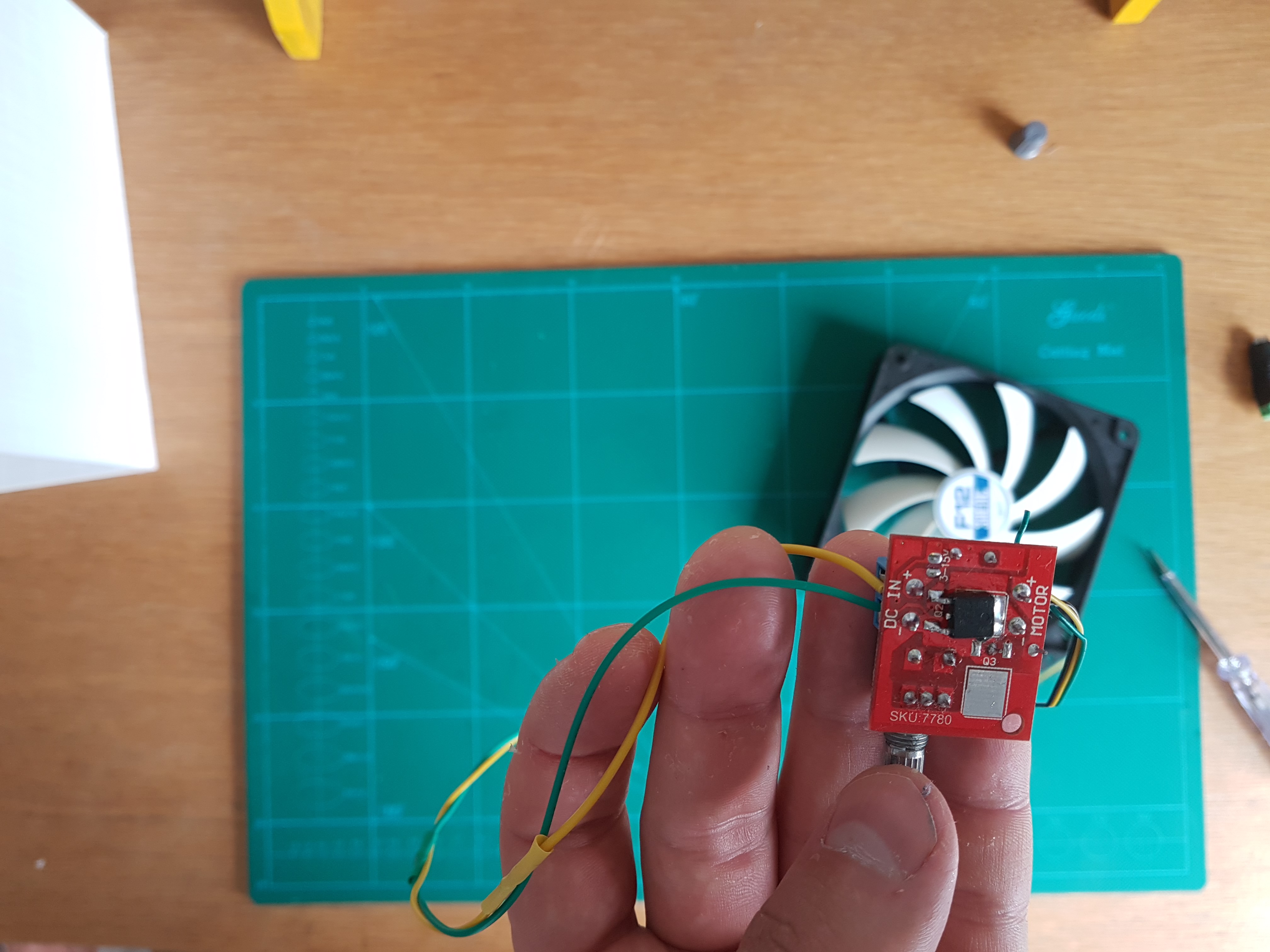

just make sure you have the right polarity, + and -.

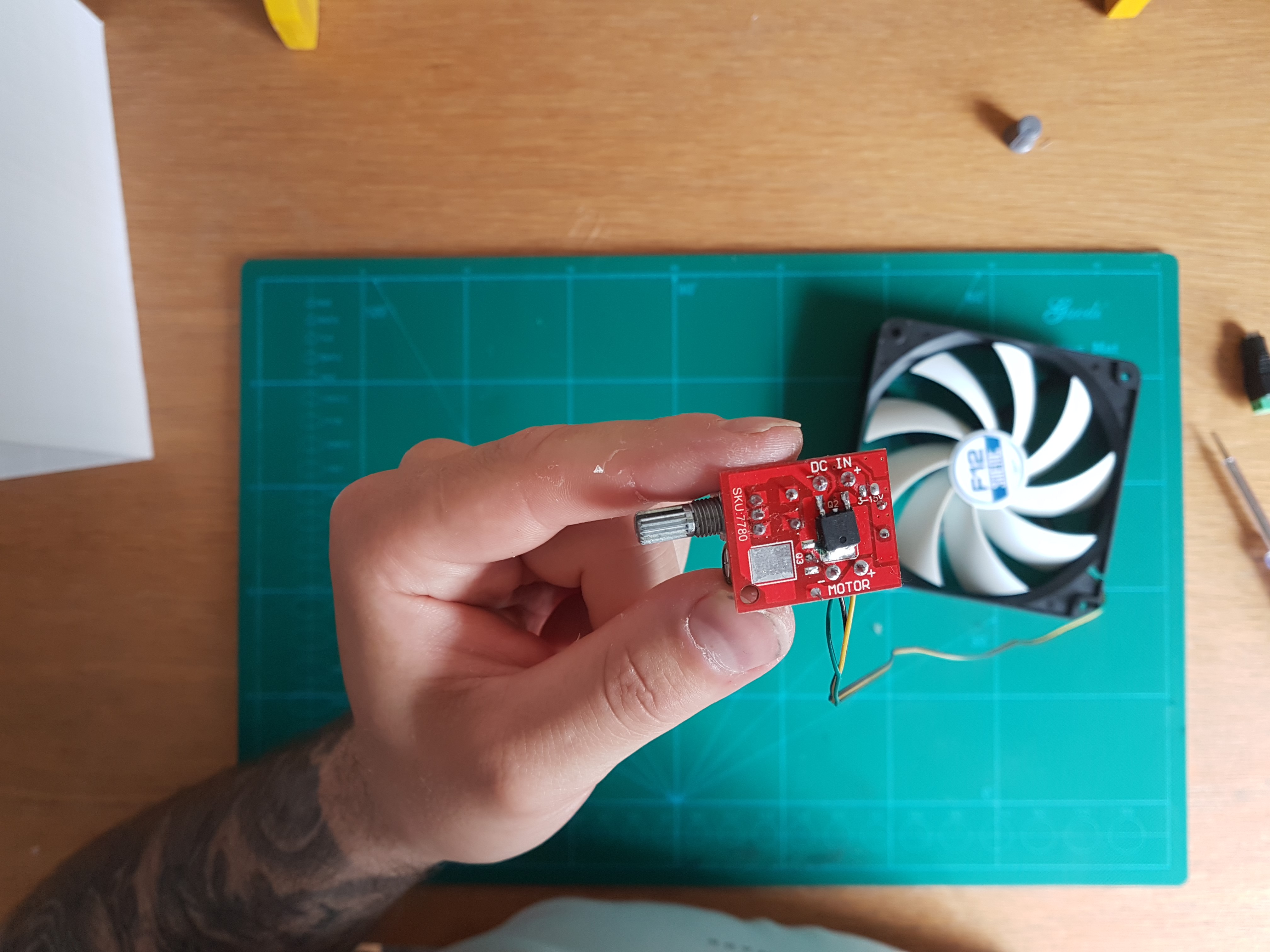

Fasten the fan-contoller.

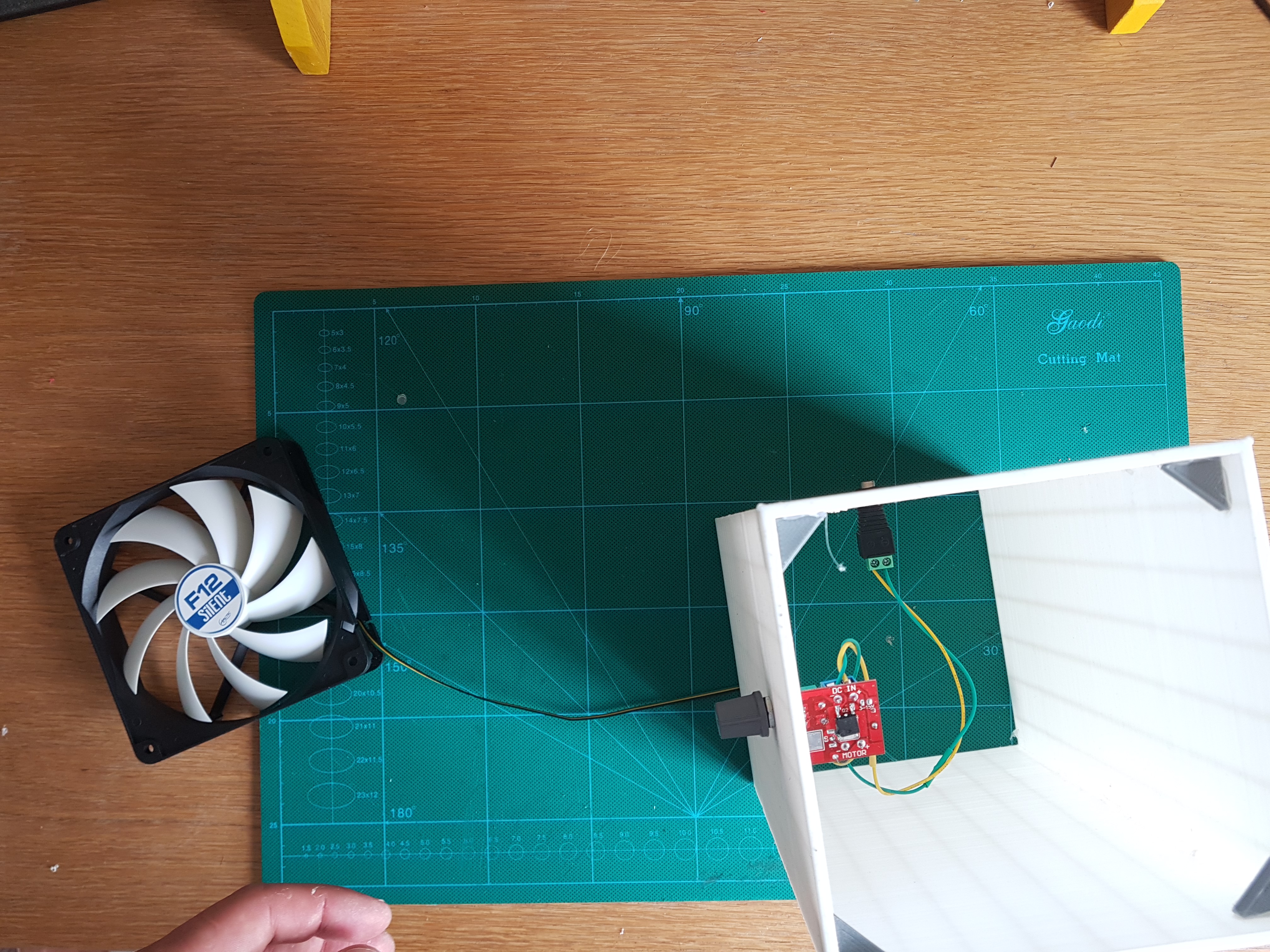

Glue the cables and the Dc-jack to the body.

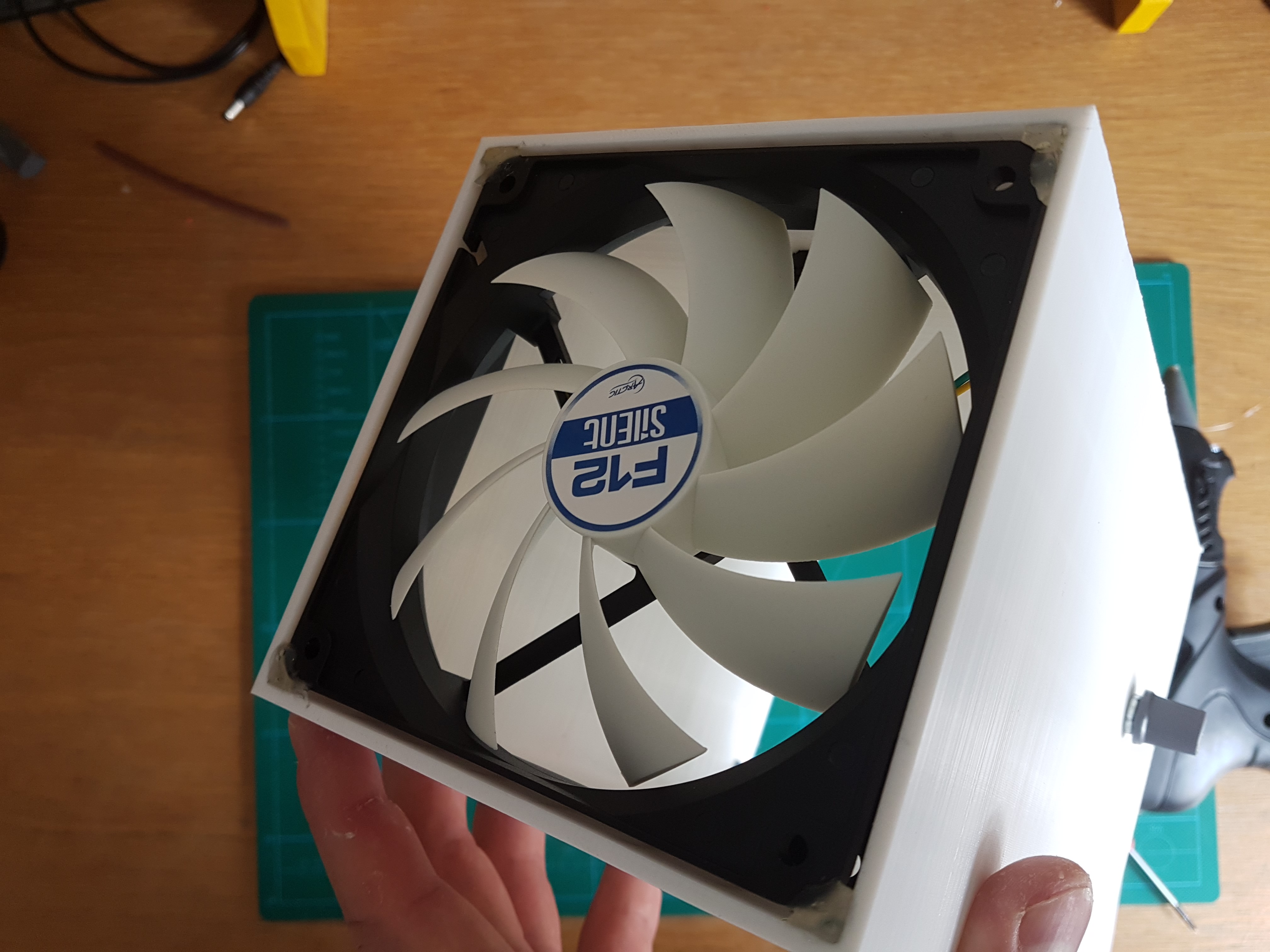

Glue the fan (make sure that the flow-direction is blowing the air "through the tunnel")

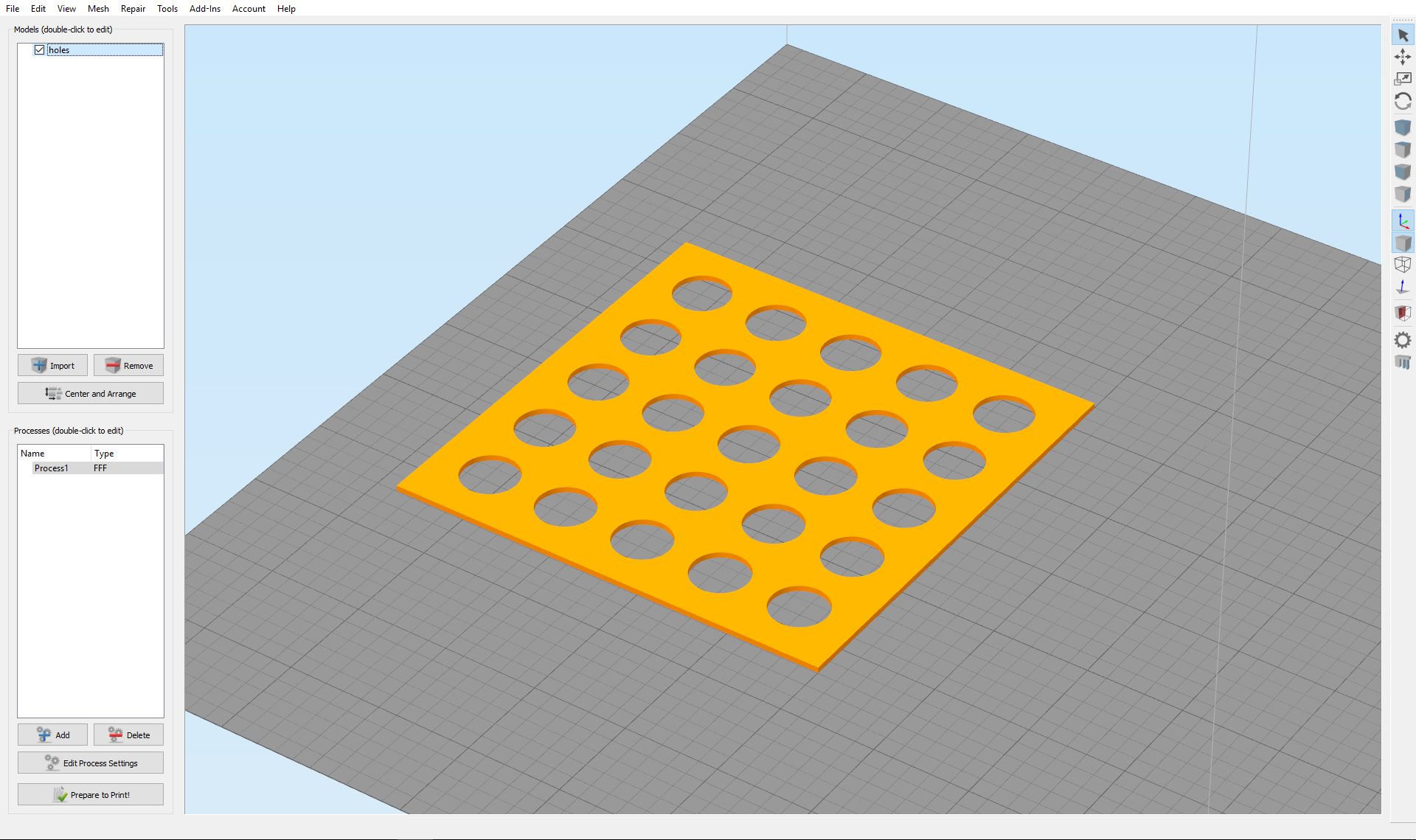

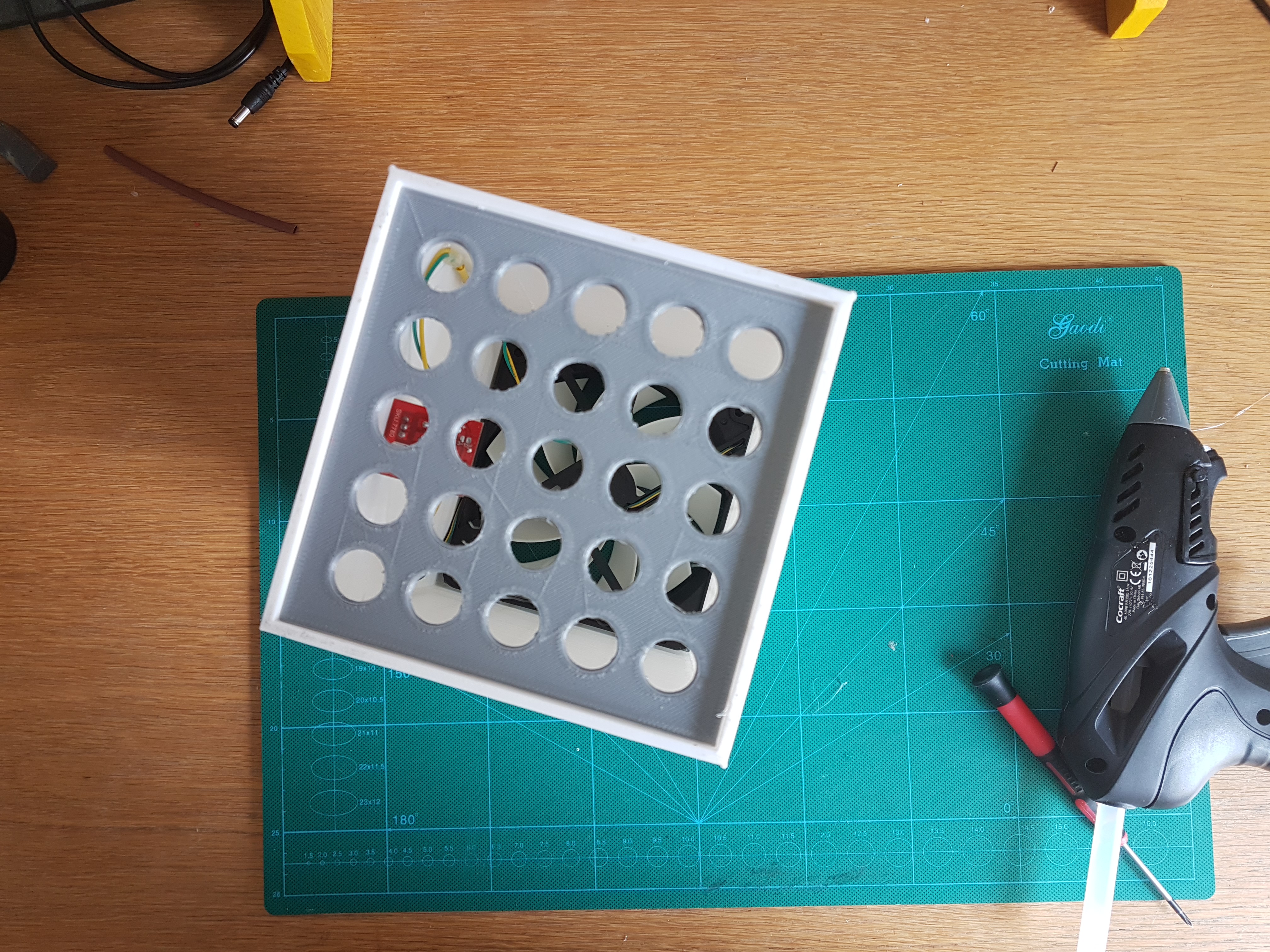

if everything is done right. just put the grill at the front, you can glue magnets to make sure it stays in place.

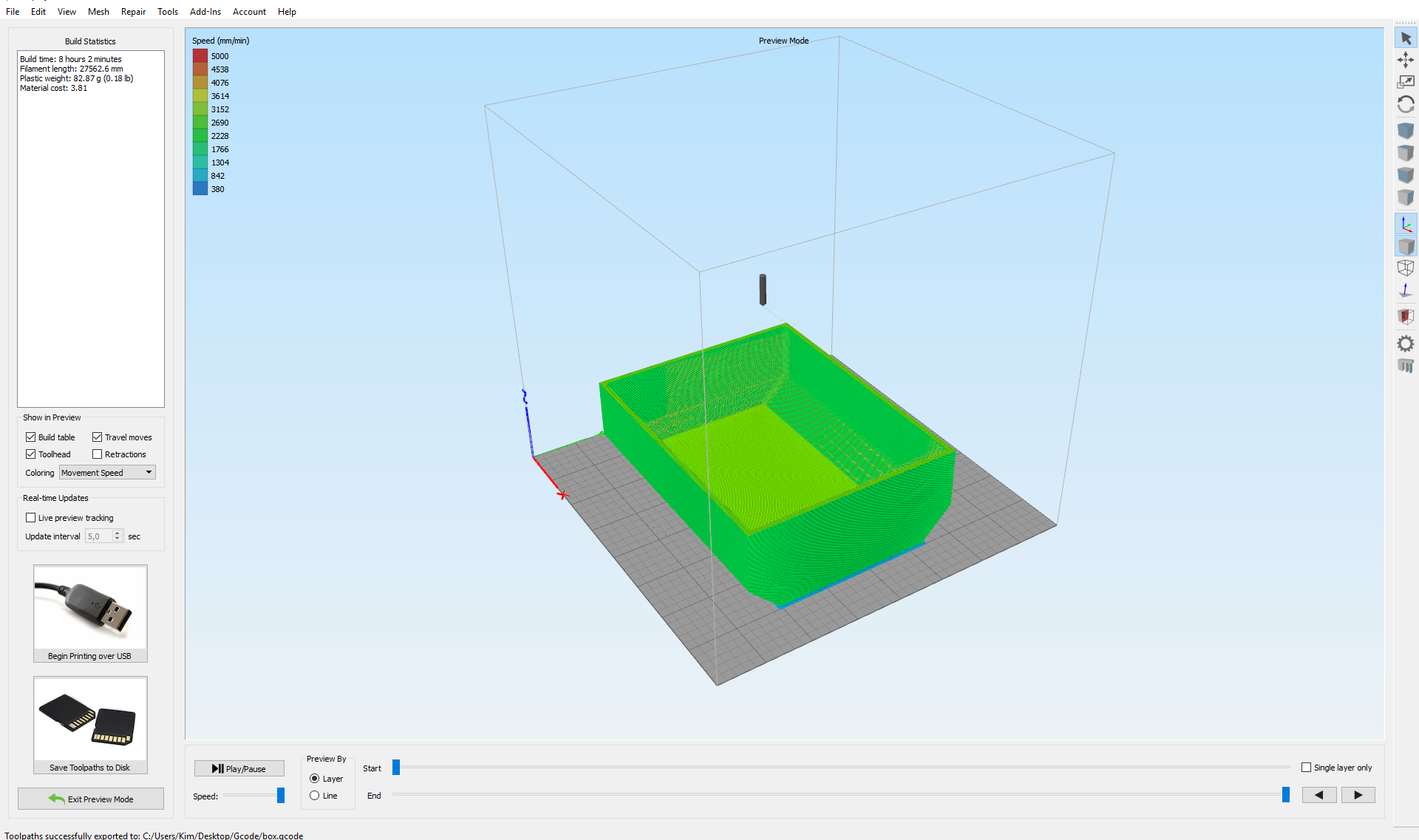

Either you can use ice pack or you can print the icebox, but if you are printing the icebox, make sure it don´t leaks, i used ABS with vapor-smoothing to make sure it was watertight., you can also print it in PLA or other material and use epoxy for coating.

Enjoy your AC-cooler!
