Charlieplexing the Arduino

by tsant in Circuits > Arduino

53395 Views, 130 Favorites, 0 Comments

Charlieplexing the Arduino

This Instructable shows how to implement Charlieplexing, a technique that will allow you to control many more LEDs than you have pins. This shows how to configure 6 LEDs and use only 3 pins. You can extend this to many more LEDs. The exact number of LEDs that you can control with a given number of pins is given by n^2 - n where n is the number of pins used (i.e.,  3^2 - 3 = 9 - 3 = 6 LEDs using only n = 3 pins).

Charlieplexing the Arduino

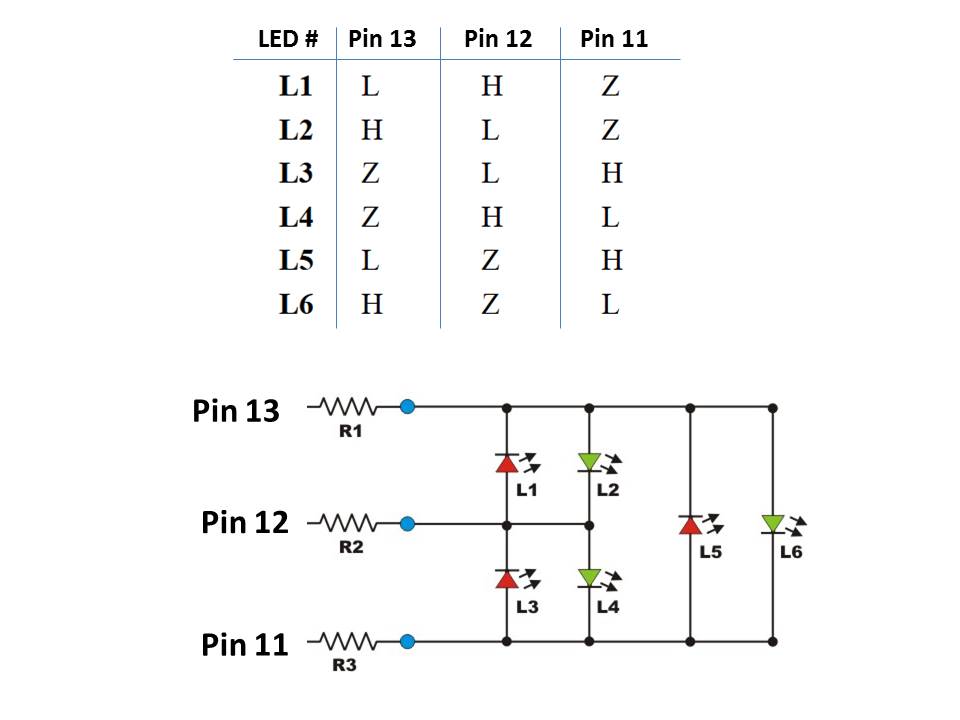

Charlieplexing_Chart and diagram.jpg
Charlieplexing not only takes advantage of the two states that we normally change, HIGH and LOW, but also uses a third state by changing between OUTPUT and INPUT modes, which affects internal resistors on the Arduino.

For Charlieplexing 6 LEDs, we will setup six LEDs (L1 thru L6) and need to configure three pins (I chose Pins 13, 12, and 11) for each LED.

For each LED (L1, L2,....,L6), we need to set the pinMode (INPUT or OUTPUT) and the pin state (HIGH or LOW)

H: pinMode = OUTPUT; state HIGH
L: pinMode = OUTPUT; state LOW
Z: pinMode = INPUT; state LOW

For example, to configure LED L2, set pin 13 to H, pin 12 to L, and pin 11 to Z:

Pin13
pinMode(LED_1, OUTPUT);  //pinMode
digitalWrite(LED_1, HIGH);   // state

Pin12
pinMode(LED_2, OUTPUT);  // pinMode
digitalWrite(LED_2, LOW);   //state

Pin11
pinMode(LED_3, INPUT);  // pinMode
digitalWrite(LED_3, LOW);  // state

Configure Hardware

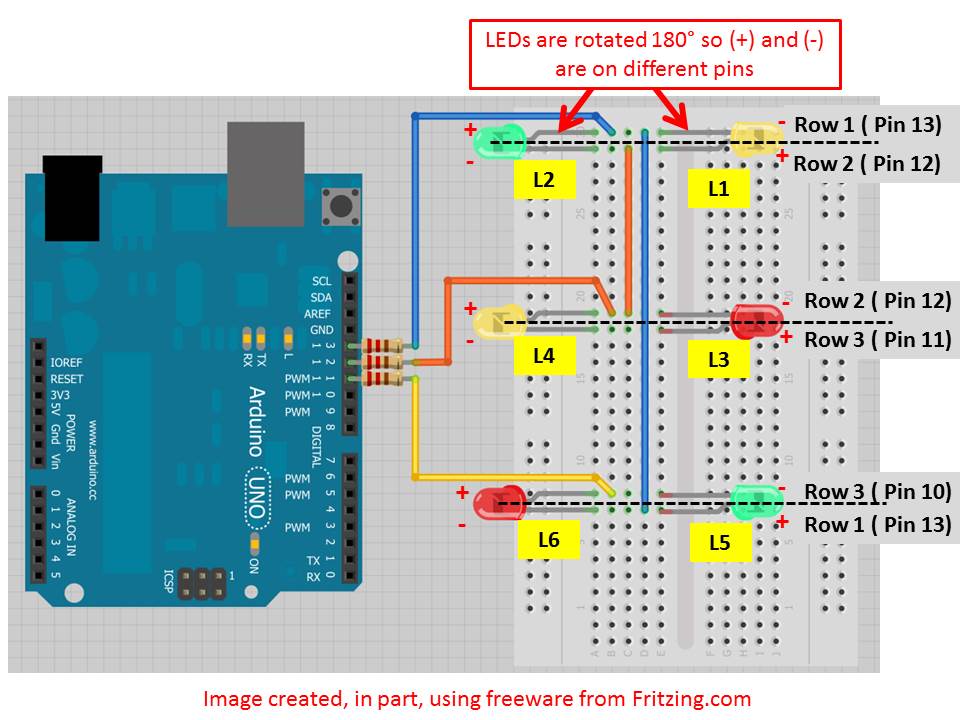

Connect two LEDs to each Pin; be sure to flip the LED so the Cathode (+) and Anode (-) are on the correct Pins. The cathode (+) has the longer leg and is shown in the schematic as the leg with the bend in it.

Configure the Software
