Charisma: a K'nex All-In-One Camera Rig
by nerfrocketeer in Living > LEGO & K'NEX
5153 Views, 28 Favorites, 0 Comments
Charisma: a K'nex All-In-One Camera Rig
Charisma is a state of the art camera rig made from K'nex that can be used to take first person videos in almost any environment. Created from a simple, yet sturdy design, Charisma only takes a few minutes to build, but can last a lifetime. There are many features, such as rear and front-facing camera compatibility, and the tripod attachment system.
The tripod attachment system (step 9) allows the Charisma camera rig to be used as more than just a rig. It can also be used as a tripod, via two slim front legs, which can be broken down and stored on the grip of the rig using the tripod storage system (step 10).
Charisma is compatible with small personal devices,* such as cell phones (for example, iPhone 4, 4s, 5, and 5s, HTC Evo, HTC One, Samsung Galaxy S-series, and many other rectangular devices). It can also take small megapixel cameras, such as those made by Sony, Canon, and Nikon, or other handheld devices, such as iPod Touch, or any other approximately 5 inch by 2.5 inch device.*
Charisma is very versatile, it allows complete control in the palm of your hand. It is the only thing you will need to make, for example, a survival show parody, like the one at the end of this step, and step 12. The video was made for entertainment and comedy purposes, as well as to show off both the first person rig and tripod capabilities of Charisma.
If you like what you see, and wish to have a camera rig of your own, continue reading! This guide will show you all of the necessary steps to build and use your own K'nex Charisma camera rig!
*No affiliation with any listed companies. Cradle does not guarantee device protection.
Pieces

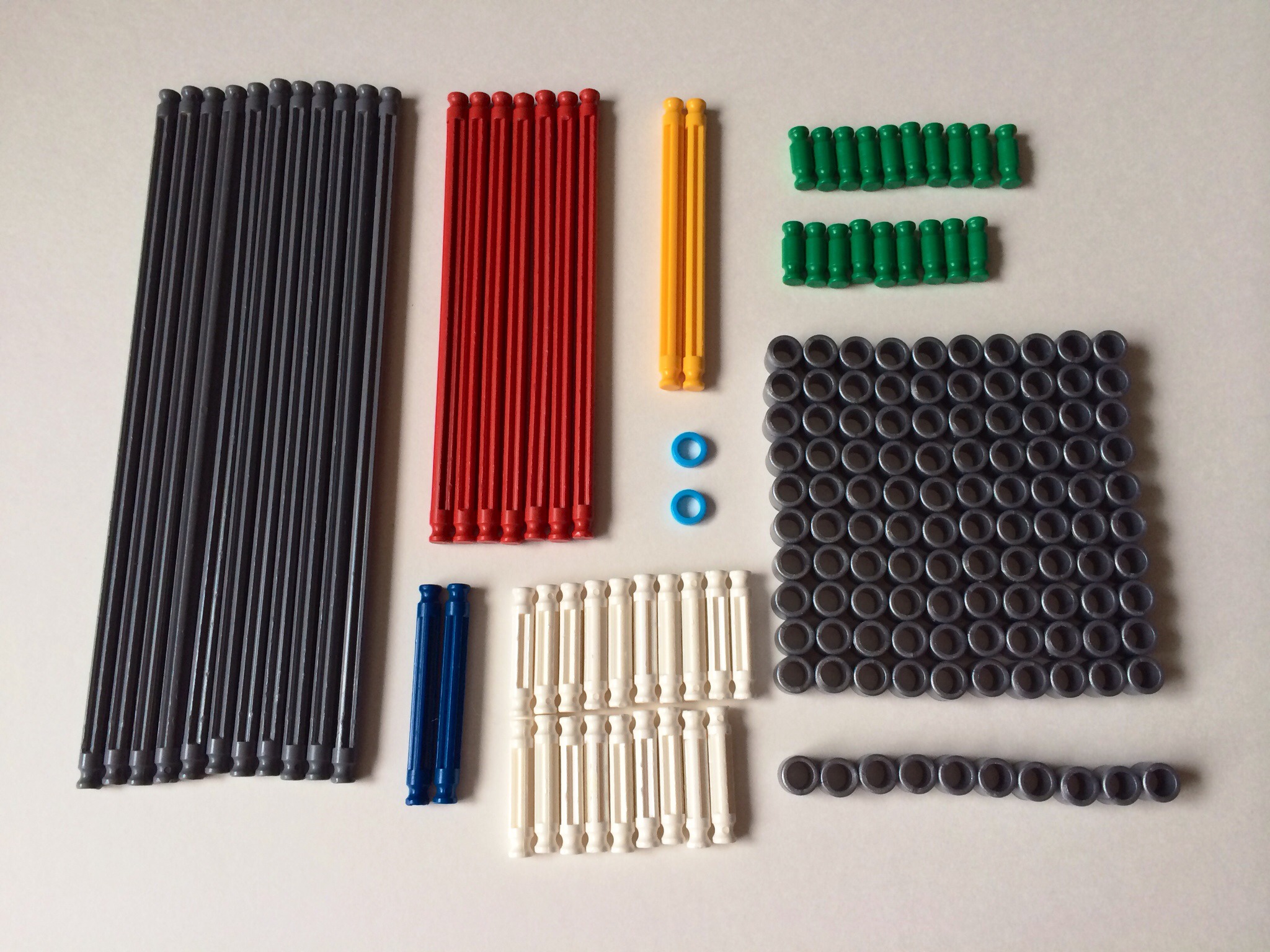

To build the K'nex Charisma Camera Rig, you will need:
-34 White Connectors.
-1 Blue Connector.
-2 Yellow Connectors.
-8 Green Connectors.
-9 Red Connectors.
-4 Orange Connectors.
-2 Orange Diagonal "Y" Connectors.
-8 "Y" Connectors.
-2 Black Caps.
-11 Grey Rods.
-7 Red Rods.
-2 Yellow Rods.
-2 Blue Rods.
-19 White Rods.
-19 Green Rods.
-2 Blue Separators.
-114 Grey Separators.
-A Mobile Phone or other device with front and back cameras. Examples include iPhone, iPod Touch, HTC Evo, HTC One, Samsung Galaxy, and any other approximately 5 inch by 2.5 inch device. The device used in this guide is an iPhone 5s.
Handle: Part One; Grip
Creating a sturdy and comfortable grip will make the camera rig as useful as possible.

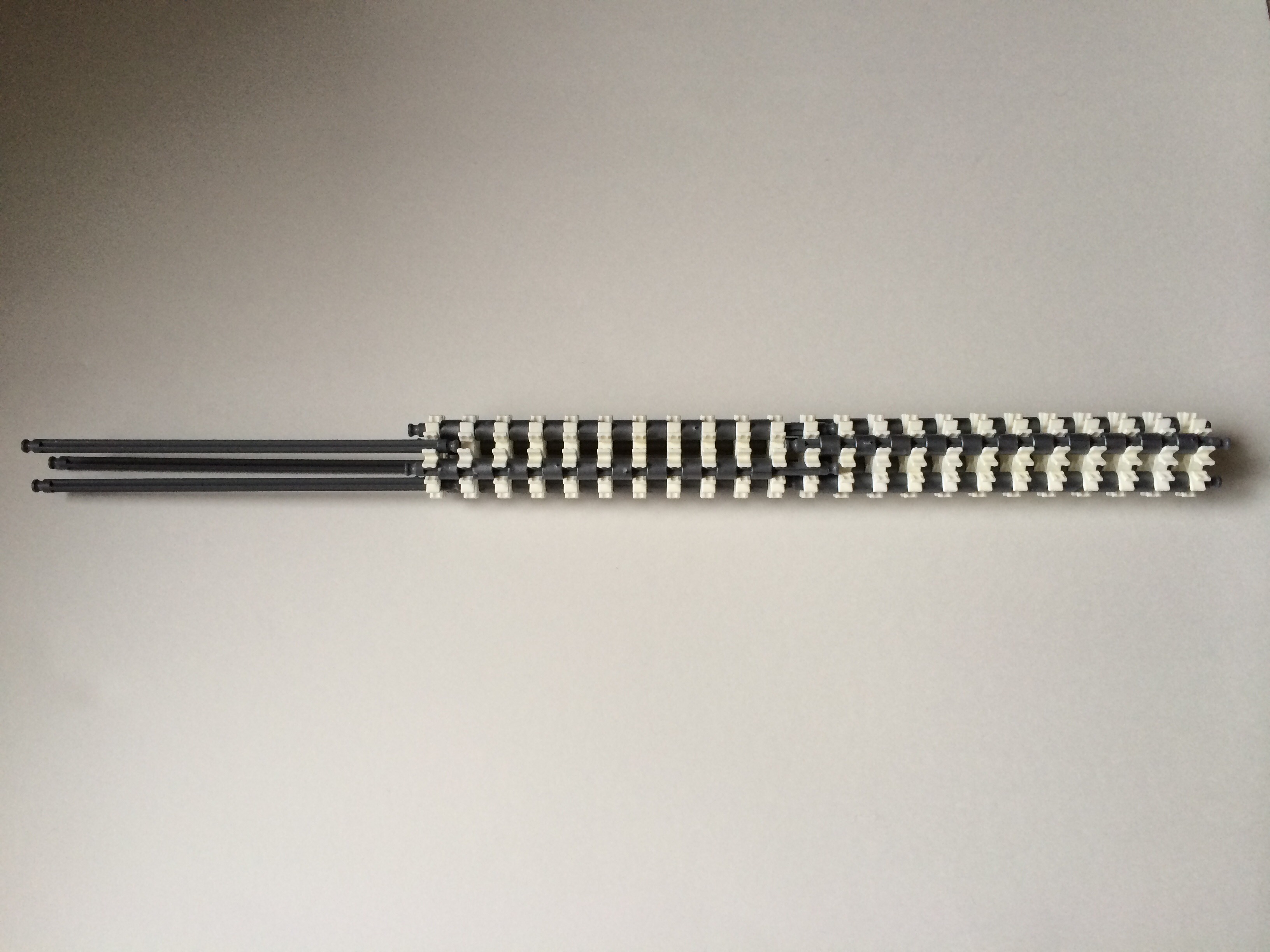

Start by adding one white connector to a grey rod, as in pictures 1 and 2. Next, add a grey separator onto the rod, as in pictures 3 and 4. Continue the pattern, as in pictures 5 through 10, until you have a total of 12 white connectors on the grey rod, with 11 grey separators in between, as in picture 11.
Handle: Part Two; Extension
Now it is time to extend the handle, which will make finding the perfect camera angle much easier.

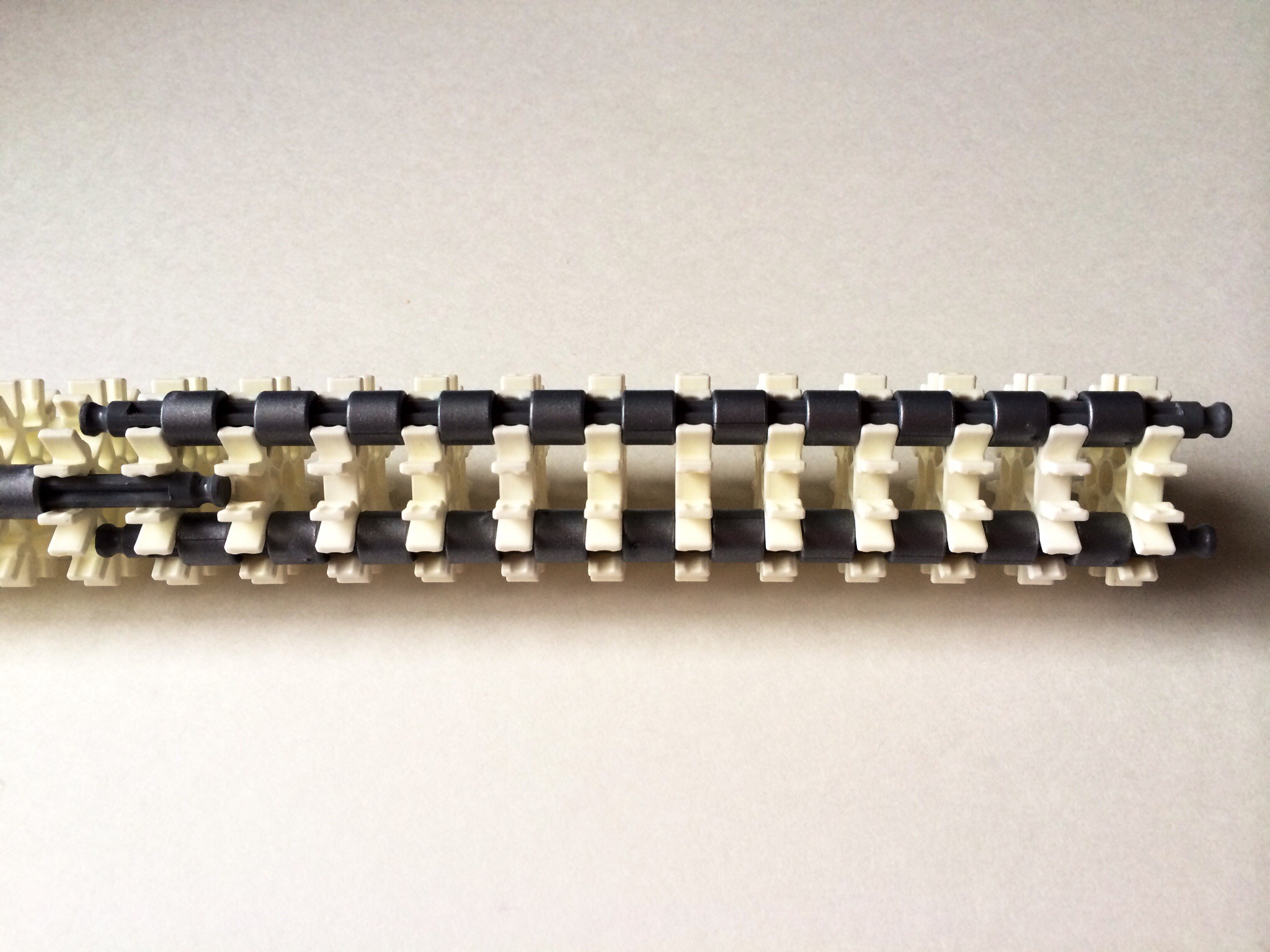

Simply add another grey rod to the piece from the previous step, as in pictures 1 and 2. Make sure it is in the next opening on the last connector, as shown in picture 3. Next, add 11 white connectors and 10 grey separators in the same pattern as in pictures 4, 5, and 6.
Handle: Part Three; Rigidity Bars
Adding more grey rods and grey separators along the grip will make it much sturdier.

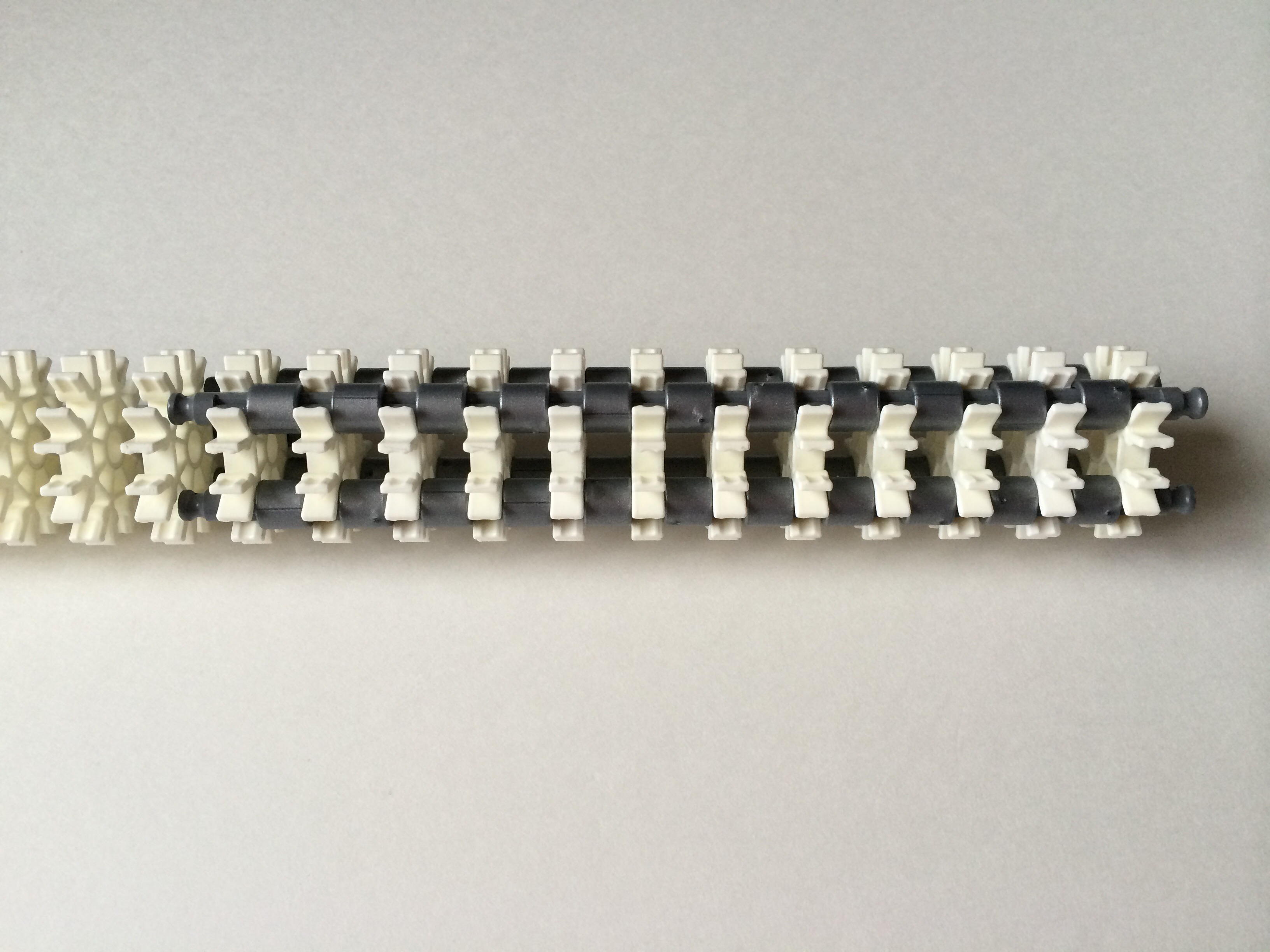

To add rigidity to the first section of the grip (from step 2), first slide eleven grey separators onto a grey rod, as shown in pictures 1 and 2. Next, add it to the first section of the grip as in picture three. It helps to push down on the grey separators to minimize finger strain and possible injury (picture 4). Continue adding rigidity bars until there are four equally spaced around the grip, as in pictures 5, 6, 7, and 8. Repeat the process for the second section of the grip (from step 3) as shown in pictures 9, 10, 11, and 12. This time there are only 10 grey separators on each rigidity bar (picture 10).
Cradle Attachment Point
The cradle attachment point is where the part of the rig holding the device is connected to the grip.
Start by adding three grey rods to the end of the grip, (the end of the piece from step 3) as in pictures 1, 2, and 3. Next, add a red rod to complete the "square" formation, as in pictures 4, 5, and 6. Then, add a white connector, as in pictures 7, 8, and 9.
Add five grey connectors to each of the extended four rods, as in pictures 10 and 11. Then, add another white connector, as in pictures 12, 13, and 14. Add three grey separators and two blue separators to the red rod, as in pictures 15 and 16. Then add another white connector (pictures 17, 18, and 19). Add six grey separators to the bottom grey rod, as in pictures 20 and 21. Add one more white connector, as in pictures 22, 23, and 24, and the cradle attachment point is now complete!
Cradle: Part One; Backing
The cradle is the piece that holds in the device while filming/taking pictures.

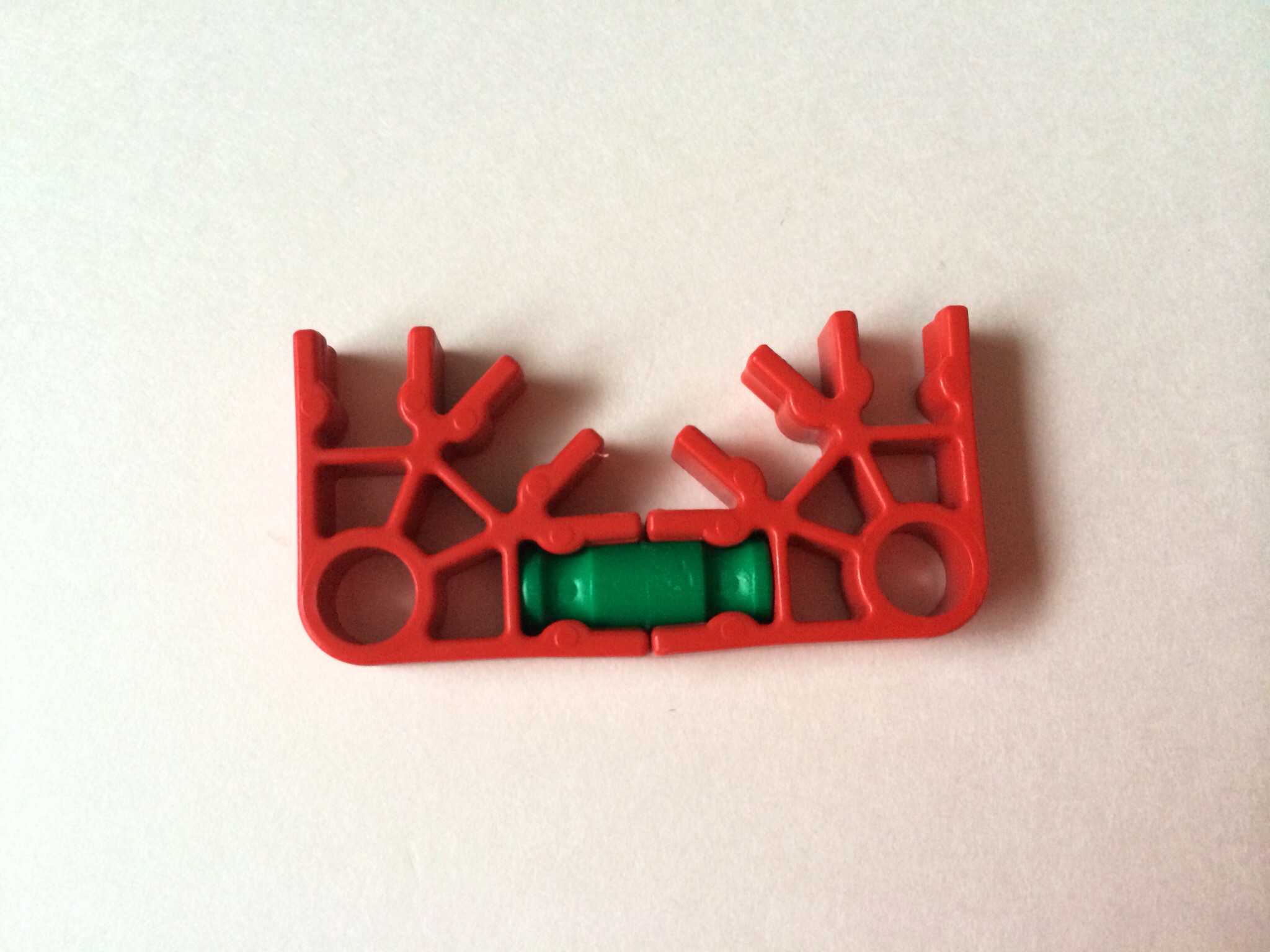

Take three white connectors, and connect them using green rods, as in pictures 1 and 2. Also connect two white connectors and a blue connector as shown using green rods (pictures 3 and 4). Make sure the blue connector is facing the same direction as in the pictures to allow the device's forward camera to function properly! Connect the two pieces together using white rods, as in pictures 6 and 7. Finally, add red connectors as shown using green rods.
Cradle: Part Two; Ribcage
The ribcage is what keeps your device from shaking, sliding, and falling out while the rig is in use.

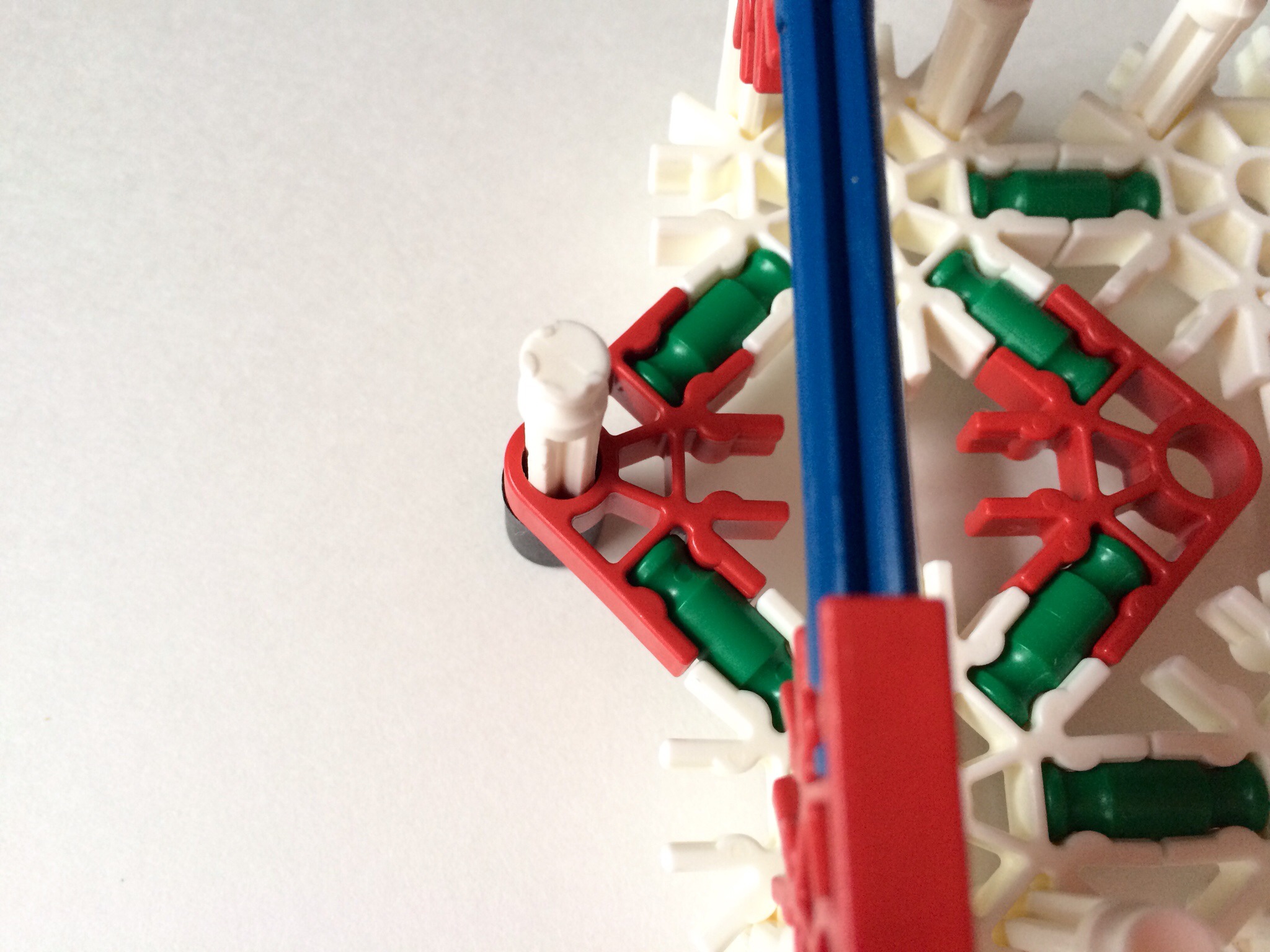

Add twelve rods to the cradle backing as shown in pictures 1 and 2. Next, add four red connectors to the white rods shown in pictures 3 and 4. Connect each cross-pair of red connectors with blue rods as shown in pictures 5, 6, and 7. Add a white rod with a black cap to the red connector on the backing as shown in pictures 8, 9, 10, and 11. Then, add a grey connector and another black cap to the white rod as in pictures 12, 13, and 14. The cradle is now complete!
Attaching the Cradle to the Handle
There are many important components that help attach the cradle to the grip securely.

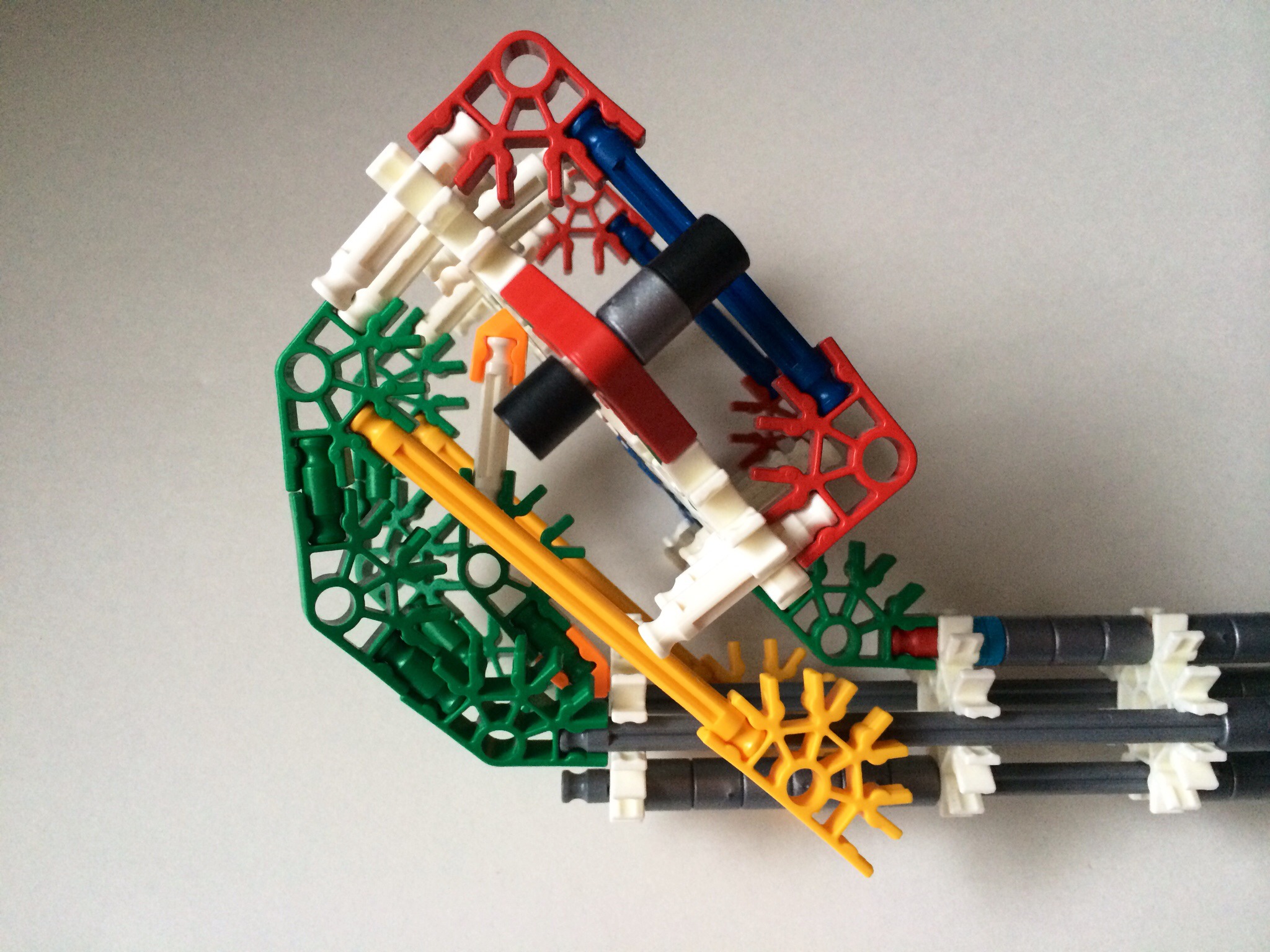

Start by connecting the middle bottom white connector on the cradle to the end of the red rod on the grip using a green connector and green rod (pictures 1, 2, and 3). Next, connect three green connectors using green rods as in pictures 4 and 5. Repeat to make two pieces as in picture 6. Connect them to the back of the cradle and grip as in pictures 7, 8, and 9.
Connect two diagonal "Y" connectors to a green connector and white rod as in pictures 10 and 11. Add this piece to the back of the cradle, as in pictures 12 and 13.
Tripod Attachment System
The tripod attachment system allows the camera to be used as a tripod and first person rig.
Connect a yellow rod to a yellow connector, as in pictures 1 and 2. Repeat to make two pieces. Add it to the back of the cradle as shown in pictures 4 and 5. Next, connect the two yellow pieces across the cradle connection using two red connectors as in pictures 6, 7, 8, 9, 10, and 11. Next, add two red rods to the yellow connectors as shown in pictures 12 and 13. Then, add two white rods across from each other on the third white connector back as shown in pictures 14, 15, 16, and 17. Then add a white connector to each white rod, and secure using a "Y" connector, as in pictures 18, 19, 20, and 21. Make sure the "Y" connectors are facing towards the cradle, so they won't get in the way of any other parts!
Tripod Storage System
The tripod storage system allows all components of the Charisma Rig to be stored in a compact and portable way.
Add six "Y" connectors to the grip as shown in pictures 1, 2, and 3. The "Y" connectors should be in a "square" pattern around the grip, as illustrated in picture 2.

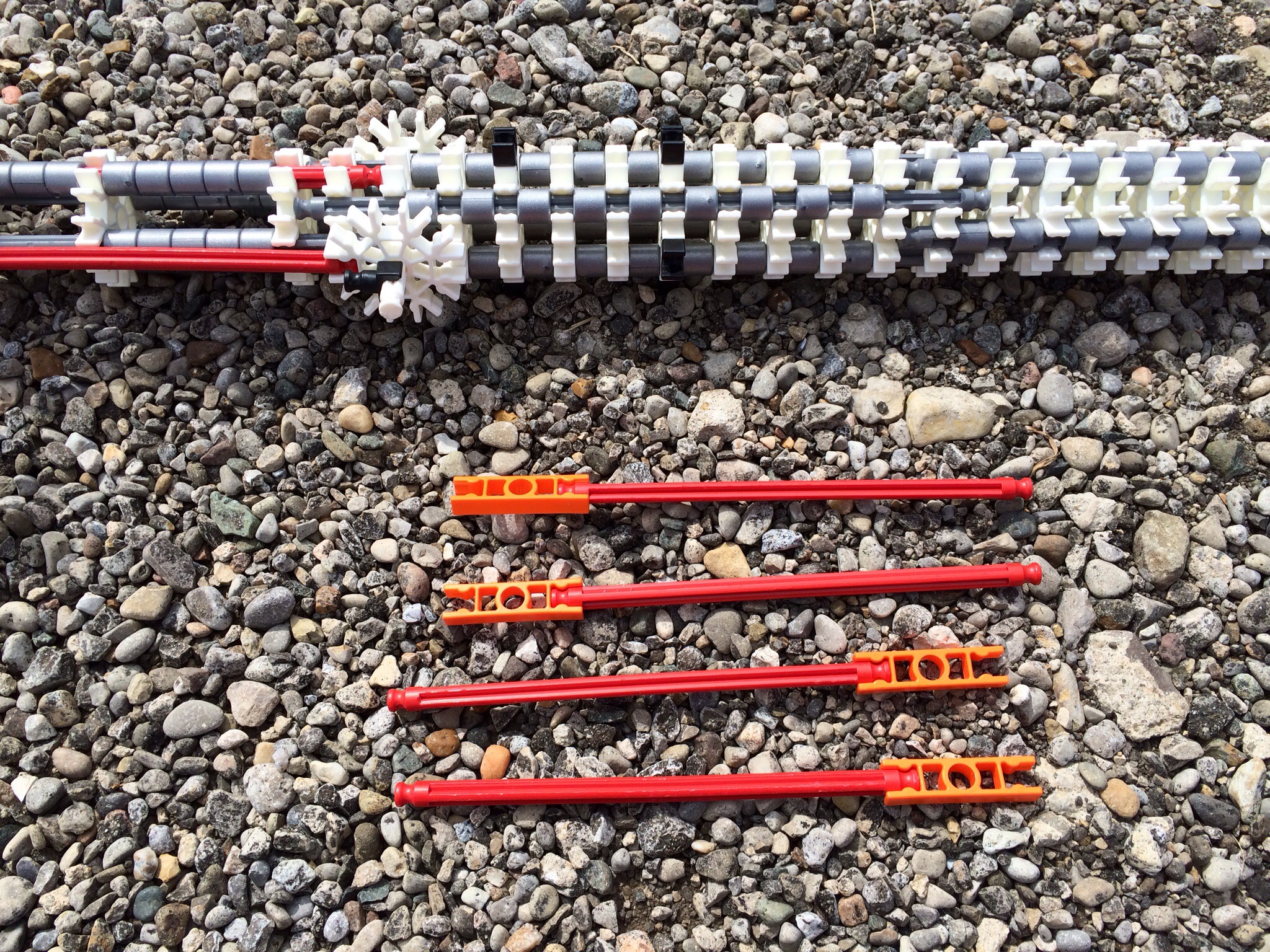

To build the tripod "legs," simply connect an orange connector to a red rod as in pictures 4 and 5. Repeat to get four pieces. Add them to their storage positions on the rig by clicking them into the "Y" connectors as in pictures 7, 8, and 9.
Using the Tripod Accessory
The tripod gives even more versatility to Charisma!
To use the tripod accessory, simply pop the red rods with orange connectors out of their storage spots (from the previous step), and conncect them in pairs together, as shown. Attach each "leg" to the yellow connectors below the cradle, as shown. You are now tripod ready!
Uses for Charisma
There are many different fun and useful purposes for the Charisma Camera Rig.
You can take a video of yourself, such as the action adventure from step one, or you can simply take pictures of yourself and your friends. You can video or photo blog, and even document your first person experiences on a vacation!
The tripod function allows even more versatility! You can take creative action videos, and beautiful photos of the scenery wherever you go! Every necessary function is available to you in the compact and sleek form of Charisma!
Some more ideas for you include:
- Make a scary movie.
- Make a music video.
- Make a survival show, like I did.
- Make a feature film of your own.
- Test out some of the features of video editing software.
- Document wildlife.
- Document a vacation.
- Take pictures of yourself.
- Take pictures of friends.
- Look like a media personnel in public.
- Start conversations.
- Interview people.
- Video or photo blog.
- Much, much more!
Make sure you share whatever you make with me in the comments or "I Made It!" section of the comments! I would love to see what you can make!
Done!
Congratulations! Your Charisma camera rig is now complete and ready to make your next feature film! There are a lot of fun new projects and adventures in store for you, so get out there and start putting Charisma's awesome capabilities to use in an epic movie or picture show!
Remember, I want to see what you make with this rig, so feel free to share any projects you have done with Charisma in the "I Made it!" section of the comments!
Thank you for looking at the K'nex Charisma rig! Happy filming!
