Charger, Speaker and Cell Phone Stand
by jeffry_calixto in Living > Organizing
145 Views, 0 Favorites, 0 Comments
Charger, Speaker and Cell Phone Stand
This project is about how to edit the cuts for the outer support of Charger, Speaker and Cell Phone Stand in order to place the other instruments such as the speaker, the wireless charger, the digital bluetoh system and other things.
First Side

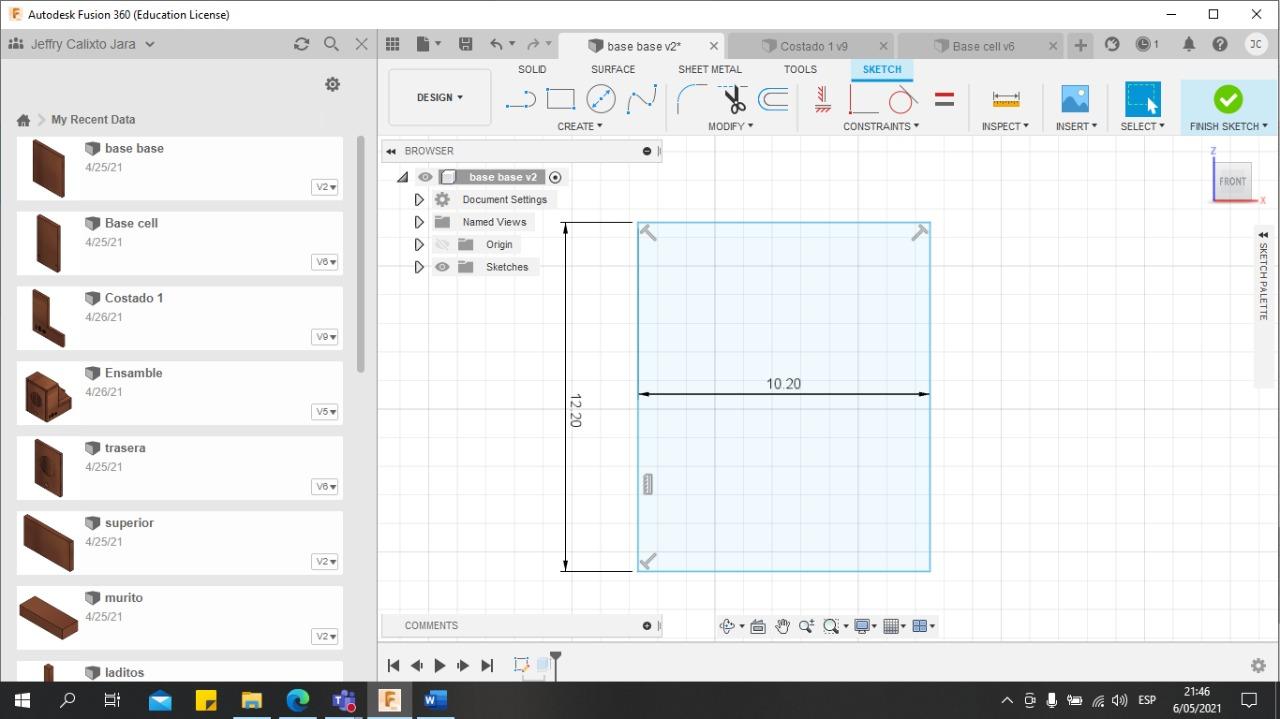

The base of the object is drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.
The base of the total object face was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.
The small tecnology face where will be the screen from multimedia options was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

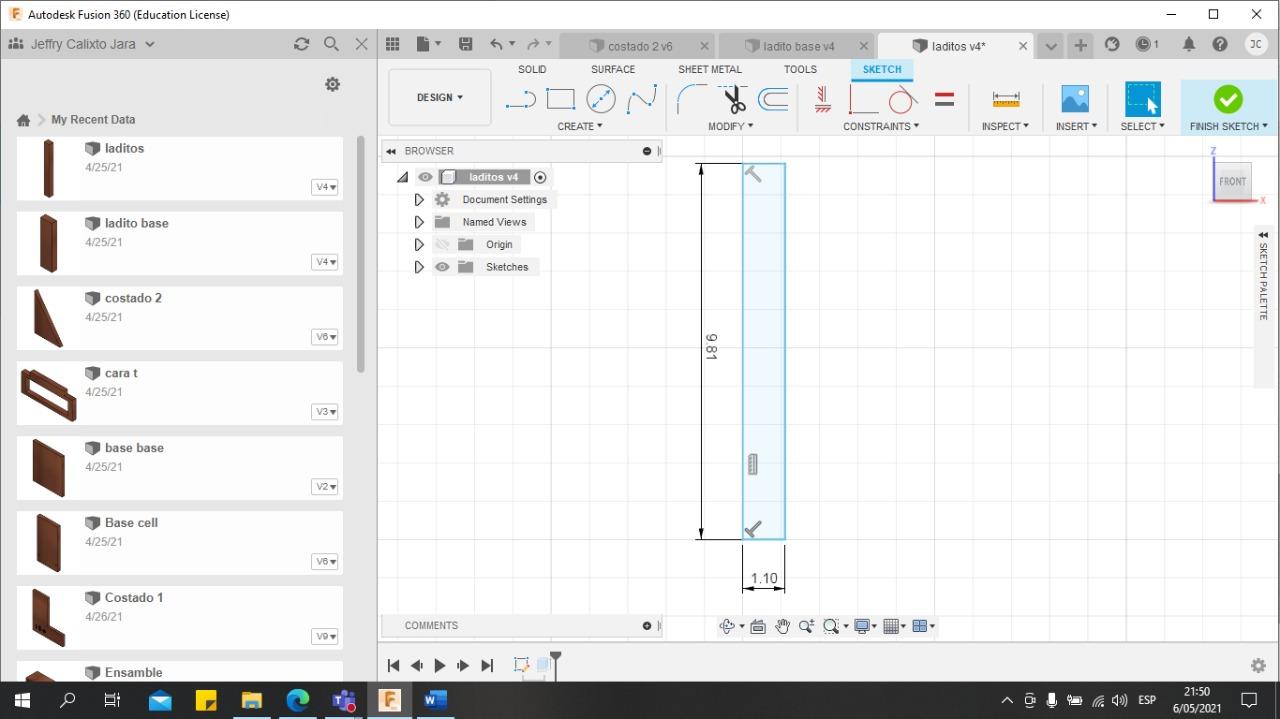

The lateral small cellphone faces form the object face was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

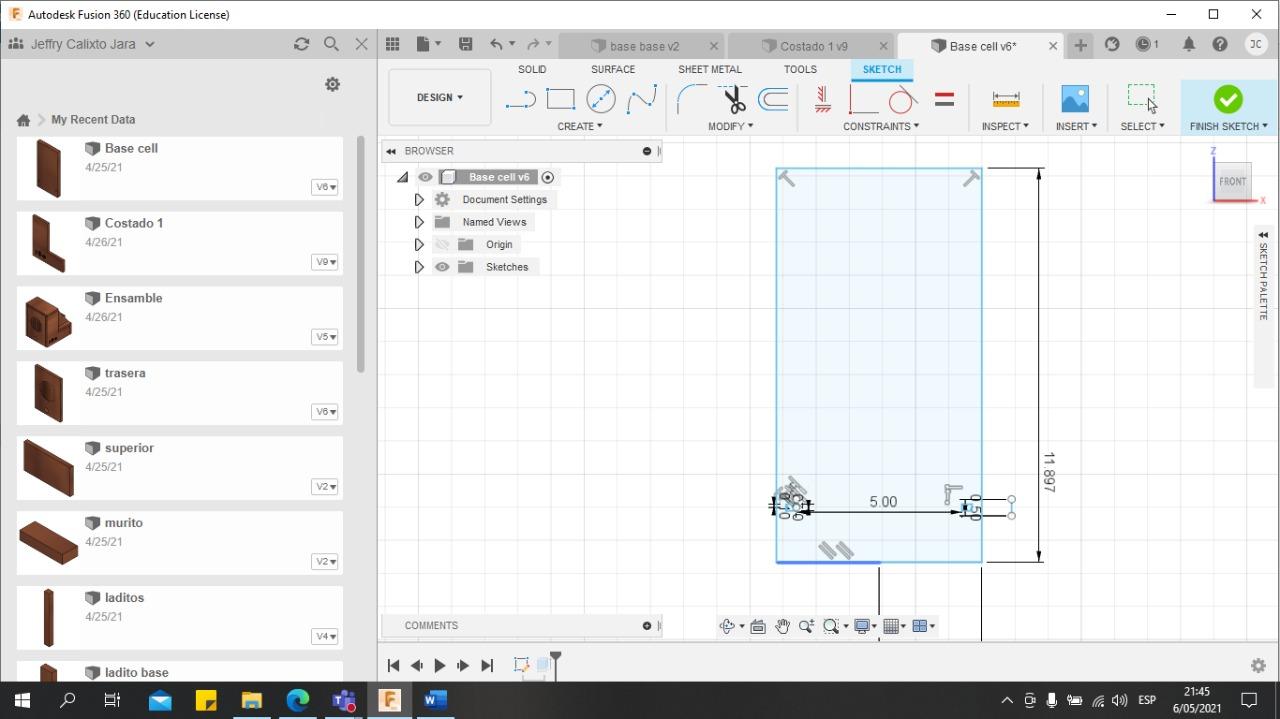

The base of bottom of the cell base was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.
The base front of the cell base was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

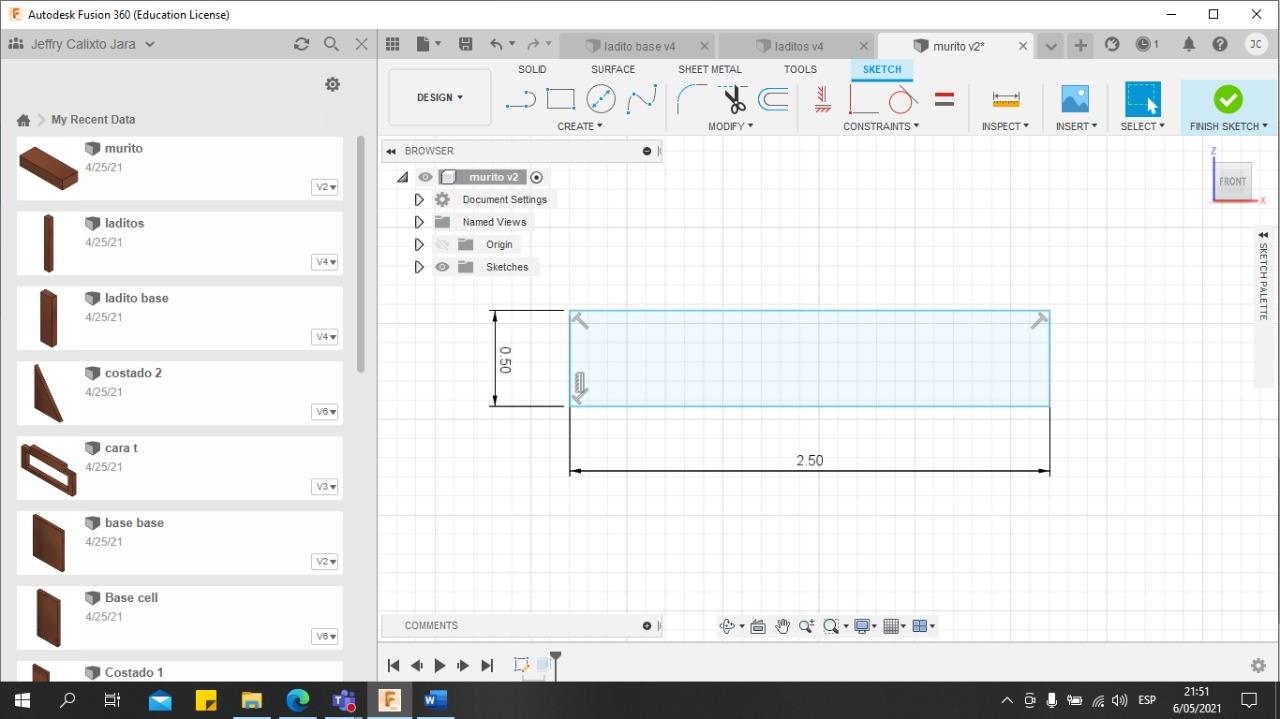

The small supports at the base of the cell phone was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

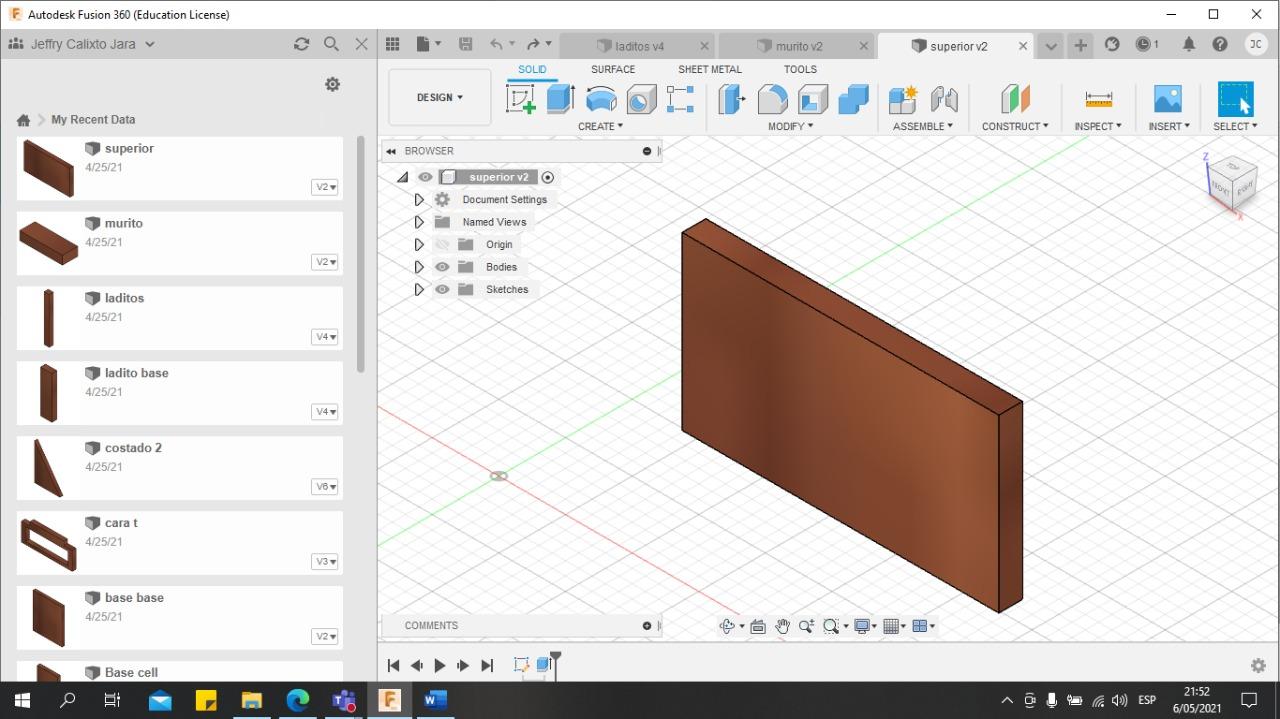

The top base from the object was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

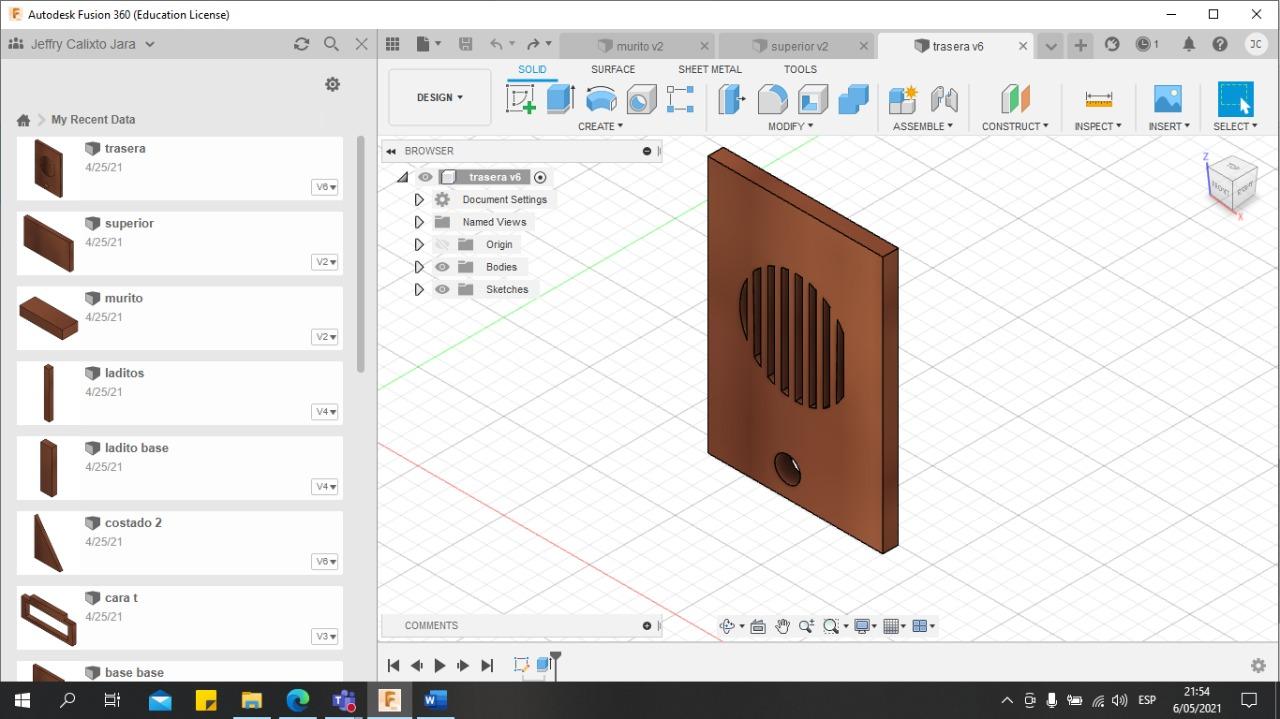

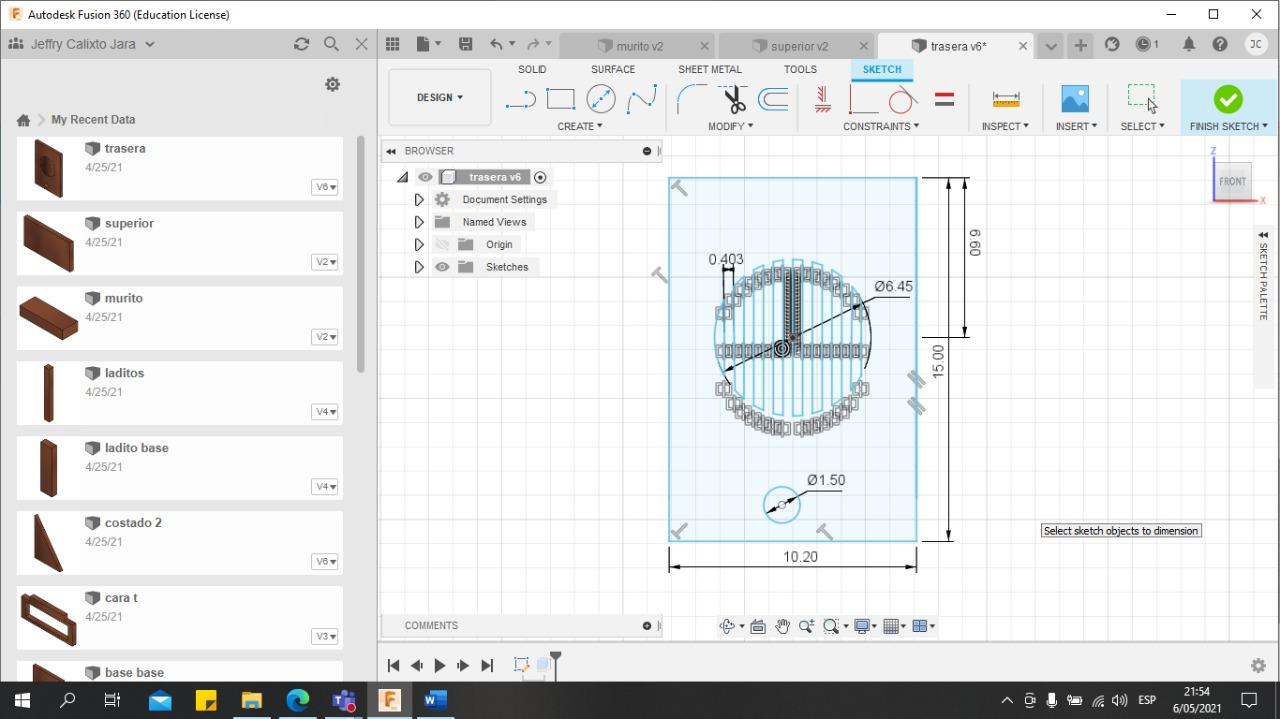

The back base from the object was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

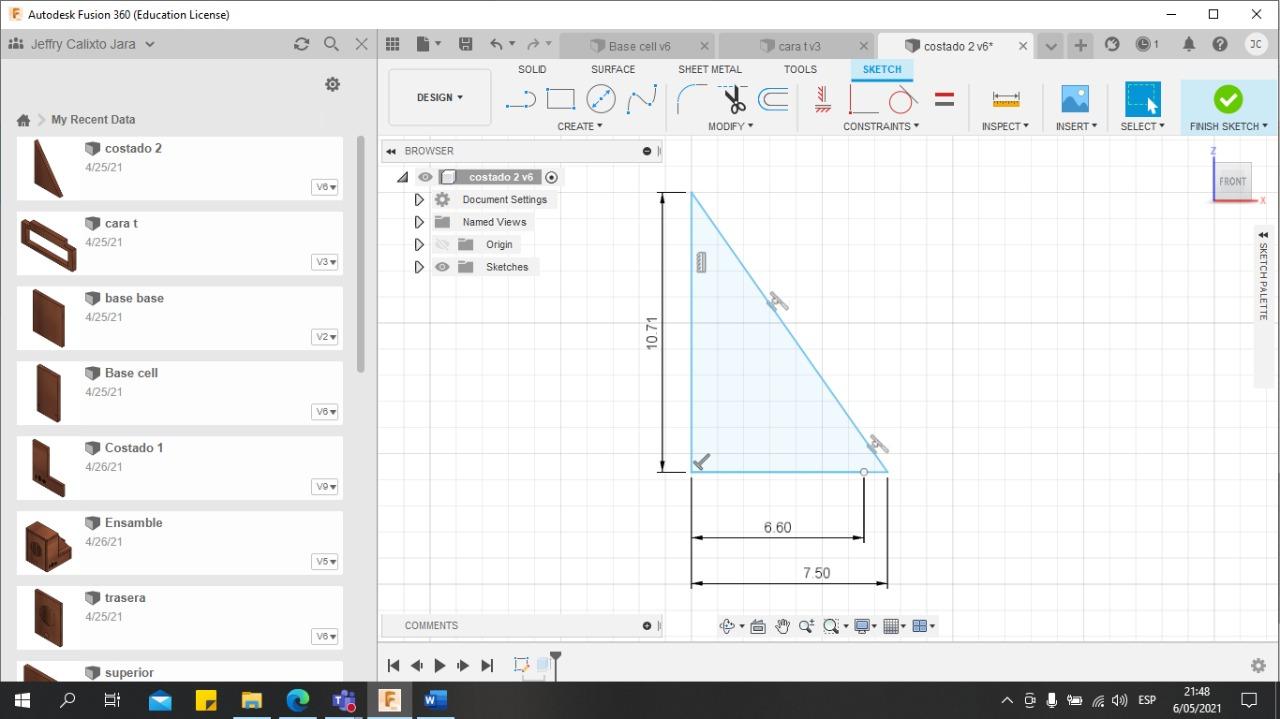

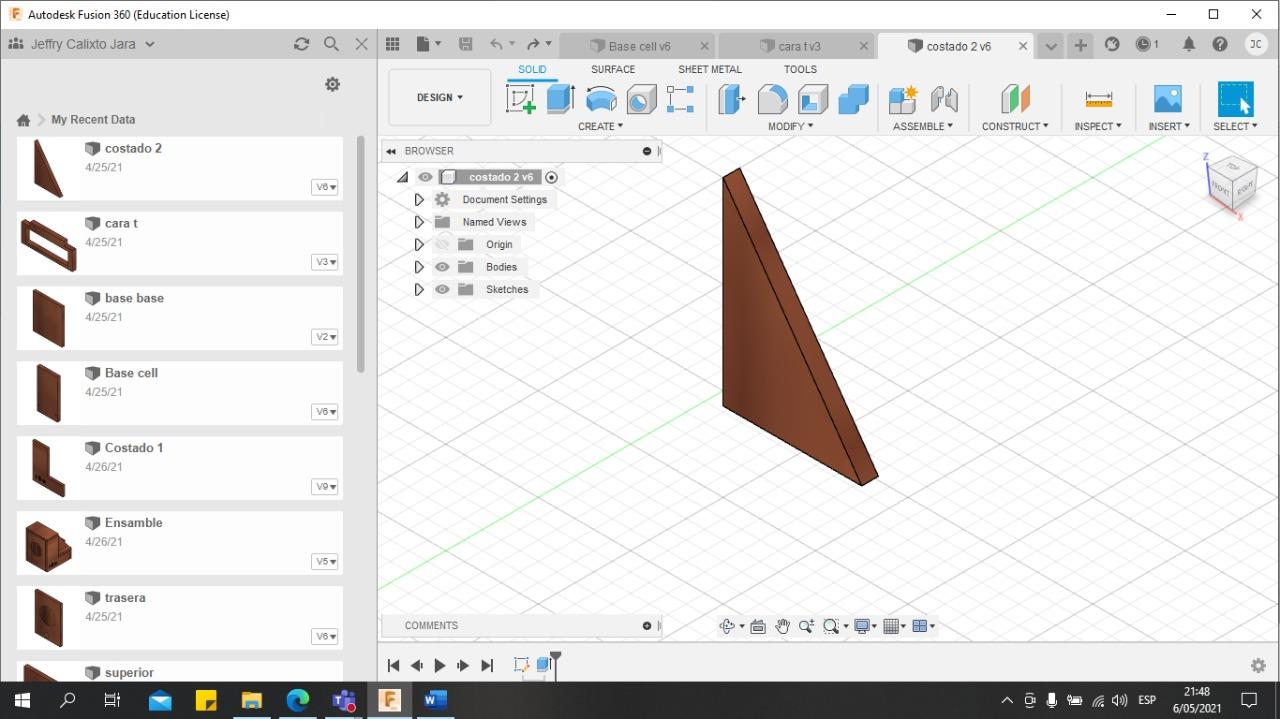

The side part of the object was drawn with the measurements given in the image in to Fusion software. Tools used draw this side were line, pan and extrude. Extrude tool was configurated to 9mm.

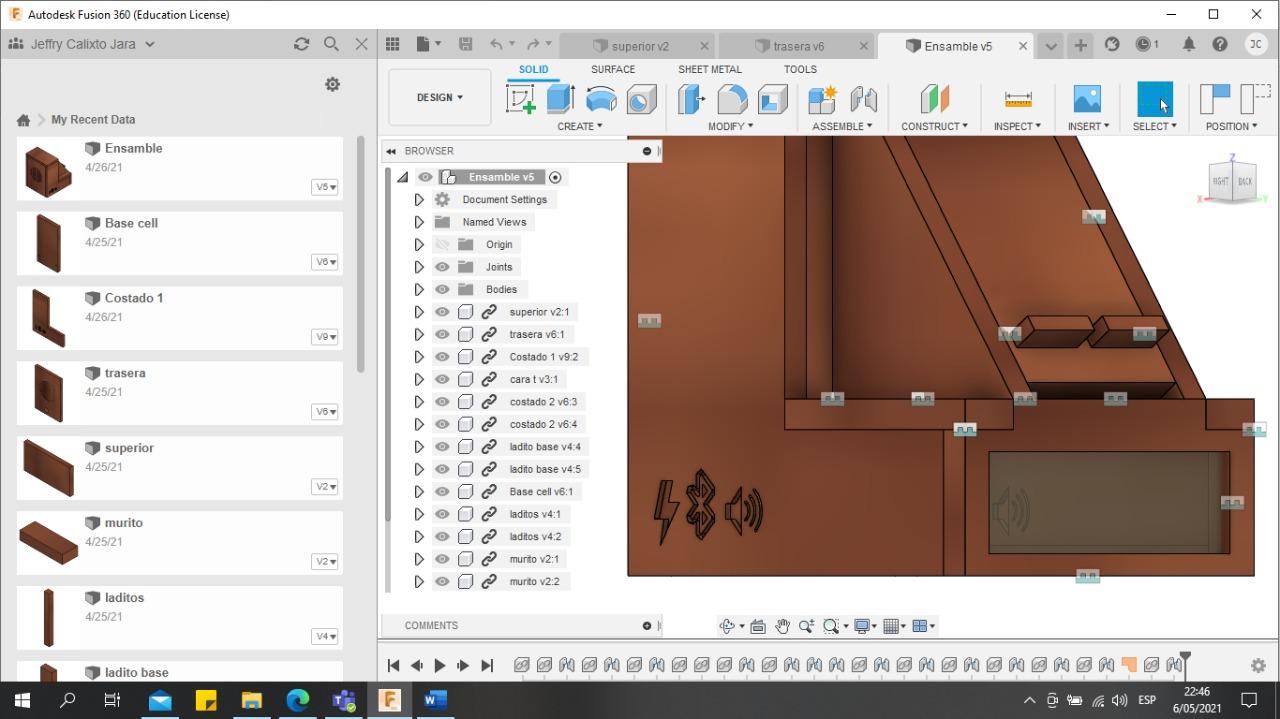

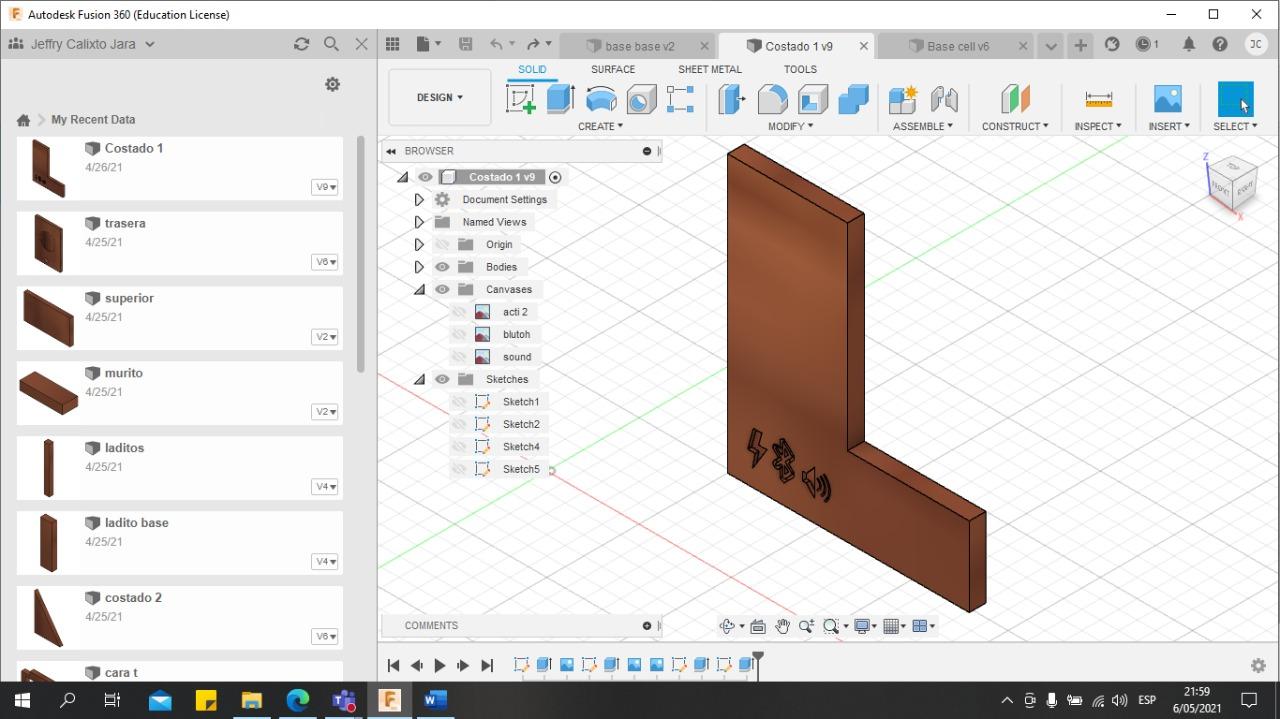

Also was drawings bluetooh , sound and power canvaces signs then the canvases were traced with flit point spline tool also 2mm extrude tool.

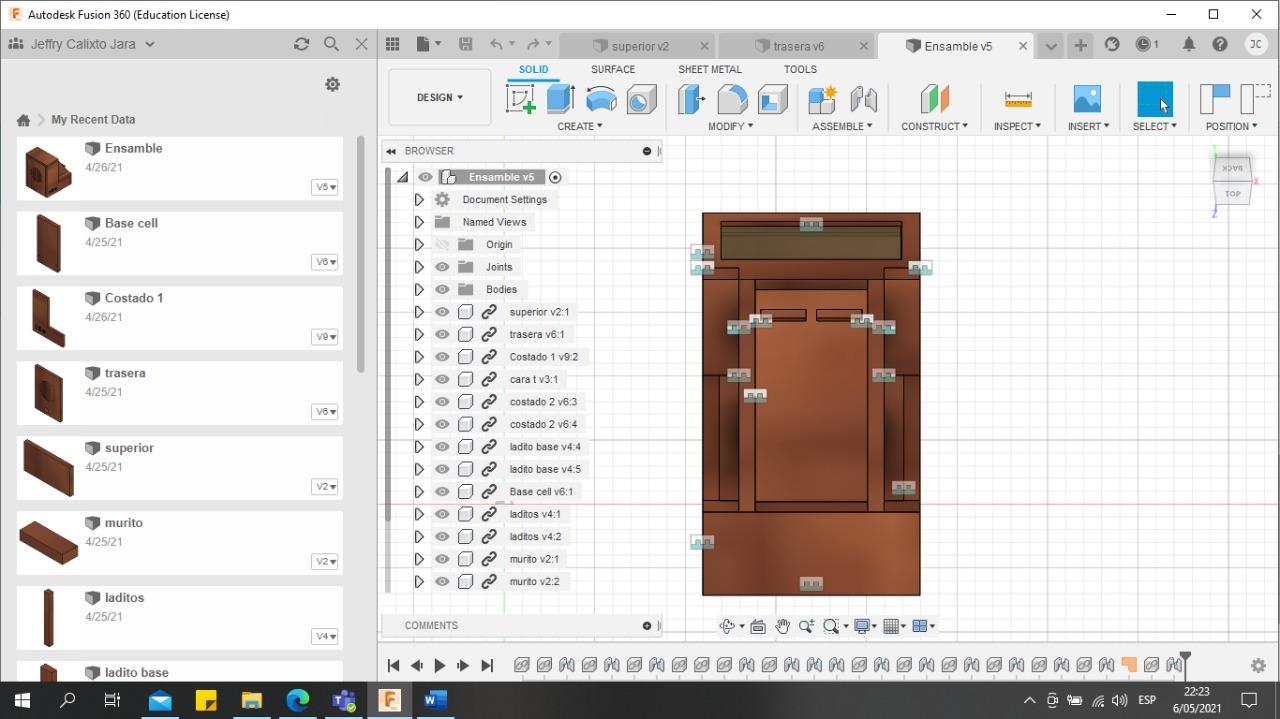

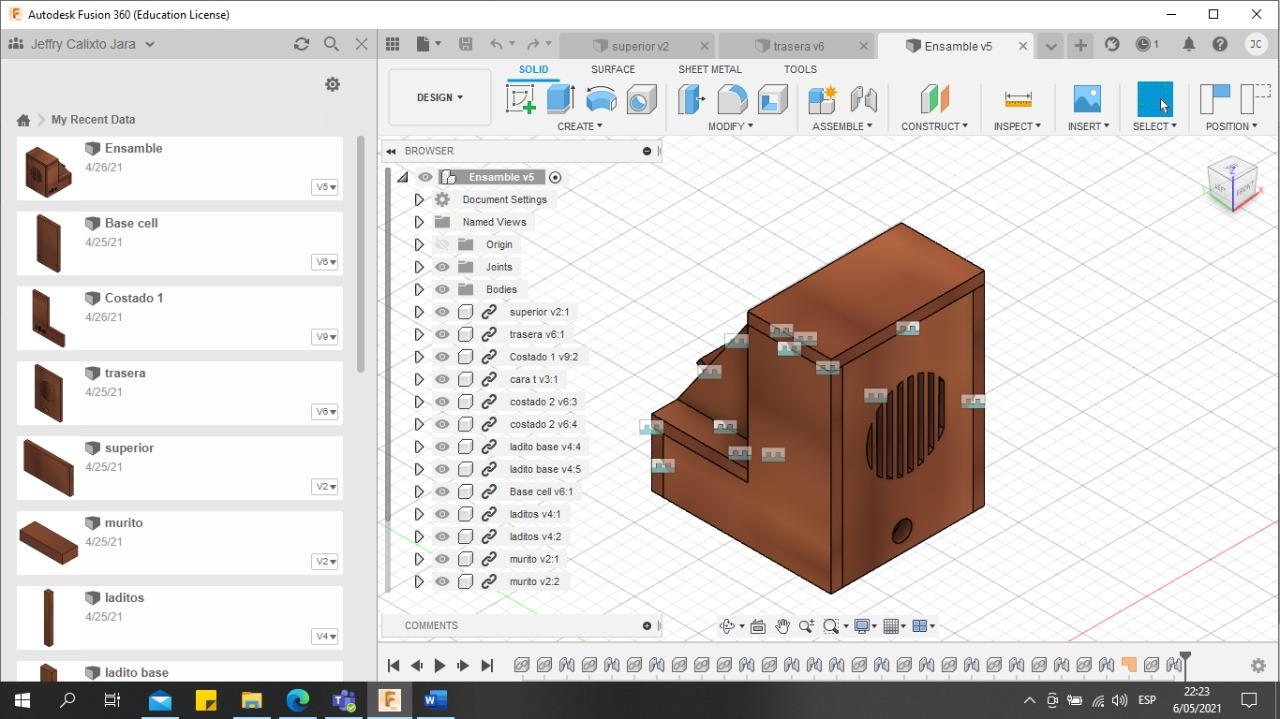

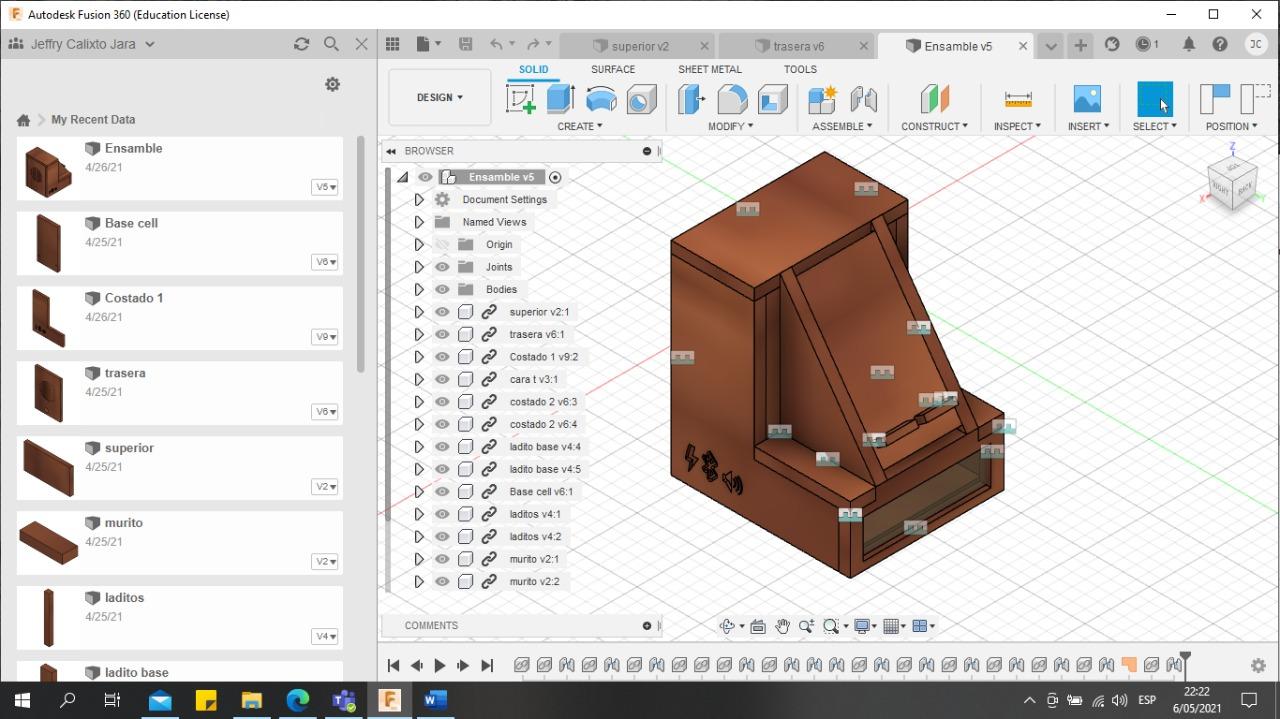

The assembly tool is used, to use it you must first create a new tab, then each face that you want to use in the created tab must be opened and orient it according to the attached image. Then must be joined with the tool assemble the points that coincide in the object in order to finally obtain the complete assembly.
