Cat_house

Screen Shot 2021-10-12 at 5.27.53 PM.png

Software:

Rhino 7, Grasshopper, Slicer for Fusion 360, Adobe Illustrator

Material:

cardboard, plastic(from 3D printer)

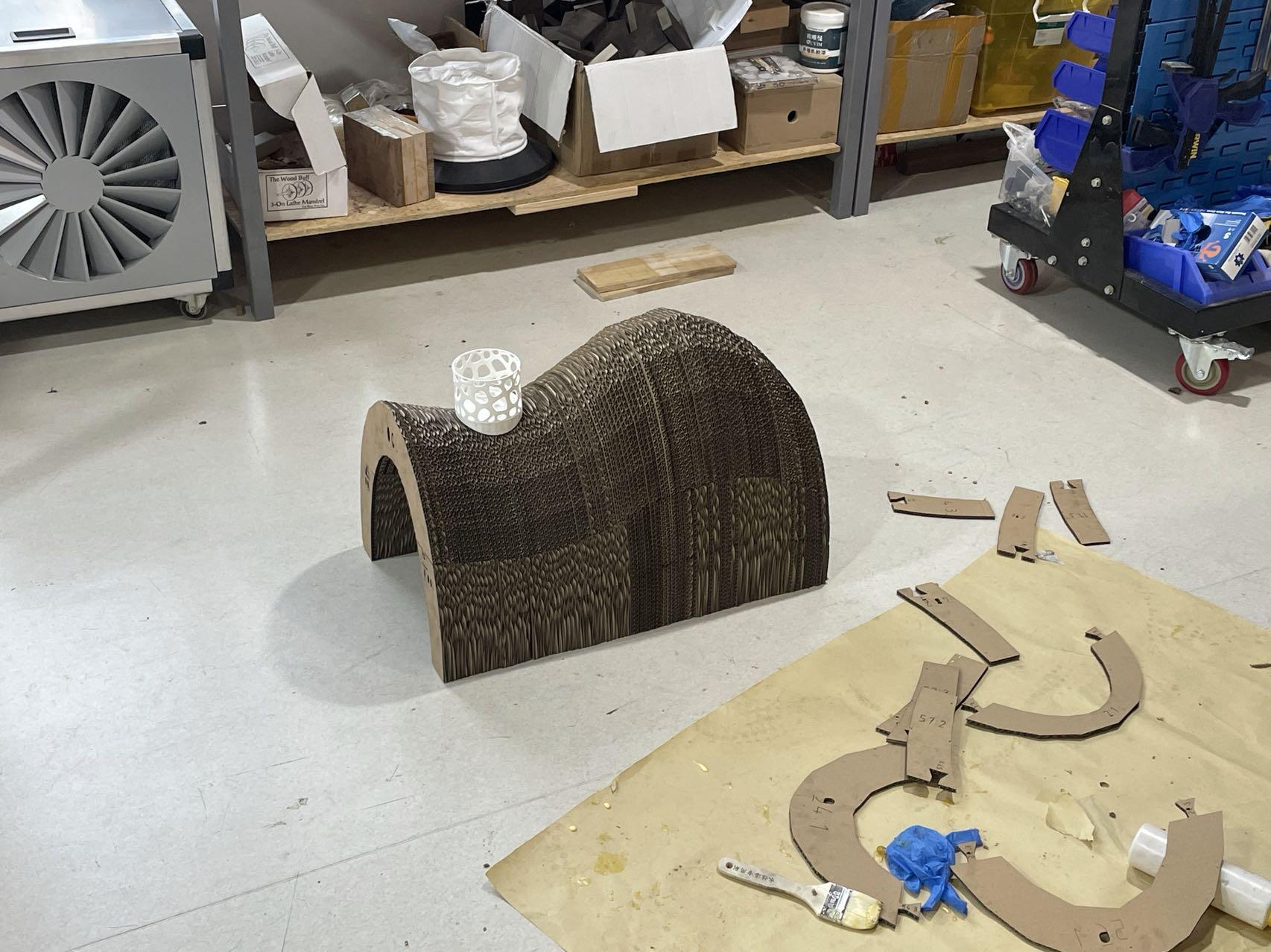

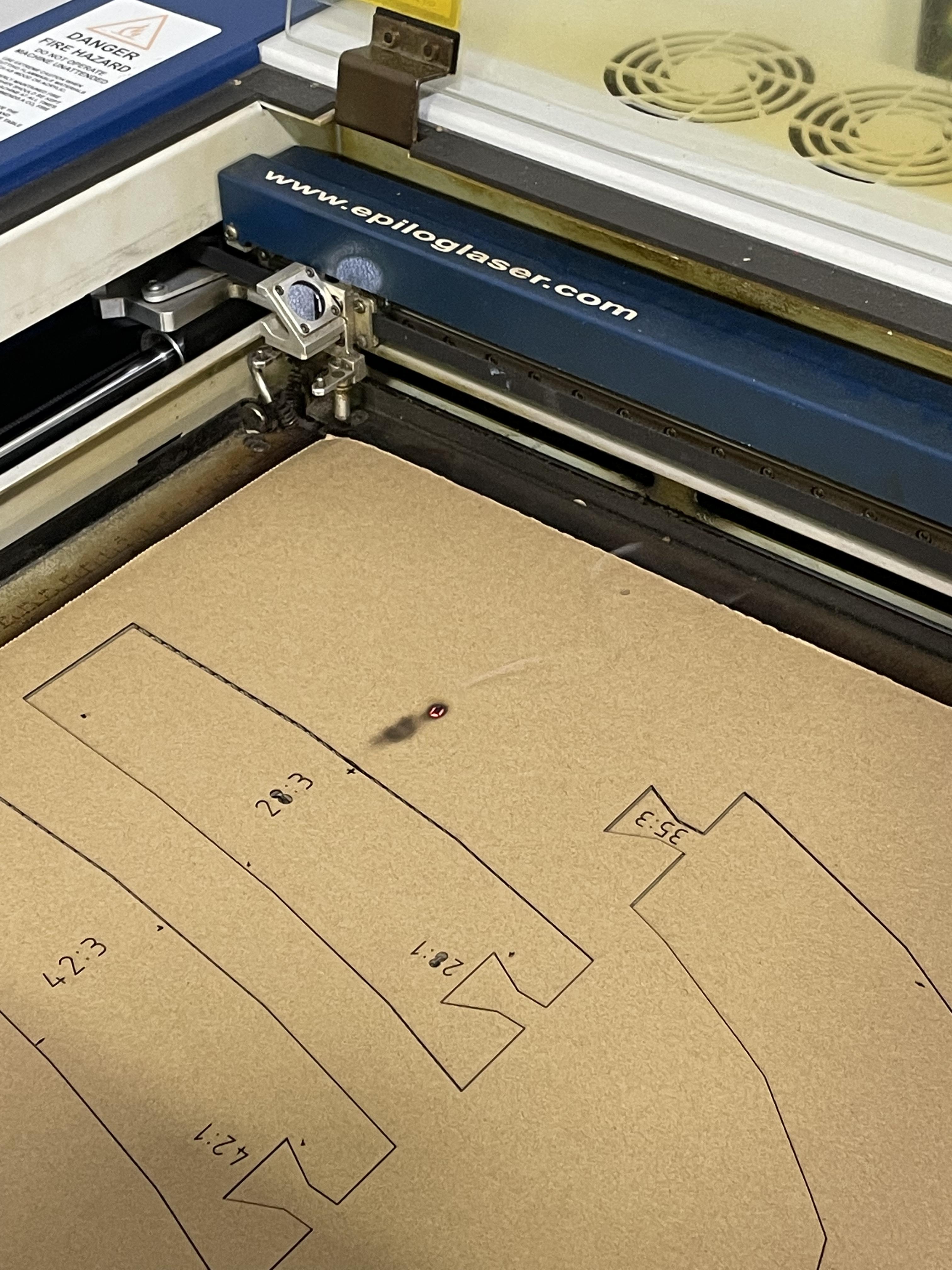

Prototyping Phase

Screen Shot 2021-10-13 at 5.06.05 PM.png

Screen Shot 2021-10-13 at 5.06.15 PM.png

Screen Shot 2021-10-13 at 5.06.28 PM.png

I had a lovely cat who's gone recently, so I want to make a cathouse for her to remember her; so glad to have her in my life for 10 years.

For this design, I want to make a cathouse that provides a nice place for cats EAT, SCRATCH, AND SLEEP, which is a heavenly house to those cute creatures.

I did 6 sketches, and there are 3 sketches that I am most satisfied with.

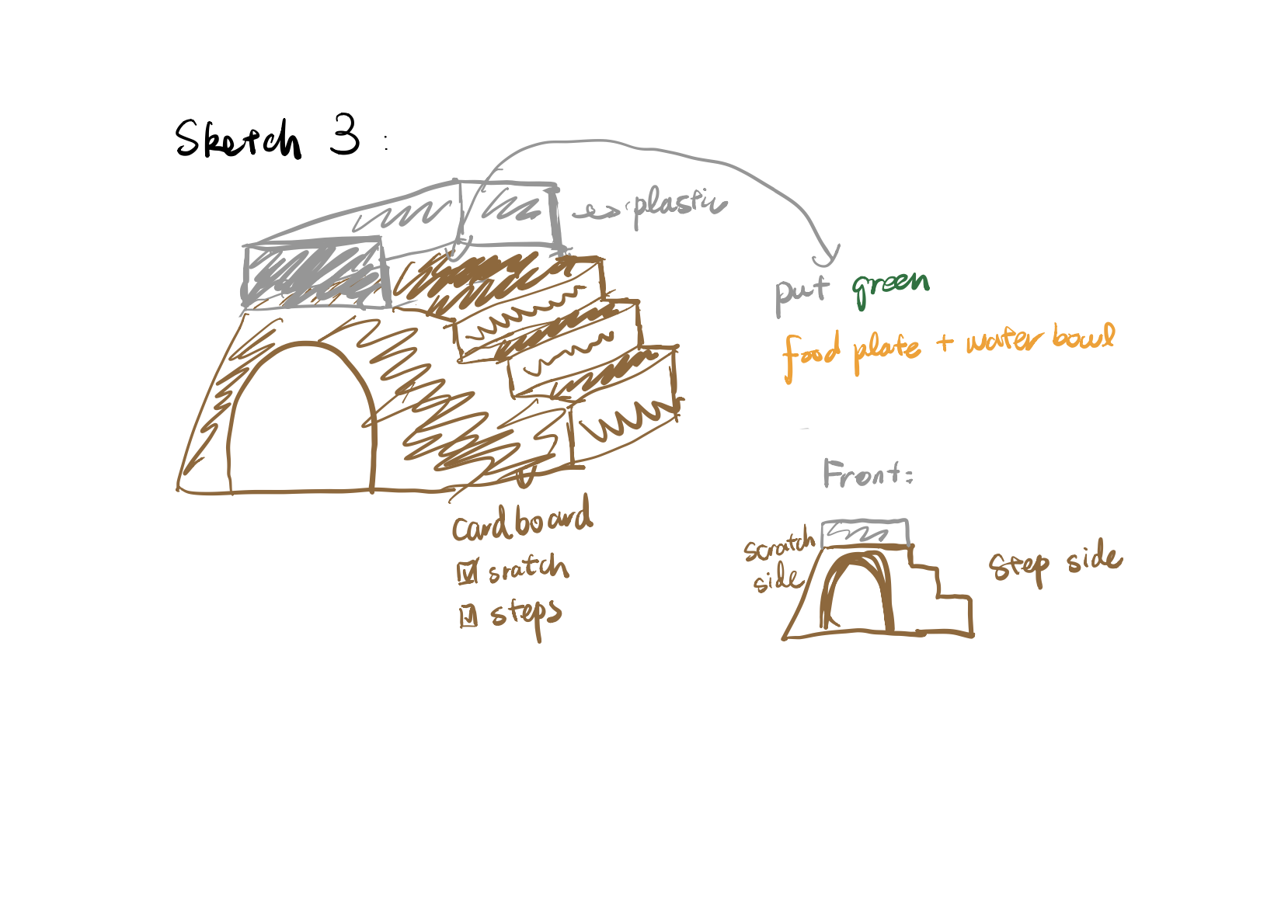

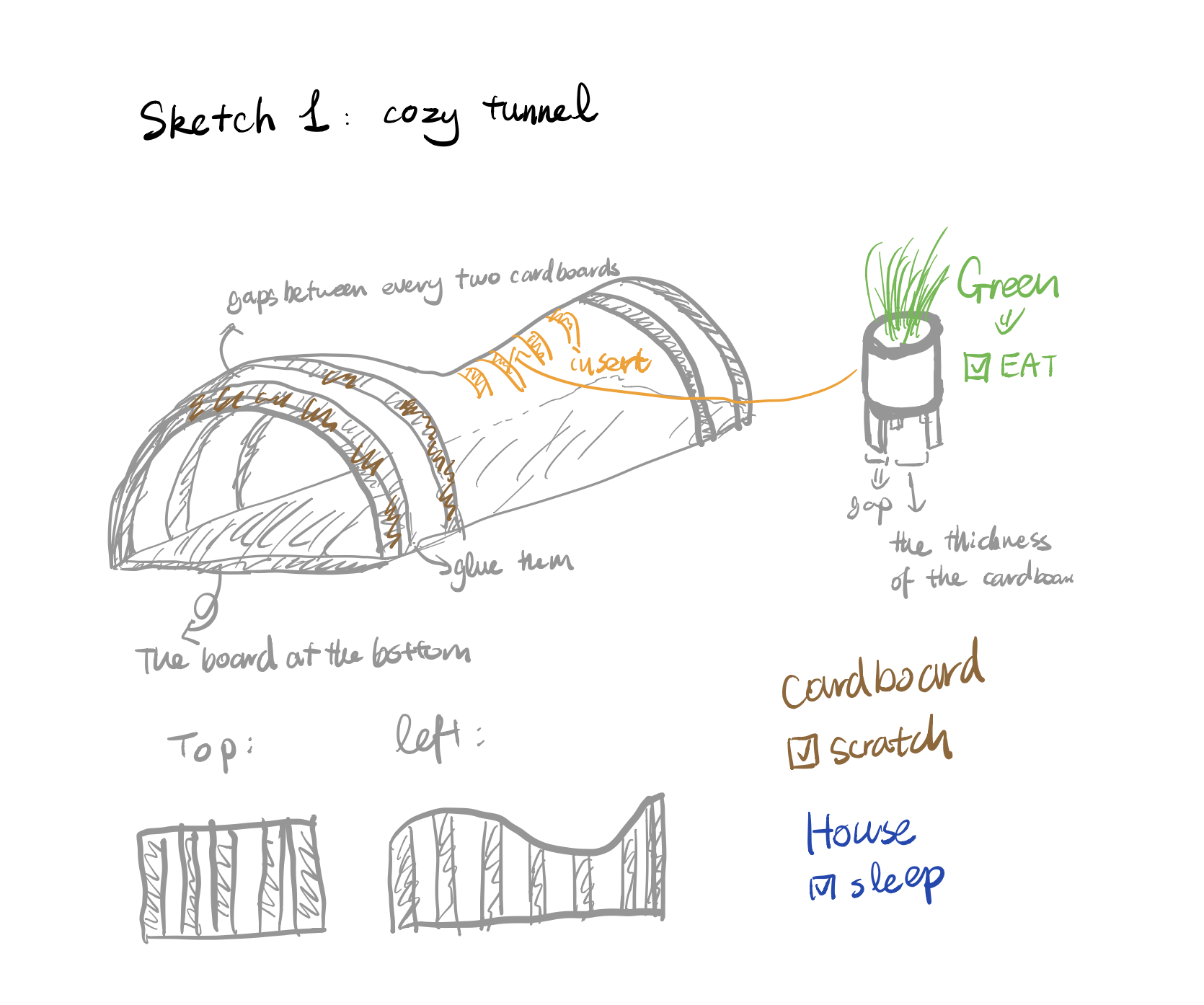

I picked the first sketch as the final version, which basically contains two parts: the cardboard body part and the 3D printed container part.

Making the Main-body Part Using Rhino

Screen Shot 2021-10-11 at 3.20.37 PM.png

Screen Shot 2021-10-11 at 3.21.44 PM.png

Screen Shot 2021-10-11 at 4.03.16 PM.png

Screen Shot 2021-10-11 at 4.02.56 PM.png

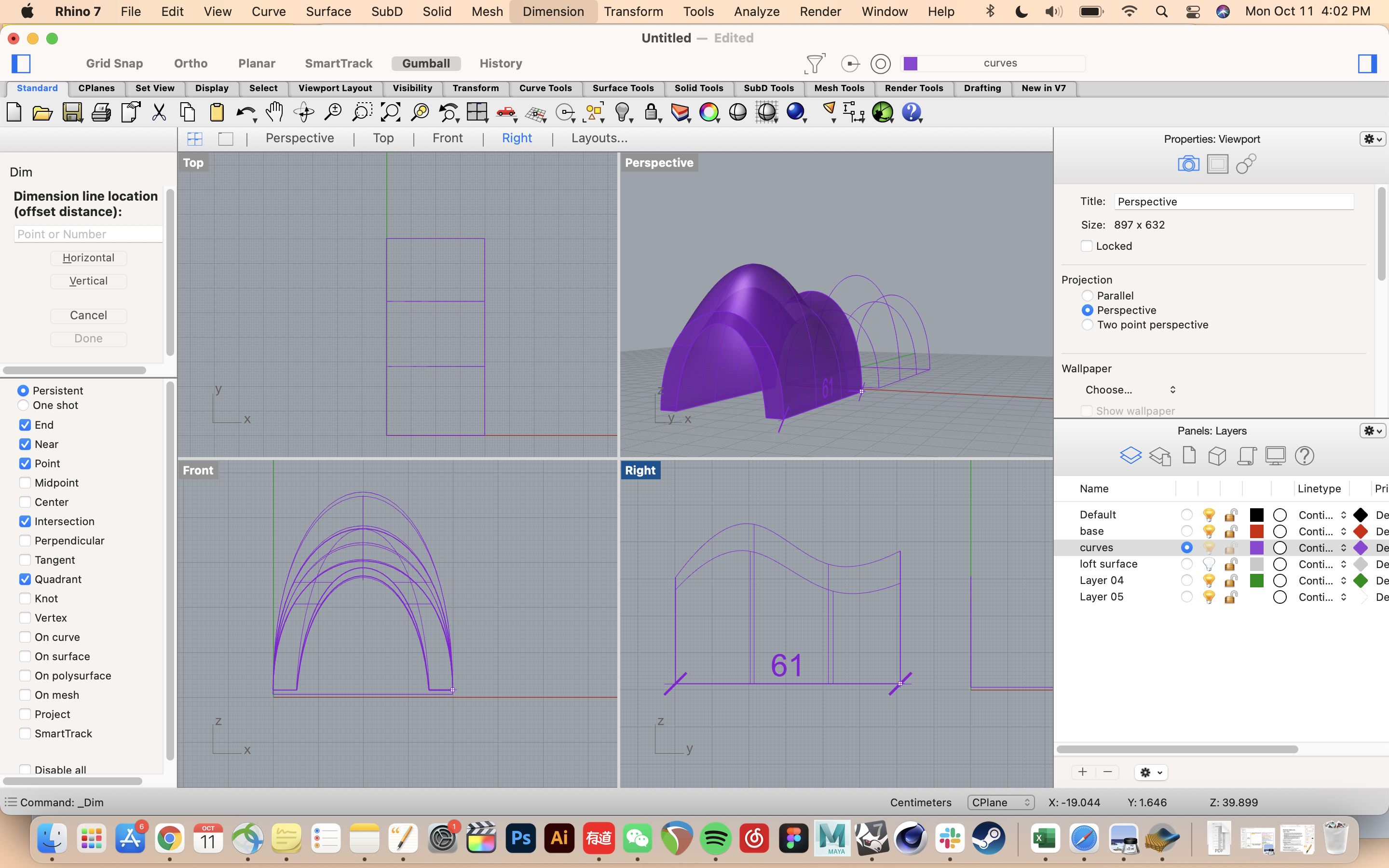

After deciding the basic shape of the cathouse, I started moving on to the 3D modeling phase. I use loft to create the wavy shape, and use the boolean difference to get the cave. The length is 61 cm; the height is 26 cm.

Modeling the Grass Container

Screen Shot 2021-10-12 at 4.14.59 PM.png

Screen Shot 2021-10-12 at 4.14.46 PM.png

Screen Shot 2021-10-12 at 5.27.42 PM.png

Screen Shot 2021-10-12 at 4.18.54 PM.png

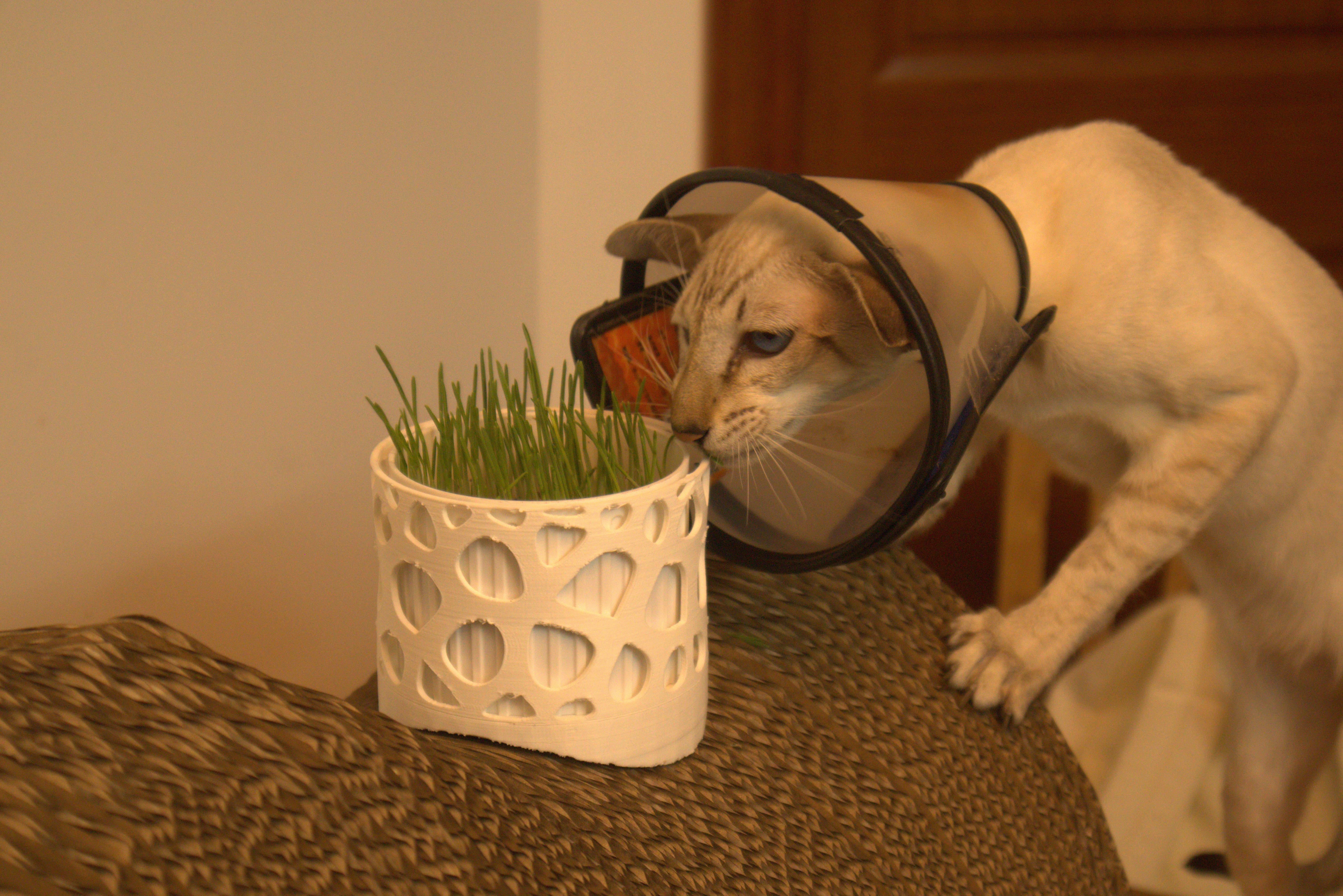

There will be a container on top of the cathouse to hold the plant(cat grass).

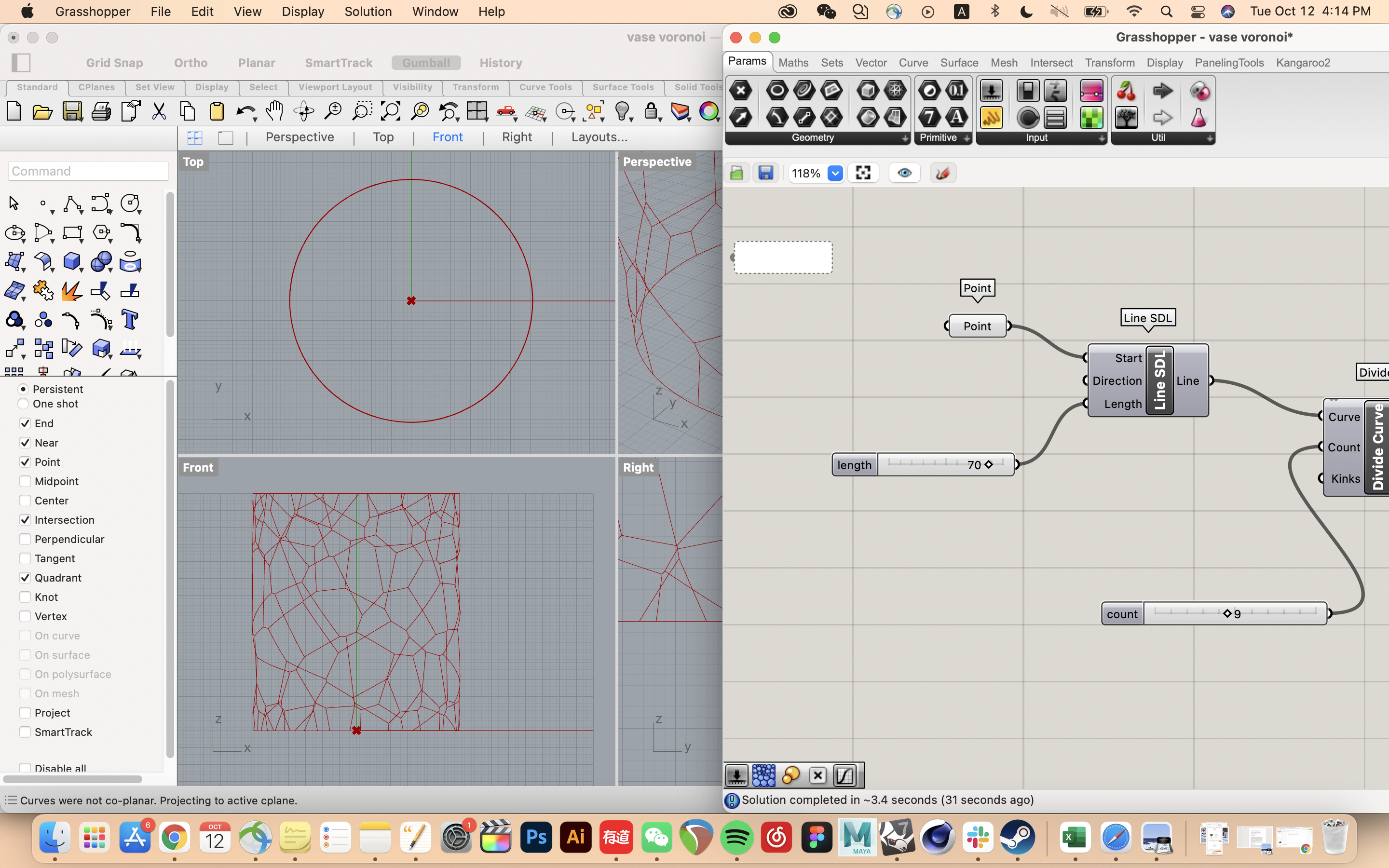

The first picture is the size of the plant that I purchased. So, as for the container that I am going to print, I made the radius 50mm and the height 70mm, and I use Grasshopper to build the model.
