Cat-a-way - Computer Vision Cat Sprinkler

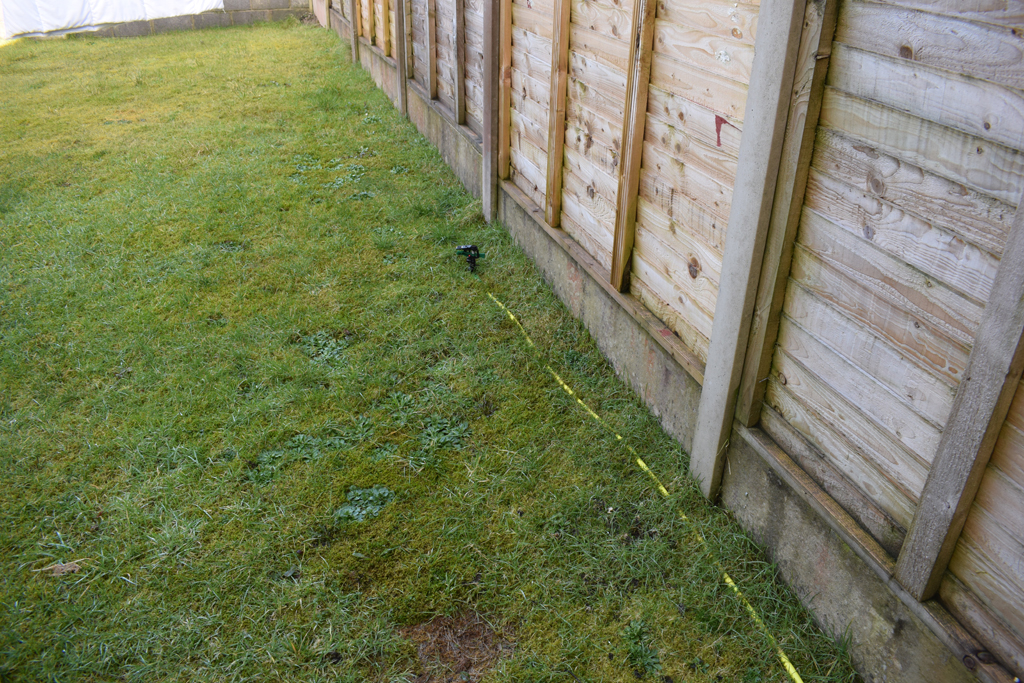

Problem - Cats using your garden as a toilet

Solution - Spend a too much time over engineering a cat sprinkler with auto youtube upload feature

This is not a step by step, but an overview of construction and some code

#BeforeYouCallPETA - The cats are fine, its a low pressure sprinkler just like rain, that they can outrun before it even pivots around to them. The project is not to soak a cat, but to shew them away before they litter my garden with the cat version of Barkers Eggs.

Raspberry Pi zero & SD card

Raspberry Pi camera

Relay

555 timer.... (or an arduino and another relay if your 555 timers don't arrive)

Solenoid

Sprinkler

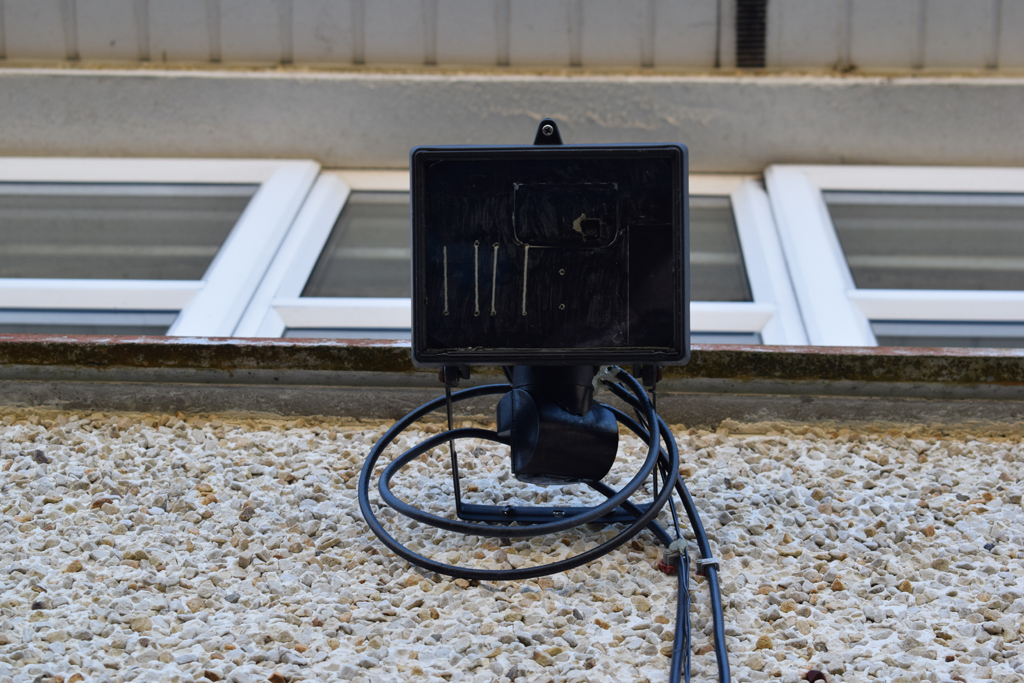

Some kind of housing for the electronics

A willingness to hit a metaphorical nail with a 6 tonne sledge hammer

A camera with so little resolution you can barely see the water, but can still see the cats running for cover

1, Pi camera detects a cat sized object moving for a few camera frames (exaplined in next step)

2, Pi sets off sprinkler

3, Cat runs for cover

4, Video automatically uploaded to youtube for viewing pleasure

Using openCV using frame subtraction you can find areas of the frame that change over time, using some nifty functions you can figure out how big these changes are and if they persist over time, and most importantly find out if they are cat sized.

There are quite a few tutorials on frame subtraction that go into great detail if you do a quick google search.

Overview of how the code works

1, The camera keeps taking frames and comparing them to the last

2, If a cat sized shape is detected it is noted

3, If the cat sized change persists over around 4 frames the pi uses its GPIO to power relay to start arduino

4, The arduino sends a signal to power the second relay for 5 seconds which activates the solenoid

5, The solenoid when powered allows water to the sprinkler

6, While sprinkler is active camera stops detecting and records video

7, Video is uploaded to Youtube

8, Stills uploaded to dropbox for fine tuning system

Note - Why i ended up using 2 relays and an arduino to turn on a solenoid for 5 seconds.....

1,The pi cannot start and stop the solenoid while recording the video as the python scrips pauses until the video is finished, hence the need for the arduino (or 555 timer) to allow the solenoid to open and close independant to the script while the video is still recording.

2,The first relay and arduino can be replaced with a 555 timer but that didn't come in the post in time for this project, 555 would save a lot of time money and steps.

3,The pi cannot trigger the solenoid directly as the Pi GPIO works on 3.3v and 51mA max, and the solenoid wants 5V and much more than 51mA to trigger.

4,Each frame can be cropped to remove motion detection in unwanted areas, such as a neigbors garden. Failure to do this will result in said neighbour giving confused looks into your garden because the sprinkler goes off every time he wants to go into his shed.

5,I probably missed something obvious and wasted my time setting it up like this.

Code below

import cv2
import numpy as np
import argparse #cat
import time
import RPi.GPIO as GPIO
import os
import dropbox
from picamera.array import PiRGBArray
from picamera import PiCamera



#------------------------------------------------Upload to youtube---------------------------------------
def HDtoYoutube():
    ctime = time.strftime("_%H-%M-%S")
    cdate = time.strftime("_%d-%m-%Y")
    vidname = ctime + cdate
    #Trigger relay
    GPIO.output(11,True)
    time.sleep(.5)
    GPIO.output(11,False)
    print("Taking Video")
    try:


        #Take Video
        os.system('raspivid -w 1640 -h 922 -o vid{0}.h264 -t 15000'.format(vidname))
        #Upload to youtube
        print("Uploading to YouTube")
        os.system('sudo youtube-upload --title="Cat Got Wet {0}" --client-secrets=client_secret.json vid{0}.h264'.format(vidname))
        #Remove video file when done
        os.remove('vid{0}.h264'.format(vidname))
        print("Video uploaded and removed from Pi")


    except:
        pass


#------------------------------------------------Stills to dropbox---------------------------------------
def StillsToDropbox():
    print("Uploading Still To Dropbox Function")
    access_token = 'Ah ah ah, you didn't say the magic word...Ah ah ah, you didn't say the magic word'
    ctime = time.strftime("%H:%M:%S")
    cdate = time.strftime("%d-%m-%Y")
    try:
        filename = "/Motion/{0}/DetectedAt_{1}.jpg".format(cdate, ctime)
        print(filename)
        client = dropbox.client.DropboxClient(access_token)
        image = open("ToDropbox.jpg", 'rb')
        client.put_file(filename, image)
        image.close()
        os.remove("ToDropbox.jpg")
    except:
        pass


#------------------------------------------------Detect motion-----------------------------------------
def DetectMotion():
    #Define vars
    min_area = 400
    tolarance = 25 #change in pixel
    bluramount = 21
    timetoforget = 0.5
    kernel = np.ones((5,5),np.uint8) #used for dialate
    MotionCounter = 0
    MinTargetArea = 600 #smallest size to detect
    MaxTargetArea = 5000 #Largest size to detect
    now = time.time()
    then = time.time()


    #initialise camera
    camera = PiCamera()
    camera.resolution = (640,480)
    camera.framerate = 10
    rawCapture = PiRGBArray(camera, size=(640,480))


   #warmup camera
    time.sleep(1)


   #Grab first frame & prep it to go into cv2.acumulate weight
    camera.capture(rawCapture, format="bgr")
    avg = rawCapture.array


   #Crop out unwanted region
    PolyCrop = np.array( [[[362,480],[613,365],[628,161],[498,0],[640,0],[640,480]]], dtype=np.int32 )
    cv2.fillPoly(avg, PolyCrop, 0,0,0)
    #Process image
    avg = cv2.cvtColor(avg, cv2.COLOR_BGR2GRAY)
    avg = cv2.GaussianBlur(avg, (bluramount, bluramount), 0)
    avg = avg.copy().astype("float")
    rawCapture.truncate(0)
    print("Ready to detect")


    #capture frames
    for frame in camera.capture_continuous(rawCapture, format="bgr", use_video_port=True):
        #Pause Switch
        loopgo = GPIO.input(PauseNow)
        #print(loopgo)
        while loopgo == 0:
            #print(loopgo)
            loopgo = GPIO.input(PauseNow)
            time.sleep(1)


       #grabs raw numpy array
        currentframe = frame.array
        key = cv2.waitKey(1) & 0xFF
        #Crop out unwanted region
        cv2.fillPoly(currentframe, PolyCrop, 0,0,0)
        rawCapture.truncate(0) #Clear frame buffer for next loop
        currentgray = cv2.cvtColor(currentframe, cv2.COLOR_BGR2GRAY)
        currentgray = cv2.GaussianBlur(currentgray, (bluramount, bluramount), 0)
        #make time average frame
        cv2.accumulateWeighted(currentgray, avg, timetoforget)
        #get difference in frame
        frameDelta = cv2.absdiff(currentgray, cv2.convertScaleAbs(avg))
        thresh = cv2.threshold(frameDelta, tolarance, 255, cv2.THRESH_BINARY)[1]
        #Turn to blob
        thresh = cv2.dilate(thresh, kernel, iterations = 10) #dilate
        thresh = cv2.morphologyEx(thresh, cv2.MORPH_CLOSE, kernel) #close holes
        thresh = cv2.erode(thresh, kernel, iterations = 5) #erode


      #contours
        _, cnts, _= cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
        # loop over the contours
        for c in cnts:
            # if the contour is too small, ignore it
            if cv2.contourArea(c) < min_area:
                continue
            # compute the bounding box for the contour, draw it on the frame,
            # and update the textq
            (x, y, w, h) = cv2.boundingRect(c)


          #Too small : Red Box
            if cv2.contourArea(c) < MinTargetArea:
                cv2.rectangle(currentframe, (x, y), (x + w, y + h), (0, 0, 255), 2)
                #MotionCounter = MotionCounter + 1 #Debug take all the pictures
                print("MotionDetected")
            #Just right : Green Box
            if cv2.contourArea(c) >= MinTargetArea and cv2.contourArea(c) <= MaxTargetArea:
                cv2.rectangle(currentframe, (x, y), (x + w, y + h), (0, 255, 0), 2)
                MotionCounter = MotionCounter + 1 #Debug take all the pictures
                print("MotionDetected")
            #Too big : Blue Box
            if cv2.contourArea(c) > MaxTargetArea:
                cv2.rectangle(currentframe, (x, y), (x + w, y + h), (255, 0, 0), 2)
                #MotionCounter = MotionCounter + 1 #Debug take all the pictures
                print("MotionDetected")


        #Keep now up to date
        now = time.time()
        #MotionCounterTimer
        if (MotionCounter > 0):
            if (now - then > 10):
                MotionCounter = 0
                then = time.time()
        #Break loop on pressing Q
        if key == ord("q"):
            break


        #If motion persists save current frame and activate countermeasures
        if MotionCounter >= 4:
            MotionCounter = 0
            cv2.imwrite('ToDropbox.jpg', currentframe)
            camera.close()
            return True


#------------------------------------------------Main---------------------------------------
try:
    #Set Pins
    GPIO.setmode(GPIO.BOARD)
    PauseNow=12
    GPIO.setup(11,GPIO.OUT)
    GPIO.setup(PauseNow,GPIO.IN,pull_up_down=GPIO.PUD_UP)


    while True:
        MotionDetected = False
        MotionDetected = DetectMotion()
        if MotionDetected == True:
            HDtoYoutube()
            StillsToDropbox()


except KeyboardInterrupt:
    print("Keyboard Interupt")
except:
    print("Other Error")
finally:
    GPIO.cleanup()

#HowToTriggerRealProgrammersWithBadCode

Cram the electrics into a waterproof housing, screw things into walls and use lots of duct tape and hot glue

When it works it works

When it doesn't it sprays cat shadows, your wife and your daughter.

Pro-tip - Put a switch by the door that pauses the motion detection program..... then forget to use it and get soaked when putting the bins out.

Hope I made any experts in programming, electronics and DIY cringe with all the mistakes I probably made, and especially hope you enjoyed all my spelling mistakes.
