Cat Ear LED Glasses/mask
I made a pair of LED glasses some days ago. But my nose is too flat for it. I think of how to improve it. So I made this version.
Material
mask body part: wood PLA filament(can be other one, I just use the one I have)
mask top/diffuser part : clear or white color PETG filament(can be others, I just use the one I have)
LED parts
2pc LED ring with 24 right-angle LEDs, outwards facing
Controller
wires
1 pair PicoBlade 3p cable
others
solder wire, heat-shrink
Power and others
Power bank, micro USB cable
Rubber band
buttons
3d Printing

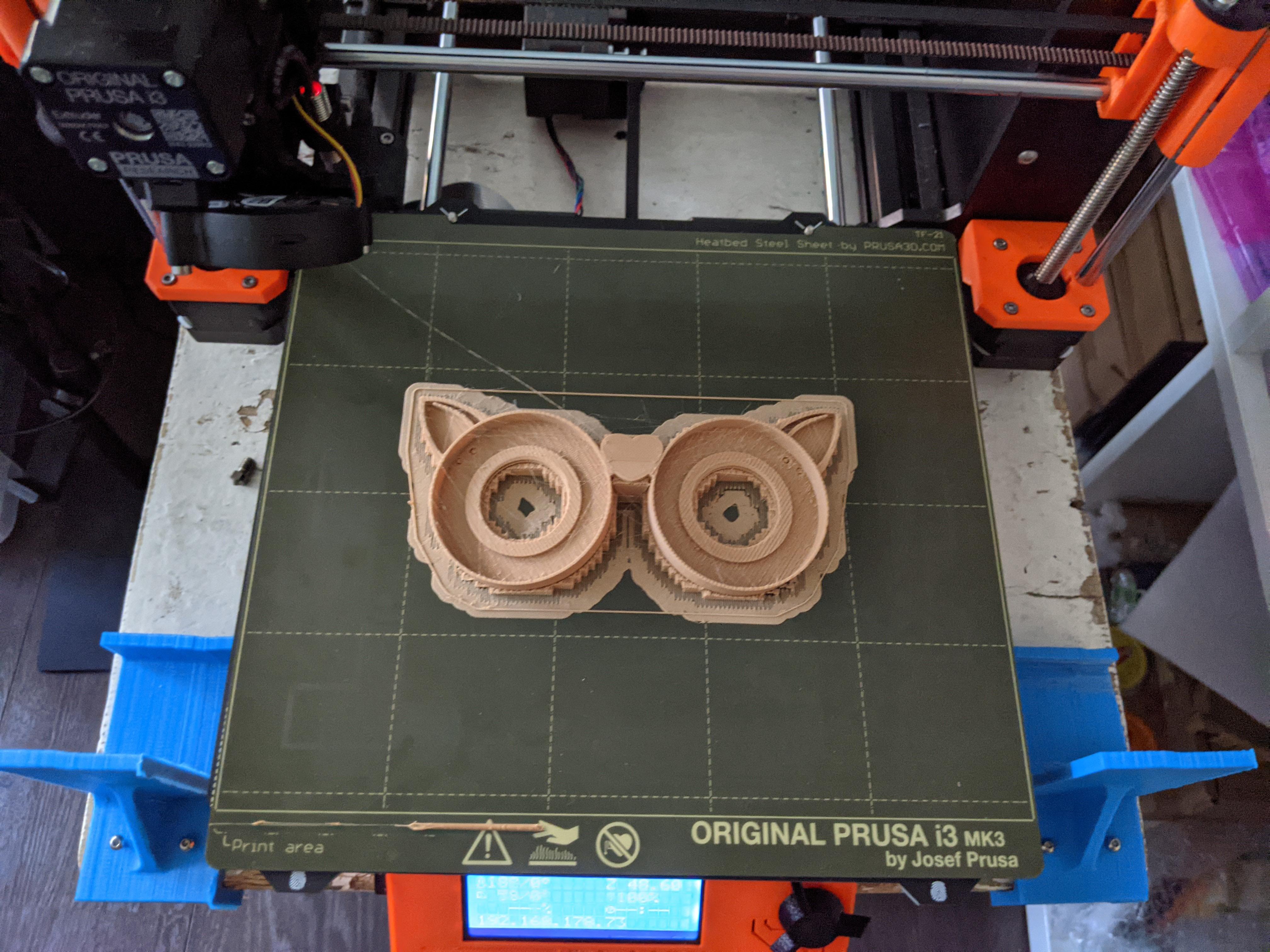

Print the body with wood pla and print the top piece with PETG
Solder and Assembly

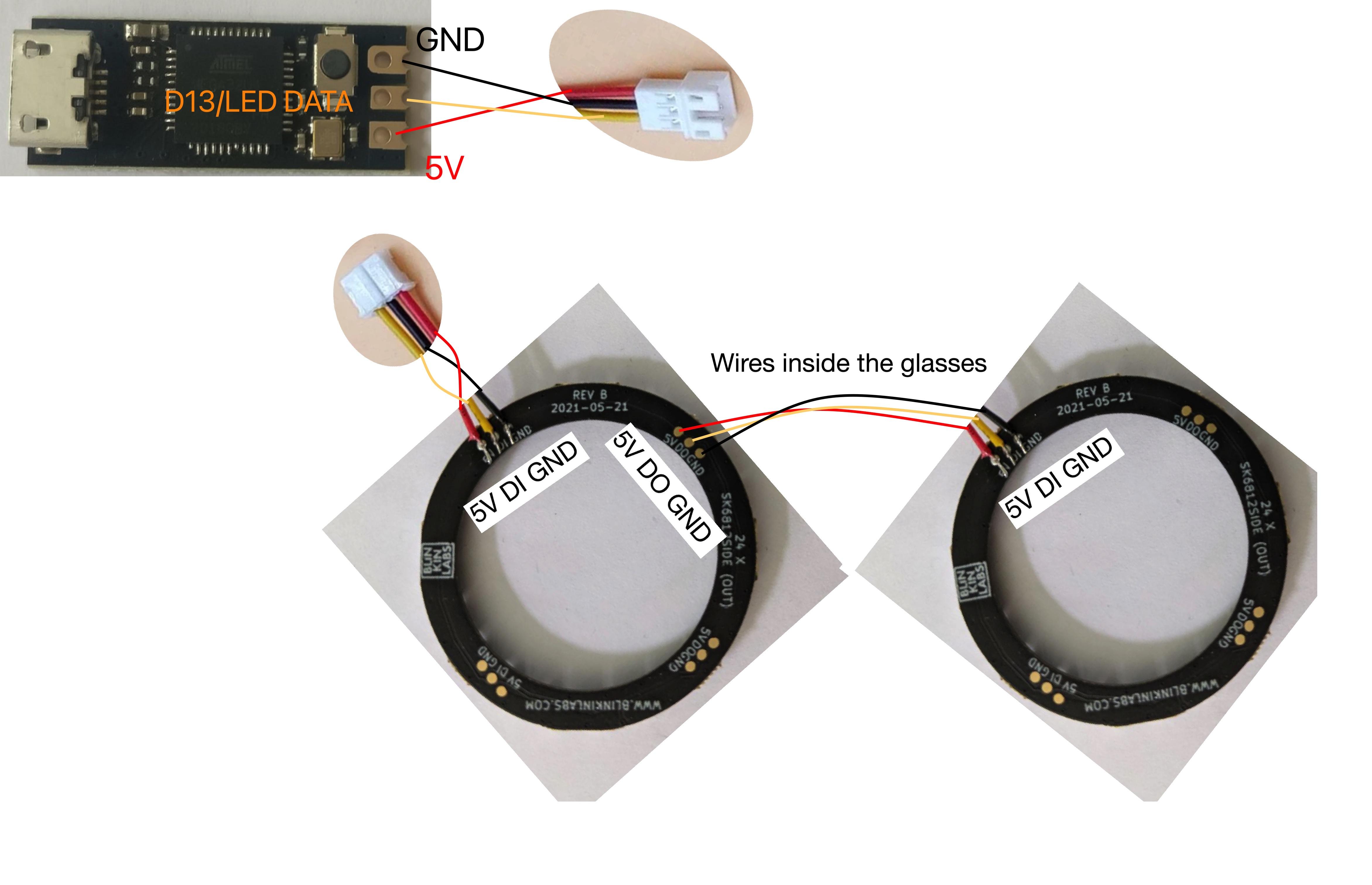

Solder the wires refer to the photos and add the rubber band, and glue the diffusers.
Load the Firmware and Testing
Pattern Paint official instruction https://blinkinlabs.com/patternpaint
I set the fixture to be-- Blinkytape, Linear, 1, 48, RGB
I clicked "New"->"the scrolling pattern". Then I clicked pause, and add the draw the color I want for each frame. You can also load the above pattern image I save to test it.
