Caster Mounting Example of Water Pipe Furniture

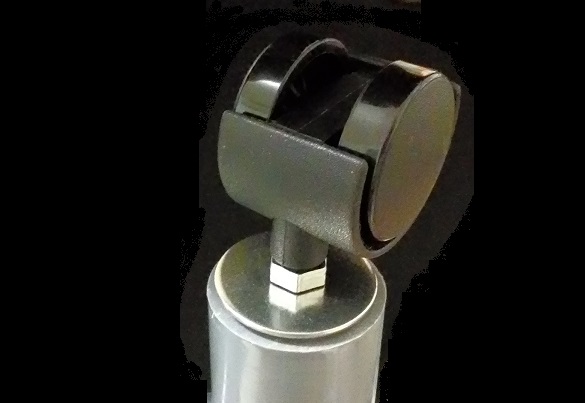

This is a caster mounting example of water pipe furniture.
There are times when i trouble when making PVC pipe furniture.
That means that installing casters is tough.
Here is an example of installing a caster using a 3D printer.
Procurement of Parts
Let's purchase at the home center.
- M6 Caster
- M6 Insert Nut
- M6 32mm Washer

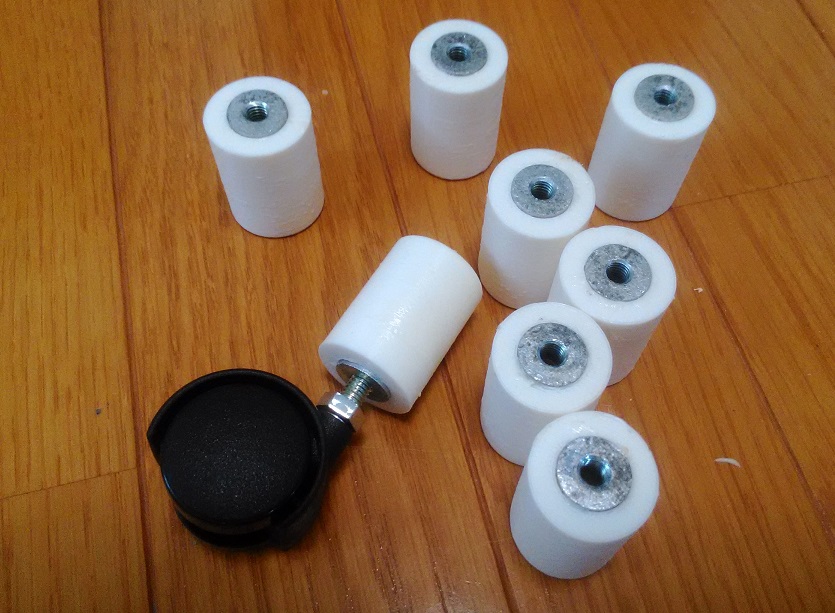

3D Printing of Inner Parts
Here is the print data.
https://www.thingiverse.com/thing:1784751
To increase the strength, make the infill 100%.
Assembly
I assemble it like a picture.
- Pounding the insert nut into the inner part.

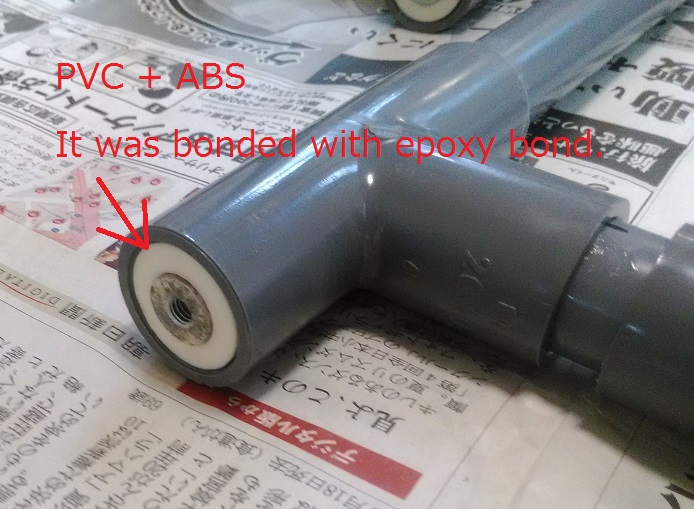

- Adhere to PVC pipe with epoxy bond.
- Pinch the washer and attach the caster.
One Year Passed Since Creation

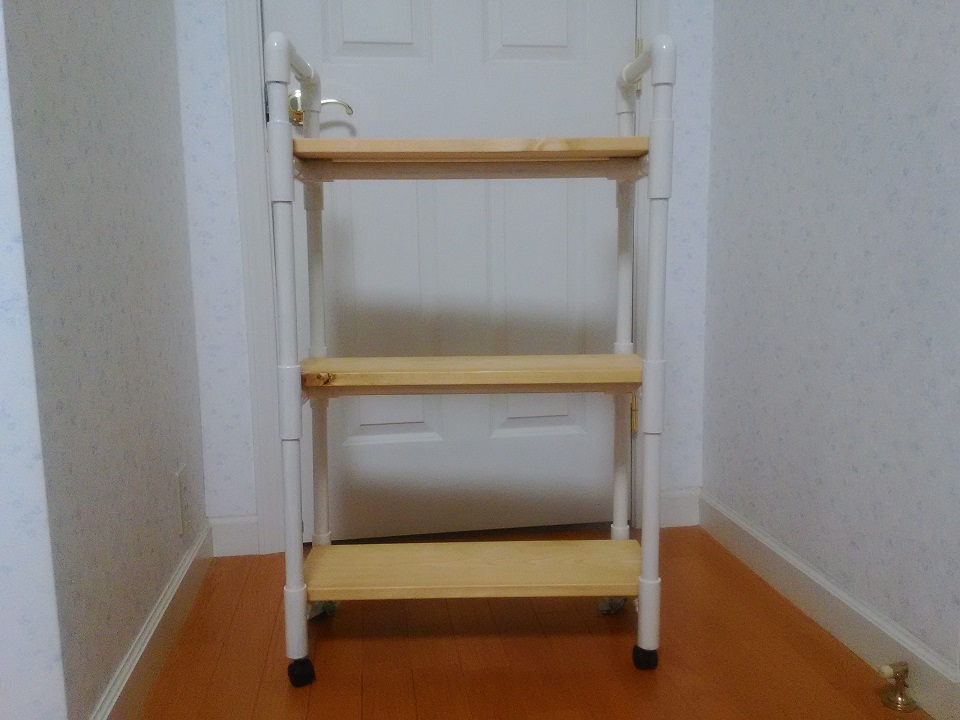

Before....It became white and beautiful furniture.
After....I made 2 pieces but it has overflowed with things.
