Hi and welcome to another Instructable by me Capsos.

I do hope you enjoy these and please make sure you check out my other Instructables on here, Also with that if you are into Bushcraft or would like to see a little more on what I teach then please check my Instagram page Capsos_Bushcraft Have a brilliant day and please like this and leave a comment below. Thankyou

Things Your Going to Need


You will need the following items.

ยท

  • 20 X Tea Cake Candles (Approximately)
  • A Side Of A Large Corrugated Cardboard Box
  • Marker Pen
  • Pair Of Scissors
  • Pliers
  • Ruler
  • Tin To Build Your Burner Inside

SAFETY EQUIPMENT

  • An Apron Or Old Clothing
  • Safety Glasses

Prepping

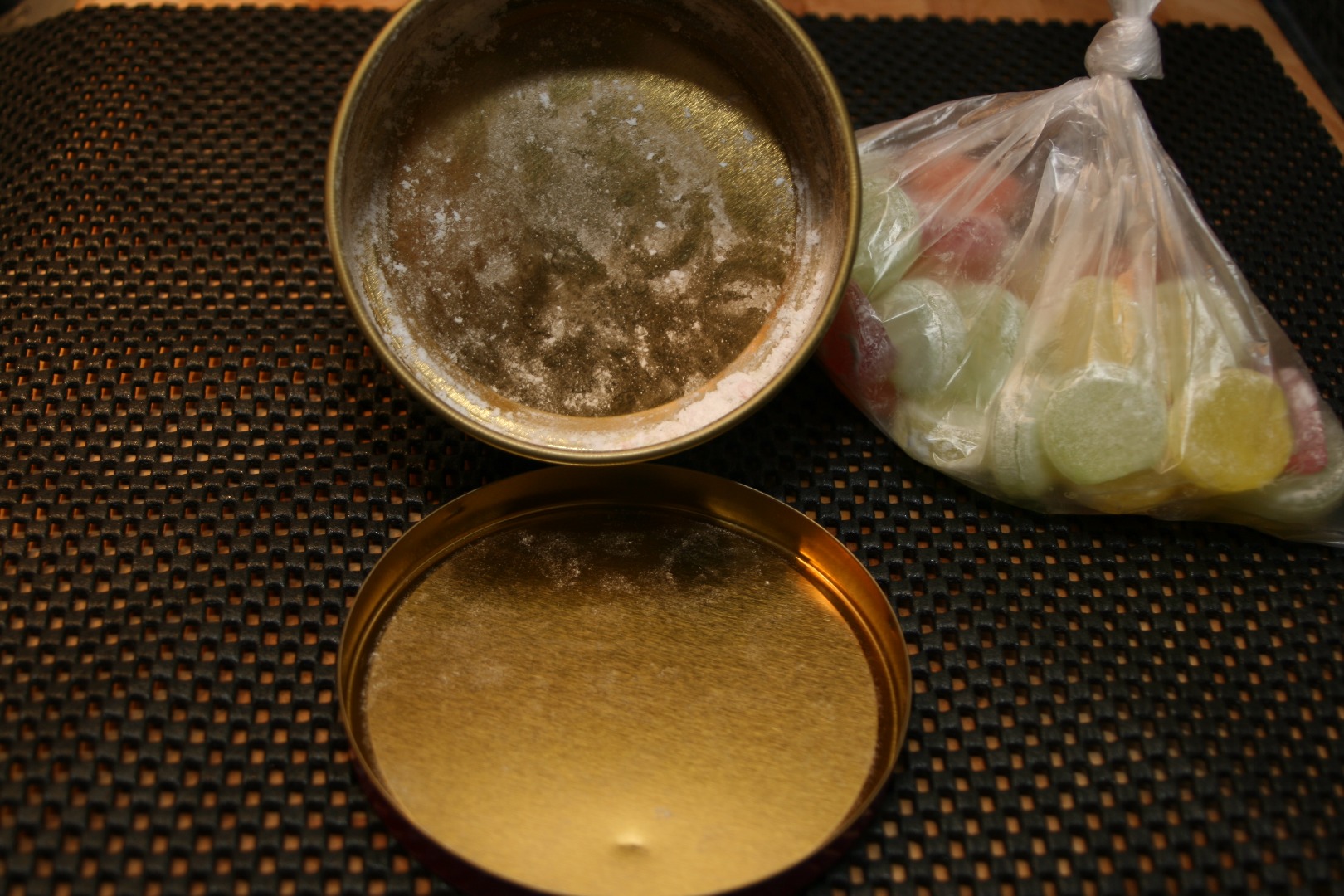

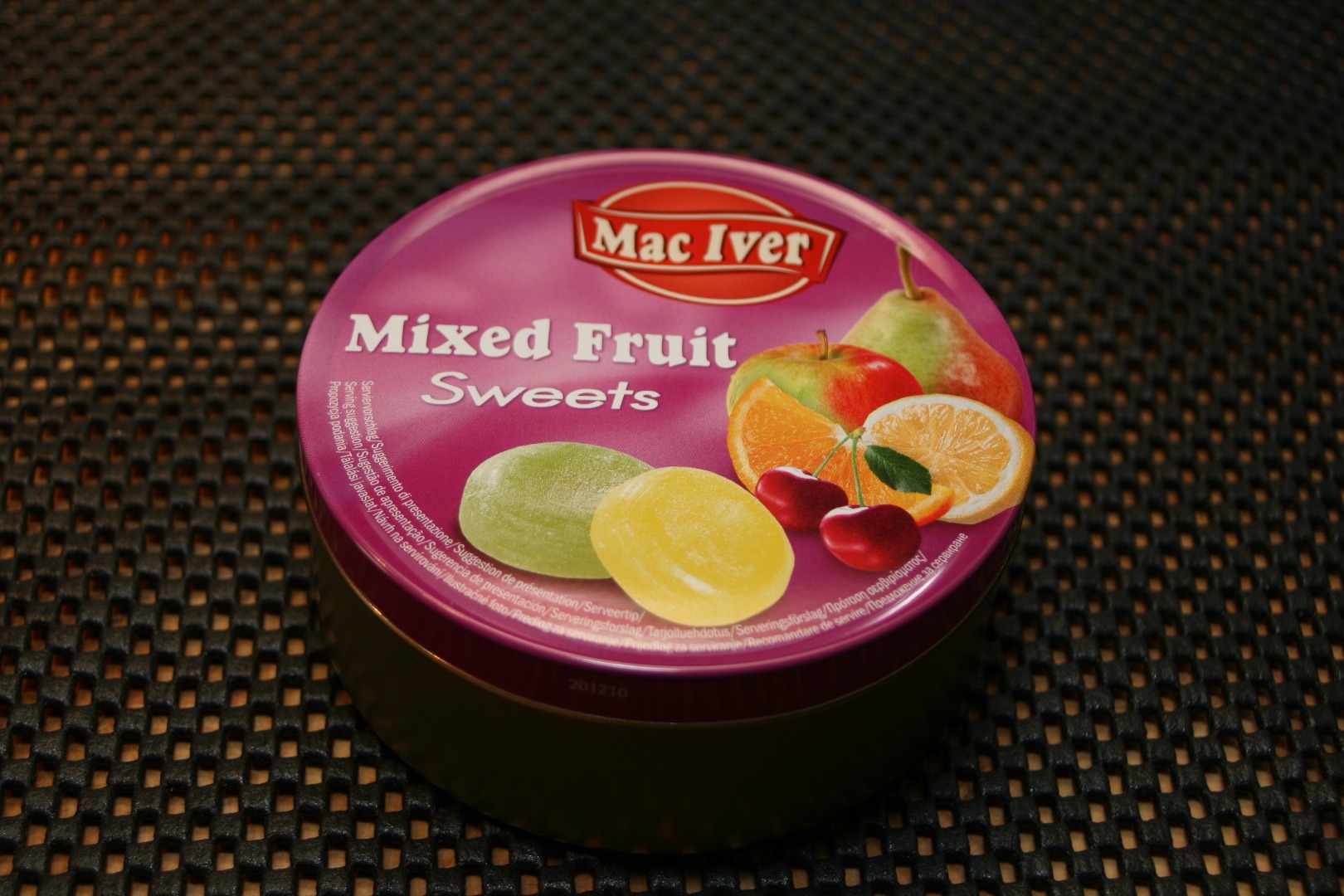

Now Empty Your Tin, With Mine I Emptied The Sweets Into A Bag For Later On. YUMMY

Washing

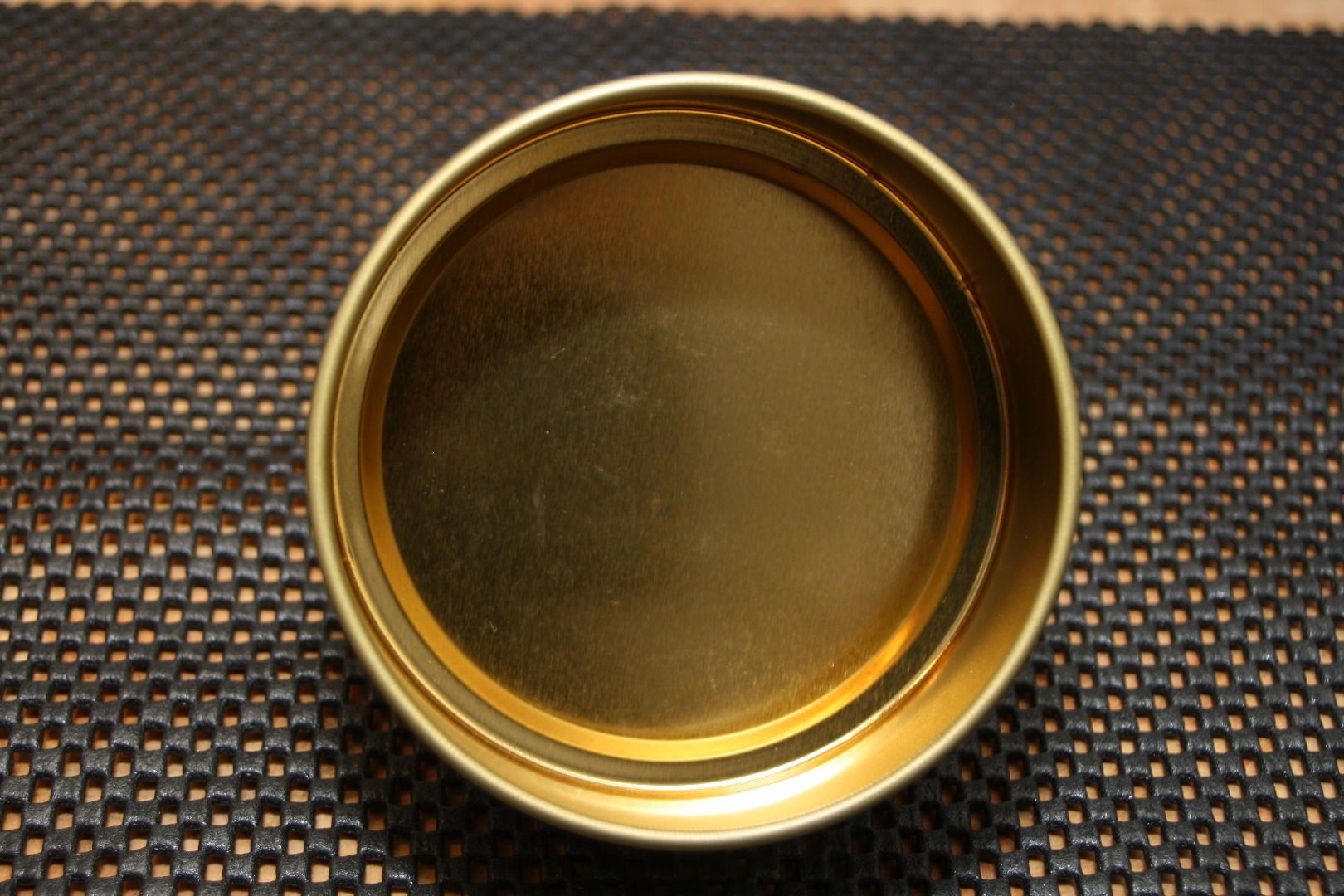

Now due to having the remaining powder within the tin I washed both lid and tin and dried ready.

Measuring


Now you want the cardboard to sit snug within the tin and not to high that the lid no longer fits.

Mine roughly measured 34mm in depth to the under lip.

Measuring and Cutting

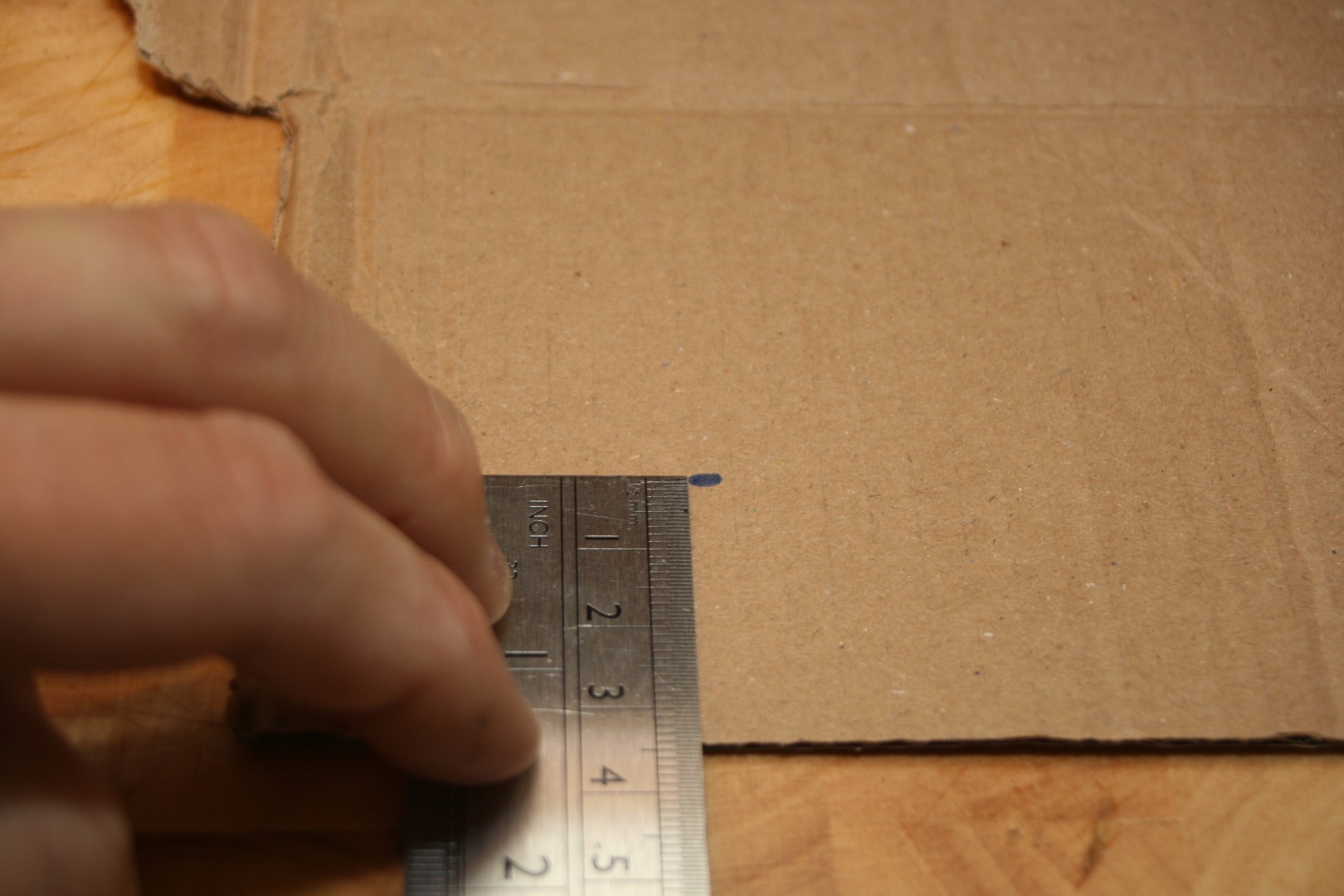

Now with the 34mm depth of the tin I cut my corrugated cardboard strips to also the same height and kept the full length.

Coiling

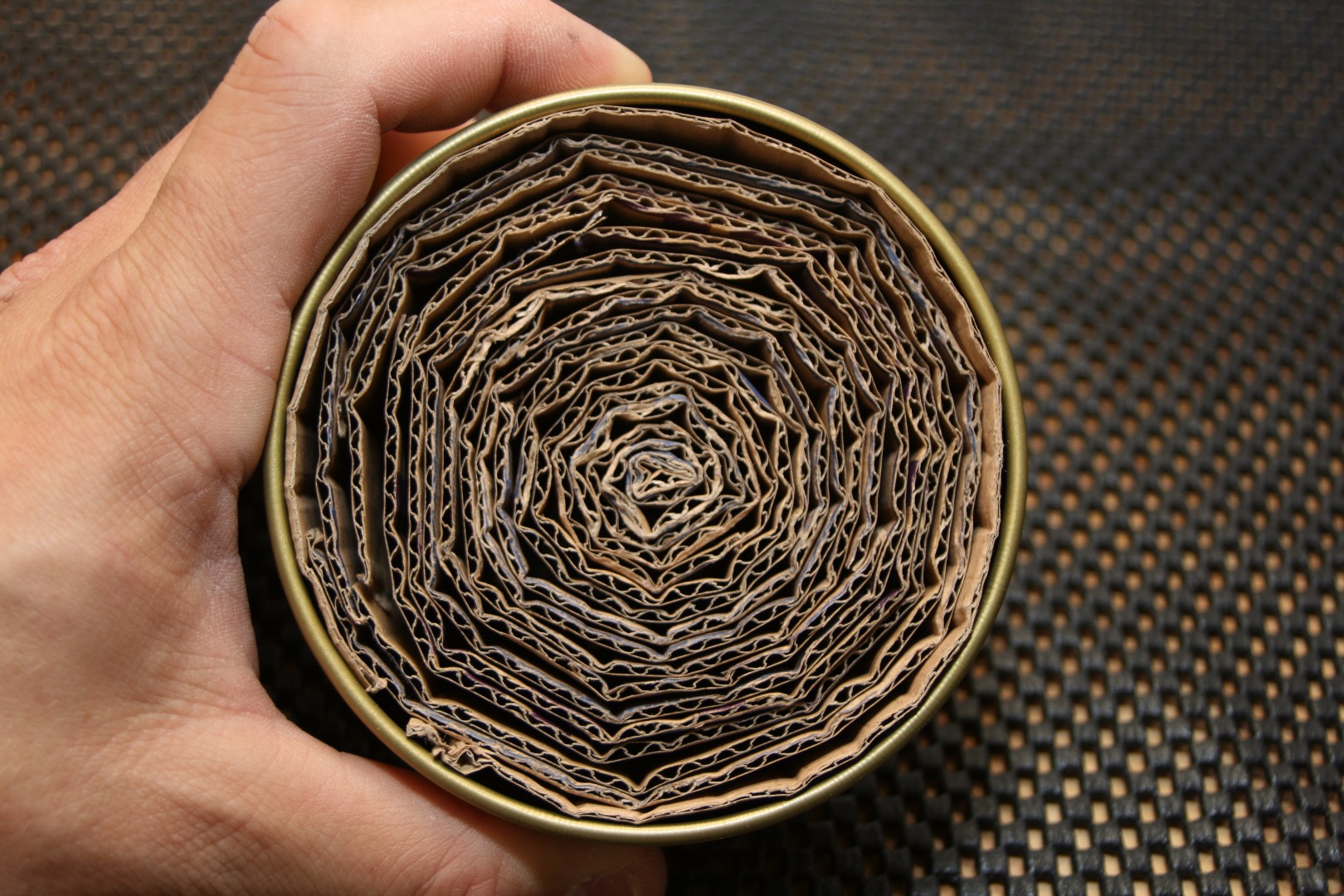

With all my strips of cardboard cut to size I started to coil it up in my hand and as one length ran out I added another. This worked out I used about 8 strips of cardboard.

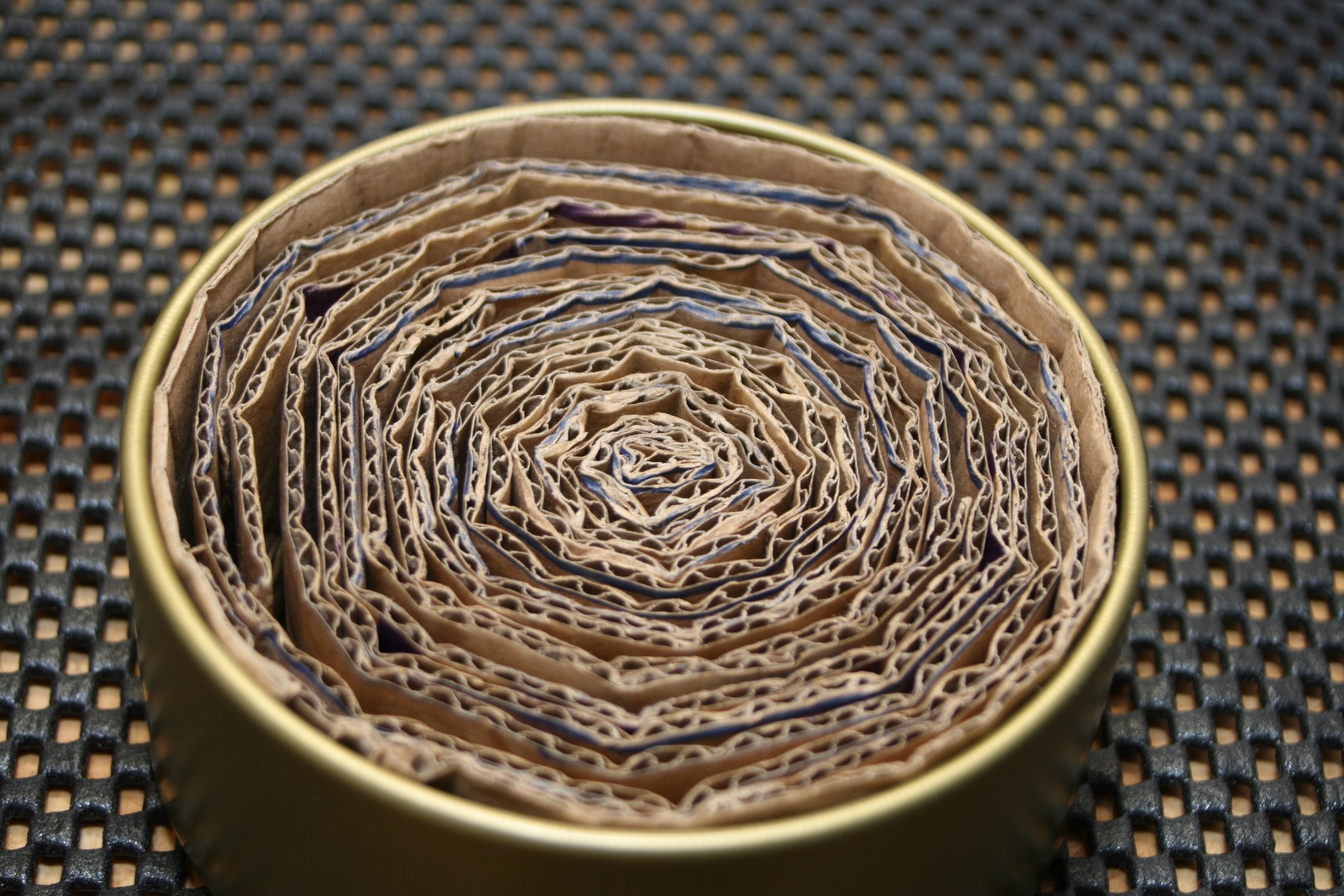

Once all this was coiled up I then squeezed it into the tin. (Looking Like The Photos Above)

Tin Lid


With the coil of cardboard now inside I re-checked the lid to make sure it still fitted snug and didn't drop off if the tin was held upside down.

WARNING


ALL ACTIONS AND INJURIES CAUSED WHEN DOING THIS PROJECT IS DOWN TO YOURSELF AND I HOLD NO RESPONSIBILITY FOR ANY INJURIES YOU INCUR.

Melting the Wax

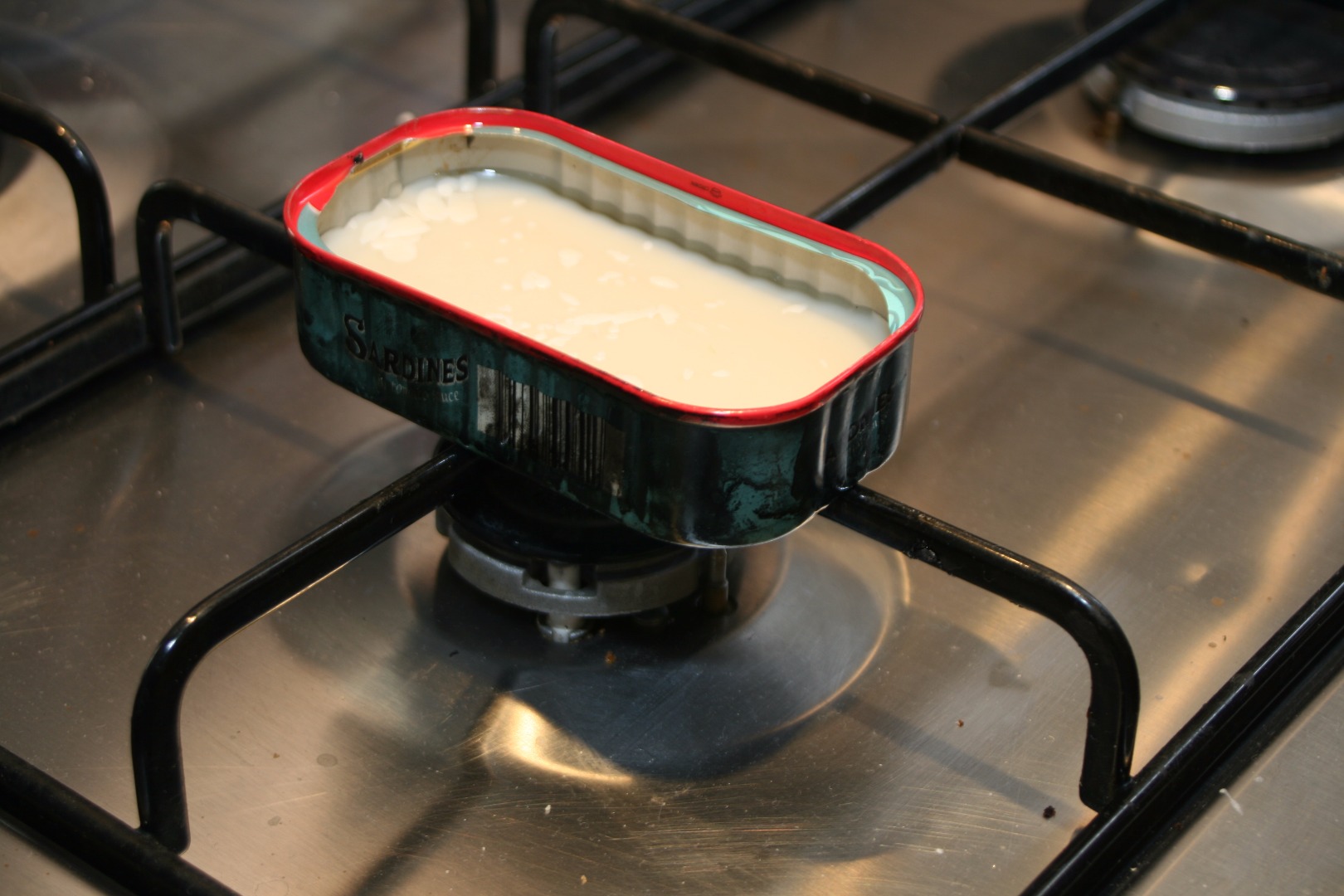

Here you can see I had a tin of wax from a previous Instructables project.

"Fire Pads" - https://www.instructables.com/id/Fire-Pads/

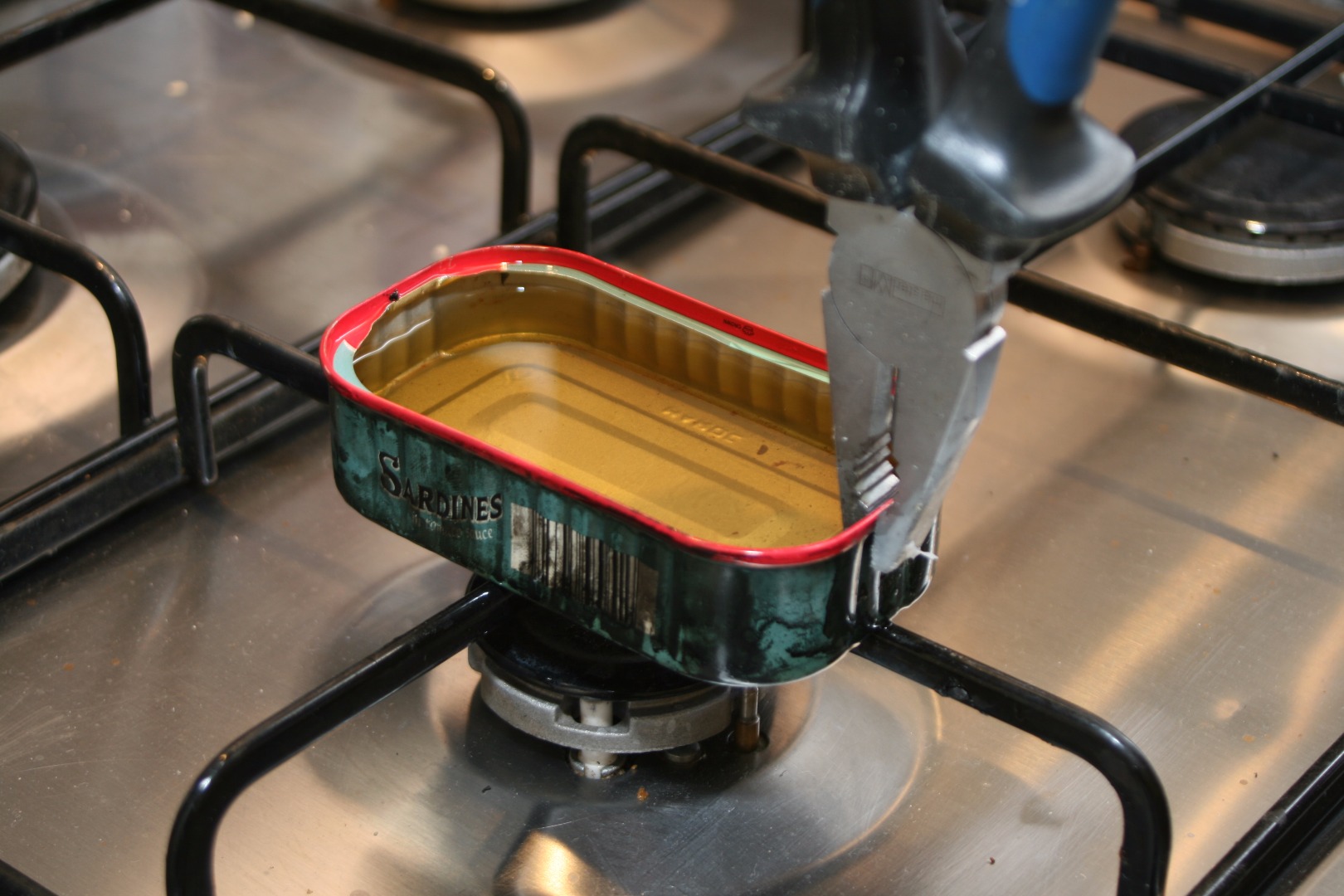

After re-melting the wax on a low temperature on the gas hob to stop from spitting, smoke and Auto Ignition.

to get to this stage you want to take you Tea Cake Candles and remove them form the tin case and remove the metal plug underneath, Sometime this will remove the wick at the same time, but if it doesn't then just pull the wick loose with the pliers.

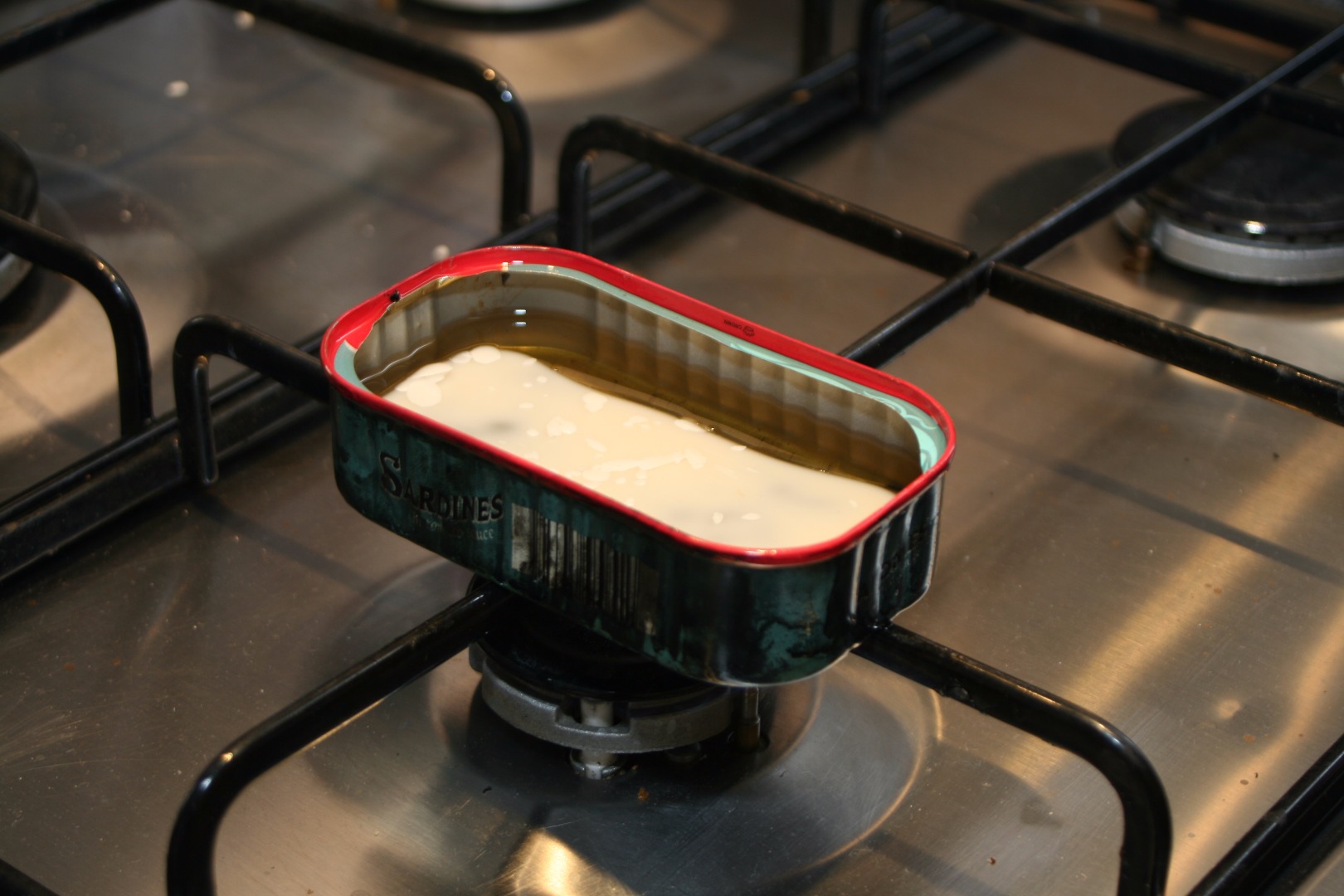

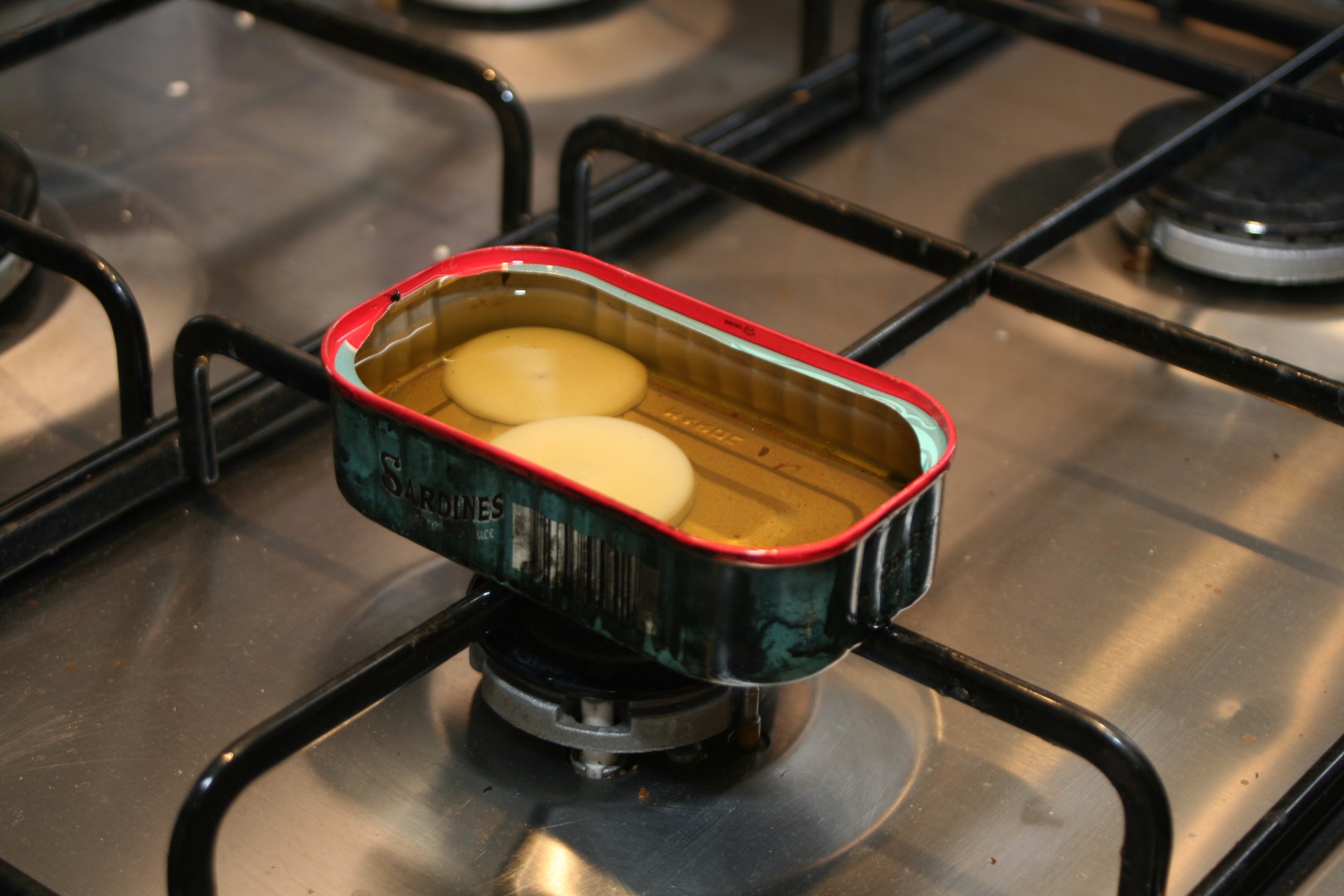

Now gently lower into the tin and allow to slowly melt,

**You can add a small amount of paraffin to allow it to burn better, However I don't use any as I find it can make the food taste funny.

WARNING !!! - DO NOT LEAVE THE TIN EMPTY ON THE FLAME BUT IF YOU DO PLEASE ALLOW THE TIN TO COOL BEFORE ADDING ANOTHER CANDLE TO THE TIN FOR MELTING.

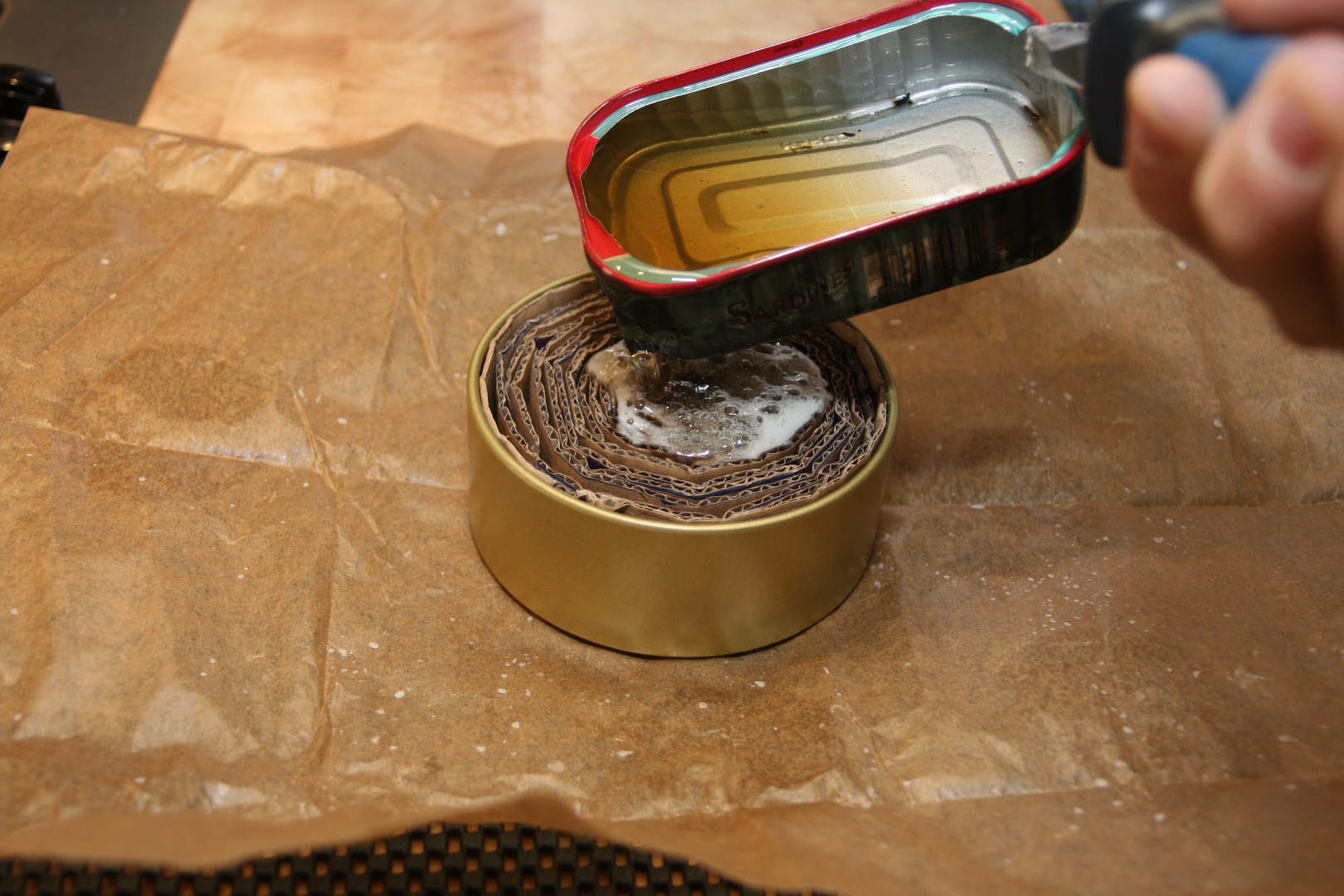

Pouring


With the pliers pinch onto the wax tin and very slowly pour the liquid wax into the corrugated card tin "Watch out this can spit"

This may take two trips depending on the size of your wax melting tin.

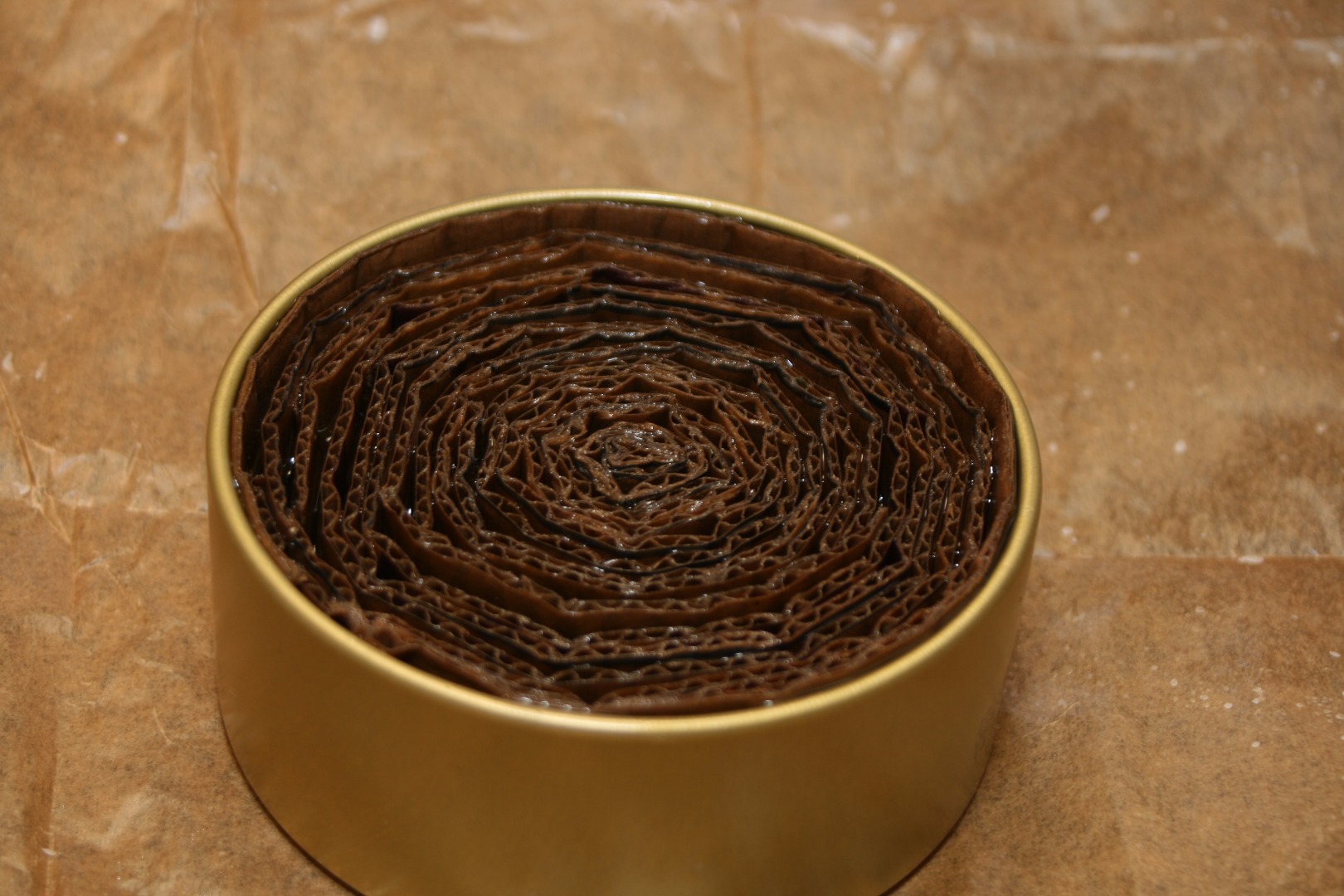

NOW LEAVE TO COOL

Pot Bars


With some spare wire I made two C clips that can be pushed into the cardboard and sit a pot on them, if made to the right size then should lay flat in the top of the tin and the lid should also fit.

I hope you enjoyed making this and please leave a comment.
