Card Size Phone Charger & Flashlight
by macobt in Circuits > Gadgets
6820 Views, 96 Favorites, 0 Comments

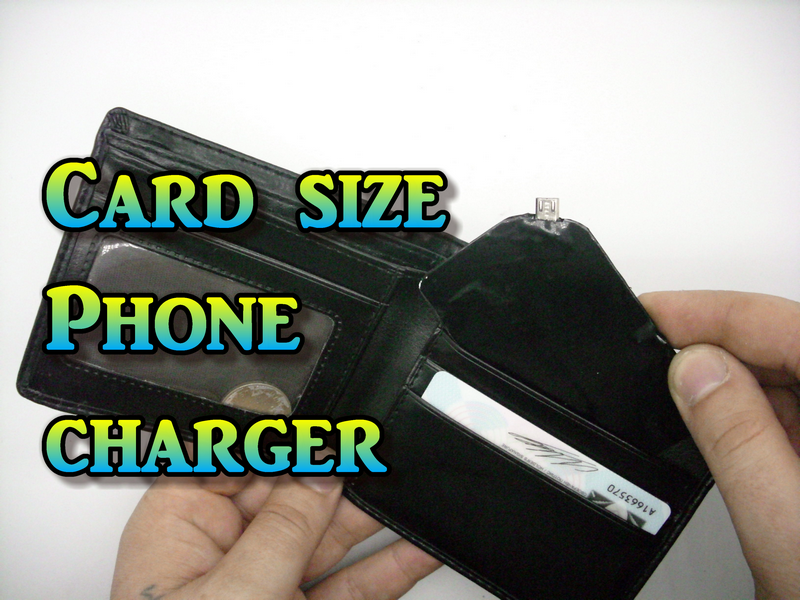

Card Size Phone Charger & Flashlight
![glavna.bmp](/proxy/?url=https://content.instructables.com/FL6/YYEU/HH2VMSK5/FL6YYEUHH2VMSK5.bmp&filename=glavna.bmp)
Pocket charger that charge your phone and also has a two led flashlight.
The charger works with two lithium batteries CR2032 conected both of them
in serial so we get 6 volts and that its enough voltage to charge your phone.
The charger works with two lithium batteries CR2032 conected both of them
in serial so we get 6 volts and that its enough voltage to charge your phone.

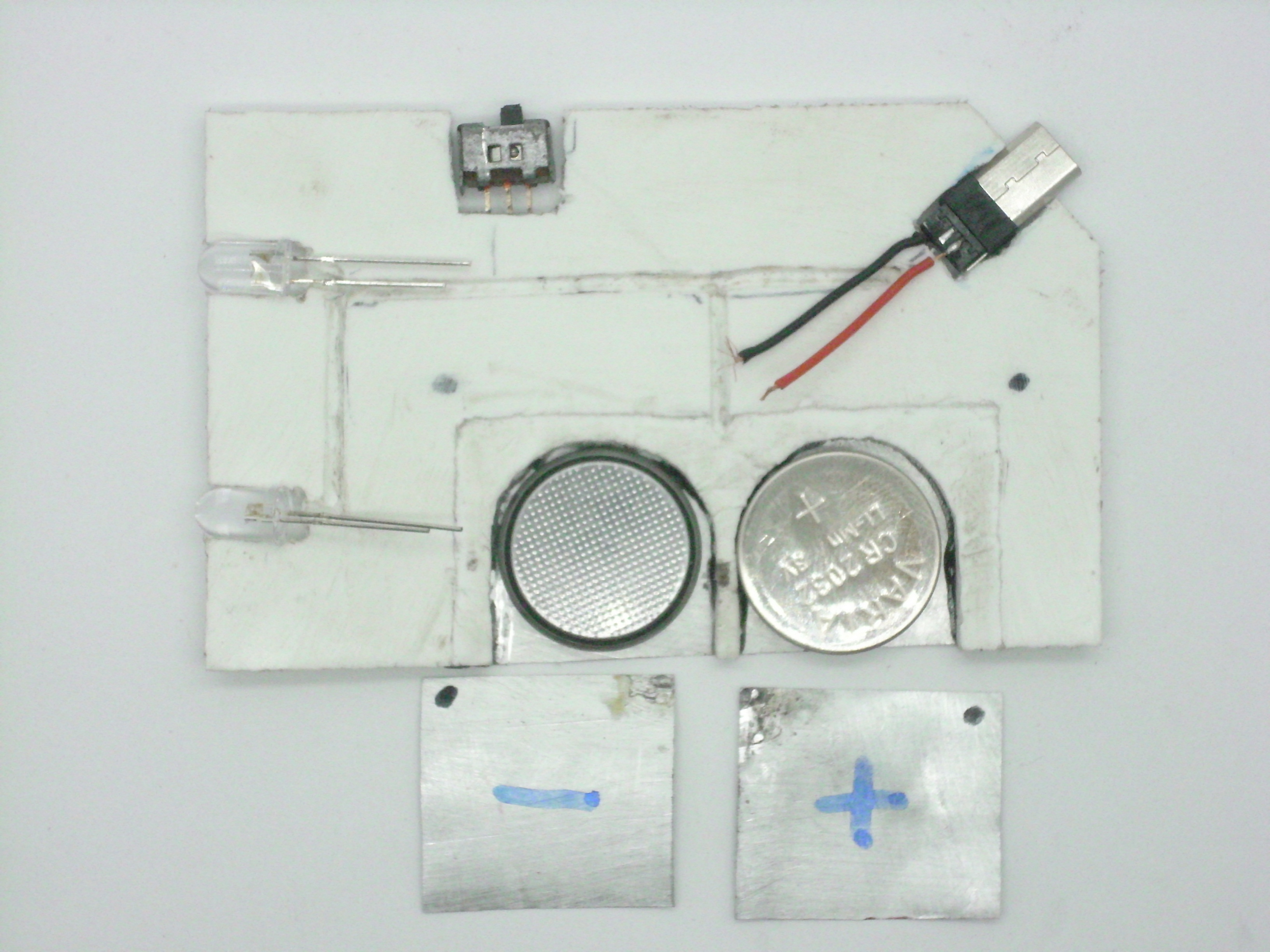

Materials
![969.JPG](/proxy/?url=https://content.instructables.com/FQL/Z7QX/HH2VMSNQ/FQLZ7QXHH2VMSNQ.jpg&filename=969.JPG)
What you will need to make this pocket size phone charger.
1.Plastic piece
2.two lithium battery CR2032
3.two white leds
4.three pieces of metal
5.Switch
6.One usb micro plug
1.Plastic piece
2.two lithium battery CR2032
3.two white leds
4.three pieces of metal
5.Switch
6.One usb micro plug
Build It
![IMG_0221.JPG](/proxy/?url=https://content.instructables.com/F8L/8IO3/HH2VMSRX/F8L8IO3HH2VMSRX.jpg&filename=IMG_0221.JPG)
![878.JPG](/proxy/?url=https://content.instructables.com/FYL/BLOB/HH2VMSSM/FYLBLOBHH2VMSSM.jpg&filename=878.JPG)
![Photo-0191.jpg](/proxy/?url=https://content.instructables.com/FNJ/PC5O/HH2VMSU4/FNJPC5OHH2VMSU4.jpg&filename=Photo-0191.jpg)

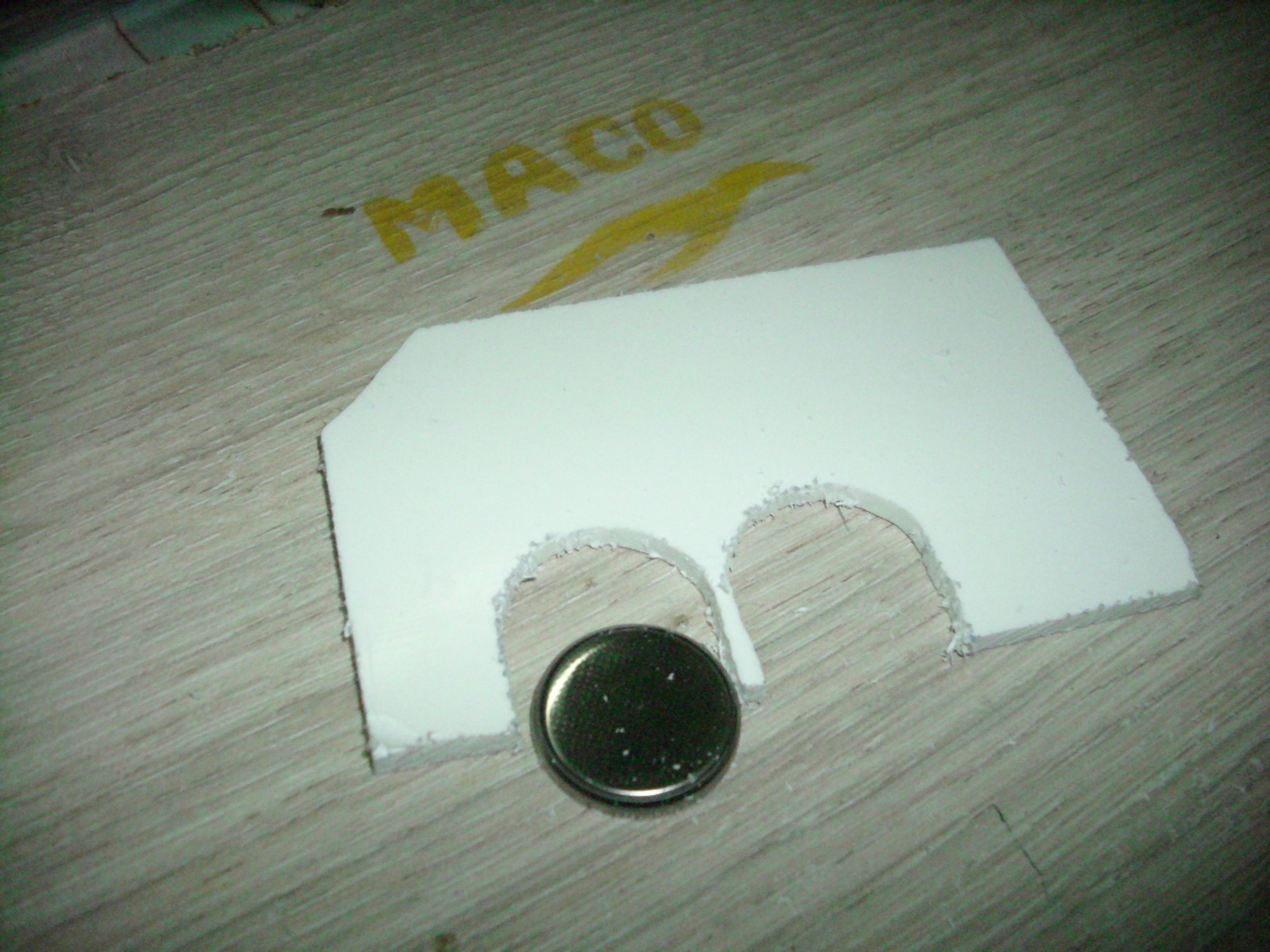

Cut the all the pieces for the componets.The plastic is very handy for work and easy.

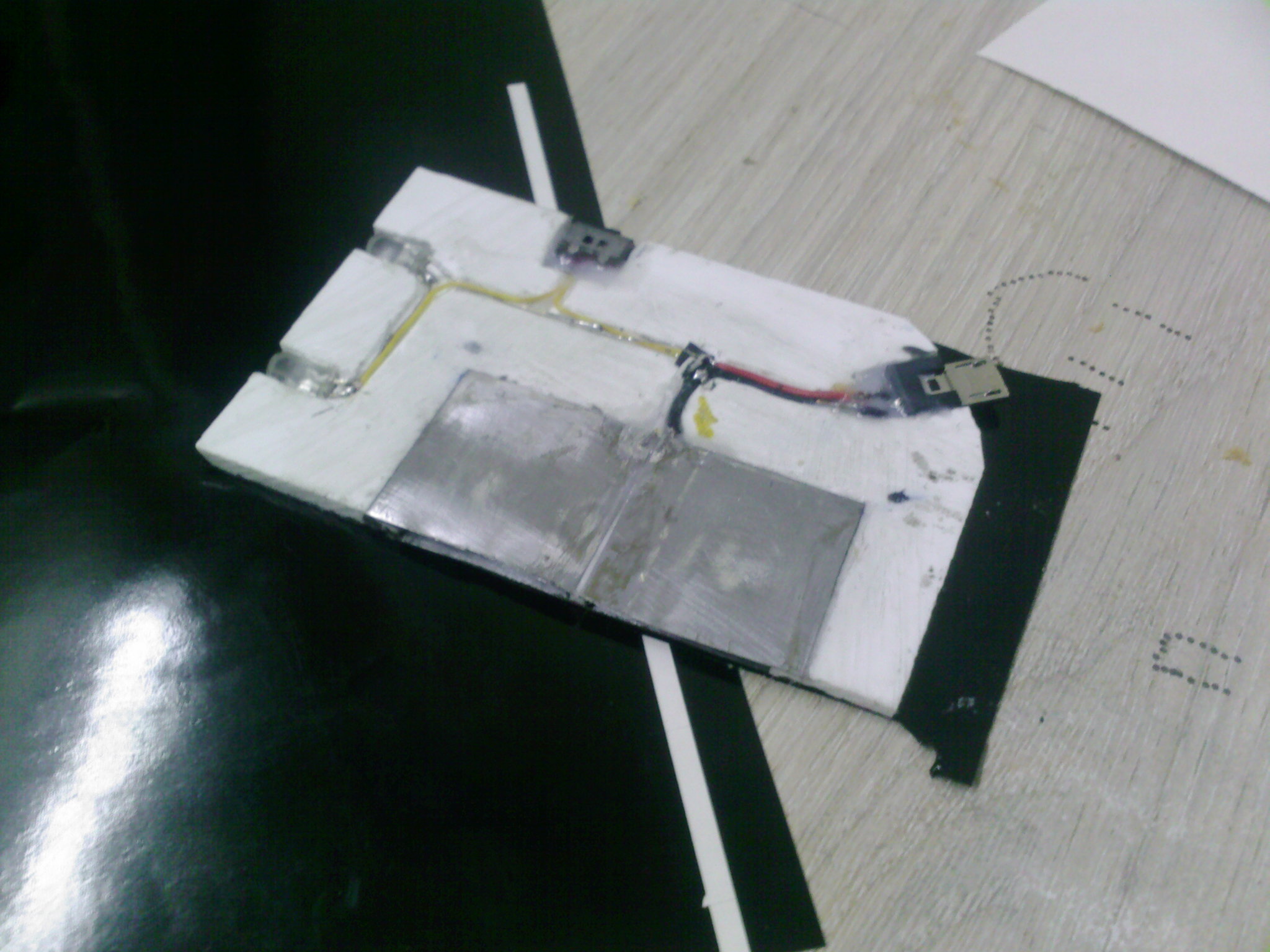

With cutter you will need to make channels in which to put the wires.
Look the image below too see how are made.
With cutter you will need to make channels in which to put the wires.
Look the image below too see how are made.
