Carboard Escalator
![IMG_1065.jpg](/proxy/?url=https://content.instructables.com/F50/2Y0O/L3OGHJTZ/F502Y0OL3OGHJTZ.jpg&filename=IMG_1065.jpg)

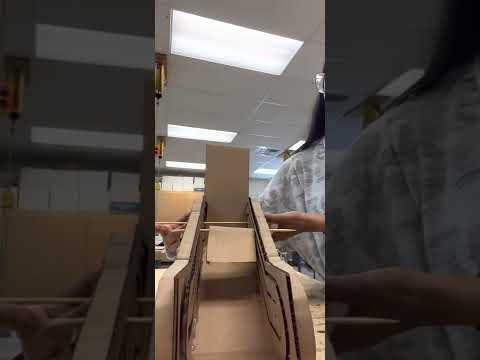

My final project for this class was building an escalator out of cardboards. The project doesn't require any electronics or coding skills and is mostly engineering and design based.
Supplies
Tools:
- Ruler
- Pencil
- Box cutter knife
- Compass
Materials:
- Cardboard
- Wooden Sticks
Optional:
- Laser-cutting machine
Cut Your Cardboard Into the Design Shown in the Picture
![Screenshot 2022-05-27 102600.png](/proxy/?url=https://content.instructables.com/FXW/UB9R/L3OGHJXE/FXWUB9RL3OGHJXE.png&filename=Screenshot 2022-05-27 102600.png)
![Screenshot 2022-05-27 104823.png](/proxy/?url=https://content.instructables.com/F8P/NYC1/L3OGHJXL/F8PNYC1L3OGHJXL.png&filename=Screenshot 2022-05-27 104823.png)
![Screenshot 2022-05-27 104851.png](/proxy/?url=https://content.instructables.com/FGO/D2KN/L3OGHJXM/FGOD2KNL3OGHJXM.png&filename=Screenshot 2022-05-27 104851.png)
You can either use a box cutter or a laser cutter to cut a cardboard as shown in the picture.
Step 1: The first step is to cut the cardboard into 415 mm x 210 mm and place it on a flat surface.
Step 2: The second step is to trace the escalator design on the cardboard.
Step 3: Now, with the help of a compass, make some arcs on one side of the escalator design.
Step 4: Then, cut the traced design on the cardboard
Take a 14 Mm Cardboard Strip and Cover the Escalator in the Shown Manner.
![Screenshot 2022-05-31 105621.png](/proxy/?url=https://content.instructables.com/FG2/D5KZ/L3U68LSY/FG2D5KZL3U68LSY.png&filename=Screenshot 2022-05-31 105621.png)
Take 14mm Squares and Place Them With the Help of a Hot Glue Gun As Shown in the Picture.
![Screenshot 2022-05-31 111629.png](/proxy/?url=https://content.instructables.com/FP1/XY7E/L3U68NTE/FP1XY7EL3U68NTE.png&filename=Screenshot 2022-05-31 111629.png)
![Screenshot 2022-05-31 112143.png](/proxy/?url=https://content.instructables.com/FCW/5JBU/L3U68P8G/FCW5JBUL3U68P8G.png&filename=Screenshot 2022-05-31 112143.png)
![Screenshot 2022-05-31 112220.png](/proxy/?url=https://content.instructables.com/F3O/56BC/L3U68P8H/F3O56BCL3U68P8H.png&filename=Screenshot 2022-05-31 112220.png)
- Remove the outer layer of a 14 mm cardboard strip.
- Then take a wooden stick and cut into small pieces.
- Put those wooden sticks in the cardboard holes. (make sure to leave one hole every four wooden sticks)
Carefully Insert the Cardboard Strip Into the Escalator Design From Before.
![Screenshot 2022-05-31 112558.png](/proxy/?url=https://content.instructables.com/FWY/XWAY/L3U68PDO/FWYXWAYL3U68PDO.png&filename=Screenshot 2022-05-31 112558.png)
![Screenshot 2022-05-31 112727.png](/proxy/?url=https://content.instructables.com/FH6/FLFI/L3U68PFR/FH6FLFIL3U68PFR.png&filename=Screenshot 2022-05-31 112727.png)
- Cut 3 circles of radius 35 mm and stick them together.
- Stick the wooden pieces on the circles.
- Create 4 similar gears.
![IMG_1014 (1).jpg](/proxy/?url=https://content.instructables.com/FRU/9BGP/L3U68PJY/FRU9BGPL3U68PJY.jpg&filename=IMG_1014 (1).jpg)
Make a cardboard model as shown in the picture.
![IMG_1014 (1).jpg](/proxy/?url=https://content.instructables.com/F9J/CWUH/L3U68PN1/F9JCWUHL3U68PN1.jpg&filename=IMG_1014 (1).jpg)
![Screenshot 2022-05-31 111629.png](/proxy/?url=https://content.instructables.com/FL5/XK20/L3U68PN2/FL5XK20L3U68PN2.png&filename=Screenshot 2022-05-31 111629.png)
![IMG_1093.jpg](/proxy/?url=https://content.instructables.com/F8M/JCCY/L3U68PN3/F8MJCCYL3U68PN3.jpg&filename=IMG_1093.jpg)
- Stick the escalator handles to the model.
- Then add the circles inside the gear strip from earlier.
Make Some Cardboard Stairs, Fix Them in the Escalator, and Fix the Wooden Pieces at the Sides.
![IMG_1093.jpg](/proxy/?url=https://content.instructables.com/FH1/5MPO/L3U68I9R/FH15MPOL3U68I9R.jpg&filename=IMG_1093.jpg)
![IMG_1092.jpg](/proxy/?url=https://content.instructables.com/F98/T060/L3U68I9W/F98T060L3U68I9W.jpg&filename=IMG_1092.jpg)
Final Results
![Escalator](/proxy/?url=https://content.instructables.com/F4E/TK1M/L3U68I62/F4ETK1ML3U68I62.jpg&filename=Escalator)
