Captain America Shield Keychain

Hello Creators.

This Project is My Favorite one because it include Marvel Character Captain America's Shield.

Consider All Have Computer at home for design Your Own Shield Keychain.

Lets Check all supplies and ready For Design.

Also pardon me for bad Images, I don't have Good Camera .🙁🙁

Checkout my making video on YouTube.

Youtube video

1> Computer

2> Internet connection

3> 3D printer for Model printing

4> Sketch pens for color Shield

5> Your Bicycle Key for new Keychain

Open your Browser and Login in Tinkercad.

Make New project and Follow The Steps.

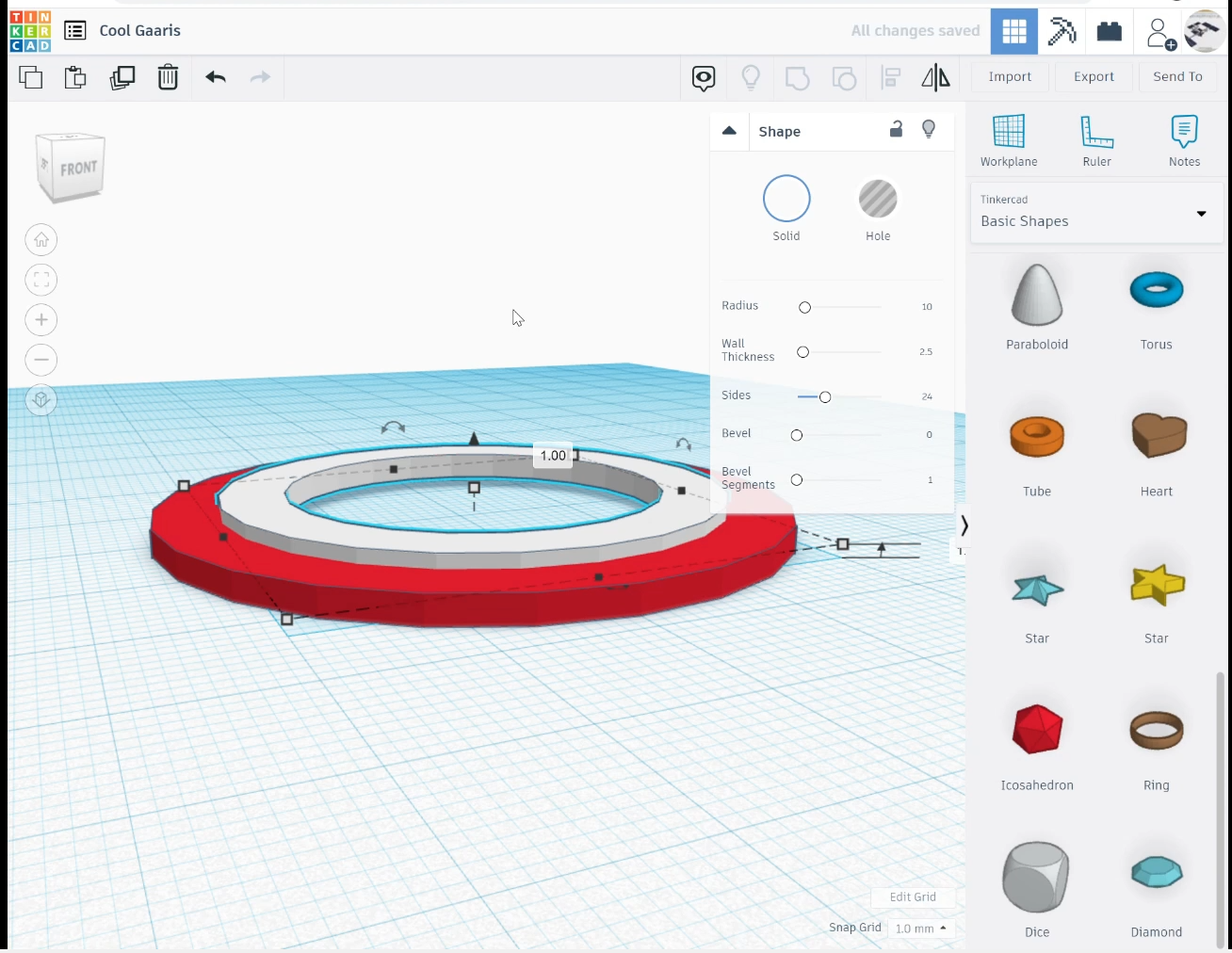

Select tube and resize in outer shape of shield approx. 50mm.

Copy paste that tube and Decrease size and fit in center of 1st ring to make inner circle.

select inner ring and displace upside 2mm.

Copy paste 2nd ring and place 3rd ring in center.

select circle and Decrease its size according to place inside 3rd ring.

place circle in center.

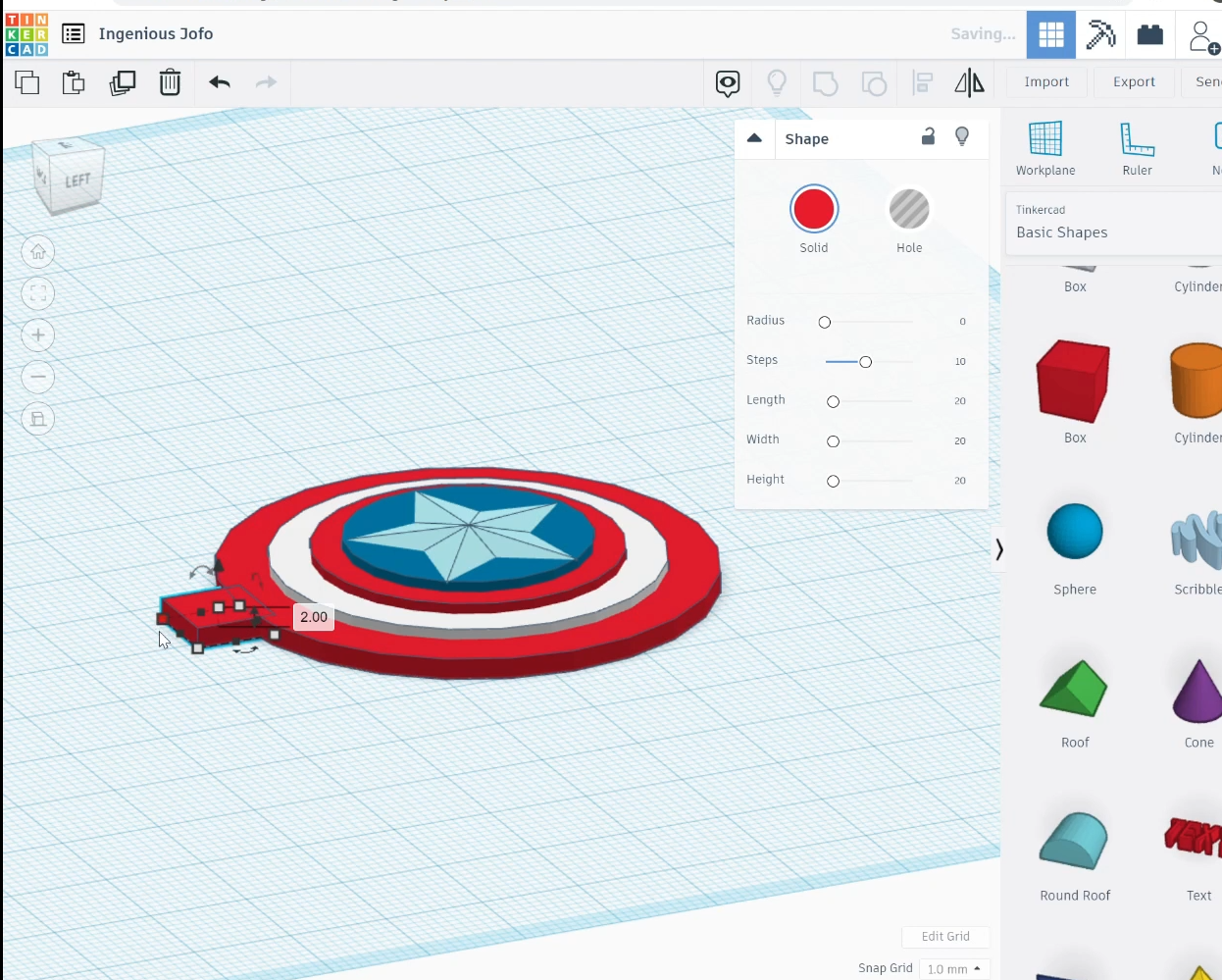

Select star and Resize it to place on top of Circle to make Shield.

Select all and Group them all.

For 3D Print File ,click on Export Button and Save file as .STL Format.

I use Ender-3 for 3D printing.

Please refer Below Parameter for good print.

Nozzle size : 0.4 mm

Infill : 30%

Speed : 60mm/sec

Material PLA White.

Support : Activate

Adhesion : Brim or Skirt.

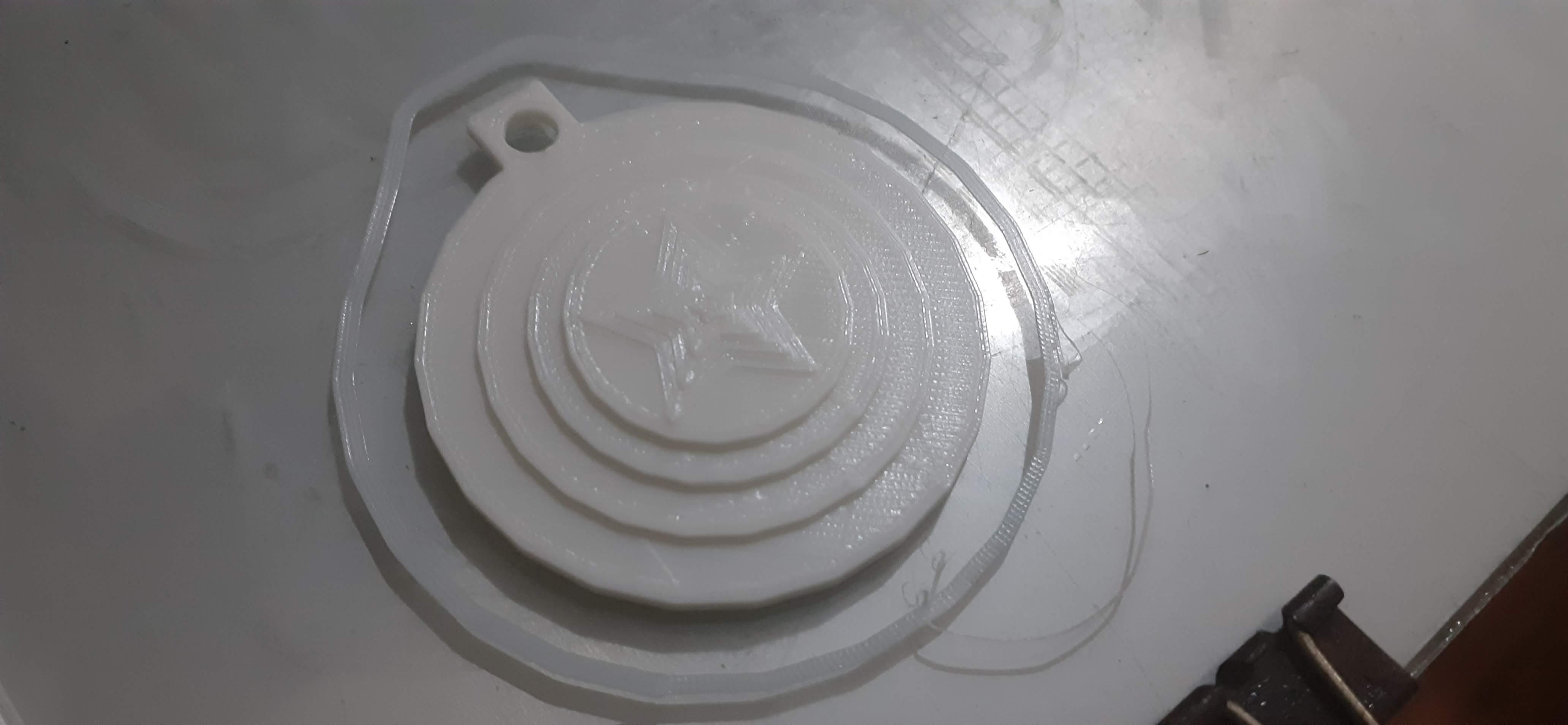

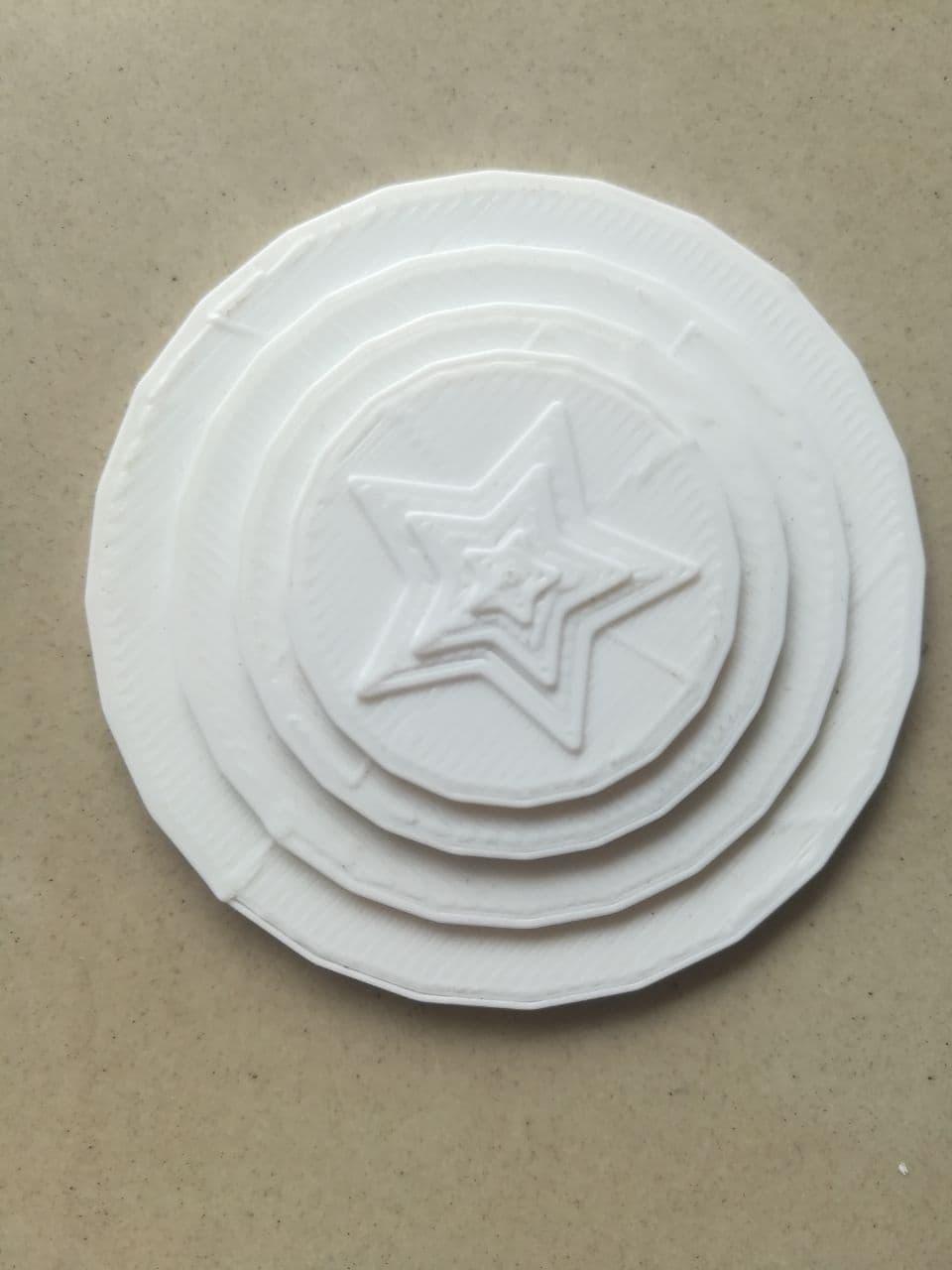

Export your G-CODE file and Start Printing.

Using Some Sketch pens with Selected Colors we start Color our shield as per Captain America's Shield.

1St ring with Red color.

2nd Ring With Grey or White.

3rd ring with red.

Outer part of star with Purple or blue.

Now your Keychain Is ready to use and Show your Friends.
