Candy Tin Ukulele

From the beginning, I knew I wanted to produce something along the lines of a cigar box guitar. I began with the basic plan written by Shelley Rickey and published in Bust magazine. From there, I drew up a plan which changed several times before completion.

Ukuleles come in four basic sizes: soprano, concert, tenor, and baritone. The main difference is the scale length of the instrument, that is, the length of free vibrating string from bridge to nut. If I used Shelley's plan and attached the strings directly to the tail-end of the neck, a soprano or concert uke would have to have a comically shortened neck, and I'd need to extend the fingerboard over the tin box body to have enough frets to play with. Given that, I initially planned a tenor uke.

The more I played around with the design, though, I realized that the bridge would still be close to the edge of the body. I wanted it nearer to the midpoint, so that as much of the box lid as possible would vibrate. That's when I hit upon the idea of attaching a tailpiece such as banjos and resonator guitars have. That gave me much more geometrical freedom, so I settled upon a concert-size uke with a metal tailpiece. It turned out to have very nice proportions.

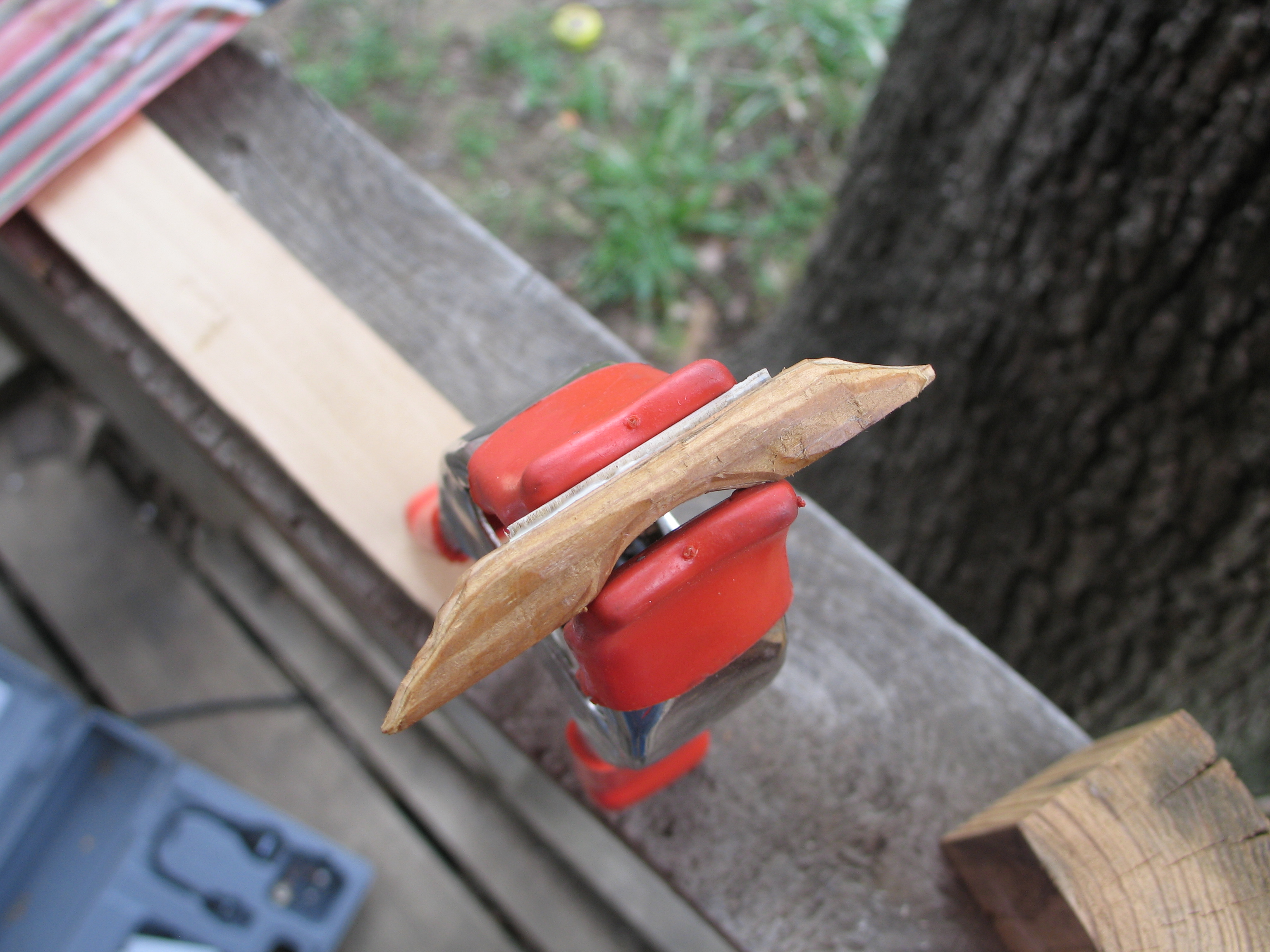

I also chose a trapezoidal headstock that ran parallel to the neck. In the final version, this is causing some trouble with string alignment above the neck, so future builds will have an angled headstock.

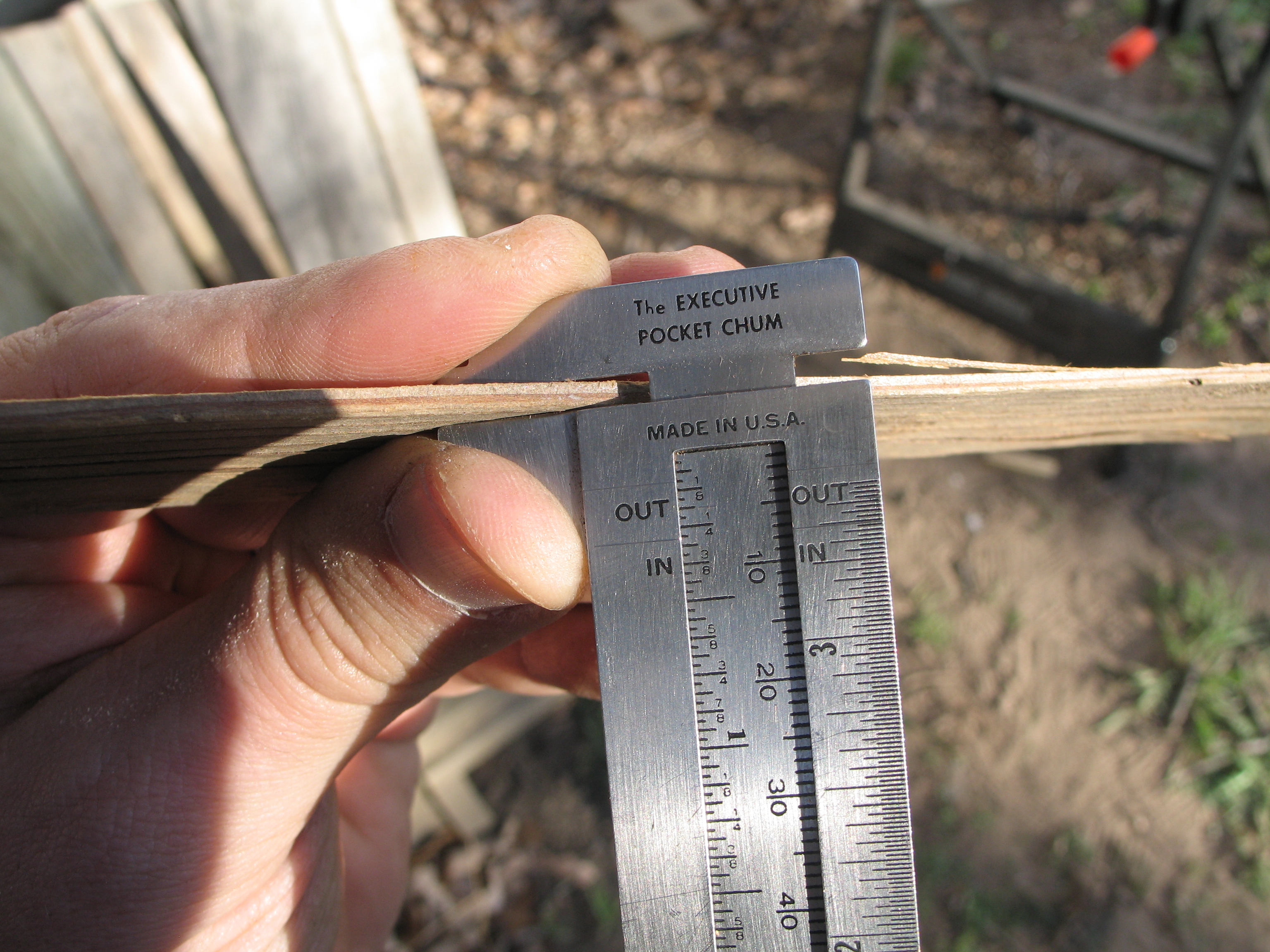

My plan called for a through-neck design, meaning that one solid piece of wood extends from the headpiece to where the tailpiece attaches.This provides consistent strength along the whole length of the instrument. The poplar I used was 1/2" thick. The lid of my box was 1/2", plus a small rolled lip at the bottom. That meant there were two ways to go. I could stack a second piece of poplar on top of the neck for a fingerboard and notch the lip of the lid to accommodate the through-neck, or I could add another thickness of wood as a spacer. As it turned out, I had some scraps from a previous project that were quite thin. They were just right to add the thickness I needed to bring my fingerboard level with the top of the box. They also made a nice contrasting stripe along the neck because the wood was much darker.

This scrap wood was some of the same material I later used for the fretboard. A house near ours has been undergoing a complete renovation. The builders appear to have taken everything out of the house, piece by piece, and replaced it as they went along. I've been scavenging in the construction dumpster (with permission) and pulling out as much dimensional lumber as I could find. The house was built in 1910, so these 2x4s are more than 100 years old. Based on the strong piney smell of them, I'm guessing they were fir. Whatever the wood is, it's dark, close-grained, carves like frozen butter, and reveals a beautiful coloration. I'll definitely be using more of it for other projects!

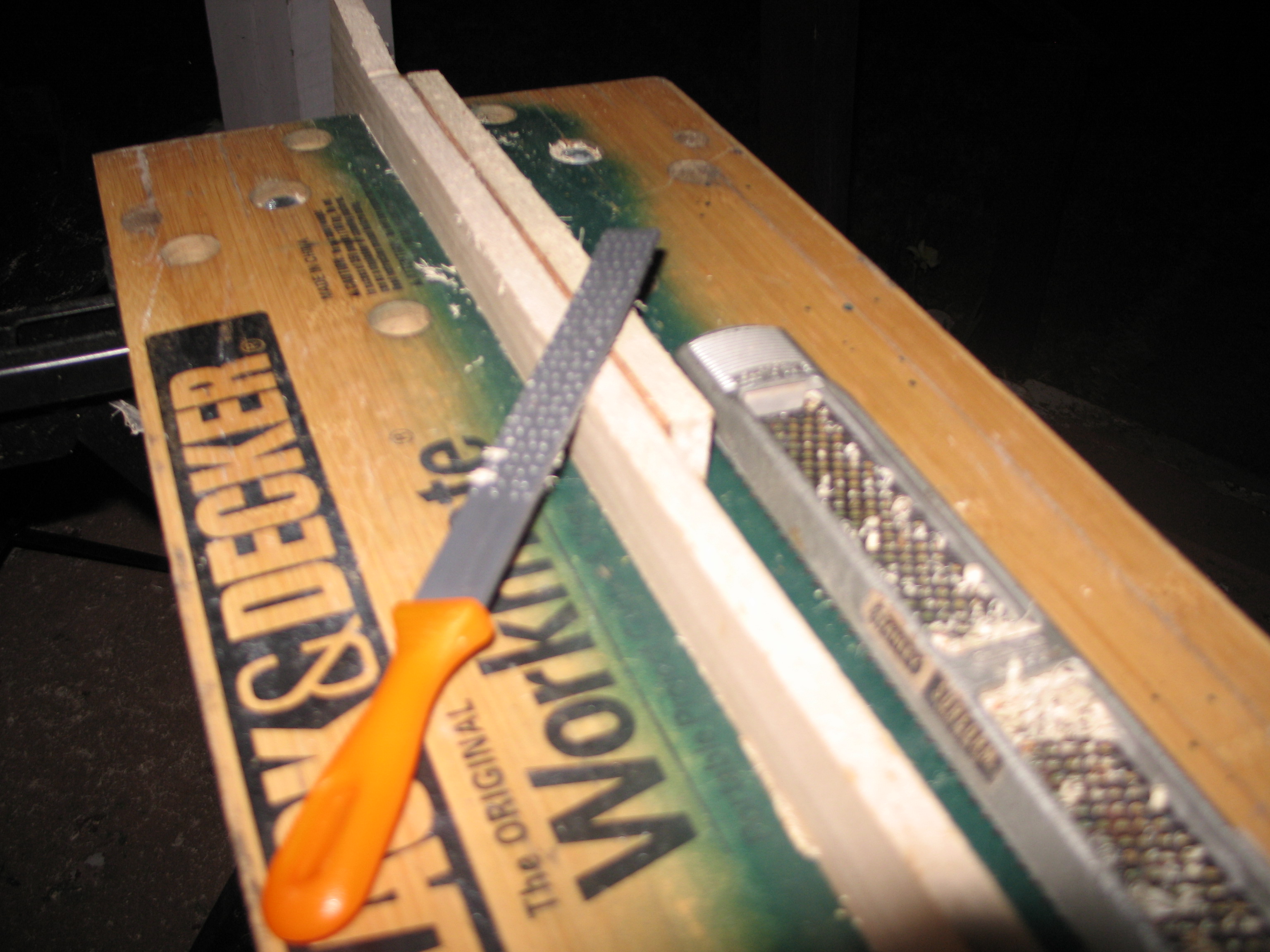

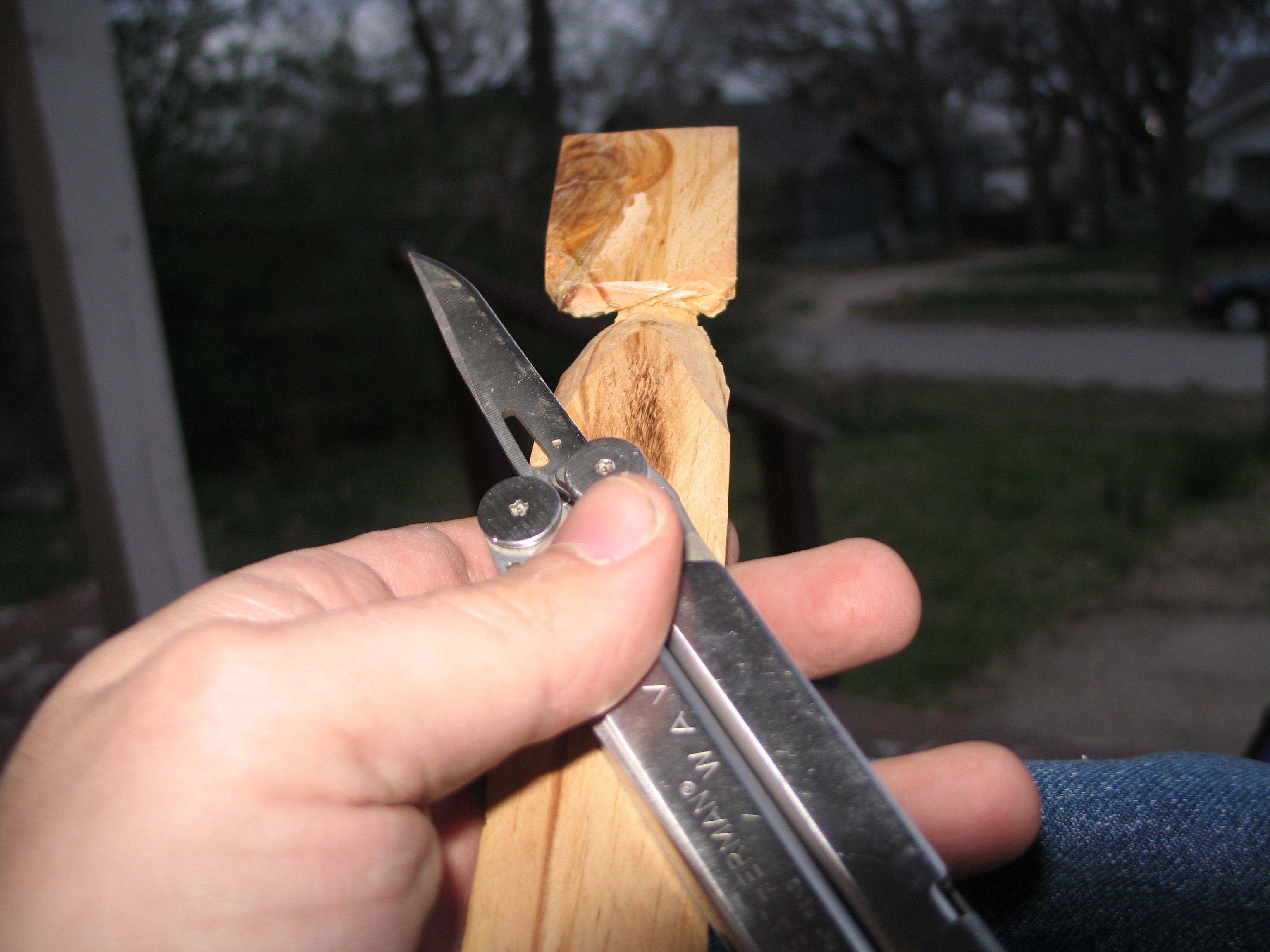

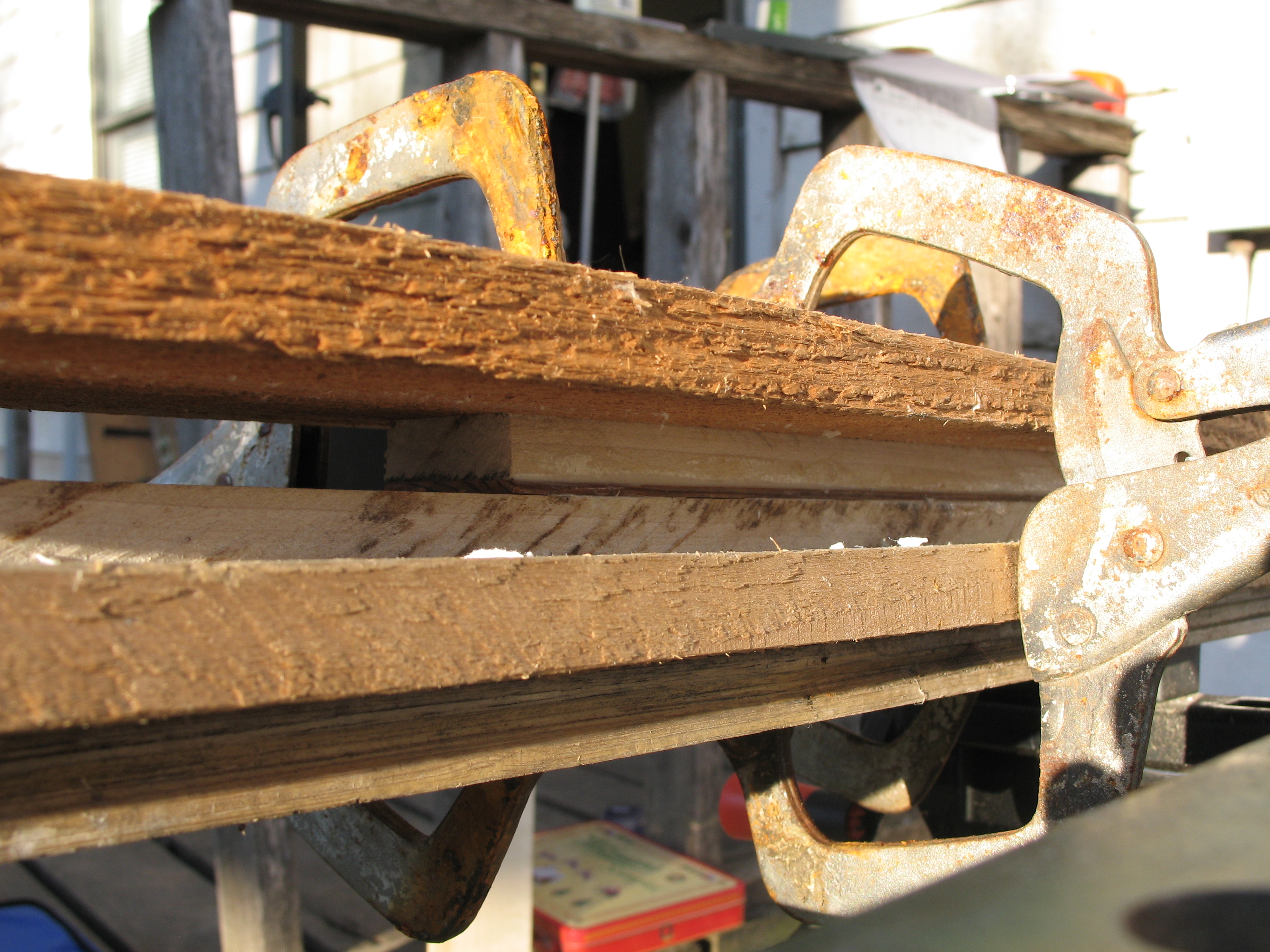

I cut out the neck with handsaw and keyhole saw, cut the additional fingerboard piece and chose my scrap, and then sanded and glued them all up into a wooden sandwich. After the glue had dried thoroughly, I went after it with rasps, the Surform plane, and my knife to round off the back and create a smooth transition from neck to headstock. I could have sanded everything smooth, but I like the whittled look. I think it will take on a rustic patina with use.

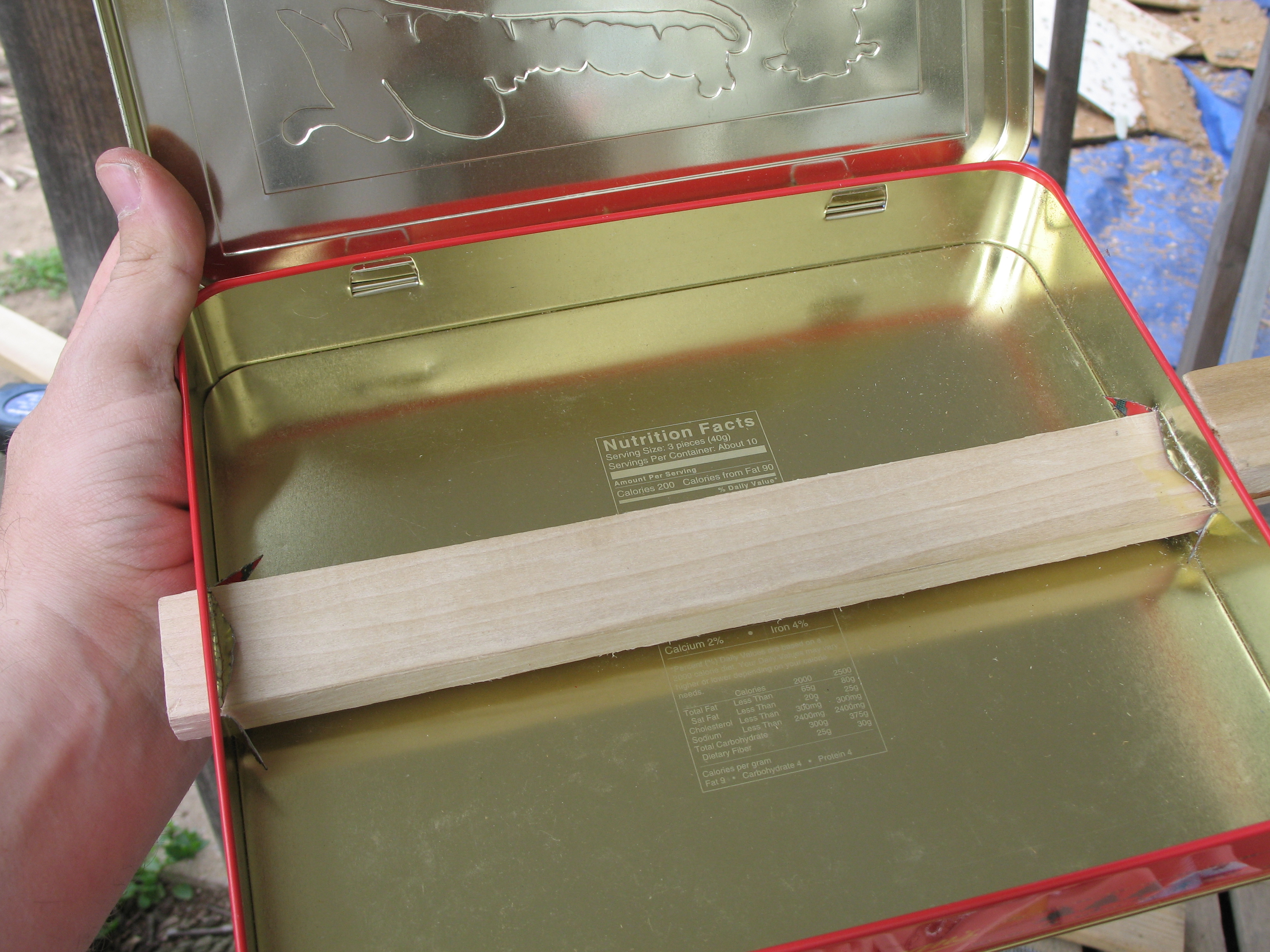

I wanted to keep the box as intact as possible, so I only cut two holes, one in the center of each end for the neck to enter and exit. For each one, I drilled holes at each corner and the center point, then used the Dremel with a cutoff wheel to cut an X through. I tried starting with my jeweler's saw, but ended up snapping my last blade. Bending the resulting tabs back gave me rectangular holes that were quite snug against the wood.

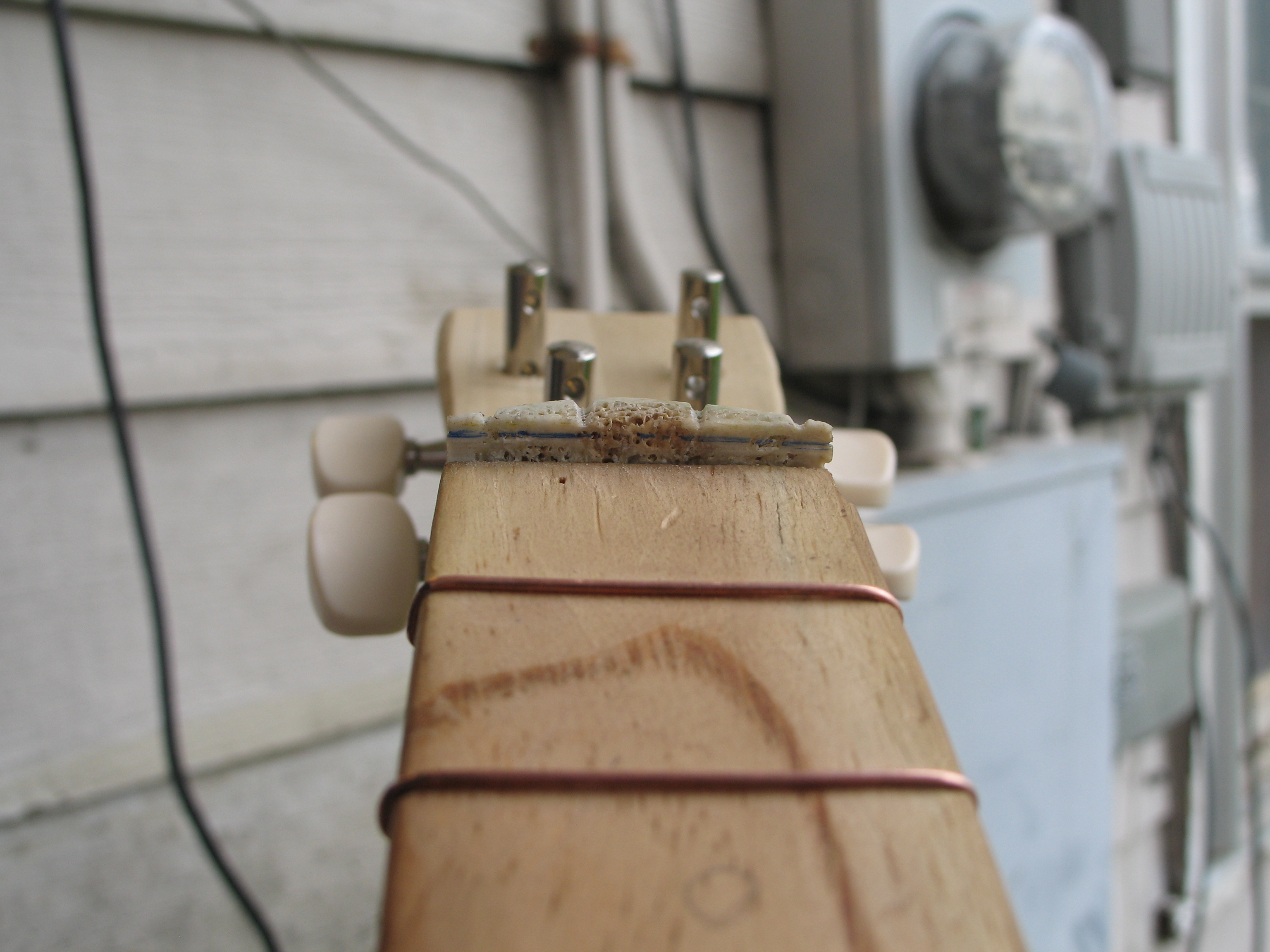

This step seemed simple. Just drill holes, stick the tuners through, and screw them down from the back. It was surprisingly tricky, though. I hadn't left quite enough room to fit everything and ended up having to shave off one corner of the G tuner to make everything fit. I'm a little concerned by the sharp angle the G and E strings make with their tuners. I'm afraid that turns of the strings might slip off under tension. When I have to replace the strings, I might add string retainers of some kind to correct that angle. As I said in Step 1, future builds will take this into account with an angled headstock or other accommodation.

The fretboard is my pride and joy on this build. Initially, I planned to use the poplar fingerboard and add zip ties as frets, per Shelley Rickey. When I tried that out, though, I was really unhappy with the result. They were too wide, sat proud of the wood no matter how much I tightened them, and were simply ugly. Here's where I got some good advice from the folks at Cigar Box Nation. The real solution would have been to use actual fretwire, but that was outside the budget for this build. I had the bright idea to use 18ga copper wire for the frets, and wrap it around the neck in a spiral pattern. I was going to file slots in the back so the wire wouldn't interfere with my thumb.

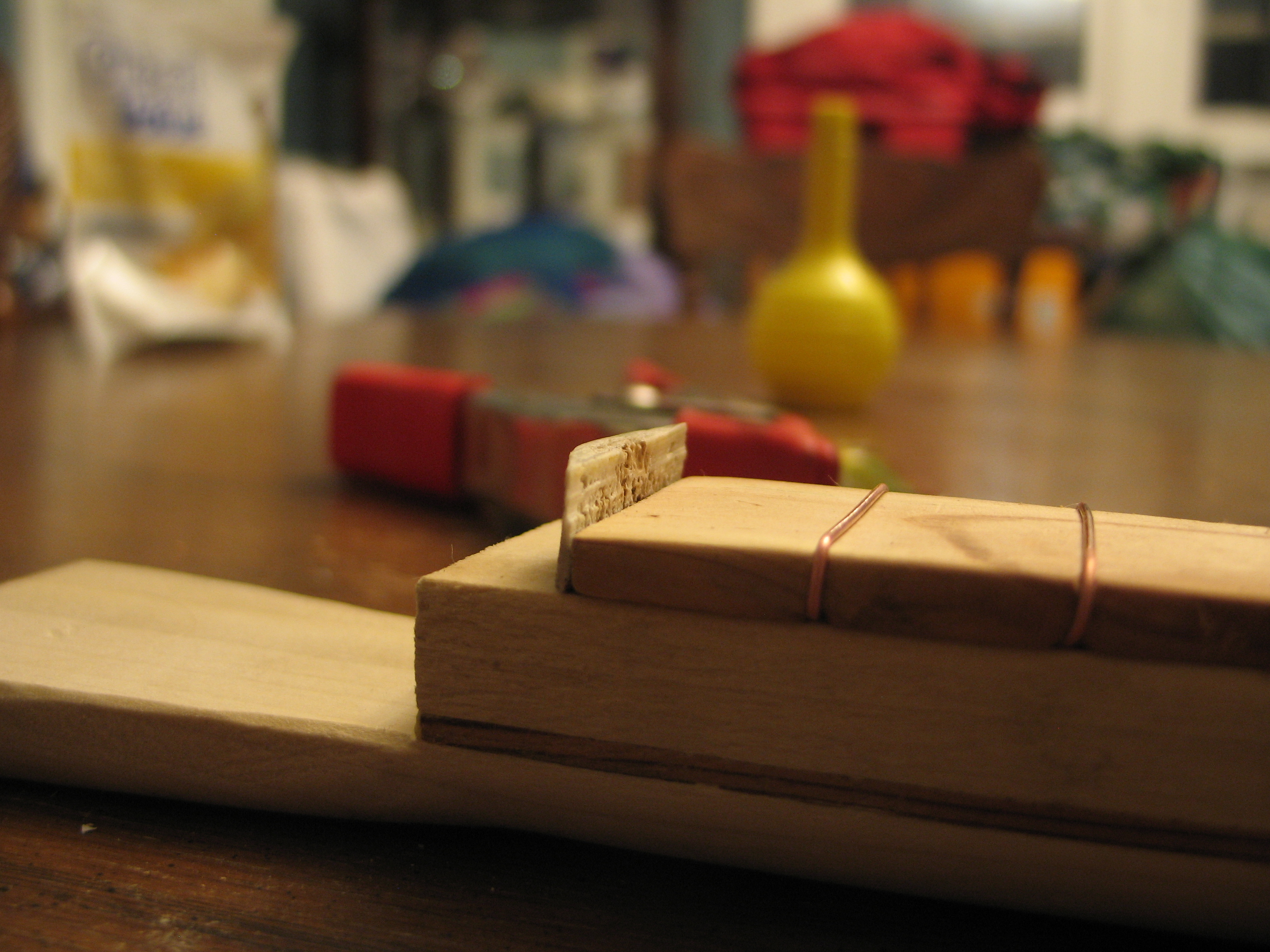

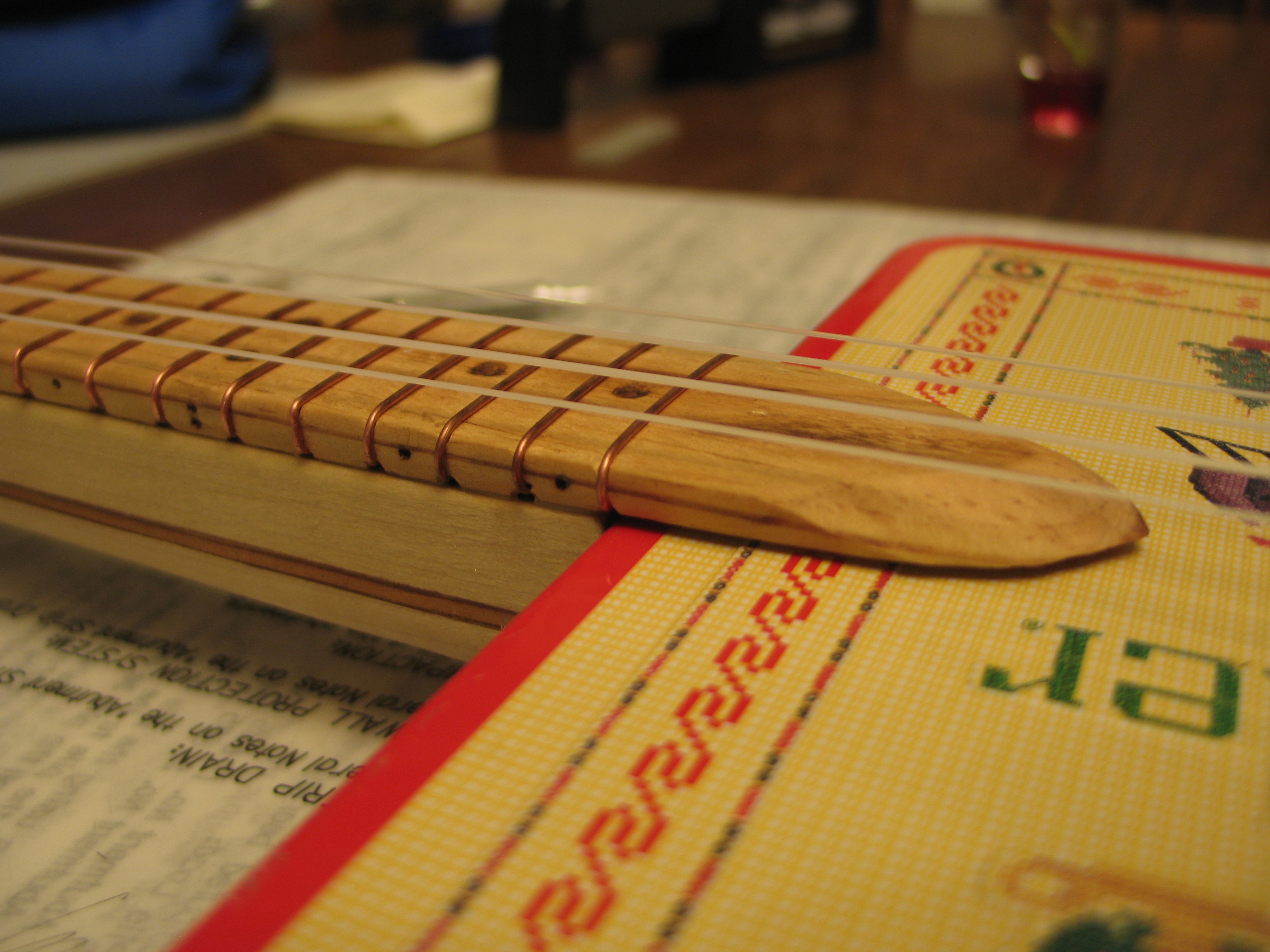

This would have taken a lot of wire, and carving those curved diagonals was going to be fiddly. One of the CBN folks suggested adding a separate fretboard, and I realized that would solve several problems. It would give me a good surface for the frets, It would raise the strings up high enough that I could make a decent-sized bridge, and it would extend a little over the tin and mask the seam where it met the poplar fingerboard, which was unattractive. This is what I went with. I sliced off a nice piece of 100-year-old 2x4 with my table saw, whittled it down to the proper size and shape, and then wrapped the wire around. I used multiple short-ish pieces of wire, rather than one long one. For each, I filed a perpendicular slot for the starting end, then diagonals from fret to fret, ending with another short slot to accept the bitter end. Once all the frets were installed, I glued and clamped the board in place.

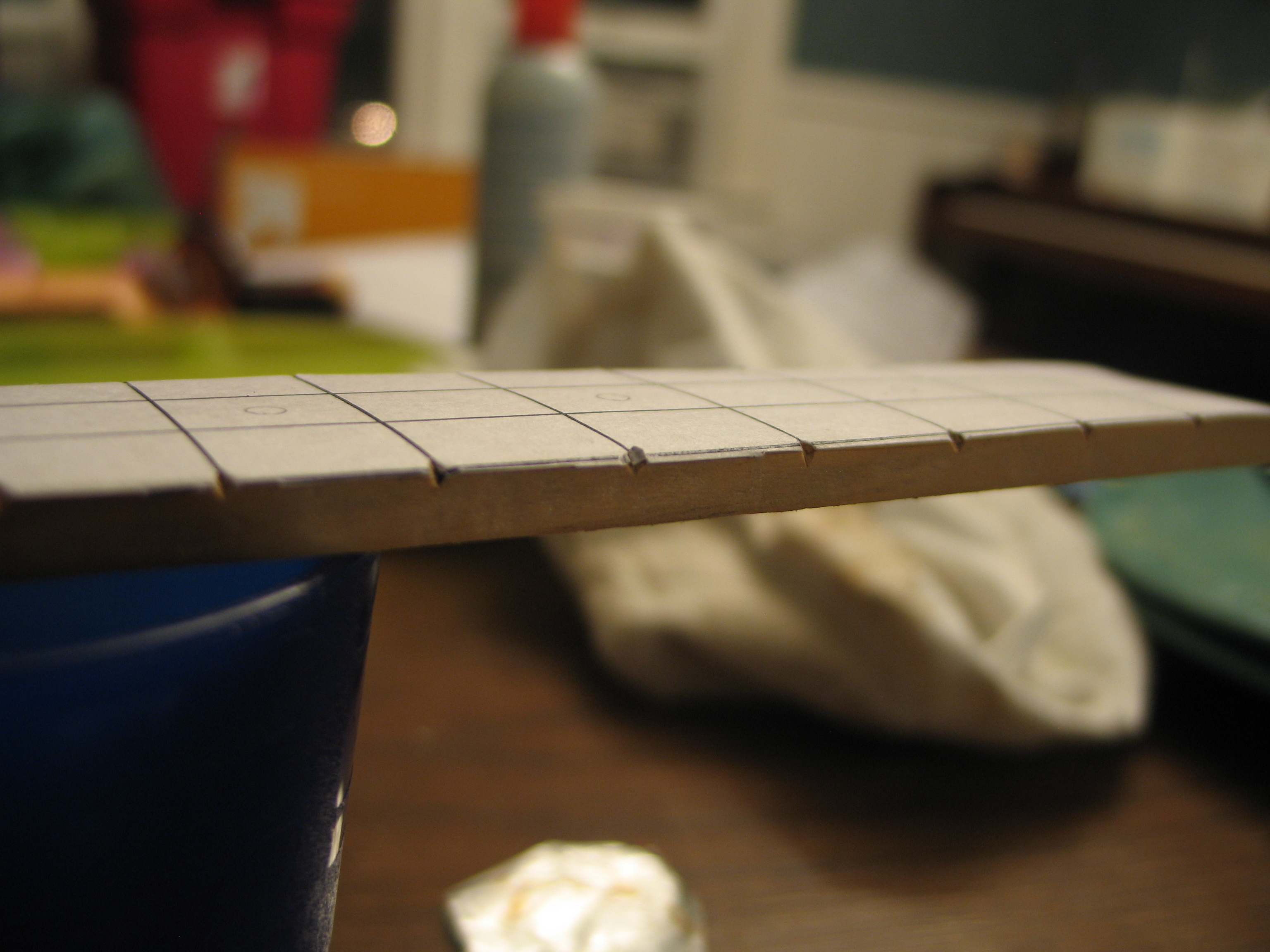

Fret placement, by the way, is a surprisingly easy thing to determine. Stewart-MacDonald has a great fret calculator on their site, but as I was digging around on forums, I discovered the astonishing FretFind 2D tool. This allowed me to print a perfect diagram that I was able to glue to the neck with temporary adhesive. I used that to cut slots on the sides for the wire to ride in. This worked beautifully.

In the future, I may find that the wire develops some "play", especially when the wood reacts to temperature and humidity differences. I might need to add a couple dots of superglue to keep them in place. For now, though, they are working great.

Later in the build, I added some aesthetic touches in the form of fret markers. These are dots at frets 3, 5, 7, 10, 12, 15, and 17. The double dot is at the 12th fret, where each string should be an octave above its unfretted pitch. I put large dots on the face of the fretboard and smaller ones along the top of the neck, where I can see them without craning over as I play. These were added with a woodburning tool.

The nut is the piece that aligns the strings coming off of the tuners and provides a straight edge for the top of the scale. Traditionally they are made from bone, ivory, or a similar hard material. This part of my build involved a bit of serendipity.

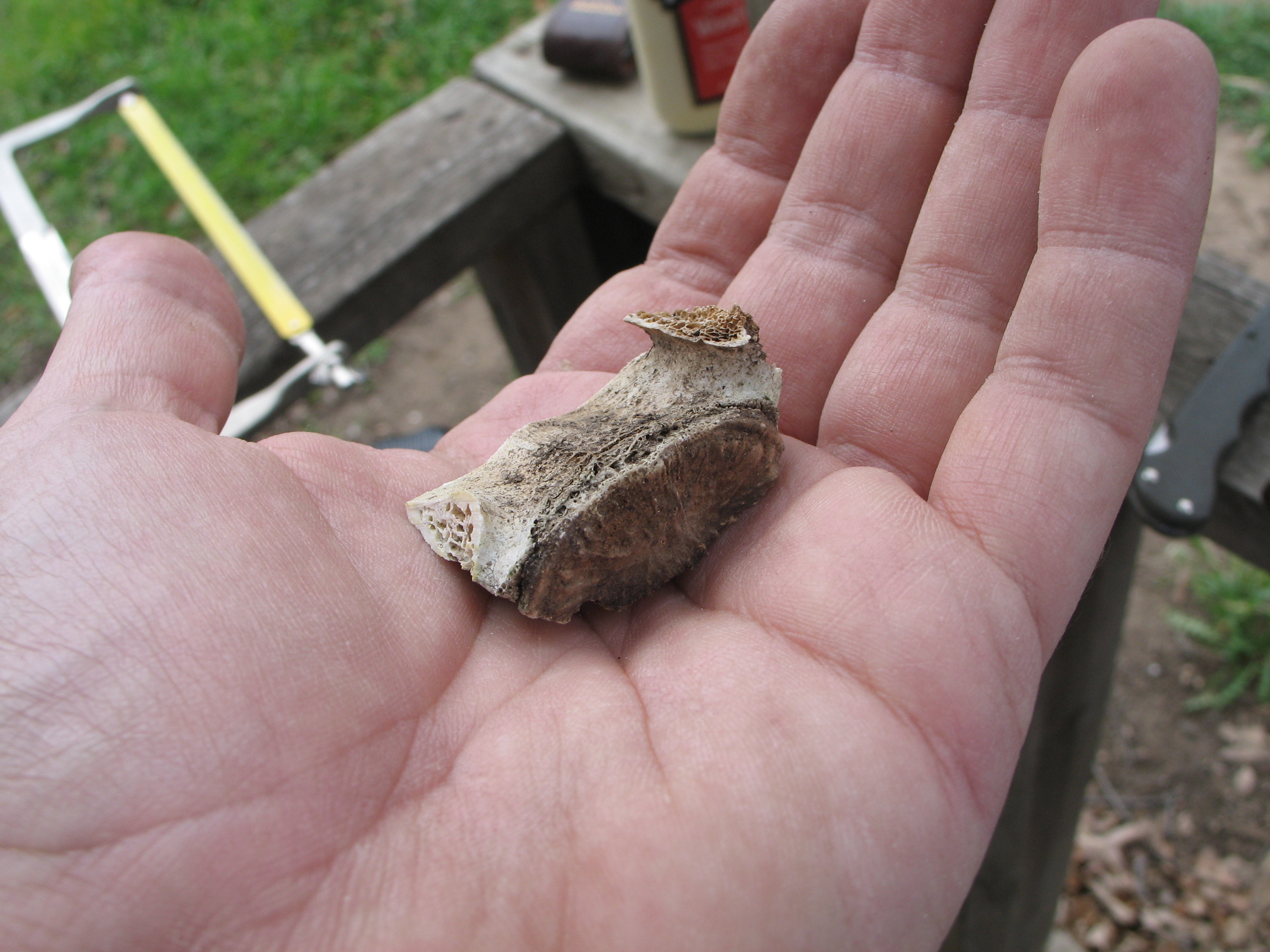

While I was in the process of mulling over my plans, before I'd even started the design process, I went on a campout with my son's Boy Scout troop. While on a stargazing outing with the boys, I found a bone hidden in some tall weeds. At first glance I thought it was a skull, but closer inspection revealed it was a coccyx. It had been out in the elements for a long time, and the bone was dry, devoid of organic material, and sun-bleached white.

On the same trip, I found some cow bones scattered around one of the grills at our campsite. Someone had obviously cooked short ribs and left the bones on the ground. Like the coccyx, these bones were picked clean and dry.

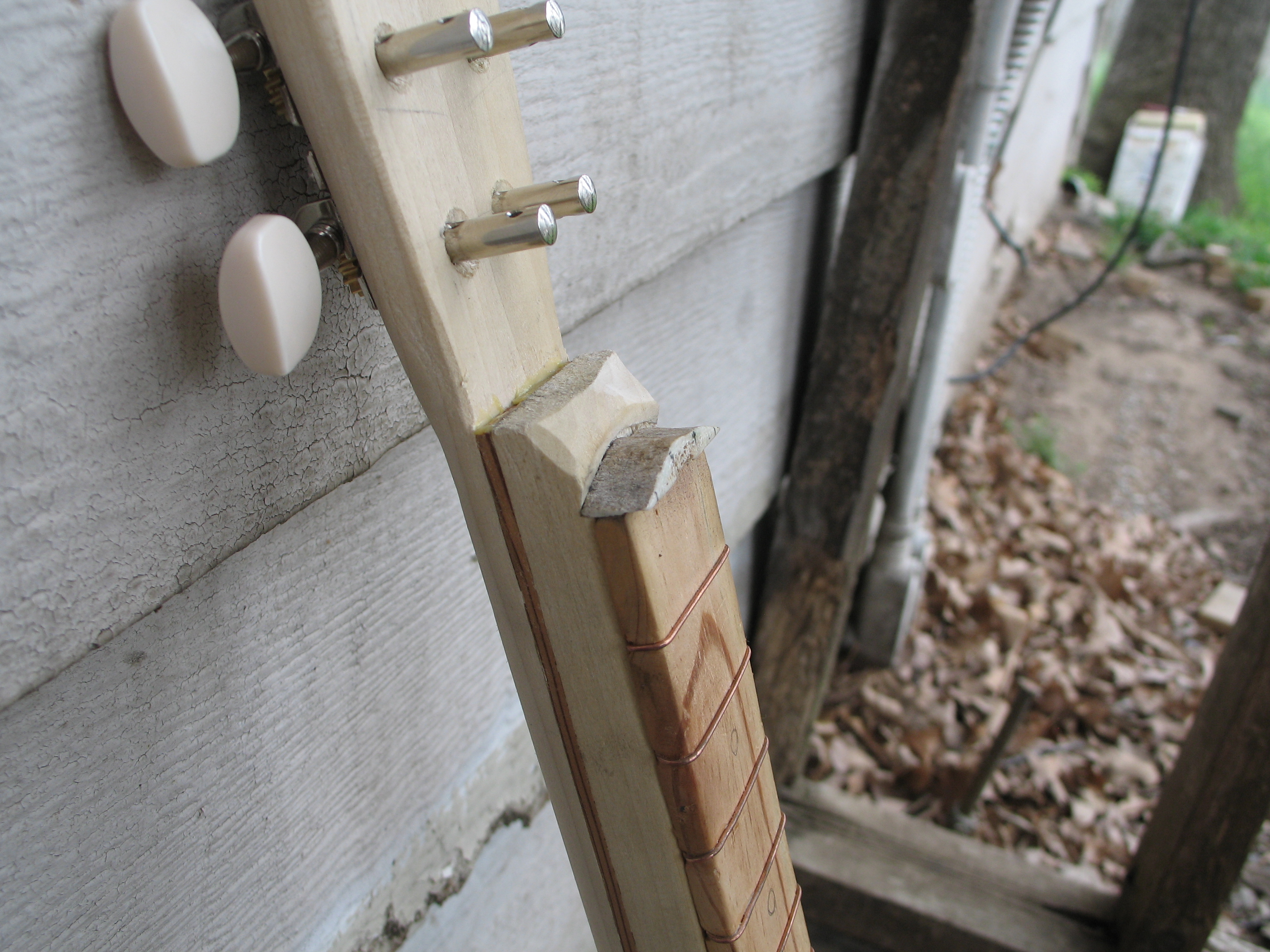

The nut for my ukulele was a piece from that found coccyx. I cut it down to size with a hacksaw and filed off the rough edges. Placing it at the proper height on the fingerboard involved some more whittling, but it eventually seated itself nicely. When the uke is strung, the pressure of the strings keep it in place, but I put some glue on it just to make sure.

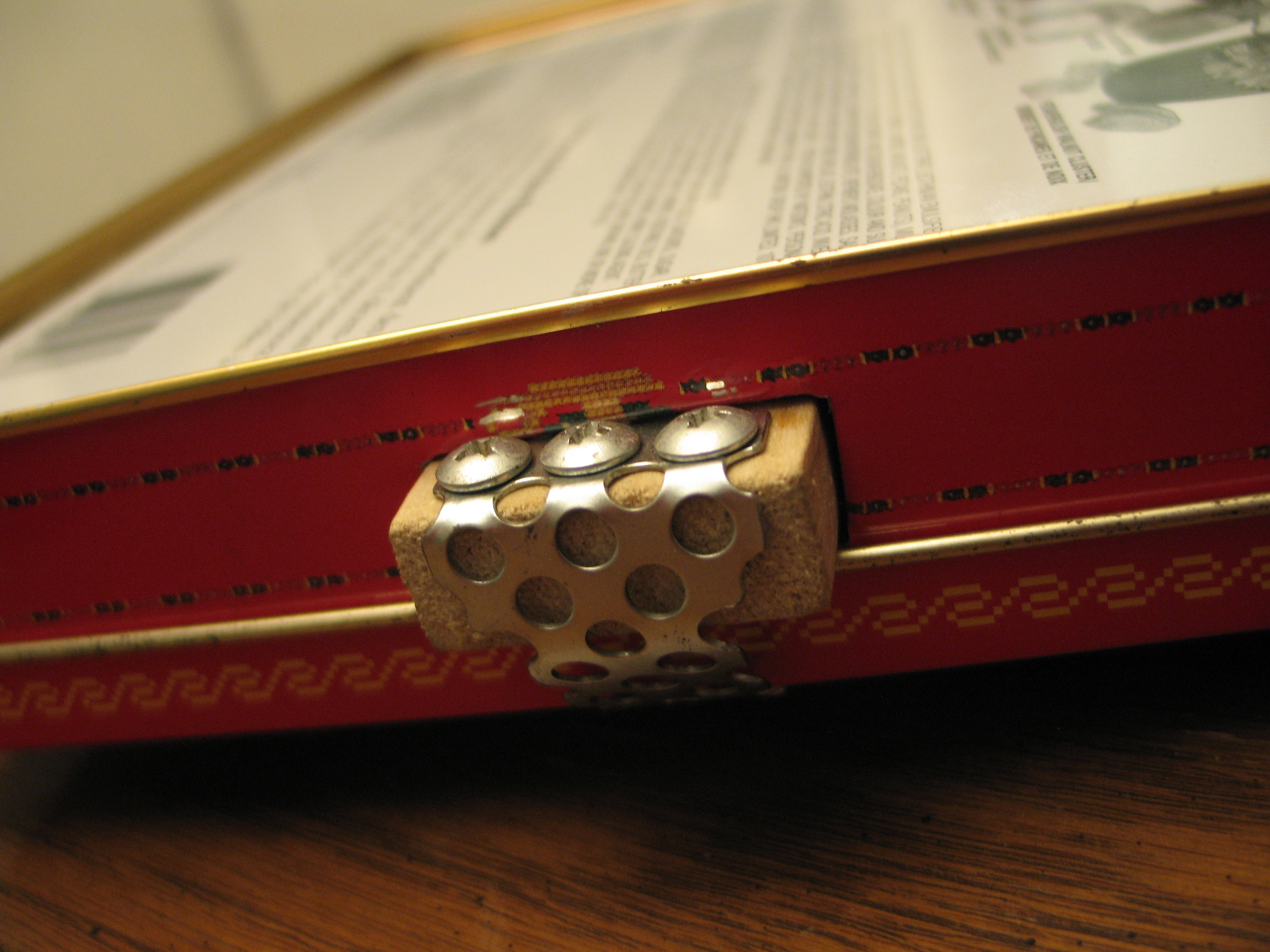

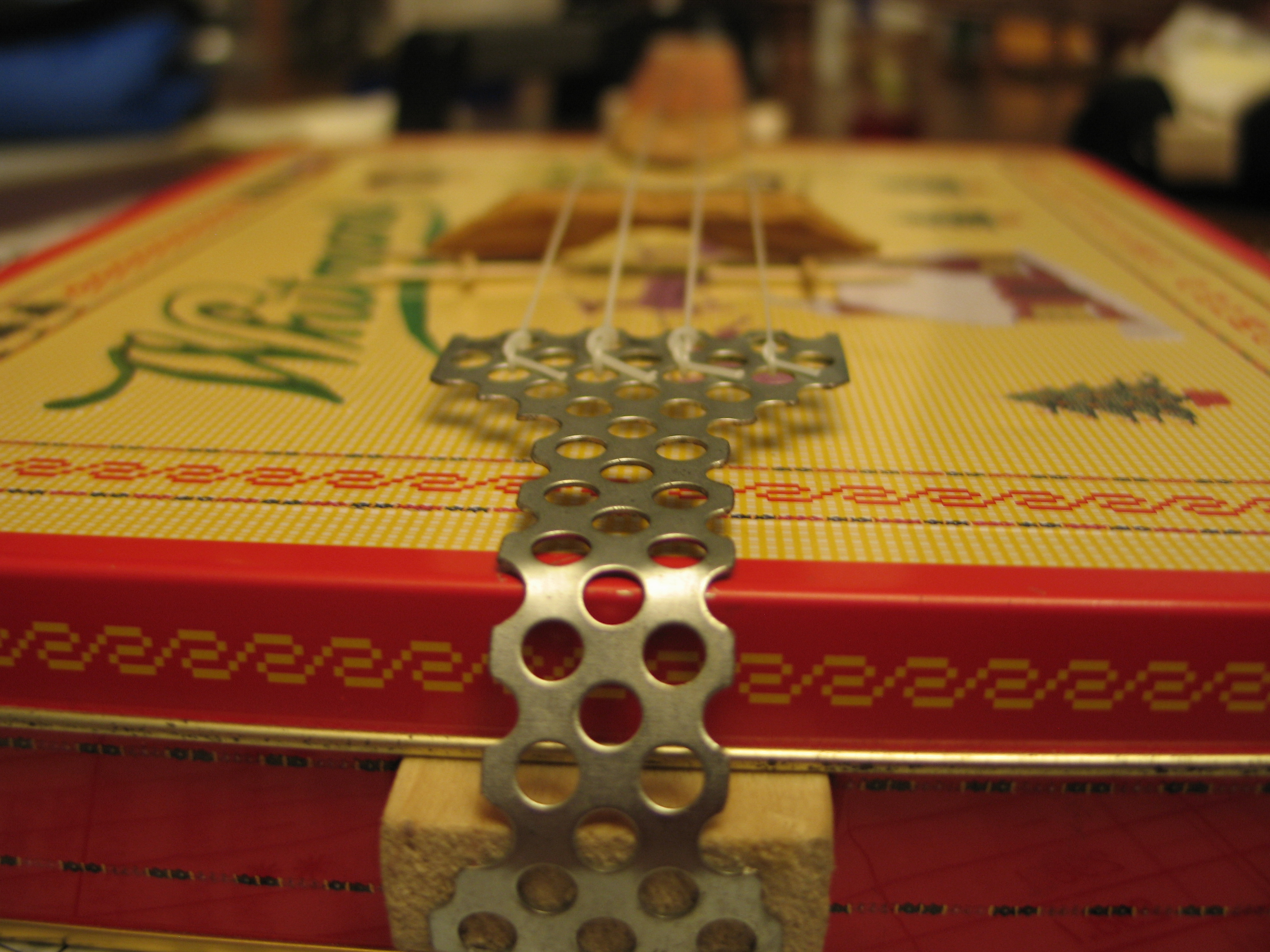

When I knew I was going to need a tailpiece, I started looking around the house for suitable materials. What I finally found was some pierced sheet metal taken from a multifunction printer I'd disassembled (another dumpster find). I cut out a rectangular piece, scored and bent one end to make a hem providing some crosswise reinforcement, and then trimmed it into a pleasing shape using tin snips. A few strokes with a file rounded off the rough edges, and three screws attached it to the tail of the neck.

The bridge is my one real failure. I made it based on matching the height of the nut, but failed to take two things into account.

1. String "action" (space between the string and frets) should increase from nut to bridge, because when you are pressing the string onto a fret, it shouldn't contact higher frets.
2. The tin lid had a fair amount of give, and when everything was strung, the bridge pressed it down.

I made the bridge out of more pieces of scavenged 2x4, glued up and cut out as if I were working with plywood. I placed a "saddle" made from one of the beef rib bones at the top. This is where the strings rest.

I'll be re-making the entire bridge soon. For now, it's shimmed up with toothpicks. This makes the uke playable, and also makes it easy to adjust the bridge to compensate for the different ideal scale lengths of each string.

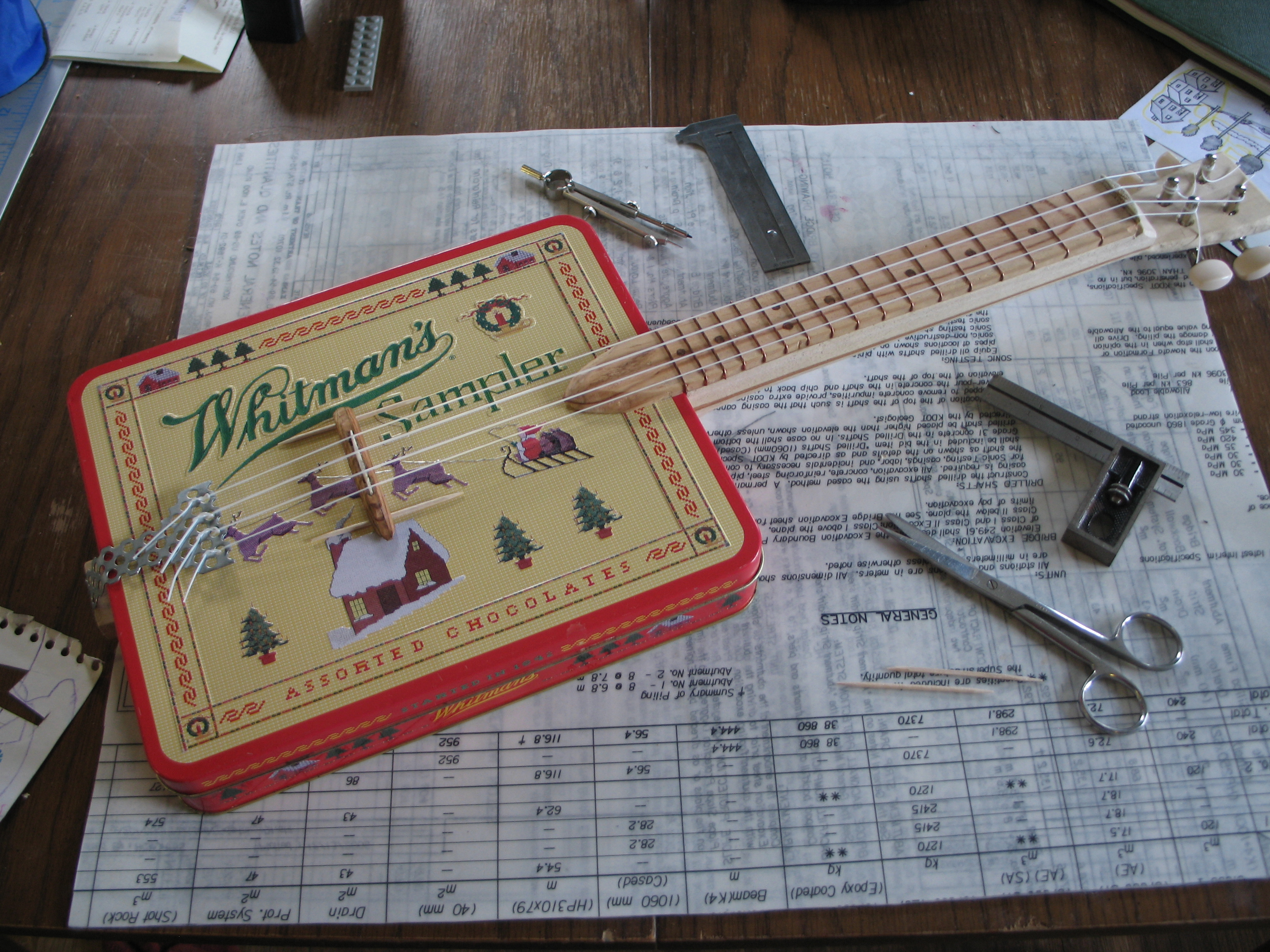

When I had everything put together, it was finally time for the strings.The ones I chose are made of a material called Nylgut, which combines the durability of nylon with the sound qualities of real gut strings. Each is knotted to the tailpiece and strung across saddle and nut to the tuning machines, where it's knotted again.

This is another reason for making a new bridge. I filed slots in the nut and saddle to accept the strings and keep them from sliding back and forth. I had a false start on the saddle slot for the G string which allows it to jump sideways when strummed too vigorously.
