Can Heater

by diy4distro in Outside > Fire

240 Views, 0 Favorites, 0 Comments

Can Heater

lit can heater 3.jpg
can heater 1.jpg

Been seeing these distributed more as the weather gets colder; use a small candle or fill the innermost soda can with hand sanitizer, and they should burn for about 30 minutes. The flame burns hot and high; do NOT use them indoors/in a tent.

I met one of the people who made them and refined the design, and I got one to take back to replicate/make a tutorial for...

Supplies

  • Soda can
  • Standard tin can, around 15 ounces
  • Larger tin can, around 30 ounces
  • Can punch
  • Marker (optional)
  • Scissors
  • Pliers

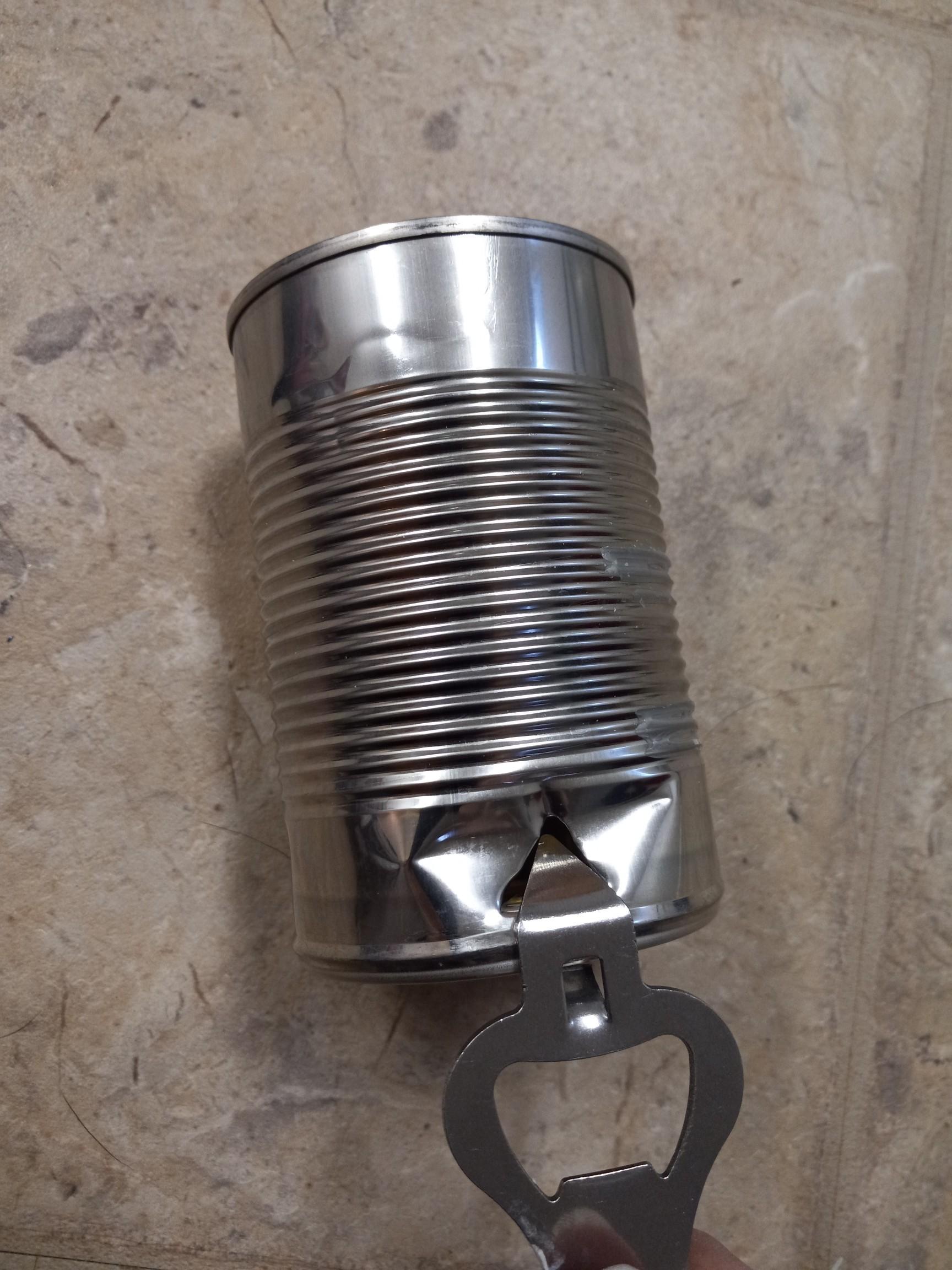

Punch Smaller Can

can heater 02.jpg

Use punch to make eight holes around the base of the smaller tin can. It's easier to get the spacing right by punching four evenly-spaced holes first.

Mark & Cut Soda Can

can heater 03.jpg

Cut soda can to around 1.5 inches height; you can rotate the soda can with a marker held against it to get a clean line. The can is cut to this height as 1.5 inches is around the maximum depth of hand sanitizer that will burn reliably inside the can heater.

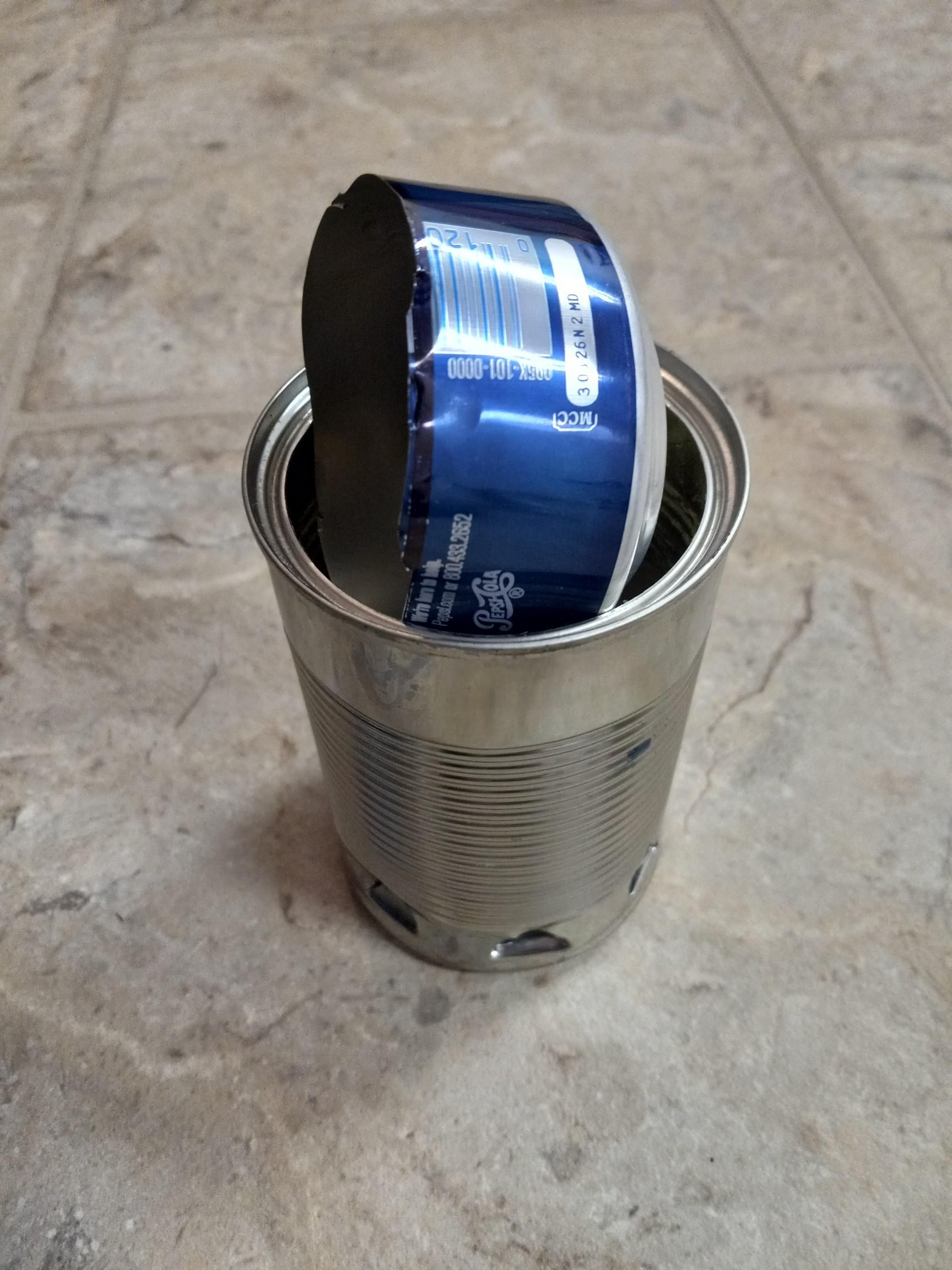

Insert Cut Soda Can

can heater 04.jpg

Push bottom of soda can inside smaller tin can.

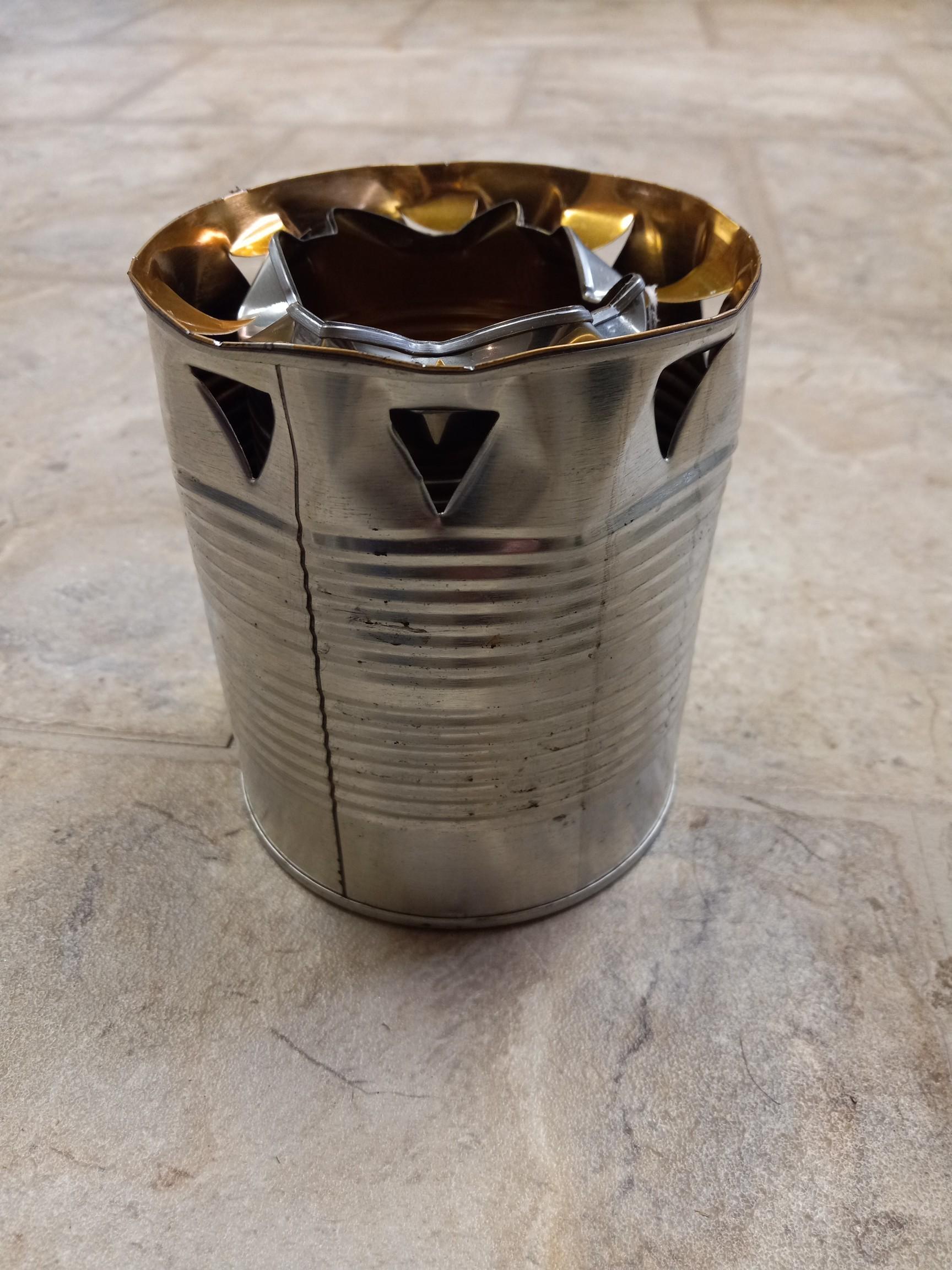

Punch Larger Can

can heater 05.jpg

Punch eight holes along the top of the largest can. The edges of the holes should naturally curl up.

Bend Smaller Can

can heater 06.jpg

Use pliers to bend edges of smaller tin can in. This keeps the soda can bottom from falling out if the unit is flipped over. Go slow to avoid tearing.

Insert Can Unit

can heater 07.jpg

Place smaller can/cut soda can unit into the larger tin can.

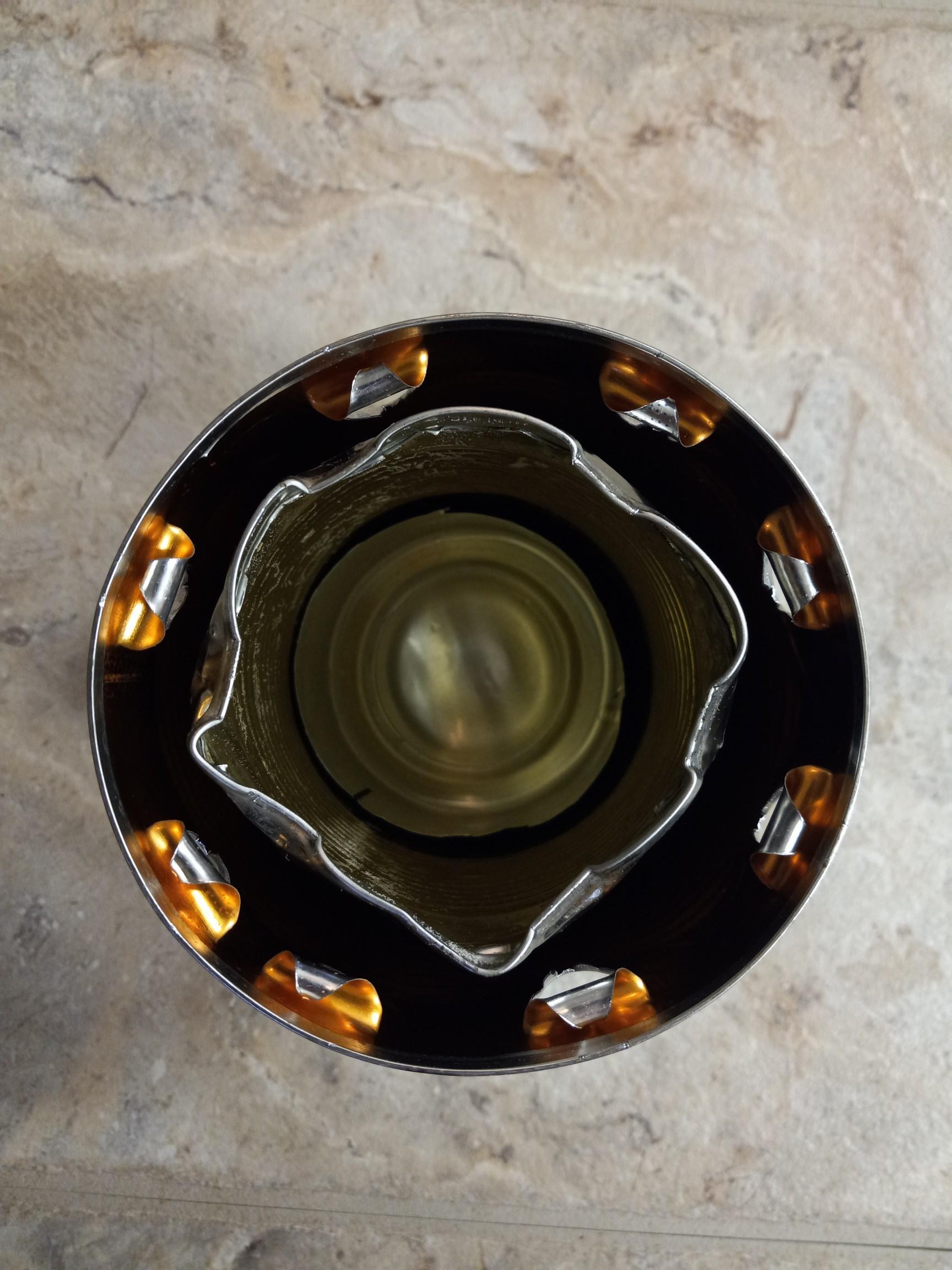

Secure Inner Can Unit

can heater y.jpg

Use pliers to unfurl curled edges of holes in the larger tin can over the rim of the smaller unit. (You may have to redo step 4 with a can punch that makes longer holes if the inner can unit is not held in place.)

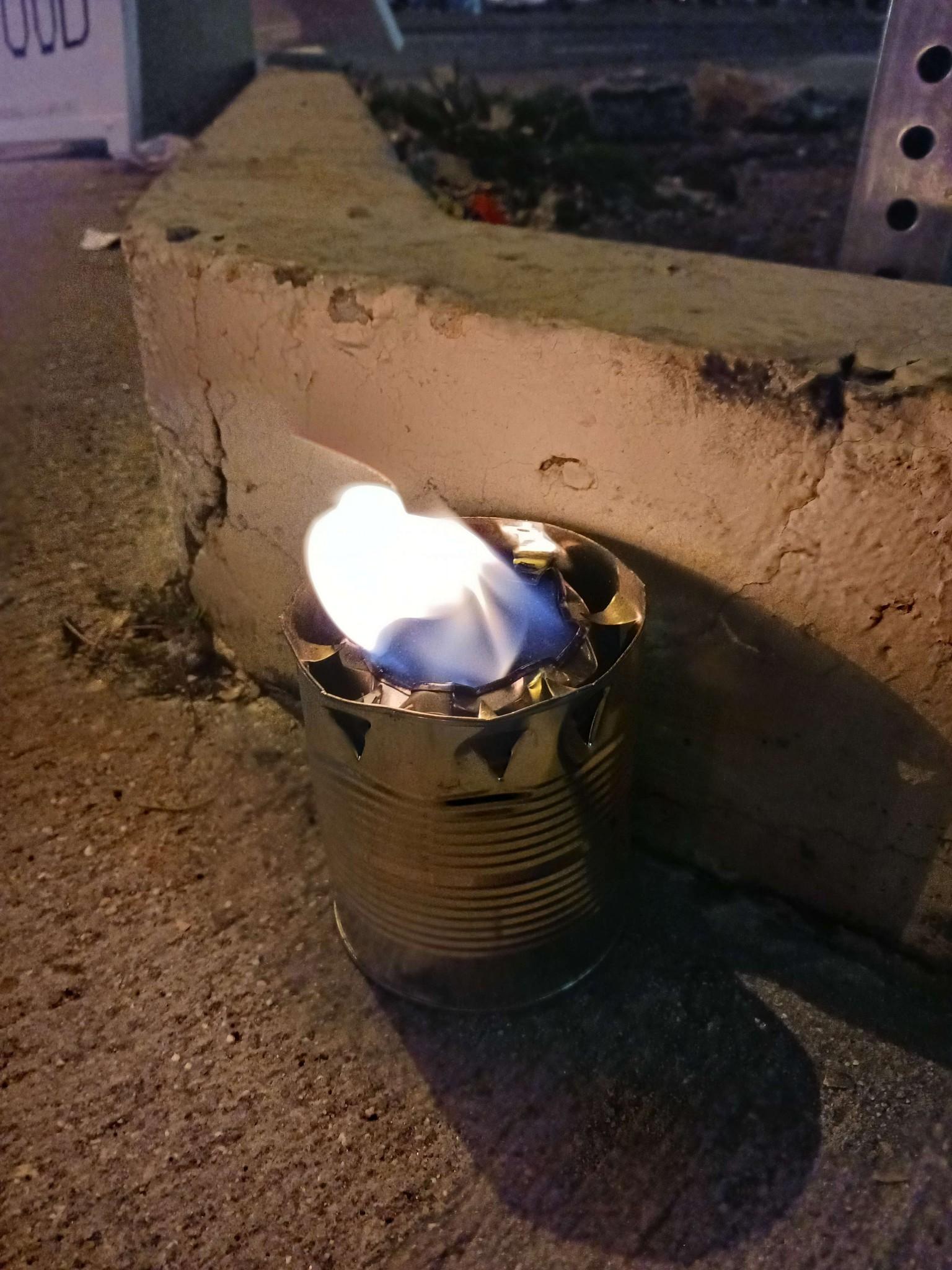

Add Fuel & Ignite

lit can heater 2.jpg
lit can heater 3.jpg
lit can heater 4.jpg

Add a candle or up to 1.5 inches of hand sanitizer to the innermost soda can and ignite when safe. Once ignited, the heater seems to work by drawing air in from the holes in the top of the larger can, between the two cans, and up through the holes on the bottom of the smaller can. The flame is relatively shielded from wind and should be more difficult to accidentally put out.
