Calendar Clock 50 Year Battery Life

The idea for this project is to repurpose an analog wall clock to display the date instead of the time. The hour hand will display the month (1 to 12) and the minute hand will correspond to the day.

This hack involves slowing down the clock mechanism so that the minute hand only moves once a day and it takes the hour hand a whole month to move by an hour.

Thus the clock only ticks for a few minutes each day, this reduces the current draw significantly to around 6uA, leading to a theoretical battery life of around 50 years.

The Calendar Clock visually indicates how much of the year has passed by and can potentially incentivize people to plan their days and use time more effectively.

Image Gallery: https://drive.google.com/drive/folders/1kf2KpO1KTEFuxNGVZ0Sf13TJbLFGKyx6?usp=share_link

1) Arduino Pro Mini

2) Another Arduino to be used as a programmer

3) DS1307 RTC module (Newer models like the DS3231 are more efficient and can improve battery life)

4) AA Battery.

5) Quartz wall clock

6) Wires ( Flexible Silicon wires around 20 AWG easy to work with)

7) Screwdriver set

8) Soldering Iron

9) FTDI Serial Adapter

For Battery Life Estimation:

1) Nordic Power Profiler Kit 2

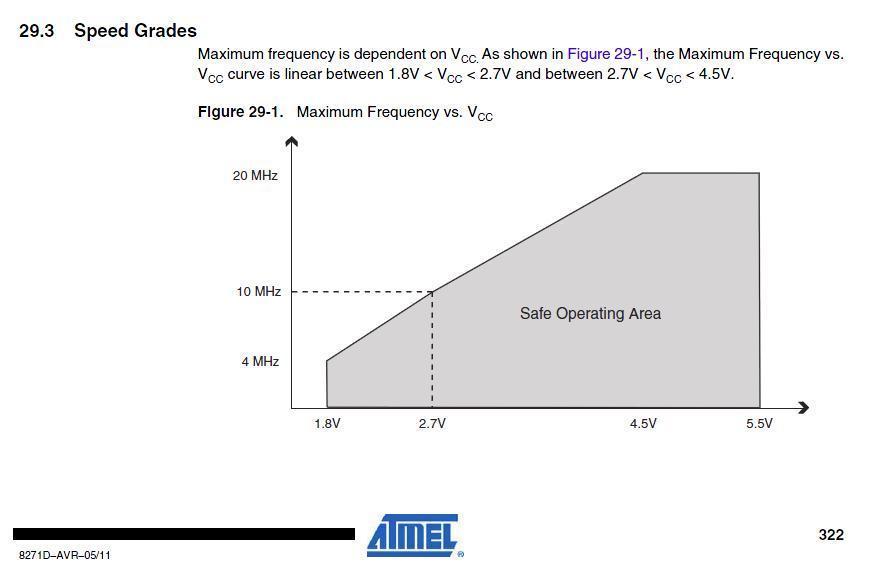

The quartz clock mechanism runs on a single AA battery (around 1.5V), thus to control the clock mechanism we need to send a 1.5V signal from the Arduino Pro mini. The digital pins can send a 1.5V signal only when the Arduino pro mini supply voltage (VCC) is close to 1.5V. But by default the Atmega 328p microcontroller in the Arduino pro mini needs around 5V as its clock frequency is 16Mhz, we can make the Arduino pro mini work at 1.5V by reducing the clock frequency to 1Mhz. This also drastically reduces power consumption.

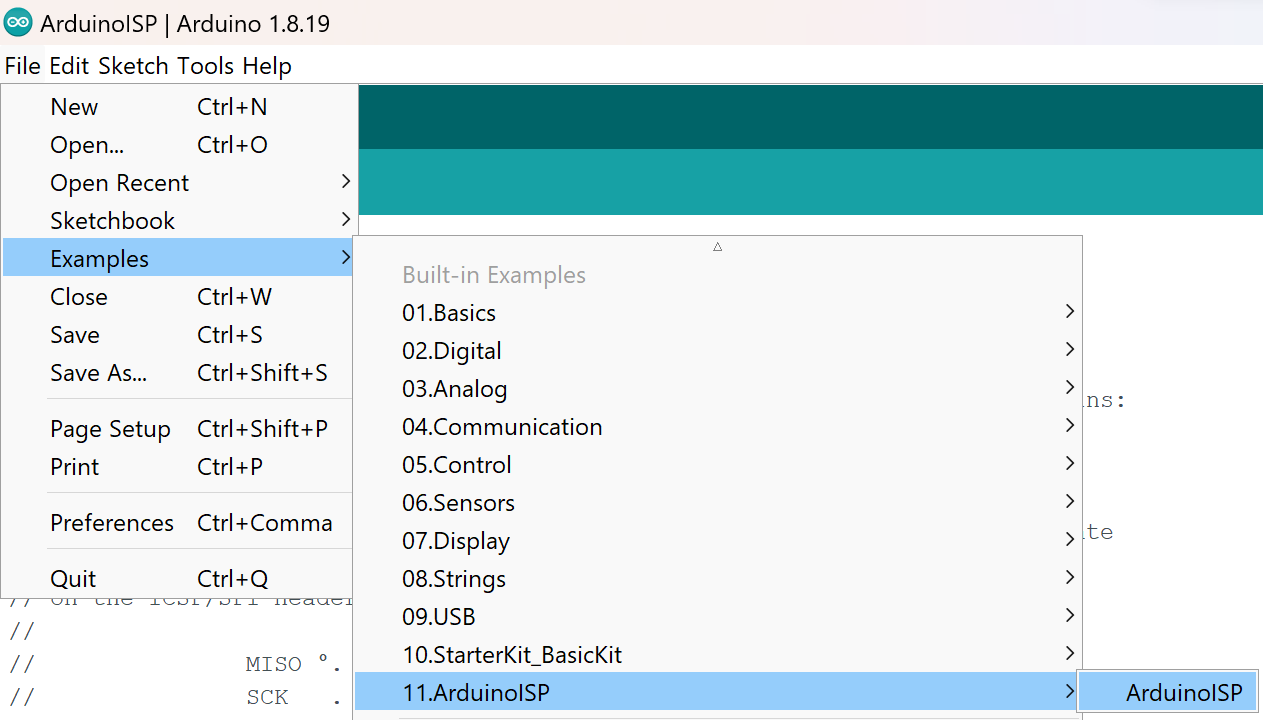

For this, we need to flash the Arduino Pro mini with a 1Mhz bootloader. This can be done by using a USB ASP programmer or by turning another Arduino into a programmer by uploading the ArduinoISP sketch.

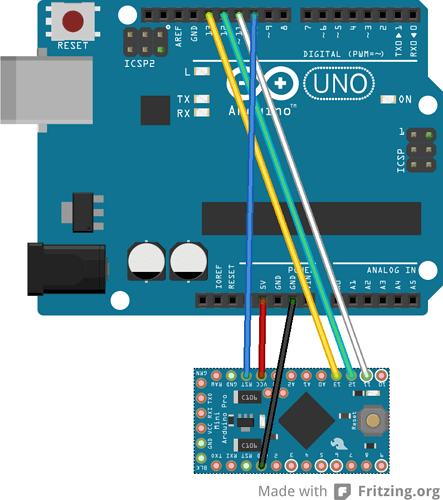

Wire the Programmer Arduino to the Arduino Pro mini as per the image at the top.

Excerpt of 1Mhz bootloader tutorial from: https://forum.mysensors.org/topic/3018/tutorial-how-to-burn-1mhz-8mhz-bootloader-using-arduino-ide-1-6-5-r5/2

• I use this precompiled bootloader from here. It's an Optiboot with 1MHz internal clock and 9600 baud serial communication. Fuse changed to BOD disable.
• Rename your .hex to atmega328_1a.hex
• Move it to "ARDUINO_PATH" > hardware > arduino > avr > bootloaders
•
• We need to add the new board to the boards.txt file located at "ARDUINO_PATH" > hardware > arduino > avr
• Open boards.txt
• Go to this link.
• Copy the content of the link and paste it at the end of boards.txt

• Restart you Arduino IDE.
• You should see "APM Optiboot internal 1Mhz noBOD 9600baud" in the Tools > Board menu.
• Set the programmer to ArduinoISP.
• Once you've done this, you can burn the bootloader and upload programs onto your ATmega328p. To burn the bootloader go to Tools > Burn bootloader.

For any errors while updating the bootloader: https://forum.mysensors.org/topic/3018/tutorial-how-to-burn-1mhz-8mhz-bootloader-using-arduino-ide-1-6-5-r5/2

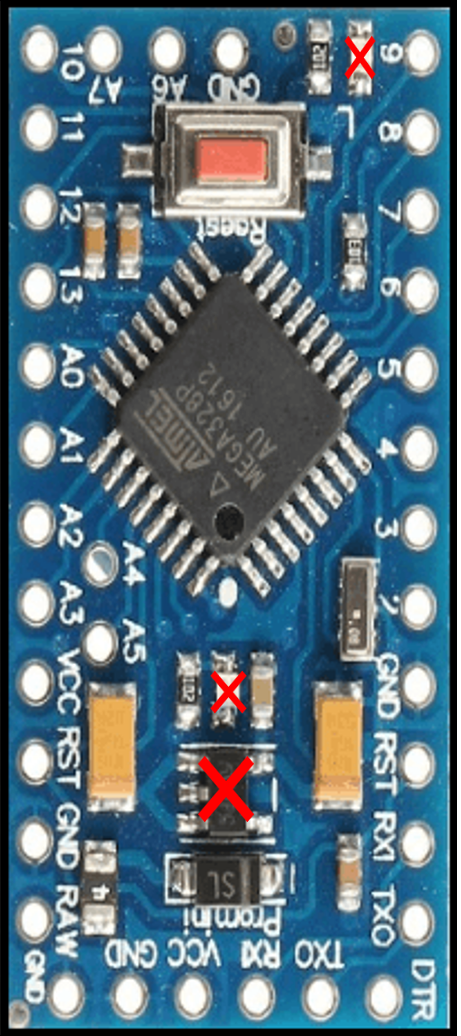

Since we are running the Arduino pro mini off a single 1.5V AA battery, we need to reduce power consumption by removing components such as the voltage regulator and SMD LEDs. These can be desoldered using a soldering iron or a screwdriver can be used to break these from the board.

Wire the Arduino Pro Mini & DS1307 RTC with the clock mechanism as per the above diagram. Note that if you still want to use the battery holder on the clock mechanism you would have to open up the mechanism and disconnect the wires from the battery holder to the PCB.

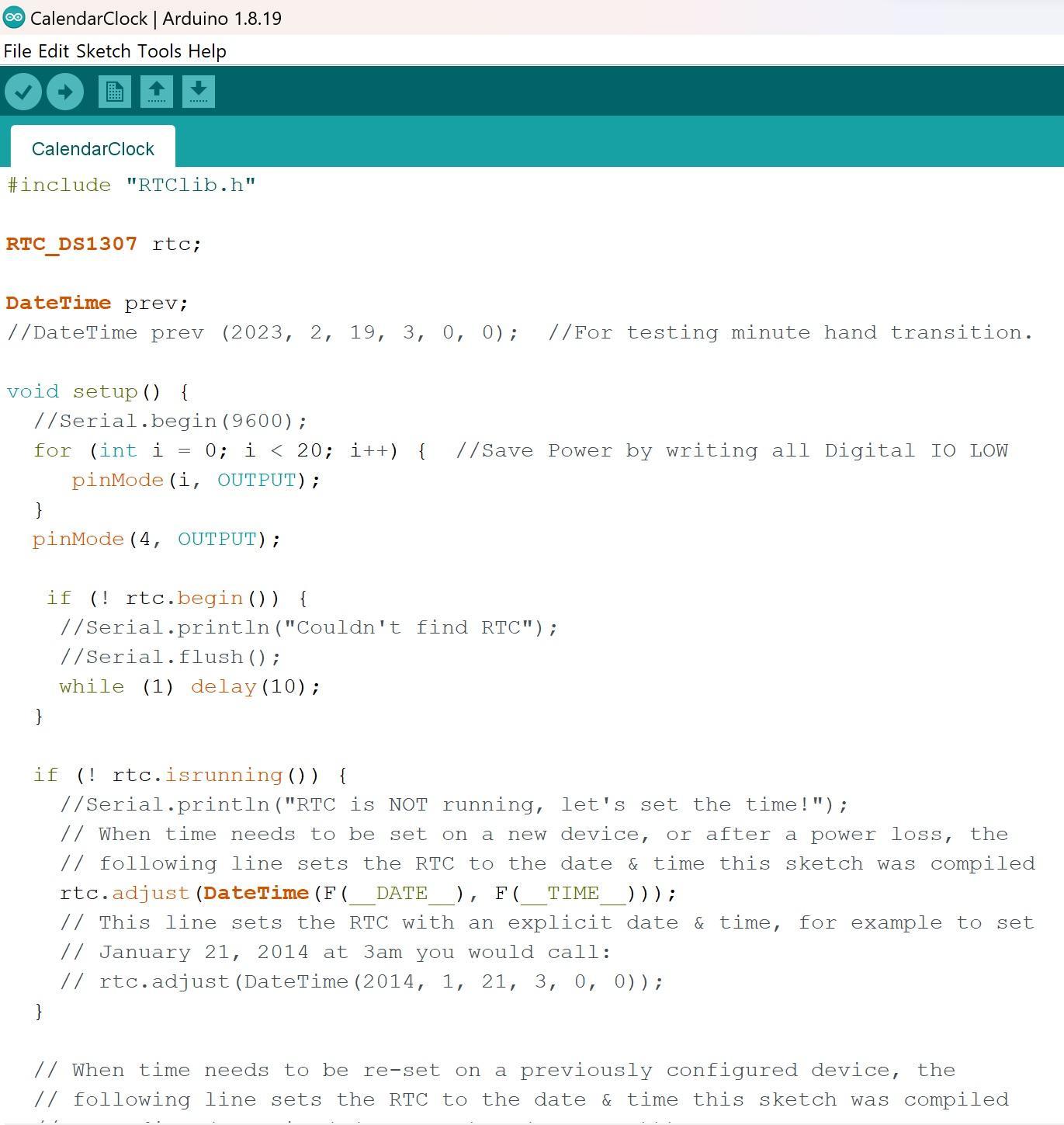

The Code along with comments are attached, please download the RTClib by Adafruit from the library manager. I used Kevin Darrah's tutorial to set the Arduino to deep sleep mode. The Calendar clock should last a year and a couple of months before a AA battery needs to be changed.

In simple terms, we read the date from RTC ds1307 and if there is a change in the day then move the minute hand by setting the digital pin HIGH for a particular duration, the duration might drastically differ from the end of the month to the next month transitions.

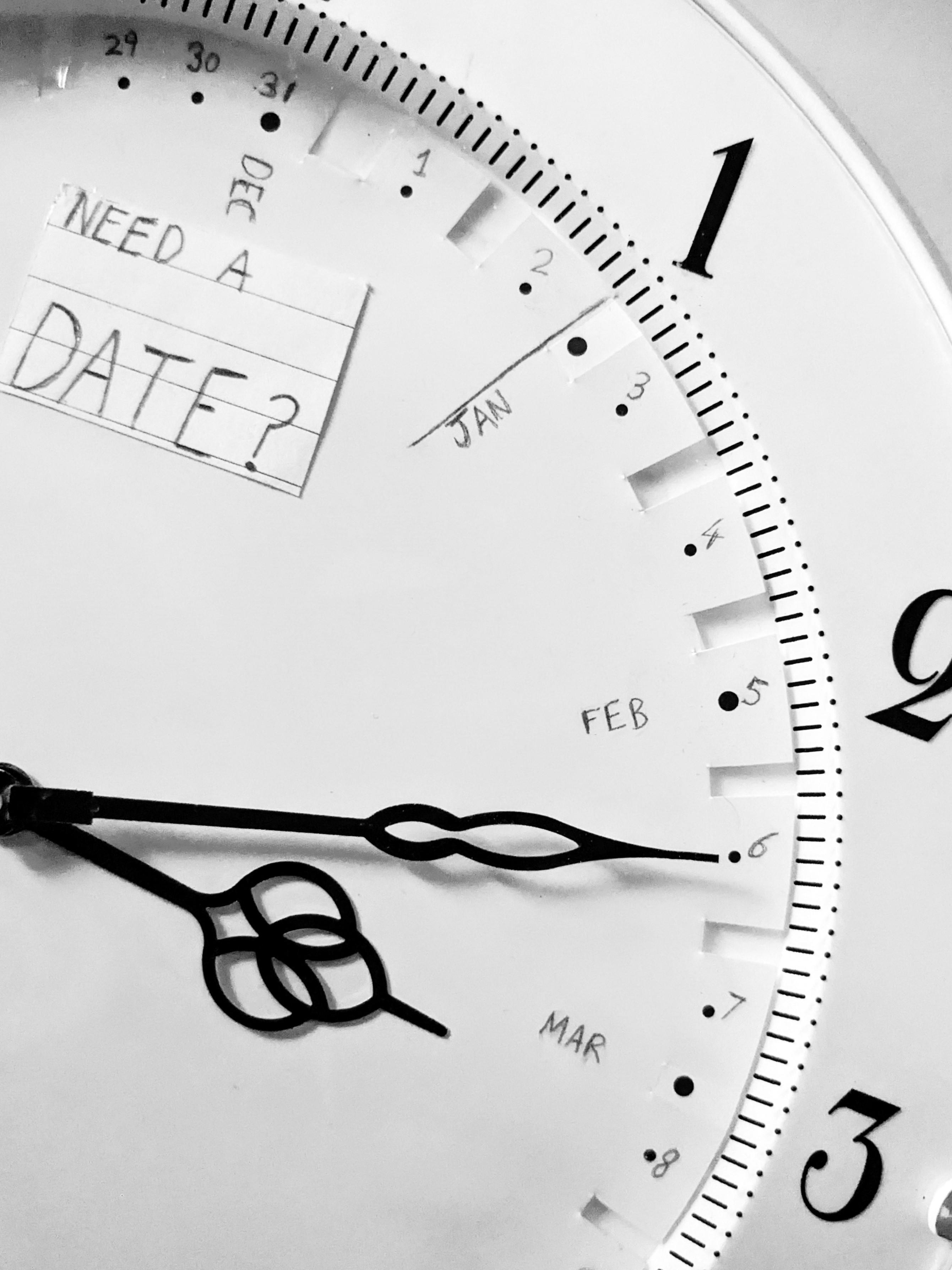

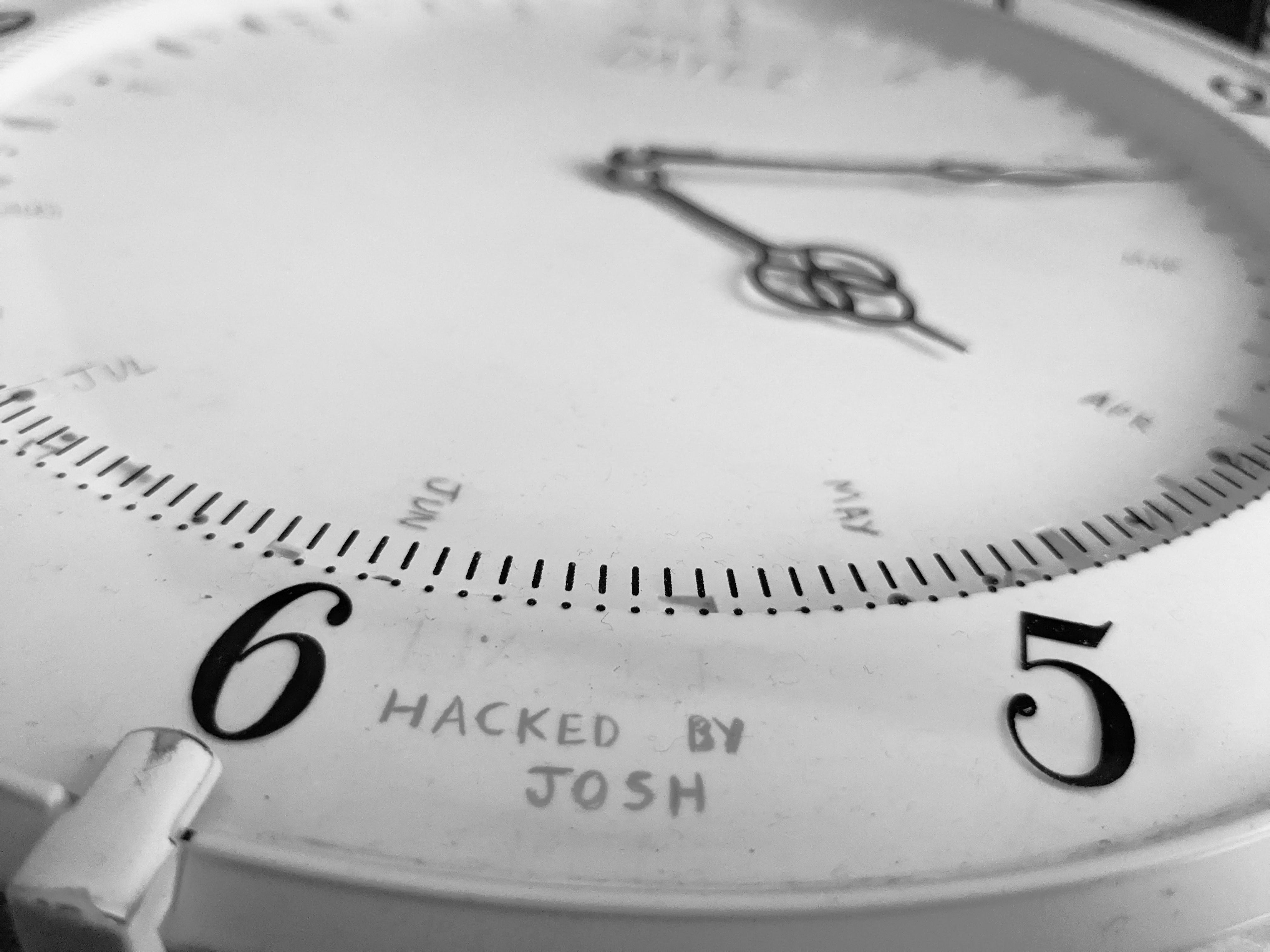

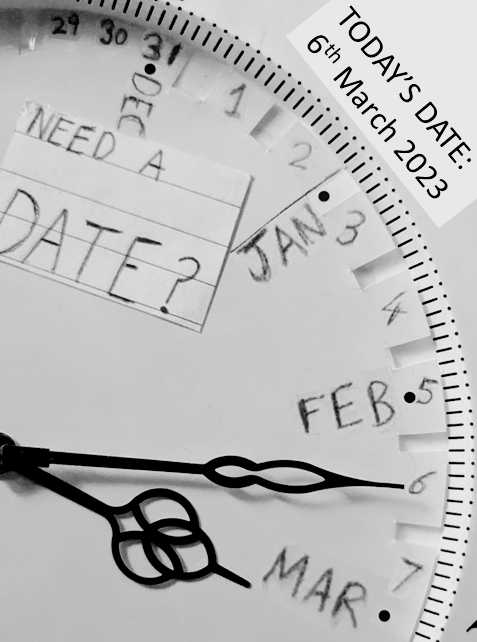

I have added dates from 1 to 28 to the location of every even minute. 29 to 31 are placed close to each other. The Arduino code moves the needle accordingly based on the date. For example, from 28th Feb to 1st March the minute hand is programmed to move extra steps compared to the transition from 1st March to 2nd March. I also added the text for months to make things a bit more readable, for the month of February the hour hand is between hour 2 and 3. The year starts at hour 1.

The Nordic Power Profiler Kit II has been used to estimate battery life.

The current consumed when the Clock is ticking and the minute hand moves:

Around 55 microAmpere.

The current consumed when the Arduino and RTC are in low-power mode:

Around 6 microAmpere.

Average Current

The clock ticks approximately 6 minutes each day*, averaging current for a whole day :

           = [55 uA X 6 min  +  6 uA X 1434 min ] / 1440 min  {1440 min in a Day }

           = 6.2 microAmpere

AA Alkaline batteries have capacities of around 2700 mah to 3200mah for a current draw of around 0.5milliAmpere upto 1.2V.

Considering the battery capacity as:

1) 2500 mAh

       2500 mAh / 0.0062mA = 403,225.806 hours =  46.03 years

2) 3000 mAh

       3000 mAh / 0.0062 mA = 483,870.96 hours = 55.23 years

Although the current draw is significantly low, Alkaline batteries have a shelf life of 10 - 15 years. It would be interesting to see the real-world battery life but would have to wait for a long time though.
