CS122A Voice Recognition Music Player

This is the Voice Recognition Music Player. It can play up to 33 songs depending on how many song titles and artist you store.

Parts:

• Arduino Uno
• Arduino Mega
• LCD 16x2 Display
• 2x ATMega1284
• Smakn Speak Recognition Module
• HC-08 Bluetooth Module(iOS compatible)(Amazon.com)
• MicroSD card Adapter Reader (Amazon.com)
• 200x Gain LM386 Audio Amplifier Module(Amazon.com)
• 4Ω Speaker.
• 8 Single LED's
• 8 Resistors (330Ω)
• Potentiometer(103)

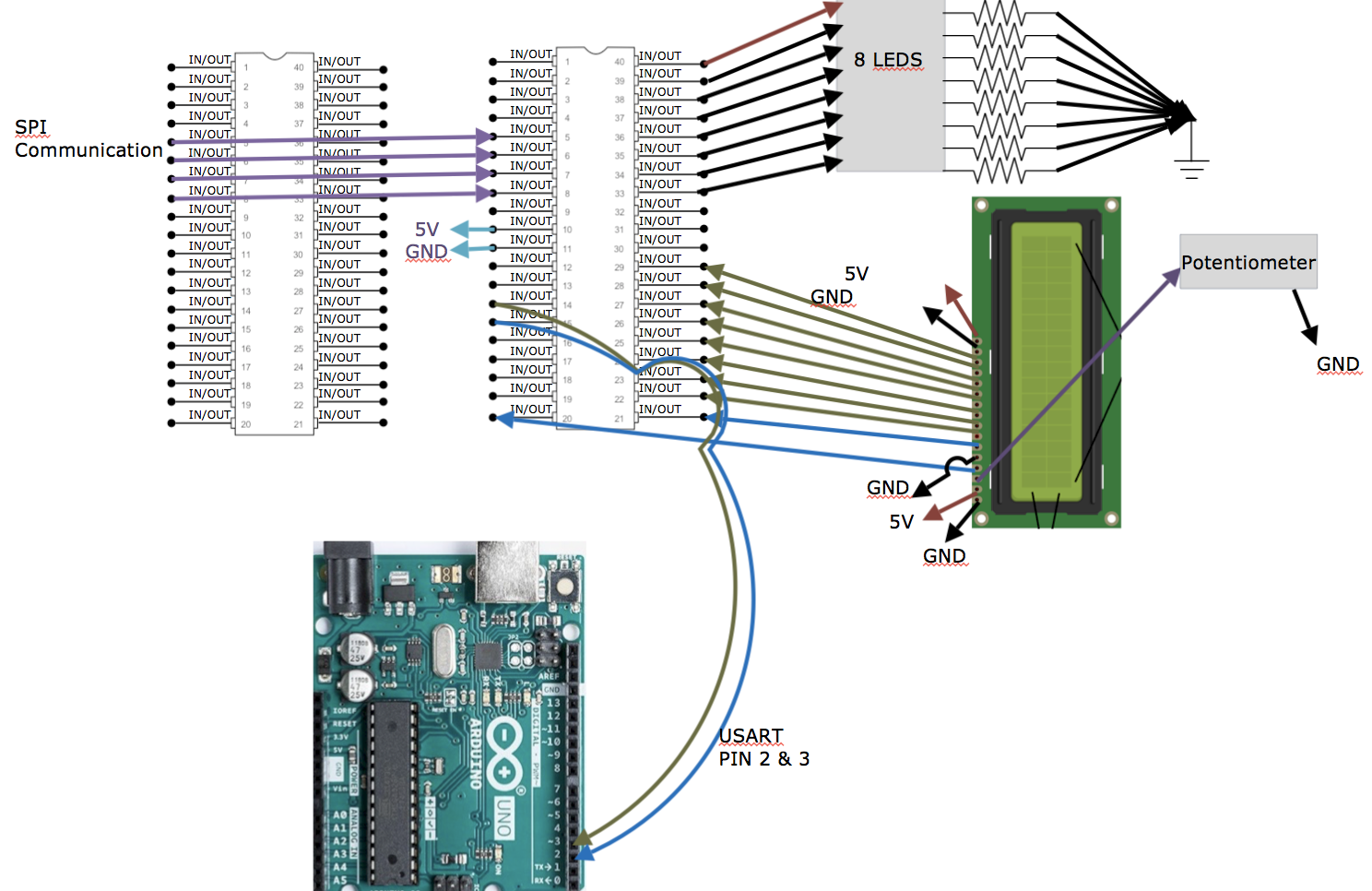

SPI Communication between two ATmega's 1284

• Connect Pin 5 to Pin 5
• Connect Pin 6 to Pin 6
• Connect Pin 7 to Pin 7
• Connect Pin 8 to Pin 8

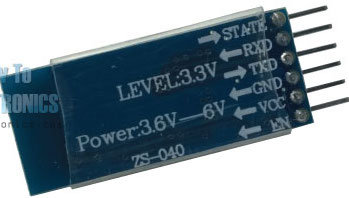

USART Communications between Bluetooth module and First ATmega

• Connect GND Pin to GND on breadboard
• Connect VCC to 5V on breadboard
• Connect Tx to Pin 17 on ATmega
• Connect Rx to Pin 16 on ATmega

Bluetooth-

• Use LightBlue app for IOS and send hex values though Characteristics when connected to the HC-08.
• Use "Write new value" and write the hex value of your choice.

USART Communication between First ATmega and Arduino MEGA

• Connect Pin 18 to Pin 14 on ATmega
• Connect Pin 19 to Pin 15 on ATmega

Connect 8 LED's to ATmega

• Connect LED(Long side) to Pins 33-40.
• Connect 330Ω Resistor to each LED and the other end to GND on the breadboard.

Connect LCD to ATmega.

• Connect LCD Pin 1 to GND on breadboard
• Connect LCD Pin 2 to 5V on breadboard
• Connect LCD Pin 3 to Potentiometer (10KΩ) through to GND.
• Connect LCD Pin 4 to ATmega Pin 20
• Connect LCD Pin 5 to GND.
• Connect LCD Pin 6 to ATmega Pin 21
• Connect LCD Pin 7 - 14 to ATmega Pin 22-29
• Connect LCD Pin 15-16 to VCC - GND

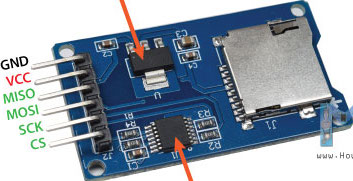

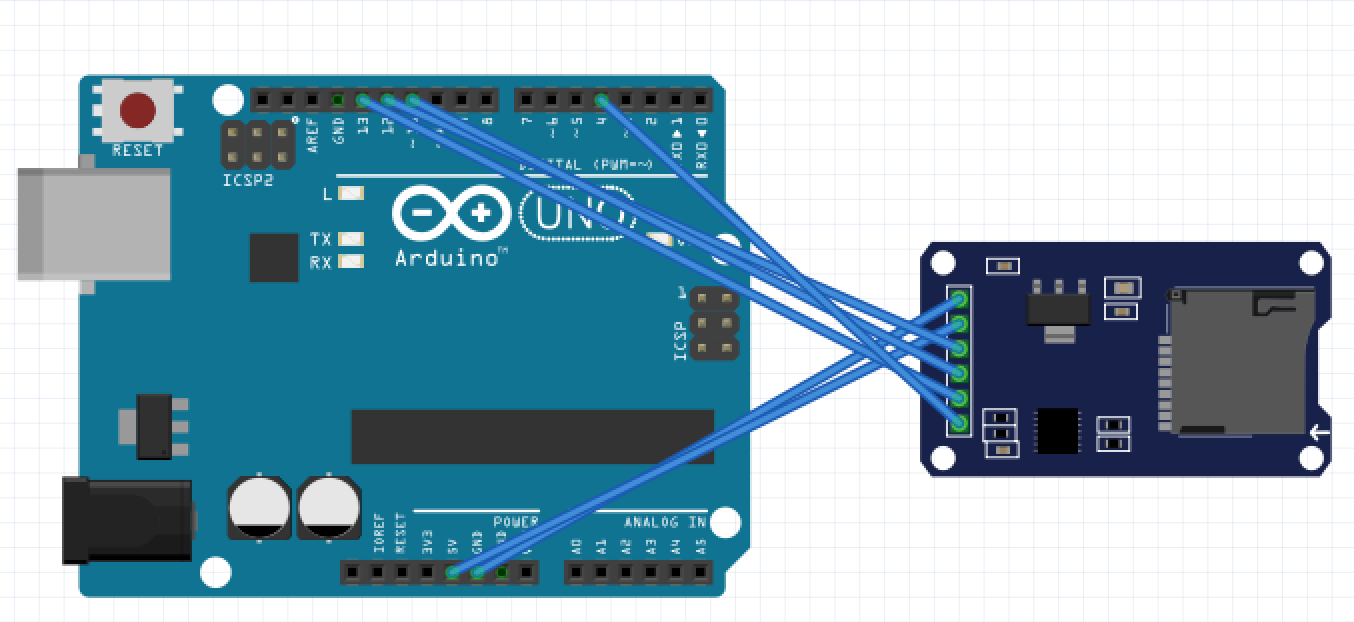

Connect MicroSD card Adapter to Arduino Uno.

• Connect GND to GND on Arduino
• Connect VCC to 5V on Arduino
• Connect MISO to Pin 12
• Connect MOSI to Pin 11
• Connect SCK to Pin 13

Connect CS to Pin 4Connect 200x Gain LM386 Audio Amplifier Module to Arduino Uno

• Connect two GND to GND on a breadboard
• Connect IN to Pin 9 on Arduino
• Connect VCC to 5V on a breadboard

Connect Speaker to Audio Amplifier Module.

• Connect + to VCC on Audio Amplifier
• Connect - to GND on Audio Amplifier

Connect Arduino Uno to First ATmega1284

• Connect Pin 2 to Pin 15 on ATmega
• Connect Pin 3 to Pin 14 on ATmega

Add TMPpcm-master.zip to Arduino Library

• Sketch >> Include Library >> Add zip Library

Use

• https://audio.online-convert.com/convert-to-wav
• Change bit resolution: 8bit

• Change sampling rate: 16000Hz

  Change audio channels: mono

  PCM format: PCM unsigned 8-bit

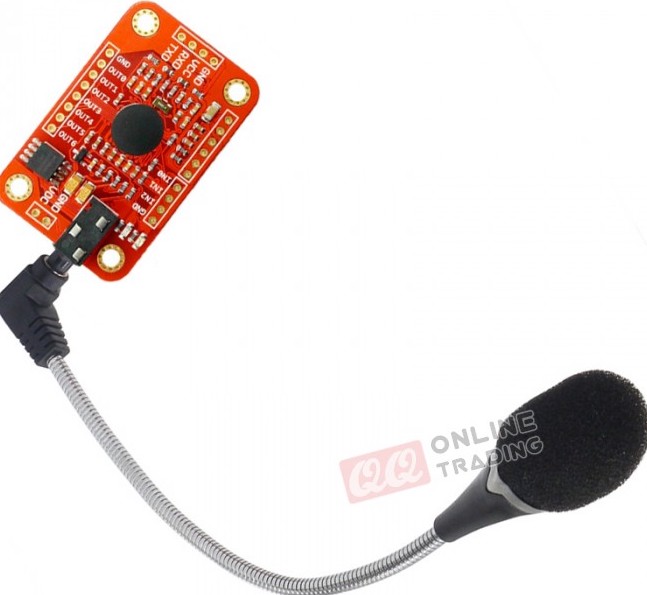

Connect Smakn Speak Recognition Module(SRM) to Arduino MEGA

• Connect SRM GND to GND on breadboard.
• Connect SRM VCC to 5V on breadboard.
• Connect SRM TX to Pin 10
• Connect SRM RX to Pin 11

Upload VoiceRecognitionV3-master.zip to Arduino Library

• Click on then Sketch >> Include Library >> Add zip Library

Code:

• Train up to 80 words using sigtrain. eg(sigtrain 0 BrunoMars)
• It will train Bruno Mars to position 0 and can be used using load 0.
• While in load when it hears Bruno Mars it will output it in the Serial Monitor.
• You load 7 commands at a time and see how many are in and what values are in load using vr.
• You can clear the load by using clear.
