Double Vanity Unit in GFRC by FYB Design

by FYB in Workshop > Home Improvement

9025 Views, 69 Favorites, 0 Comments

Double Vanity Unit in GFRC by FYB Design

double vasque Bubble (5).JPG
double vasque Bubble (6).jpg
double vasque Bubble (4).JPG
double vasque Bubble (3).jpg

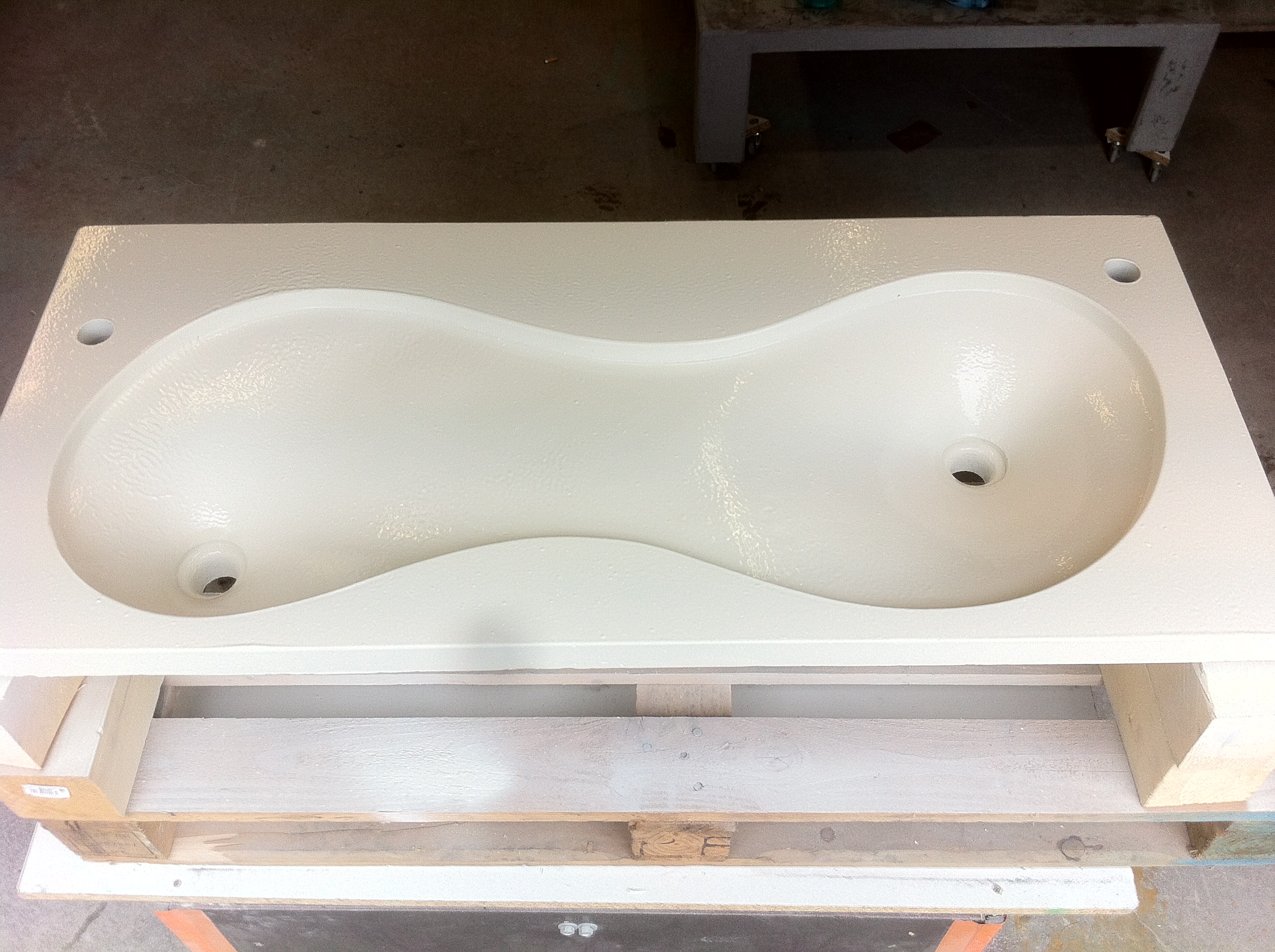

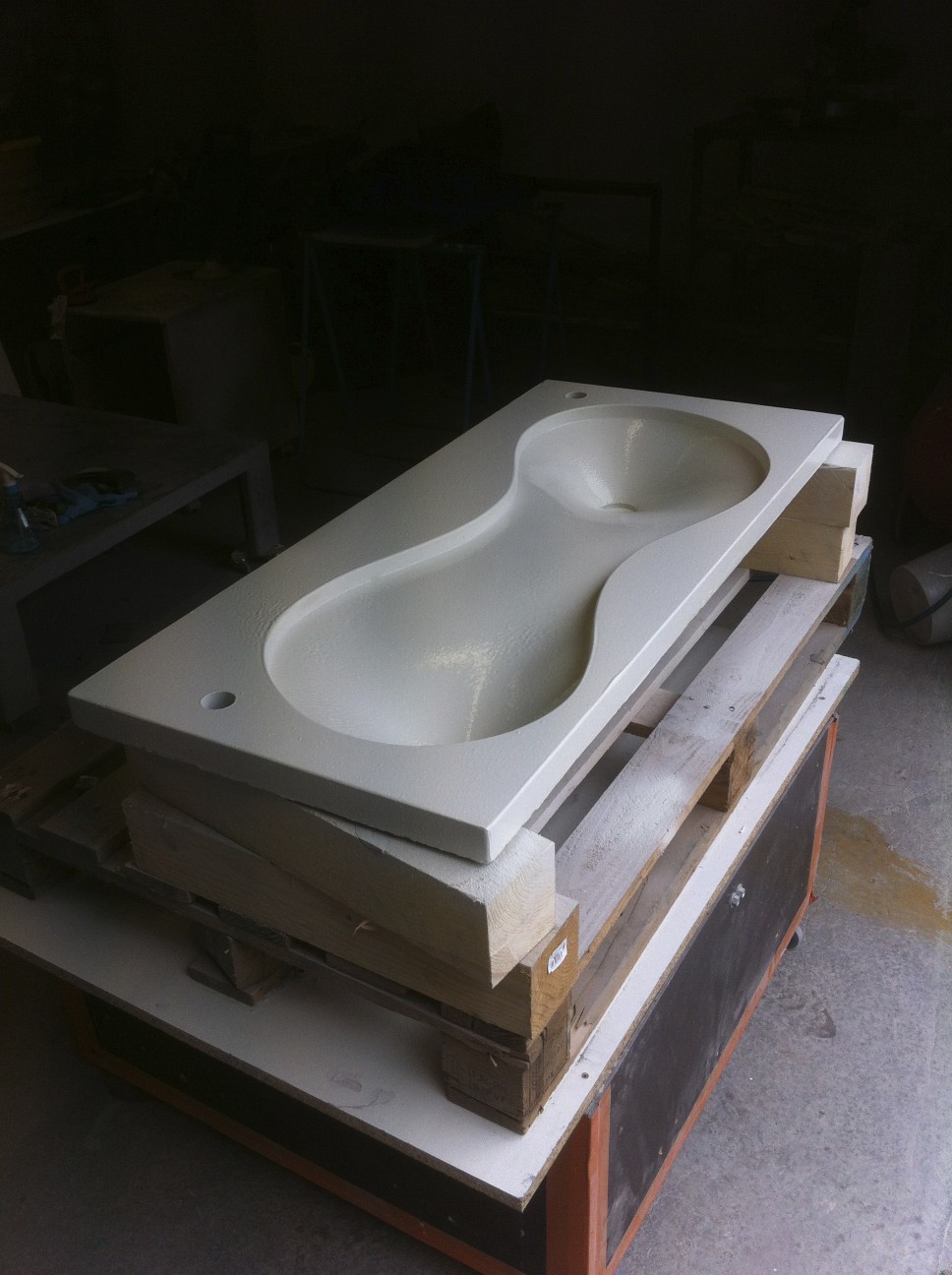

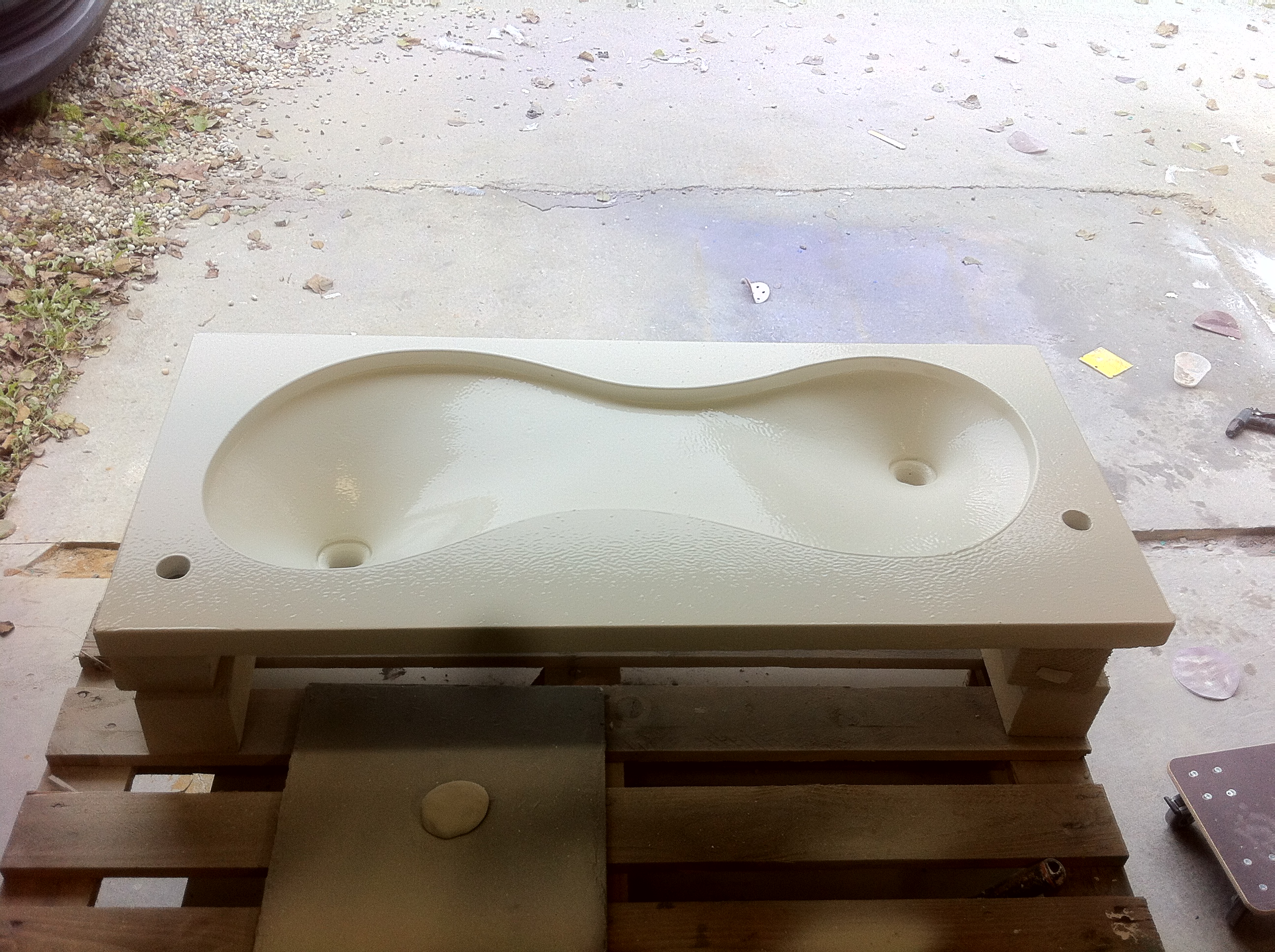

To realize this double vanity unit we used some wood, some fabric, some resin, and the gfrc ( Glass Fiber Reinforced Concrete).
The first stage consists in cutting template of the bowl, here, we have chooses a shape in curved and asymmetric.
Having to cut in the saw template, to place you two pieces of tube in PVC, in the place which you have chooses as thorough bungs. To stick pipes pvc and tightened your fabric by fixin it to sides by means of a stapler.
Aim, please.
Mix both components of your resin polyester by respecting doses, and spread with a brush. You can make it in several coats, cool , to have solid surface.
After drying, sanding complete of the room(part,play) in 120 then 180, 240, 400, and in the water.
Prepare your bottom of coffering, and rock the first skin of GFRC in the pistol, spread(display) then the concrete coat over the coat.
Decoffrer, to varnish, it is ready!

Fabric Forming

photo 1.JPG
photo 2.JPG
photo 3.JPG
I  use some fabric, a stapler and my wooden  template. I fix my fabric  thanks to staples. Once the tense fabric, we throw the resin above, the resin tinged for controler the thicknesses.
After drying we shall sand the mold in the paper 120, then 240 then 400, then we shall pass in the sanding in the water up to a perfect glassis.

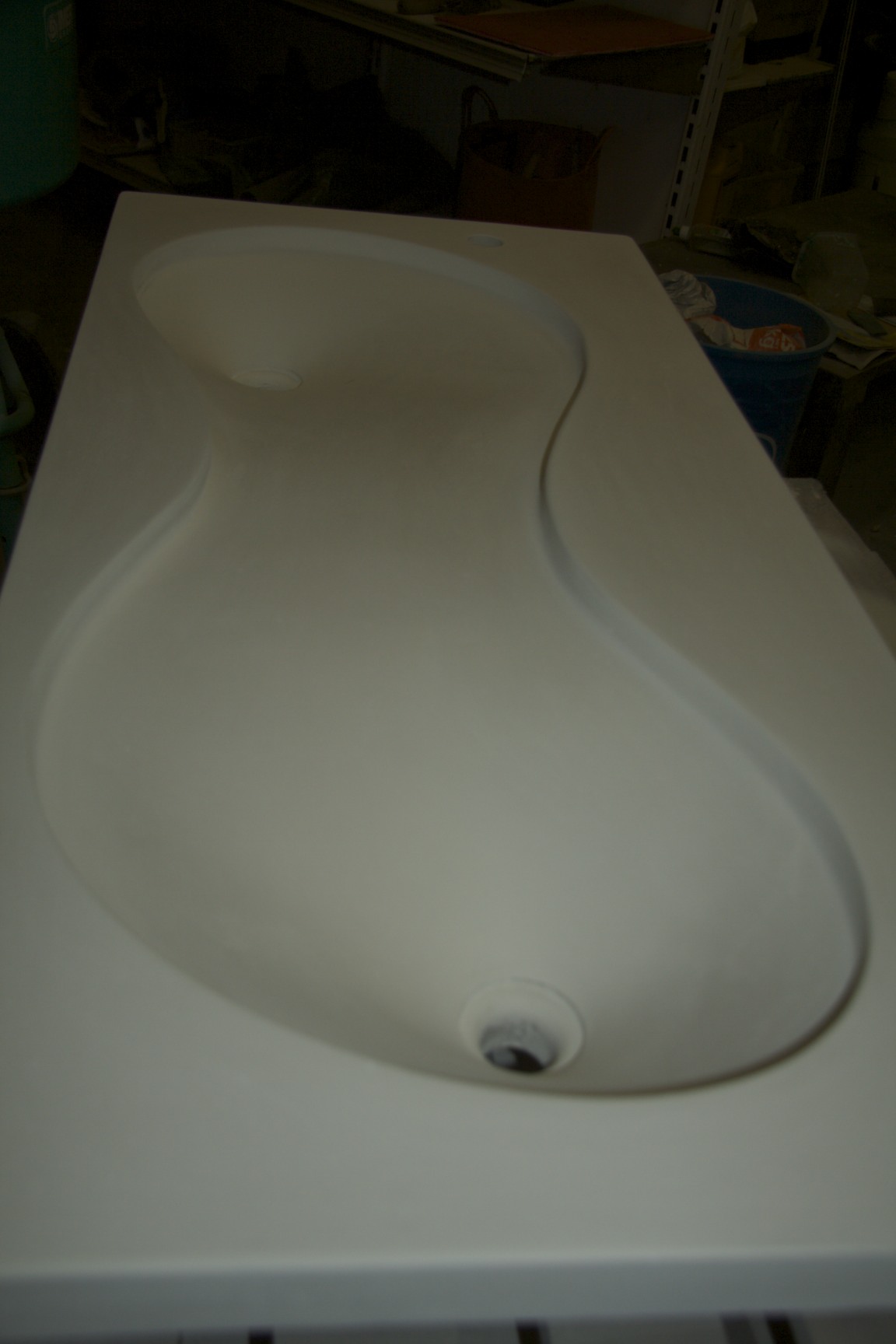

There is not more than to apply the gfrc to the mold, seen the quality of finish of the mold, the sanding of finish will be light.

BLUE CONCRETE Bathroom

blue line (3).jpg
blue line (9).jpg
mur b��ton matric��.JPG
d��tail motif matric��.JPG
blue line (12).jpg
salle de bain.JPG
atelier (2).JPG
atelier (3).JPG
atelier (4).JPG
atelier (5).JPG
atelier (6).JPG
d��tail motif matric��.JPG
d��tail relief paroi b��ton.JPG
mur b��ton matric��.JPG
mur matric��.JPG
parment mural.JPG
SDB blue line.jpg

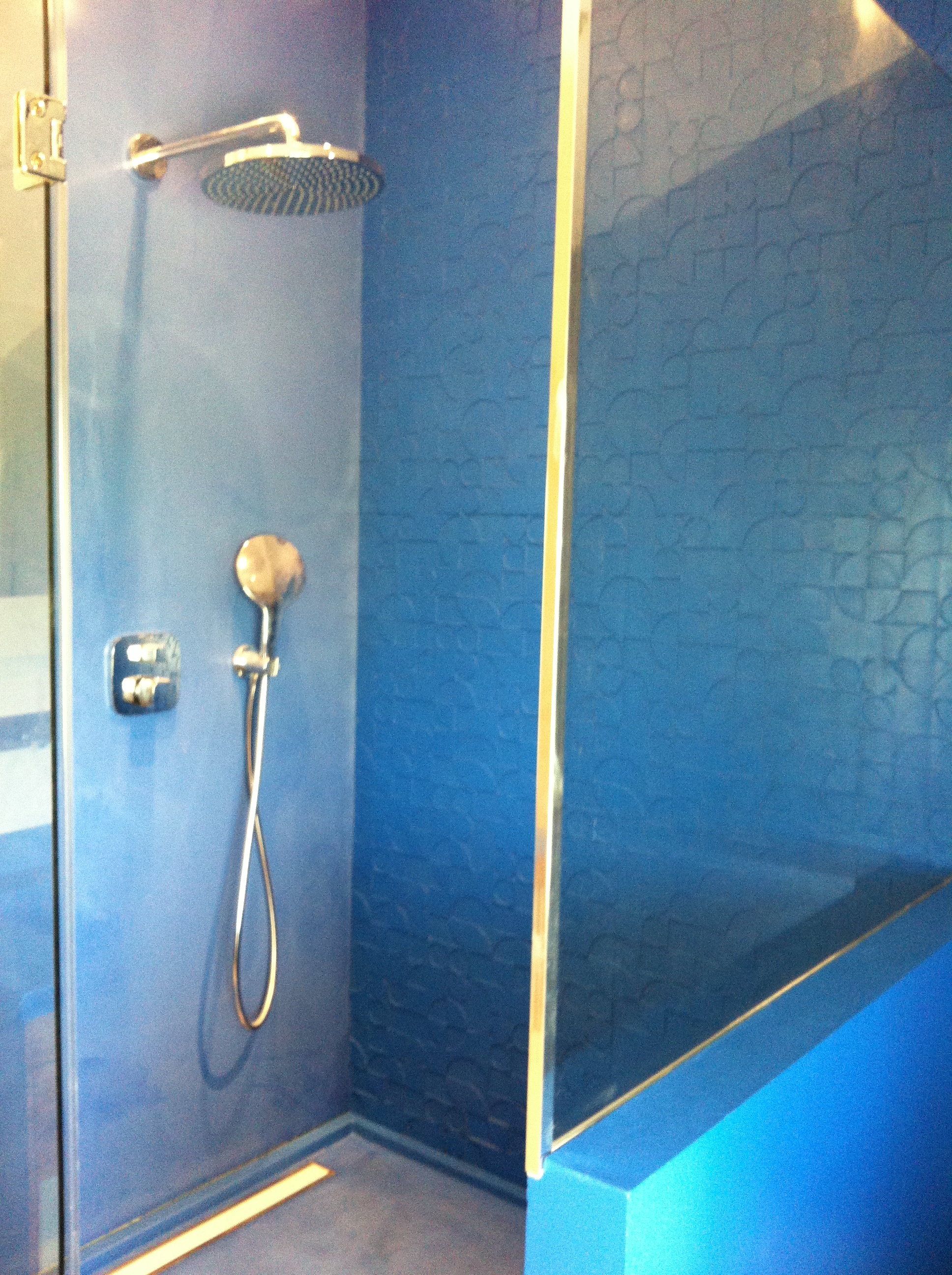

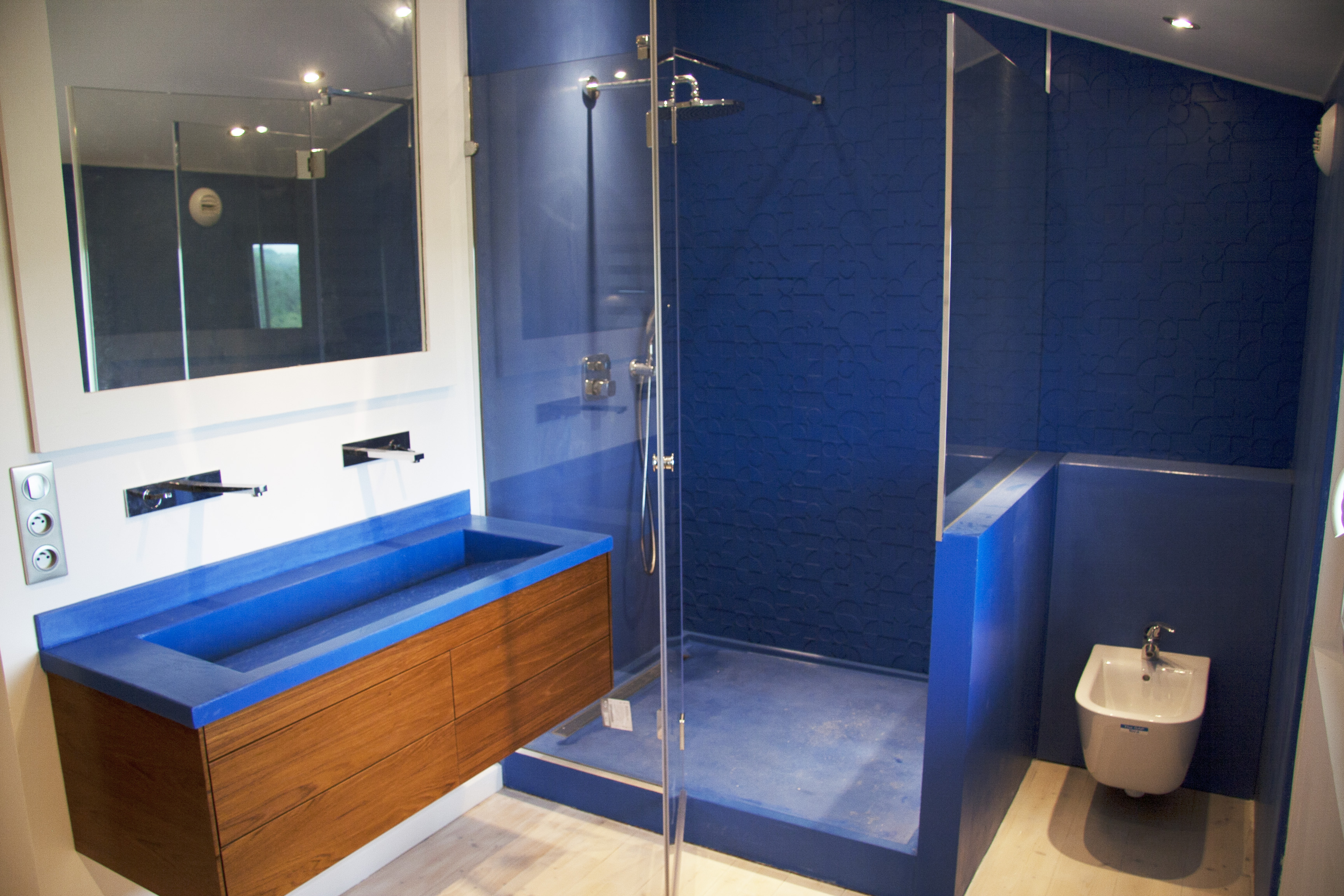

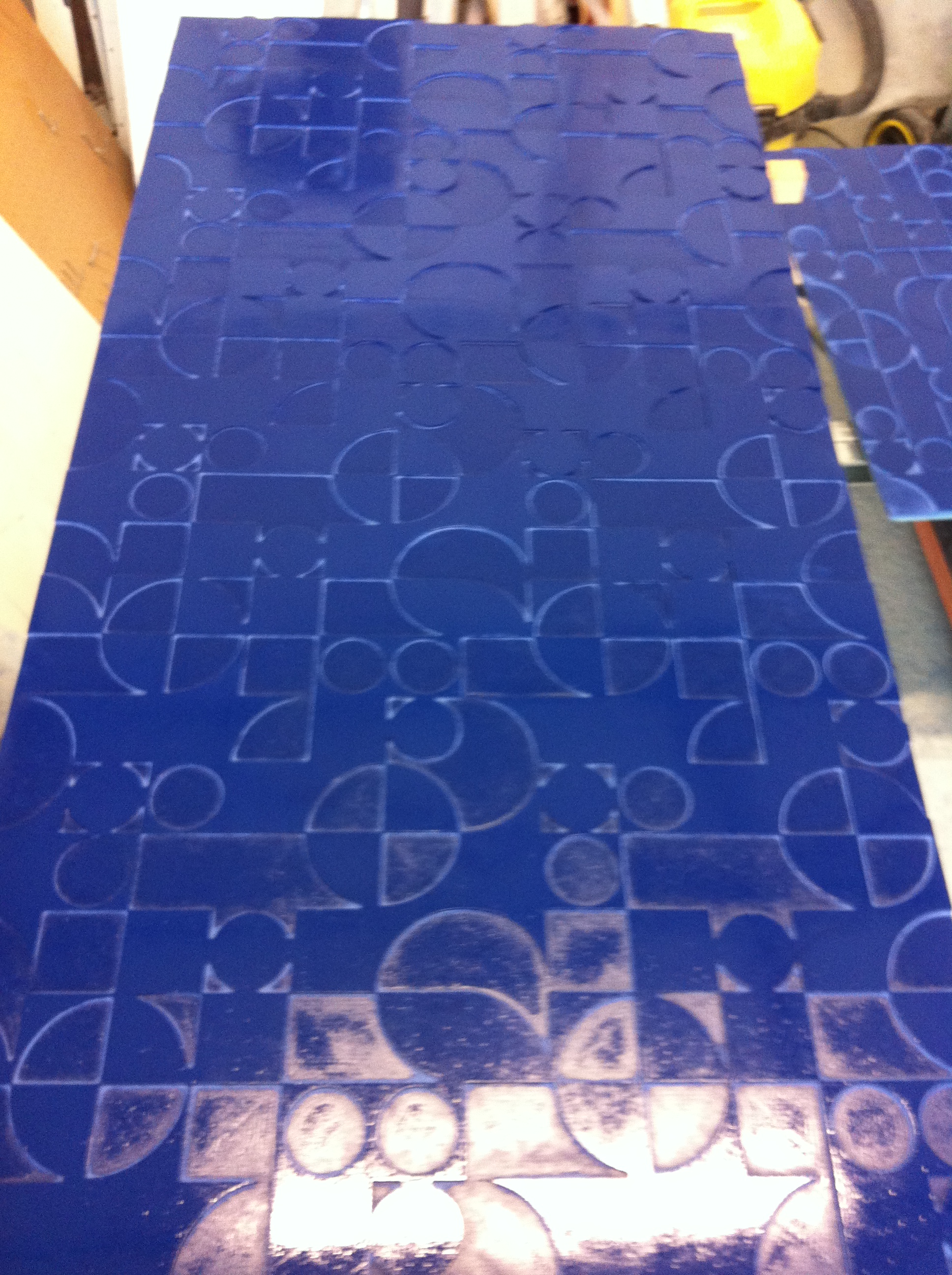

GFRC panels, vanity, bowl, for this blue bathroom.

Low Table Concrete by FYB Design

table basse Cyclop.jpg
table basse Cyclop (10).jpg
table basse Cyclop (2).jpg

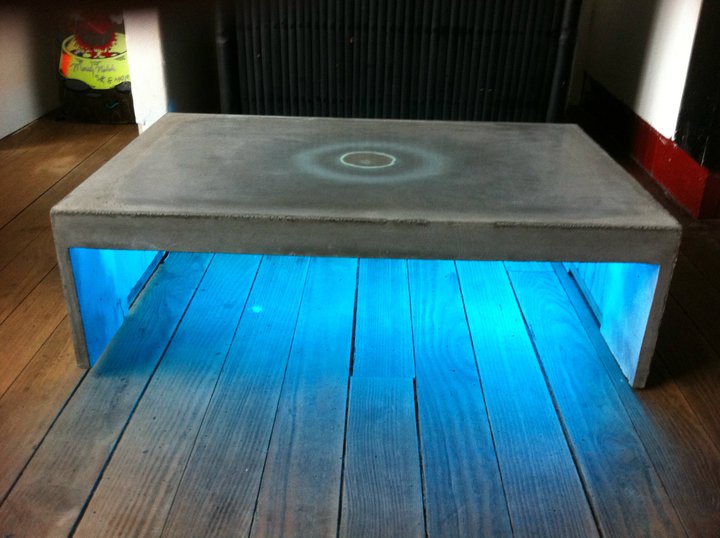

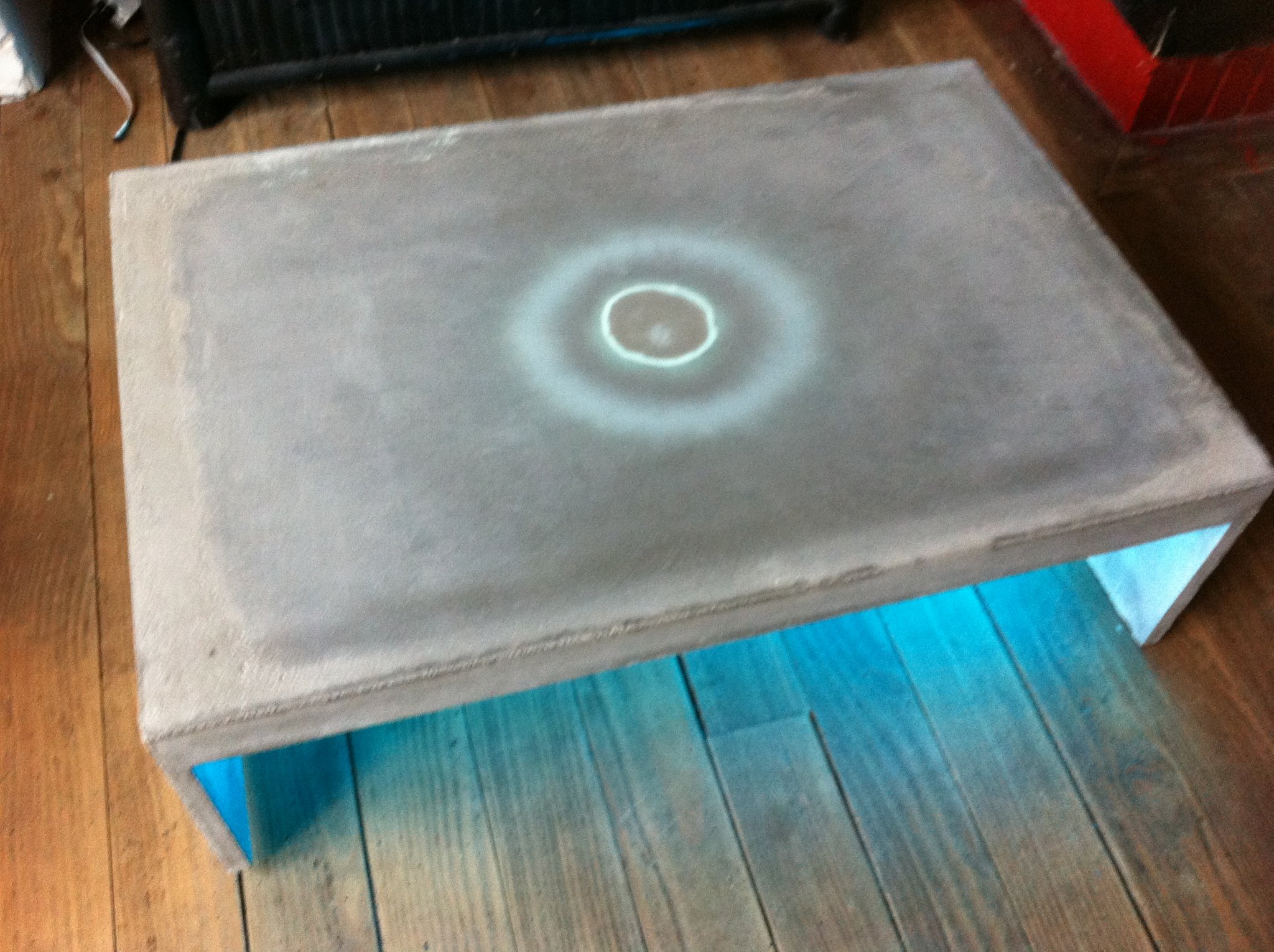

One piece low table in concrete gfrc, with a eye in the middle

Concrete Lamp by FYB Design

lampe design.jpg
lampe (2).jpg

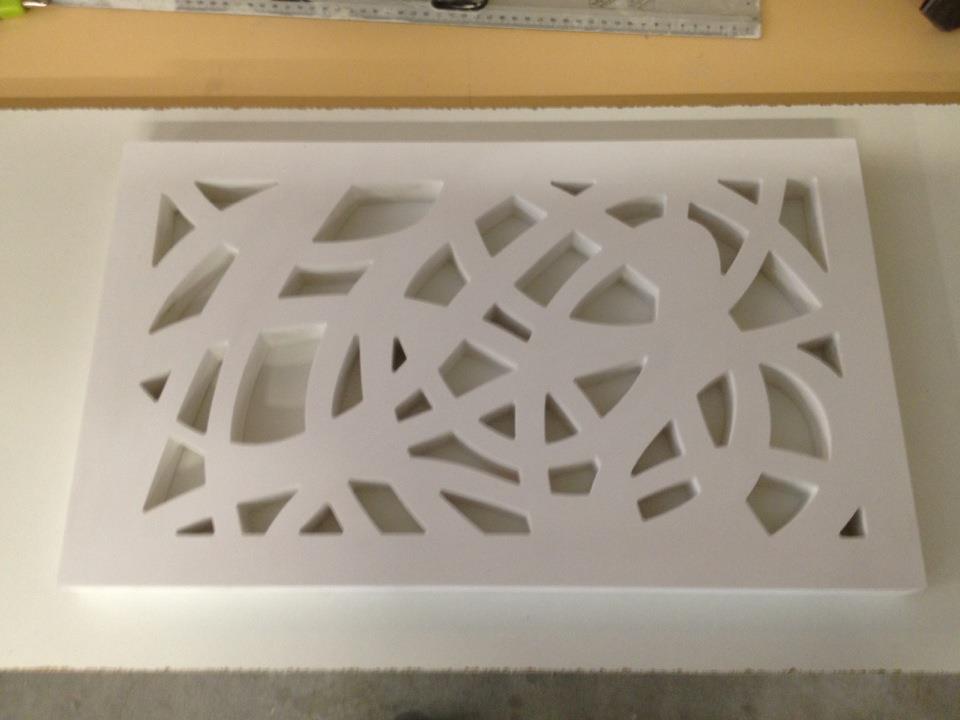

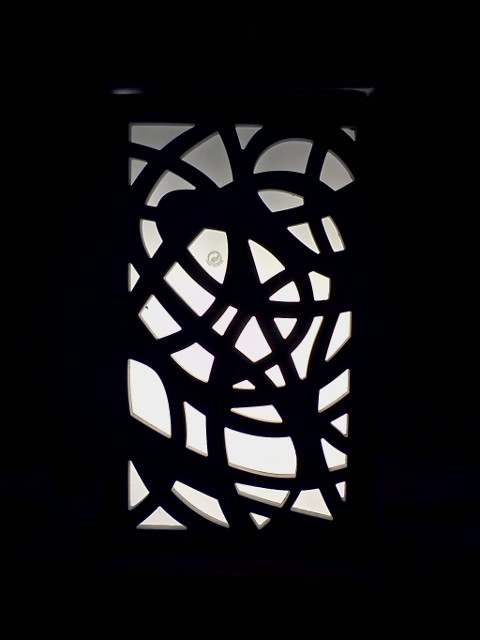

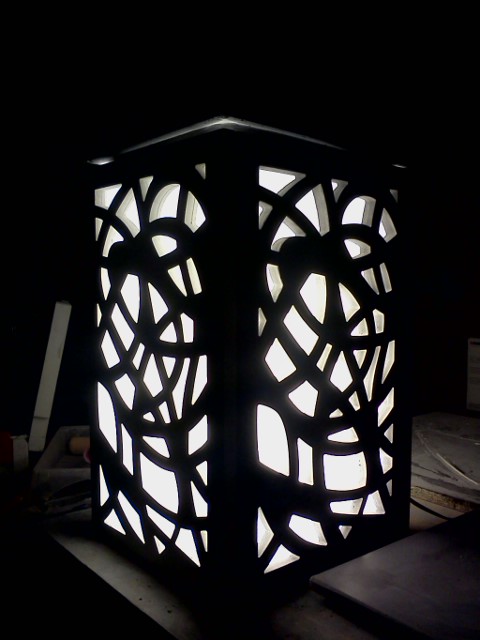

Moucharabieh style for this lamp in gfrc by FYB design
