COF-FI


For the final project in the first year of my studies, I made a remote controlled coffee machine Using a Raspberry Pi.

It allows you to make coffee from anywhere as long as you have access to the internet!

You still have to manually refill the water, place a pot under the machine and put coffee inside the filter, for this to work.


  • make coffee from anywhere
  • track how much coffee you've made each day
  • check how much water there is in the reservoir
  • detect if there is a coffee pot underneath the machine
  • measure temperature of the coffee machine



Github repository: https://github.com/howest-mct/2021-2022-projectone-driessenslucas

Supplies

Raspberry Pi 4B 2gb

The Raspberry Pi is a very cheap computer that runs Linux, but it also provides a set of GPIO (general purpose input/output) pins, allowing you to control electronic components for physical computing and explore the Internet of Things (IoT).


Load cell with hx711

Used to detect whether or not there is a coffee pot underneath the machine. Also used to track the weight of each pot of coffee made (when making the same amount of coffee, this can be used to detect possible calcification).


LCD Display 16x2 with PCF8574

Used to display the IP address so you can connect to the Web Application. Also rotates information such as temperature and the current water level inside the reservoir.


Relay module

Used to control the heating element inside the coffee machine


TMP36 with MCP3008

Used to measure the current temperature inside the machine.


Grove 10cm Water level Sensor

Used to measure how much water there is inside of the reservoir.


philips hd7459

This is the coffee machine I used, in the BOM(bill-off-materials) i listed some cheaper alternatives.

Schematics


I used a program called fritzing to make these schematics

my colors used in these are:

  • Red = 5V
  • Orange = 3.3V
  • Black = GND


Some components operate at 5V others at 3.3V so be careful when assembling!

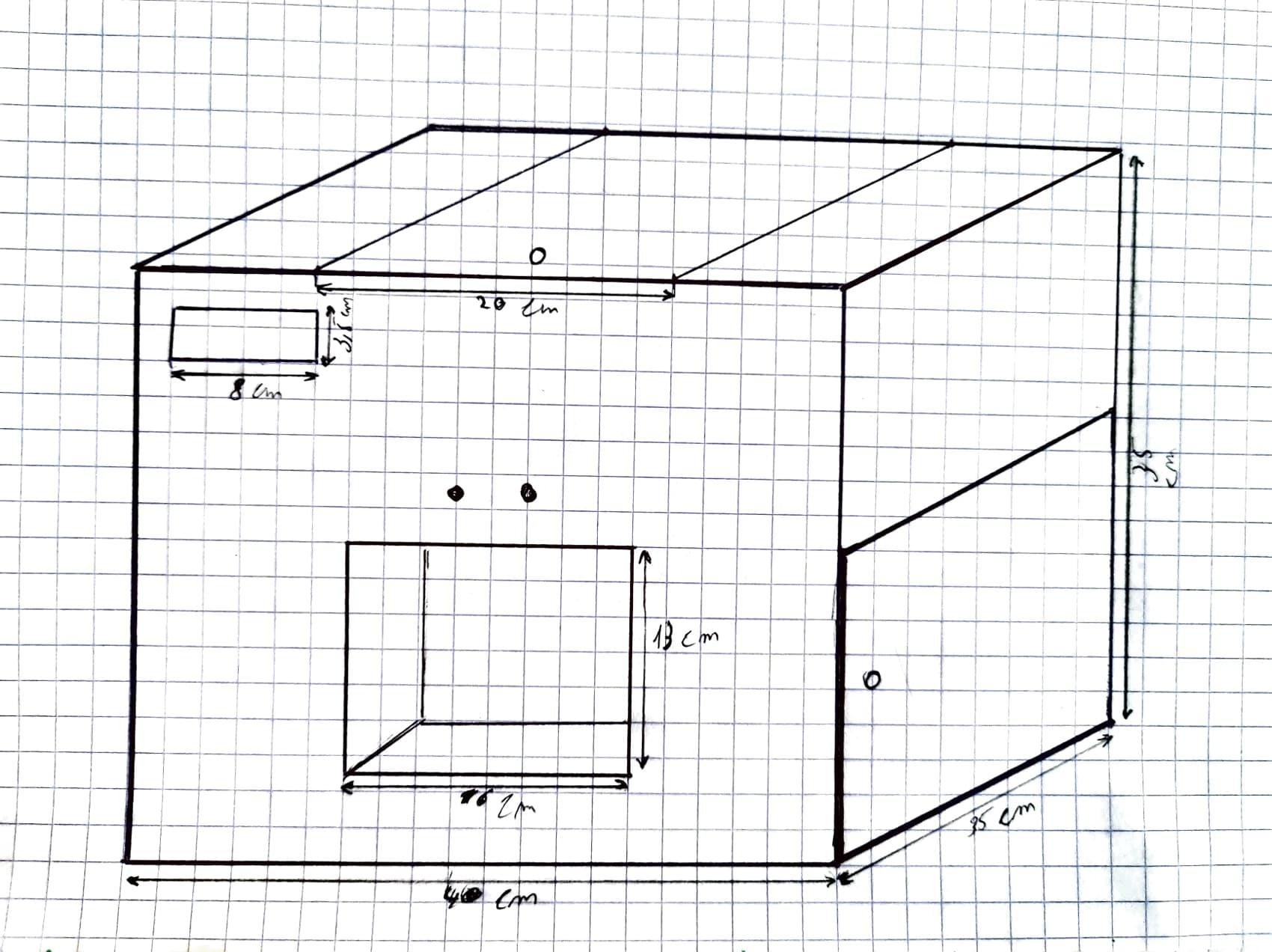

Designing the Case


I made sure the design was big enough to fit all of my electronics comfortably.

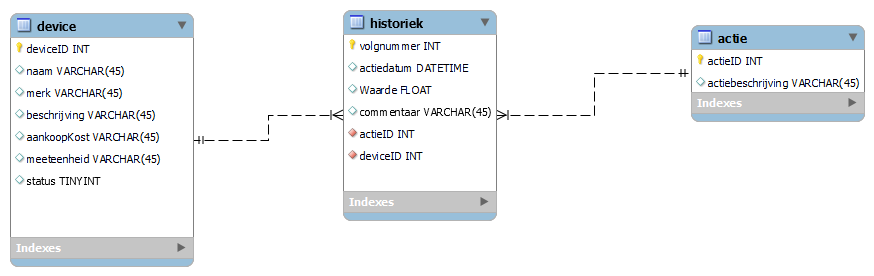

Database


All the data from my sensors are stored in a relational database of SQL (MariaDB)


Device

  • here are the different devices stored, aswell as their mesuring unit, price and a brief description

Logs

  • stores the values of each sensor

actie

  • the different acties a device can preform

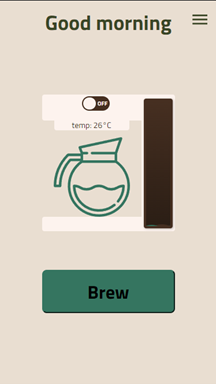

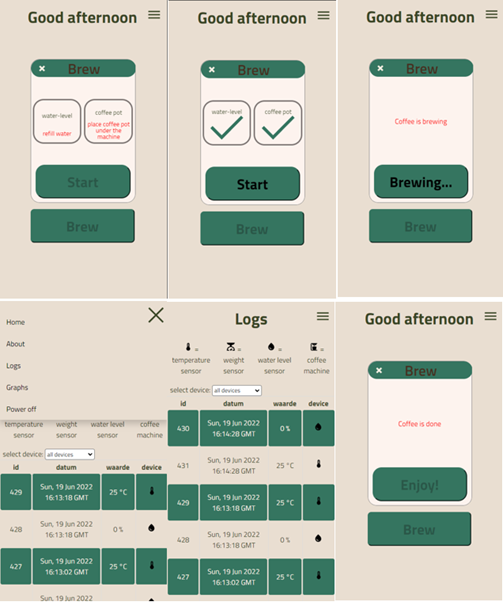

Design and Built the Website


Code

Built With

  • python
  • javascript
  • charts.js
  • Socket.IO
  • mysql
  • Python Threading

The front-end runs on an apache2 server

The database runs on mariaDB.



source code can be found via this link: https://github.com/howest-mct/2021-2022-projectone-driessenslucas

Making the Case


I mostly used wood I had laying around, primarily to reduce the cost of my project.

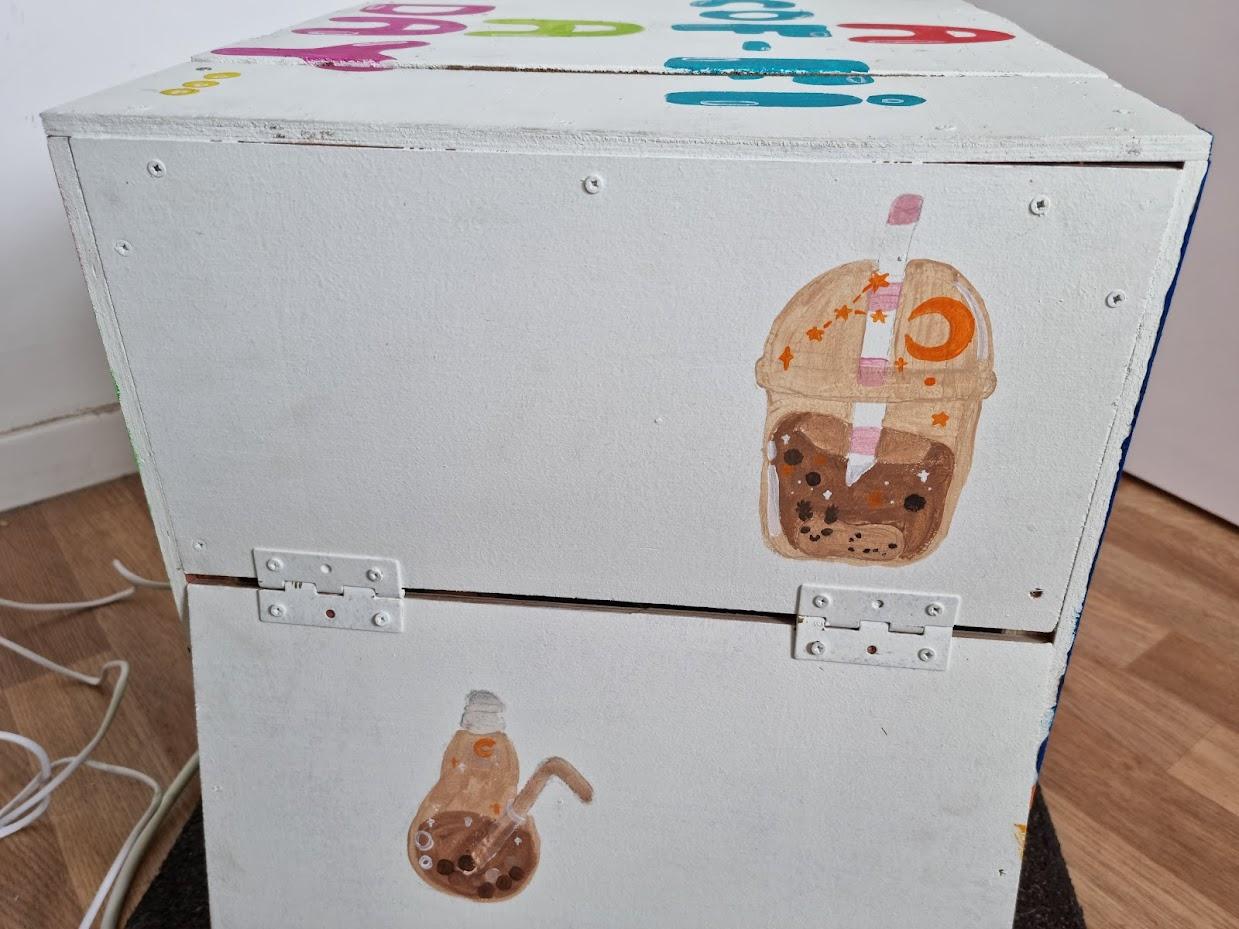

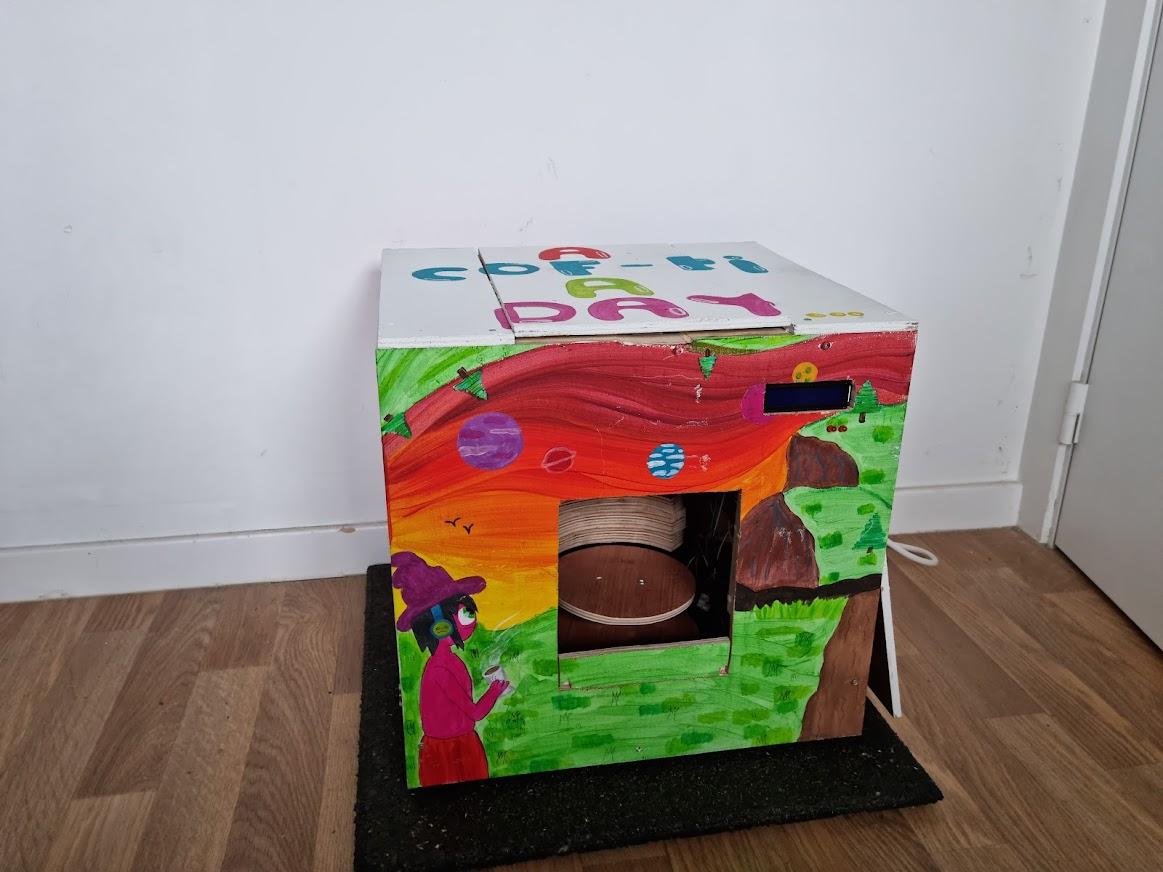

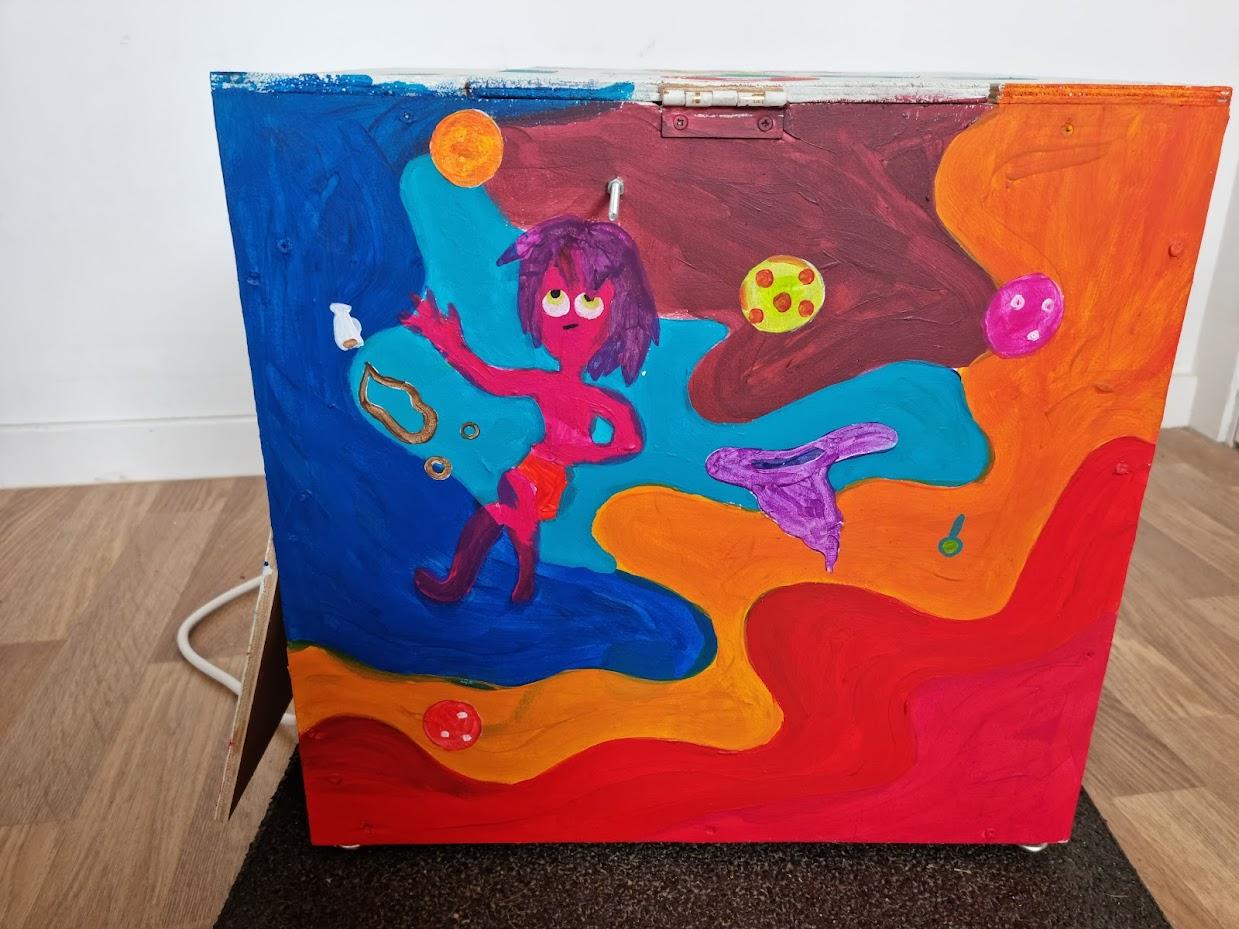

Painting the Case


After putting everything together I chose to paint it with coffee related things, my main inspiration was the netflix series called The Midnight Gospel.
