CNC Writing Machine

In this Instructables Segment we are going to see How to make CNC Writing Machine At Low Cost

Now a days CD drives are not used regularly .So you will Get cd rom for cheap price

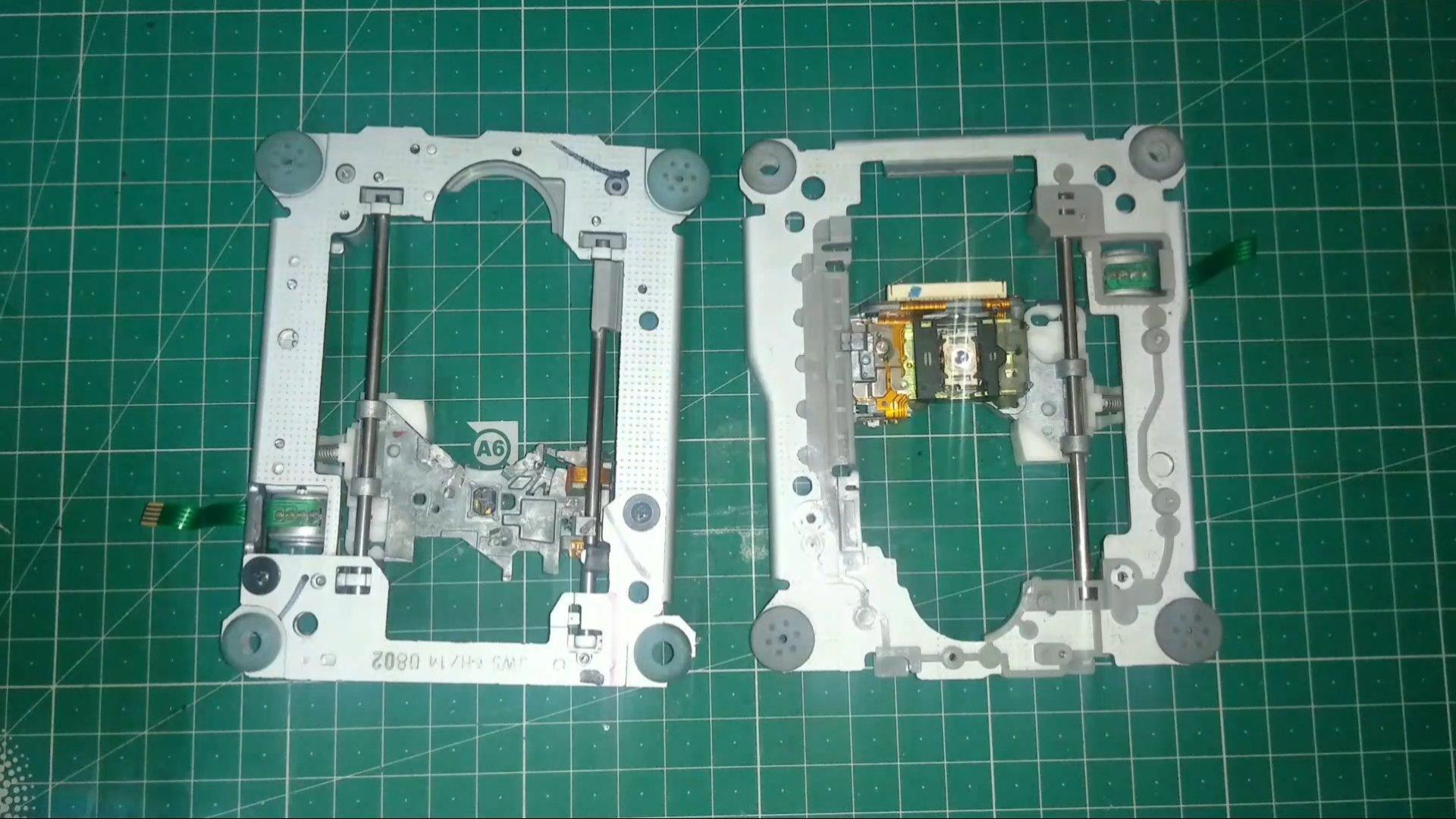

Dismantle the CD- ROM so you will get two stepper motar

Solder the four leads in the stepper motor

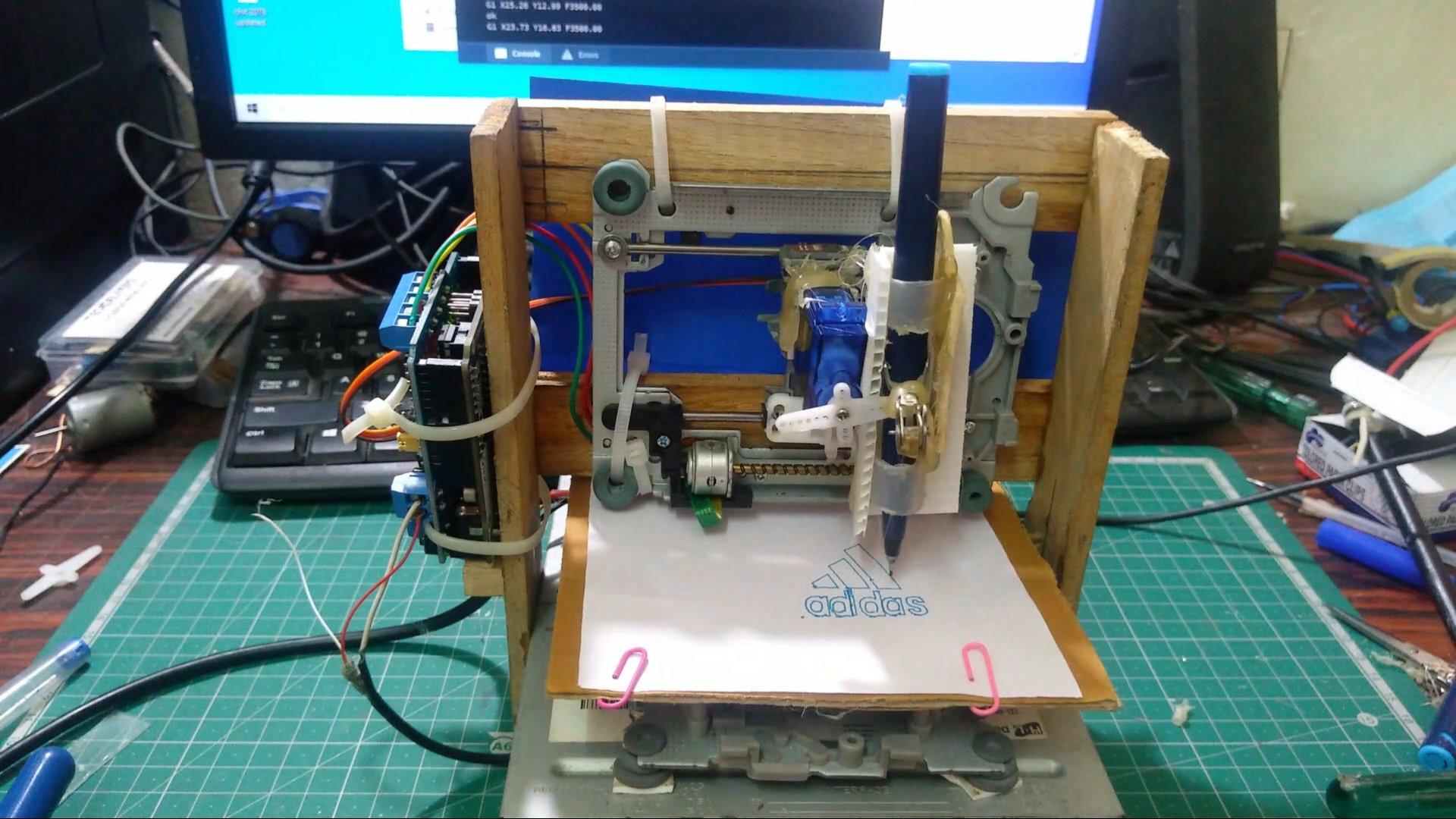

I made this frame by using CD-ROM chase and some old woods

Set your "Y" axis stepper motor in vertical postion

Set your "X" Axis Stepper motor in Horizontal Postion

Servo motar used to lift pen up and down . So place the servo motor in Y axis

The Arduino Uno is one of the most common Arduino boards available, and it has some user-friendly features

Motor shield Used to control Two Stepper motor

GCTRL Code link

G-Code link
