CNC Polygon Shelf
by Max username is already in use in Workshop > Furniture
1541 Views, 22 Favorites, 0 Comments
CNC Polygon Shelf
![IMG-20210403-WA0003.jpg](/proxy/?url=https://content.instructables.com/FLF/56ND/KN1QVWP3/FLF56NDKN1QVWP3.jpg&filename=IMG-20210403-WA0003.jpg)

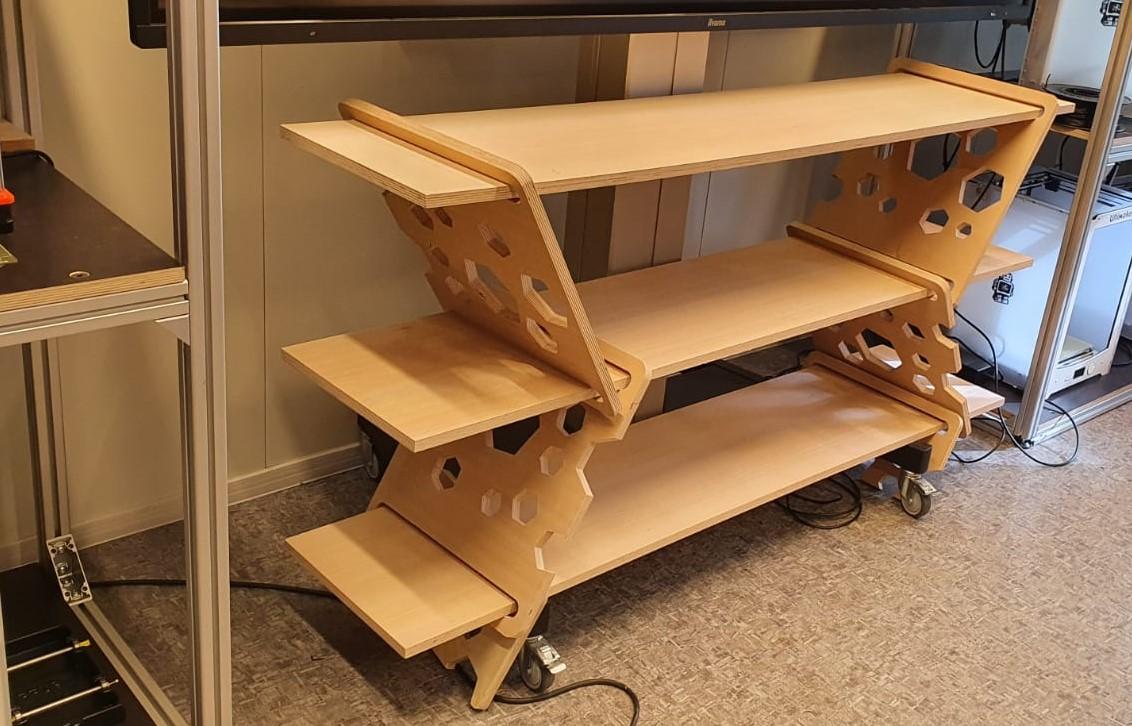

Today I want to present you a polygon shelf.
Only the "connectors" need to be milled.
All you need is a saw and a cnc mill.
I don't think every project needs a long explanation.
Modular design, holds together by gravity.
80kg weight on top -> no problem
If you want to build it I will attach my files (step. and Fusion file including my milling operations) at the end of this instructable.
Supplies
Material: 18mm plywood
- 3x 160cmx35cm
- 4x 47cmx42cm
- 2x 42cmx23cm
Design With Fusion
Prepare Milling Operations
![Unbenannt.png](/proxy/?url=https://content.instructables.com/F3K/XOCX/KN1QVW24/F3KXOCXKN1QVW24.png&filename=Unbenannt.png)
Assembly
![IMG-20210403-WA0008.jpg](/proxy/?url=https://content.instructables.com/F2Y/S0FD/KN1QVVZB/F2YS0FDKN1QVVZB.jpg&filename=IMG-20210403-WA0008.jpg)
No tools needed
just stick everything together
Files
Thanks to everybody which thinks about building one ;)
if you don't know how to create milling operations please check out other instructables like this one:
https://www.instructables.com/Fusion-360-CAM-Tutor...
(great instructable)
or this one:
Milling handbook by Autodesk:
