CNC Egg Holder for Pencils and Pens With Fusion 360
by galkin.vadim.prog in Workshop > CNC
1010 Views, 4 Favorites, 0 Comments
CNC Egg Holder for Pencils and Pens With Fusion 360
![CNC Egg handle holder 01](/proxy/?url=https://content.instructables.com/F9V/MDT5/KP7HC33G/F9VMDT5KP7HC33G.jpg&filename=CNC Egg handle holder 01)
Welcome to my project "CNC egg holder for pencils and pens", made on the EMCO Turn / Mill 55 training CNC on the Sinumerik 840D system.
I design the product in Fusion 360 and then I turn the egg on a CNC lathe.
Supplies
Drills and milling cutters for wood
Right and left turning tool SECO SDJCL1212M07, SECO SDJCR1212M07
Microwave electric motor CM16
AC adapter 10-20 volts

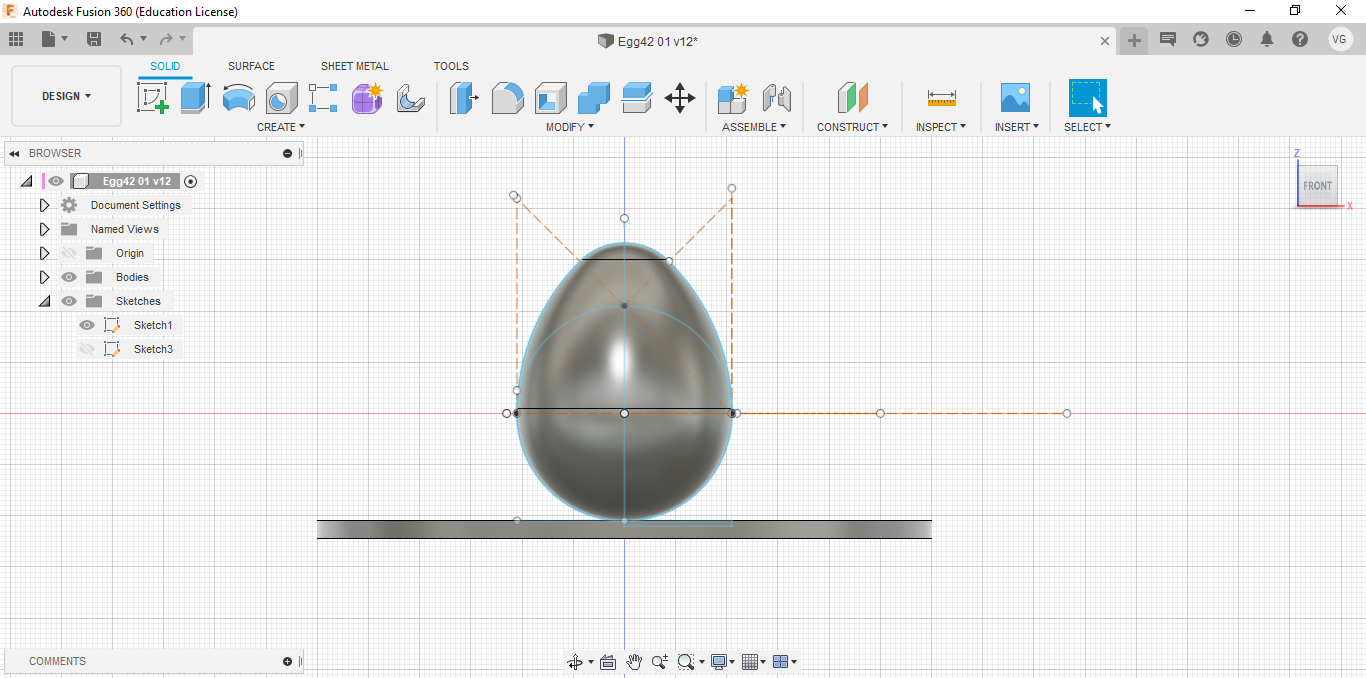

Create an Egg Model in Fusion 360.
![Egg01.jpg](/proxy/?url=https://content.instructables.com/FLK/GOF5/KOZRGS1R/FLKGOF5KOZRGS1R.jpg&filename=Egg01.jpg)
![Egg02.png](/proxy/?url=https://content.instructables.com/FUV/8ROT/KP16XE46/FUV8ROTKP16XE46.png&filename=Egg02.png)
![Egg01.png](/proxy/?url=https://content.instructables.com/FSW/JTC8/KP16XCNJ/FSWJTC8KP16XCNJ.png&filename=Egg01.png)

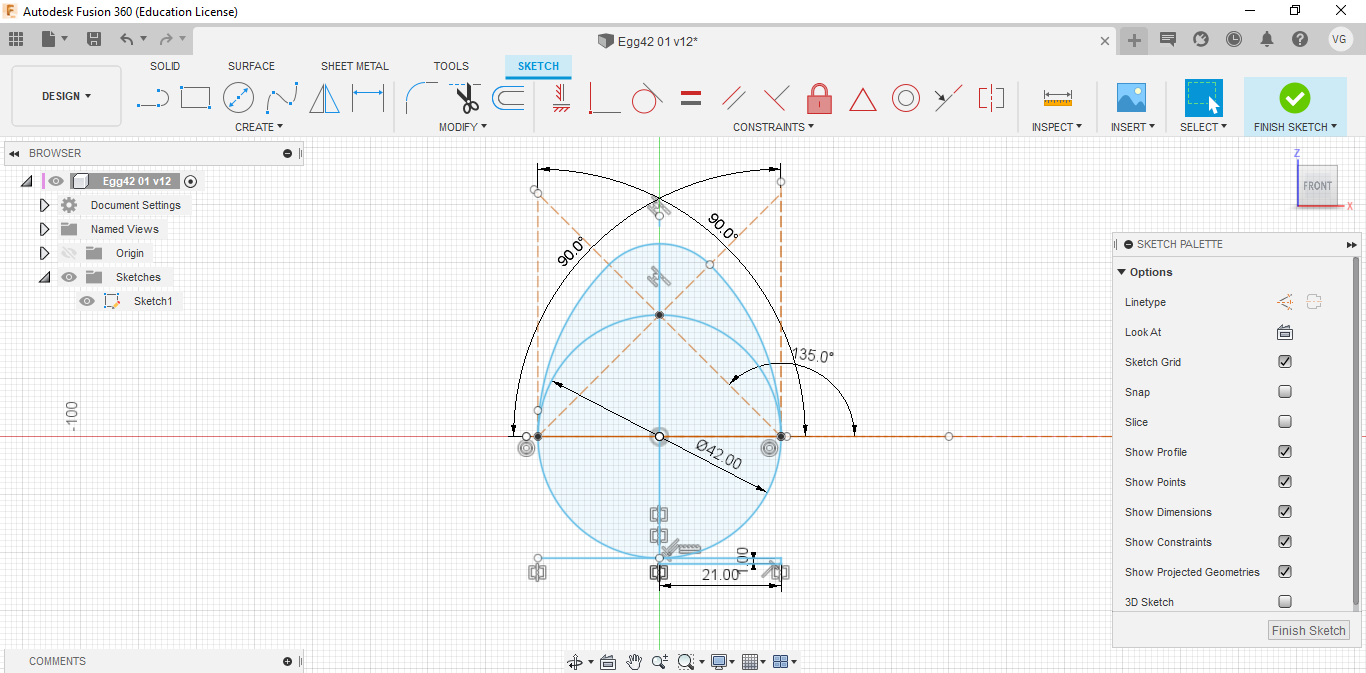

1. Create a sketch Egg geometric model.
2. Create a 3D body of the egg using the Rovolve tool.

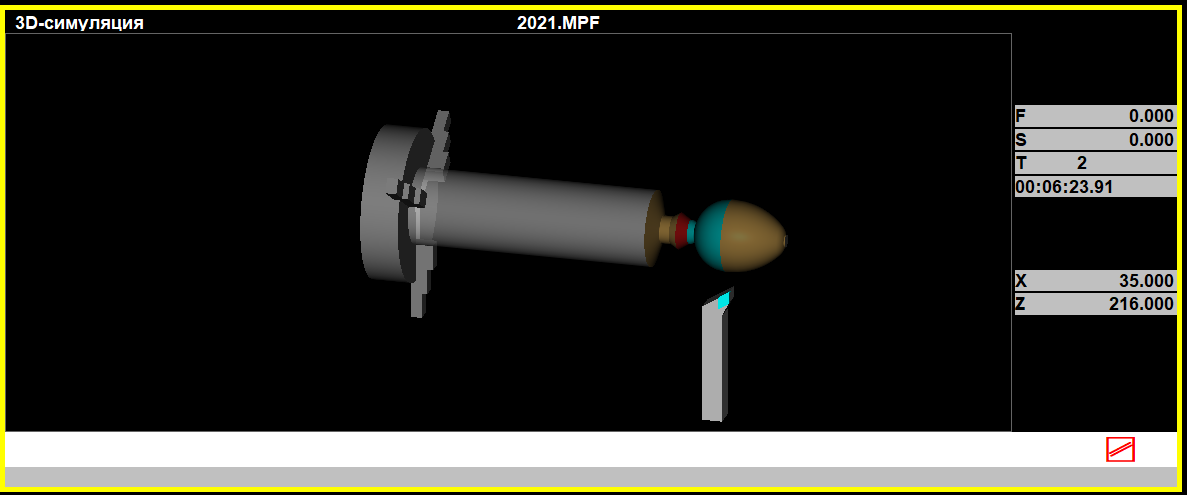

Simulation and Production of the G Code of the Program for the SINUMERIK 840D.
![EMCO_SIM_Turning.png](/proxy/?url=https://content.instructables.com/FH2/9L8O/KP2MFMNP/FH29L8OKP2MFMNP.png&filename=EMCO_SIM_Turning.png)
1. Switch to Manufacturing mode.
2. Create Setup1 - lathe contour.
Downloads
Milling
![EMCO_SIM_Milling.png](/proxy/?url=https://content.instructables.com/FWZ/R5ZL/KP2MFMNQ/FWZR5ZLKP2MFMNQ.png&filename=EMCO_SIM_Milling.png)
Downloads

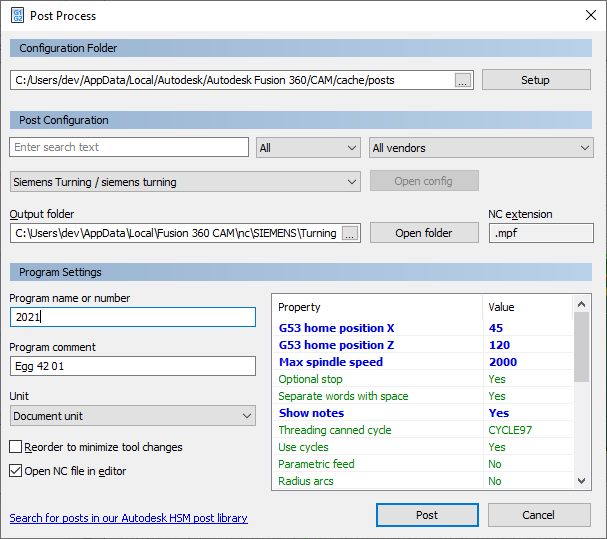

We Create a Program Using a Post Processor.
![Egg03.png](/proxy/?url=https://content.instructables.com/FIZ/9R38/KP16XLHJ/FIZ9R38KP16XLHJ.png&filename=Egg03.png)
We correct the G code for a specific machine.
N1 ; %_N_2021_MPF N2 ; Egg D42 TURNING N3 G90 G94 G18 N4 G71 N5 LIMS=2000 N6 G53 G0 X70 N7 G53 G0 Z216 N9 N10 ;GOTOF BACK N13 N14 ; Profile Roughing1 N15 T4 D1 N16 G54 N17 M8 N18 G95 N19 G97 S579 M3 N20 G0 X55. Z1. N21 G96 S100 M3 N22 LIMS=2000 N23 G0 Z5 N24 X50. N25 CYCLE95("sub20211",1,0.1,0.2,0,0.5,0.127,0.127,1,0,0,1) N26 N27 G0 X50. Z5 N28 Z1. N29 G97 S579 M3 N30 M9 N31 G53 G0 X70 N32 G53 G0 Z216 N33 N34 ; Profile Roughing2 N35 M1 N36 N37 BACK: N38 N39 T2 D1 N40 G54 N41 M8 N42 G95 N43 G97 S560 M3 N44 G0 X52. Z1.4 N45 G96 S91 M3 N46 LIMS=2000 N47 G0 Z-65 N48 X50. N49 CYCLE95("sub20212",1,0.1,0.2,0,0.5,0.127,0.127,1,0,0,1) N50 N51 N52 X50. N53 Z5 N54 G97 S560 M3 N55 N56 M9 N57 G53 G0 X70 N58 G53 G0 Z216 N59 M30 ; %_N_SUB20211_SPF START0: G0 X6.942 Z-0.351 G1 Z-0.851 G18 G3 X17.387 Z-3.951 I-3.471 K-11.798 X42. Z-33.649 I-29.682 K-29.698 X41.978 Z-34.329 I-21. G1 X42. Z-46.527 X16. Z-68.435 Z-74 X50 Z-80 END0: M17 ; %_N_SUB20212_SPF START1: G1 X14 Z-56 X12 Z-54 X11.604 Z-53.5 X14.604 Z-52.988 G18 G2 X42. Z-33.298 I-7.302 K19.69 END1: M17 N1 ; %_N_2021_MPF N2 ; Egg D42 Milling N3 ; Machine N4 ; vendor: Autodesk N5 ; description: Generic Mill-Turn Lathe N6 ; T2 D=3 CR=0 TAPER=118deg - ZMIN=-1 - drill N7 ; T3 D=4 CR=0 - ZMIN=-4 - flat end mill N8 G90 G94 N9 G71 N10 G64 N11 G17 N12 N13 ; Drill1 N14 T2 D1 N15 M6 N16 N17 S1455 M3 N18 G54 N19 G0 X-41.116 Y-23.785 Z15 N20 M8 N21 sub20211 ; SPF CALL N22 G53 Z20 D0 N23 N24 ; 2D Contour1 N25 M9 N26 M1 N27 T3 D1 N28 M6 N29 N30 S3638 M3 N31 G54 N32 G0 X2.6 Y0.4 Z15 N33 M8 N34 sub20212 ; SPF CALL N35 N36 ; 2D Contour2 N37 G0 X63.4 Y-0.4 N38 sub20213 ; SPF CALL N39 N40 G53 Z20 D0 N41 M30 ; %_N_SUB20211_SPF G17 F65.5 MCALL CYCLE81(5,0,5,-5,1) X-41.116 Y-23.785 X-29 Y-14 X0 Y0 X29 Y-14 X41.162 Y-23.706 X0 Y47.5 MCALL G0 Z15 M17 ; %_N_SUB20212_SPF G0 Z5 G1 Z2 F254.6 G1 Z-0.6 F84.9 G17 G1 X3 Z-1 F254.6 ;G2 X3 Z-1 I0.4 K0 F254.6 G1 G42 X3.4 Y2.6 G2 X6 Y0 CR=2.6 G2 X0 Y-6 CR=6 G2 X-6 Y0 CR=6 G2 X0 Y6 CR=6 G2 X6 Y0 CR=6 G2 X3.4 Y-2.6 CR=2.6 G1 G40 X3 Y-0.4 Z-1 G1 X2.6 Z-0.6 ;G3 X2.6 Z-0.6 I0 K0.4 G0 Y-0.4 Z5 G0 Y0.4 G1 Z1 F84.9 G1 Z-1.6 G1 X3 Z-2 F254.6 ;G2 X3 Z-2 I0.4 K0 F254.6 G1 G42 X3.4 Y2.6 G2 X6 Y0 CR=2.6 G2 X0 Y-6 CR=6 G2 X-6 Y0 CR=6 G2 X0 Y6 CR=6 G2 X6 Y0 CR=6 G2 X3.4 Y-2.6 CR=2.6 G1 G40 X3 Y-0.4 Z-2 G1 X2.6 Z-1.6 ;G3 X2.6 Z-1.6 I0 K0.4 G0 Y-0.4 Z5 G0 Y0.4 G1 Z0 F84.9 G1 Z-2.6 G1 X3 Z-3 F254.6 ;G2 X3 Z-3 I0.4 K0 F254.6 G1 G42 X3.4 Y2.6 G2 X6 Y0 CR=2.6 G2 X0 Y-6 CR=6 G2 X-6 Y0 CR=6 G2 X0 Y6 CR=6 G2 X6 Y0 CR=6 G2 X3.4 Y-2.6 CR=2.6 G1 G40 X3 Y-0.4 Z-3 G1 X2.6 Z-2.6 ;G3 X2.6 Z-2.6 I0 K0.4 G0 Y-0.4 Z5 G0 Y0.4 G1 Z-1 F84.9 G1 Z-3.6 G1 X3 Z-4 F254.6 ;G2 X3 Z-4 I0.4 K0 F254.6 G1 G42 X3.4 Y2.6 G2 X6 Y0 CR=2.6 G2 X0 Y-6 CR=6 G2 X-4.472 Y-4 CR=6 G1 Z-3 G2 X-4.472 Y4 CR=6 G1 Z-4 F84.9 G2 X4 Y4.472 CR=6 F254.6 G2 X6 Y0 CR=6 G2 X3.4 Y-2.6 CR=2.6 G1 G40 X3 Y-0.4 Z-4 G1 X2.6 Z-3.6 ;G3 X2.6 Z-3.6 I0 K0.4 G0 Y-0.4 Z15 M17 ; %_N_SUB20213_SPF G0 Z15 G0 Z5 G1 Z2 F84.9 G1 Z-0.6 G17 G1 X63 Z-1 F254.6 ;G3 X63 Z-1 I-0.4 K0 F254.6 G1 G42 X62.6 Y-2.6 G2 X60 Y0 CR=2.6 G3 X0 Y60 CR=60 G3 X-60 Y0 CR=60 G3 X0 Y-60 CR=60 G3 X60 Y0 CR=60 G1 Z-1 G2 X62.6 Y2.6 CR=2.6 G1 G40 X63 Y0.4 Z-1 G1 X63.4 Z-0.6 ;G2 X63.4 Z-0.6 I0 K0.4 G0 Y0.4 Z5 G0 Y-0.4 G1 Z1 F84.9 G1 Z-1.6 G1 X63 Z-2 F254.6 ;G3 X63 Z-2 I-0.4 K0 F254.6 G1 G42 X62.6 Y-2.6 G2 X60 Y0 CR=2.6 G3 X0 Y60 CR=60 G3 X-60 Y0 CR=60 G3 X0 Y-60 CR=60 G3 X60 Y0 CR=60 G1 Z-2 G2 X62.6 Y2.6 CR=2.6 G1 G40 X63 Y0.4 Z-2 G1 X63.4 Z-1.6 ;G2 X63.4 Z-1.6 I0 K0.4 G0 Y0.4 Z5 G0 Y-0.4 G1 Z0 F84.9 G1 Z-2.6 G1 X63 Z-3 F254.6 ;G3 X63 Z-3 I-0.4 K0 F254.6 G1 G42 X62.6 Y-2.6 G2 X60 Y0 CR=2.6 G3 X0 Y60 CR=60 G3 X-60 Y0 CR=60 G3 X0 Y-60 CR=60 G3 X60 Y0 CR=60 G1 Z-3 G2 X62.6 Y2.6 CR=2.6 G1 G40 X63 Y0.4 Z-3 G1 X63.4 Z-2.6 ;G2 X63.4 Z-2.6 I0 K0.4 G0 Y0.4 Z5 G0 Y-0.4 G1 Z-1 F84.9 G1 Z-3.6 G1 X63 Z-4 F254.6 ;G3 X63 Z-4 I-0.4 K0 F254.6 G1 G42 X62.6 Y-2.6 G2 X60 Y0 CR=2.6 G3 X0 Y60 CR=60 G3 X-60 Y0 CR=60 G3 X0 Y-60 CR=60 G3 X60 Y0 CR=60 G1 Z-4 G2 X62.6 Y2.6 CR=2.6 G1 G40 X63 Y0.4 Z-4 G1 X63.4 Z-3.6 ;G2 X63.4 Z-3.6 I0 K0.4 G0 Y0.4 Z15 M17

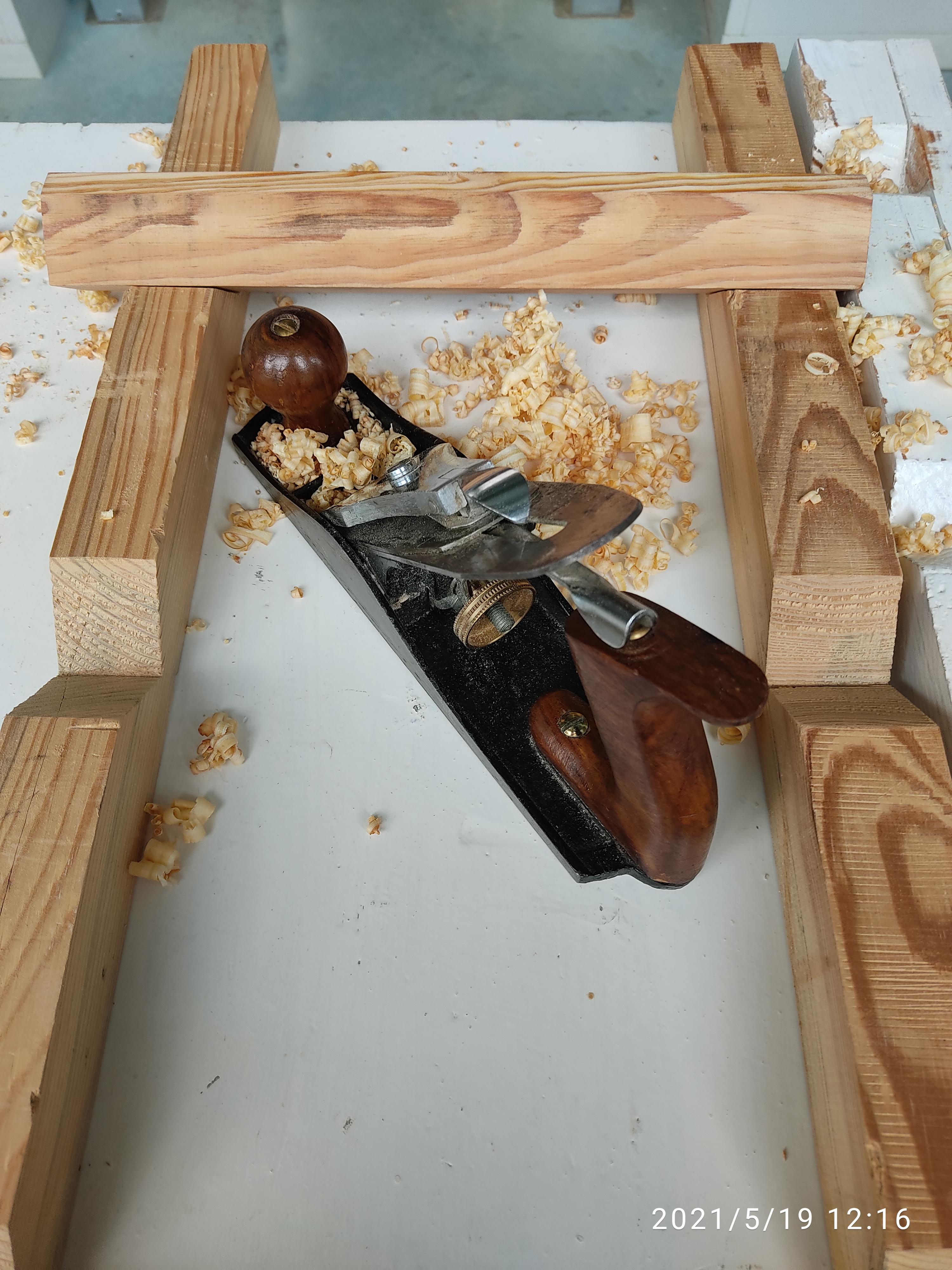

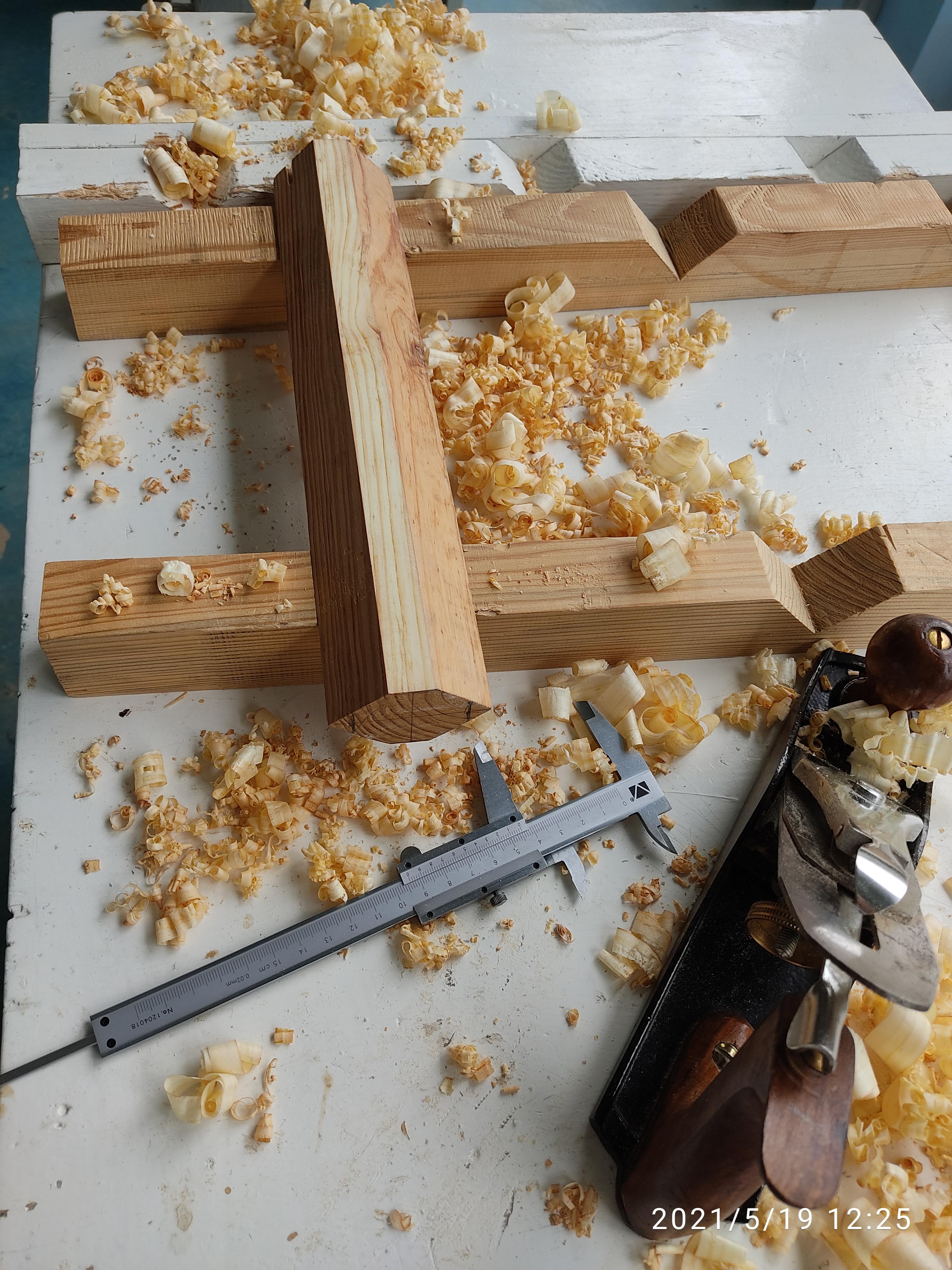

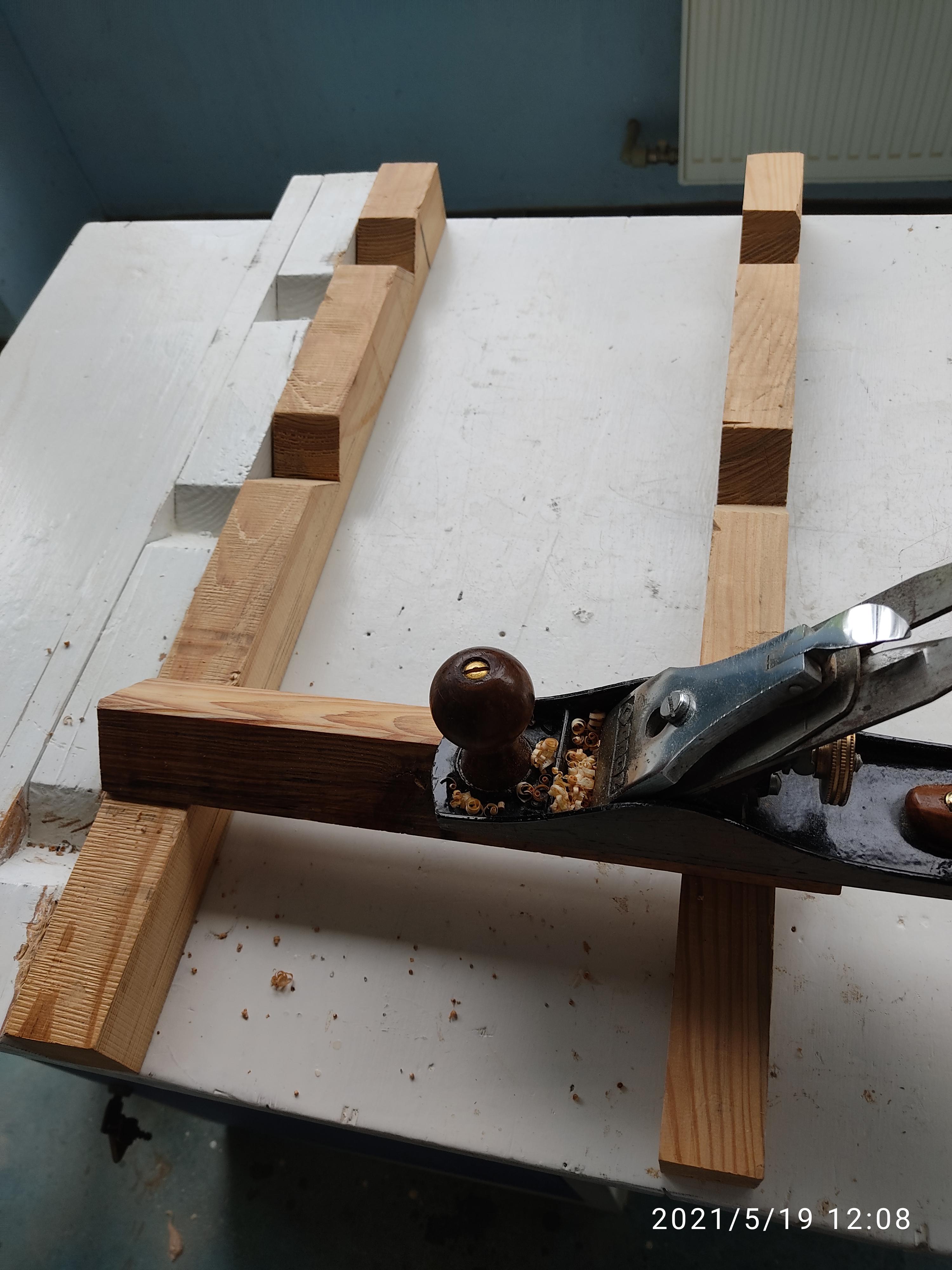

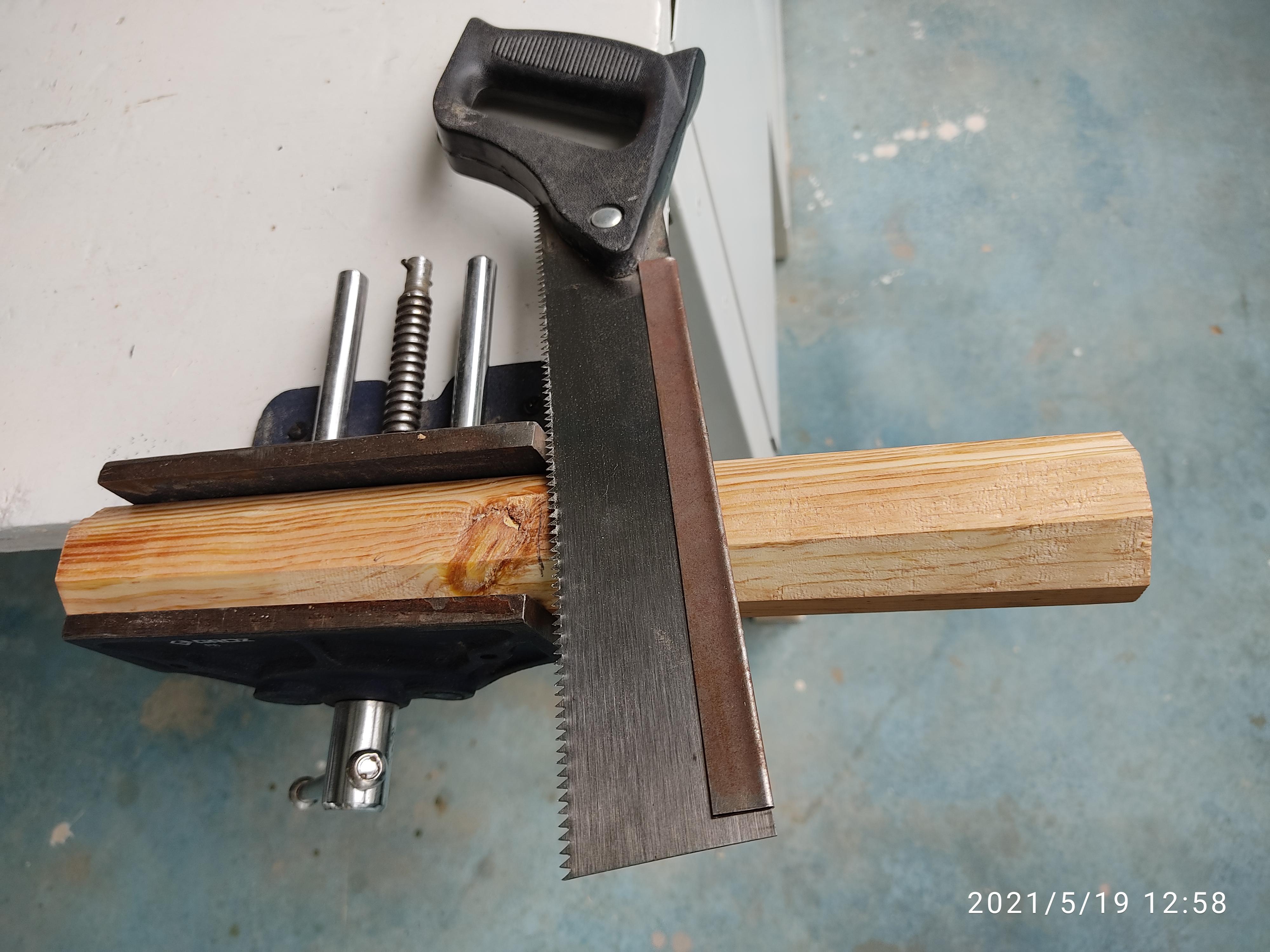

Preform Manufacture of Wooden Block.
![IMG_20210519_120807.jpg](/proxy/?url=https://content.instructables.com/FF8/ZWIU/KP16XBWV/FF8ZWIUKP16XBWV.jpg&filename=IMG_20210519_120807.jpg)
![IMG_20210519_120822.jpg](/proxy/?url=https://content.instructables.com/FE7/WN0Q/KP16XBWW/FE7WN0QKP16XBWW.jpg&filename=IMG_20210519_120822.jpg)
![IMG_20210519_121627.jpg](/proxy/?url=https://content.instructables.com/F0D/81RQ/KP16XBWX/F0D81RQKP16XBWX.jpg&filename=IMG_20210519_121627.jpg)
![IMG_20210519_122534.jpg](/proxy/?url=https://content.instructables.com/F2E/ZS7N/KP16XBXV/F2EZS7NKP16XBXV.jpg&filename=IMG_20210519_122534.jpg)
![IMG_20210519_121759.jpg](/proxy/?url=https://content.instructables.com/FB1/I5Y1/KP16XBXR/FB1I5Y1KP16XBXR.jpg&filename=IMG_20210519_121759.jpg)
![IMG_20210519_125852.jpg](/proxy/?url=https://content.instructables.com/F9D/ZXZX/KP16XBXW/F9DZXZXKP16XBXW.jpg&filename=IMG_20210519_125852.jpg)

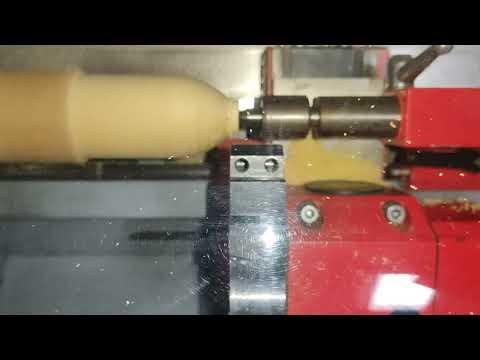

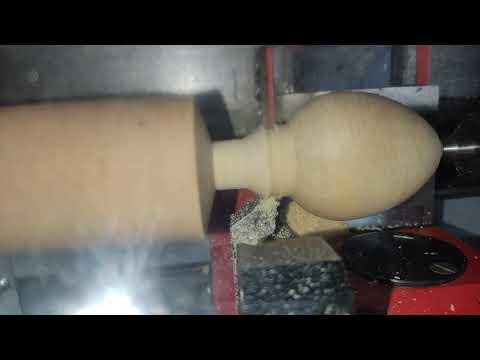

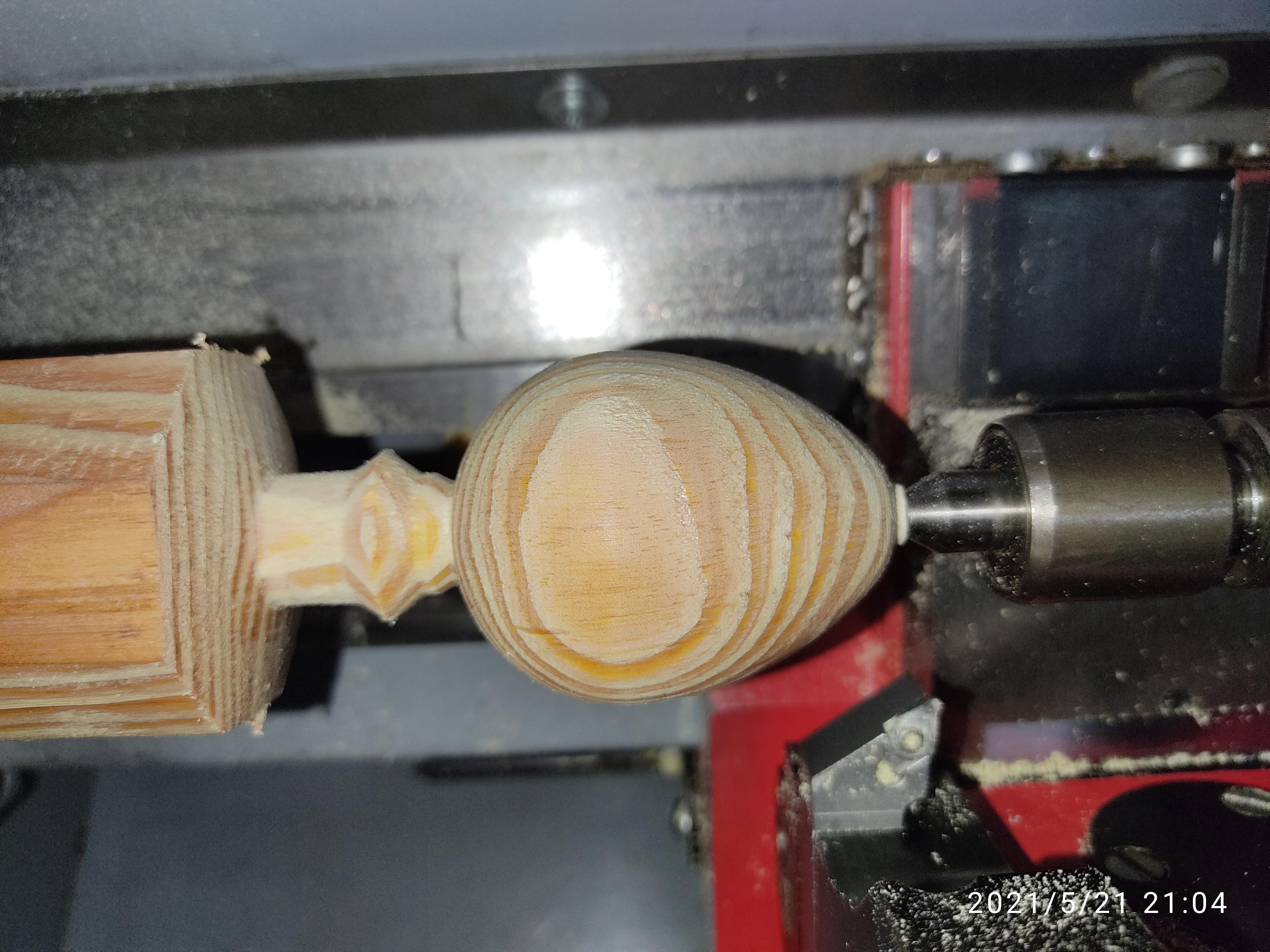

We Make a Wooden Egg on a Lathe.
![IMG_20210521_205614.jpg](/proxy/?url=https://content.instructables.com/FVR/NF4U/KP16XBY2/FVRNF4UKP16XBY2.jpg&filename=IMG_20210521_205614.jpg)
![Egg Turning 01](/proxy/?url=https://content.instructables.com/FOL/HO5G/KP41S5QX/FOLHO5GKP41S5QX.jpg&filename=Egg Turning 01)
![IMG_20210519_195529.jpg](/proxy/?url=https://content.instructables.com/FZ3/EISP/KP16XBXZ/FZ3EISPKP16XBXZ.jpg&filename=IMG_20210519_195529.jpg)
![IMG_20210519_134116.jpg](/proxy/?url=https://content.instructables.com/F72/BWGV/KP16XBXX/F72BWGVKP16XBXX.jpg&filename=IMG_20210519_134116.jpg)
![IMG_20210521_200415.jpg](/proxy/?url=https://content.instructables.com/FL4/1W31/KP16XBY1/FL41W31KP16XBY1.jpg&filename=IMG_20210521_200415.jpg)
![Egg turning](/proxy/?url=https://content.instructables.com/FO8/LU27/KP2MCJW3/FO8LU27KP2MCJW3.jpg&filename=Egg turning)
![IMG_20210521_205723.jpg](/proxy/?url=https://content.instructables.com/FQH/6WX1/KP16XBY3/FQH6WX1KP16XBY3.jpg&filename=IMG_20210521_205723.jpg)
![IMG_20210521_210407.jpg](/proxy/?url=https://content.instructables.com/FDS/9OXK/KP16XBY4/FDS9OXKKP16XBY4.jpg&filename=IMG_20210521_210407.jpg)
![IMG_20210521_210435.jpg](/proxy/?url=https://content.instructables.com/FIT/K0S1/KP16XBJF/FITK0S1KP16XBJF.jpg&filename=IMG_20210521_210435.jpg)
![IMG_20210521_210417.jpg](/proxy/?url=https://content.instructables.com/FWI/1BJG/KP16XBY5/FWI1BJGKP16XBY5.jpg&filename=IMG_20210521_210417.jpg)
![IMG_20210521_210428.jpg](/proxy/?url=https://content.instructables.com/F7L/PQIY/KP16XBY7/F7LPQIYKP16XBY7.jpg&filename=IMG_20210521_210428.jpg)
![IMG_20210521_210435.jpg](/proxy/?url=https://content.instructables.com/F0T/GC13/KP16XBYB/F0TGC13KP16XBYB.jpg&filename=IMG_20210521_210435.jpg)
![IMG_20210521_210421.jpg](/proxy/?url=https://content.instructables.com/FVY/GQ9G/KP16XBY6/FVYGQ9GKP16XBY6.jpg&filename=IMG_20210521_210421.jpg)
![Egg Turning 03](/proxy/?url=https://content.instructables.com/FTX/OD67/KP6WO2ES/FTXOD67KP6WO2ES.jpg&filename=Egg Turning 03)

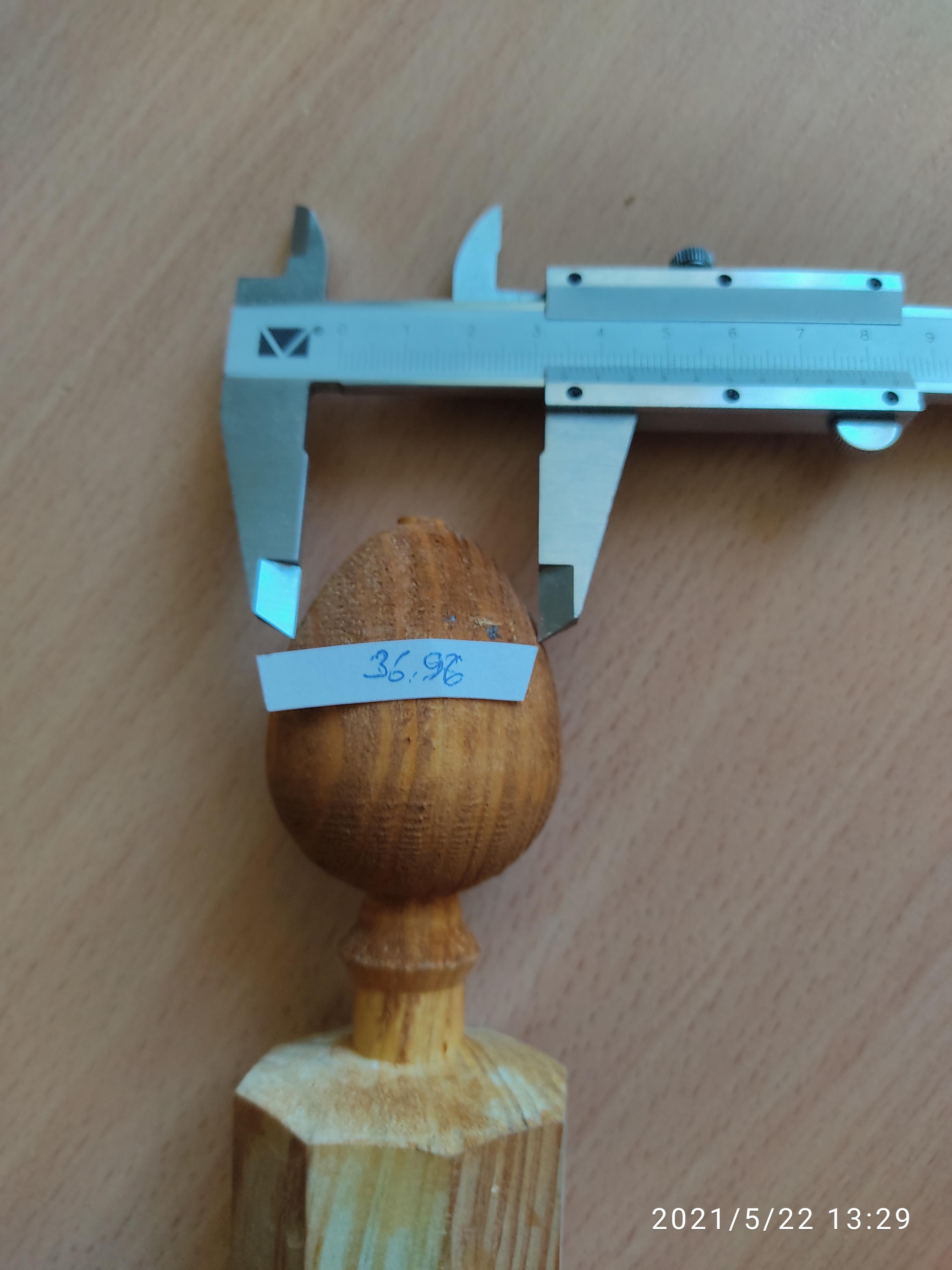

We Mark the Egg at 120 Degrees As a Segment Equal to ПD / 3.
![IMG_20210522_132857.jpg](/proxy/?url=https://content.instructables.com/FXD/15KN/KP16XBRQ/FXD15KNKP16XBRQ.jpg&filename=IMG_20210522_132857.jpg)
![IMG_20210522_132945.jpg](/proxy/?url=https://content.instructables.com/FHA/XHCI/KP16XBRR/FHAXHCIKP16XBRR.jpg&filename=IMG_20210522_132945.jpg)
![IMG_20210522_132827.jpg](/proxy/?url=https://content.instructables.com/F25/6ITJ/KP16XBRP/F256ITJKP16XBRP.jpg&filename=IMG_20210522_132827.jpg)

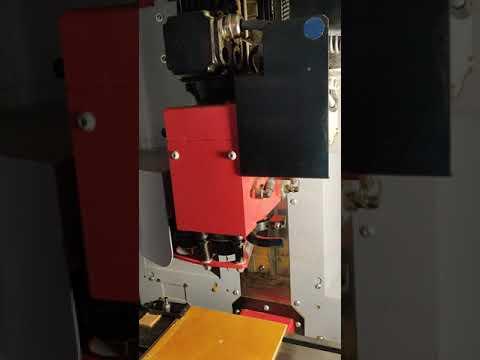

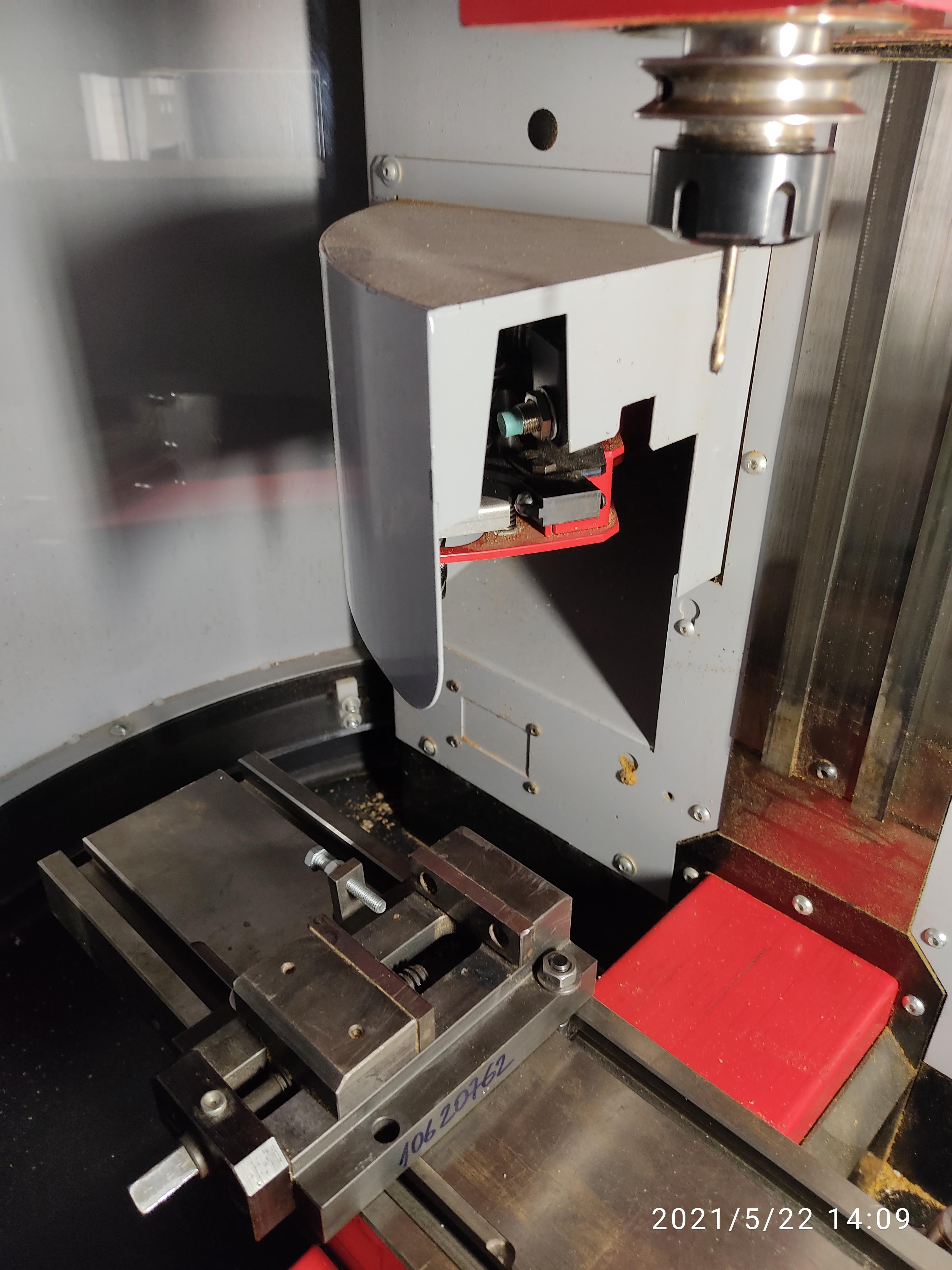

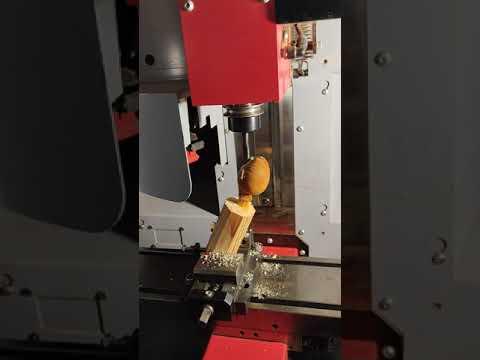

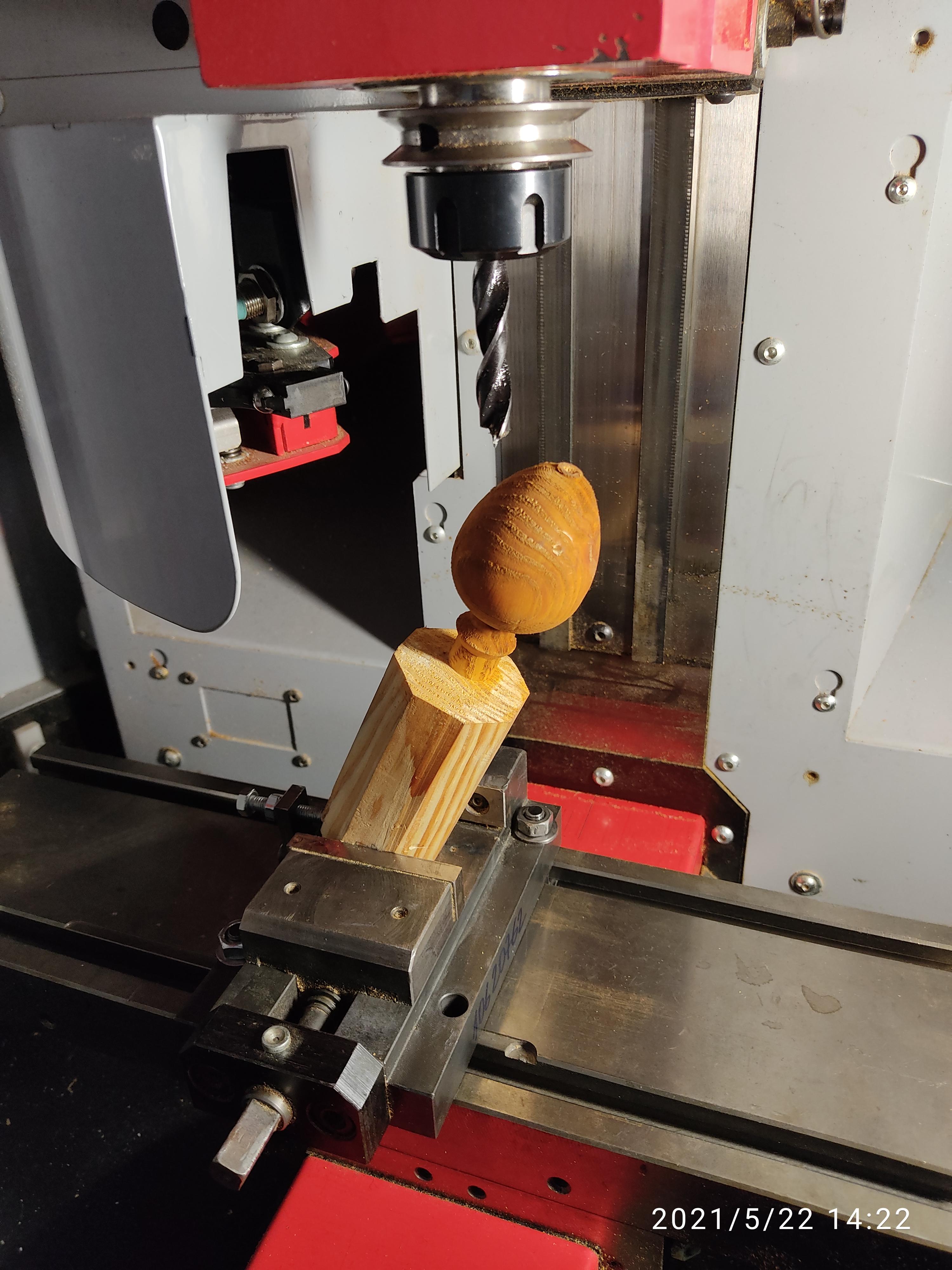

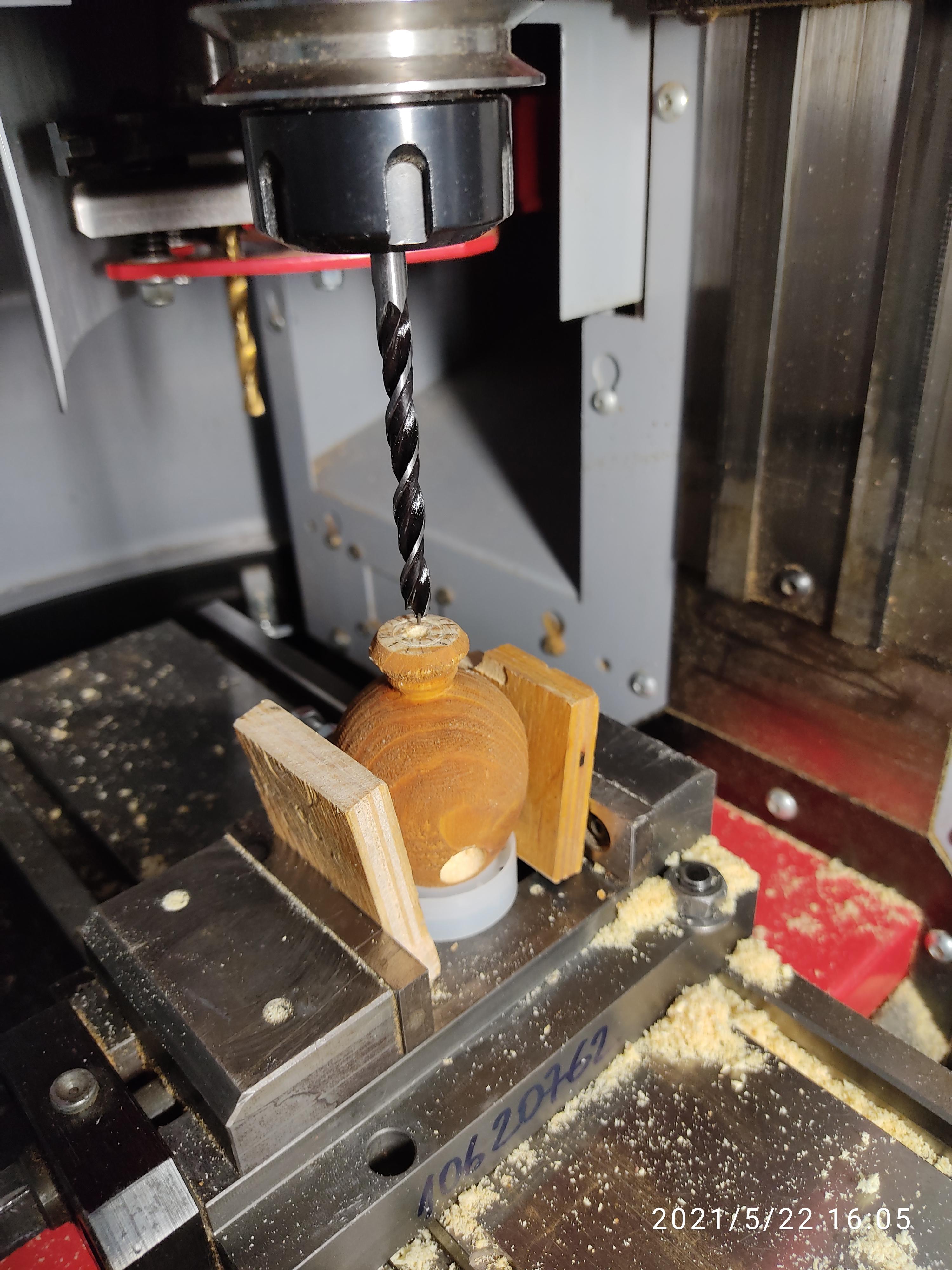

We Drill 3 Holes on the CNC at an Angle of 120 Degrees.
![Egg Drilling](/proxy/?url=https://content.instructables.com/FLK/Y9FR/KP41S5W8/FLKY9FRKP41S5W8.jpg&filename=Egg Drilling)
![IMG_20210522_140918.jpg](/proxy/?url=https://content.instructables.com/FGO/840K/KP16XBSL/FGO840KKP16XBSL.jpg&filename=IMG_20210522_140918.jpg)
![IMG_20210522_142217.jpg](/proxy/?url=https://content.instructables.com/FD5/0LZN/KP16XBSP/FD50LZNKP16XBSP.jpg&filename=IMG_20210522_142217.jpg)
![IMG_20210522_150303.jpg](/proxy/?url=https://content.instructables.com/F4S/THXV/KP16XBM9/F4STHXVKP16XBM9.jpg&filename=IMG_20210522_150303.jpg)
![IMG_20210522_143409.jpg](/proxy/?url=https://content.instructables.com/F91/74MZ/KP16XBLO/F9174MZKP16XBLO.jpg&filename=IMG_20210522_143409.jpg)
![IMG_20210522_142327.jpg](/proxy/?url=https://content.instructables.com/FB5/8VNV/KP16XBL3/FB58VNVKP16XBL3.jpg&filename=IMG_20210522_142327.jpg)
![IMG_20210522_160527.jpg](/proxy/?url=https://content.instructables.com/FJJ/80WT/KP16XBMA/FJJ80WTKP16XBMA.jpg&filename=IMG_20210522_160527.jpg)
![IMG_20210522_145835.jpg](/proxy/?url=https://content.instructables.com/FW9/G9IX/KP16XBLP/FW9G9IXKP16XBLP.jpg&filename=IMG_20210522_145835.jpg)
Since I do not have a rotary table for CNC, I use a stop, a vice and a bolt.

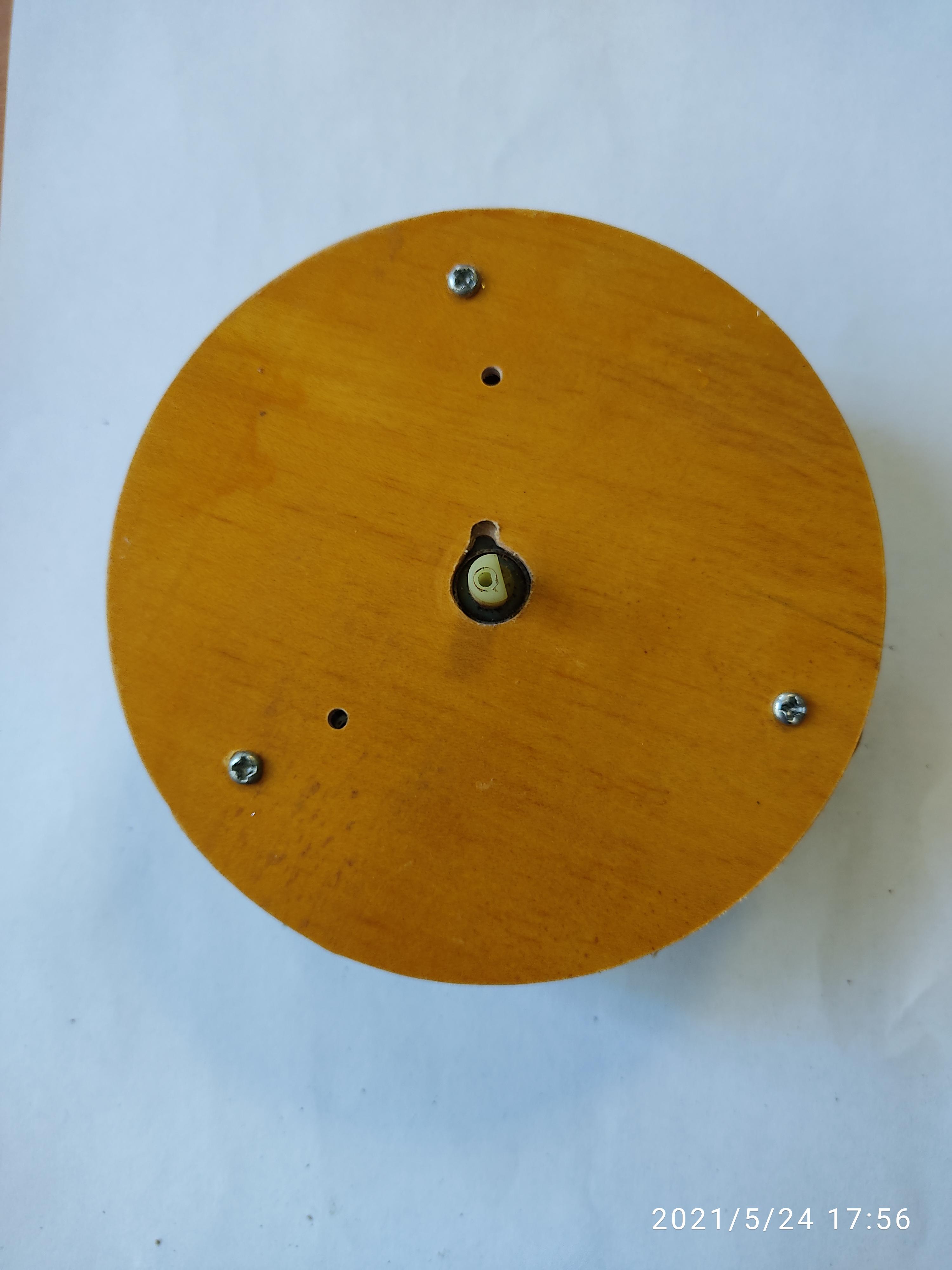

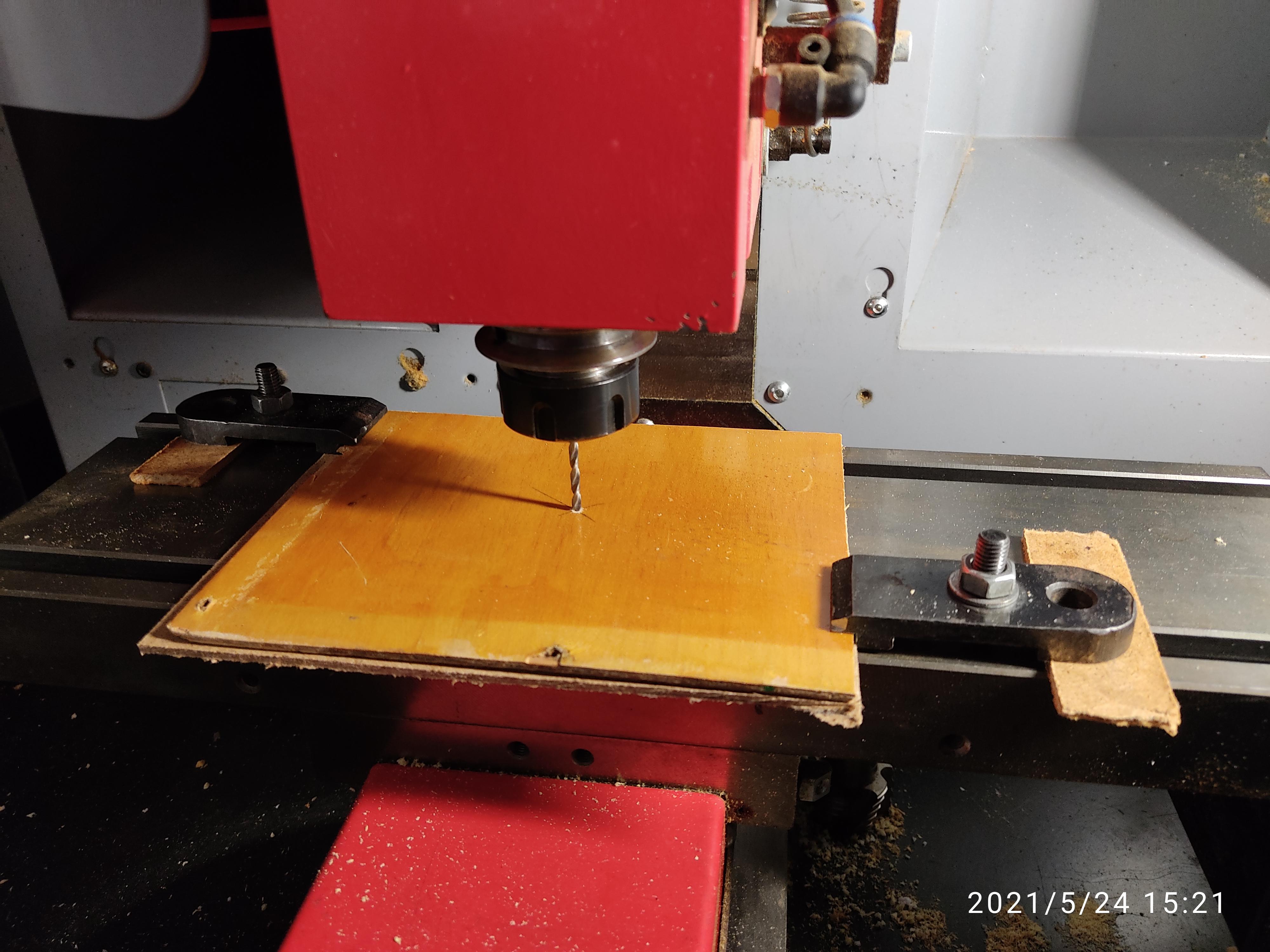

We Make an Egg Stand.
![Egg Milling](/proxy/?url=https://content.instructables.com/FD9/6X6K/KP2MCK61/FD96X6KKP2MCK61.jpg&filename=Egg Milling)
![Egg Milling](/proxy/?url=https://content.instructables.com/FV1/7UBJ/KP6WO2NM/FV17UBJKP6WO2NM.jpg&filename=Egg Milling)
![IMG_20210524_152125.jpg](/proxy/?url=https://content.instructables.com/FPC/YEHS/KP2MCFNJ/FPCYEHSKP2MCFNJ.jpg&filename=IMG_20210524_152125.jpg)
![IMG_20210524_171836.jpg](/proxy/?url=https://content.instructables.com/FPA/CS8A/KP2MCFNL/FPACS8AKP2MCFNL.jpg&filename=IMG_20210524_171836.jpg)
![IMG_20210524_181758.jpg](/proxy/?url=https://content.instructables.com/FPB/O0A4/KP2MCFNQ/FPBO0A4KP2MCFNQ.jpg&filename=IMG_20210524_181758.jpg)
![IMG_20210524_182950.jpg](/proxy/?url=https://content.instructables.com/FC2/QLVA/KP2MCFNS/FC2QLVAKP2MCFNS.jpg&filename=IMG_20210524_182950.jpg)
![IMG_20210524_183649.jpg](/proxy/?url=https://content.instructables.com/FEN/WDHH/KP2MCFNT/FENWDHHKP2MCFNT.jpg&filename=IMG_20210524_183649.jpg)
![IMG_20210524_182548.jpg](/proxy/?url=https://content.instructables.com/FU6/T038/KP2MCFNR/FU6T038KP2MCFNR.jpg&filename=IMG_20210524_182548.jpg)
![IMG_20210524_175243.jpg](/proxy/?url=https://content.instructables.com/F40/909I/KP2MCFNO/F40909IKP2MCFNO.jpg&filename=IMG_20210524_175243.jpg)
![IMG_20210524_175654.jpg](/proxy/?url=https://content.instructables.com/F4R/O26V/KP2MCFNP/F4RO26VKP2MCFNP.jpg&filename=IMG_20210524_175654.jpg)

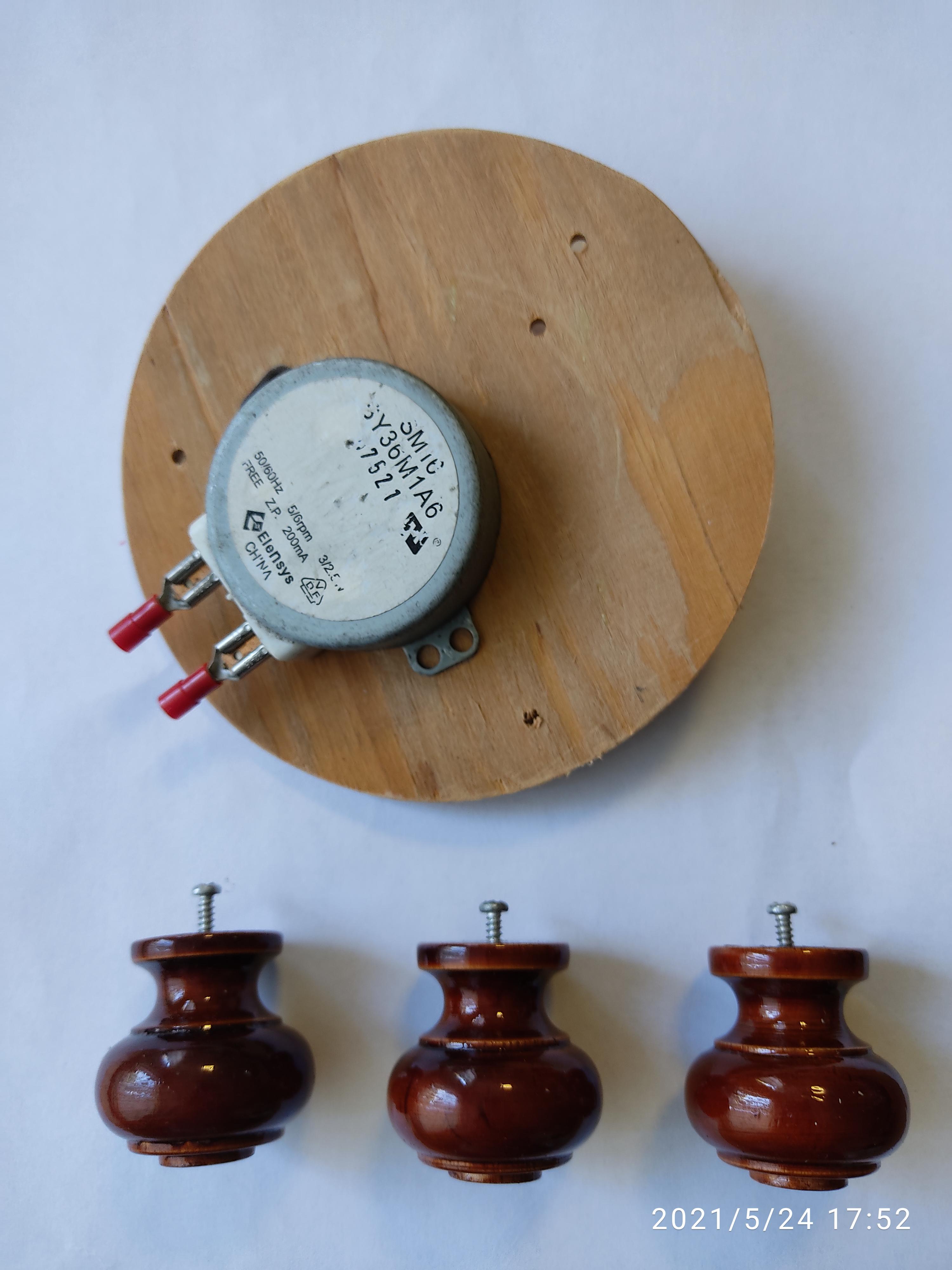

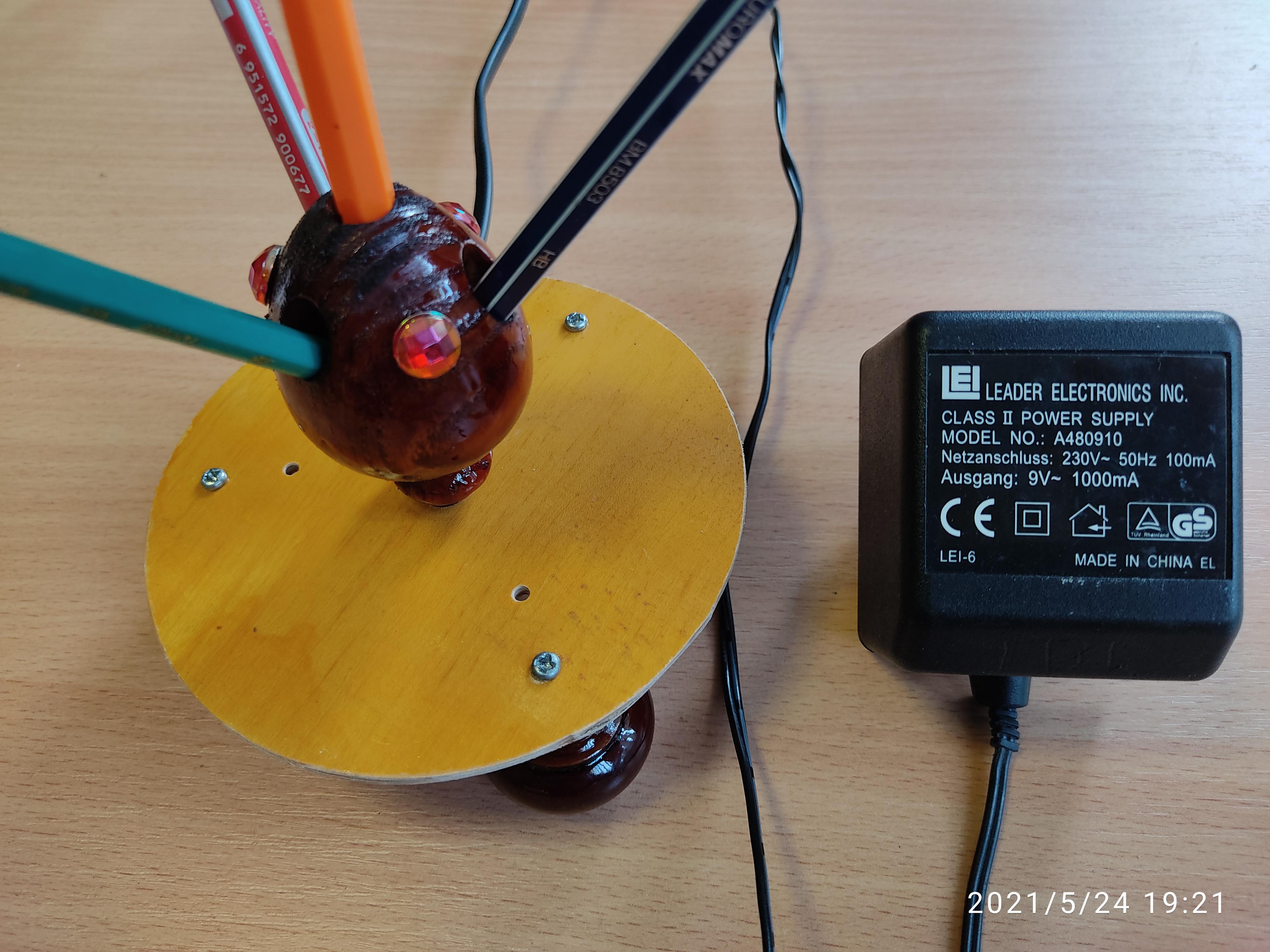

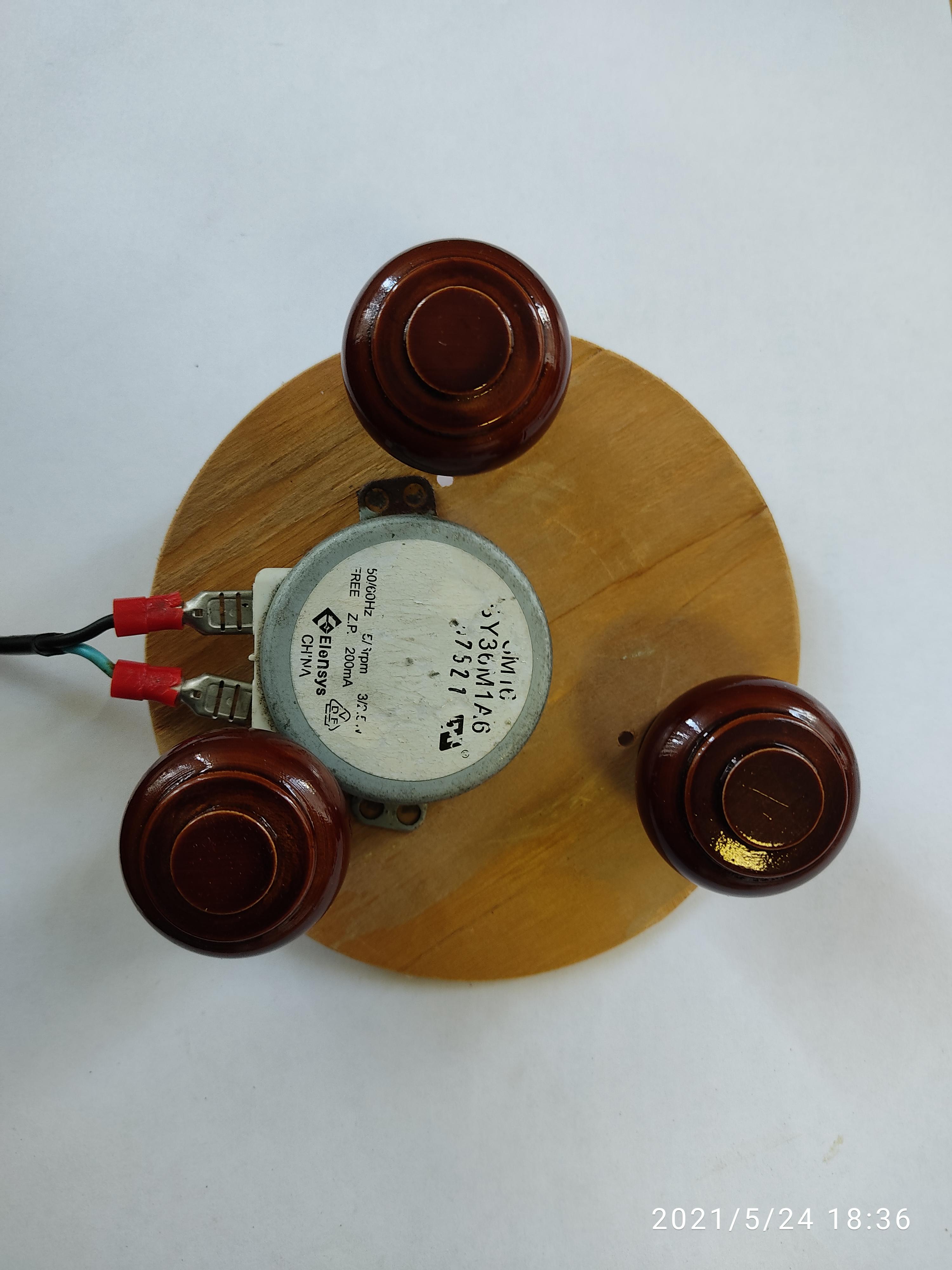

For rotation, we use an electric motor from a microwave and an adapter for AC voltage of 10-20 volts.
We attach the electric motor to double-sided tape.

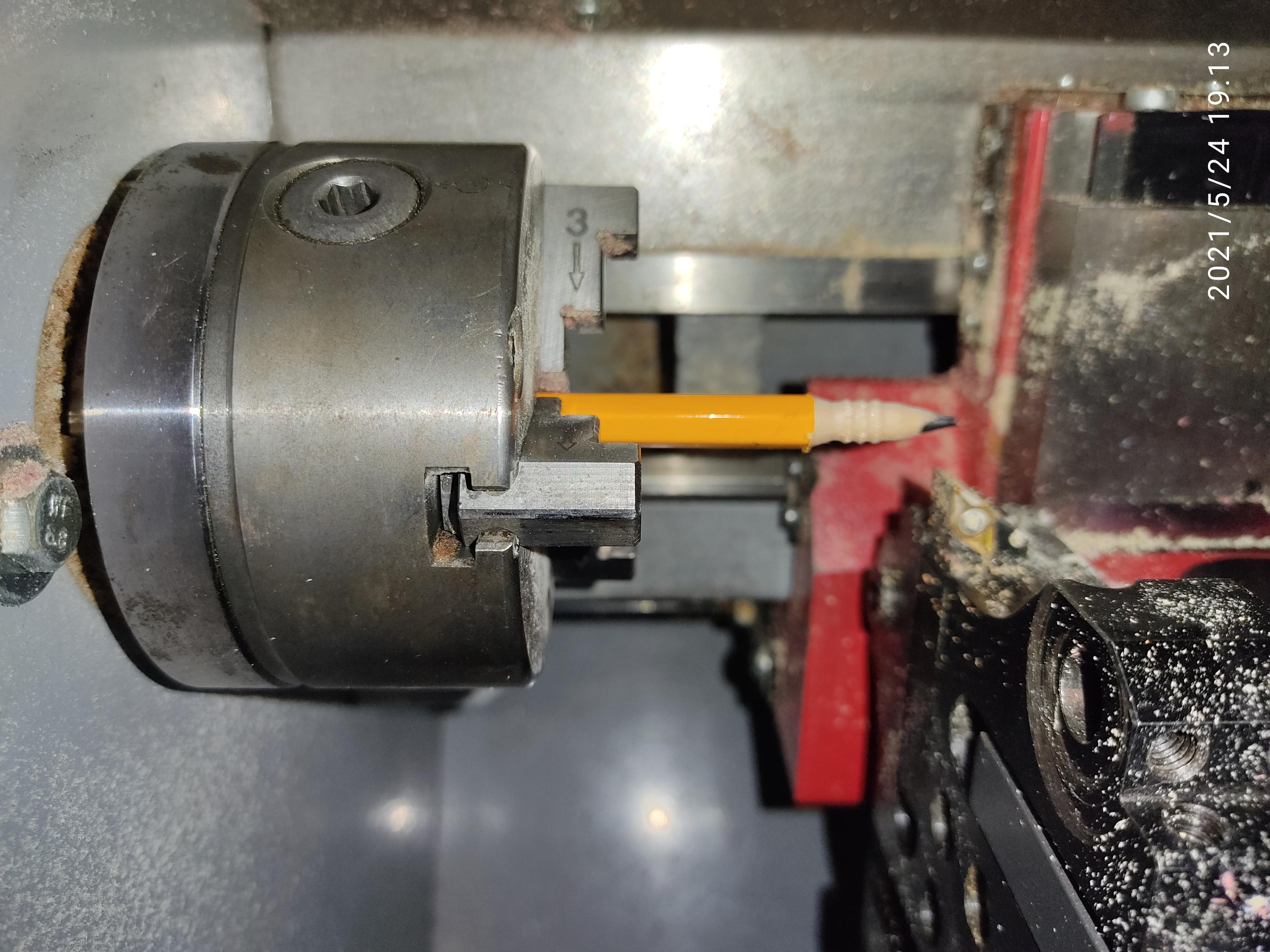

We Sharpen Pencils on the CNC.
![IMG_20210524_190746.jpg](/proxy/?url=https://content.instructables.com/FWS/NGF4/KP2MCFNU/FWSNGF4KP2MCFNU.jpg&filename=IMG_20210524_190746.jpg)
![IMG_20210524_191936.jpg](/proxy/?url=https://content.instructables.com/F30/4E1P/KP2MCFNY/F304E1PKP2MCFNY.jpg&filename=IMG_20210524_191936.jpg)
![IMG_20210524_191346.jpg](/proxy/?url=https://content.instructables.com/FB8/2FYE/KP2MCGDK/FB82FYEKP2MCGDK.jpg&filename=IMG_20210524_191346.jpg)
We Make the Assembly of the Pencil Holder.
![IMG_20210524_192123.jpg](/proxy/?url=https://content.instructables.com/F63/F6A5/KP2MCGM6/F63F6A5KP2MCGM6.jpg&filename=IMG_20210524_192123.jpg)
![IMG_20210524_192134.jpg](/proxy/?url=https://content.instructables.com/FRD/ZKQC/KP2MCFPL/FRDZKQCKP2MCFPL.jpg&filename=IMG_20210524_192134.jpg)
![IMG_20210524_193658.jpg](/proxy/?url=https://content.instructables.com/F42/77LT/KP2MCFPM/F4277LTKP2MCFPM.jpg&filename=IMG_20210524_193658.jpg)
![IMG_20210524_193701.jpg](/proxy/?url=https://content.instructables.com/F7P/ON86/KP2MCFPO/F7PON86KP2MCFPO.jpg&filename=IMG_20210524_193701.jpg)
![IMG_20210524_193710.jpg](/proxy/?url=https://content.instructables.com/FED/0BFF/KP2MCFPQ/FED0BFFKP2MCFPQ.jpg&filename=IMG_20210524_193710.jpg)

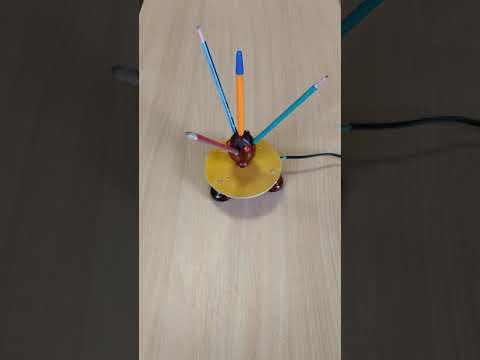

Checking the Work.
![CNC Egg handle holder 01](/proxy/?url=https://content.instructables.com/FC1/OX19/KP7HC3AX/FC1OX19KP7HC3AX.jpg&filename=CNC Egg handle holder 01)
![photo_2021-05-28_14-32-26.jpg](/proxy/?url=https://content.instructables.com/FXI/SCFH/KP7HC3EL/FXISCFHKP7HC3EL.jpg&filename=photo_2021-05-28_14-32-26.jpg)
![photo_2021-05-28_14-32-27.jpg](/proxy/?url=https://content.instructables.com/F6O/BQBI/KP7HC3EM/F6OBQBIKP7HC3EM.jpg&filename=photo_2021-05-28_14-32-27.jpg)
![photo_2021-05-28_14-32-33.jpg](/proxy/?url=https://content.instructables.com/FUJ/6KFZ/KP7HC3EN/FUJ6KFZKP7HC3EN.jpg&filename=photo_2021-05-28_14-32-33.jpg)
![CNC Egg handle holder 02](/proxy/?url=https://content.instructables.com/FPF/DNRL/KP7HC3CP/FPFDNRLKP7HC3CP.jpg&filename=CNC Egg handle holder 02)
![CNC handle holder "Egg"](/proxy/?url=https://content.instructables.com/FY7/SMVX/KP2MCGT5/FY7SMVXKP2MCGT5.jpg&filename=CNC handle holder "Egg")
We cover the tree with paint and varnish.
I did this work for about 1 week, and I suggest you repeat this simple project.
