CG Leganza 88DDT8 PLC Teardown

CROMPTON GREAVES (CG) LEGANZA 88DDT8

This PLC, which also may belong to the programmable relay category is designed, built and marketed by Crompton Greaves, an Indian company who made and markets a broad range of equipment for the electric business. Information about this PLC is very scarce, as the manufacturer's home page doesn't give a clue of its existence. Visually is very similar to other programmable relays like Siemens Logo! or Allen-Bradley Micro 810. There isn't a production date code on the label nor in PCBs and it is likely a lot of the assembly process is done by hand.

For more info, please visit: Absolutelyautomation.com

Here is the list for the required components for this project with the absolute lowest prices! If you find something cheaper somewhere, please msg me!

• Plastic spudger or pry tool ► ( http://goo.gl/xfxK9M )
• 3 mm phillips screwdriver ► ( http://goo.gl/pwGy8D )

TEARDOWN PROCESS

Insert the spudger and make a lever to unlatch the plastic hinge that keeps together the upper and lower part of the case, pull slightly to separate both parts. Once unlatched repeat the process with the other latch on the opposite side and remove bottom cover.

PCB REMOVAL

With one hand hold firmly the PLC and with the other hand using the screwdriver, press the outermost screws of the terminals. Push a little bit in sequence, all the four screws near the corners, until the PCB emerges a bit out of the case.

Once a significant portion of the PCB assembly is out of the case, the screwdriver isn't required anymore, hold the case with one hand pulling the PCB assembly with the other to remove completely.

As you can see all the pieces were pressure assembled, no screws were used to hold any part!

ELECTRONIC BOARDS AND MAIN COMPONENTS

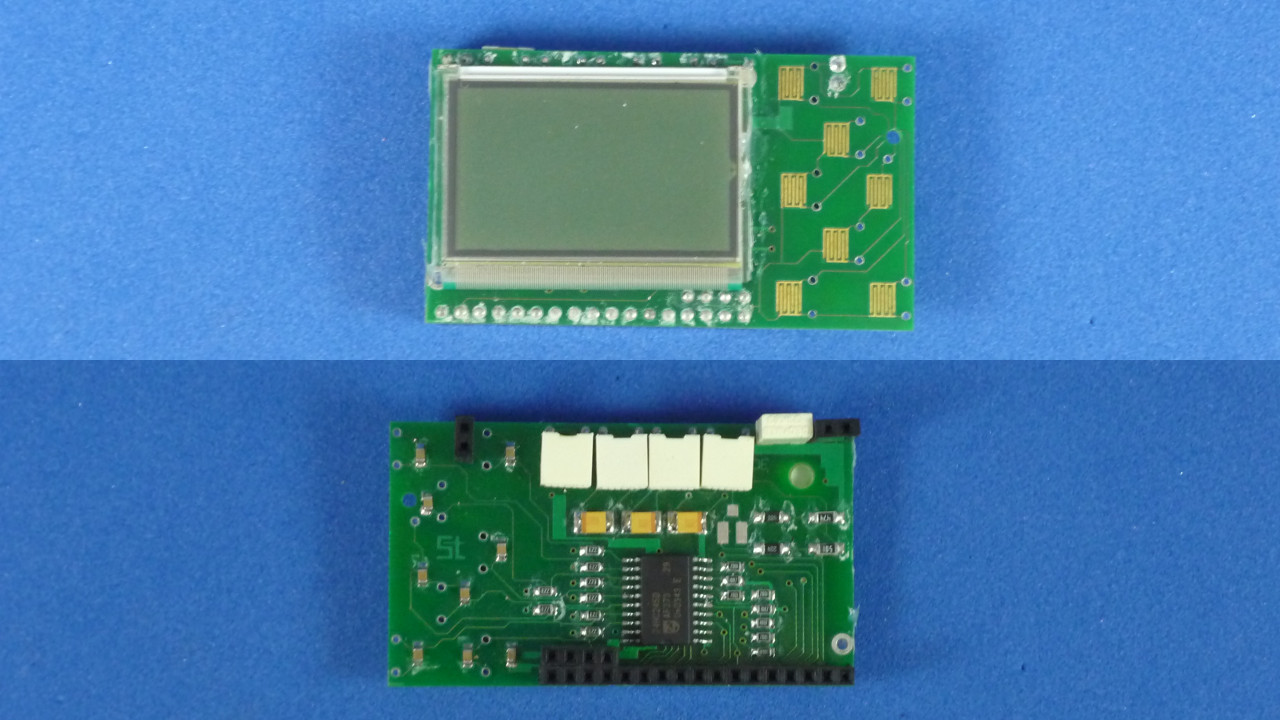

MOST IMPORTANT SEMICONDUCTOR LIST IN DISPLAY BOARD

Part # Description

Unavailable info B&W graphic display module

74HC245D 8 tri-state buffers

POWER AND I/O BOARD

MOST IMPORTANT SEMICONDUCTOR LIST IN POWER AND I/O BOARD

Part # Description

TL494CN Pulse width modulator control circuit

TIP32C PNP Epitaxial Silicon Transistor

HEF4053BT Single Pole Double Throw analog switch

CPU BOARD

MOST IMPORTANT SEMICONDUCTOR LIST IN CPU BOARD

Part # Description

74HC32D 2-input high speed CMOS OR GATE

HEF40106BT Hex Schmitt trigger inverters

MCP3002 2.7V double channel 10-bit A/D SPI

24LC32A Serial EEPROM 32K I2C™ memory

PCF8583P Clock and Calendar with 240x8-bit RAM

P89C668HBA 80C51 family 8-bit microcontroller with 64KB FLASH memory and 8KB RAM

74HC245D 8 tri-state buffers

74HC273D 8 D-type flip-flops positive edge trigger

HEF4050BT 8 non-inverting buffers

MC34164P-5 Micropower, low voltage supervisor chip

MORE INFO

For more info, please visit: Absolutelyautomation.com
