CCS811

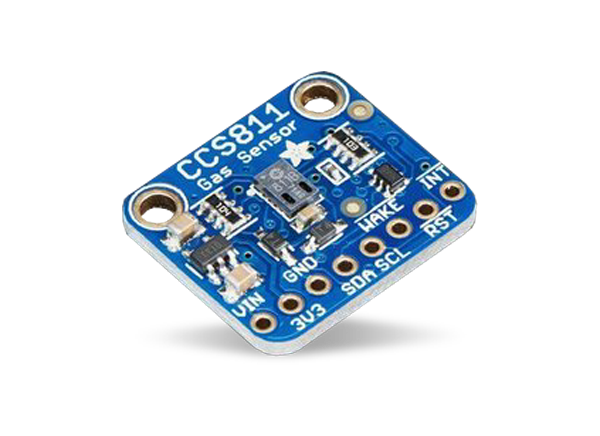

The CCS811 module is a digital gas sensor with metal oxide (MOX) gas sensor to measure "Volatile Organic Compounds" (VOCs) from the air.

This sensor is intended for indoor use in combination with a microcontroller through an I2C interface. The sensor can also measure "equivalent CO2" (eCO2).

• 3 jumper wires.

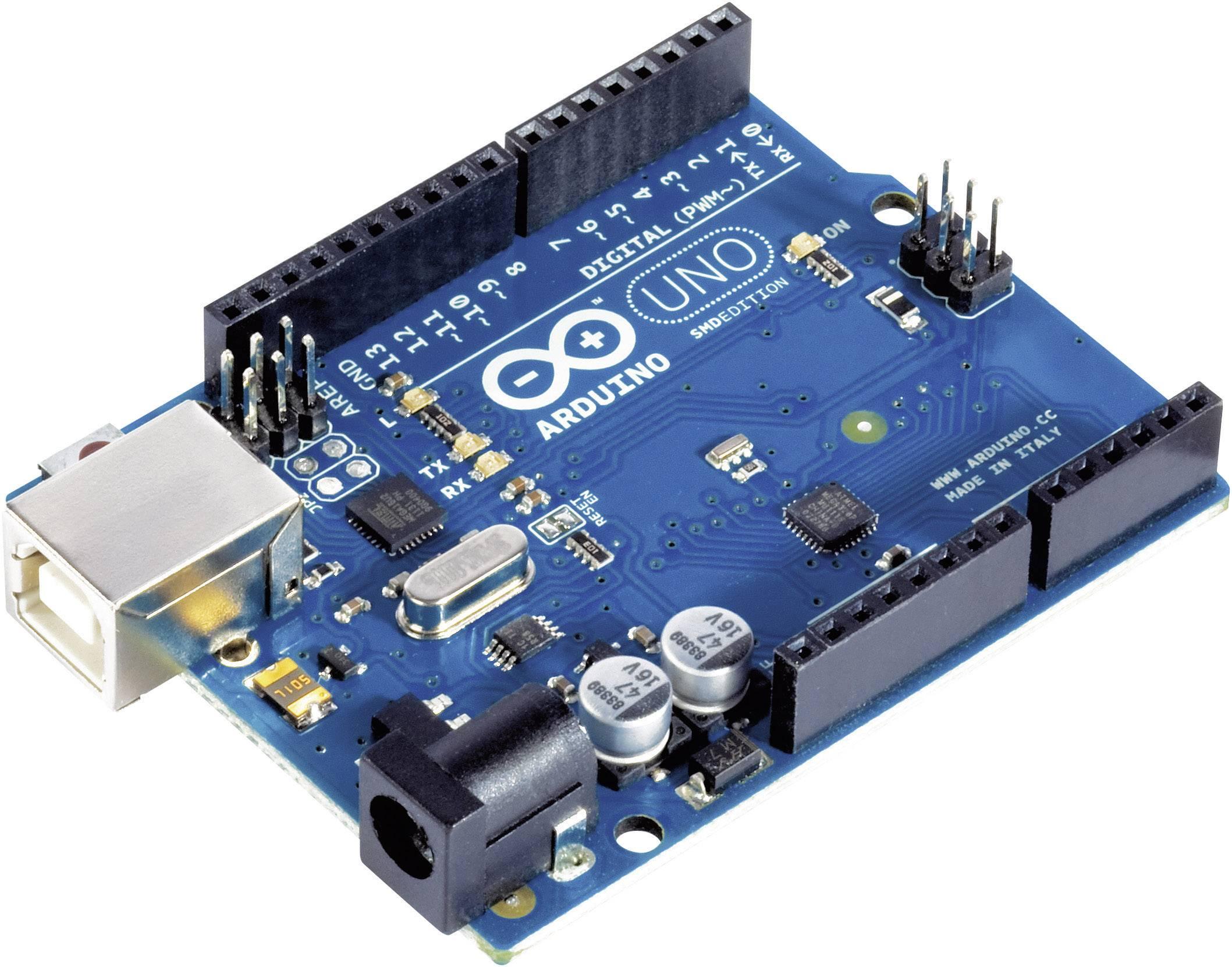

• Arduino-board UNO.
• USB for Arduino.
• CCS811 sensor.
• Computer or laptop.
• Arduino Editor to import the code (https://create.arduino.cc/editor).

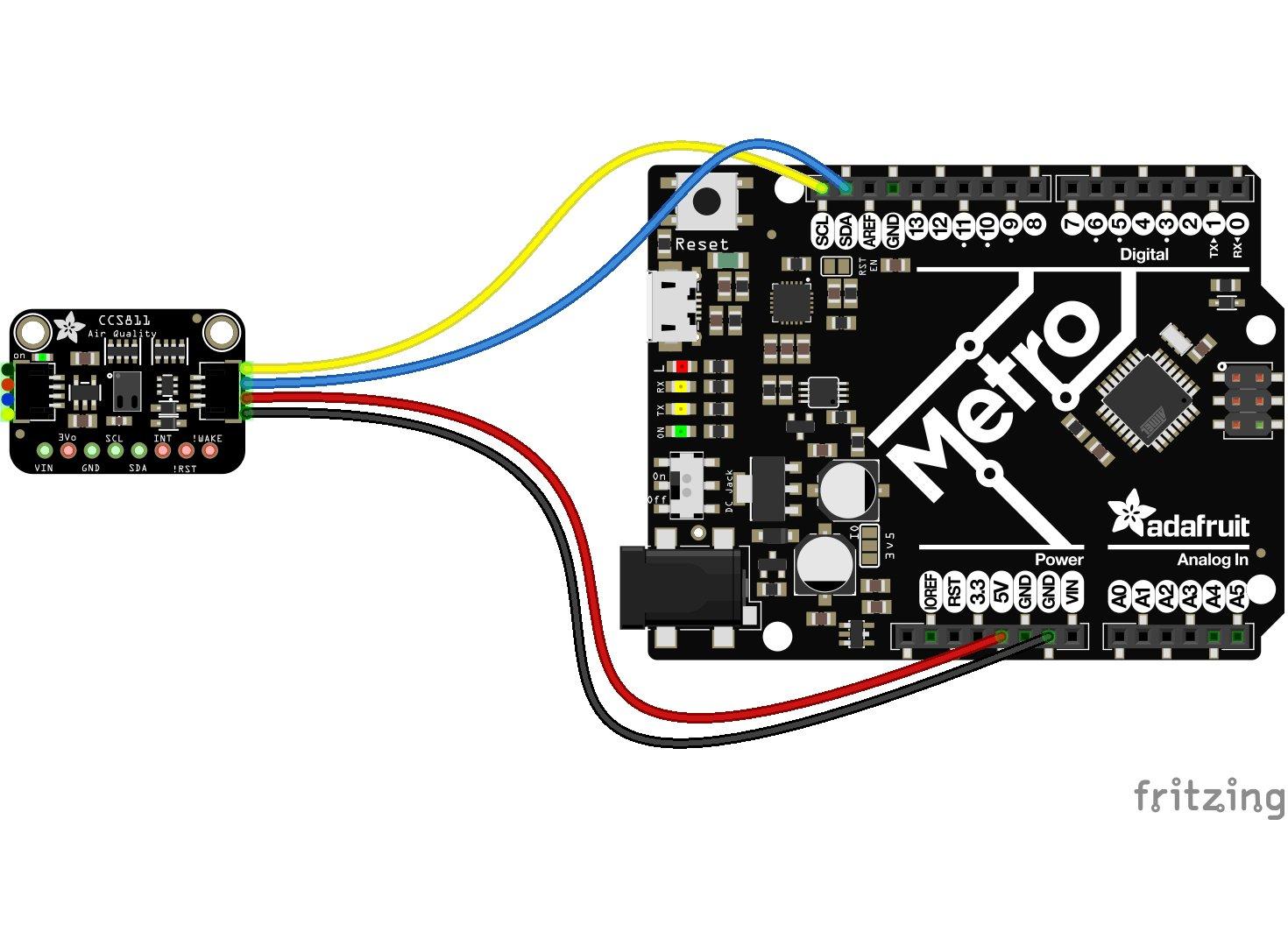

CCS811  Arduino

VIN ================================ ⇒ VIN

GND================================ ⇒ GND

SCL================================ ⇒ SCL

SDA================================ ⇒ SDA

# SPDX-FileCopyrightText: 2021 ladyada for Adafruit Industries

# SPDX-License-Identifier: MIT

import time

import board

import adafruit_ccs811

i2c = board.I2C() # uses board.SCL and board.SDA

ccs811 = adafruit_ccs811.CCS811(i2c)

# Wait for the sensor to be ready

while not ccs811.data_ready:

pass

while True:

print("CO2: {} PPM, TVOC: {} PPB".format(ccs811.eco2, ccs811.tvoc))

time.sleep(0.5)

1. Press the save button
2. Press upload
3. Press on monitor and see the results
