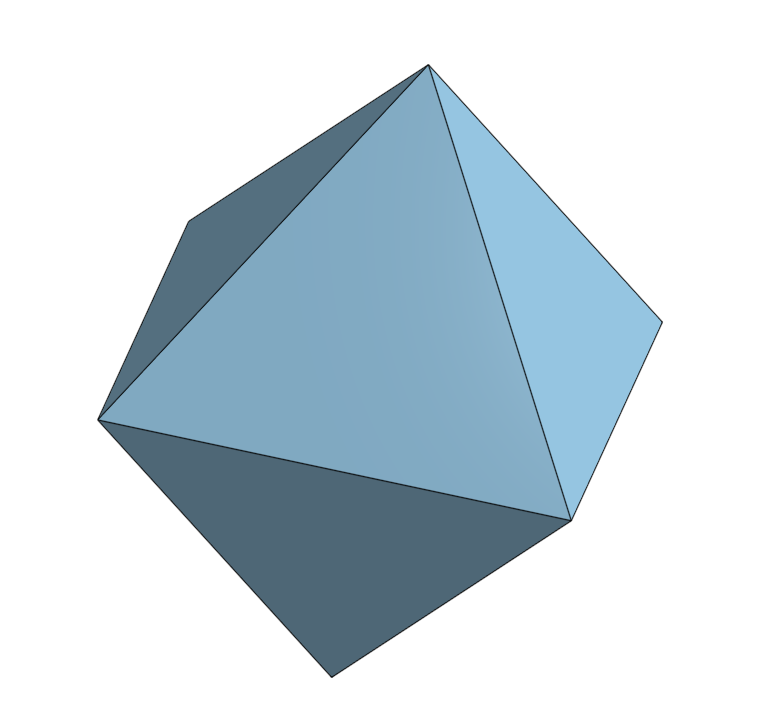

CAD a D8
![D8.PNG](/proxy/?url=https://content.instructables.com/FI3/4PZQ/L4E6GK9L/FI34PZQL4E6GK9L.png&filename=D8.PNG)
Supplies
CAD Software, I use OnShape as it is free
Make a Square
![CenterSquare.PNG](/proxy/?url=https://content.instructables.com/FMJ/EN2X/L4E6GKAU/FMJEN2XL4E6GKAU.png&filename=CenterSquare.PNG)
- Make a Square whose center is on the origin and the points are on the axis of the other planes
- Add your one dimension to say how big the square is
- Add a construction line from the constrained point down along the "Right" plane
- Make the construction line be equal (same length as) the side of the square
Find the Top and the Bottom
![TopAndBottom.PNG](/proxy/?url=https://content.instructables.com/F0I/APUU/L4E6GKDY/F0IAPUUL4E6GKDY.png&filename=TopAndBottom.PNG)
- Make a construction circle whose radius is the height of the square
- Make two construction lines from one point to the edge of the circle
- The lines should end on the front plane, above and below the origin

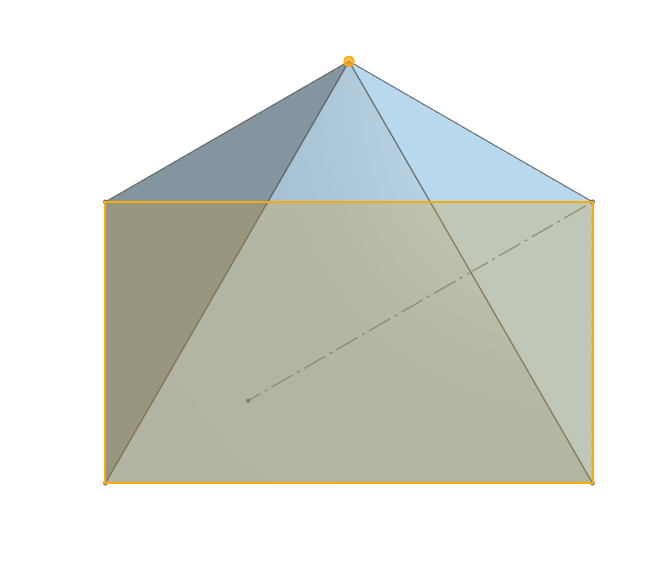

Loft
![Loft.PNG](/proxy/?url=https://content.instructables.com/F3Z/N7FB/L4E6GKKI/F3ZN7FBL4E6GKKI.png&filename=Loft.PNG)
- Loft the base square to both the top and the bottom points found
Finish!
![D8.PNG](/proxy/?url=https://content.instructables.com/F4Q/TKAK/L4E6GKNZ/F4QTKAKL4E6GKNZ.png&filename=D8.PNG)
You now have a "blank" D8!
Feel free to add numbers to it or whatever else you want!
