C60 With Laser Cut


I designed 2 pattern to make up C60 with 3mm material. Please use attached AI file and good luck!

Ted Lien

Downloads

c60.ai
A2 ptable.ai

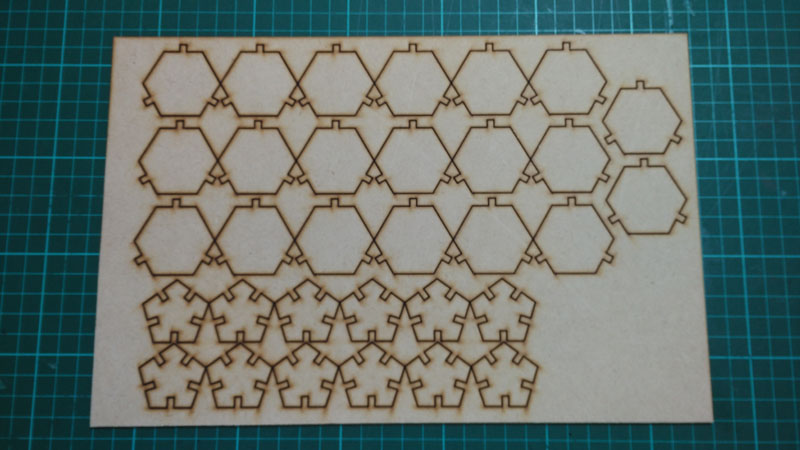

Laser Cut


open ai file and get laser cut done

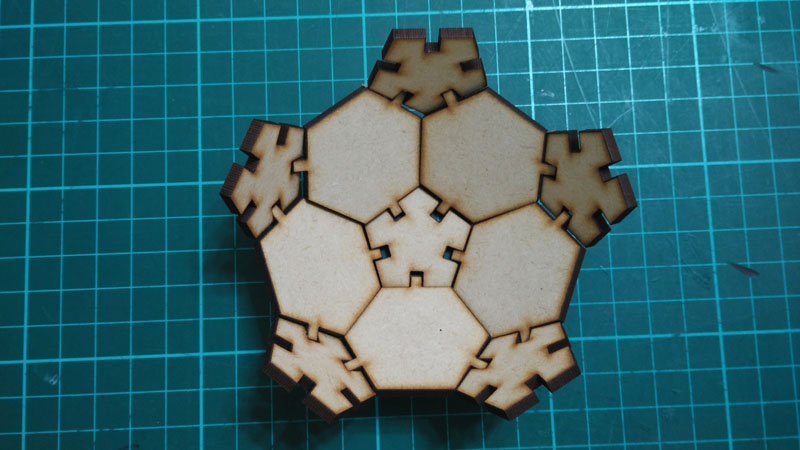

1st Level


base level

2nd Level


2nd level

3rd Level


3rd level

Last Step


create another half, combine together and done
