Butterfly LED Panel: Smart Light for ESPHome

by lukasz.tuz in Circuits > LEDs

5307 Views, 69 Favorites, 0 Comments

Butterfly LED Panel: Smart Light for ESPHome

Butterfly LED Panel: Smart Lighting for ESPHome

I've always been a fan of light panels, at least ever since I first saw Nanoleaf's products. My apartment has slanted walls, and it's always been an issue to light it properly. Nanoleaf light panels got the job done, but one place left without proper lighting: kid's bed, right underneath a slanted wall.

At first I figured I'd just pay up and buy more light panels. But she's such a big fan of butterflies - already had tons of stickers on that wall. Then it struck me: I could make her a butterfly-shaped light panel to serve as a night light. So, here goes.

TL;DR: source files and some hi-res images can be found in GitHub: https://github.com/lukasz-tuz/rgb-butterfly

Supplies

Full bill of materials, with prices (in PLN, sorry), is attached. It includes full BOM for PCB, including LCSC part numbers, estimated prices, etc.

In addition to the PCB and its components, you'll need:

I estimate total cost of materials above to ~$110 USD, with the current exchange rate.

Concept and Design Considerations


I wanted the panel to have sections which could be individually lit to form of a low poly butterfly (I really like the low poly aesthetics). I also assumed use of a cut down LED strip, to save time and money on custom PCBs, and ESP32 as a controller for the lights, because I wanted to use ESPHome for controlling the lights and integrating into Home Assistant setup. I also wanted these panels to be controllable locally (i.e., without having to use smartphone), ideally by making the panels touch sensitive.

With these design constraints there are several options, choices to be made for the design:

  • use analogue RGB/RGBW strips vs. addressable ones
  • have the light built from multiple small panels vs. few larger ones, divided into segments

There are some serious cons to using analogue strips, especially given the constrains: typical analogue LED strip needs it's own PWM driver for each channel. This makes routing connections way more difficult and also pretty much breaks the "save time and money on custom PCBs" assumption.

Assuming use of multiple panels, it would take a few dozen panels to create a low poly butterfly. Total number of PWM signals would exceed number of PWM outputs in ESP32. To mitigate, each panel would have to have its own micro-controller, which would use a communication bus to receive commands from the controller. In short, too complicated and bumps up the cost of each panel. Summarizing:

  1. analogue LED strip/many panels:
  2. needs custom PCB with LED drivers and separate uC per panel
  3. analogue LED strip/few panels
  4. still needs lots of LED drivers and custom PCB, slightly easier to route connections than 1st one
  5. addressable LEDs/many panels
  6. increased cost of 3D printing cases for panels, but only one wire needed to control all the LEDs
  7. addressable LEDs/few panels
  8. well... this could work.

There are so many different addressable LED strips available, it's difficult to pick one. I decided to go with a dense strip (144 LEDs/m) based on WS2813 devices. Downside is that this strip has a rated power consumption of 43W/m. So, a lot of current to supply at 5V...

That's how my smart light ended up having two separate panels (wings!) and controller in the middle.

But what about the low poly part? It's difficult to get the low poly effect with just two panels. Luckily, in one of my other projects I noticed that LED lights can be nicely partitioned. More on that later.

Shaping the Butterfly


For the silhouette of the butterfly, I went to trusty openclipart.org library. Found Monarch butterfly clipart, wonderful shape with decent amount of space for placing all the LEDs. A bit of Inkscape magic, and I got the raw silhouette of a butterflies' wing. I scaled it so that it would have diagonal of ~20 cm. I also modified the shape a bit so that it has a distinct straight edge to which controller could attach.

This created the outer edge of the panel. Two additional paths will be needed later: one for marking where the internal support for panel's cover starts, and the other is an inner edge. This can be done by cloning and shrinking the initial shape. Best to keep approx. 2 mm of separation between the outlines.

For the whole low poly thing, I used Inkscape's Effects tool to generate a Voronoi diagram within the constraints of inner edge. While low poly structures are typically composed of triangles, this pattern gets the job done, as well.

CAD


3D Modelling

Completed SVG now can be used to quickly start with 3D modelling. I'm using FreeCAD, but any tool will do.

You'll find FreeCAD file in here: https://github.com/lukasz-tuz/lowpolylight-cad.

First step is to extrude panel outline, by 3 mm, to form a back plate of the panel. This part could be 3D printed, but I ordered it as a laser-cut white plexiglass, opaque. It tends to be cheaper than 3D printing, and creates a smoother shapes.

Next part is the side wall. Side wall contains a small cut, 2 mm deep, roughly 1.5 mm wide, which will be used to support front panel. That's where the inner edges from SVG come in handy: extrude outer edge (12 mm should be enough space to diffuse light from LEDs), extrude middle edge by 2 mm, and subtract.

Wall also should have a small cutout on a side for connecting to the controller.

Once wall is ready, it's time for the Voronoi pattern. This actually takes some manual drawing. Pattern imported from SVG is handy, but can't be directly extruded as all the lines are one dimensional. FreeCAD's sketching tool helps here, but care has to be taken to ensure that the pattern overlaps with walls. It won't be possible to print this part, otherwise.

Note the 6 mm gap between lower edge of pattern walls and back of the panel. This way pattern walls block some of the light of LEDs inside a partition, creating nice effect of a light segment.

Finally, front cover is created by extruding the inner edge from SVG. This part could also be 3D printed (standard resin would do nicely), but again, I used laser-cut plexi, 2 mm, this time with 30% opacity.

Design parts have to be cloned by mirroring to form a second wing.

Placing the LEDs

It's all fun, 3D models for wings are ready, but how many LEDs will actually fit in there?

I wanted each segment in the Voronoi pattern generating enough light so that this panel would be a usable light source, but at the same time, it'd be best to try and limit current drawn by the diodes.

I ended up placing 65 LEDs per wing, and frankly, I overdid it. Whole thing would still work with half the amount of LEDs. Oh well.

Some numbers:

  • 65 LEDs per wing, total of 130 in the panel.
  • with 144 LEDs per meter, 43 Watts power draw per meter, single LED consumes ~0.3 W at 5V
  • 130 LEDs would consume 39 Watts.

These numbers will be needed for the next step.

Controller


Schematic and PCB


At first, full disclaimer: power delivery part of the controller could've (and should've) been done better. Right now it's a very simple device, merged from application notes for ESP32 and the voltage stabilizer.

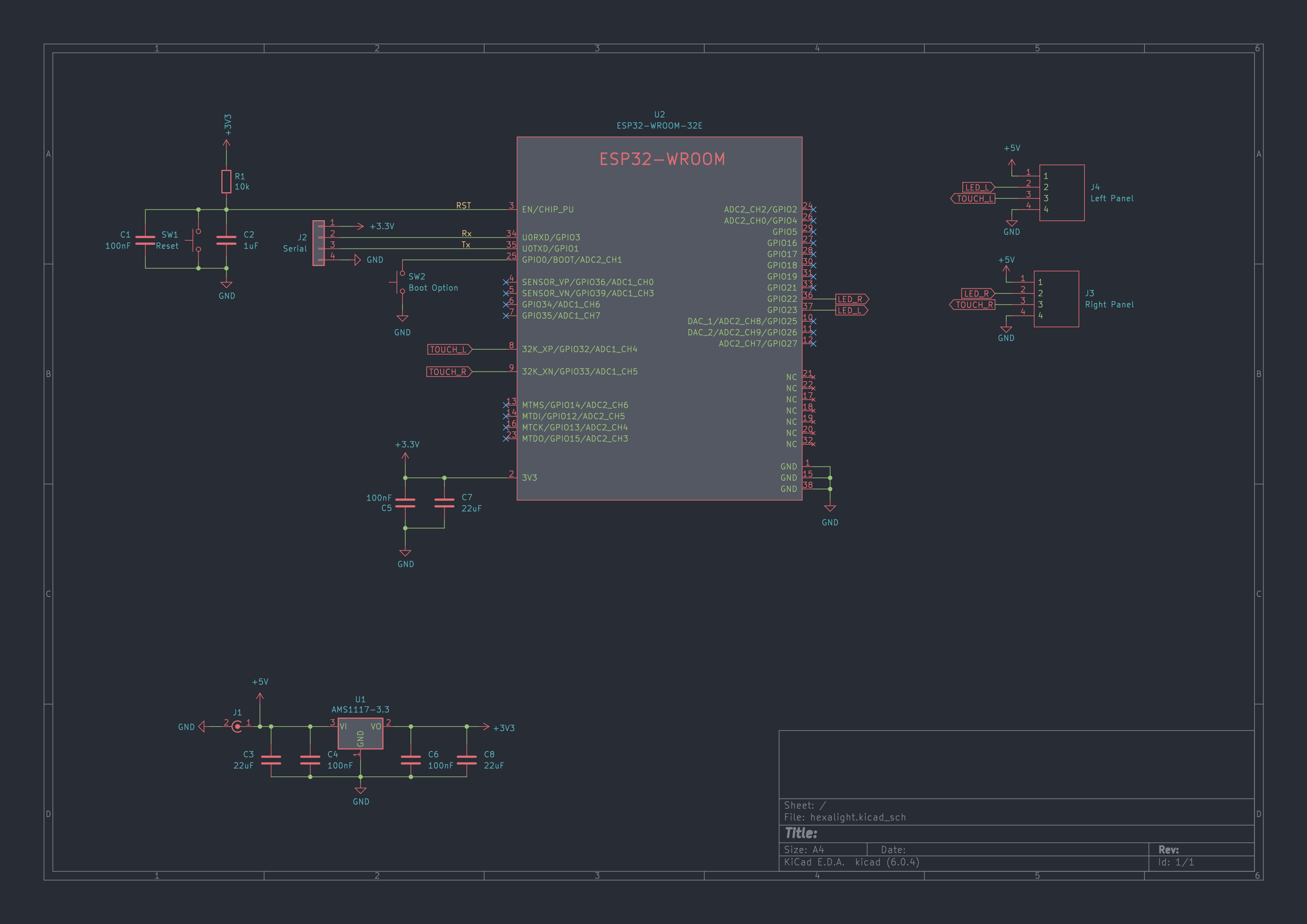

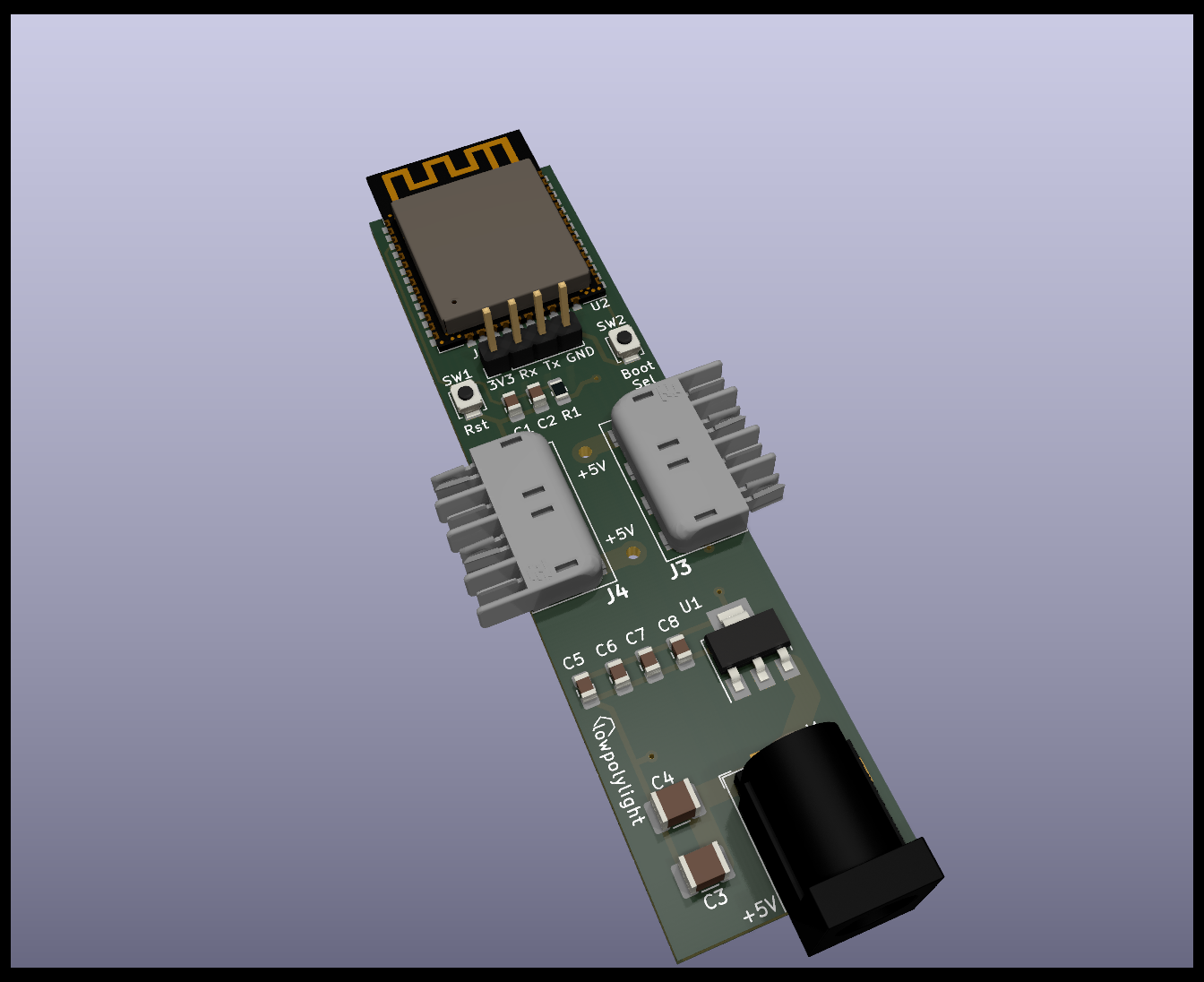

Controller is built around ESP32 IoT module - ESP32-WROOM. These modules are affordable, yet capable, and easy to obtain. Following typical application circuit from ESP32-WROOM's datasheet:

  • two capacitors (C5, C7; 100nF and 22uF) are filtering the 3.3V supply
  • two capacitors filter the 'EN' pin; this pin is also pulled up to 3.3V by 10k resistor
  • push button SW1 connects 'EN' pin to ground, forcing it to reset
  • push button SW2 is used as boot mode selector (holding SW2 while pressing SW1 makes the module fetch code from serial port)

Power to the module is provided by a single AMS1117-3.3 voltage stabilizer. This device is ubiquitous, can be found on almost all low-cost development boards for ESP. Few capacitors connect input and output of the device to ground. AMS1117-3.3 is internally wired to output a 3.3V, so no additional resistors are required. Input to the stabilizer comes directly from 5V power supply.

Given the power-hungriness of selected diodes, PCB traces which supply power to the panels are pretty thick - 2 mm, with 0.8 mm min distance from other nets. Given the current (up to 8 amps!), this net should've been even thicker, or divided into two separate ones.

Connectors

Given the amount of current which could potentially flow to the LEDs, connection between controller and panels really should not be done by your run of the mill goldpins. XST connectors typically used for LED strips would do the trick, but are too bulky to be of use here.

Took some digging, but I finally found TE Connectivity 1-1954289-2, which is perfect for the job. 4 pins are needed:

  • +5V
  • ground
  • LED control line
  • touch sensors

Note that the cutout in panel's wall is just big enough to house this connector.

There's also a standard issue gold pin connector for serial port. Ground and +3.3V nets are routed to that connector, so any type of USB-to-serial converter can be used. Just make sure to not connect +5V to the +3.3V pin of the serial port header. ESP32 will probably survive but no point in taking chances.

However, soldering wires instead using some exotic connector will work just as fine.


Housing

Now, back to drawing board. Err, CAD. Controller can't just hang there between the panels, it needs a casing. Since - as usual - I rushed PCB design and forgot about mounting holes, I decided to design a very simple 3D printed case in which the PCB would rest, held in place by connectors. Cover for the case is laser cut plexi, black this time, in shape of butterfly's body. Cover is wider and longer than the case itself, so it hides all connectors.

Case has also small rectangular cutouts in which case fits. Cutouts are slightly (0.1 mm) smaller in each direction than the mounting pins on the case, so it doesn't really need any glue or screws.

CAD design files (KiCad project with schematic and board design, FreeCAD file) are stored in GitHub: https://github.com/lukasz-tuz/lowpolylight-cad.

Assembly

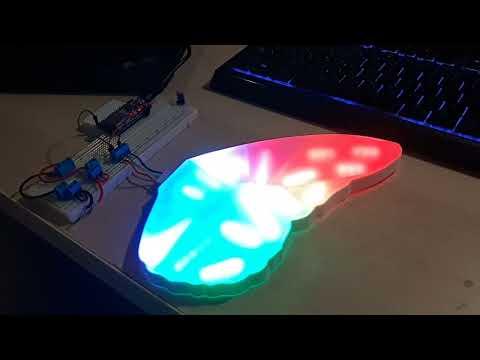

Butterfly LED Panel: Smart Lighting for ESPHome

Manufacturing

I ordered the laser-cut and 3D-printed parts at ajmaker.pl, they offer good quality with reasonable prices (and I am not affiliated with them in any way, I just buy stuff from them :)).

Note on 3D printing the side wall/Voronoi pattern: make sure to use material with the highest temperature resistance you can find. LEDs can get hot!

Controller's PCB (including SMT assembly) was made by JLCPCB, I highly recommend their services. It's super easy to place the order using their online interface - just add gerber files (live preview!), select options for the PCB - base material, number of layers, color (purple PCB, anyone?), thickness, etc. - add to cart and done. If anything's wrong or not clear, their engineers will contact you to resolve things. SMT service is great as well. Lots and lots of parts in stock so it's easy to find matching devices.

Once all the parts arrive, it's time for some assembly.

Preparations

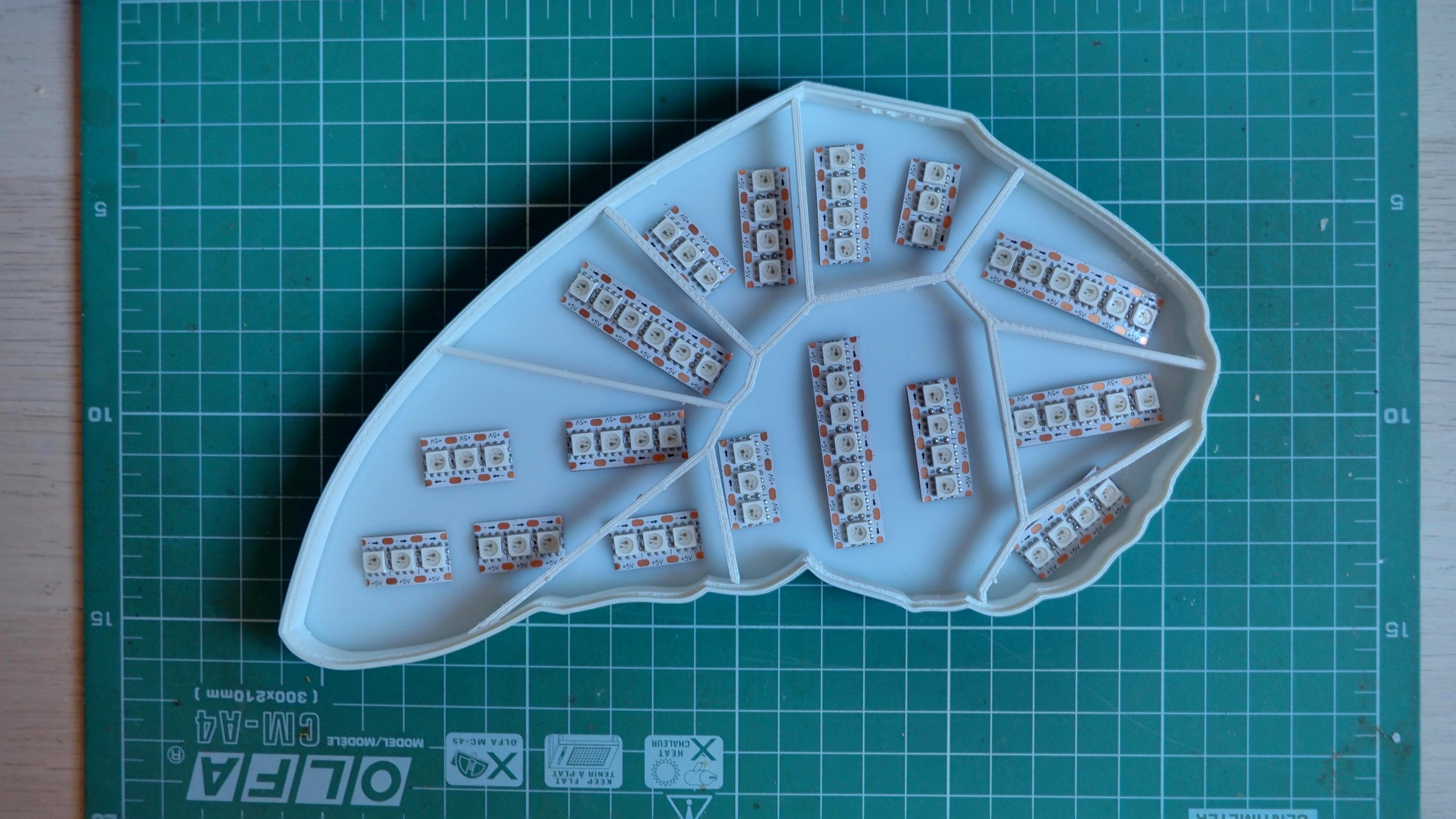

First step here is to cut the LED strip into fragments matching the CAD design and arrange them on the back plate of the panel. When arranging, make sure that LED strip fragments are arranged so that ground and power supply pins are next to each other in adjacent fragments. Otherwise laying down the wires will get complicated. Fragments of the LED strip can be glued to the back plate at this point, it'll make soldering bit easier later on.

Soldering

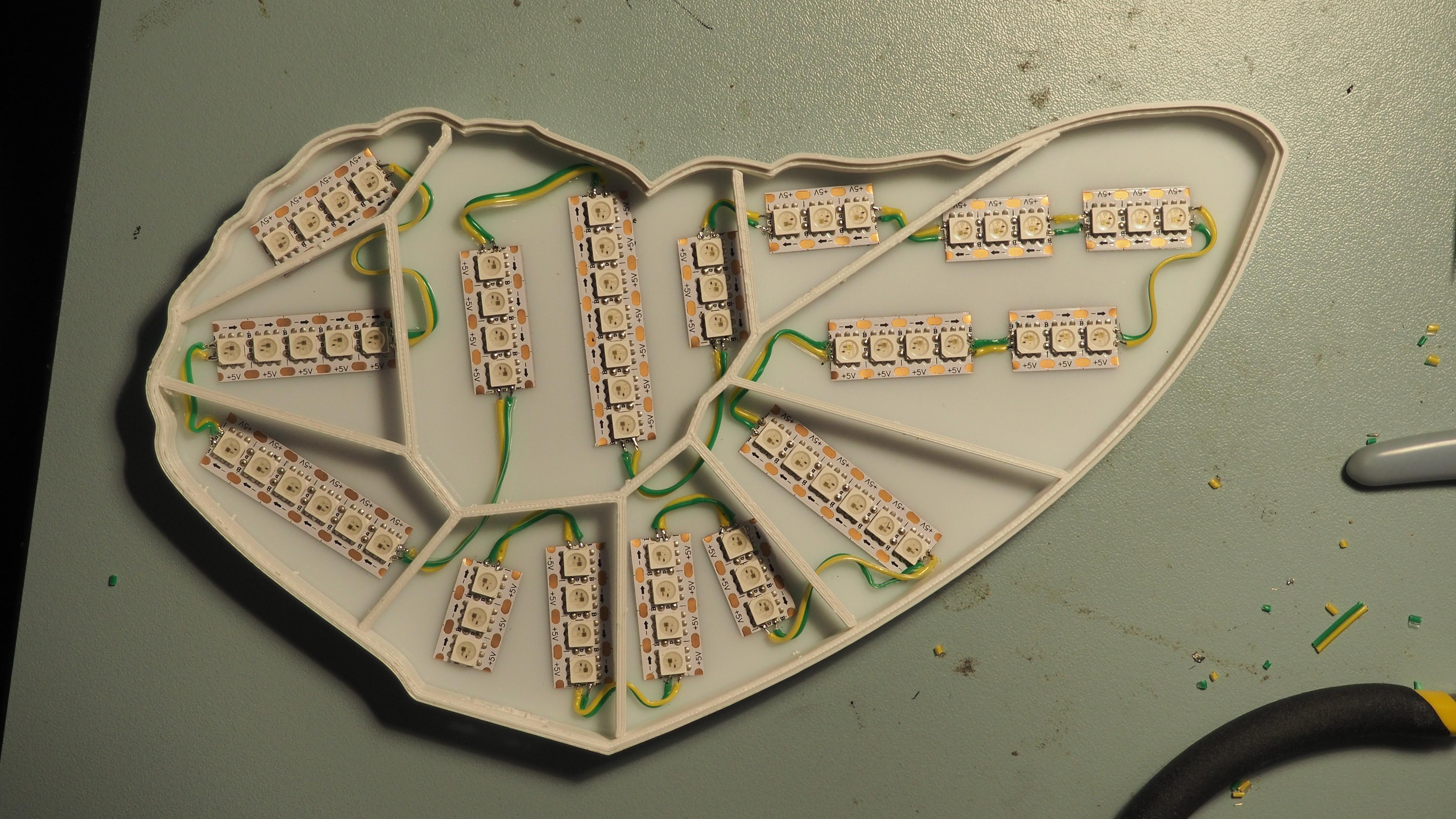

Even though its cut down, it still is a LED strip. Addressable LEDs use just one wire (in case of WS2813 diodes I used - two wires, additional wire serves as backup) for control, but all devices need to be connected in chain on the same wire. So, it is important arrange and solder all the LED fragments as a chain, avoiding any loops. At least on the control pins.

For connecting power and ground pins of LED strip fragments I used standard 22AWG wire (this one, to be exact). Soldering it to the LED strip was sometimes bit difficult, but at least it can withstand high current and not melt... It's also pretty rigid, so it also helps to keep all the LED strip pieces in desired places.

For signal lines, any wire will do. I used thin wire stripped off from a tape; easy to work with and easy to solder.

Connector

Once all the LEDs are in place and all the wires are soldered, it's time for the connector. TE part I picked is meant for SMT soldering, but it has large pads. It's super easy to solder wires to it. Make sure you're soldering them in the right order: power supply and ground on the outer pins, signal lines on the inner.

I found (by trial and error, obviously) that using more elastic wires for power/ground than 22AWG makes it easier to assemble everything later on.

One of the signal pins needs to be connected to the LEDs, the other should be left dangling for the touch sensor. I left around 5-7 cm piece of wire with approx. 1 cm with removed isolation. This wire is supposed to connect to a conductive layer (added in next steps) to form a touch sensor.

At this point it should be safe to assemble back plate with the wall/partition part. I used general purpose glue based on polyurethane-elastomers. It's transparent, creates an elastic bond, and does not dry immediately which gives an opportunity for adjusting alignment of parts. Also, as it turns out, if you need to disassemble a glued part, just cut through the glue with a scalpel, scrub out remains of the old bond, and glue again.

I do not recommend using cyanoacrylate-based glues (e.g., Super Glue). They can dissolve 3D-printed parts.


Diffusing the light

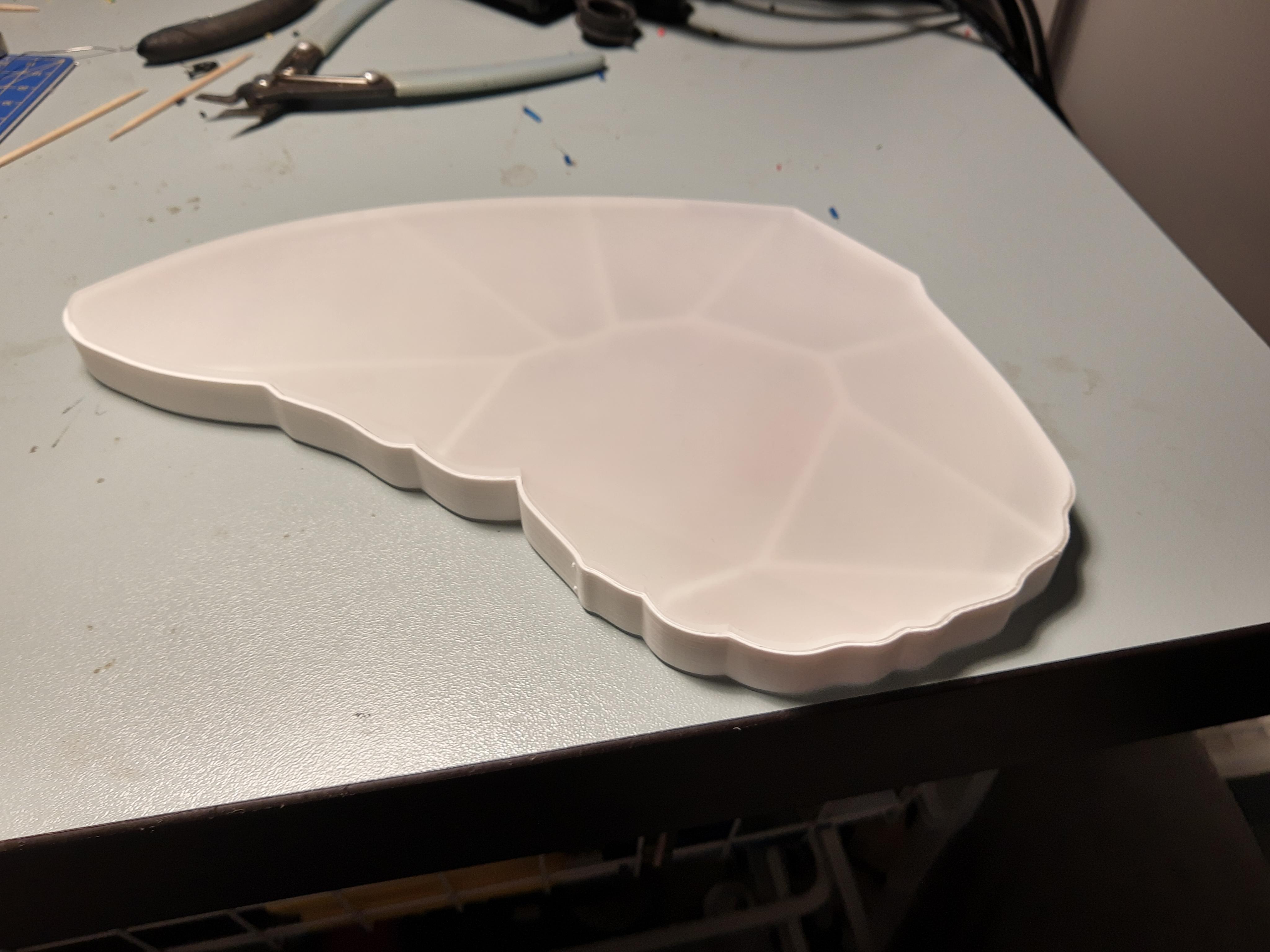

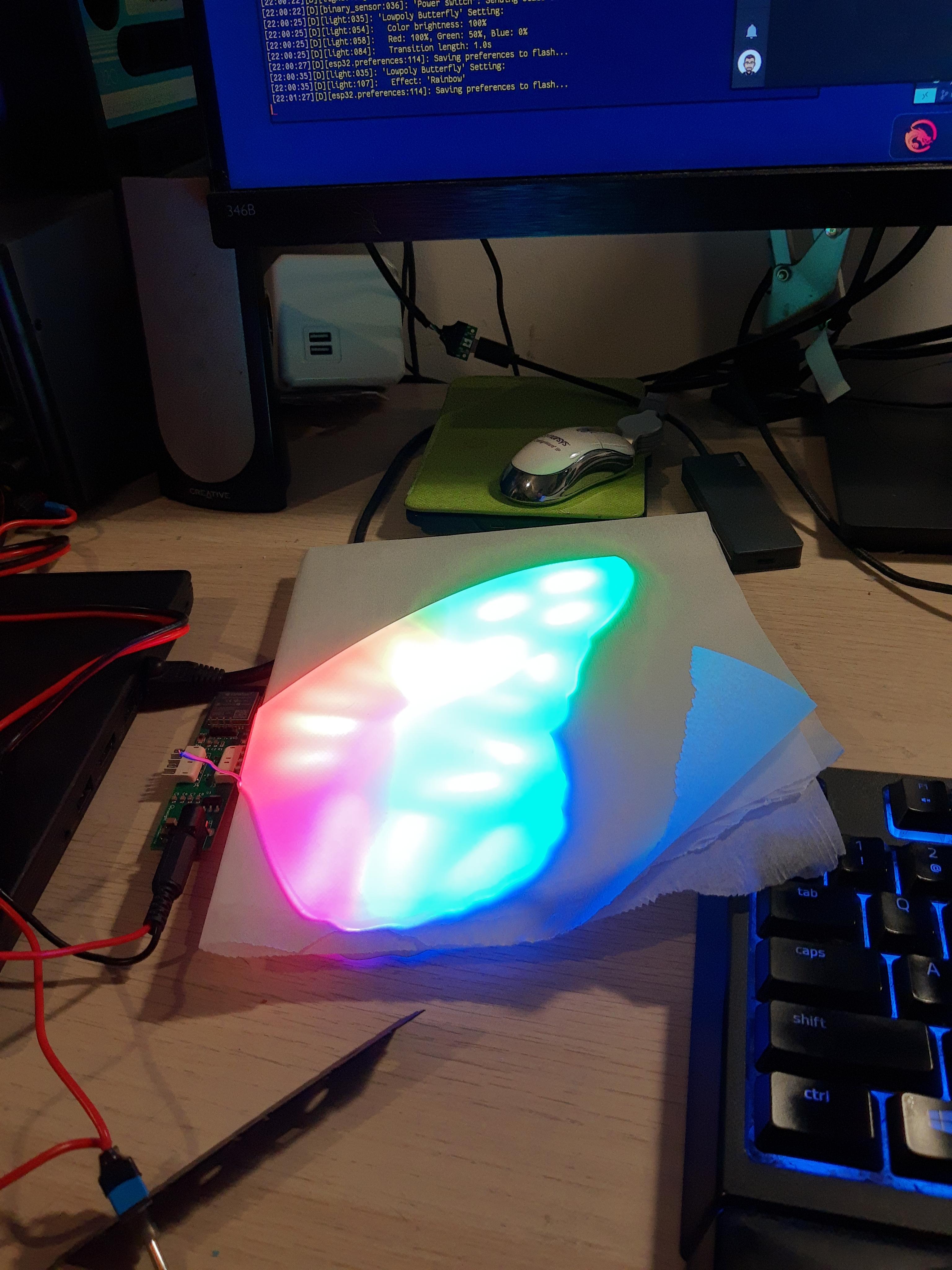

Front of the panel is made of frosted, 30% opacity plexiglass, which diffuses the light on its own. First startups of an assembled panel show, however, that the diffusion effect is not strong enough.

There's a boatload of guides on the internet on how to diffuse light of a LEDs. After some experimenting with what I had on hand, I went with baking paper. It can easily be cut to desired shape, diffuses the light nicely, and is heat resistant (which is good, because the diodes can get quite hot). So, cut two butterfly wing-shaped pieces out of baking paper sheet (use front panel part as template), and place them on the walls of the Voronoi pattern part. Just that, no need to glue it, pin it, or anything. Front plexi will go on top of it and will hold it down in place.

Making the Panel Touch Sensitive

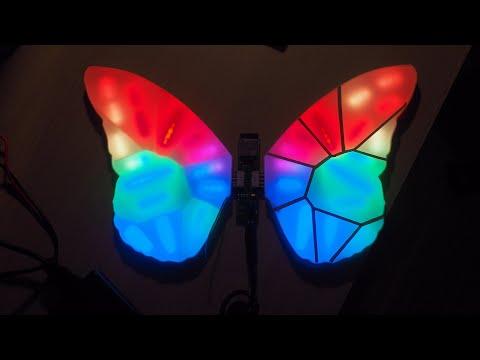

Butterfly LED Panel: Smart Lighting for ESPHome

Remember the dangling wire soldered to wing connectors? Now it's time to put it to work.

My first approach was to use conductive paint to paint the Voronoi pattern on top of the front plexi. Idea was that loose end of the wire would be painted over and held in place by the paint. That did not work because conductive paint does not stick to plexi. I used paper tape to mask the lines and when I pulled the tape off, conductive paint decided to stick with the tape rather than the panel.

Second approach, was to use silver adhesive, conductive tape to lay out Voronoi pattern on top of the front cover. Touch sensor wire would be connected outside of the panel, but simply one of the pattern's edges extended to inner side of the front cover, where it was wrapped over the touch sensor wire.

This was a limited success (see video above); touch controls worked, but there were constant problems with maintaining electrical connection between segments in the pattern. Also, visual effect wasn't exactly what I hoped it would be.

So after some digging around the interwebs I found transparent, conductive plastic sheet. It's easy to cut and provides additional diffusion of light. Once cut, can simply be placed on top of the baking paper, err.. light diffuser. Stripped fragment of the touch sensor wire should be placed on top of the conductive layer (can be taped, but I didn't bother), and front cover placed directly on it and glued to the walls.

And that's it, panel is now touch sensitive.

Software

Software for the controller is built on top of the ESPHome framework. Everything is captured in a short YAML configuration file. Let's go over each section of the configuration.

Full source is published in my GitHub repo: https://github.com/lukasz-tuz/lowpolylight-controller.

Substitutions

substitutions:
name: "kids-room-bedlight"
num_leds: '66'
max_led_idx: '65'
gamma_correct: '1.5'

These definitions hold values which are use in several places throughout the configuration. To make it easier to tweak those values, it's good to have them defined in one place. Basic, run-of-the-mill constants for:

  • name: name of the device which will be used as host name, as well as Home Assistant entity for the light. Here it's "Kid's room bed light" because that's where the panel will be placed
  • num_leds: total number of LED diodes in the device
  • max_led_idx: highest value for zero-based index of LED. Has to equal to num_leds - 1
  • gamma_correct: gamma correction factor applied to lights

ESPHome configuration

esphome:
name: ${name}
project:
name: "hexalight.lowpoly-butterfly"
version: "1.0.0"

esp32:
board: esp32dev
framework:
type: arduino

# Enable logging
logger:

This section contains basic configuration of the ESPHome framework itself. See how previously defined device name is used, using "${name}" syntax?

Project section allows for defining manufacturer (yeah, I know :D) and model name, as well as version.

"esp32" defines values needed for PlatformIO framework on which ESPHome is built upon. Selects board type and low-level firmware framework - operating system and set of libraries to use. In this case, Arduino is used to fuel the code.

API and interfaces

# Enable Home Assistant API
api:

ota:
password: !secret ota_password

wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password

# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Lowpoly-Butterfly"
password: !secret ap_password

captive_portal:

# web_server:
# port: 80

# esp32_improv:
# authorizer: none

This part enables ESPHome awesomeness:

  • api: adds support for the Home Assistant interface, making the device magically appear in the home automation
  • ota: enables Over-the-air firmware updates. Only first programming needs to be done using serial interface, any subsequent update will go through Wi-Fi
  • wifi: turns on Wi-Fi stack, allowing the device to connect to network specified by ssid using provided password
  • ap: enables fallback hotspot, AKA captive portal. If connection to selected network fails, device will set up its own hotspot, using ssid and password provided here
  • captive_portal: (requires enabled access point); when Wi-Fi connection fails, device will display a web page to re-configure Wi-Fi
  • web_server: (optional) when enabled, device will be accessible using web interface, allowing for remote control even without Home Assistant setup
  • esp32_improv: (optional) when enabled, device will use ESPHome implementation of the Improv standard to provision ssid and password. So, no need to type them in configuration file.

Notice the "!secret some_password" syntax in all the places which require providing a password. Using the "!secret" tag, ESPHome scripts refer to a separate file - secrets.yaml - to look for the password. This way ESPHome config files can be shared over the internat without exposing passwords to own Wi-Fi. Of course that's assuming you don't file the secrets.yaml...

Peripherals configuration

Now, configuration of ESP32's peripherals.

switch:
- platform: restart
name: "Restart Light"

This part defines a virtual reset button. Switch will be visible as an entity in Home Assistant and web interface (if enabled).

esp32_touch:
 setup_mode: false
 iir_filter: 15ms
 low_voltage_reference: 0.5V
 high_voltage_reference: 2.7V
 voltage_attenuation: 1.5V

'esp32_touch' enables code for touch sensor pads built into the ESP32 device. ESP32's touch pad peripheral continuously charges and discharges the touch pad (in this case - the conductive plastic sheet under front cover). Changes in the charge/discharge timings indicate change of capacity of the touch pad. And capacity of the touch pad changes when it is touched.

  • setup_mode: when set to true, touch pad is in setup mode, in which results of the touch pad measurements are periodically printed out to the log. Useful when building the device, because it makes calibration of the touch pad super easy
  • iir_filter: enables Infinite Impulse Response filter to be applied to the touch pads. Can increase accuracy, and turned out to be helpful for making the touch panel work
  • low_voltage_reference, high_voltage_reference: reference values for voltage used by ESP32 touch pad subsystem to analyze the charge/discharge pattern. Used to tune the performance of touch panel
  • voltage_attenuation: value of the voltage attenuation to use for the charge cycles. Based on my observations, increasing this value increases resolution of the touch pad, making it easier to determine a threshold for on/off values

Lights

As probably expected, configurations related to LEDs themselves consumes most of the configuration file. Let's go over it in steps.

light:
 - platform: fastled_clockless
   gamma_correct: ${gamma_correct}
  restore_mode: ALWAYS_OFF
  rgb_order: GRB
  chipset: WS2813
  pin: GPIO22
  num_leds: ${num_leds}
  name: "Right Wing"
  id: right_wing
  internal: true

 - platform: neopixelbus
   gamma_correct: ${gamma_correct}
  restore_mode: ALWAYS_OFF
  type: GRB
  variant: WS2813
  pin: GPIO23
  num_leds: ${num_leds}
   name: "Left Wing"
  id: left_wing
  internal: true

First, we have to define low-level libraries to interact with LEDs. These map to physical layout of the diodes. Note that two different libraries are used: FastLED Clockless and Neopixelbus. These libraries provide similar set of features to control addressable LEDs. Two different are used because code wouldn't compile when the same library was used for two separate sets of lights. Probably something related to use of global variables, but I wasn't really inclined to debug this; perhaps another day. For now, one library is used for left wing, the other for right wing.

Both libraries have a very similar set of configuration options:

  • platform: fastled_clockless or nexopixelbus selects underlying library to use for the light entity
  • gamma_correct: gamma correction factor to apply to this light
  • restore_mode: defines how light should behave on power up. ALWAYS_OFF is a safe bet to make sure light won't randomly turn on when power comes back from outage or when the devices encounters a software bug and resets in the middle of the night
  • rgb_order or type: defines order in which colors in LED are to be defined; if defined incorrectly, configuration will not match actual color channel, and setting values for red would change another color in the LED.
  • chipset or variant: select model of the RGB LED diode used in the LED strip
  • pin: pin in ESP32 module to which LED strip is connected
  • num_leds: number of LEDs in connected to selected pin
  • name: (optional) name for this light; typically, that's the name that would be displayed in Home Assistant
  • id: unique identifier for the light used within the code
  • internal: set to true means that this light will not be exposed externally, in Home Assistant or web interface

Configuration above defines two separate lights but panel should work as a single light. Also, both lights are set as internal, so there wouldn't be any light to control anyway. That's why on top of the physical description, as above, a logical definition needs to be created.

- platform: partition
  name: ${name}
  id: lowpoly
  restore_mode: ALWAYS_OFF
  gamma_correct: ${gamma_correct}
  segments:
   - id: right_wing
     from: 0
     to: ${max_led_idx}
   - id: left_wing
     from: 0
     to: ${max_led_idx}
  effects:
   - addressable_lambda:
     name: "Reading Light"
     update_interval: 1s
     lambda: |-
      it.all()= Color(255, 170, 160);
      return;
   - addressable_rainbow:
      name: "Rainbow"
     width: ${num_leds}
   - addressable_twinkle:
      name: "Twinkle"
   - addressable_lambda:
      name: "Voronoi"
     update_interval: 1ms
      lambda: |-
...

Logical definition uses ESPHome's light partition feature which allows for merging several physical lights into single, controllable light entity (it also allows for splitting a single physical light into several logical ones).

Some options are common to all light entities (name, id, restore_mode, ...), so let's skip them here.

  • segments: definition of segments used by this partition. Defines which physical lights and which LEDs in those lights should be used for the partition. Here, all diodes from both wings are selectd
  • id: identifier of physical light
  • from and to: range of LED indices to use for the segment
  • effects: defines list of light effects (also known as scenes, animations, etc.) for the logical light entity
  • addressable_lambda: uses lambda expression for definition of an effect
  • name: name of the effect
  • update_interval: defines how often should the lambda expression be executed
  • lambda: body of the lambda expression
  • addressable_rainbow: creates effect of a floating rainbow by cycling through entire RGB space on each LED
  • addressable_twinkle: randomly twinkles individual diodes, creating effect of blinking stars

Some effects are defined by raw C++ code. The "Reading Light" effect is simple.

it.all()= Color(255, 170, 160);
return;

This sets all diodes to a specific color. I picked this color because it's easy on the eyes, bit pinkish, and reduces strain when reading.

"Voronoi" effect is more complex. I wanted an effect which lights up each partition in the Voronoi pattern individually, and smoothly transitions colors for each of the partition. Also wanted to make sure that colors used will resemble an actual monarch butterfly.

Lambda expression for this effect is evaluated every 1 ms.

// Time, in miliseconds, needed for each segment to transition to new random color
static const uint16_t segtrans = 200;

// Number of segments
static const uint8_t nsegments = 18;

// End indices for each segment
static const uint8_t ranges[nsegments] = {7, 14, 20, 33, 36, 50, 54, 59, 65, \
72, 79, 85, 98, 101, 115, 119, 124, 131};

// Number of steps in each transition
static const uint16_t steps = segtrans / 1;

static uint16_t progress = 1;

// Base, starting color
static uint8_t start_colors[nsegments] = {127};
static uint8_t target_colors[nsegments] = {0};

static float segcolors[nsegments] = {0};

Note how all the configuration constants/variables are defined as static. This keyword makes these variables persistent over subsequent evaluations. Values set to those variables in one evaluation are kept for the next one.

if (initial_run || progress == steps) {
// Generate random new target color for each segment
random_bytes(target_colors, nsegments);
// Clip values
for (uint8_t ii = 0; ii < nsegments; ii++) {
target_colors[ii] = min(target_colors[ii], (uint8_t)164);
}
progress = 1;
}

This code generates random target color for each partition (AKA segment) in the Voronoi pattern.

uint8_t start = 0;
uint8_t end = 0;

for(uint8_t ii = 0; ii < nsegments; ii++) {
end = ranges[ii] + 1;
float k = (float)(target_colors[ii] - start_colors[ii]) / (float)steps;
segcolors[ii] = start_colors[ii] + k * progress;
it.range(start, end) = Color(220, (uint8_t)segcolors[ii], 0);
start = end;
}
progress++;

if (progress == steps) {
memcpy(start_colors, target_colors, nsegments);
}

return;

And finally, loop that makes gradual color transition for each partition.

Touch controls

Touch pad controls use binary sensor implementation in ESPHome.

binary_sensor:
- platform: esp32_touch
name: "On/Off"
pin: GPIO32
threshold: 1150
filters:
- delayed_on_off: 50ms
on_click:
- min_length: 800ms
max_length: 5000ms
then:
- light.turn_off: lowpoly
- min_length: 50ms
max_length: 700ms
then:
lambda: |-
...
  • platform: defines which physical peripheral should be used for the sensor; here it's 'esp32_touch'
  • name: name of the switch which will be used in Home Assistant/web interface
  • pin: physical GPIO which is used by the sensor. This corresponds to GPIO to which the touch sensor wire is connected
  • threshold: ESP32 touch pad peripheral returns integer values; the lower the value, the higher probability that touch pad was touched. Binary sensor will change the state to 'On' when readings from the touch pad drop below the threshold defined here
  • filters: defines filters to use for raw values incoming from the hardware
  • delayed_on_off: creates a slight delay between publishing any state change ('Off' to 'On' or vice versa). Useful for filtering noise in readings from the touch pad
  • on_click: defines behavior of the touch pad when touched
  • min_length and max_length: specify duration of time touch pad needs to be activated before taking an action
  • then: defines action to be taken

Code here implements two modes of operation:

  • when "On/Off" panel (left wing) is touched for anywhere between 800 and 5000 ms, light is turned off by invoking action:
light.turn_off: lowpoly
  • when "On/Off" panel is touched for a shorter time (50 - 700 ms), action defined by lambda is taken
      static const int levels = 5;
      static const float brightness_levels[levels] = {0.0, 0.15, 0.45, 0.8, 1.0};

      static int current_level = 0;

      current_level = (current_level + 1) % (levels);

      auto effects = id(lowpoly).get_effects();
      std::string effect_name = id(lowpoly).get_effect_name();
      if (effect_name == "None") {
       effect_name = effects.front()->get_name();
      }

      if (current_level > 0) {
       auto call = id(lowpoly).turn_on();
       float brightness = brightness_levels[current_level];
       call.set_brightness(brightness);
       call.set_effect(effect_name);
       call.perform();
      }
      else {
       auto call = id(lowpoly).turn_off();
       call.perform();
      }
      return;

This action makes the light cycle through specific brightness levels, while maintaining activated effect. Each touch will make the light go to 15%, 45%, 80%, 100%, and 0% (lights off) of the brightness.

For the right wing, configuration is similar:

 - platform: esp32_touch
   name: "Toggle Effect"
  pin: GPIO33
  threshold: 1050
  filters:
   - delayed_on_off: 100ms
  on_click:
  - min_length: 800ms
    max_length: 5000ms
    then:
     - light.turn_off: lowpoly
   - min_length: 50ms
    max_length: 700ms
    then:
     lambda: |-
...

Long touch will turn the light off, short will activate a lambda which cycles through defined light effects:

auto call = id(lowpoly).turn_on();

auto effects = id(lowpoly).get_effects();
std::string name = id(lowpoly).get_effect_name();

uint8_t i = 0;

if (name != "None") {
// There's an effect in progress, move to the next one
for (auto e : effects) {
++i %= effects.size();
if (e->get_name() == name) {
break;
}
}
}

call.set_effect(effects[i]->get_name());
call.perform();
return;

And that's it! Compile and upload using ESPHome, and the butterfly light panel should light up.

Final Thoughts


There are definitely some improvements to be had with this design:

  • overhaul the power delivery part of the controller
  • see if placing the LEDs vertically along the edges of Voronoi pattern would improve light diffusion effect
  • make the touch panels more robust

Still, I'm super happy with the result. Maybe next version of the panels will see those improvements. I still have a slanted wall with no reading light in my own bedroom...
