Building a Replica Predator Costume

It was August 2007 and I was just beginning to incorporate electronics in costumes-

Predator costumer Carl Toti contacted me via the Hunter's Lair, wanting to know if it was possible to add animatronics to a replica Predator backpack and cannon he was creating. I believed it could be done so we began collaborating on the project and we've been friends ever since.

Carl is an extremely talented sculptor and an absolute perfectionist. He didn't just want to make a replica backpack and cannon- he wanted them to be as accurate and faithful to the original movie items as possible- which proved to be a tall order. The Predator backpack and cannon are pretty complex movie props and there really wasn't a lot of documentation available concerning how the original props were made, let alone any really good close up photos of the original props. Carl would spend nearly five years on his quest for Predator nirvana, gathering bits of information as it became available, constantly re sculpting to make it more accurate to the original. But there were always areas of his sculpt that were questionable because he could never find photos of the original backpack and cannon taken from the right angles that would show him what he needed to see.

Then..... pay dirt!

Fast forward a few years. Carl got a lucky break- two individuals happened to be in the right place at the right time. Art Andrews (he runs The Replica Prop Forum- better known as The RPF,  as well as The Hunter's Lair and The Dented Helmet) and friend George Frangadakis were able to obtain multiple photos of the original props and supply them to Carl. The photos revealed an enormous amount of detail he hadn't seen before and while it would require an extensive overhaul of his sculpt, it would be worth the effort.

When I received the backpack I couldn't believe it- it really was one of the most impressive prop replicas I had ever seen. The photos just don't do it justice.

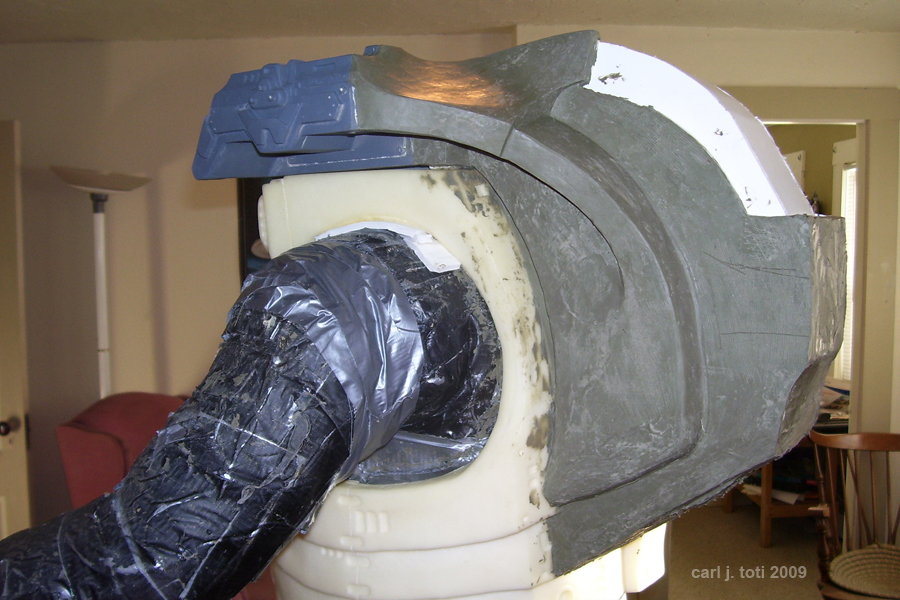

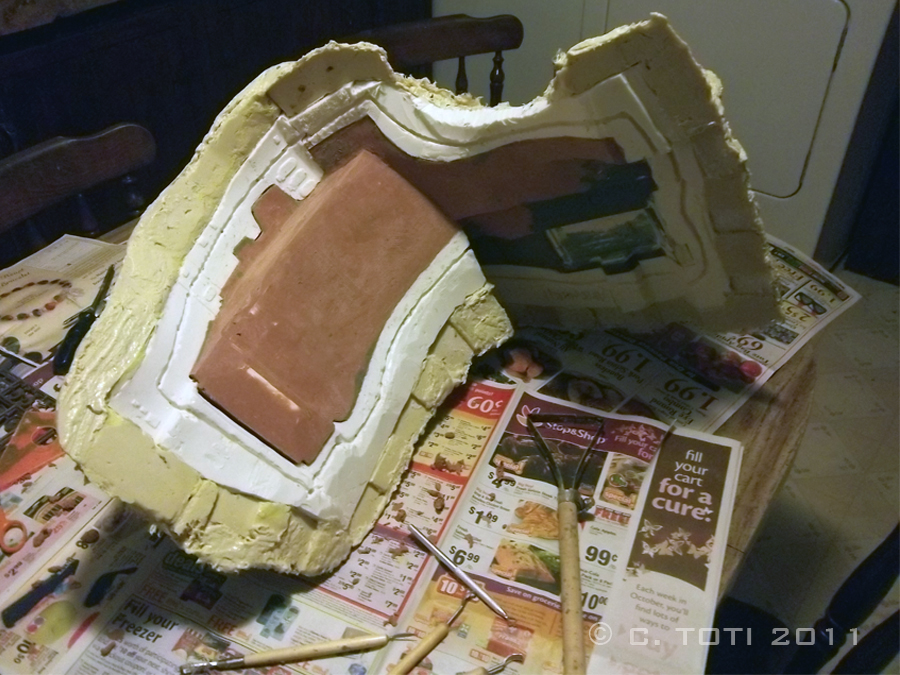

Here's how Carl created the backpack-

Tools and Materials

Crock pot
Clay sculpting tools
Foam core
Home built roto-caster

Now Carl needed a new cannon to go with his awesome backpack-

Carl had already made a cannon- but armed with his new reference material he knew it could be much better. There was one issue with the new cannon reference material- something wasn't right. One side of the cannon looked misshapen and looked like it was missing details. It clearly didn't look right and Carl ended up using his best judgement to determine how it should have looked. This turned out to be a good move.

At the 25th Predator anniversary, Carl struck up a conversation with Richard Landon. Richard was one of the members of the Stan Winston Studios crew that worked on the original film. Carl had presented members of the original film crew with a trophy made from his then new cannon. Richard was really impressed by the detail and Carl asked him about the misshapen movie cannon. Richard laughed and told him a story about how they were filming the movie in the jungle and it was extremely wet at the time. As it turns out, the movie cannon was fitted with squibs that were fired off in sequence to simulate cannon fire during filming. Because it was so wet, multiple squibs happened to fire all at once- kablamm! The entire side of the cannon had blown apart!

The crew spent a lot of time scouring the jungle floor for the cannon remains and having found the missing pieces, Richard got some pantyhose and superglue and pulled the pantyhose over the reconstructed cannon and coated the assembly with superglue to hold it together. A quick paint job and they were back in business. So that's why the movie cannon looked misshapen on one side.

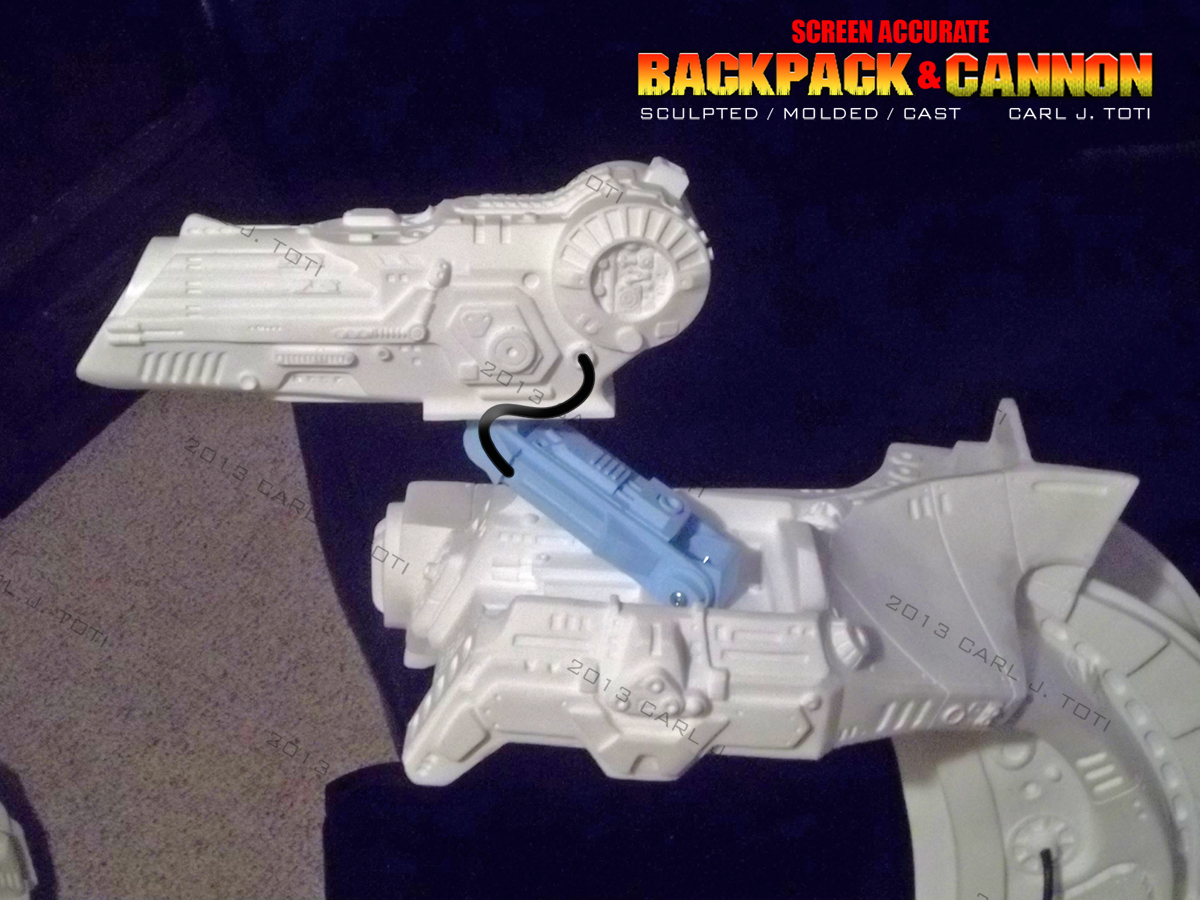

Creating the cannon-

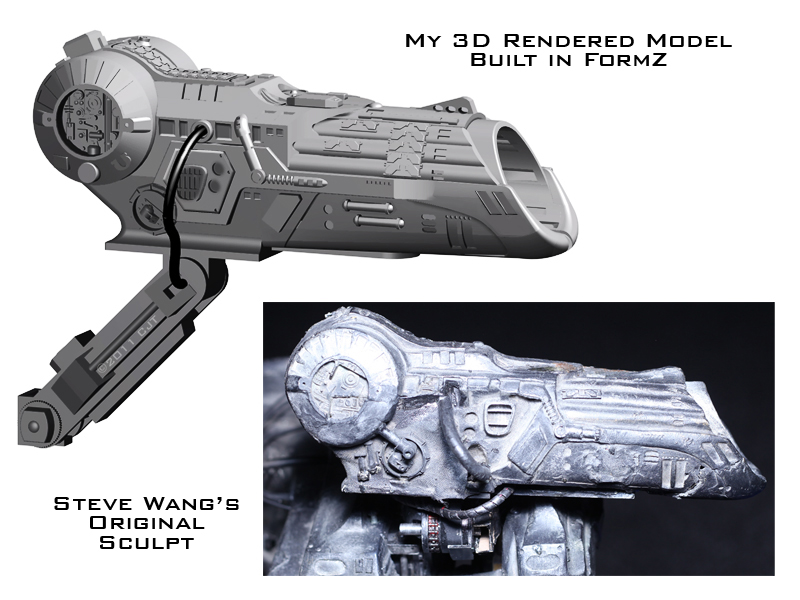

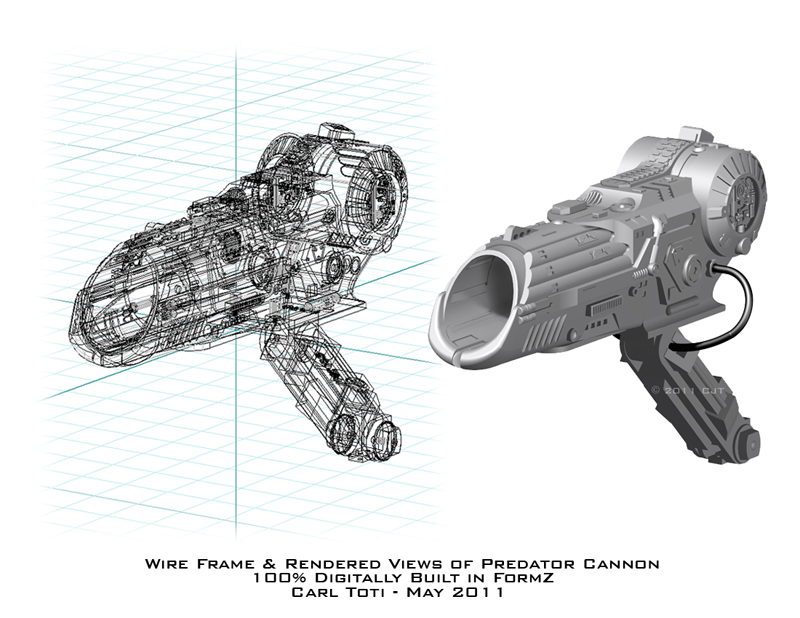

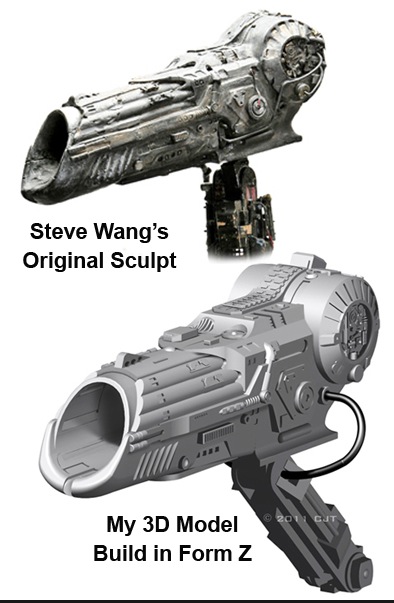

Whereas the previous cannon had been sculpted by hand, the new cannon and cannon arm would be modeled on the computer and printed using a 3D printer. Carl's friend Scott Andrews runs LightBeam 3D  and was able to help him prep the model for printing and then print it in a proprietary UV cured plastic paste using his EnvisonTec Perfactory 3D printer. Scott also printed some of the small "greeblies" for the backpack sculpt.

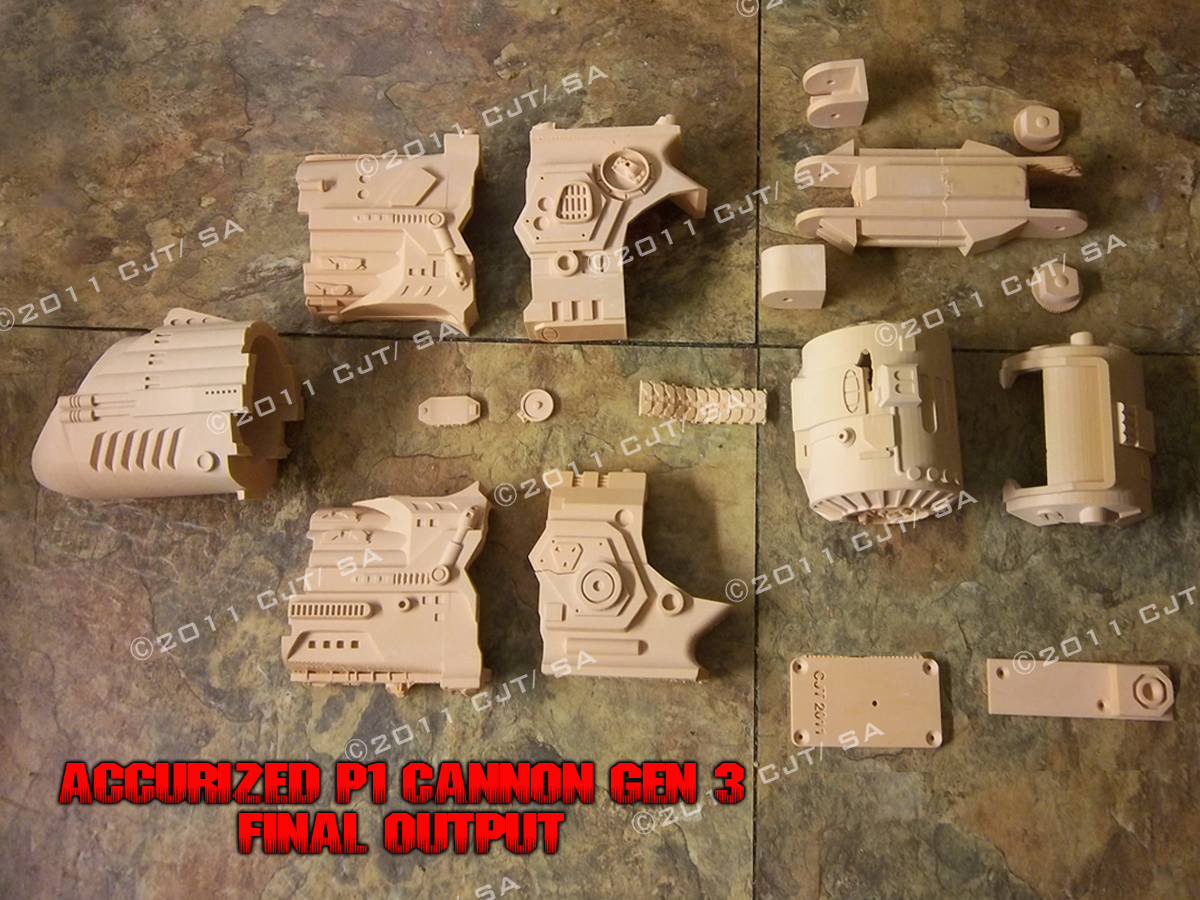

Carl then assembled the printed cannon model, smoothed the seams and molded it for resin casting using Smooth On Mold Max tin based silicone in a box mold. A box mold is a one piece mold where the item to be molded is placed in a box and silicone molding compound is poured around it. If an item is really small the box mold can be poured in one shot and the model can be cut out. In this case the cannon is a too big for this so the mold is made in two halves. A clay bed is built up around one half of the cannon and piping was run around it to form a mold lock and then silicone molding compound was then poured over the cannon. After the silicone has cured the clay is removed and a mold release is applied to the first mold half. Now silicone is applied over the second half of the mold and allowed to cure. Once the silicone has cured the mold can be split in two and the model is removed. Now resin is poured into the mold and is slush cast- the mold is moved around in multiple directions so the resin forms an even coating inside the mold.

Because the sculpting, molding and casting process was much more complex for the backpack the cannon was actually finished well before the backpack.The backpack molds were being finished up around the same time that everything was coming together for the Jamie Hall Homage Suit Project. The project had been on the back burner from the previous year and no one was really sure if it was going to come together. Now it was officially a "go." This is when I received a call from Carl asking me if he was able to get the castings to me would I be able to add the animatronics in time? I think I thought about it for maybe five seconds- I said ship it over as soon as you can.

This meant that once I ordered and received the necessary electronic and mechanical parts I had four nights and one day to build the animatronic mechanism and electronic control system with sound effects.

What had I just gotten myself into...

Adding a brain and sound effects-

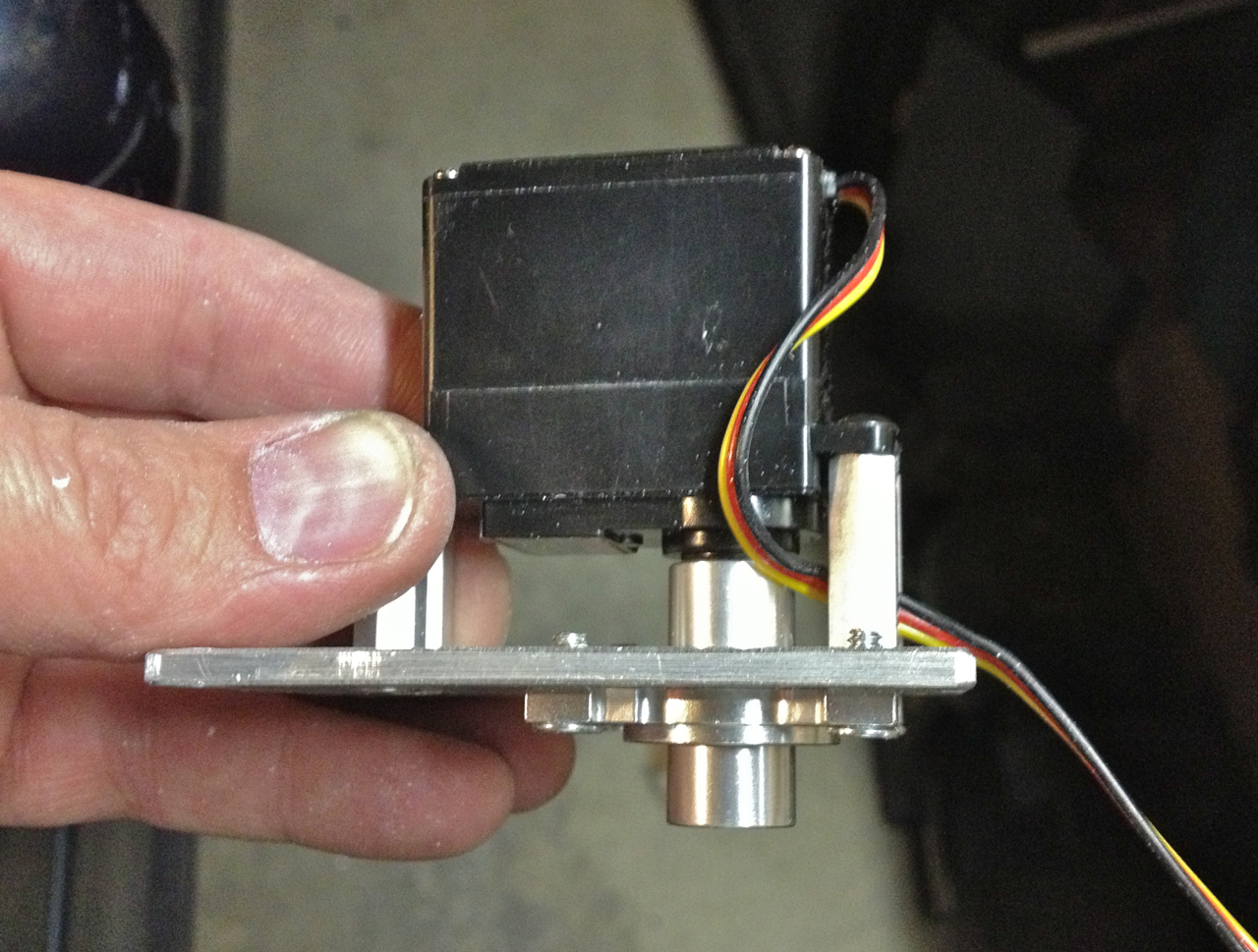

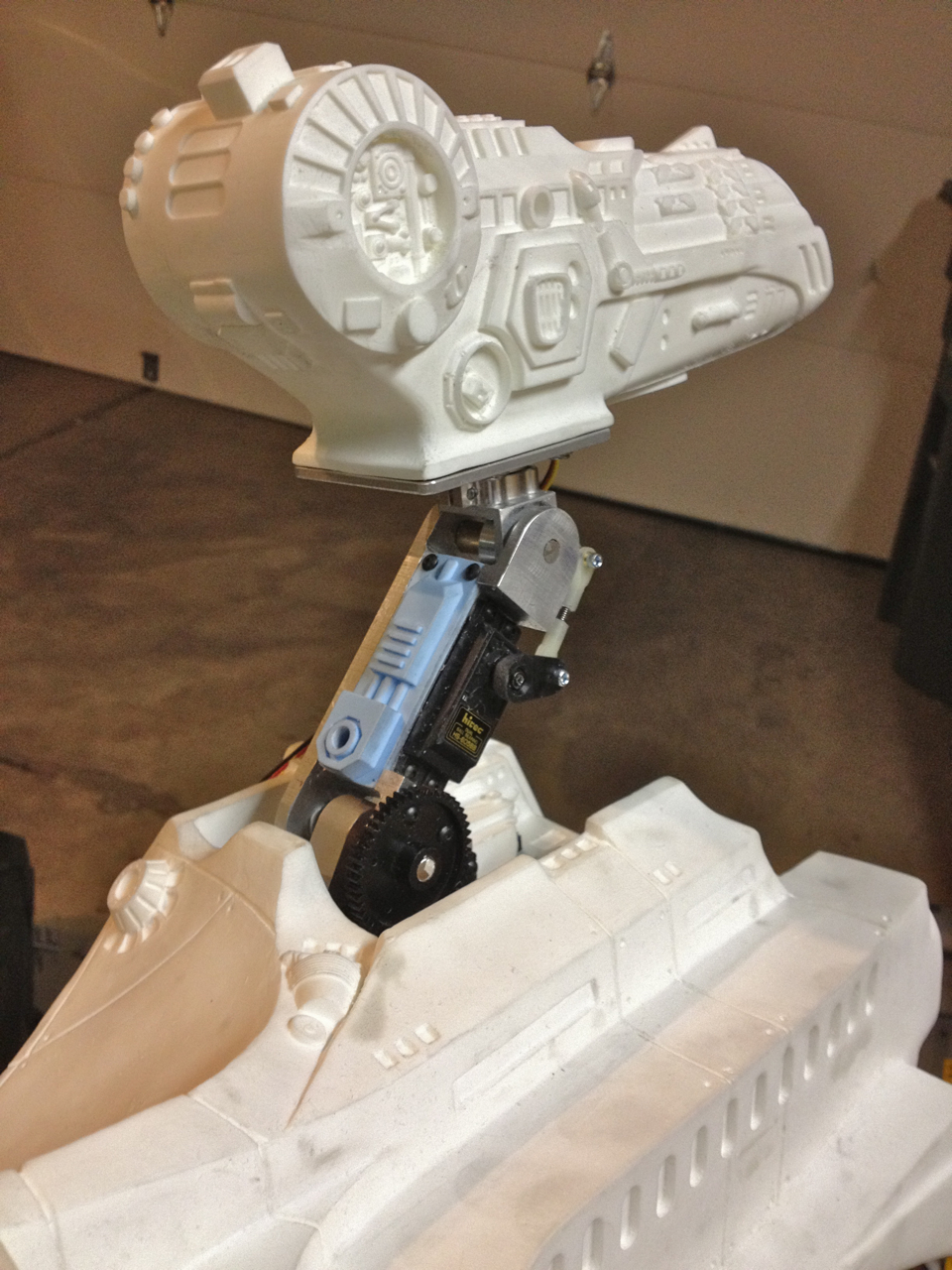

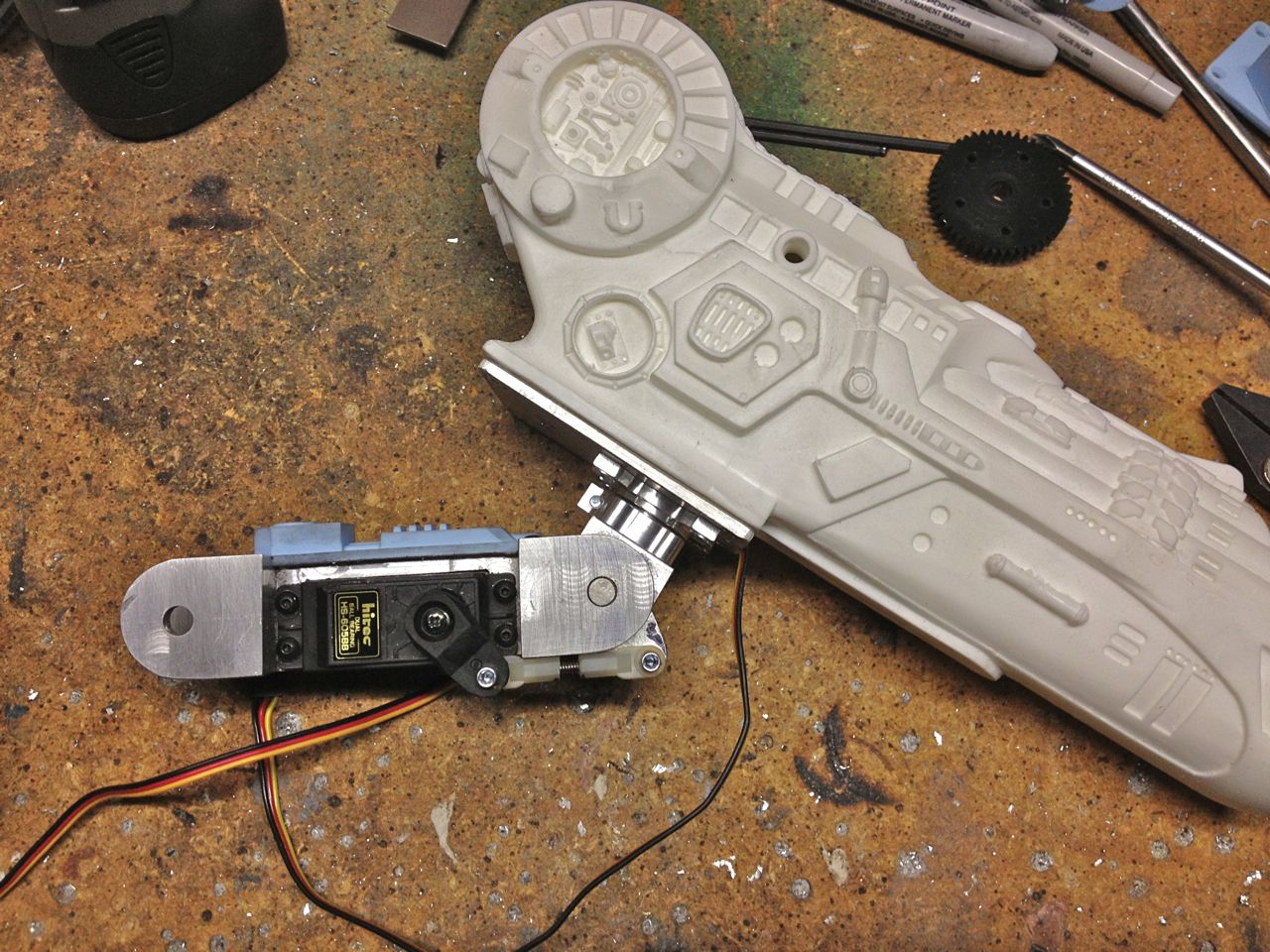

Now that I had the mechanics done I needed to make it move. I used an Arduino Pro Mini to handle the inputs and servo movements and and an Arduino Pro with an Adafruit Wave Shield to handle the sound effects. There is a small board that has three transistors on it- the transistors turn on the helmet laser sight and trigger the cannon LED and sound effect. The board also has a 3.3V regulator to provide power for the helmet laser sight.

The cannon LED is a bright blue Luxeon that is driven by a constant current "Buck Toot" driver. In order to avoid any servo noise issues the Arduinos are powered by a  9V battery and everything else is powered by four "AA" alkaline batteries. I could have used NiCad, NiMH or LiPo batteries but since we were on such a tight schedule I didn't want the guys to have to worry about specialized battery packs or long charge times- they could get replacement batteries in any grocery store.

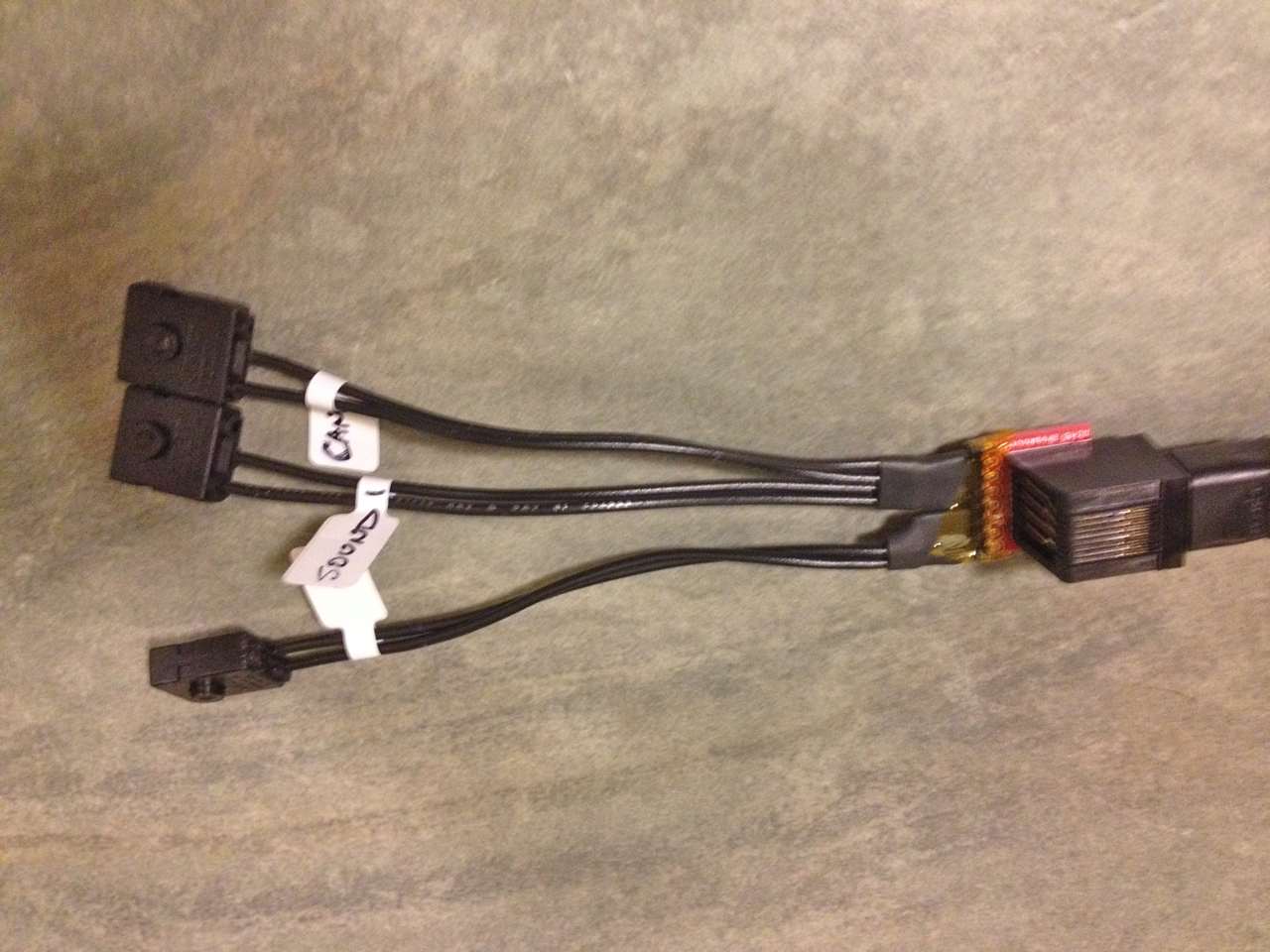

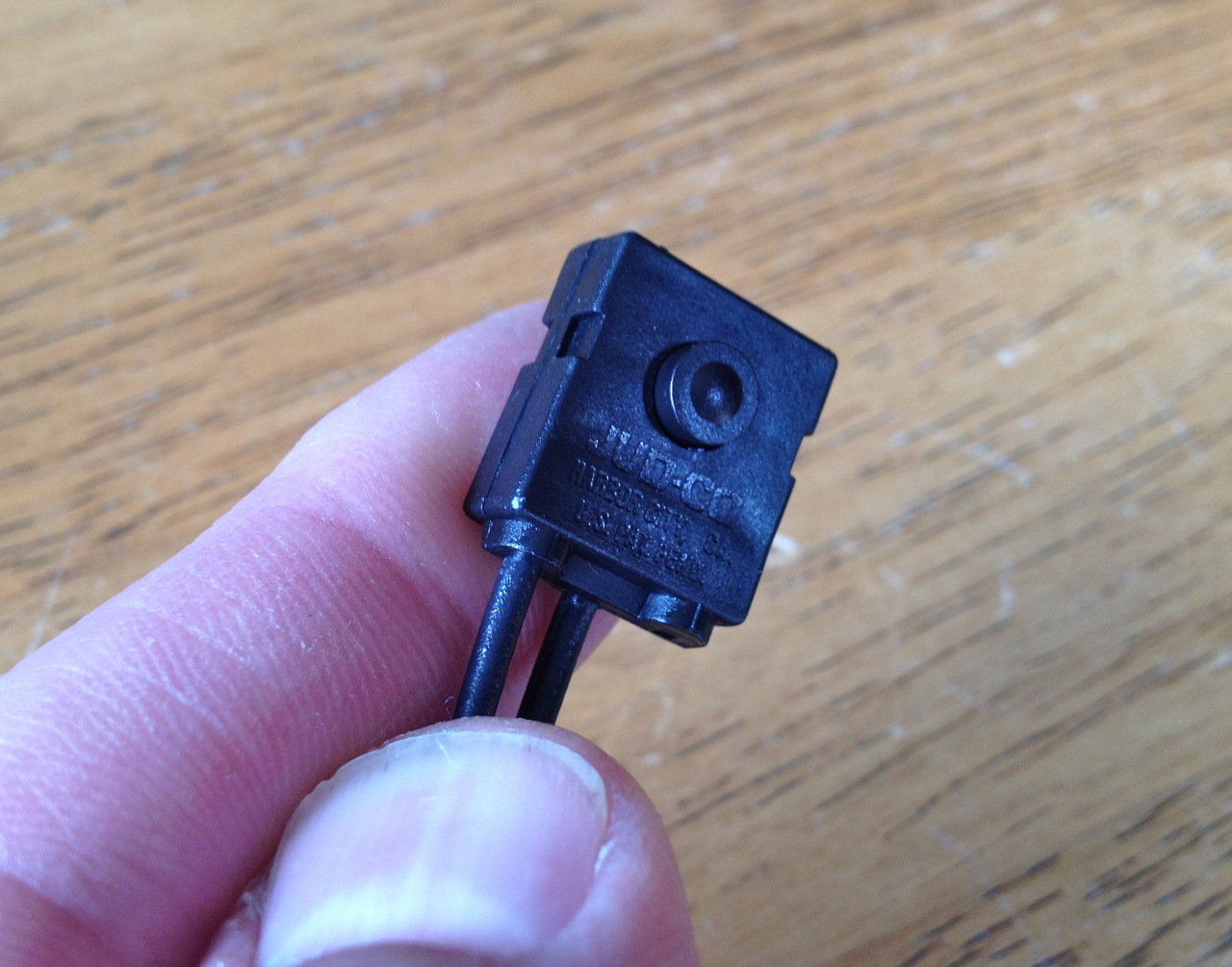

Control inputs would be three small finger tip tactile switches. The switches are on/off so if Jamie pushed one of them a sound would repeat itself over and over until it was turned off. Likewise the cannon would continue to move through it's programmed sequence until it was turned off. The finger tip switches were connected to the backpack using an ethernet cable that would be run down the length of Jamie's arm and the switches would sit inside the glove fingers.

The electronics were mounted to a 1/8" thick Aluminum plate using plastic standoffs and 4-40 screws.

The complete wiring diagram is shown and I've included the sound files- one sound is for the cannon, one is the Predator "clicking" sound and the last sound is the Predator roar.

The Arduinos are programmed using a FTDI basic breakout. I wrote up a guide to programming the Arduino here- https://www.instructables.com/id/Arduino-animatronics-make-your-awesome-costumes-m/step3/Getting-started/

Here's the code for the Arduino Pro Mini- this controls the cannon movements:

 #include <Servo.h>  // include the servo library

   Servo servo1;  // creates an instance of the servo object to control a servo
   Servo servo2;
   Servo servo3;


   int servoPin1 = 9;  // control pin for servo
   int servoPin2 = 8;
   int servoPin3 = 7;


   int ledPin1 = 11;  // control pin for LED
   int ledPin2 = 12;  // control pin for laser sight
   int soundPin1 = 10;  // control pin for sound board

   void setup() {

   servo1.attach(servoPin1);  // attaches the servo on pin to the servo object
   servo2.attach(servoPin2);
   servo3.attach(servoPin3);

   pinMode(ledPin1, OUTPUT);  // sets the LED pin as output
   pinMode(ledPin2, OUTPUT);
   pinMode(soundPin1, OUTPUT);  // sets the sound pin as output
   digitalWrite(ledPin1, LOW); // sets the LED pin LOW (turns it off)
   digitalWrite(ledPin2, LOW);
   digitalWrite(soundPin1, LOW);
   }

   void loop() {

   digitalWrite(ledPin2, HIGH); // sets the LED pin HIGH (turns it on)


   servo3.write(170); //raises cannon arm
   servo1.write(140); //rotates cannon upward

   delay(2000);

   servo2.write(40); //rotates cannon away from head

   delay(2000);

   servo2.write(110); //rotates cannon toward head
   digitalWrite(ledPin1, HIGH);
   digitalWrite(soundPin1, HIGH);
   delay(10);
   digitalWrite(ledPin1, LOW);
   digitalWrite(soundPin1, LOW);

   delay(4000);

   servo2.write(60); //rotates cannon away from head
   servo1.write(120); //rotates cannon upward
   delay(1000);
   digitalWrite(ledPin1, HIGH);
   digitalWrite(soundPin1, HIGH);
   delay(10);
   digitalWrite(ledPin1, LOW);
   digitalWrite(soundPin1, LOW);

   delay(3000);

   servo2.write(120); //rotates cannon toward head
   servo1.write(150); //rotates cannon downward
   delay(2000);
   digitalWrite(ledPin1, HIGH);
   digitalWrite(soundPin1, HIGH);
   delay(10);
   digitalWrite(ledPin1, LOW);
   digitalWrite(soundPin1, LOW);
   delay(1000);
   servo1.write(140);

   delay(3000);

   servo1.write(170);
   delay(500);
   servo2.write(90);
   delay(1000);
   servo3.write(10);
  digitalWrite(ledPin2, LOW);

  delay(5000);

   }



Here's the code for the Wave Shield- (courtesy of Adafruit)

#include <FatReader.h>
#include <SdReader.h>
#include <avr/pgmspace.h>
#include "WaveUtil.h"
#include "WaveHC.h"


SdReader card;    // This object holds the information for the card
FatVolume vol;    // This holds the information for the partition on the card
FatReader root;   // This holds the information for the filesystem on the card
FatReader f;      // This holds the information for the file we're play

WaveHC wave;      // This is the only wave (audio) object, since we will only play one at a time

#define DEBOUNCE 100  // button debouncer

// this handy function will return the number of bytes currently free in RAM, great for debugging!
int freeRam(void)
{
  extern int  __bss_end;
  extern int  *__brkval;
  int free_memory;
  if((int)__brkval == 0) {
    free_memory = ((int)&free_memory) - ((int)&__bss_end);
  }
  else {
    free_memory = ((int)&free_memory) - ((int)__brkval);
  }
  return free_memory;
}

void sdErrorCheck(void)
{
  if (!card.errorCode()) return;
  putstring("\n\rSD I/O error: ");
  Serial.print(card.errorCode(), HEX);
  putstring(", ");
  Serial.println(card.errorData(), HEX);
  while(1);
}

void setup() {
  // set up serial port
  Serial.begin(9600);
  putstring_nl("WaveHC with 6 buttons");

   putstring("Free RAM: ");       // This can help with debugging, running out of RAM is bad
  Serial.println(freeRam());      // if this is under 150 bytes it may spell trouble!

  // Set the output pins for the DAC control. This pins are defined in the library
  pinMode(2, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(4, OUTPUT);
  pinMode(5, OUTPUT);

  // pin13 LED
  pinMode(13, OUTPUT);

  // enable pull-up resistors on switch pins (analog inputs)
  digitalWrite(14, HIGH);
  digitalWrite(15, HIGH);
  digitalWrite(16, HIGH);
  digitalWrite(17, HIGH);
  digitalWrite(18, HIGH);
  digitalWrite(19, HIGH);

  //  if (!card.init(true)) { //play with 4 MHz spi if 8MHz isn't working for you
  if (!card.init()) {         //play with 8 MHz spi (default faster!)
    putstring_nl("Card init. failed!");  // Something went wrong, lets print out why
    sdErrorCheck();
    while(1);                            // then 'halt' - do nothing!
  }

  // enable optimize read - some cards may timeout. Disable if you're having problems
  card.partialBlockRead(true);

// Now we will look for a FAT partition!
  uint8_t part;
  for (part = 0; part < 5; part++) {     // we have up to 5 slots to look in
    if (vol.init(card, part))
      break;                             // we found one, lets bail
  }
  if (part == 5) {                       // if we ended up not finding one  :(
    putstring_nl("No valid FAT partition!");
    sdErrorCheck();      // Something went wrong, lets print out why
    while(1);                            // then 'halt' - do nothing!
  }

  // Lets tell the user about what we found
  putstring("Using partition ");
  Serial.print(part, DEC);
  putstring(", type is FAT");
  Serial.println(vol.fatType(),DEC);     // FAT16 or FAT32?

  // Try to open the root directory
  if (!root.openRoot(vol)) {
    putstring_nl("Can't open root dir!"); // Something went wrong,
    while(1);                             // then 'halt' - do nothing!
  }

  // Whew! We got past the tough parts.
  putstring_nl("Ready!");
}

void loop() {
  //putstring(".");            // uncomment this to see if the loop isnt running
  switch (check_switches()) {
    case 1:
      playcomplete("SOUND1.WAV");
      break;
    case 2:
      playcomplete("SOUND2.WAV");
      break;
    case 3:
      playcomplete("SOUND3.WAV");
      break;
    case 4:
      playcomplete("SOUND4.WAV");
      break;
    case 5:
      playcomplete("SOUND5.WAV");
      break;
    case 6:
      playcomplete("SOUND6.WAV");
  }
}

byte check_switches()
{
  static byte previous[6];
  static long time[6];
  byte reading;
  byte pressed;
  byte index;
  pressed = 0;

  for (byte index = 0; index < 6; ++index) {
    reading = digitalRead(14 + index);
    if (reading == LOW && previous[index] == HIGH && millis() - time[index] > DEBOUNCE)
    {
      // switch pressed
      time[index] = millis();
      pressed = index + 1;
      break;
    }
    previous[index] = reading;
  }
  // return switch number (1 - 6)
  return (pressed);
}


// Plays a full file from beginning to end with no pause.
void playcomplete(char *name) {
  // call our helper to find and play this name
  playfile(name);
  while (wave.isplaying) {
  // do nothing while its playing
  }
  // now its done playing
}

void playfile(char *name) {
  // see if the wave object is currently doing something
  if (wave.isplaying) {// already playing something, so stop it!
    wave.stop(); // stop it
  }
  // look in the root directory and open the file
  if (!f.open(root, name)) {
    putstring("Couldn't open file "); Serial.print(name); return;
  }
  // OK read the file and turn it into a wave object
  if (!wave.create(f)) {
    putstring_nl("Not a valid WAV"); return;
  }

  // ok time to play! start playback
  wave.play();
}

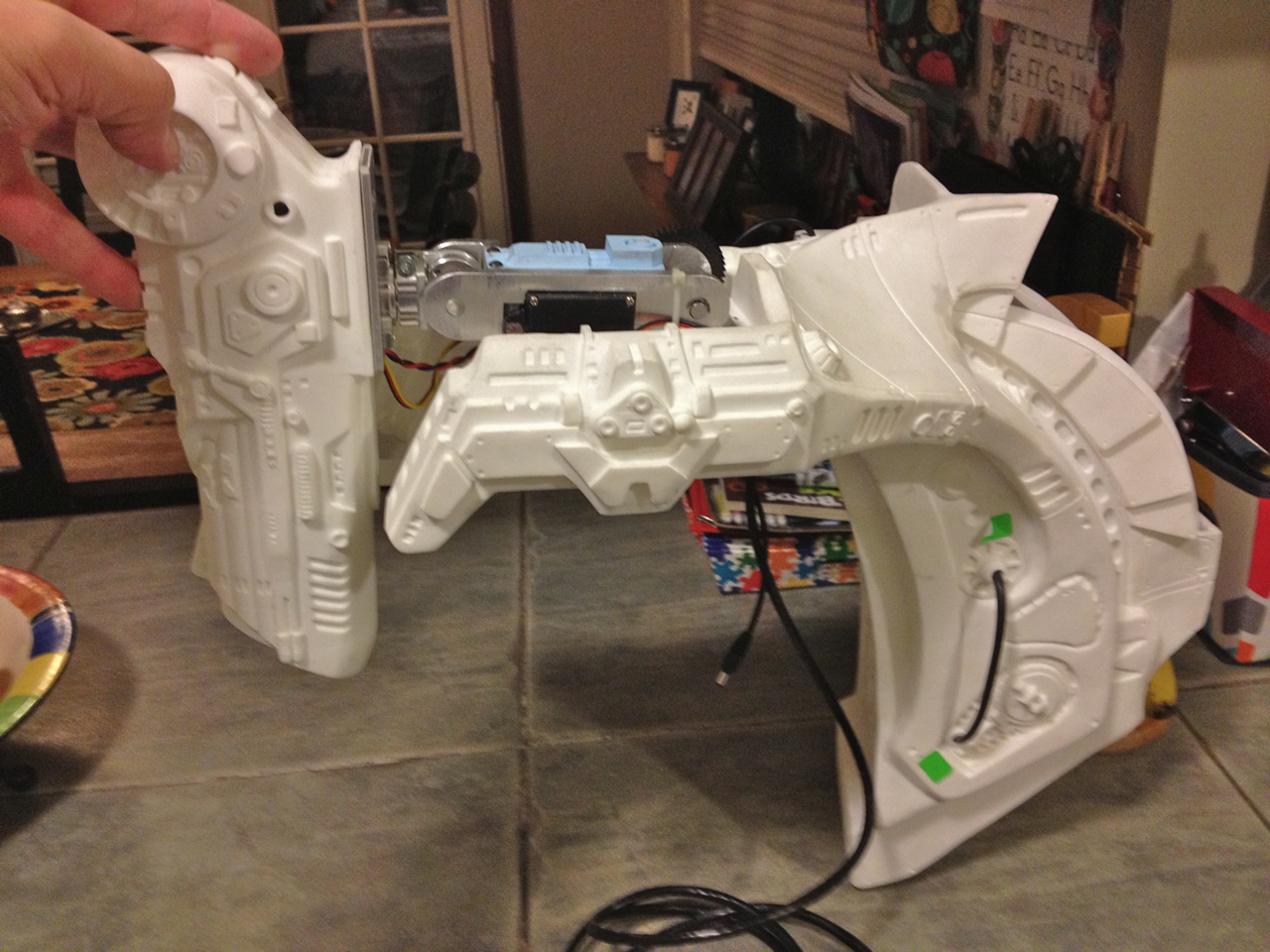

Putting it all together-

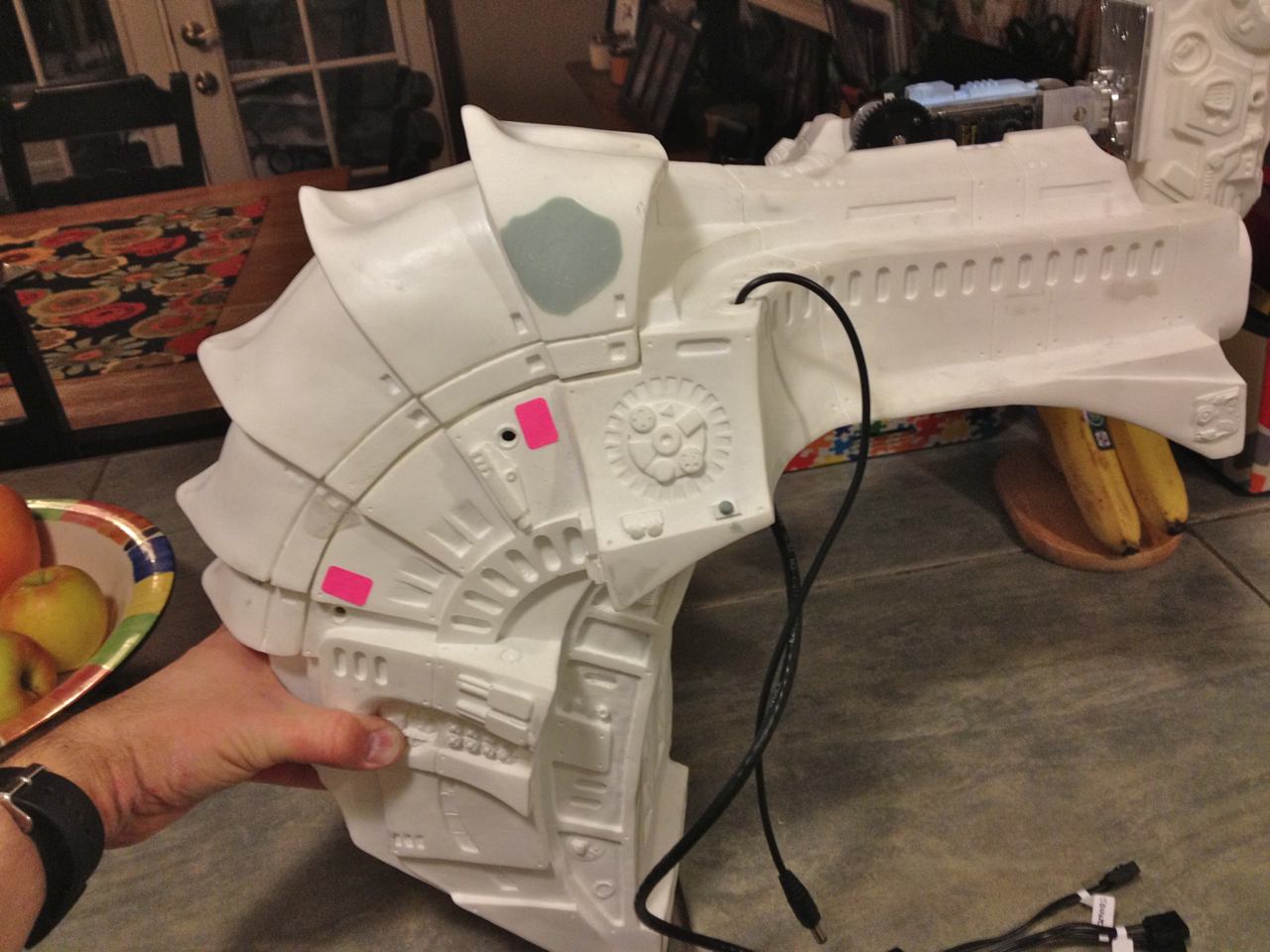

The cannon was mounted to the backpack by bolting the main pivot assembly to an Aluminum plate on the underside of the cannon platform- this way the entire cannon mechanism could be easily removed if it was ever damaged. Holes were drilled through the backpack and the servo leads and cannon LED leads were fed through.

Holes were then drilled through the backpack for the helmet laser sight power cord and the ethernet cable that connected the finger tip buttons. For the bio helmet laser sight power cord I used a barrel jack extension cord and cut off the female end. The male end connects to a matching barrel jack mounted in the side of the bio helmet. With this setup the cord just provides power to the helmet laser sight- just unplug the cord at the helmet in order to take the helmet off.

The electronics board was then installed by mounting it to a wood block that was secured inside the backpack. A small speaker was then attached inside the backpack and connected to the sound board. The servo cables, ethernet cable, helmet laser sight cable  and cannon LED cables were then all labeled and connected and the system was powered up.

Lucky for me it powered up and ran perfectly through its motions first try- it was now very late the night before it had to ship! Woohoo! I made a few adjustments to the movements in the code to get it dialed in just right, added the small hoses that ran from the cannon to the arm and boxed it up for overnight shipping.

That night I had a hard time sleeping- would it arrive safe and sound? Would it perform as it should? I wasn't going to be there to fix it if something went wrong...

While I was pondering these questions Gene and Damon were working like madmen to finish the rest of the suit....

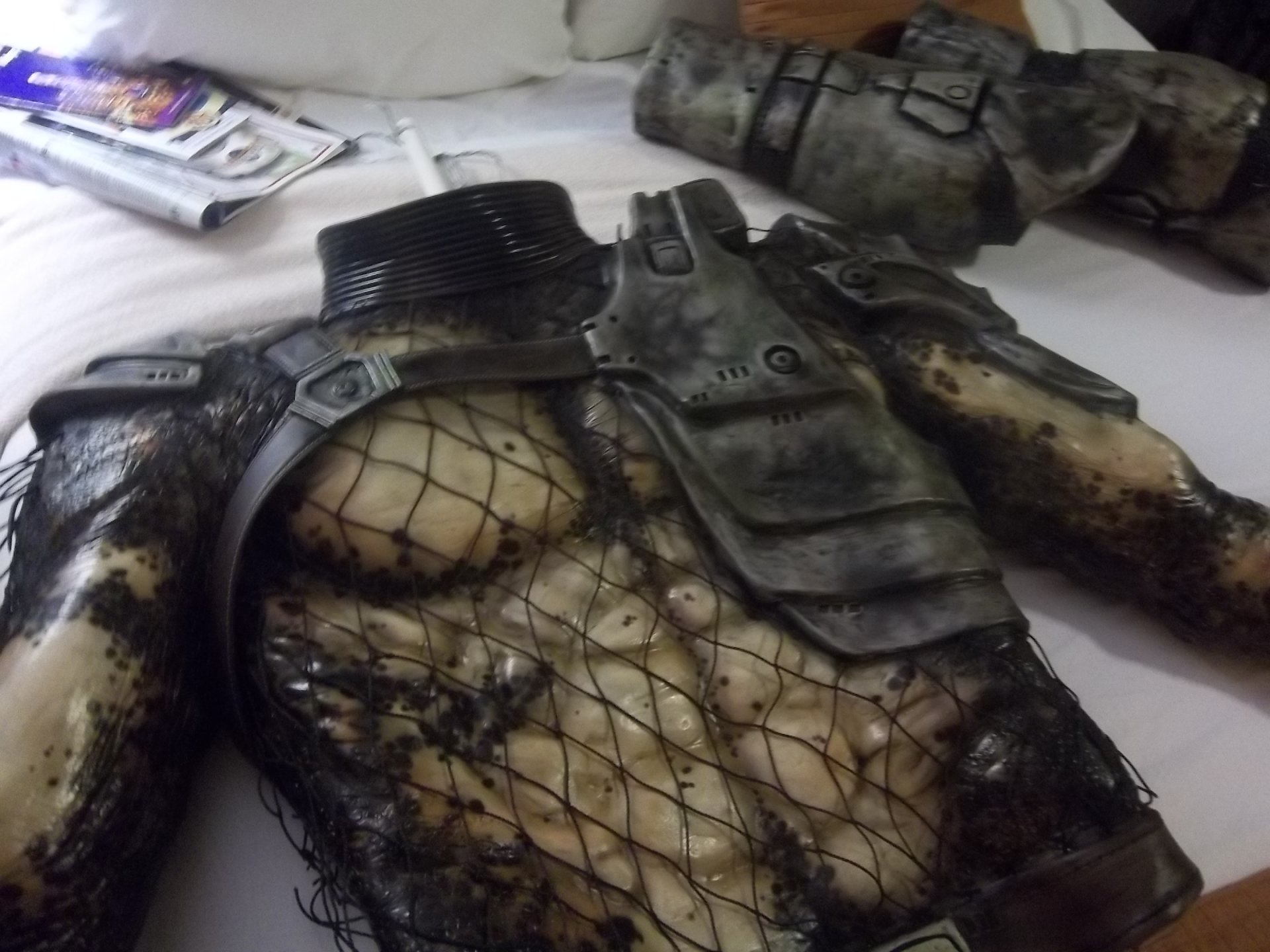

A great suit is the backbone of any Predator costume-

Gene was handling the creation of the suit and mask and Damon would assist him with assembly and painting. How Gene sculpt, molded and cast the entire suit and mask in just a few weeks I'll never know. And this is considering the suit was sculpted to fit 6' 7" tall Jamie, who wasn't even there at the time. Gene had taken Jamie's measurements the previous year and the fact that he was able to fit the suit to Jamie so well and have it look so spectacular is just, well, epic. There were also two masks that were made- one is a half mask that is worn under the Predator bio helmet and one is a full mask with mandibles. Gene and Damon also did a stellar paint job on the backpack and cannon, which is incredible given they were already buried with work just getting the suit ready.

From Gene:

"The suit up was scheduled for early to mid April, and we didn't have anything except for this gauntlet, Carl's cannon and backpack probably, and Clay Williams was making good progress on dreads, so there were about 8 weeks to get a finished product for Jamie to wear.  As luck would have it, in January I bought some videos on the Stan Winston School of Character Arts site, specifically the sculpting techniques and textures, the making a creature suit, and the mask painting by Steve Wang, so I figured I had all the info I needed to make a suit and mask. NOT! I've had limited sculpting experience using fingers, wood sticks and credit cards, but the videos showed techniques, tools and explained the process, so the thought was it will make sense once I get started.

In early February I made armatures out of PVC pipe, fiberglass, foam and duct tape, then bought a lot of plastilina clay.

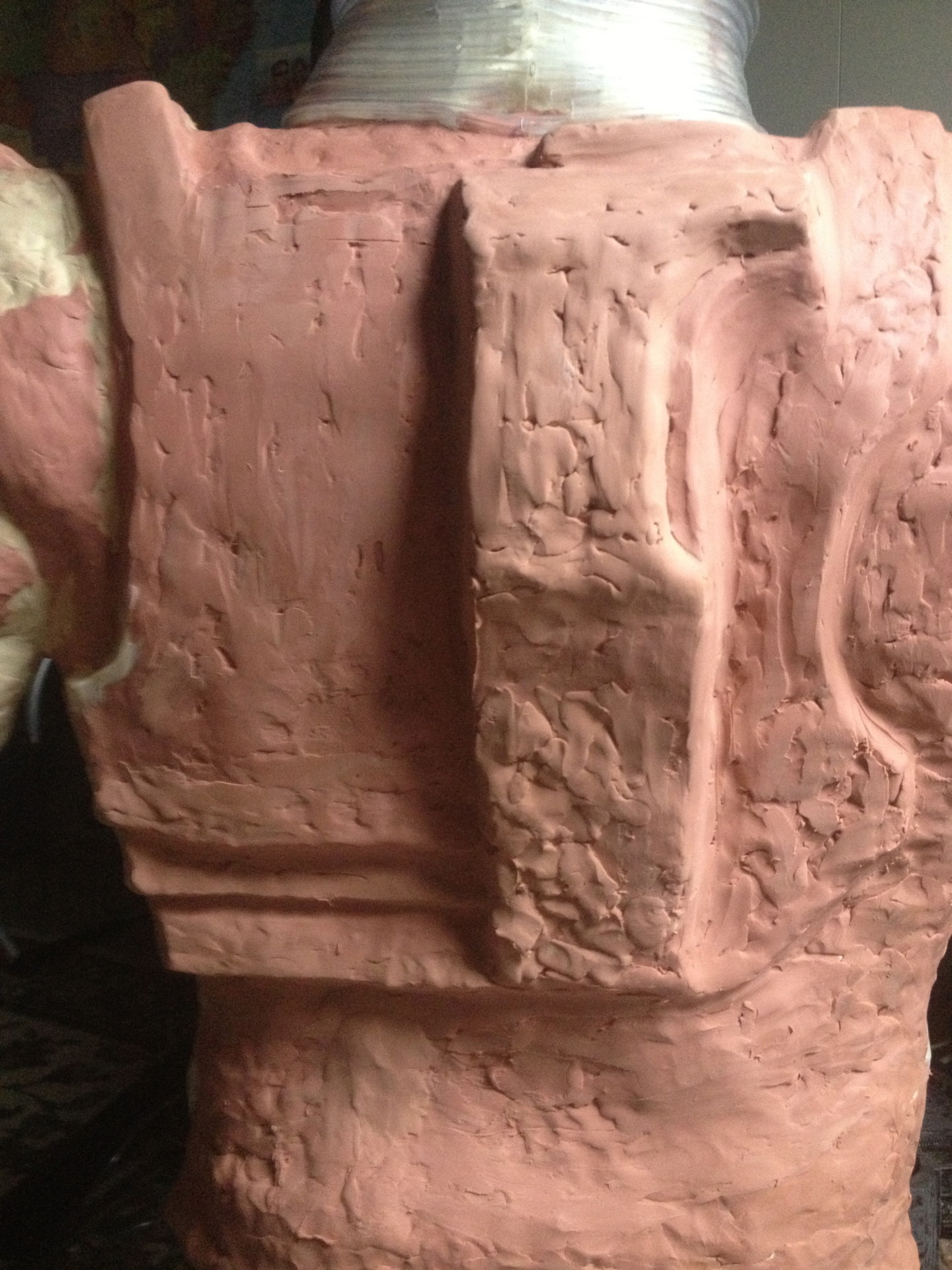

After a couple days of putting clay on armatures, shaping body parts and armor, I remember thinking to myself I DO NOT KNOW what I am doing!  Which is fine if you have a few months to figure it out, but my timeline was to have these finished and molded the first week of March.

The head I left for last, as I figured I would refine the techniques on the torso and legs first, then be able to detail the head better.  That worked out great, as I learned a lot with the torso and legs trying new techniques and learning how alcohol and mineral spirits work to smooth things out, and the power of the "X" as Don Lanning explains it. Having the Neca 1/4 scale was invaluable and I used that for 95% of the sculpt reference.

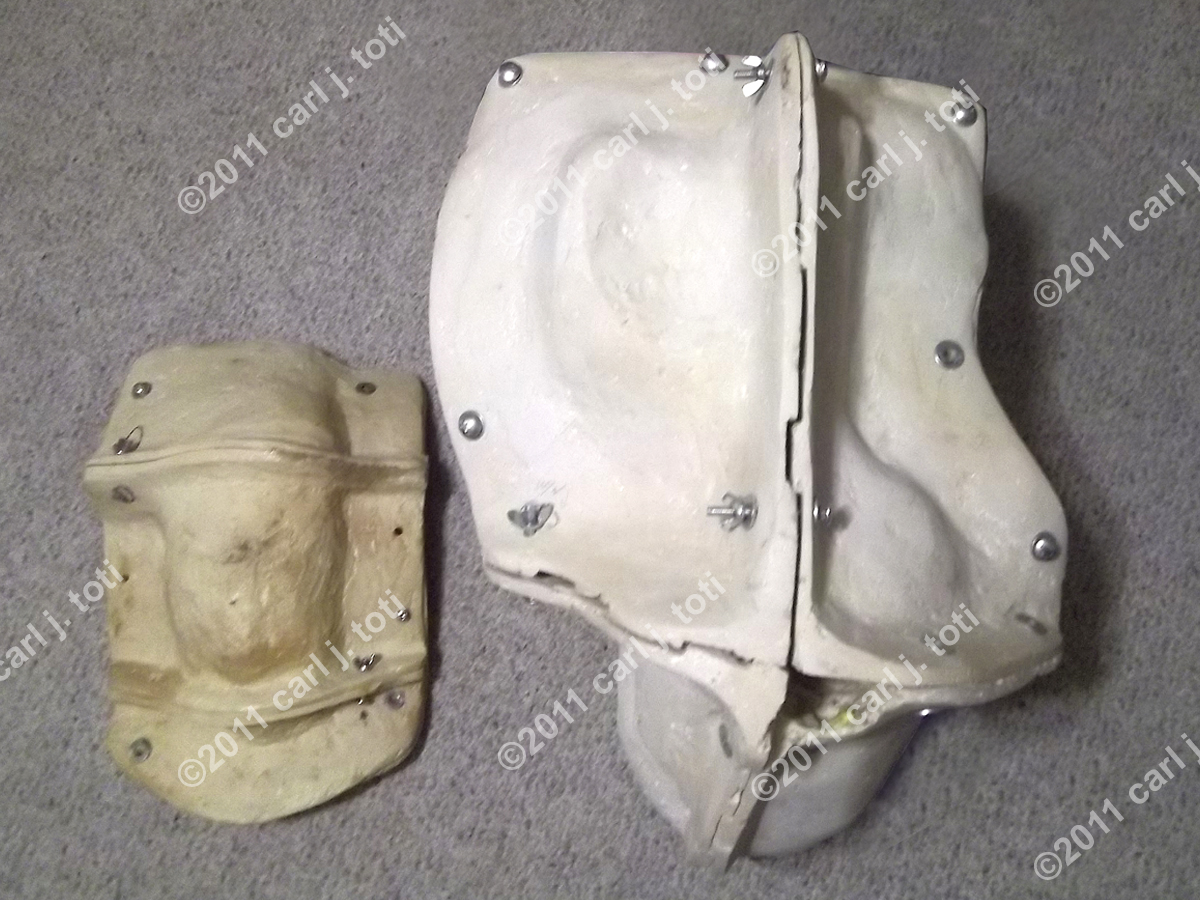

Next was molding, i used silicone since plaster inside the house was not going to be an option.The shins I only had a few days to sculpt, mold and cast so I rushed through them (and caught up on season 1,2 and 3 of the Walking Dead!) They were cast in TC 280, a flexible urethane foam that has some good rigid properties for armor. Most of the parts were cast around April 3-5, giving us about a week to trim, prep and paint everything. On the torso I cut a piece of plastic with several rare earth magnets attached for the backpack, and foamed it in.

Had to take a lot of shortcuts due to time, the zipper was only super glued on, which I knew would fatigue later and did. Some of the seam work was rushed and not detailed as much as i like.  All the parts were painted in 2-3 days, so I didn't put as much details in as usual.  The bio, backpack and cannon arrived Thursday afternoon so those were rushed and painted in less than an hour. I was lucky to have my wife Adriana do much of the prep work while I was casting parts and painting.  She cast and painted dreads, cast feet, head and legs, and several other things.  Damon helped with a lot as well, cleaning parts, casting dreads, gauntlets, etc.

Estelle (another Lair member) supplied the spine prop in time and it worked great to hide the zipper and add to the overall accuracy. Julie's countdown and gauntlet lid worked flawlessly, with comments by the entire Predator crew how impressed they were with it."

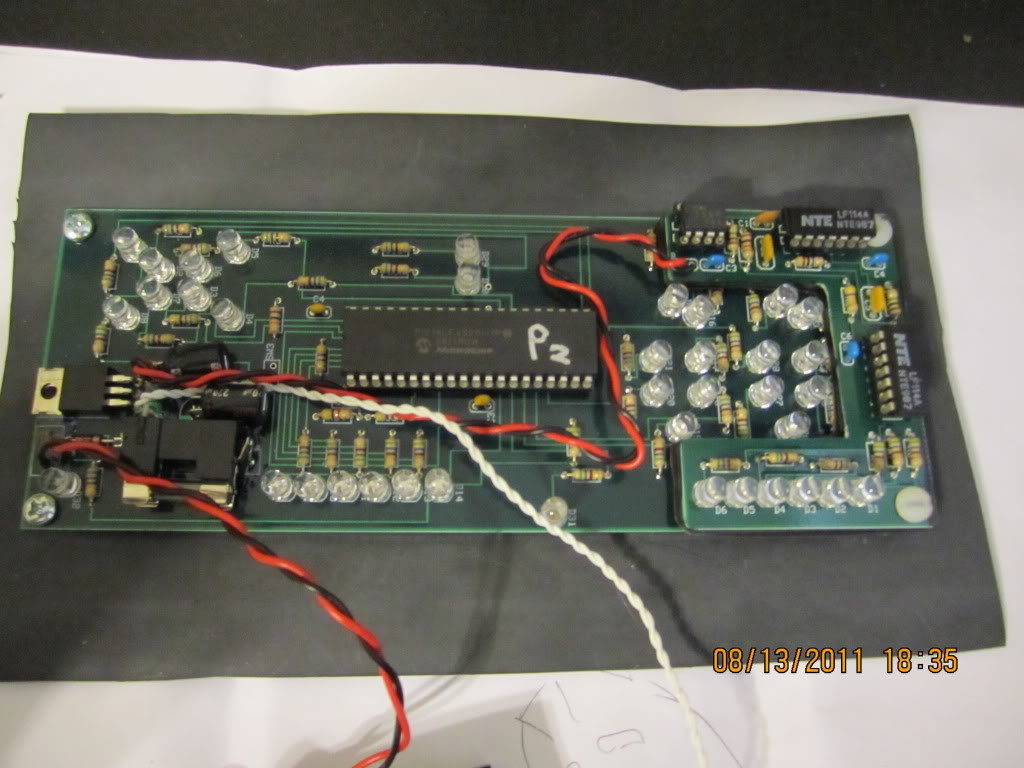

The Hunter's Lair member Julie Spehar created the electronics for the Predator bomb-gauntlet. Julie's electronics work really shined and helped bring the Predator to life. Her gauntlet electronics are the simply the best there is. It's the details like her work that can really set a costume apart.


A small problem-

I received a message from Gene after the backpack had arrived- the box was pretty banged up and as a result the servo linkage that controlled the cannon up/down movement had a broken ball link. I kicked myself for not including an extra link as I had several sitting at home. Carl had already arrived in Burbank and he and another Lair member Glen were running errands around town. Carl was able to go to a local hobby shop that George Frangadakis had recommended and procure another ball link to replace the broken one. Carl used the store clerk's cell phone to send me a photo of the ball link to make sure it would fit properly.


Everything was starting to come together....

The clock was ticking...

It was now the night before the event. Late that night everyone was at the hotel in Burbank for the test fitting. I was told Jamie could barely contain his excitement as he had only seen pictures of some of the costume pieces until now. Costume pieces still had to be glued together, hoses needed to be attached, the eye mesh needed to be glued in the helmet and the backpack had to be attached to the suit- there was still an awful lot of work to do.

From Carl:

"Friday was the day Gene was driving up to meet us in my hotel room. As the day wore on, Gene's arrival got later and later as he was still working on the suit. I broke the news to everyone that it was going to be an all-nighter to get that suit finished for 10:00 a.m. Sat morning. No one complained. I fired up the coffee pot, drank some Red Bull, and we went to work. Glen & Emily put together the slideshow that accompanied the presentation that morning, Gene and I did a bunch of things, Shawn went to work fixing the backpack, and there was Jamie----sitting in the middle of it all with a Cheshire cat grin, marveling at us working like bees in a hive until we were finally able to do the test-fitting. There we were all working together, sharing laughs and gettin' it done. For me, THAT was the highlight of the whole trip. A bunch of us pred-heads in room 318 at the Ramada Inn, up till 4:30 a.m……. I wouldn't trade it for the world."

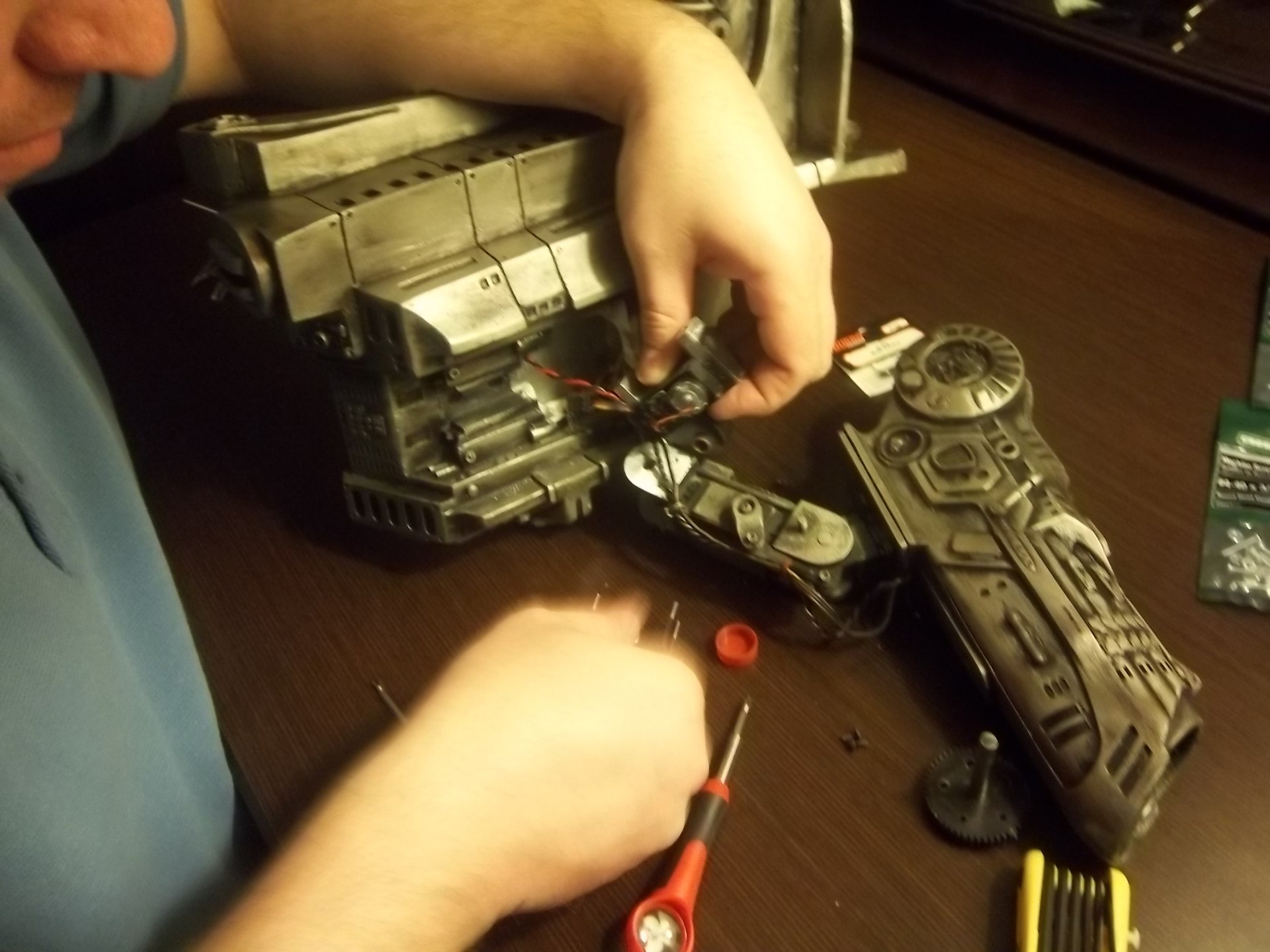

The small problem with the backpack turned out to be a much bigger problem. Once the backpack was attached to the suit it was powered up and it worked great- once. It turns out the damage the backpack sustained during shipping was much greater than was immediately visible. The servo gear for the gear drive that raised the cannon arm had cracked. This wasn't a part you could just run down to the local hardware store and buy. Luckily another Lair member, Shawn Lindemood, was also in the room helping out.

Shawn is a wiz with servos and mechanics- he has a ton of experience with RC equipment. Shawn was able to replace the previously broken servo ball link and now he would disassemble the cannon arm mechanism and remove the drive gear and try to fix it. He was able to superglue the cracked gear but it was too far damaged and soon failed after it was reassembled. Shawn was however able to rig the arm so it would stay fixed in the upright position.


Next up- Monsterpalooza!

Showtime!

I was really nervous on Saturday- I was dying to know how the event was going. As it turns out there was another problem with the backpack. The backpack was held to the suit using rare earth magnets embedded in the suit. Carl told me when Jamie went to give his sister a hug the backpack became detached and crashed to the floor, landing right on the cannon. I was mortified. Carl assured me that it was OK since it happened after the suit up on stage and it in no way affected the outcome of the event. Other than a bent bracket there didn't appear to be any other damage.

From Carl:

"We were all up by 8:00, ran over to the Marriot, skipped breakfast, and started setting up the room. The sound man had the Predator music Jamie gave him, the video and still camera crew were in place, and the suit was ready to go. Before long Alec Gillis, Tom Woodruff, Shannon Shea, Matt Rose and Steve Wang had entered the room and were loving all of the pred parts gathered on the stage. I remember remarking to Alec that I had a new-found appreciation for the long hours he and his compatriots have put in on projects over the years.

Matt Winston was our emcee, as he and the rest of the guys recounted their experiences with Kevin Peter Hall. They were great. They truly are the salt of the earth. Jamie talked about his uncle and his desire to help boost awareness of the Predator. With that wish, he was in good company. Lastly, Gene and Damon took the mic and described the genesis of the Jamie Predator Homage Suit Project, followed by my involvement, with shout outs to Julie, Clay, and Jerome who couldn't be there…and of course, Andrew - who started this crazy place (The Hunter's Lair) where members come together to make lasting impressions like this one. Then, it was time to get Jamie dressed. But, it wasn't going to be just us, Matt had the FX guys help out, reliving their experiences helping KPH get dressed 26 years ago! It was awesome.

After the ceremony, Jamie - still fully dressed, couldn't take two steps without getting swarmed by people and cameras. Sure there were some really good costumes and made-up people walking around, but when the 6' 10" Jamie-Predator came into view, that's all she wrote. "Look! The Predator!" Hearing little kids go, "Wow! Look Dad!" was as gratifying as it gets.

The other noteworthy event was when Jamie approached the Stan Winston Studios booth and Matt announced to the crowd, "This is Kevin Peter Hall's nephew Jamie Hall, following in his foot steps - as the Predator!" The crowd cheered. In those hours at Monsterpalooza all of the work, the scheduling, the running around, etc. was worth it all."

From Gene:

"It all came down to teamwork, and desire to see Jamie's dream become a reality, which everyone here on the Lair is a part of. For me it was amazing to be in the company of these Icons of FX, Matt Rose, Steve Wang, Shannon John Shea, Tom Woodruff Jr., Alec Gillis, Matt Winston and of course Jamie Hall. To receive compliments and shake their hands, to see them laugh and have fun with Jamie putting the suit on him, and seeing Jamie transform before our eyes into Predator.  Matt Winston didn't stop smiling all day I think, seeing Jamie with his sister who was there with him, and knowing his Aunt was very excited for him since it had been a dream of his since he was a child to wear a suit like uncle Kevin.  To see him bring our suit to life was priceless."

We actually pulled it off.

I wish I could have been there to see it. Everyone was just floored by Jamie in the costume. Everyone remarked that when they saw Jamie suited up he was the Predator. And that is exactly what we were shooting for.

Jamie wrote me:

"I'm blessed to have been given the opportunity to honor and uphold my Uncle Kevin's legacy by performing in this incredible P1 suit that was created by a team of talented craftsman, artists and engineers from across the United States. I will be forever be grateful to each one of them for making my wildest dreams become reality!"

I later exchanged emails with Alec and Tom of Amalgamated Dynamics and they wrote:


So thank you Carl, Jamie, Gene, Damon, Julie, Shawn and Glen (as well as other Lair members that contributed!) In the end we, as costume creators, can build a costume to the best of our ability. But it is still just a costume- the suit performer is the person that brings the costume to life and by all accounts Jamie excelled in this regard. He made an awful lot of people very happy that day. I think his Uncle Kevin would have been a very proud man watching Jamie on stage and Stan Winston would have been thrilled that his iconic film creature would still inspire so many individuals after all these years.

It's not over yet!

Jamie would continue to stalk in his Uncle's footsteps. After Monsterpalooza Jamie received an invitation to appear in a video by the makers of the popular YouTube series Super Power Beat Down. He would be starring as the Predator in Episode 9: Predator vs. Wolverine!

Given the time frame it was decided to send the backpack to Shawn since he would be involved with the shoot and to have him check it over to make sure it was prepped for filming. Shawn took everything apart and contacted me to tell me the extent of the damage. It turned out the main pivot bracket had cracked during the fall at Monsterpalooza as had the resin piece that held the LED inside the cannon. Shawn had already straightened the bracket that had been bent at Monsterpalooza.

I immediately sent a sketch to Shawn as to what I thought would be the best way to fix the pivot bracket and Shawn got to work and had it ready to go in no time. He also repaired the LED mount and then reported back to me that the cannon was once again working perfectly and he even sent me a nice video of it. It was ready to go for Super Power Beat Down!

After all, a Predator is going to need all the help he can get if he's going to have any chance of taking down Wolverine...

Soon the backpack and cannon will be sent back to me for refurbishment after the wear and tear of filming and I'll fit a new cannon arm that is far more screen accurate- something I wasn't able to do previously due to cost and time constraints. I'll be sure to document it and add to the instructable when that happens.


That's all folks!

I hope everyone enjoyed this journey- it was a ton of work but also tremendously satisfying working with such a talented group of individuals. As always, if there are any questions just let me know!

Now get together a group of friends and build some awesome costumes!

The Hunter's Lair- http://www.thehunterslair.com

This is the first and last place to go if you're into building a Predator costume.

The Replica Prop Forum- http://www.therpf.com

The RPF is the granddaddy of all movie prop/costuming sites.

Stan Winston School of Character Arts- http://www.stanwinstonschool.com/

Stan Winston School has of video tutorials that teach everything you could ever want to know about creating movie creatures and practical effects. If you haven't checked out their site you don't know what you're missing.

Accurized Hunter Parts- http://www.accurizedhunterparts.com/

Carl's site for his screen accurate Predator replicas.

LightBeam 3D- http://www.lightbeam3d.com

Scott Andrews knows his stuff when it comes to making your 3D design a reality.

Aliens FX- http://aliens-fx.com/index.htm

Gene's site for the awesome Predator suit he made.

Smooth-On- http://www.smooth-on.com/

Smooth-On is your one stop shop for all molding and casting materials and supplies.

Adafruit Industries- http://www.adafruit.com

A great place to purchase electronic components. I cannot say enough good things about this company.

Sparkfun- http://www.sparkfun.com

Another fantastic electronics supplier!

Servocity- http://www.servocity.com

Where I buy all my servos. Great pricing and outstanding customer service.

Online Metals- http://www.onlinemetals.com

Online Metals is a great place to get most any type of metal you want. They cut it to size and ship right to your door.
