Build Your Own Savonius VAWT (Vertical Axis Wind Turbine)

Build a cheap VAWT from a broomstick, 4 bearings, 2 buckets and some pipe.

Go get at least 2, or ideally 4 ball bearings with a 25mm (1inch) inner diameter, and a 50mm (2 inch) outer diameter. I bought mine for aout 6 Australian Dollars each at my local bearings store.

Prise the side seals off and scoop out all the grease, then rinse the bearings out with some diesel or turpentine to make them spin easier, then pop the seals back in. They should spin easily now.

Head down to the hardware store and find a cheap broomstick handle that just fits inside the bearings. Dont worry if its a tight fit.

While you're at the store buy some 50mm (inner diameter) PVC tube and 2 large buckets (I found about 20 litres ideal).Also uy some long screws - I used plaster screws at least 50mm long.

Cut the PVC tube to be slightly shorter than the room handle, and then cut if in half again.

Tap 2 bearings to be close to the center of the broom handle, then slide the 2 lengths of the PVC tube and tap it down so its a nice tight fit, then tap another bearing into each open end of the tube.

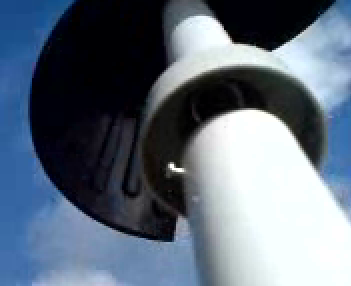

I also fitted an end cap to one of the tube ends, as well as a bell shaped fitting to keep the rain out (see picture). Screw the top piece to the broom handle in the center so its fixed to the broom handle. The broom handle has now become the center drive shaft.

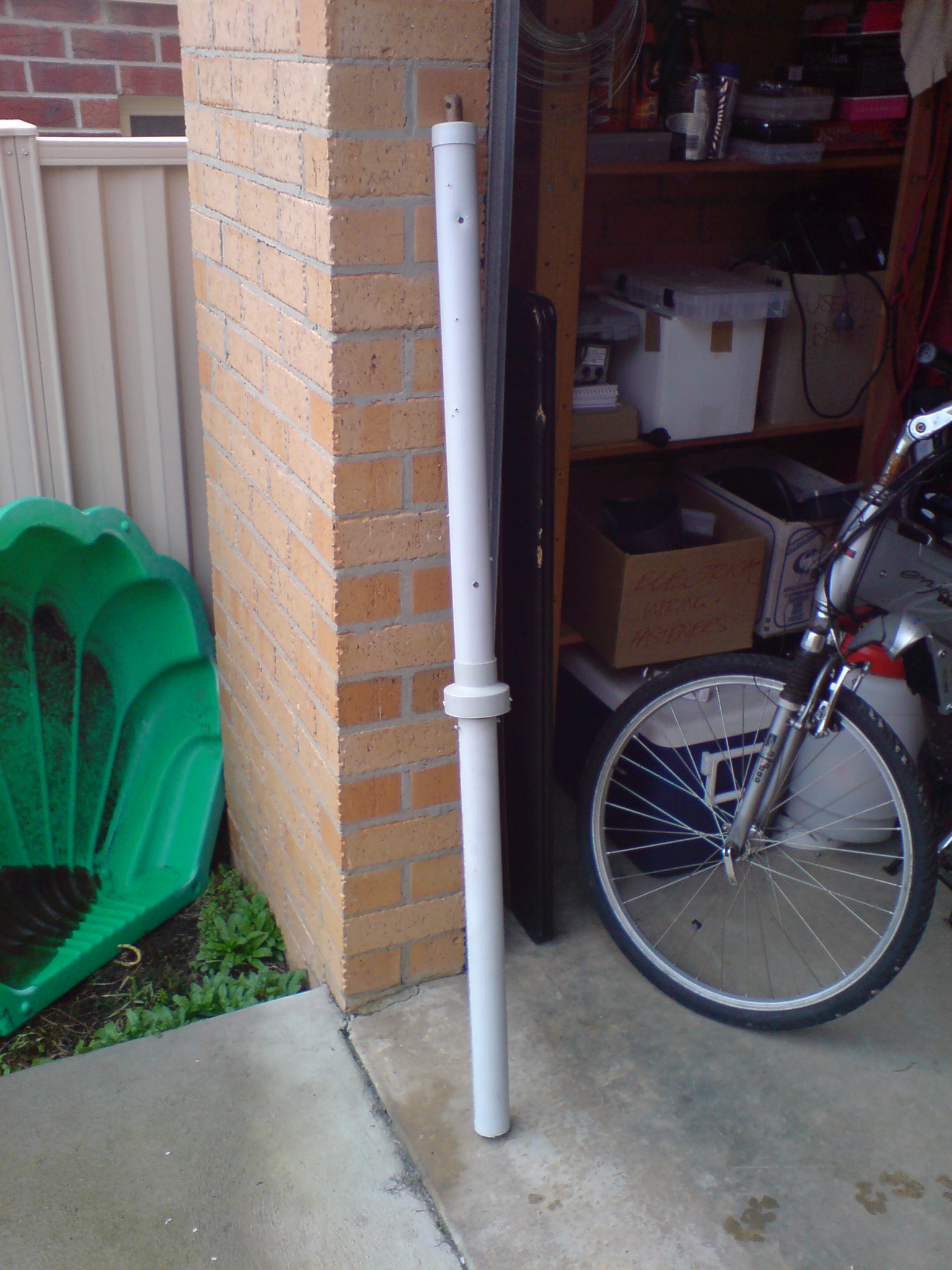

Check out the video - you now have a free spinning drive shaft - I have a small piece of dowel I drilled into the bottom of the broom shaft to show rotation while clamped in the vise.

Cut both buckets in half so you have 4 blades. It pays to have the dog check your work ;)

I used an electric saw and just held it there while gravity did all the work. You could use a handsaw easily.

Then use a holesaw to make a hole in the top of each half, so it will fit over the top of the broom handle sticking out of the top of the shaft.

Please be careful and take the time out to think at each stage - the author accepts no responsibility for sloppy planning!

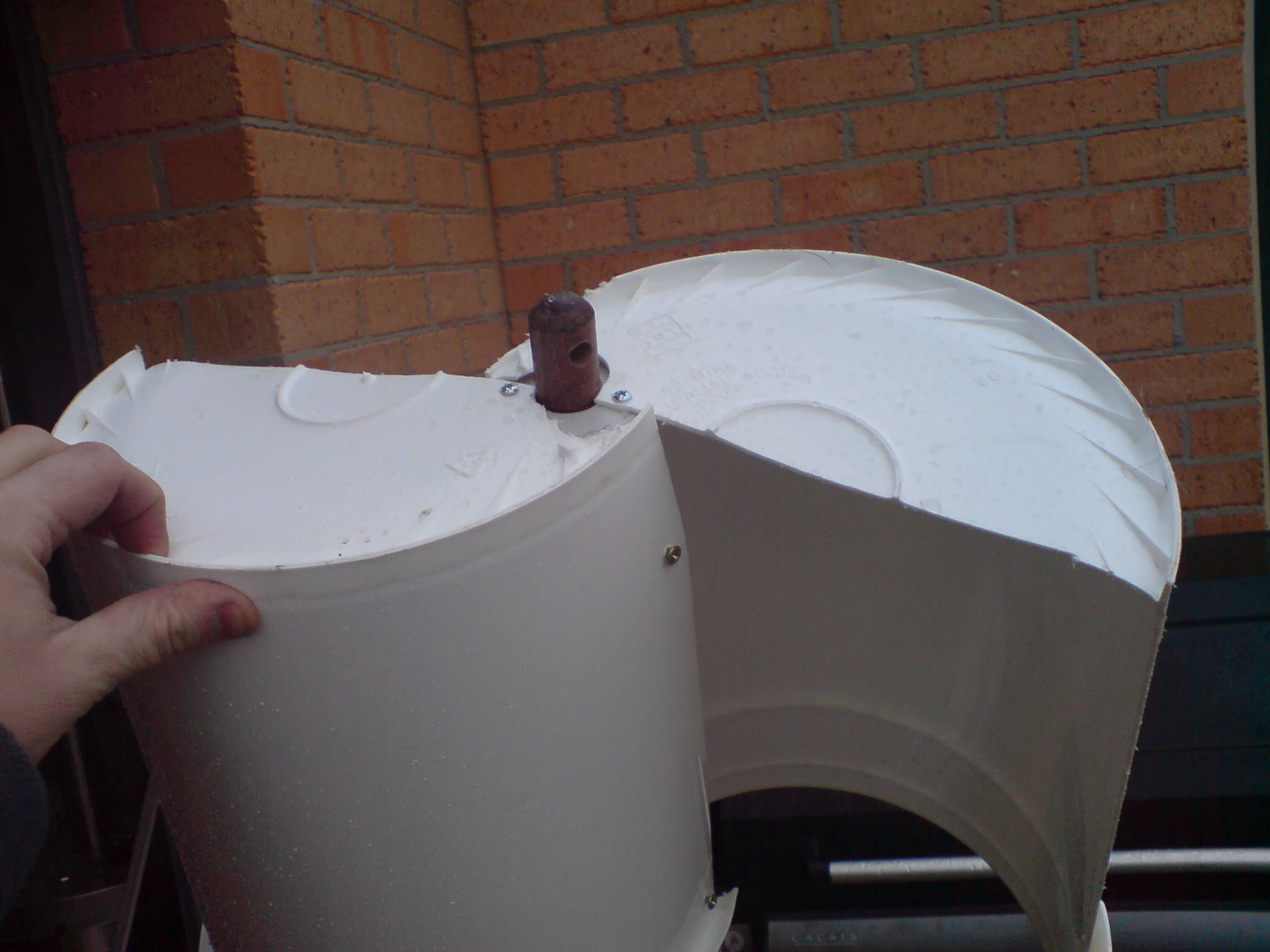

Screw on half to the top of the shaft.

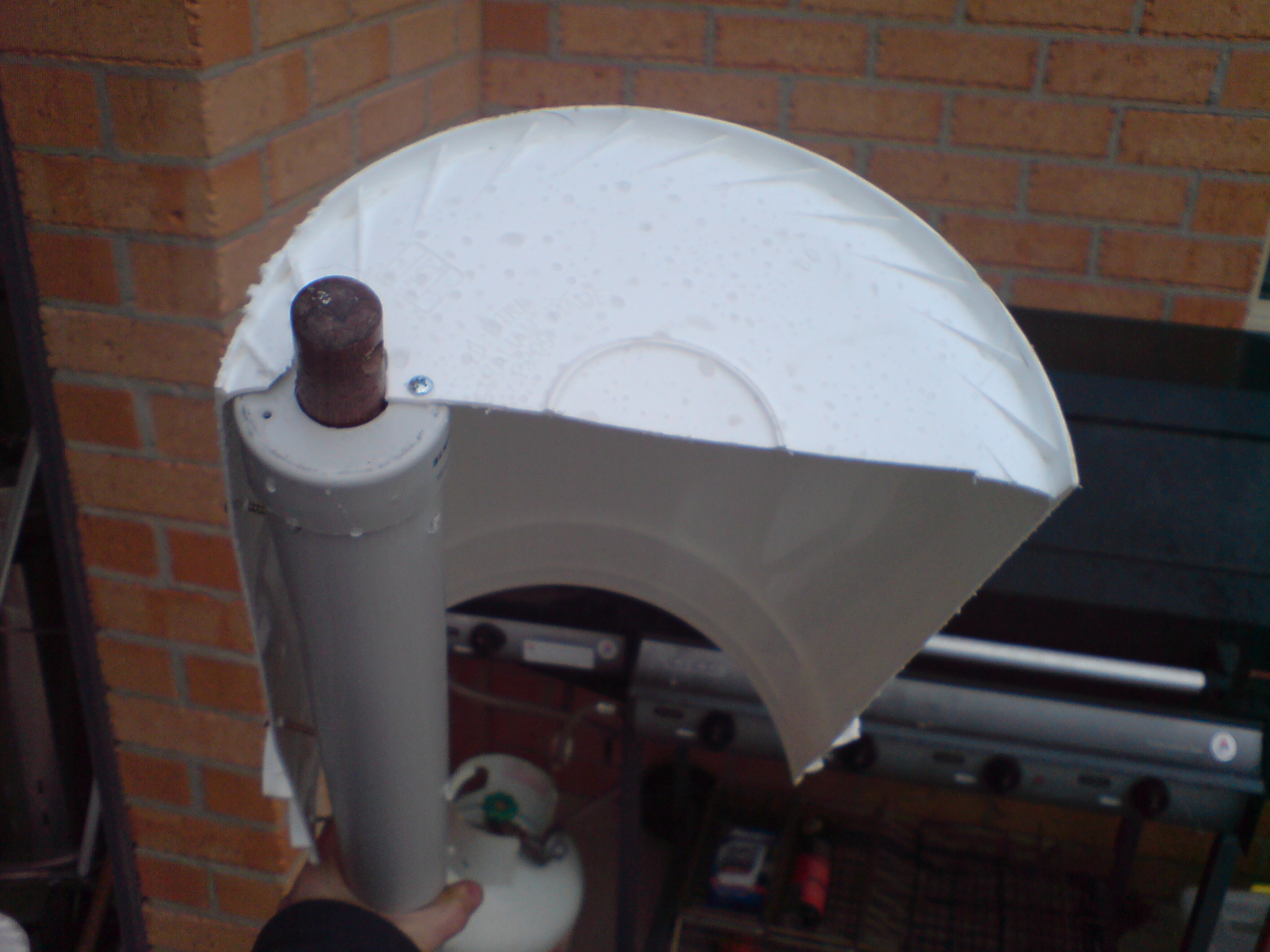

Add some screws down the side - by using thread on the screw you can the leave a gap between the blade and shaft as it increases efficiency.

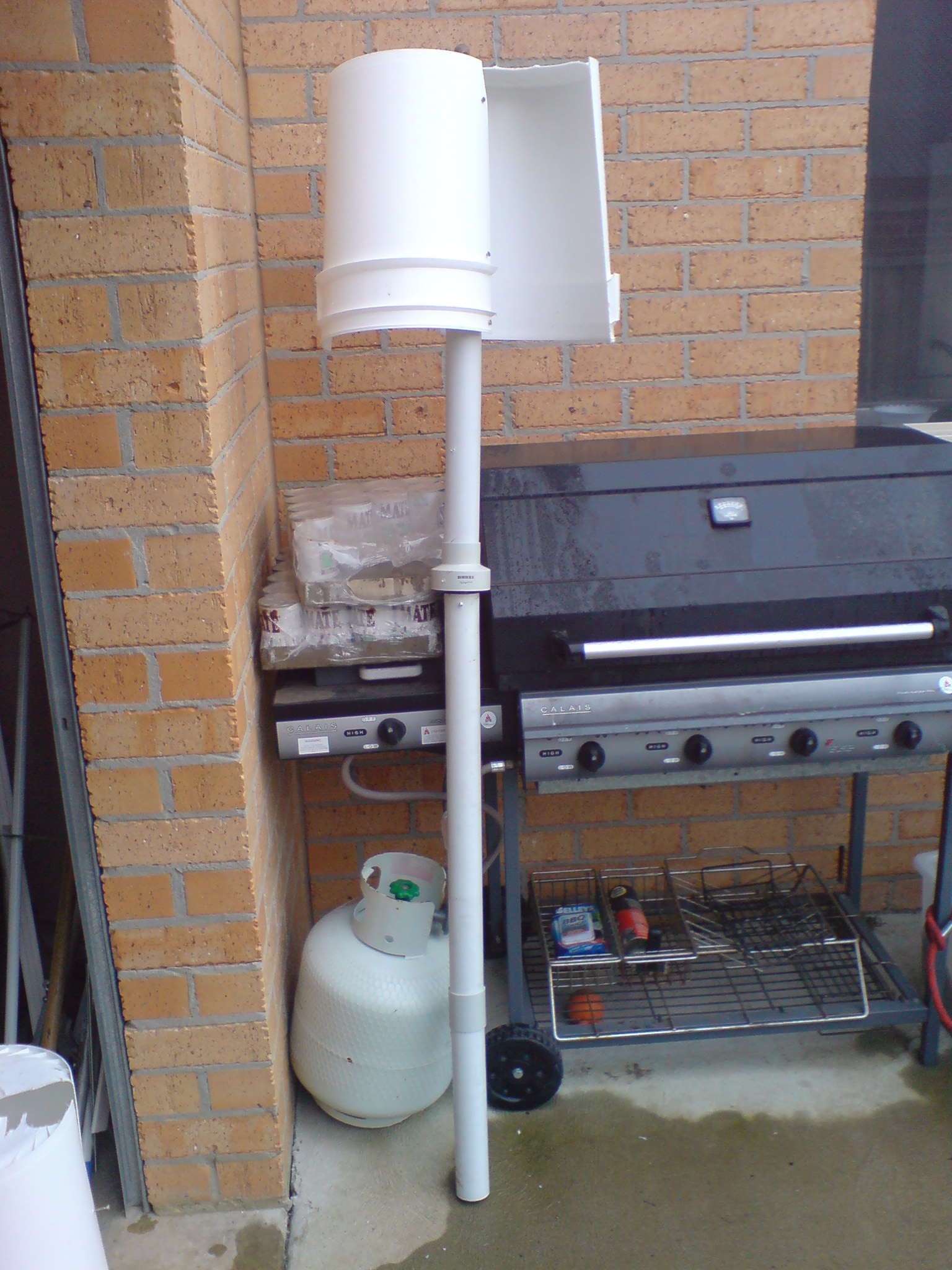

Add another blade

Add the other 2 blades below, at 90 degrees to the first two. This gives a much smoother running, and a better chance of the blades facing the wind at startup.

Remember to cut 50mm holes in the top of each bucket half so they fit onto the center shaft.

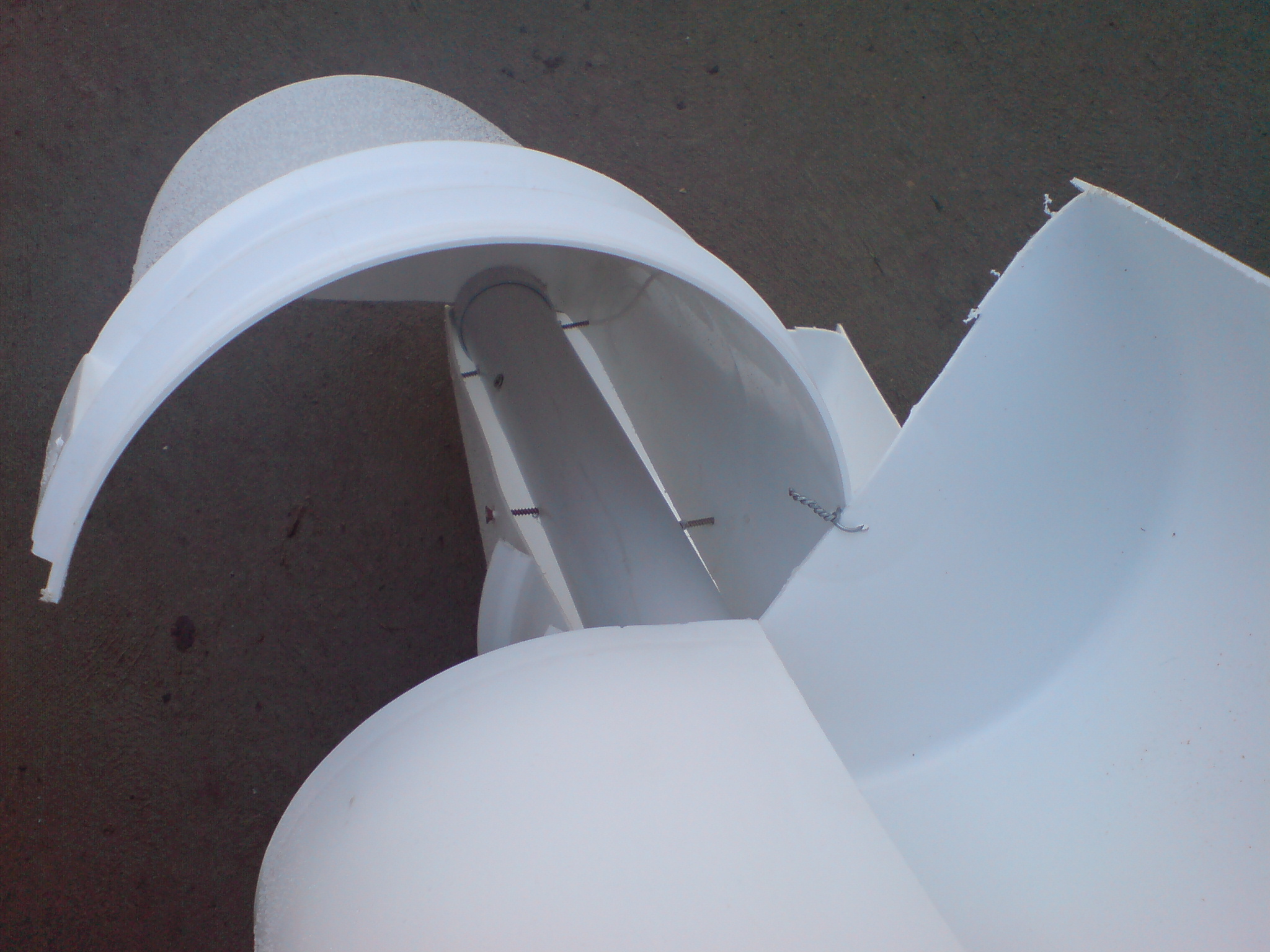

You can drill small holes where the top 2 blades meet the bottom two, and tie the blade sets together with wire or cable ties. This really stiffens the whole strucure up nicely.

You now have a nice lightweight turbine to bolt to something heavy. Unfortunately I had little wind for one of the videos - the unit goes great above 10 kilometers per hour but this short gust is the best I could get yesterday.

You can see from the little coloured toy windvane that even though there's no wind, it starts in the lightest of breezes. It has a truckload of torque too when the wind is aout 20 kilometers per hour.

In the second video I have added two large blades from large domestic garbage bins. I tried grasping the broom handle and stopping the centre shaft coming out the bottom - too much torque! Tonight I'll add the other two blades. With a much larger blade radius I should be able to pull a lot more watts off of it!

I'll add a generator set soon. There's plenty on my workbench.

With the following assumptions:
m(air) = 1.2 kilos per cubic meter
area(frontal) = 0.7 square meters
windspeed = 5 meters per second (about 15 kph)

Then Watts = 0.5 x 1.2 x 0.7 x (5³⁾
= 52.5 watts

However Savonius Vawts seldom do better than 30%, so I better find about a 20 to 50 watt DC motor somewhere to try it out.

Check back soon...
