Build Your AIO Wireless WineBox Sound System

Build you own

All-In-One Wireless WineBox Sound System

This wine box has been converted to become a Dual Channel Stereo system.

I wanted quality sound without giving an eye and a leg for some speakers that just leave a mess of cables all over my living room.

So I opted to build my own :)

It has enough output to make any movie a better experience having sound from the front and the back.

The sound is warm and the light makes a lovely ambience.

Wine box

Digital Amplifier

Audio Transmitter/Receiver

Speakers

Multi plug

Screws and regular diy materials

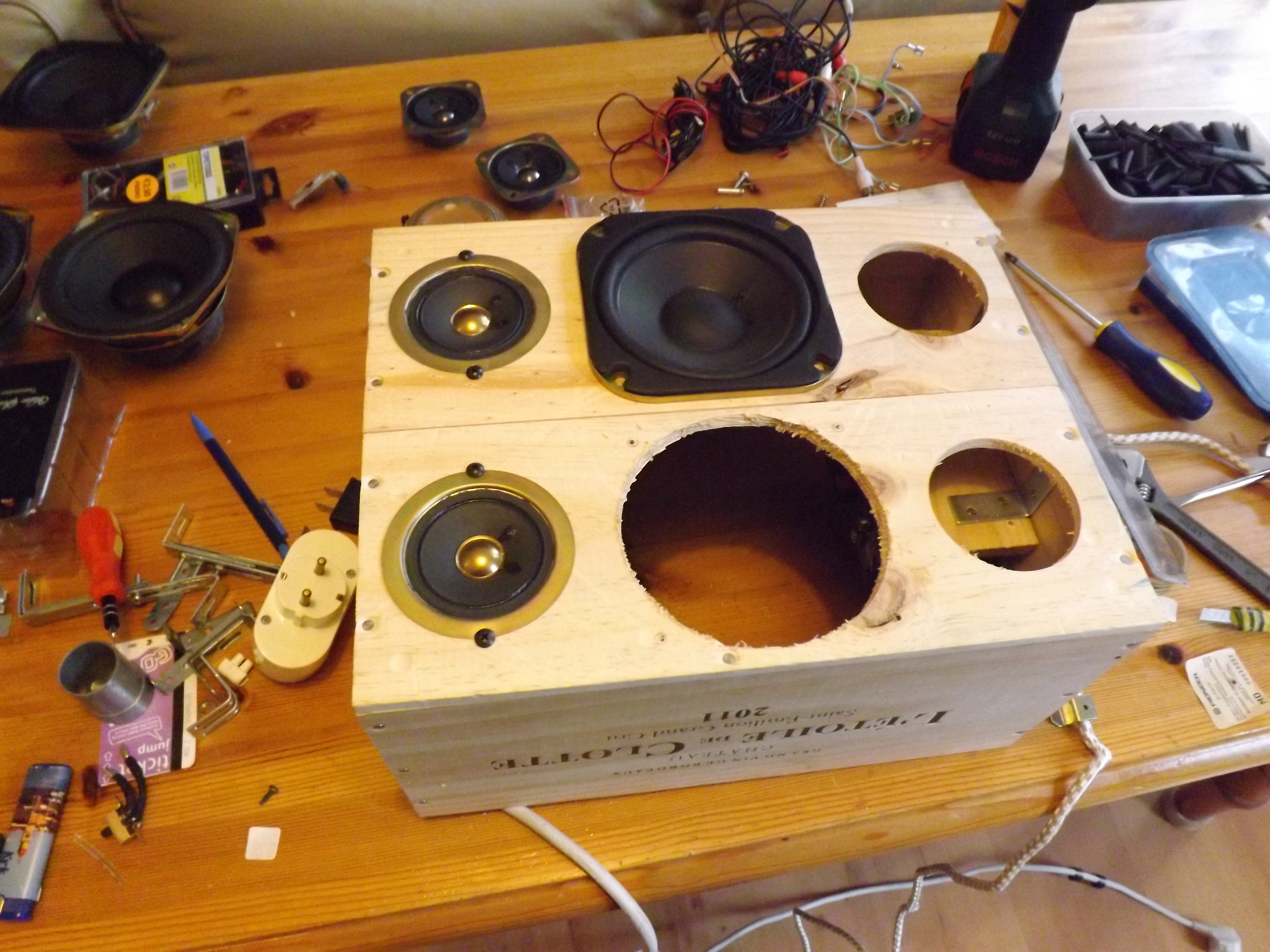

Mark holes for speakers based on type of speaker.

Less power and more quality.

I played around with my speakers to see what worked best before choosing.

Remove covers of amplifier for relocation of knobs.

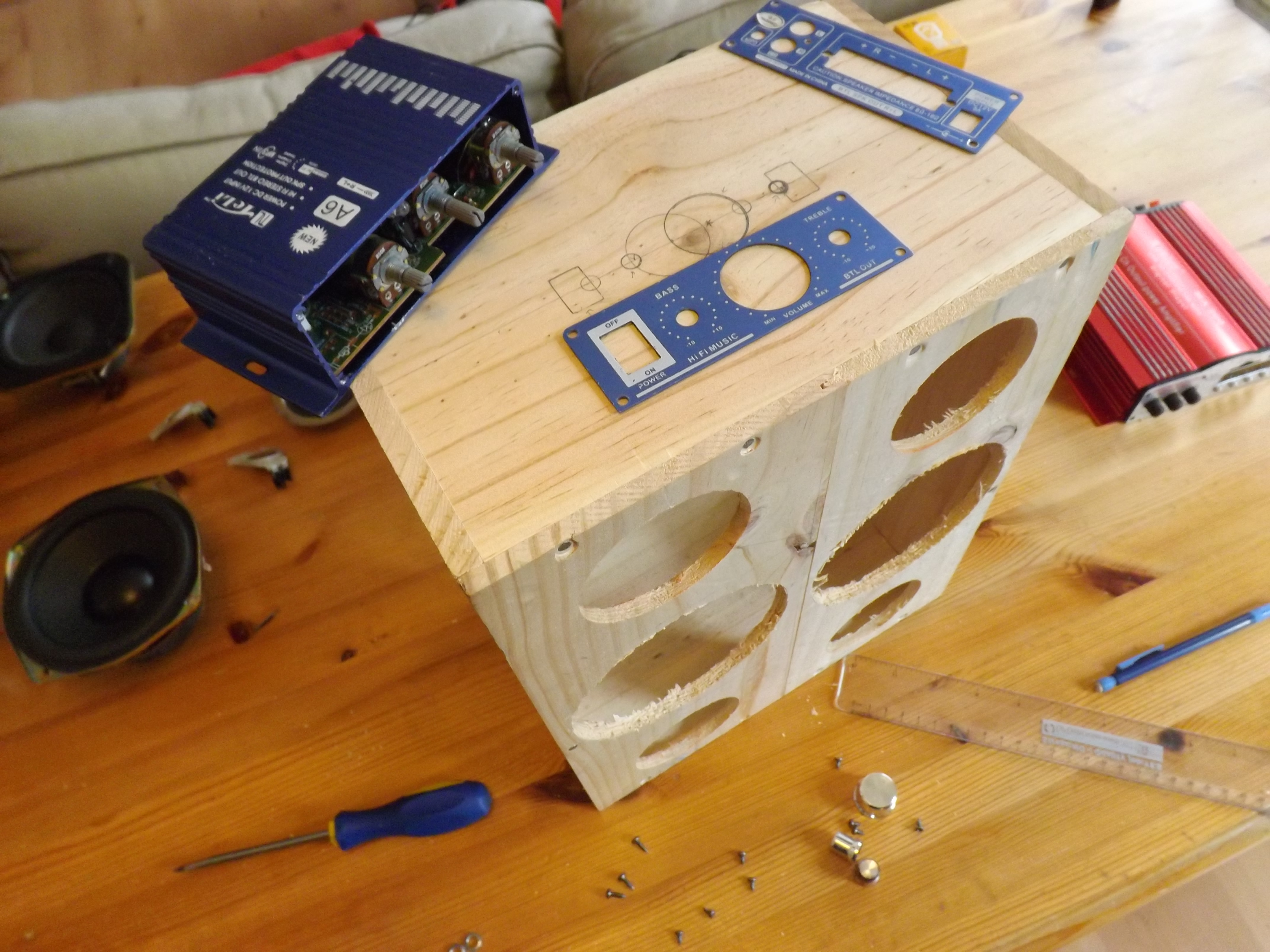

Mark location of the knobs of the amplifier. I decided to have it internal for the sake of looks.

Or you can leave it outside as well.

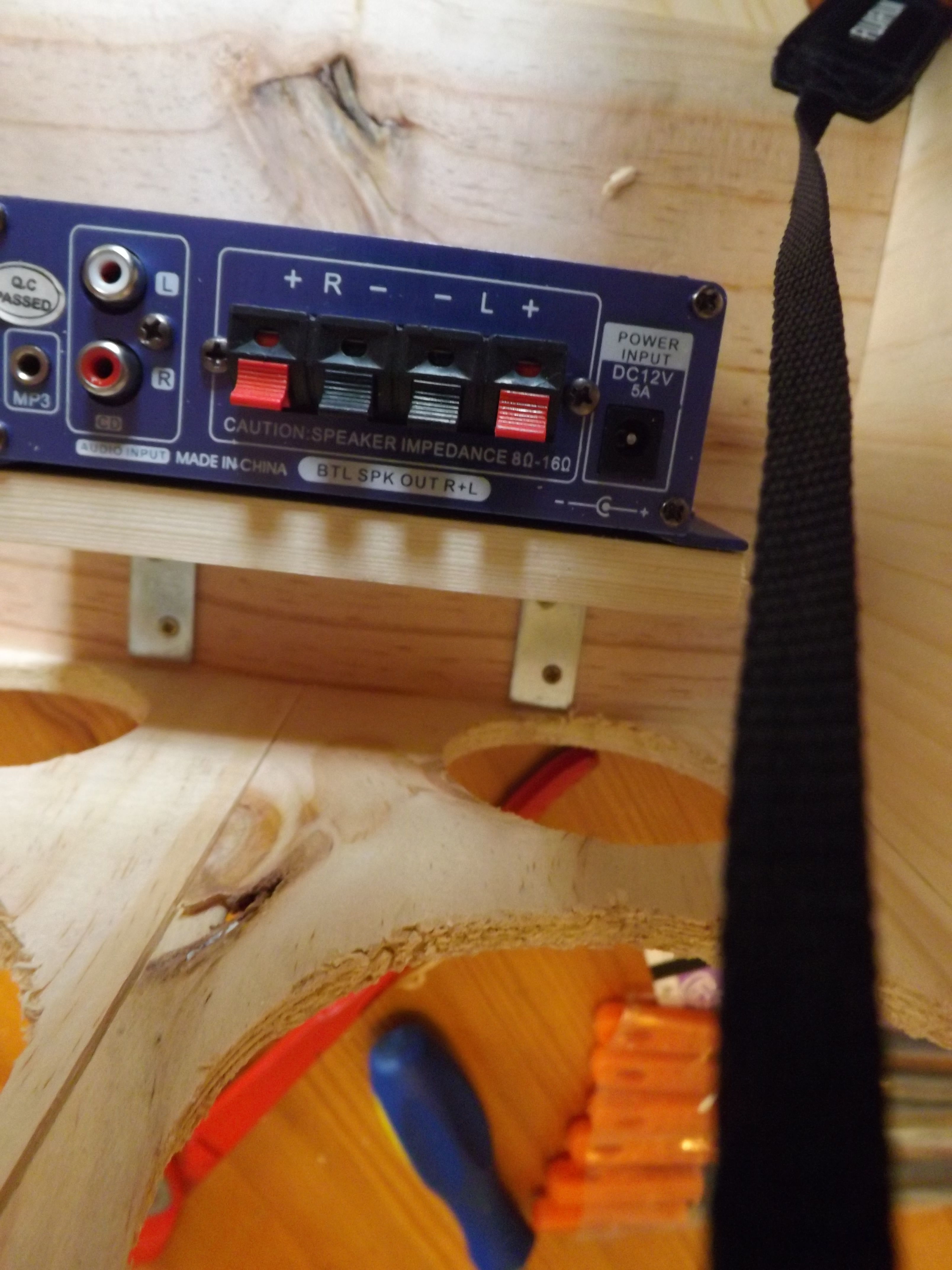

Make sure it is fixed firmly as possible.

Added these angle irons to the Receiver (I my case I will connect the transmitter to the TV :)

Located the position for the antenna and drilled a hole.

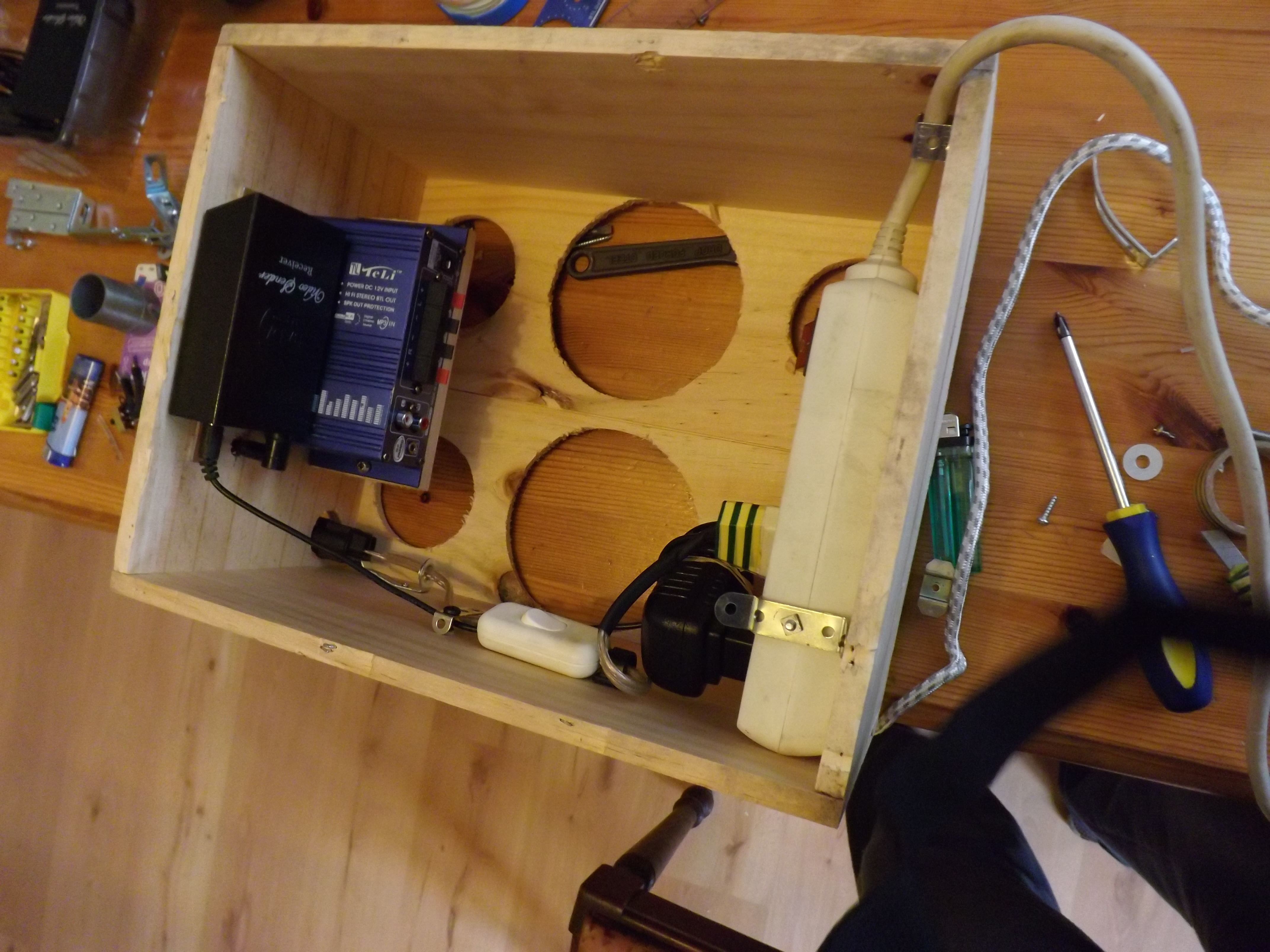

Finally fixed the Receiver with screws.

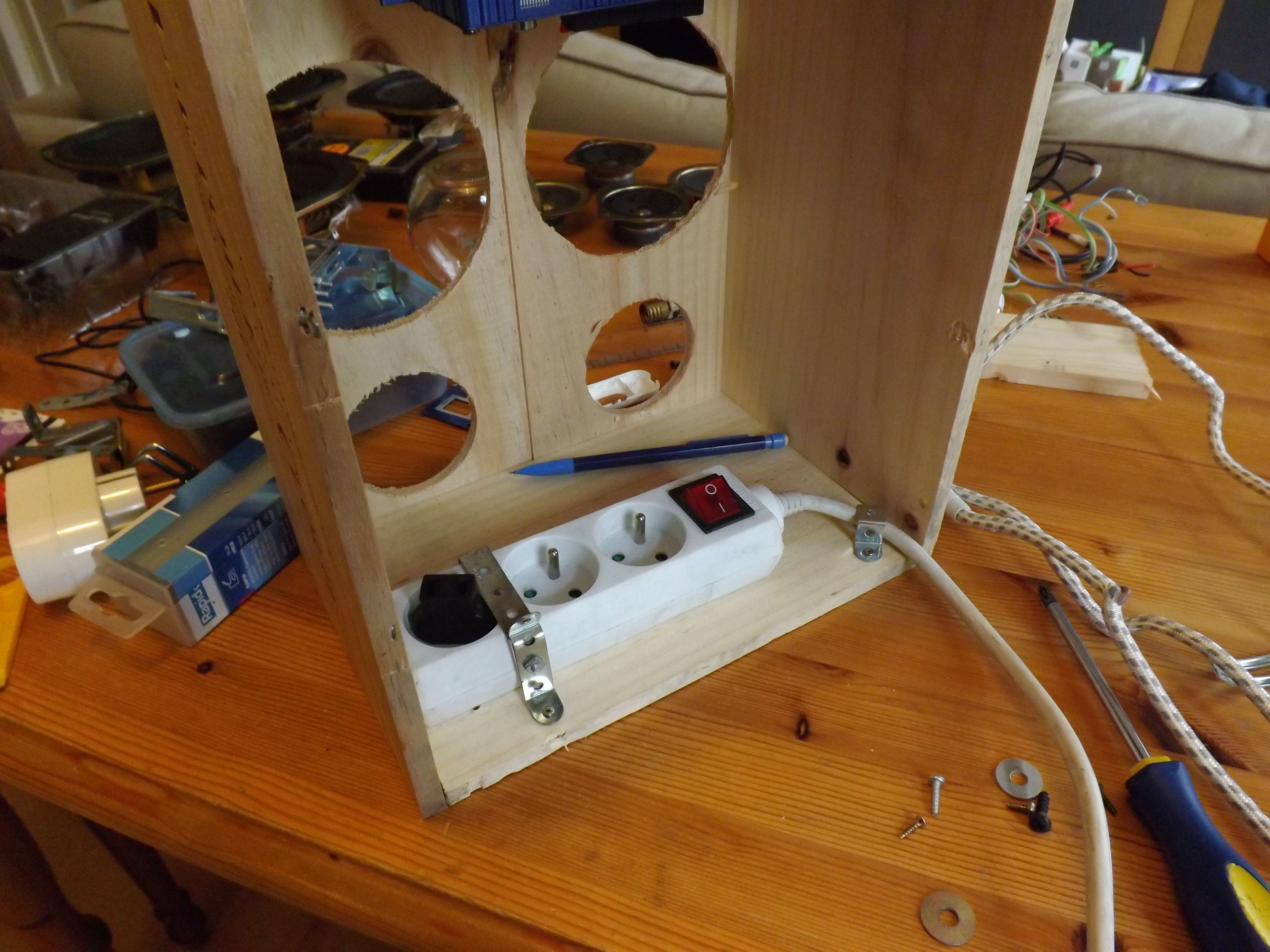

Add the multi plug. Choose one with a fuse just for extra security.

Attached the cabling for the light (with switch).

Drilled hole for the light socket and installed the whole.

Start installing the speaker. Be gentle while fixing the screws to avoid cracking the wood.

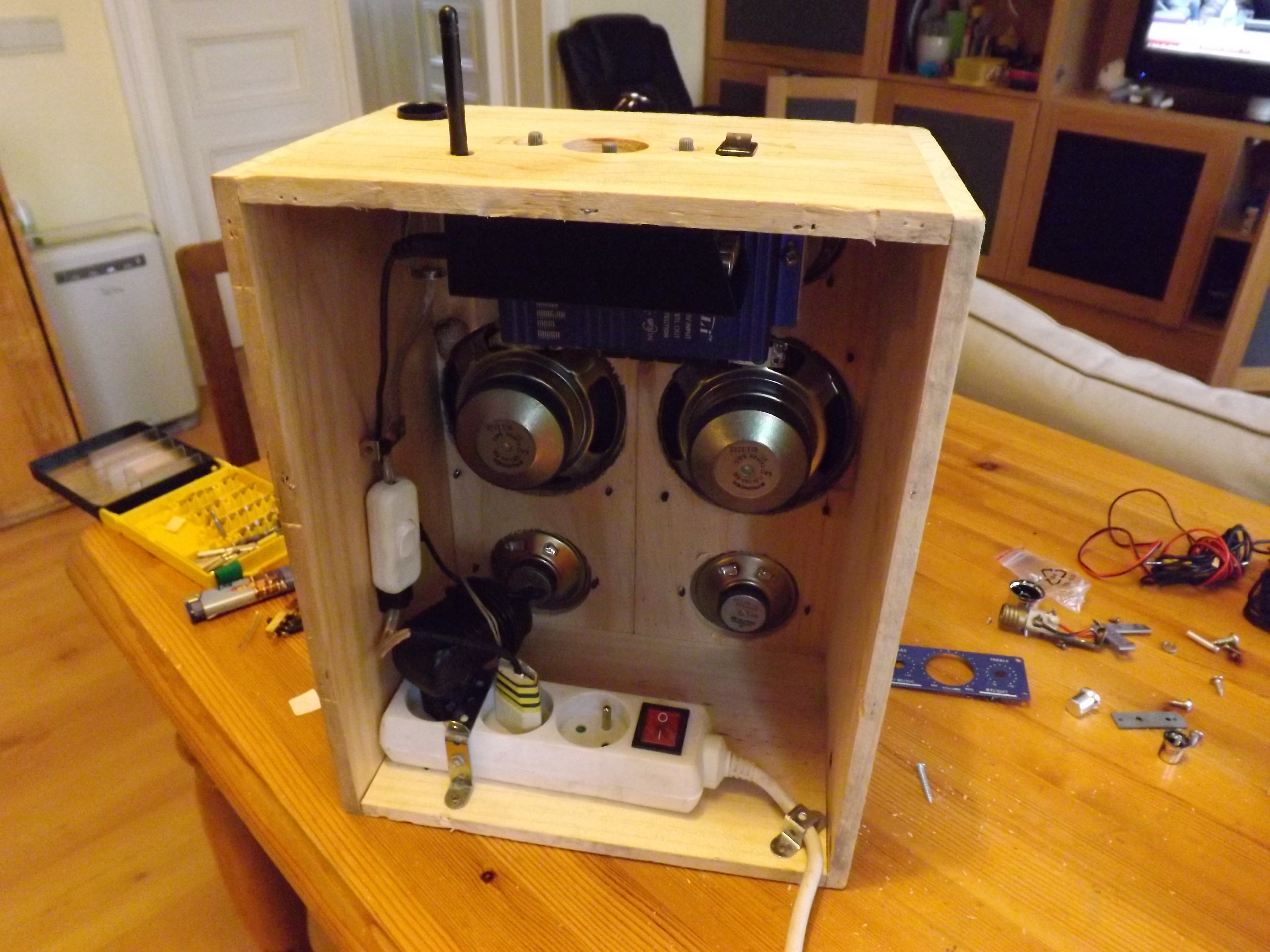

Add the power adapter for the amplifier, receiver and cables for the speakers.

Voila!!!!
