Build a Pneumatically Actuated Yeti in a Cage for a Halloween Haunted House

This pneumatically actuated, caged Yeti was part of the 2005 Occidental Haunted House that was the brainchild of Dale Dougherty, editor of Make. A giant pneumatic cylinder makes the monkey puppet appear as though it's trying to break out of the cage. Hidden air lines give onlookers a burst of compressed air in the face as they try to peer into the cage.

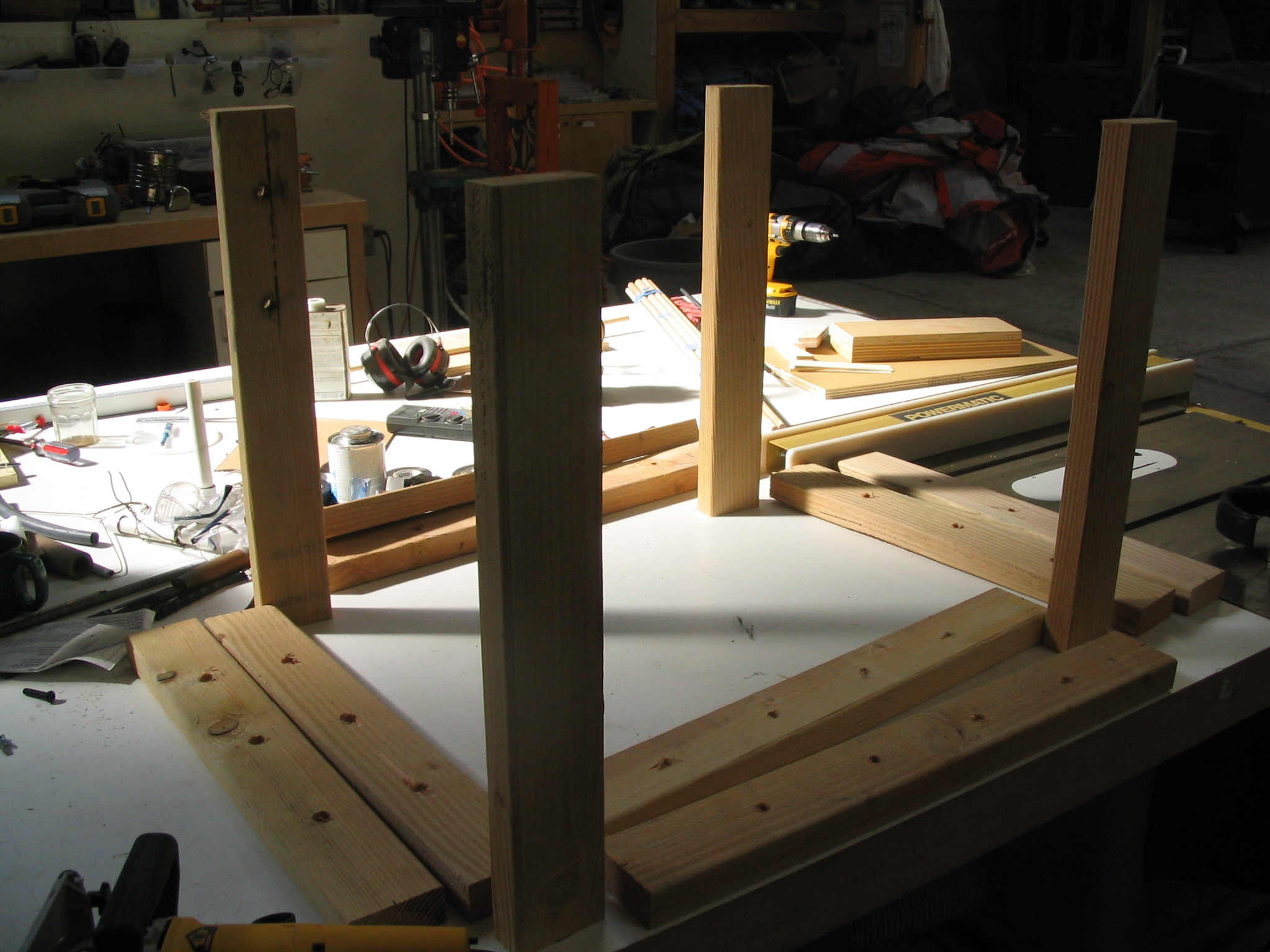

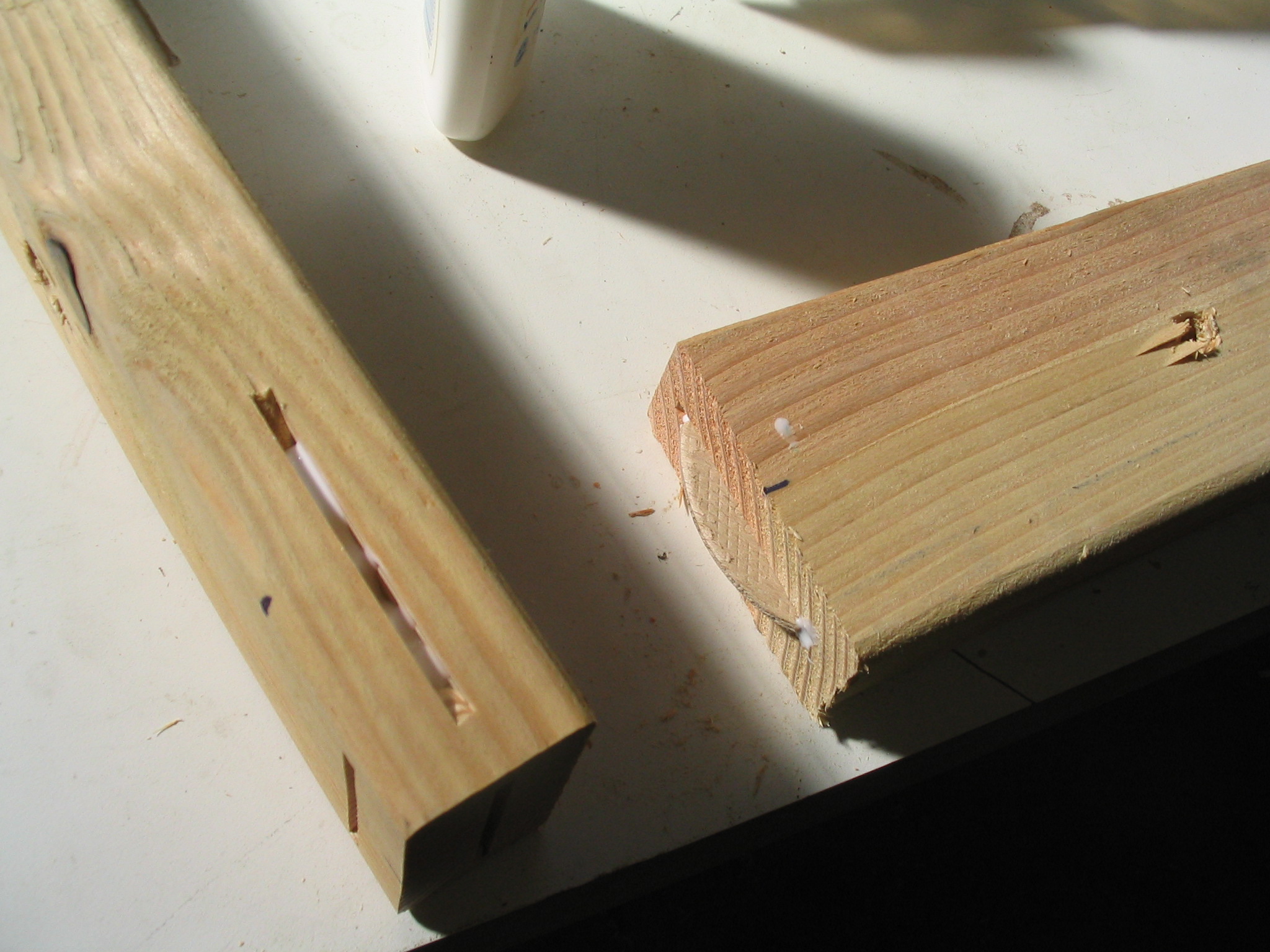

I used wood held together with biscuits and glue. I could have used screws, but I sure do love using my biscuit joiner. My cage is 24 in. wide, 27 in. tall, and 35 in. deep.

After drilling holes through the wood, I dropped in scrap dowels and rebar to make bars.

Cut pieces of plywood to make a ceiling and floor for the cage.

I spray painted the cage black.

The pictures are bit out of order because I installed the pneumatics first to test the whole thing out and then removed them to paint.

The 6 inch throw, 3 inch diameter double-acting pneumatic cylinder was a backup from another project that acutally needed such a thing. The valve is a 4-way, 2-position lever-operated control valve (part #4493k34 from McMaster-Carr). Both items are kind of pricey, so since being purchased originally for a consulting project they have been reused in a number of other projects. Compressed air is generated by a portable compressor used to power the air flow on the Squid Labs laser cutter when we take it to conferences or events.

The 4-way, 2-position valve is pretty neat. When you switch the position, it vents one side of the cylinder and pressurizes the other.

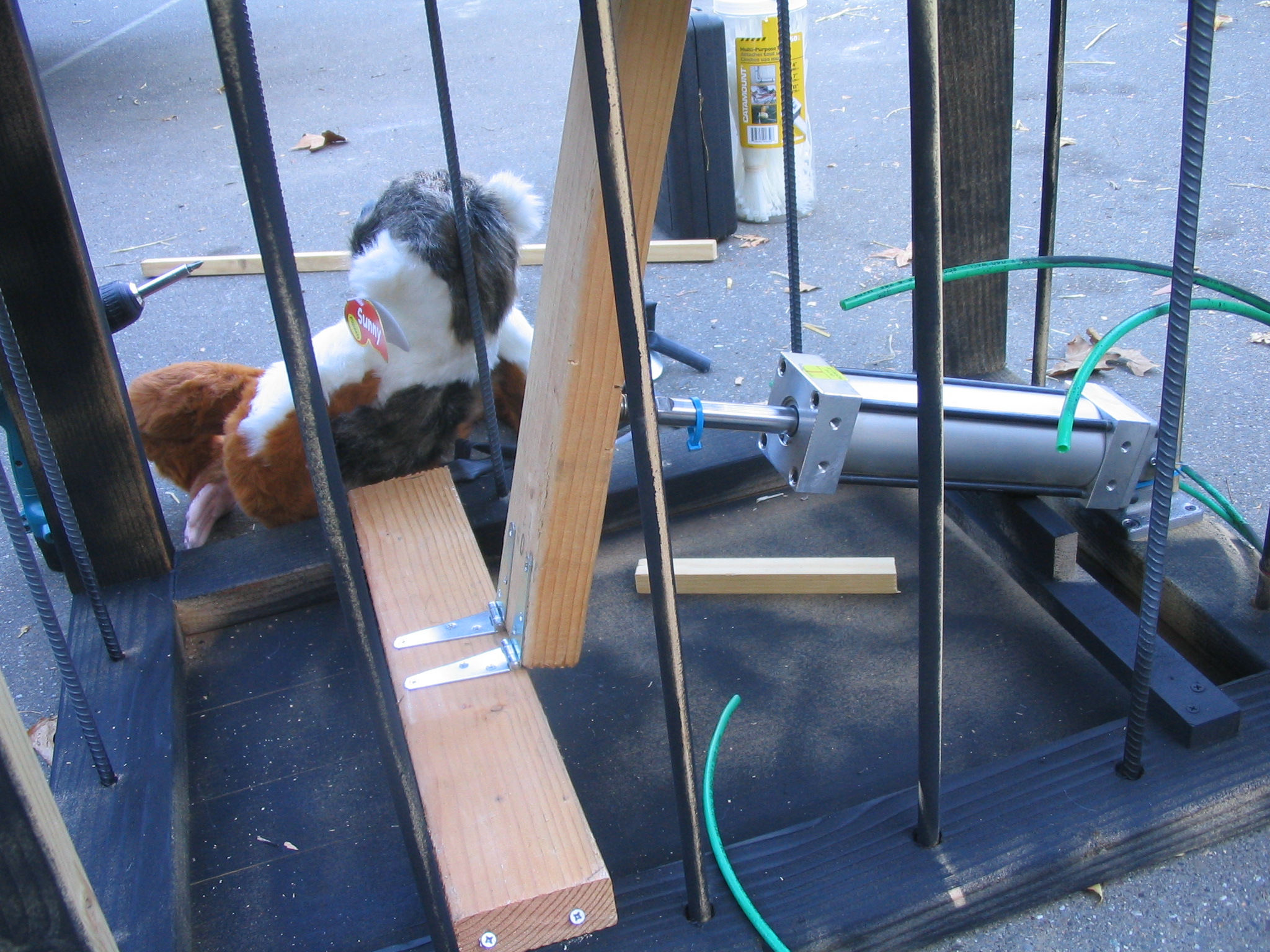

I put a 2x4 on a hinge and tied it with innertubes to the piston. The 2x4 went into the puppet like a hand.

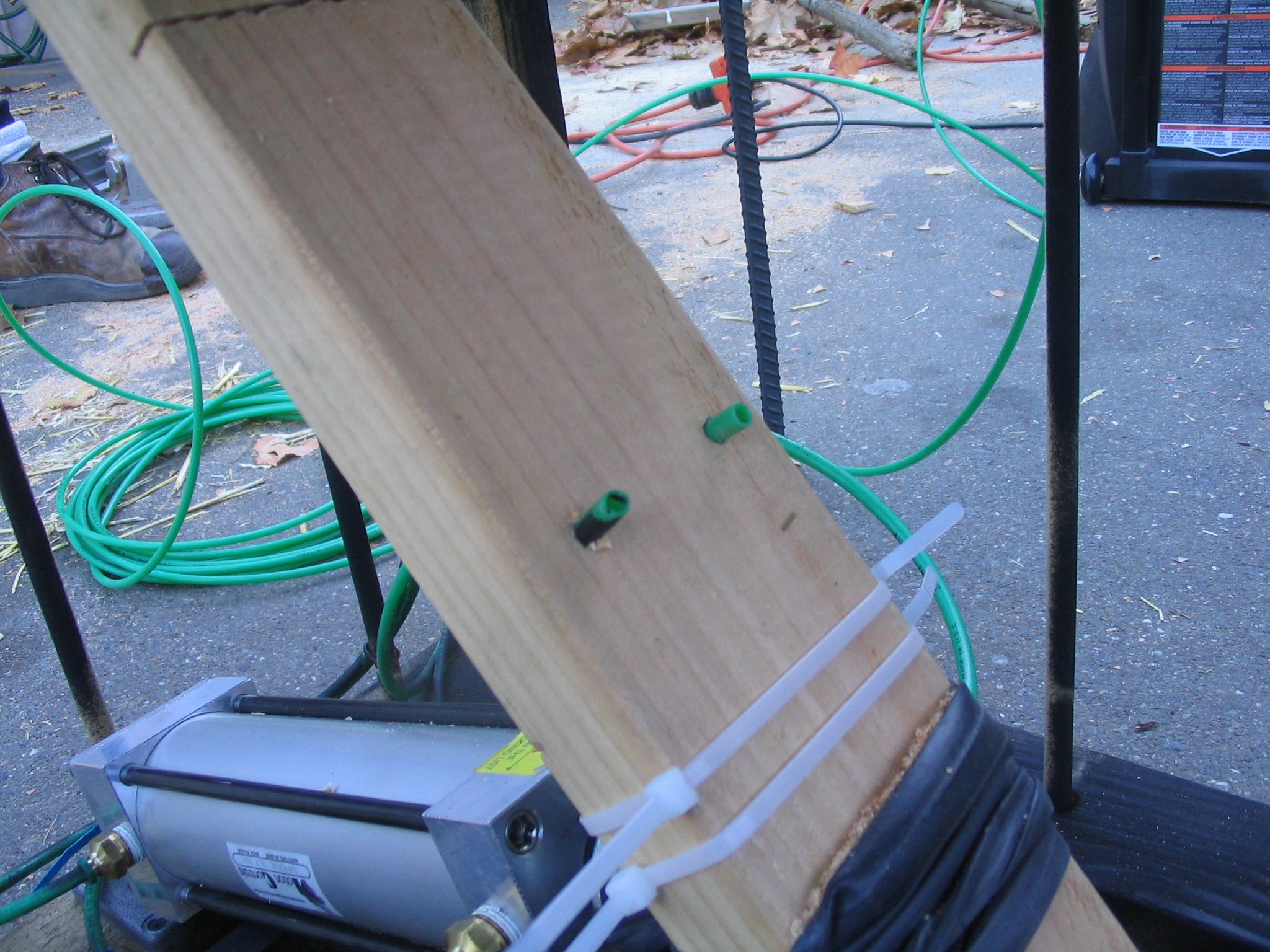

Just under the puppet, I drill two holes and fed airlines through the 2x4. I connected these airlines to vent port on the valve. In this configuration, there would be a burst of air as the cylinder extended or retracted. Since the airlines were on the 2x4, as it and puppet moved, the airlines would sweep out an arc and be sure to blow on people of all heights looking into the cage.

I used some thick but malable wire to hold the puppet's arms out.

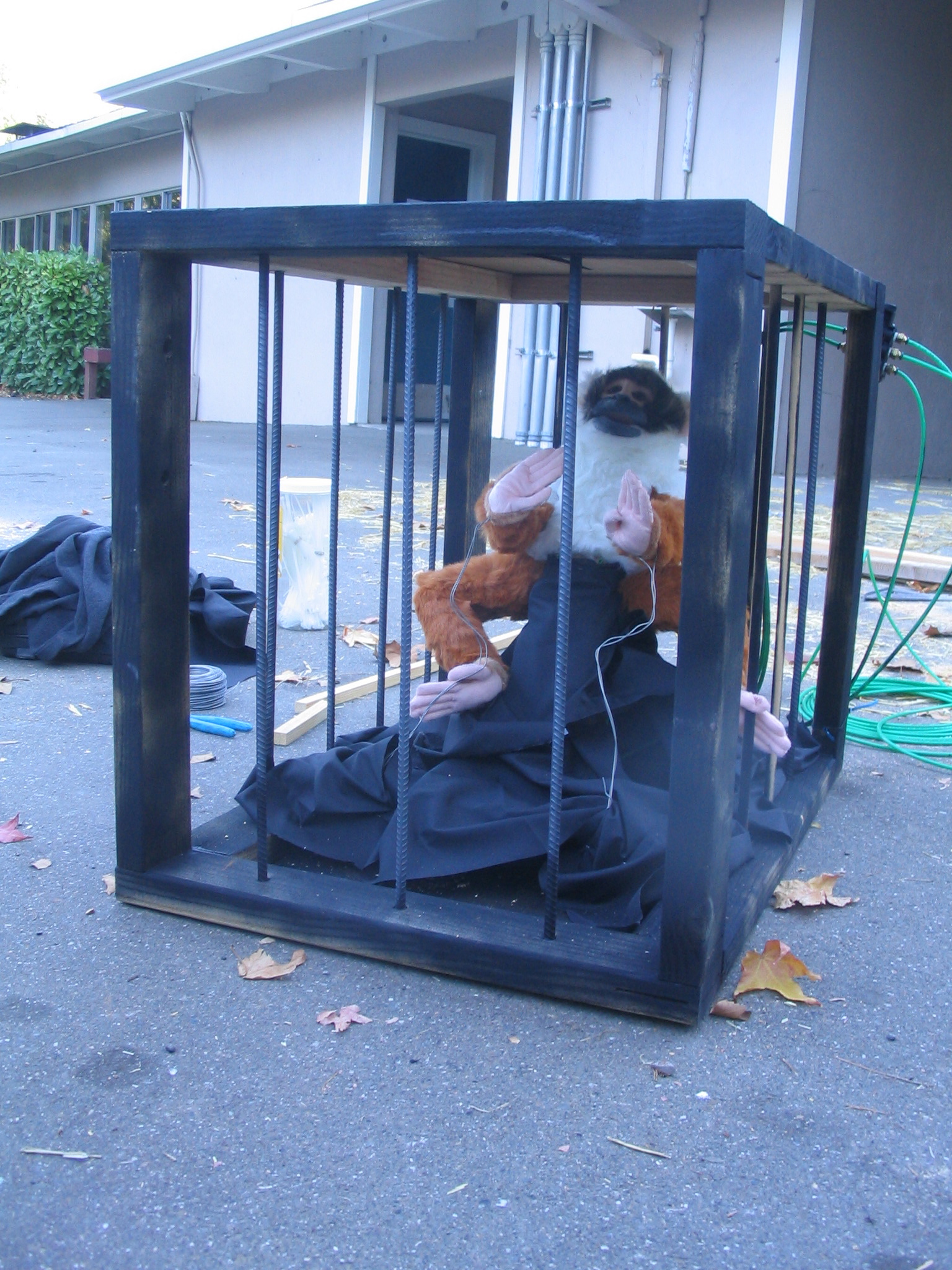

Cover the cylinder, 2x4, and hinge with black cloth. I used another one of my favorite tools, an electric staple gun, to help out on this step.

Red LED eyes would be a good addition, but I ran out of time.

I know this is terrible, but I feel that my Halloween creations are only successful if a few of the kids come out crying. Two Jacob's Ladders, low lighting, this caged Yeti, and everything else in the Haunted House seemed to do just the trick.

Happy Halloween!
