Build a Plastic Vacuum Former

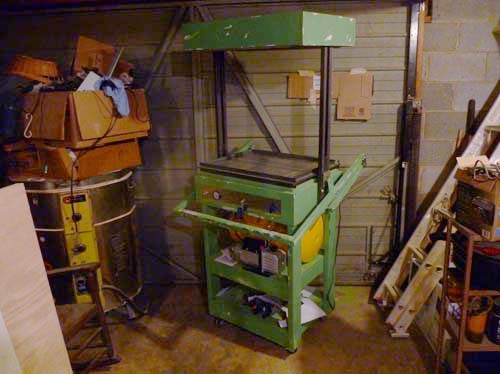

I finally built my vacuum former after looking at builds and collecting parts for years.
If I ever build another one, this outlines everything I need and the tricks I learned along the way. To buy a vacuum former like this, I would have spent over $5,000. I spent a LOT less.

This is an all in one unit. I used heating elements from toasters ovens, and I did not upgrade the circuit breaker or voltage. The heaters are mounted at the top, and a lift arm raises the steel frame and holds it in place while the plastic heats. The lift arms lower the frames onto the platen/object and I flip a switch to activate the vacuum, sucking the plastic onto the object. This set up uses a single tank and a vacuum pump.

Originally I was going to rely on an oven and a shop vac, but decided to build something nicer. I started in Google Sketchup, designing for an 18x24 bed.

Supplies:

• (1) 3/4" Plywood sheet 4'-0"x8'-0" for (1) 18x24 perforated platen, (1) 18x24 platen base, (1) 22x28 stand base, (2)17.5"x2.6" shelving, (1) 18x24 heater box, etc (Note: A 16x22 bed would allow a standard 18x24 'For Sale' sign to fit into the frame.)

• (4) 8'-0" Oak 2x4s for framing- legs and shelf bracing

• (2) Rigid Casters

• (2) Swiveling & locking casters

• #8 x 3" bugle head drywall screws for 2x4 to 2x4 connections

• #6 x 2" bugle head drywall screws for plywood to 2x4 framing connections

• (16) #12 x 1" hex head bolts for casters. Be careful not to over tighten.

• (1) 1/2" Concrete board 3'-0"x5'-0" for the heater box

• Numerous 1-1/4" Zinc coated screws for the concrete board

• (2) Toaster Ovens. I bought them from Goodwill. They were $5.00 each. Look for the ones that have (4) heating elements. I've seen them have between (2) and (4). My 20 amp circuit breaker could only support (2) units with (6) total elements.

• (4) 3/8" 1-1/2" Hex Bolts at vertical to horizontal steel connection

• (4) 3/8" 2-1/2" Hex Bolts at the bottom table connection

• (4) 3/8" 3" Hex Bolts at the top table connection

• (12) 3/8" Nuts

• (20) 3/8" Washers

• (2) 3/8" 1-1/2" Hex Bolts for tank mounting

• (1) #10-32 cap screw 2" for pump mounting

• Fire stop caulk for the concrete board joints and holes for wire

• Contact cement to attach the aluminum plate to the plywood platen. I re-glued it with Gorilla Glue.

• (2) 5" long 1/4" Hex bolts for base of lift arm

• (6) 1.5" long 1/4 bolts for lift arm joint

• (2) 3" long 1/4" bolts & nuts lift arm to frame

• (2) 2" long 1/4" bolts & nuts to prevent the frame from rotating. These do not attach to the lift arm, but to the steel slider.

• (4) Nylon spacers for 1/4" bolts for lift arm connections

• (4) pieces of steel for lift arm to lift arm connection. I used 1/16"x3"x3" steel.

• (2) pieces of steel for the frame bracket. I used .25"x3"x3" steel.

• (2) 1"x1"x 32" longer wood lift arm. Doing this again, I'd use steel tube.

• (2) 1"x1"x18" shorter wood lift arm. Doing this again, I'd use steel tube.

• (12) 1/16"x1.5"x1.5" Aluminum angle for the heater brackets

• (4) 1.5" long 1/4 bolts & nuts that connect the metal plate lift bracket to the wood lift arm

• (4) #12 x 1" hex head bolts for the closet flange

• Paint - I used a gloss gray base, satin white mid-coat, and a green color coat

• Round Aluminum Duct- For the control panel. Round aluminum duct is cheaper than flat sheet metal. While it's thinner, it's $3 instead of $30

Steel Supplies:

I bought steel from a local welding shop. You can check http://www.onlinemetals.com, their prices are fair and shipping isn't bad if you can't find a local source.

• (1) 1/2" 16 gauge expanded aluminum 16"x22" sheet

• (2) 1/2" 16 gauge expanded aluminum 16"x3" strips

• (1) 16 gauge aluminum plate 19.5”x25.5” (I sized this to wrap around the edges of the plywood.

• (4) 33” 1"x.125" steel square tube for vertical heater support

• (2) 19” 1"x.125" steel square tube for horizontal heater support

• (2) 10” 1"x.125" steel square tube sliders

• (4) 18” long 1”x1"x.125" steel angle for the frame

• (4) 25" long 1”x1"x.125" steel angle for the frame

Doing this again, I would make the lift arms steel tube.

Plumbing Supplies:

Galvanized fittings are cheaper than brass, so get galvanized when you can. The barbed fittings only come in brass.

Some of these components I got at a big box store, some I could only find at a hardware store.
I used a 1/2" check valve because I could only find the 3/8" size for an industrial application at a specialty plumbing store which was very expensive.

• (1) 1/2" galvaznied nipple from air tank to tee

• (1) 1/2" ball valve for tank

• (1) 1/2" galvanized nipple from valve to tee

• (1) galvanized 3/4" to 1/2" reducer tee fitting off air tank

• (4) 3/4" hose barb 3/4" fitting at tee, release valve, platen flange

• (1) 3/4" galvanized closet flange

• (1) 3/4" ball valve for platen

• (1) 1" galvanized 2 hole pipe strap

• 3/4" clear vinyl hose

• (1) 3/4" to 1/2" coupling

• (1) 1/2" fitting to 3/8" barb fitting

• (1) 3/8" galvanized tee fitting

• (4) 3/8" hose barb 3/8" fitting

• (2) 1/4" coupling from pump and for gauge

• (1) 3/8" hose barb 1/4" fitting at pump and at gauge

• (1) 1/2" check valve

• (2) 3/8" hose barb 1/2" fittings for the check valve

• 3/8" clear vinyl hose

• Plumber's Tape for the vacuum line fittings

• 11 gallon air tank from Harbor Freight (find a coupon)

• 2 stage 3 cfm vacuum pump from Harbor Freight (find a coupon)

• Vacuum gauge. I wanted one that just displayed inHG and was center mounted.

I could have deleted the 1/4" coupling and 3/8" hose barb 1/4" fitting and instead used a 1/4" to 1/2" fitting to connect the pump to the check valve. Doing this again, I would have added a nipple on each end of the 3/4" ball valves and done 90* fittings on each end, with a 90* fitting at the closet flange. This would have resulted in straight stretches of vinyl hose and shorter runs.

Electrical Supplies:

• (2) Toggle switches - 20 amp, single pole single throw

• Safety cover switch for the oven switch (because it looks cool) and distinguishes the two switches.

• (2) junction box

• (6) 3/8" twin screw cable clamp

• duplex receptacle

• 1/2" EMT conduit

• 1/2" EMT strap

• Black 14 gauge solid wire

• White 14 gauge solid wire

• (1) 3 prong cord. I salvaged mine from a computer power cord.

• Wire Nuts. I used sizes for (2) 14 gauge wires and (3) 14 gauge wires.

Tools:

• Measuring tape & pencil to mark lengths, attachment locations, etc

• Circular Saw/Table Saw to cut the plywood and 2x4s

• Punch to mark drill holes

• Drill/drill press for pre-drilling holes and attachment

• Sanding block to smooth any rough edges from cuts

• Clamps to secure wood (lots of clamps)

• Rubber mallet to adjust secured wood

• Round file in case any drilled bolt holes need enlargement

• Flat file for metal edges

• Jig saw with metal cutting blade

• Socket wrench with 3/8" and 1/4" sockets for the bolts

• Adjustable wrench for plumbing fittings

• Screwdriver

• Solder iron for heater connections

• Test light to confirm you've wired everything correctly

Cost:

• $70 for wood and associated screws

• $16 for casters

• $160 for all steel

• $100 for plumbing fittings

• $10 on toaster ovens

• $15 Concrete board and associated screws

• $30 Air tank

• $130 Vacuum pump

• Welding - I have a friend that welds, so this didn't cost me anything. Done professionally, I would estimate $120-180. Right angle brackets and recessed screws could eliminate the need for welding.

• $8 Aluminum angle

• $30 Electrical supplies

• $15 Paint

TOTAL: $584

That isn't bad considering you'd spend five thousand buying one outright. Forgoing steel would only save an additional $100, and that's not worth it.

Safety:

This project runs the gamut of potential dangers. Caution is a good buzzword.

• This involves various power tools and saws that could remove fingers.

• The aluminum plate and steel tubes, when first cut, will be rough with burs that can cut you.

• When drilling, make sure you don't accidentally drill through anything you don't want to.

• While I tested the limits of a 20 amp circuit in this tutorial, you need to be careful when dealing with electricity.

• Setting up the hinged lift arms can lead to a smashed finger if the frames fall down, and there are plenty of locations where you could pinch a finger.

• Spray paint must be used outdoors in a well ventilated area. A respirator or mask is recommended. Allow time to dry fully.

• Wear old clothes for painting. Chances are paint will find a way to get on your clothes.

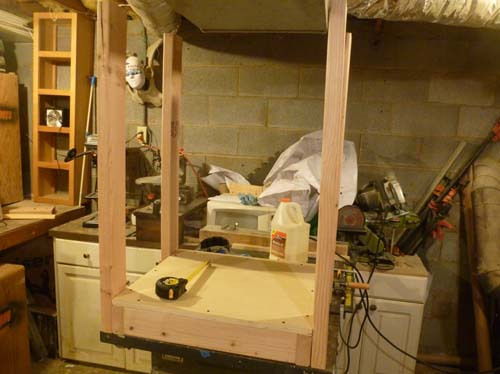

The table base is wood 2x4s and plywood. The verticals are 2x4s and the shelves are 2x4s for bracing with a plywood top. I split a 2x4 and used that to brace the top. I split the 2x4 for the top bracing as I knew I would be adding controls and gauges and needed the height.

While 2x4s aren't always square and straight, they are always cheaper than steel. To square up the shelves and top, once the 2x4's were attached to each other, I screwed in one corner of the plywood to the 2x4, and then clamped the 2x4s to align them with the plywood. The clamps help pull the 2x4's in line with the plywood edges. Then I screwed the plywood to the 2x4's while clamped.

I would clamp whatever piece I was attaching to mark holes for drilling. I added a 6" apron around the top for controls and release valve and because it matches the height of the heater box.

All holes are pre-drilled to avoid potential splitting. I used 3" screws when attaching through a 2x4 and 2" screws when attaching through plywood. The table was 36" high from top to bottom before casters. The casters add about 4" which is a perfect height.

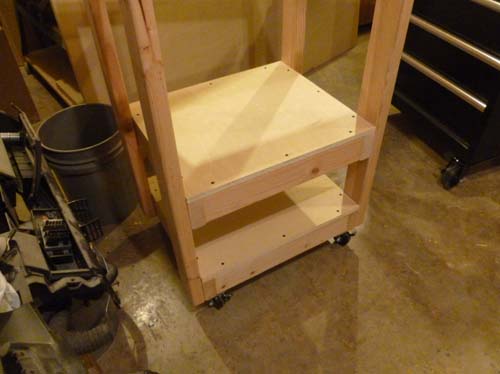

I added a shelf above the base for the tank and pump, which created storage on the bottom. I'll probably store scrap plastic. The tank is attached through the plywood with hex head bolts and nuts. I drilled a hole in the leg supports for the tank. For the pump, I removed one of the bolts mounting it to the plate and replaced it with a 2" long #10-32 cap screw that runs through the plywood. Since this unit is mobile, I don't want to have to worry about the equipment sliding or moving. This way it's secure at all times.

The vertical heater supports are steel for rigidity and straightness. A steel tube slider will run in between the supports to lift and lower the clamping frames. It will lock into place at the top position to heat the plastic so that I don't have to hold it in place.

I drilled the holes in steel with a drill press. I clamped the steel to the base and used the holes in the steel as a guide for the holes drilled in the wood. This ensures the holes are straight. Make sure you have enough space for the slider. It should should slide easily but not wiggle. I used calipers for precision. I waxed the tracks so it would slide smoothly.

To help coordinate the location for the vertical supports, I attached a horizontal clamp for the bottom of the tubes to rest on, this makes clamping it to the table much easier than trying to hold it still vertically and horizontally. Hex head bolts secure the verticals to the table.

If any of your holes are off, a round file will help enlarge the hole.

I had to shim the steel with a washer between the tube and table to ensure the tubes were straight and level. This will help the heater box fit well.

A 3/4" hole was drilled through the top of the base. A 3/4" closet flange was screwed from the bottom. During finishing I will caulk between the flange and plywood. The platen will attach to the top of the base.

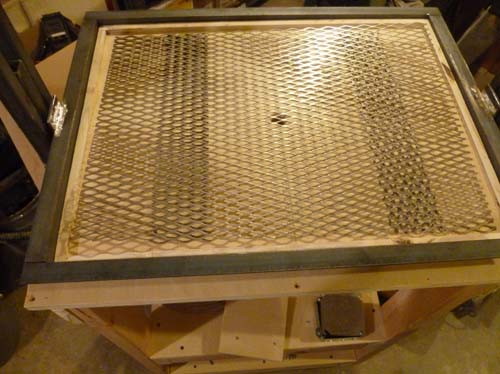

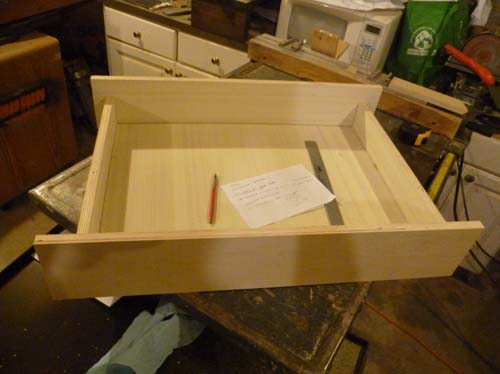

The platen is 3/4" plywood sandwiching 1/4" tall, 3/4" thick plywood. A 3/4" hole is drilled through the bottom which will line up with the base. The expanded metal was screwed into the base to stop it from moving around. I don't know if the vacuum pulls hard enough to crush the platen, but I went ahead and took the precaution.

The bottom of the platen was attached to the top of the base from the bottom side with 1" wood screws. The overall size is 18"x24".

The angle iron frames have an inside clear size of 18"x24". If I did this again I would make it 16"x22". That way a standard large "For Sale" sign would fit in the bracket as the signs are 18"x24".

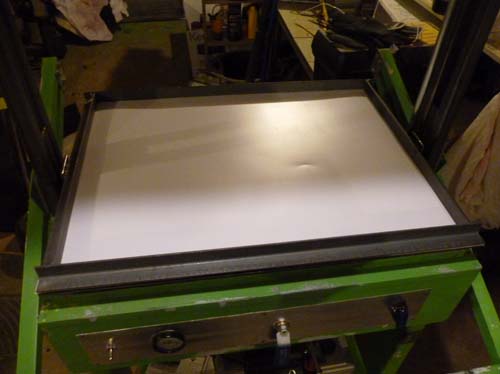

I used contact cement to attach the aluminum plate to the platen top. I later had to re-glue it with Gorilla glue. Before attaching, the board needs to be 1/8" less long and less wide than the bottom of the platen to account for the aluminum plate thickness. I wrapped the edges of the aluminum down 90* at the edges. If I build this again, I won't wrap the aluminum edges, while I like the look it was an added headache that isn't functional. Or if I do it again, I will account for the thickness of the aluminum first!

It looked really good the first time I bent the edges down. When I had to bend them up and recut the platen to fit the frames, it got a little beat up looking. Upon regluing, I took a small nail to ensure all of the openings were clear of glue or debris. I marked 1/16" holes at 1" on center, accounting for the 1/4" spacer around the perimeter. The spacer needs to be relatively small as it takes up air space. and the tank only holds so much. The larger this air space, the less effective the tank is at removing air.

I hammered the aluminum down on the sides with a rubber mallet.You want to bend the whole edge down evenly a little bit at a time.

The oven box is plywood, fastened the same way as the base with bugle head drywall screws.

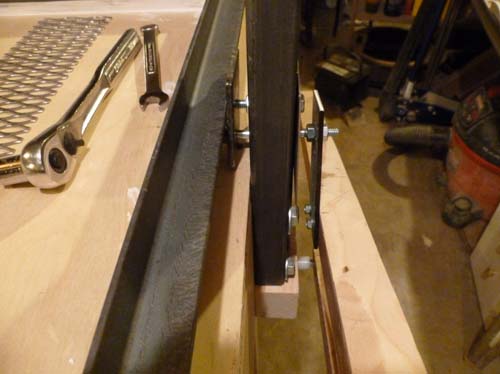

To attach the horizontal support, I placed a piece of steel tube between the supports and attached a horizontal clamp. This made clamping the horizontal supports much easier since the clamp stabilized it. Due to clearance, I drilled a 5/8" hole on the inside of the horizontal supports so the bolt heads wouldn't protrude as the concrete board rests directly against the steel.

The bolts of the horizontal supports intersect the outside plywood trim to hold the heater box in place.

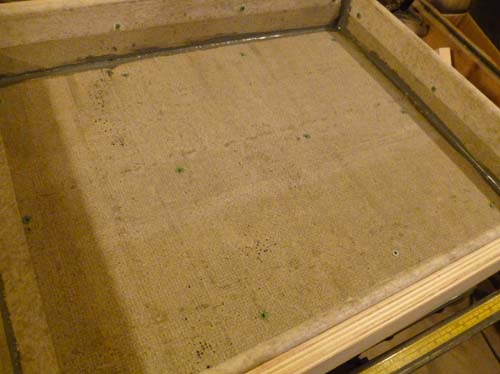

I used concrete board as an insulator for the heater box. The concrete board was cut to fit the box and then screwed to the wood. I used fire caulk at all joints and seams. I attached the concrete board to the heater box with zinc coated screws.

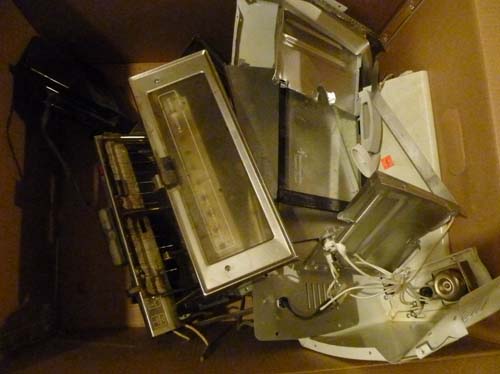

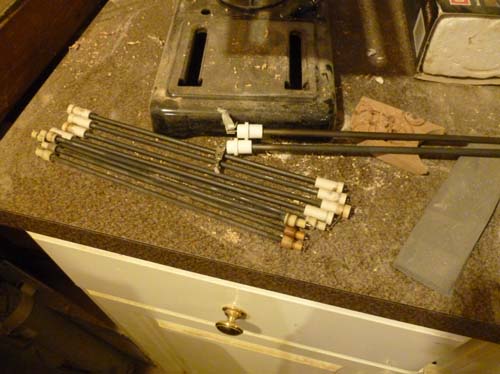

I salvaged heating elements from toaster ovens. Cut the connections and then use a belt sander to clean it up. You could use a grinder, but you may accidentally grind right through the steel connectors.

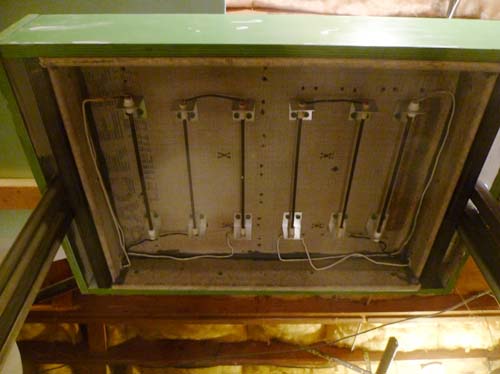

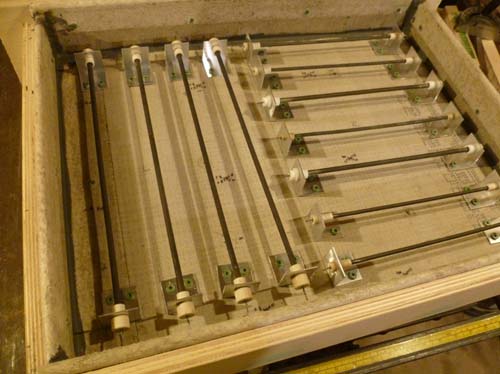

I took the heating elements salvaged from the toasters ovens and began arranging them. You want the elements to be evenly spaced throughout. A ni-chrome wire heating kit would be easier, but it costs a couple hundred dollars.

I spaced my elements at roughly 3.5" on center and 3.5" from the perimeter of the box. While I originally was going to have (11) heating elements. My 20 amp breaker couldn't support it. I have (6) elements. I was going to craft brackets for the elements from metal leftover from the toaster oven shells, but decided to use 1.5" aluminum angle for a better looking and stronger finished product.

I drilled holes in the aluminum brackets to hold the ceramic posts. The ceramic posts should slide freely. The aluminum was trimmed to 1.5" lengths. and screwed to the concrete board.

I have a 10" piece of steel tube that will slide between the vertical supports on each side that lifts and lowers the steel plastic frames. It ensures the frames lower directly onto the platen.

I had thought about facing the sliders with nylon, but that proved too expensive. A bolt goes through the lift handle bracket, slider ube, and into a bracket welded to my angle iron frames. A second bolt goes through the slider and into the welded bracket to prevent the frames from rotating.

The lift handle is wood, as is the cross bar. I used scrap steel to create the hinge to connect the two arms using 1/4" bolts and nuts. Scrap steel bolted to the lift arms acts as the bracket to the frames.

The long lift arm is 32" long. The shorter is 18". One end of the shorter arm was rounded, so that it could rotate. I glued a stop on the bottom side of the lift arm. This allows the lift arms to lock into place and hold the frame at the top position near the heater without falling back down. A nylon spacer is between where the lift arm attaches to the base so the lift arm clears the bolts and vertical steel tubes.

If I had to build this again, I would consider attaching 1" steel tube to the bottom of the frame. It would make the attachment to the lift arm a little cleaner. I welded on a piece of steel to the frame. One bolt connects to the lift arms, the other bolt attaches to the slider to prevent the frame from rotating during use.

The sliders need to be short enough so that the frame contacts the table fully. A gap between the frame and table prevents a seal, making the vacuum less effective. I added weather stripping onto the table to ensure a good seal.

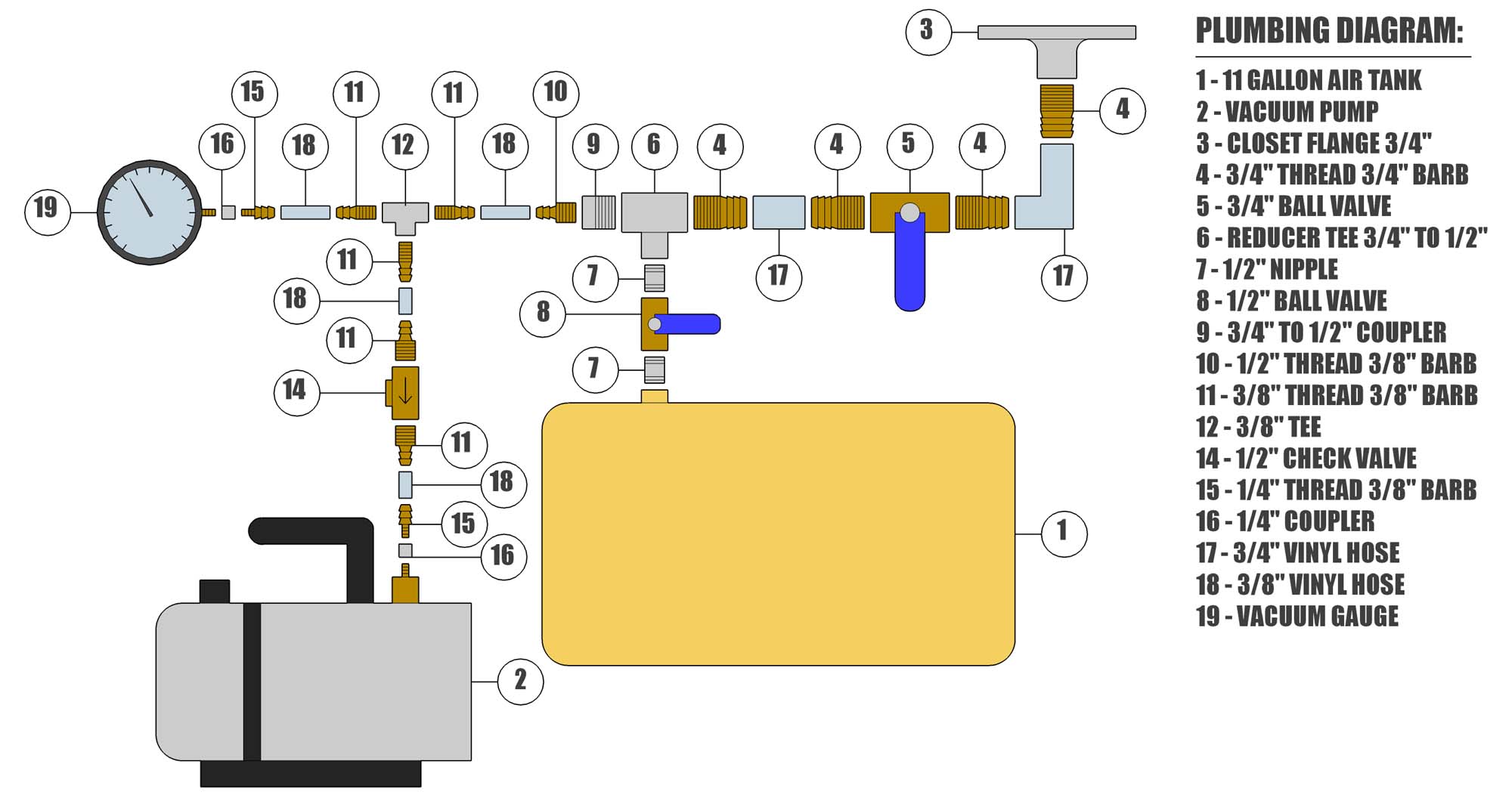

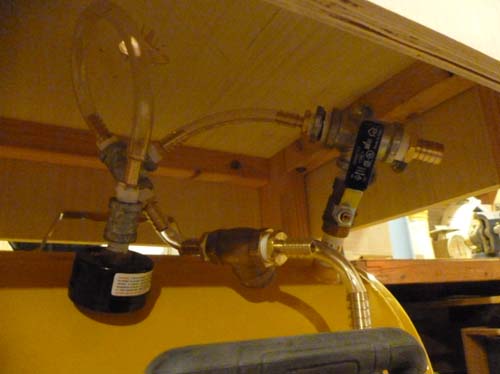

Plumbing was determined as I went along. The fitting on the air tank is 1/2" female. The fitting on the vacuum pump is 1/4" male. I used 3/4" inner diameter tubing to the platen and 3/8" inner diameter tubing to the vacuum pump.

A 1/2" nipple connects the air tank to a 1/2" ball valve. Another 1/2" nipple connects the ball valve to the 3/4" to 1/2" reducer tee. One end of the reducer tee is a 3/4" thread 3/4" barb fitting. This side uses 3/4" vinyl tubing to connect to the 3/4" ball valve with 3/4" thread 3/4" barb fittings and the galvanized closet flange with a 3/4" barb fitting.

The other side of the tee has a 3/4" to 1/2" coupling and a 1/2" thread 3/8" barb fitting. This connects to a 3/8" threaded tee and 3/8" thread 3/8" barb fittings. One end of the tee goes to a 1/2" check valve with 1/2" thread 3/8" barb fittings and a 1/4" thread 3/8" barb fitting and 1/4" coupling to the pump. The other end goes to the vacuum gauge with a 1/4" thread 3/8" barb fitting and 1/4" coupling at the gauge. All threads were wrapped three to four times with plumbing/teflon tape. The tape helps seal and ensures connections attach smoothly. The tape should always be wrapped in the direction of the threads, and you want to start on the second thread.

A 1" two hole pipe clamp holds the ball valve in place on the control panel. The wood had to be recessed so the valve handle would clear the front of the panel.

Doing this again, the 3/4" barbs would screw into a 3/4" 90*, this would create straight runs of the vinyl tubing and shorten it by quite a bit.

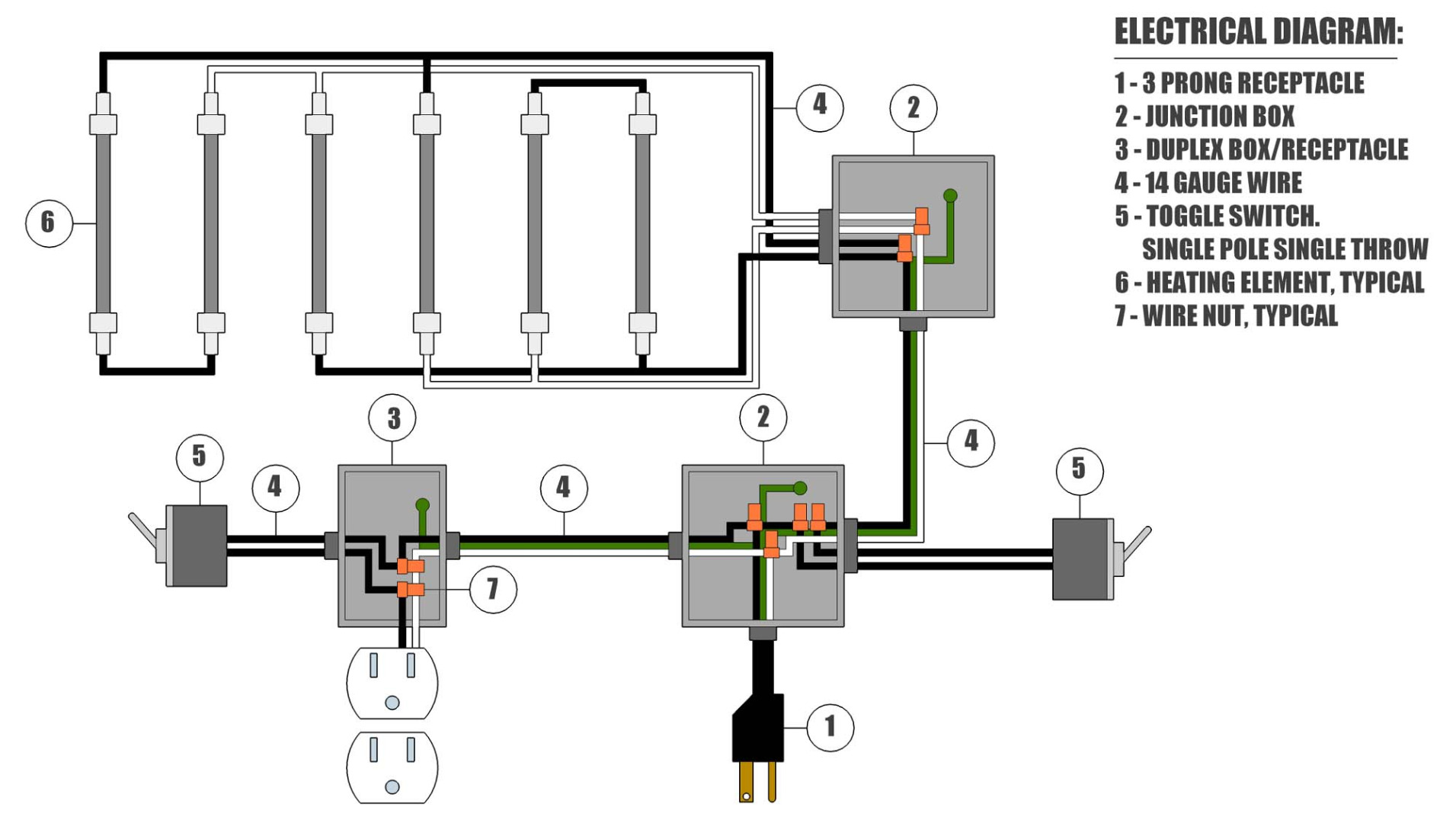

Wiring this rig is an area I'm not as familiar with. While I assume there has to be a more efficient way, this is what I came up with based on trial and error and tripping the circuit breaker.

I salvaged a three-prong cord from an old computer monitor. This will plug the vacuum former into a wall outlet. I want this to be plug and play.

In the base, the power cord feeds to the junction box. From this junction box, one set of wires runs to the duplex receptacle for the vacuum pump, the other runs to the junction box on the oven. The junction boxes have a cable clamp for the wires at all locations where wires enter or exit the box. This ensures wire connections can't be loosened or disconnected.

An inline toggle switch is attached for the receptacle and the oven. I used a test light to confirm the switches were installed correctly. Testing the electrical at each step, narrows the possibilities if having problems later. I confirmed the pump worked, then confirmed I was getting power to the oven junction box before connecting the heaters. Whenever I did any electrical work, I confirmed it was unplugged.

The wood panel was recessed from the back so that the toggle switches would clear the front of the panel.

My heater box is built with a gap where the vertical supports extend up. This gap is where I have a junction box mounted. I have a piece of conduit running along the top so that the wiring can access both sides of the box and remain hidden from view. Conduit runs from the oven down to the base adjacent to the vertical support. A 1/2" EMT pipe strap secures both ends of all conduit.

I revised the number of elements from (11) to (6) based on what would NOT trip the breaker.

Some elements heat up to full temperature wired in series, some need to
be wired alone. Trial and error will determine. I looped the wire on the elements to test the setup before soldering. (2) groups of (2) elements are wired in series and (2) elements are wired straight.

If the elements don't glow red/orange, they aren't up to temperature.Let the heaters run for 5-10 minutes during testing. A few times in testing, the heaters wouldn't trip the breaker until they were at operating temperature.

All wiring connections in the junction boxes were wire capped and taped.

I didn't have a good way to test for even heating as I didn't have access to and didn't want to buy a thermal camera. In the test run, even before re-spacing the elements, it seemed to heat fairly well.

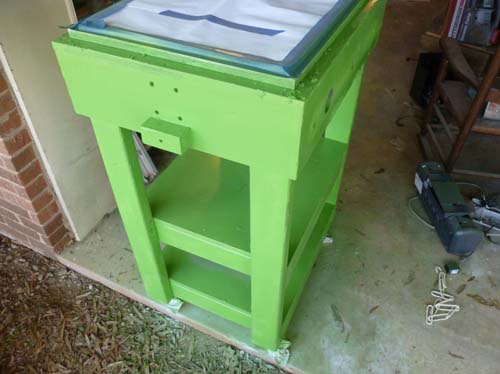

I couldn't leave it plain. Even if you don't want to weather it, I recommend painting or staining it just to protect the wood.

I disassembled everything.

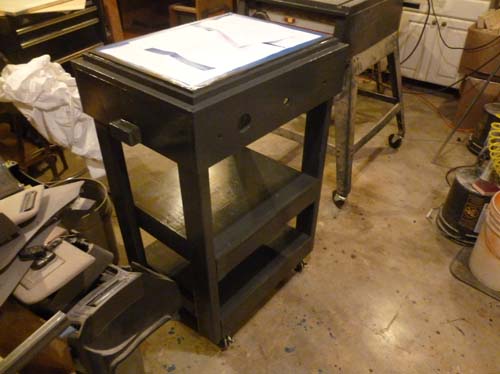

I painted all wood gloss gray. This will mimic a steel finish. I then sprayed everything with a satin white. The white will look like a prime coat. My color coat is a green. I wanted something more military green, but I had this on hand.

After spraying the white, I rubbed it off on edges, corners, and anywhere I wanted the 'steel' to be revealed with a shop towel.

Then I applied mustard where the green paint will 'flake' off to reveal the prime coat and steel. You want the mustard to overlap the white so the paint looks layered. This is going to be areas that wear more like edges. I also used salt, which gives a pitted finish. I had never tried salt before, and wish I had used more of it. Wet the salt slightly so it sticks better. Then you can spray the green. Once it dries, wipe off the mustard and salt to reveal the 'steel' and prime coat. You can go back over the green with acetone or mineral spirits to remove green or create wear places. Be careful that you don't remove too much paint.

Once weathering is complete reassemble the unit.

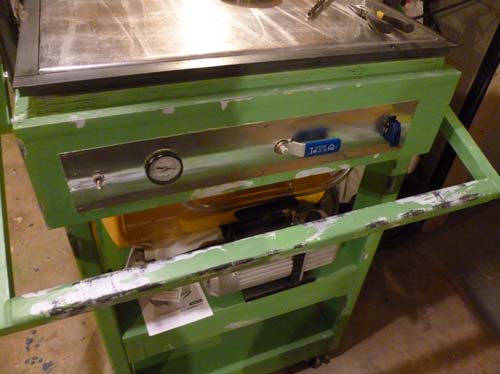

I used the round aluminum duct to create a panel for the front. I removed the curve from the duct by running it over the edge of a 2x4. Then I cut it to fit and cut holes in it for switches, the valve, and the gauge. You can use a hobby knife to enlarge the holes.

You can use black enamel and rub it on then off, to accentuate crevices and recesses. I was going to do this, but haven't yet. It adds a nice layer of grime and use to the unit. When that's complete, clear coat everything to protect the finish.

I added weather stripping where the frames meet the table. You want as tight of a seal as possible.

I also added a 1/2" conduit strap at the top of the base to secure the end of the plug when not in use. This prevents me from stepping on it or running over it.

With this project finally done, the big question is, does it work.

It does!
It's a bit trial and error. First I evacuated the air tank with the pump. I turned the heaters on and let them get hot as I clamped the plastic in the frames. Once the heaters were hot I raised the frames.

I have a small leak in the vacuum lines. I plugged the pump in to a separate outlet on a separate circuit since I know I can't run the pump and heaters simultaneously on the same circuit.

Once the plastic started drooping, I switched off the heaters, lowered the frames and opened the valve. My plastic stretched too far underneath one item that was suspended off the table and broke the seal, so I know I can get a tighter pull. If the seal didn't break, I would have closed the ball valve on the tank and switched on the vacuum pump to remove any additional air. This step might be unnecessary. I need to do a few more pulls to perfect the technique.

On the second pull, the definition was really good. For concave areas like sunken in eyes on a mask, drill a hole in the eye to evacuate air. Gaps less than 1/4" aren't going to pop a hole in the plastic. Flat bases work best, and you can even suspend it off the table for good edge definition.
