Build a DIY Recycled Antenna (To Get Free T.V!)

Due to all of the recent talk about the "DTV Switch-Over", T.V. has been something that is on my mind. I recently scrounged a perfectly good T.V. on trash day. It still amazes me that people will throw stuff like this out.

Anyway, since I got the T.V. I've been experimenting with different ways to get signal. At first I was tempted to try to run a cable wire up from the basement at my house. My parents ruled that out. Then I tried using a paper clip in the antenna in spot on the T.V. That gave too weak of a signal.

That led me to build what my dad has dubbed the "Cantenna." It's all from materials that I got in my recycling bin or took from old projects. If I can find this stuff, you can too.

This is great because now I have free and easy T.V. that I pay absolutely nothing for (except electricity).

NOTE: I'd like to apologize. Image notes aren't working for some reason. If you're having trouble with anything, just leave a comment.

NOTE: YOU CAN SKIP THIS STEP UNLESS YOU'RE INTERESTED IN THE SCIENCE BEHIND THE ANTENNA. YOU CAN BUILD THE PROJECT JUST FINE WITHOUT KNOWING THIS.

Seriously. This step will probably bore most people away from the project. If you aren't interested, just skip it!

When the paper clip wasn't working as an antenna for my T.V., I seriously was thinking about going out and buying a real antenna. Then I decided I would really try hard to be green. So I hit the interwebs and started googling. I found out that one of the best types of antenna for my purpose would be a "Dipole antenna." According to wikipedia (here), "These antennas are the simplest practical antennas from a theoretical point of view." Simple is always good. I won't get into all of the details here because that's what wikipedia is for.

So, I did some more googling and discovered that I could skip all of the calculations on wikipedia, and basically just hang up two halves of the same can.

Well, if you survived that you can continue to the next step now.

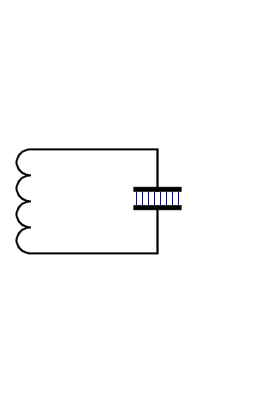

*Note: Image taken from wikipedia and used under Fair Use (It has a GNU free documentation license so I think that's okay).

Except for tools, I didn't pay for very much of the project. I took the T.V. out of the trash (along with the coaxial cable), I am using a Dr. Pepper can that was going to be recycled, and the wire I used came from an old computer I took apart.

Parts:

T.V.

A Coaxial Cable

An old soft drink can

Duct Tape

Tools:

Wire cutters

Wire Strippers

Soldering Iron

Solder

Electrical Tape or Heat shrink tubing

This step is self-explanatory. Just cut the can in half, down the middle and length-wise. Just look at the pictures if you don't understand.

I mainly used scissors, but I needed wire cutters to get through some of the thicker parts of the can.

When you have the can in two, just wash it out to get any old drink residue out of it. Be careful not to cut your hands on the edges! Also, you may want to do all of the cutting over the sink. My can dripped a lot as you can see in the picture.

The next thing to do is strip the coaxial cable. This will make it easy to wire the cans to it.

Stripping the cable may be a little bit tricky. I just cut of one of the ends off then started stripping the insulation away. As you can see from the picture, it doesn't have to be a very clean job, you just need to be able to solidly attach the wires to the wires in the cable.

Now you just have to solder everything together.

The first thing I did was punch one small hole in each can. This gave me something to thread the wire through and helped give a better soldered connection. I then soldered one wire to each of the cans.

Next, I soldered the wire from one can too the outside coaxial wire, and the wire from the other can to the inside coaxial wire.

Once everything was soldered I used electrical tape and hot glue to insulate everything.

Now that you've finished making the antenna, all that is left to do is hang it up so it can get a signal. Two good places would be in an attic or on a window. The best place would be on your attic window. Basically someplace high up and without much blocking it from the signal. You should also hang it somewhere convenient.

Just take all three factors into consideration and decide on a good spot.

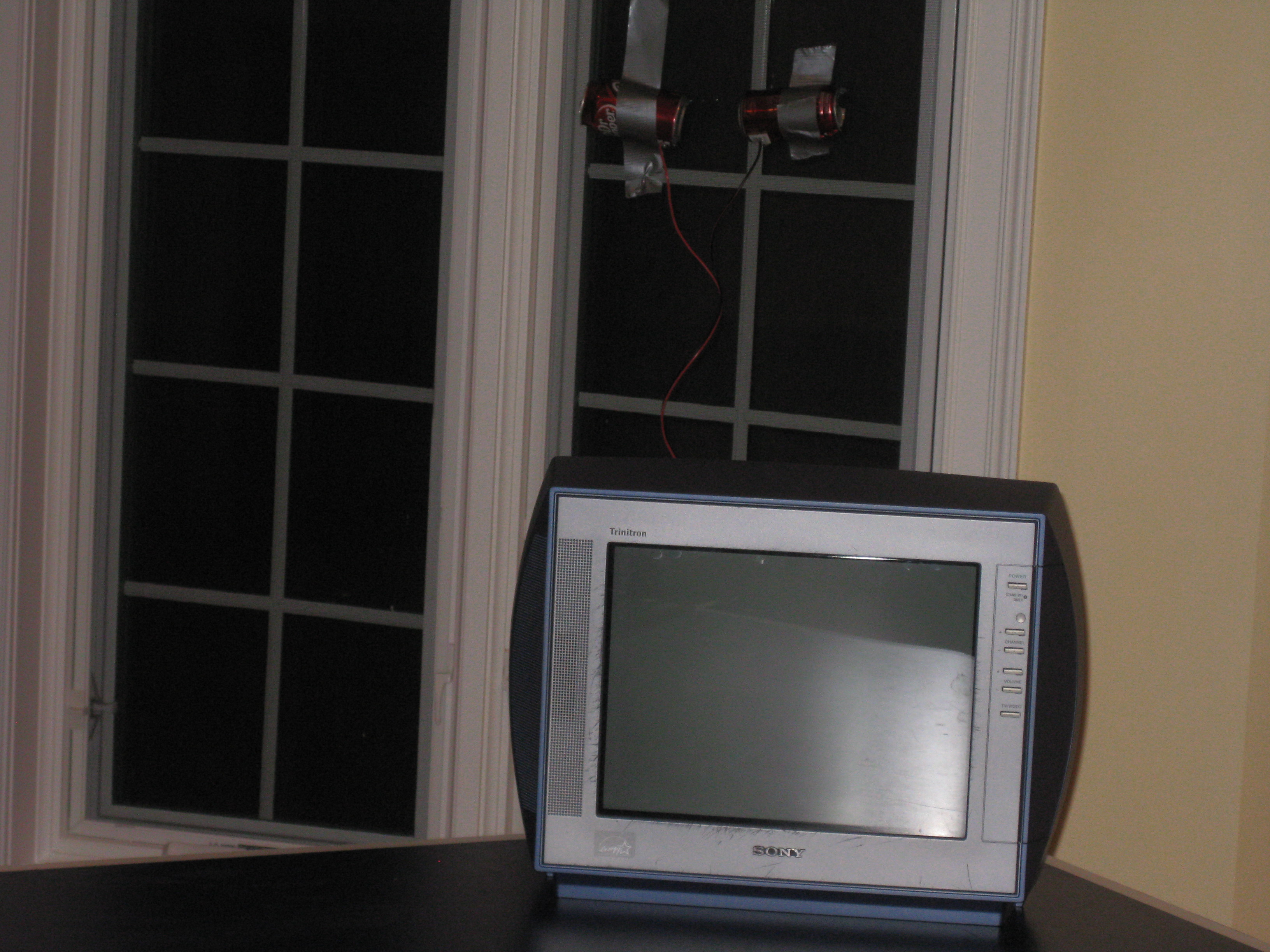

Now, duct tape to two can halves to the window. They should be lined up and a couple of inches apart.

Now you've finished your own CANtenna. If you used all recycled parts you probably didn't spend any money and now have free T.V. Enjoy it!

If you have any troubles, want to say anything good, or pretty much anything at all, just leave a comment. Feedback is always appreciated.

Also, if you like my 'ible you could always give it a vote in the Epilog contest.

Thank you and have fun with your Free T.V!
