Build L293D Dual Motor Driver Board for Arduino
![frompixlr (1).jpg](/proxy/?url=https://content.instructables.com/FB2/YGM1/IO8WE39K/FB2YGM1IO8WE39K.jpg&filename=frompixlr (1).jpg)
Hello Instructables enthusiasts...
Nowadays buying the boards for the projects is very expensive.. But it can be construct at very low cost.
I required L293D dual H-Bridge motor driver board for my next instructables .
So, to save bucks for my next project I constructed L293D driver board.
In this Instructables ,there is detail content to construct L293D driver board.
Components
![5739c4d950e1b68ee6000794.jpeg](/proxy/?url=https://content.instructables.com/FQE/P1A4/IO8WDFYZ/FQEP1A4IO8WDFYZ.jpg&filename=5739c4d950e1b68ee6000794.jpeg)
![5739c5204936d4486e00002a.jpeg](/proxy/?url=https://content.instructables.com/F0Y/PE3Z/IO8WDG0E/F0YPE3ZIO8WDG0E.jpg&filename=5739c5204936d4486e00002a.jpeg)
![5739c46c4936d411ce00022c.jpeg](/proxy/?url=https://content.instructables.com/FC3/Z0WE/IO8WDE7Q/FC3Z0WEIO8WDE7Q.jpg&filename=5739c46c4936d411ce00022c.jpeg)
![5739c4b645bceb592600166e.jpeg](/proxy/?url=https://content.instructables.com/F1V/XF31/IO8WDG2I/F1VXF31IO8WDG2I.jpg&filename=5739c4b645bceb592600166e.jpeg)
![5739c4ea4936d4486e000028.jpeg](/proxy/?url=https://content.instructables.com/F9Q/M0Z4/IO8WDFVT/F9QM0Z4IO8WDFVT.jpg&filename=5739c4ea4936d4486e000028.jpeg)
![5739c5a52e7fb679170011d6.jpeg](/proxy/?url=https://content.instructables.com/FVR/NB09/IO8WDGEE/FVRNB09IO8WDGEE.jpg&filename=5739c5a52e7fb679170011d6.jpeg)
![5739c65467400cef3900102f.jpeg](/proxy/?url=https://content.instructables.com/FHA/Q4QK/IO8WDGS8/FHAQ4QKIO8WDGS8.jpg&filename=5739c65467400cef3900102f.jpeg)

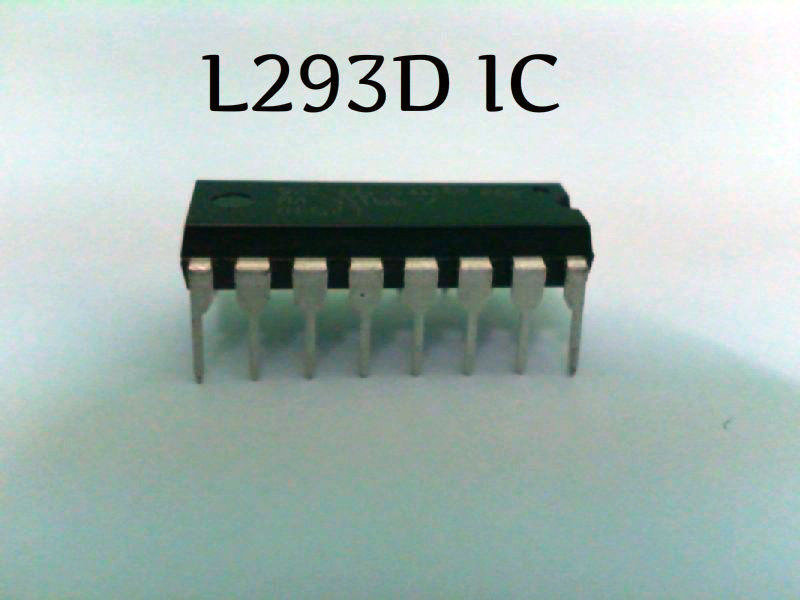

L293D IC -1
16 pin IC socket -1
PCB -1

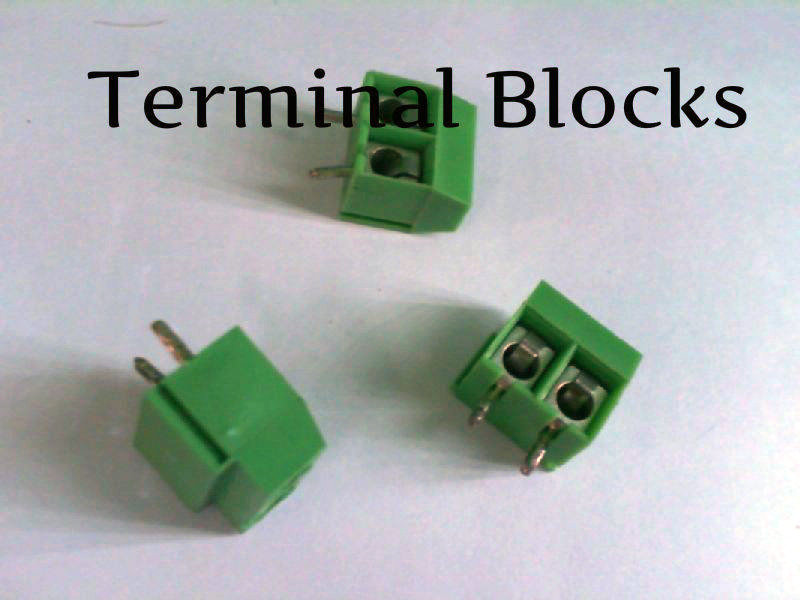

Terminal Blocks -3

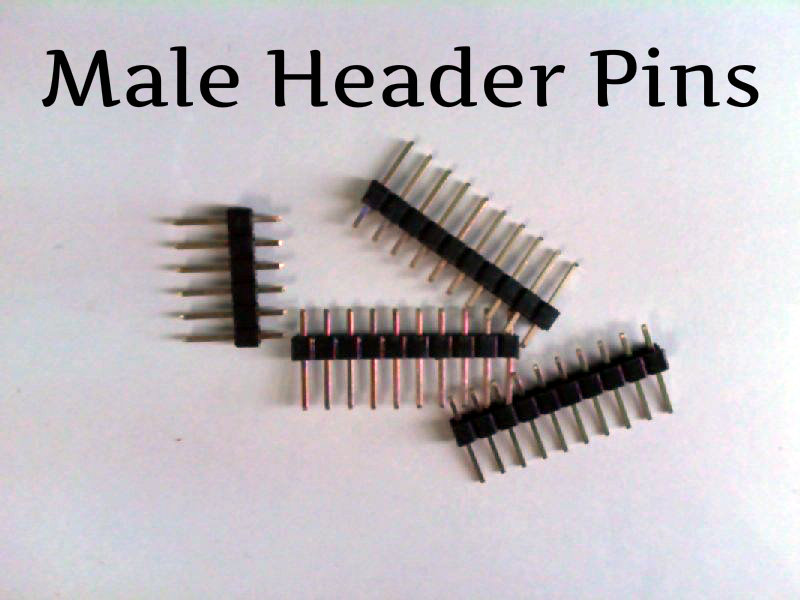

Male Header pins -4

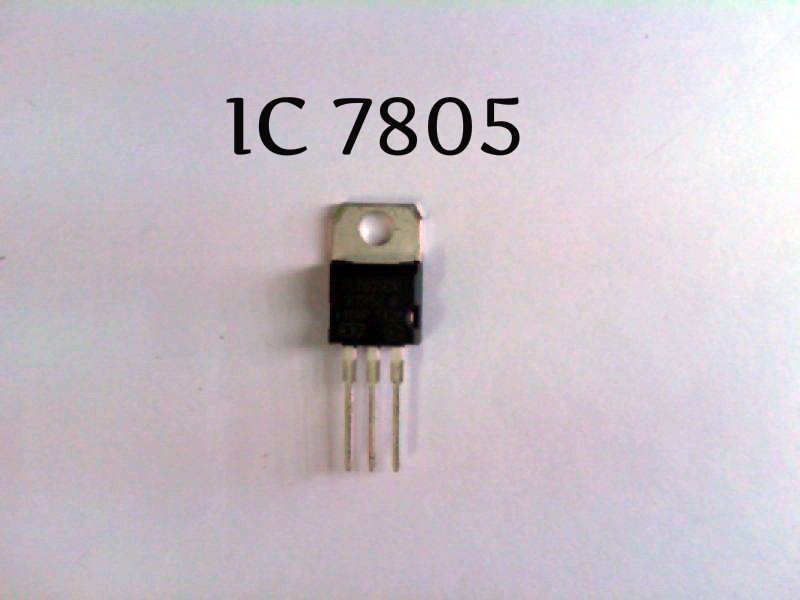

IC7805 -1
Hookup Wire - 0.5m
Diode- 1N4007 -4
Tools:
Soldering Iron
Snipper
Screw Driver
Construction
![Screenshot (77).png](/proxy/?url=https://content.instructables.com/F9U/TP35/IO8WDL17/F9UTP35IO8WDL17.png&filename=Screenshot (77).png)
![Screenshot (79).png](/proxy/?url=https://content.instructables.com/FMV/Y0O3/IO8WDL19/FMVY0O3IO8WDL19.png&filename=Screenshot (79).png)
![Screenshot (83).png](/proxy/?url=https://content.instructables.com/F1K/S1MB/IO8WDL1D/F1KS1MBIO8WDL1D.png&filename=Screenshot (83).png)

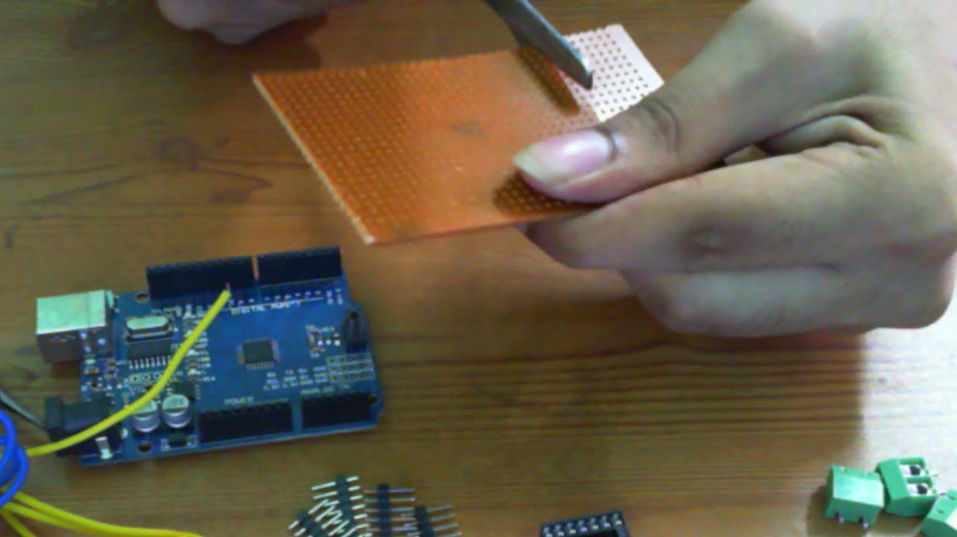

- Place Arduino board or print of Arduino on PCB to mark its Dimensions and screwing holes
- After Marking Dimensions , cut it accordingly
- Now insert 16pin IC socket at center of he PCB
- Insert Male header pins on both side of IC socket by some distance
- Insert Terminal blocks on top,left and right side of the ic socket.
- Insert IC 7805 below the top terminal block(above the IC socket)
- Solder all the Components.
Circuit
- Short 1,9,16 pins.
- Short 4,5,12,13 pins.
- Connect 2,7 to each header pins of that side respectively.
- Connect 15,10 to each header pins of that side respectively.
- Connect 3,6 pins of IC socket to terminal blocks through Diodes,such that voltage flows from IC to the motor only.
- Connect 3,6 pins of IC socket to terminal blocks through Diodes,such that voltage flows from IC to the motor only.
- Connect input pin of IC7805 to the +voltage input pin of the terminal block (which was above the ic socket).
- Connect Ground pin of IC7805 to the (-) ground pin of the terminal block (which was above the ic socket).
- Connect output pin of IC7805 to the 16th pin of ic Socket.
- Connect 4th pin of IC socket to ground pin of IC7805.
- Connect 8th pin of IC socket to the +voltage input pin of the terminal block (which was above the ic socket)
CIRCUIT ATTACHED
Downloads
![5739d30650e1b656a3000247.jpeg](/proxy/?url=https://content.instructables.com/FFT/BQHQ/IO8WE1EH/FFTBQHQIO8WE1EH.jpg&filename=5739d30650e1b656a3000247.jpeg)

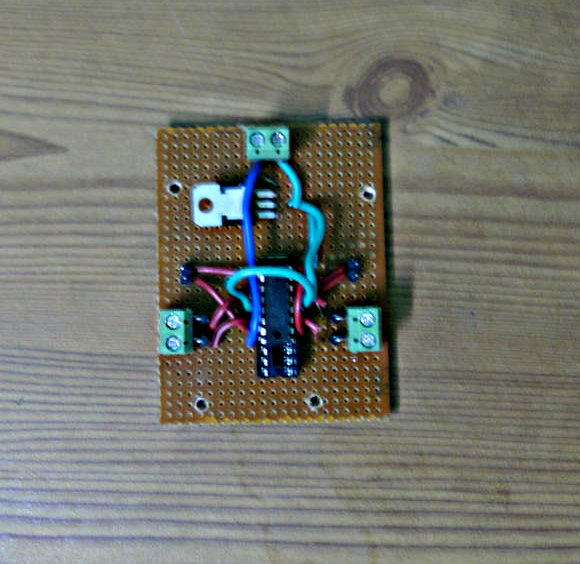

Solder all the connections carefully
After soldering the components, insert IC L293D into the socket.
YES! IT'S COMPLETED...:)
Construction Video
![How to make L293D Motor Driver Board for Arduino](/proxy/?url=https://content.instructables.com/FAE/LZAB/IRXT7UWG/FAELZABIRXT7UWG.jpg&filename=How to make L293D Motor Driver Board for Arduino)
Feel free to inbox me for further Clarifications
