Build Adjustable DC-DC Converter on Flowerpad Protoboard
by ElecFreaks in Circuits > Soldering
27037 Views, 92 Favorites, 0 Comments
Build Adjustable DC-DC Converter on Flowerpad Protoboard
![DCDC.jpg](/proxy/?url=https://content.instructables.com/FCC/H46A/H04631CB/FCCH46AH04631CB.jpg&filename=DCDC.jpg)
![DCDC (9).jpg](/proxy/?url=https://content.instructables.com/FVD/A9GW/H045ZL44/FVDA9GWH045ZL44.jpg&filename=DCDC (9).jpg)
![DCDC(14).jpg](/proxy/?url=https://content.instructables.com/FUZ/9JDB/H045VTUT/FUZ9JDBH045VTUT.jpg&filename=DCDC(14).jpg)
I’ll show you how I made the step-down DCDC converter on the FlowerPad-NoPlated protoboard, and finally power a 5W HB LED.
The DCDC itself is nothing we haven’t seen before, but the construction of this thing is amazing. The entire build is on the NoPlated ProtoBoard, meaning there are no wires at all.
This converter based on MP2307. This device integrates 100mOHM MOSFETS that provide3Aof continuous load current over a wide operating input voltage of 4.75V to 23V. I used a 12V DC dapter as input in this converter. So the output can be adjusted from 1.2V to 10V by a 10Mohm potentiometer. One voltage meter is fixed for real time voltag display. It is a good tool in electronic DIY. Now, please follow my step to starting your DIY.
More infor here:
The DCDC itself is nothing we haven’t seen before, but the construction of this thing is amazing. The entire build is on the NoPlated ProtoBoard, meaning there are no wires at all.
This converter based on MP2307. This device integrates 100mOHM MOSFETS that provide3Aof continuous load current over a wide operating input voltage of 4.75V to 23V. I used a 12V DC dapter as input in this converter. So the output can be adjusted from 1.2V to 10V by a 10Mohm potentiometer. One voltage meter is fixed for real time voltag display. It is a good tool in electronic DIY. Now, please follow my step to starting your DIY.
More infor here:
You Will Need
![DCreedy.jpg](/proxy/?url=https://content.instructables.com/FYA/6EP6/H045VTYD/FYA6EP6H045VTYD.jpg&filename=DCreedy.jpg)
TOOLS
- soldering iron
- pliers
- small screwdriver
- tweezer
- solder
- snips
- 1pcs x ElecFreaks non-plated Flower protoboard
- 1pcs x HP LED
- 1pcs x mini voltage meter
- 1pcs x 10Mohm potentiometer
- 1pcs x MP2307
- 1pcs x DC J3 adapter
- some capacities and some capacities ( please refer to the schematic for more details)
Soldering the MP2307
![DCDC(0).jpg](/proxy/?url=https://content.instructables.com/F33/Z4EL/H051EZ5P/F33Z4ELH051EZ5P.jpg&filename=DCDC(0).jpg)
The red marking numbers shown connectivity between the SOIC pad and Flower pad. Non-plated pad design make pads on different layer is independent. Please note that the SOIC pad connect with bottom layer flower pad. You need to make via if you want to connect top and bottom layer pad. The method will be mentioned below.
Fixed DC Connectorï¼J3ï¼
![DCDC(13).jpg](/proxy/?url=https://content.instructables.com/FW4/E6FX/H045ZLAA/FW4E6FXH045ZLAA.jpg&filename=DCDC(13).jpg)
![DCDC(12).jpg](/proxy/?url=https://content.instructables.com/FQW/FP0Y/H04631MU/FQWFP0YH04631MU.jpg&filename=DCDC(12).jpg)

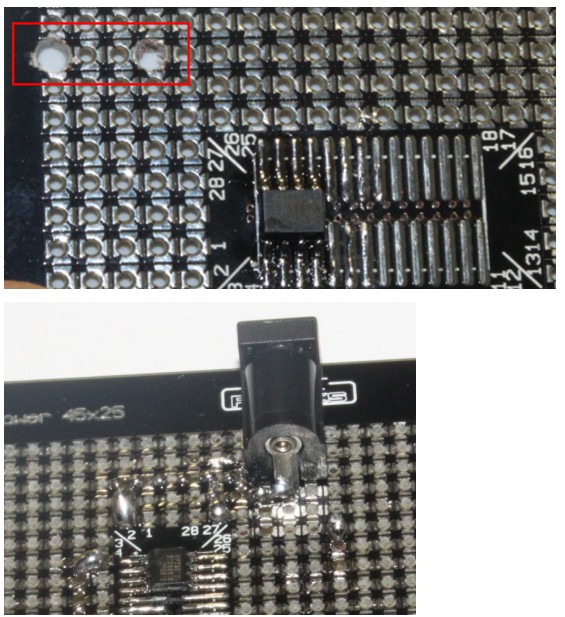

The above picture is diagram of the electronic connections. Please fix the J3 connector as shown in the picture. The connector pin is flat, so you need to drill two larger holes as following picture shown.
Wiring on Double Side Use Solder
![DCDC (4).jpg](/proxy/?url=https://content.instructables.com/FDA/5IRR/H0468GSX/FDA5IRRH0468GSX.jpg&filename=DCDC (4).jpg)
![DCDC (1).jpg](/proxy/?url=https://content.instructables.com/F13/QU1Y/H045VU6G/F13QU1YH045VU6G.jpg&filename=DCDC (1).jpg)
We recommend the left soldering copper when‘make a bridge between two pads’ use solder.
Refer the diagram to wire on double side. Please note that the red line indicatet top layer traceï¼and blue line indicate bottom layer trace.
As the following picture shown, move the soldering copper in horizont direction to disconnect two padsï¼and move in vertical to connect. Please measure whether the trace is conduction when you complete it every time. It will increase your success rate.
Refer the diagram to wire on double side. Please note that the red line indicatet top layer traceï¼and blue line indicate bottom layer trace.
As the following picture shown, move the soldering copper in horizont direction to disconnect two padsï¼and move in vertical to connect. Please measure whether the trace is conduction when you complete it every time. It will increase your success rate.
Making Via on Flower Protoboard, Connect Top and Bottom Pad.
![DCDC (10).jpg](/proxy/?url=https://content.instructables.com/F55/GUH2/H04631QO/F55GUH2H04631QO.jpg&filename=DCDC (10).jpg)
![DCDC (5).jpg](/proxy/?url=https://content.instructables.com/FEX/7KCP/H0468GU9/FEX7KCPH0468GU9.jpg&filename=DCDC (5).jpg)
We need make 4 vias on this board. At first, bend a metal wire as picture1 shown. The meatl wire can be LED’s leg or other things your can find easily. Then solder it on top layer. Thirdlyï¼solder it on bottom layer.
You must fast enough to solder bottom layerï¼otherwise you may dissolve top layer solder.
You must fast enough to solder bottom layerï¼otherwise you may dissolve top layer solder.
Making Your Connector Solder More Reliable.
![DCDC (7).jpg](/proxy/?url=https://content.instructables.com/FIC/UGJU/H045ZLHG/FICUGJUH045ZLHG.jpg&filename=DCDC (7).jpg)
![DCDC (6).jpg](/proxy/?url=https://content.instructables.com/FHL/WZ97/H0468GXU/FHLWZ97H0468GXU.jpg&filename=DCDC (6).jpg)
Connectors usually need to be able to withstand multiple – plug. It means we need to solder it more reliable. As following picture shown, use a knife to scratch the black solder mask. You can see a square shape pad.
It has more solder area than primary Flower pad. Larger soldered dot have more soldering intensity.
It has more solder area than primary Flower pad. Larger soldered dot have more soldering intensity.

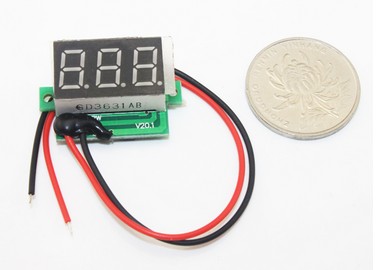

Fixed Voltmeter
![DCDC (8).jpg](/proxy/?url=https://content.instructables.com/FDG/B4HQ/H04631V5/FDGB4HQH04631V5.jpg&filename=DCDC (8).jpg)
![DCDC(5).jpg](/proxy/?url=https://content.instructables.com/FOO/4X2O/H0468GZM/FOO4X2OH0468GZM.jpg&filename=DCDC(5).jpg)

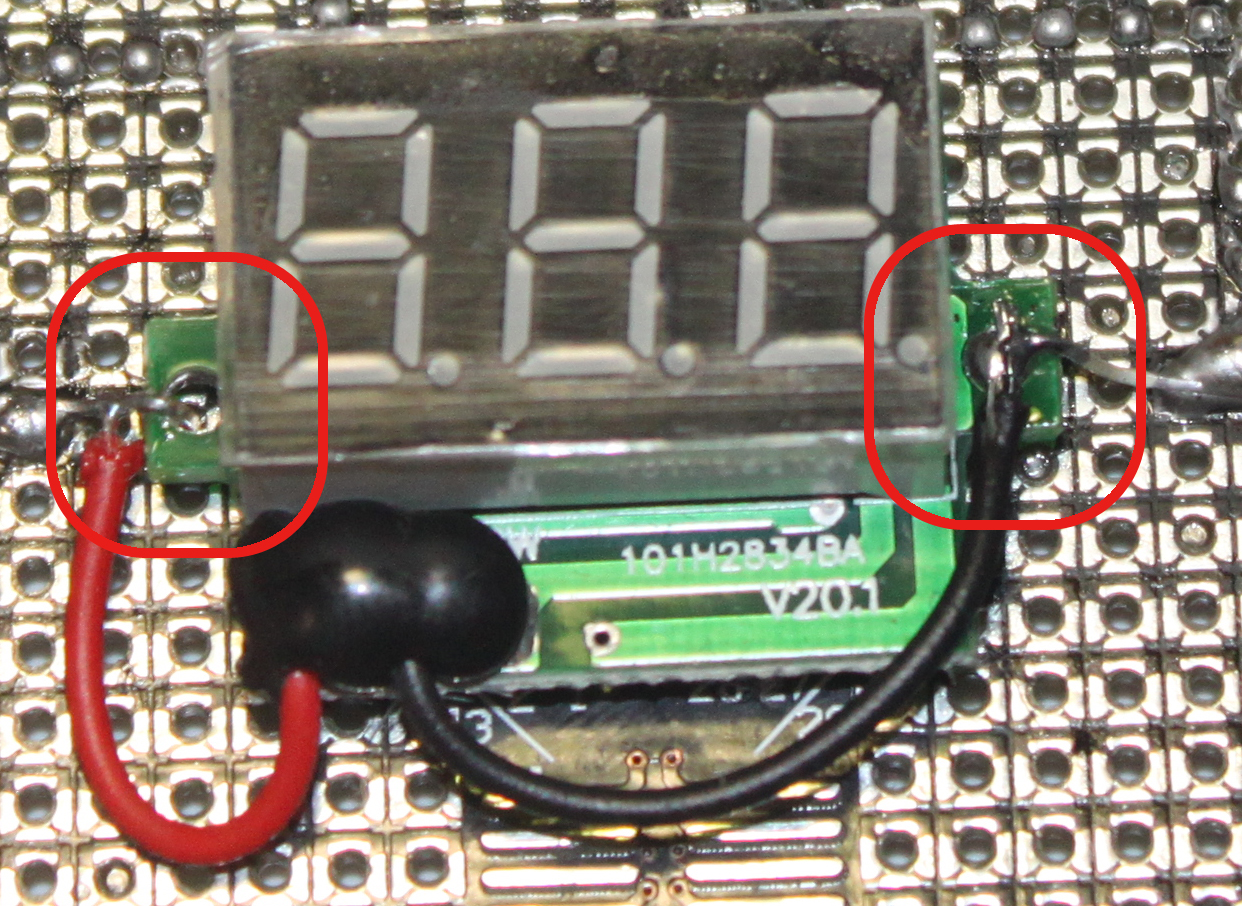

The voltmeter has a wide voltage measurement range from 3.2 to 30V. Two mounting holes make you can fix it onto Flower board easily.
The red line connect to output anode, and the black connect to cathode.
The red line connect to output anode, and the black connect to cathode.
Power and Debugging
![DCDC (9).jpg](/proxy/?url=https://content.instructables.com/FZ5/MSFQ/H045VUBC/FZ5MSFQH045VUBC.jpg&filename=DCDC (9).jpg)
![DCDC.jpg](/proxy/?url=https://content.instructables.com/FQC/GFN2/H0468H38/FQCGFN2H0468H38.jpg&filename=DCDC.jpg)
Double-check the circuit again before power on it. Make sure there is no any short current between IC pins. Check whether connection between components is reliable. ã
Finallyï¼ confirm the input and output poles is no short circuit. Power on the converter then rotate the potentiometerï¼you can adjust the output voltage, and the voltage display on voltmeter.
I use this DCDC converter to power a 5W HB LED over 30 hours. As the tested result, it works stable and reliable.
Thant’s All. Thanks and Enjoy !!
Finallyï¼ confirm the input and output poles is no short circuit. Power on the converter then rotate the potentiometerï¼you can adjust the output voltage, and the voltage display on voltmeter.
I use this DCDC converter to power a 5W HB LED over 30 hours. As the tested result, it works stable and reliable.
Thant’s All. Thanks and Enjoy !!
