Buick Instrument Panel Cluster Repair

One day I was driving our 2001 Buick Century Custom, and I noticed that the odometer wasn't lit up. At first I thought that a bulb was out, but this instrument panel cluster (IPC) is completely digital, so there are no bulbs in those locations. The odometer/tripometer is all LED segment displays. It wasn't until later I noticed that the transmission indicator was also unlit. This can be dangerous if you think you are in park and are actually in reverse and let off of the brake. My wife and I kind of just dealt with the absence of indicators for a few months until I finally got around to fixing it.

Since there was no erratic behavior of any sort, I figured this was just a faulty discrete component somewhere and set out to look for it. If certain parts of your IPC are not illuminated when they should be, there is a good chance that this is what's wrong with it. I have found lots of people who had or are having the exact same issue, and this procedure fixed them all!

Helpful Tools

While this isn't a precise list of what you may need, it should get you started on the right track.

To remove and open the instrument panel cluster I used:
Socket Set with Extension - Primarily a 7mm Socket
Battery Terminal Wrench - Equivalent to a 1/4" socket in most cases
Auto Carpet Plug Puller - Pliers and a flat head screwdriver should work as well
Pliers
Flat head screwdriver

To fix the IPC I used:
Soldering iron and solder
Alcohol wipes
4 x 150 ohm resistors

Don't Get Killed

Anytime I work on a vehicle, the first thing I do is disconnect the battery. The easiest way is by removing the negative terminal - the black one that connects the battery to the car chassis. This is where the battery terminal wrench comes in handy, but if you don't have one a pair of pliers, a wrench, or 1/4" socket should work fine. Don't freak out if you see (or hear) a few sparks as the cable is disconnected.

Dismantling the Dashboard

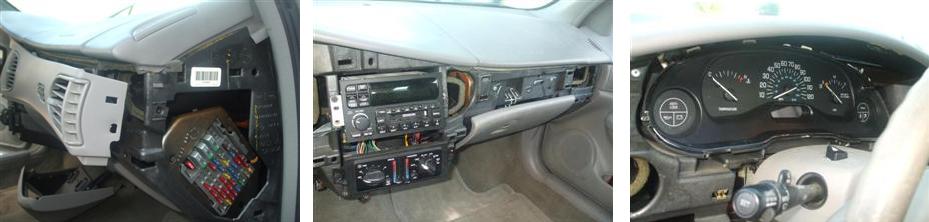

The instrument panel cluster is the collection of gauges sitting behind your steering wheel. It is held in place by a couple of screws, but getting to it can be a challenge because of all of the other dash board parts in your way.

To remove the IPC, you will pretty much need to dismantle the entire dash compartment. Most of the plastic pieces are slid into place on one end and bolted at the other. Removing the bolts allows you to slide the pieces out. The other thing in the way is all of the carpet pieces used to cover up the mess of wires below the dash. These can be tricky to remove with a plug puller, but you should be able to pry them out with other tools.

A good idea is to start with the small pieces on the sides of the dash (what would be up against the inside of the car doors when they are closed, and work towards the large dash pieces from there. The screws and plugs will all be on the under side of the dash, so get down there and get to it! Try to only remove what you have to in order to get to the IPC, and don't lose any of those screws...

IPC Removal

With the dash out of the way, you should be able to get to the screws holding the IPC in place. There are four of them, and they may take a strange screwdriver head. There will be a large wire harness connected to the IPC - mine was on the back left side. You'll probably have to put the key in the ignition to unlock and adjust the gear shift as well as the steering wheel to gain more access room. The IPC wire harness is held on with a few clip tabs. I was able to pry them open with a flat head screwdriver. Be careful not to break off the tabs!

With the harness unhooked, there should be nothing stopping the IPC from coming out. Be sure to put the car back in park so it doesn't roll off!

Open It Up

Once you have the IPC to your work space, flip it over and locate the many tabs holding the case onto the back of the thing. You can use a flat head screwdriver to pry them loose. This should reveal the back of the panel circuit board. The front of the panel can now also be removed, but you may have to pry up on it a bit to disconnect the knobs connecting the circuit board to the gauges.

The Fix

With the case completely removed, you should be able to see the complete circuit board. Locate a group of four resistors in the upper right hand corner of the circuit board. They will not look like typical resistors, but more like metal cylinders. You may notice that one or more of these resistors is crumbling or has come off of the board completely - this is the reason the circuit isn't working correctly.

Remove the resistors and clean off the pads with rubbing alcohol. Then, add a drop of solder to each pad to prep it for the new resistors.

You will need four 150 ohm resistors (1/4 Watt) to replace the old ones. Through hole resistors (Color code: brown - green - brown - gold/silver) are fine. Clip the leads and fold them over before coating each lead with a bit of solder. Then, attach the resistors one by one where the old ones used to be. Don't worry if you accidentally bridge them together (like I did), they are all in parallel anyway.

When you are finished, you can use a multimeter to check your work. Four parallel 150 ohm resistors should have an equivalent resistance of 37.5 ohms.

When you are satisfied, put the panel back together and put it back in the car. You may want to test it out before you put all of the dash back together as well. Don't forget to reconnect the battery cable! If it still doesn't work right, then there is probably something else more seriously wrong.
