BugBot
![temp_1480203435.jpg](/proxy/?url=https://content.instructables.com/FZF/H8A8/J5CQBZRZ/FZFH8A8J5CQBZRZ.jpg&filename=temp_1480203435.jpg)
![Bug bot](/proxy/?url=https://content.instructables.com/FGG/9NWC/J5MQHIOP/FGG9NWCJ5MQHIOP.jpg&filename=Bug bot)

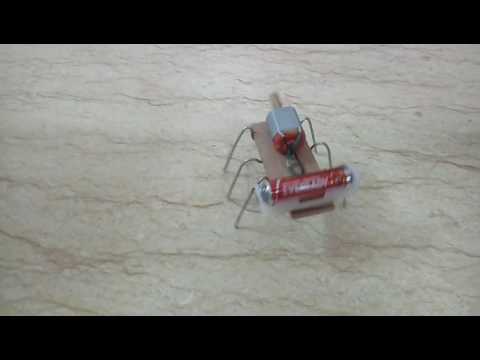

My son wanted to make a something for his school's science exibition. Since he is just 8, I wanted to a project that is age appropriate and where he could follow my instructions to assemble one

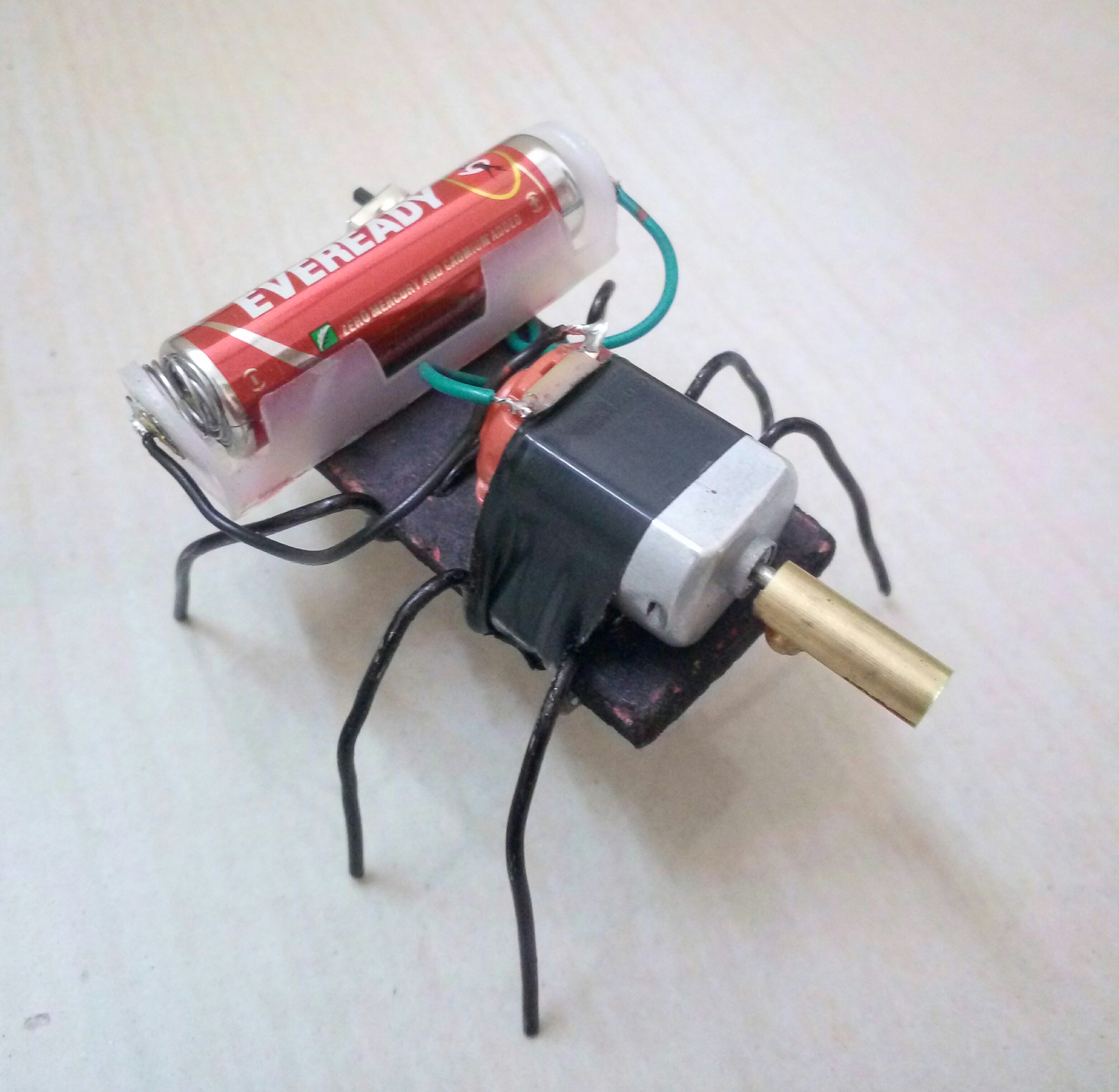

Out of many ideas, we decided to make a bugbot. Basic idea was it has a motor with unbalanced load, causing it to vibrate, The motor is resting on a wooden piece with 6 legs, giving it a bug / insect look
This is project can be assembled my kids under adult supervision
Video here
What Do We Need ?
![temp_-1305740048.jpg](/proxy/?url=https://content.instructables.com/F96/BE6M/J5CQBZS1/F96BE6MJ5CQBZS1.jpg&filename=temp_-1305740048.jpg)
Material
- Small piece of wood
- DC 3V motor
- AA Battery holder
- Small switch
- Small wires
- Double side tape
- GI wire or any hard metallic wire
Tools
- Soldering Iron
- Dremel/ small drill
Base and Legs
![temp_1669317438.jpg](/proxy/?url=https://content.instructables.com/FUM/CNH0/J5CQBZS2/FUMCNH0J5CQBZS2.jpg&filename=temp_1669317438.jpg)
![temp_-1244341419.jpg](/proxy/?url=https://content.instructables.com/FFD/S6A5/J5CQBZSS/FFDS6A5J5CQBZSS.jpg&filename=temp_-1244341419.jpg)
![temp_2044454886.jpg](/proxy/?url=https://content.instructables.com/FIA/7BKP/J5CQBZST/FIA7BKPJ5CQBZST.jpg&filename=temp_2044454886.jpg)
- Cut 3 pieces of 14cm long GI Wires
- Drill 6 holes on wooden piece (4CM x 9cm)
- Pass the wires as shown and bend them, so that appear like a insect legs
- Paint the body and legs with black or color of your choice
Electronics
![image00521.jpg](/proxy/?url=https://content.instructables.com/F2H/J8TH/J5MQHHSQ/F2HJ8THJ5MQHHSQ.jpg&filename=image00521.jpg)
- Motor : Connect one wire to AA battery holder and another to switch
- Switch : COnnect one wire to Motor and one to AA BAttery
Follow circuit diagram as shown
Play Time
![temp_229274367.jpg](/proxy/?url=https://content.instructables.com/FAW/MCZ0/J5CQBZUI/FAWMCZ0J5CQBZUI.jpg&filename=temp_229274367.jpg)
![temp_2097820813.jpg](/proxy/?url=https://content.instructables.com/F8B/RBVJ/J5CQBZT8/F8BRBVJJ5CQBZT8.jpg&filename=temp_2097820813.jpg)
FIx the motor, switch and battery holder using double side tape
Switch on to begin playing
Tips
- Based on the legs, the bot will move in circular or side or front or back
- Adjust the legs that all touch the ground
- The rear legs should be taller to make the bot move forward
Please share your comments
