Budget DIY GPS/GNSS Base Station / Receiver Setup With ESP32 and UM980

by SimeonOnSecurity in Circuits > Arduino

2358 Views, 6 Favorites, 0 Comments

Budget DIY GPS/GNSS Base Station / Receiver Setup With ESP32 and UM980

  • The ESP32 is a versatile microcontroller renowned for its WiFi and Bluetooth capabilities. In this guide, we’ll walk you through setting up the your ESP32 development board with the Unicorecomm UM980 and various accessories. We’ll also cover flashing the ESP32 with the desired firmware.

Downloads

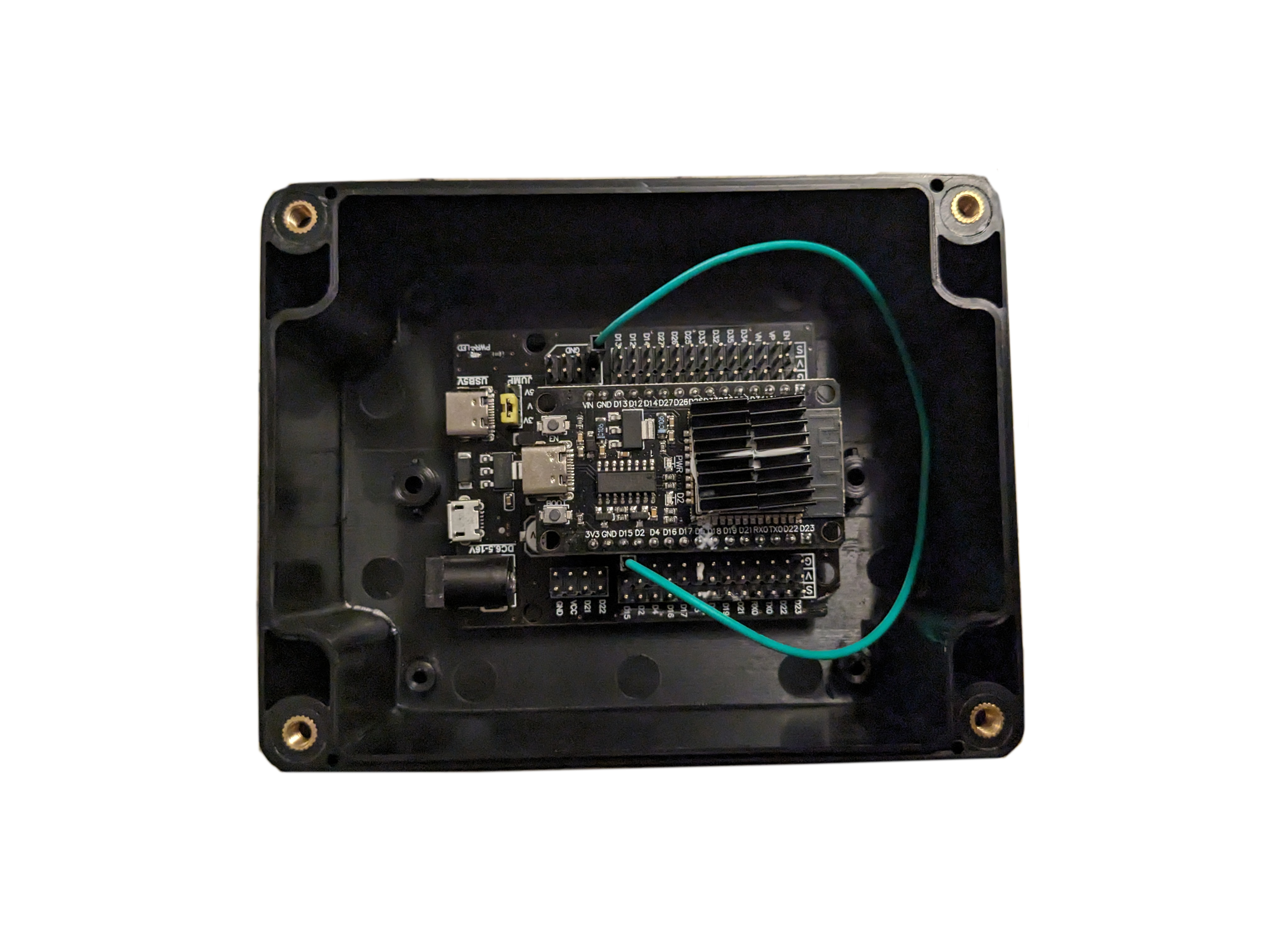

esp32 complete build in larger case.webp

Supplies

Recommended Hardware Components

Before we begin, let’s take a look at the hardware components you’ll need:

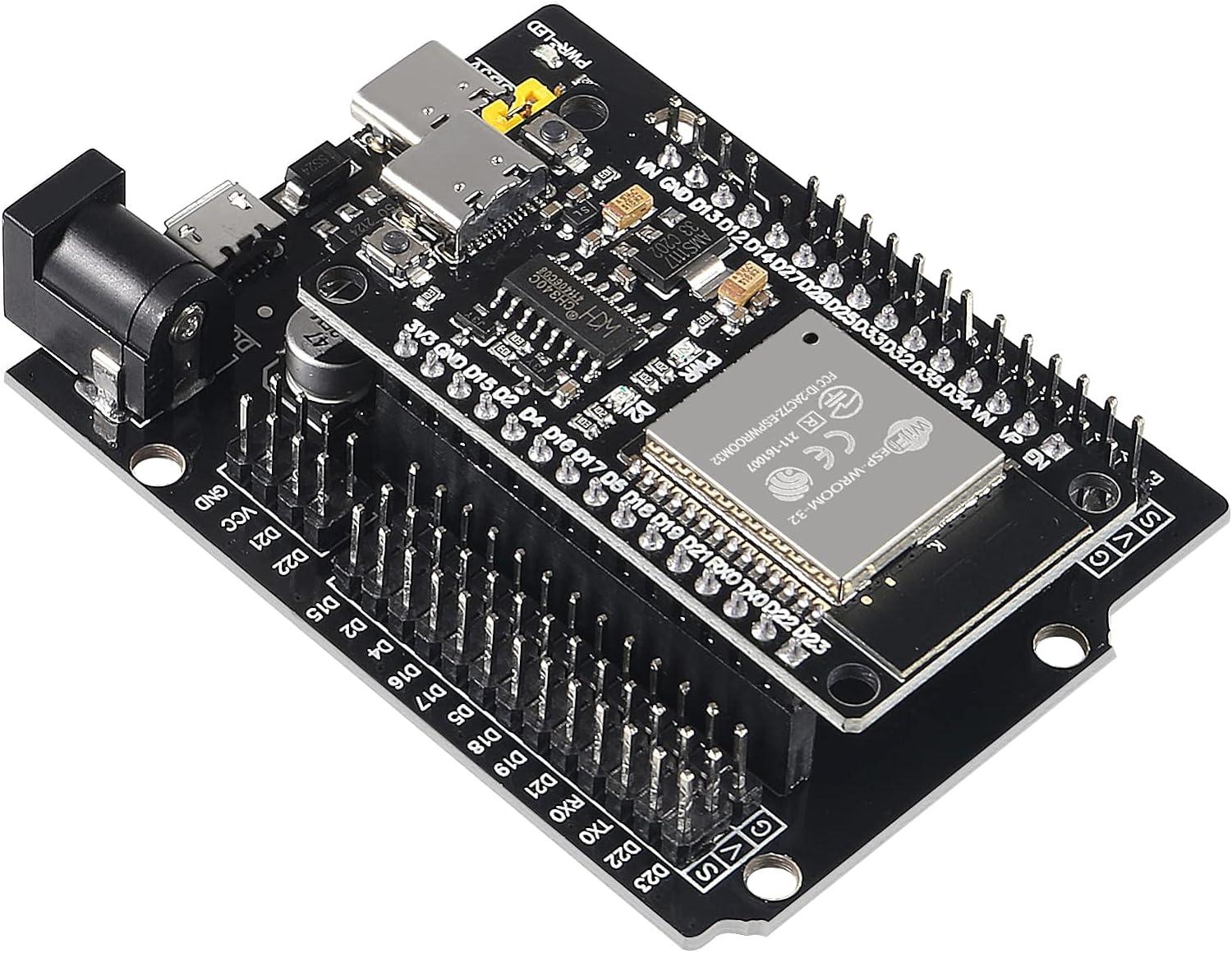

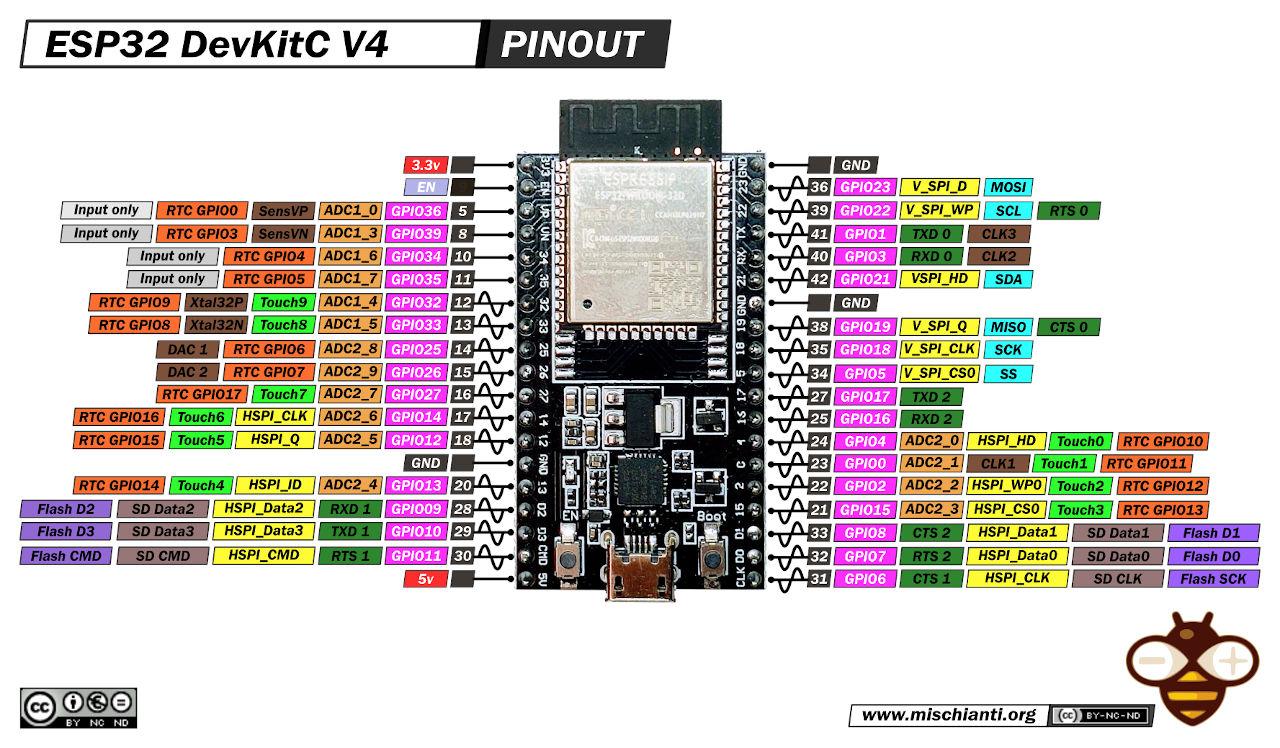

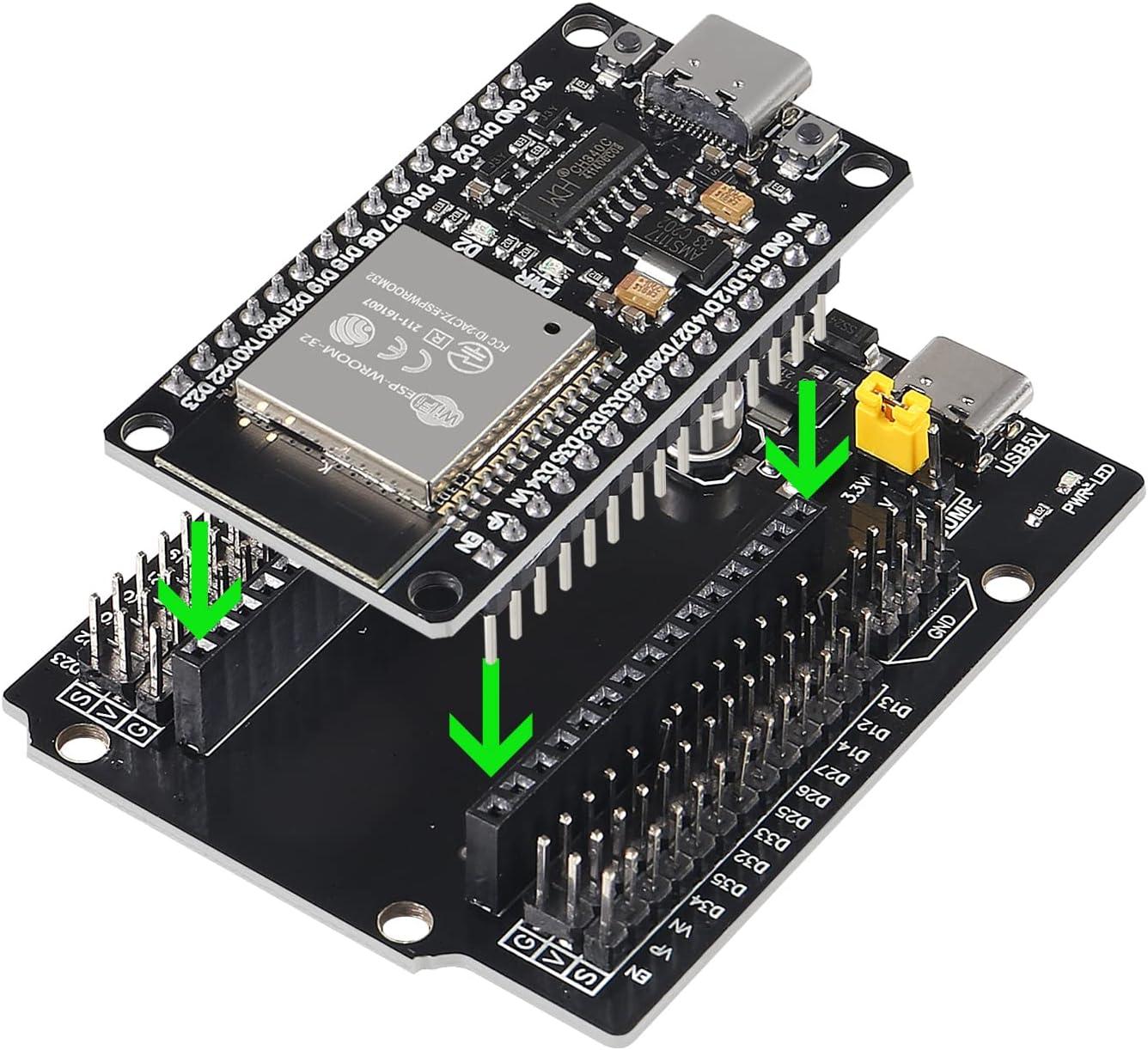

  1. ESP32 Development Board: AITRIP 2 Sets ESP-WROOM-32 ESP32
  2. Power Supply: CanaKit 3.5A Raspberry Pi 4 Power Supply (USB-C)
  3. Adapter Cables: (Choose one):

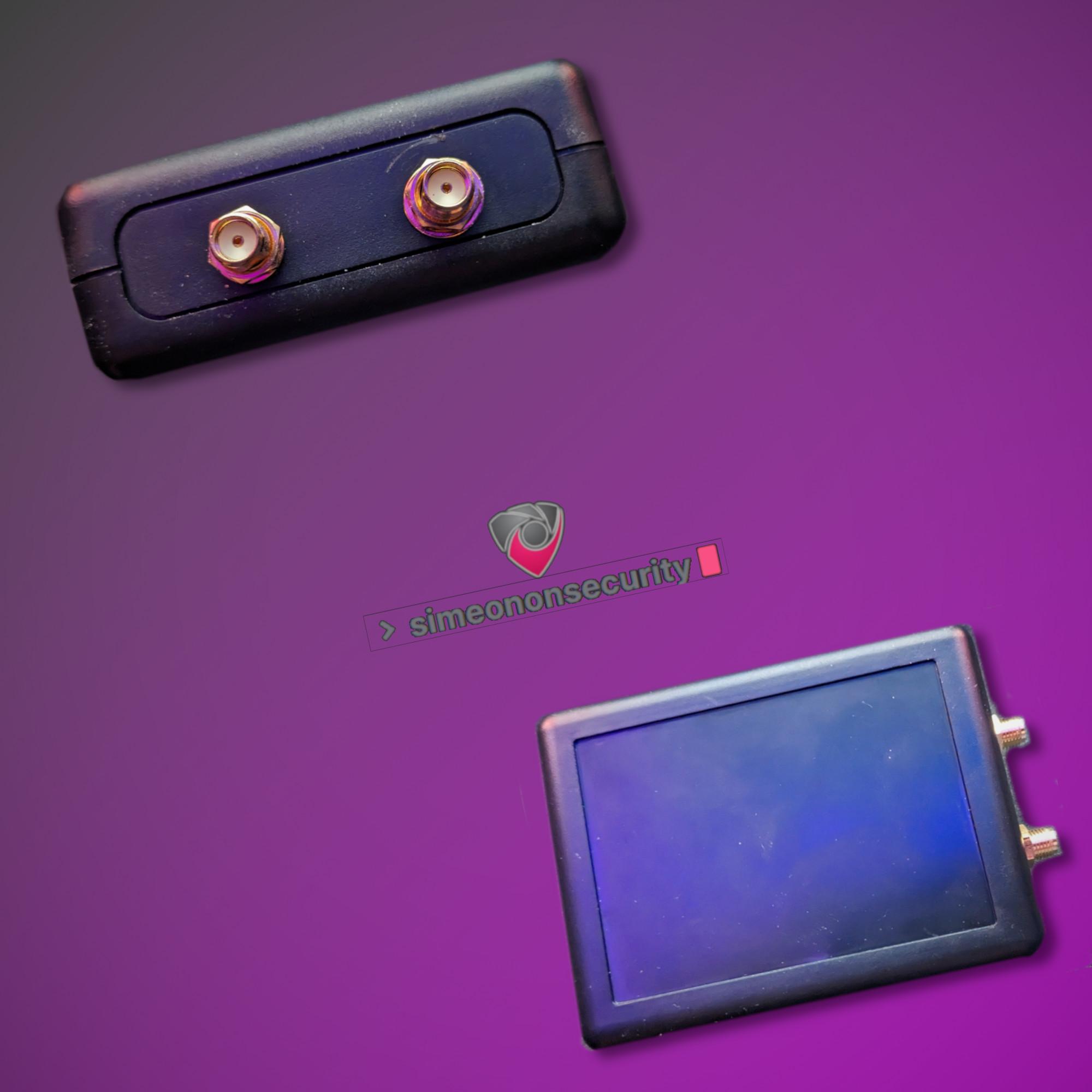

  1. Enclosure Kit: qBoxMini DIY IOT Enclosure Plus Kit (One SMA)
  2. GNSS Receiver Board (Choose one):
  1. Firmware: ESP32-XBee Firmware

Recommended Antennas

Basic Antennas for RTK, ROVER, Window Situations

Advanced Antennas for Base and Reciver Stations

Instructions

Step-by-Step Setup

1. Assemble Your Workstation / Desktop / Laptop

Ensure you have a computer with a USB port and internet access. You’ll need this for downloading firmware and drivers.

2. Connect Hardware Components

3. Use Adapter Cables

Utilize the elechawk adapter cables or alternatives as necessary to connect the UM980 to your ESP32 board . These cables offer compatibility with various connectors for expanding your project.

4. Employ the Enclosure Kit

For environmental protection, consider using the qBoxMini DIY IOT Enclosure Kit . It offers waterproof protection and includes connectors and a prototyping PCB for easy integration.

5. Choose the GNSS Receiver

Depending on your project needs, timeline, and budget, select the appropriate GNSS receiver board . Follow the wiring diagram above for implementation.

6. Flash the Firmware

To flash the ESP32 with the ESP32-XBee firmware , follow these steps:

  1. Download the firmware from the provided GitHub release .

If you would like to reset the device configuration, you should also download:

- `wipe_config.bin`
  1. Install necessary flashing tools like the ESP-IDF framework and Espressif’s ESP Flash Download Tool.
  • Windows
  • Windows Flash Tools from Espressif
  • Linux
  • If you have not already done so, install the ESP flashing tool, esptool:
  • Ubuntu/Debian: sudo apt-get install esptool
  • Arch: sudo pacman -S esptool
  1. Connect the ESP32 to your computer.
  • While plugging into your computer, hold down the BOOT button to prepare the ESP32 for Flashing.
  • ESP32 Boot Button - randomnerdtutorials.com
  1. Flash the XBEE ESP32 Firmware Note: Your COM device location will be different than mine. You’ll need to identify it first before continuing.
  • Windows
  • Open the ESP Flash Download Tool, select the firmware files, set flashing options, and click “Start” to flash the firmware onto the ESP32.
  • Loading ESP32 Firmware on Windows - github.com/nebkat/esp32-xbee/
  • It is important that the offsets exactly match the files:
  • bootloader.bin @ 0x1000
  • partition-table.bin @ 0x8000
  • esp32-xbee.bin @ 0x10000
  • www.bin @ 0x210000
  • If you would like to reset the device configuration, you should also include:
  • wipe_config.bin @ 0x0
  • Flashing ESP32 Firmware on Windows - github.com/nebkat/esp32-xbee/

Alternatively, copy the firmware files to the extracted esptool.exe’s folder and run the following as an administrator

   .\esptool.exe --before default_reset --after hard_reset --chip esp32 --port COM10 --baud
115200
 write_flash --flash_mode dio --flash_size detect --flash_freq
40m
 -z 0x1000 ./bootloader.bin 0x8000 ./partition-table.bin 0x10000 ./esp32-xbee.bin 0x210000 ./www.bin
  • Linux
   esptool.py -b
460800
 --after hard_reset write_flash --flash_mode dio --flash_freq 40m --flash_size 4MB 0x8000 partition-table.bin 0x1000 bootloader.bin 0x10000 esp32-xbee.bin 0x210000 www.bin
  • If you would like to reset the device configuration, also include: 0x0 wipe_config.bin
Found
1
 serial ports
Serial port
/
dev
/
ttyUSB0
Connecting
....

Detecting chip type
...
 ESP32
Chip
is
 ESP32D0WDQ5 (revision
1
)
Features: WiFi, BT, Dual Core,
240
MHz, VRef calibration
in
 efuse, Coding Scheme
None

Crystal
is

40
MHz
MAC:
4
c:
11
:ae:
6
e:
30
:
6
c
Uploading stub
...

Running stub
...

Stub running
...

Configuring flash size
...

Compressed
3072
 bytes to
110.
..

Wrote
3072
 bytes (
110
 compressed) at
0x00008000

in

0.0
 seconds (effective
1540.7
 kbit
/
s)
...

Hash of data verified
.

Compressed
17216
 bytes to
11168.
..

Wrote
17216
 bytes (
11168
 compressed) at
0x00001000

in

1.0
 seconds (effective
138.8
 kbit
/
s)
...

Hash of data verified
.

Compressed
788768
 bytes to
493546.
..

Wrote
788768
 bytes (
493546
 compressed) at
0x00010000

in

43.9
 seconds (effective
143.8
 kbit
/
s)
...

Hash of data verified
.

Compressed
1048576
 bytes to
93902.
..

Wrote
1048576
 bytes (
93902
 compressed) at
0x00210000

in

8.4
 seconds (effective
1004.1
 kbit
/
s)
...

Hash of data verified
.


Leaving
...

Hard resetting via RTS pin
...

  1. Restart the ESP32
  • Hit the “EN” button
  • Or Power Cycle the Device

7. Configuration

  1. Step 1: Connect to the XBee Hotspot
  2. Using your phone or PC, connect to the ESP32’s WiFi Hotspot which will be called ESP_XBee_XXXXXX where XXXXXX are some random numbers/letters unique to your device.
  3. Step 2: Browse to the Configuration Page
  4. Open your browser and navigate to http://192.168.4.1/. You should see a page similar to:
  6. XBee ESP32 Configuration Page - github.com/nebkat/esp32-xbee/
  7. Step 3: Configure WiFi
  8. Enable the WiFi section, press Scan to search for networks, choose your home WiFi network (or phone hotspot) and enter the password.
  9. The ESP32 does not have very good WiFi reception, so make sure you are relatively close to the network you are connecting to, especially when indoors, to avoid problems.
  10. Press the Submit button, and follow the instructions on screen. You may need to reconnect to the ESP32 XBee hotspot after it restarts.
  11. The WiFi section will now show its connection status:

  14. XBee ESP32 Wifi Configuration Page - github.com/nebkat/esp32-xbee/
  15. If you are connected to the device using a serial terminal, the device will output information about its WiFi connection.
$PESP,WIFI,STA,CONNECTING,S10,P*71
$PESP,WIFI,STA,CONNECTED,S10*4C
$PESP,WIFI,STA,IP,192.168.43.100/24,192.168.43.1*5D
  1. Step 4: Improve Security Configuration
  2. Hotspot
  3. To prevent others from accessing your ESP32 XBee, you may want to adjust the settings of the WiFi hotspot section.
  4. There are three ways to do this:
  5. Change from Open security to WPA/2-PSK and enter a password (recommended).
  6. Hide the SSID by toggling the Hidden setting.
  • Note: This will not prevent connections, but will hide the hotspot from WiFi scans on other devices.
  1. Disable the hotspot entirely by toggling the WiFi hotspot section
  • Note: You will not be able to access the ESP32 XBee if there is a problem with its connection to your home WiFi network, unless you perform a Full Reset .
  2. XBee ESP32 Secure Wifi Configuration Page - github.com/nebkat/esp32-xbee/
  3. Configuration
  4. If you would like to prevent others on your home network from modifying the ESP32 XBee configuration, you can also adjust the settings of the Admin section.
  5. You can choose between only allowing devices connected to the hotspot, or a username/password.
  6. The new IP address will be the first address in the 3rd line as above, i.e. 192.168.43.100.

  9. XBee ESP32 Admin User Configuration Page - github.com/nebkat/esp32-xbee/
  10. Step 5: Improve Security Configuration
  11. You can now proceed to configure the available protocols.
  12. Note: Do not enable all protocols at once. The ESP32 is not able to handle an unlimited amount of open sockets/connections, so only enable the protocols you are actually using.
  13. The small color selector beside each section’s toggle button will determine the color of the RGB LED on the ESP32 XBee for that feature, so that you can keep track of its status. Setting the color to black will disable the LED for that feature. Typically, a fading LED means the feature is working correctly/connected, while a blinking LED or no LED means the feature is awaiting a connection or could not connect to its target.

7. Profit?

8. Extras

  1. Full Reset: In case you encounter any problems and are unable to connect to the device, simply hold the BOOT button for 5 seconds, and the ESP32 will be reset to its default configuration.

  4. ESP32 Boot Button - randomnerdtutorials.com
  5. If this procedure does not work for any reason, an alternative method to perform a full reset is to follow the Firmware Update procedure, including the wipe_config.bin file as described.

Additional Configuration For Unicorecomm UM980 and UM982 Devices

To enable all the bands and base station mode on the Unicorecomm devices you’ll need to serial into them using baud rate of 115200 and run the following commands. This can be done within terminal, putty, or the Unicorecomm UPrecise software.

  1. mode base time 60 2 2.5: This line configures the reference station’s operation mode, which is set to “base”. In this configuration the base station will figure out it’s actual location after receiving traffic for 60 seconds.
  2. CONFIG SIGNALGROUP 2: This command appears to configure the signal group for the UM980/UM982 devices. This enables all bands and frequencies on the device.
  3. rtcm1005 30 and rtcm1006 30: These commands set the rate at which RTCM messages 1005 and 1006 are sent out from the reference station, respectively. The values “30” commands a 30-second interval.
  4. rtcm1033 1, rtcm1074 1, rtcm1077 1, rtcm1084 1, rtcm1087 1, rtcm1094 1, rtcm1097 1, and rtcm1117 1, rtcm1124 1 and rtcm1127 1: These commands enable RTCM messages, ensuring that the reference station transmits these specific messages. The value “1” enables these messages to happen every second..
  5. saveconfig: This command saves the configured settings, ensuring that they persist and are applied whenever the reference station is operational.

Unicorecomm UM980 and UM982 Configuration Script

mode base time
60

2
 2.5

CONFIG SIGNALGROUP
2


rtcm1005
30

rtcm1006
30

rtcm1033
1

rtcm1074
1


rtcm1077
1

rtcm1084
1

rtcm1087
1

rtcm1094
1

rtcm1097
1

rtcm1117
1


rtcm1124
1

rtcm1127
1


saveconfig

*It should be noted that the Unicorecomm device does not have the ability to transmit the RTCM 1230 message type.

Unicorecomm UM980 and UM982 Commands Reference Manuals

For additional configuration guidance, consult the following documentation:

9. Testing

Once the firmware is successfully flashed, your ESP32 board is ready for testing. Begin developing and running IoT applications, making the most of the board’s WiFi, Bluetooth, and GNSS capabilities.

This is where you’ll unplug the ESP32 from your desktop and Plug the CanaKit Raspberry Pi 4 power supply into a power source and connect it to the ESP32 board via USB-C.

Testing is going to depend on multiple factors. This part is up to you. I suggest using Onocoy and using their service to test your configuration if you’re setting up an NTRIP Server.
