Brushless DC Electric Motor (with Hall Sensor)

by simpletronic in Circuits > Electronics

14971 Views, 251 Favorites, 0 Comments

Brushless DC Electric Motor (with Hall Sensor)


This DC electric motor project uses a Hall sensor to detect the position of the rotor and turn on the electromagnet in the precise moment.

Overview of Device

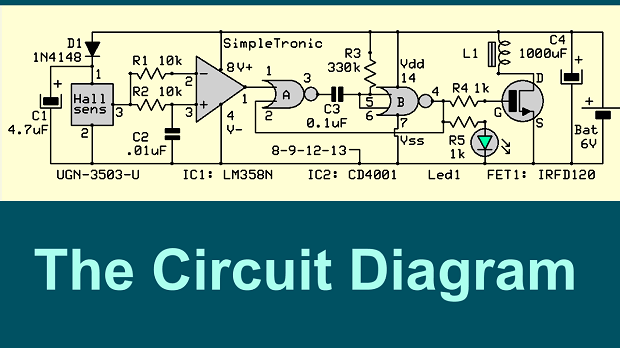

Circuit Diagram & Main Components


Sensor: UGN-3503-U hall sensor

IC1: LM358N (dual OP amp)

IC2: CD4001 (quad NOR gate )

FET1: IRFD120 (N-channel power mosfet)

This circuit is the same I used in my previous post "magnetic pendulum" . For additional details, refer to post.

Hall Sensor

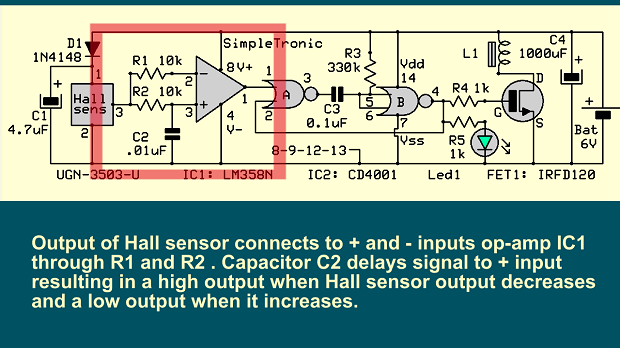

Direction Detector

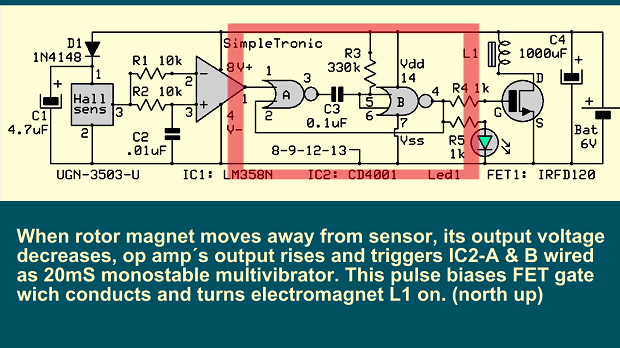

20mS Monostable ( Electromagnet ON Time )


Output Mosfet Drives Electromagnet


Electromagnet & Rotor Details.


IMPORTANT:

1) electromagnet north pole UP

2) rotor north poles OUT

3) hall sensor branded side UP

For More Details Watch Video. Thank You!

Brushless DC electric Motor ( Hall sensor controlled )
