Broom Racks From TechShop

Purpose: organize your tools

Tools: table saw, band saw, router, drill press, orbital sander, hand drill, level
Materials: 3/4” plywood, 1/2” all thread bolts / nuts / washers, wall anchors, sand paper

Cut Wood

Cut the plywood down to 24” x 8” on the table saw. If you are starting with a full sheet, the panel saw might be useful too. Next, trim the corners to 45º on the band saw. A second piece of plywood 22” x 2” will be needed as well.

Holes

Drill the four bolt holes with the drill press (a hand drill is not recommended as it will be difficult to ensure perpendicular hooks – and you don't want things sliding off!). Since the bolts require nuts on the backside, the second piece of plywood will bring the face plate off the wall. Use a paddle bit to countersink the backside and provide necessary clearance.

Dimensions are noted in the third image.

Assembly

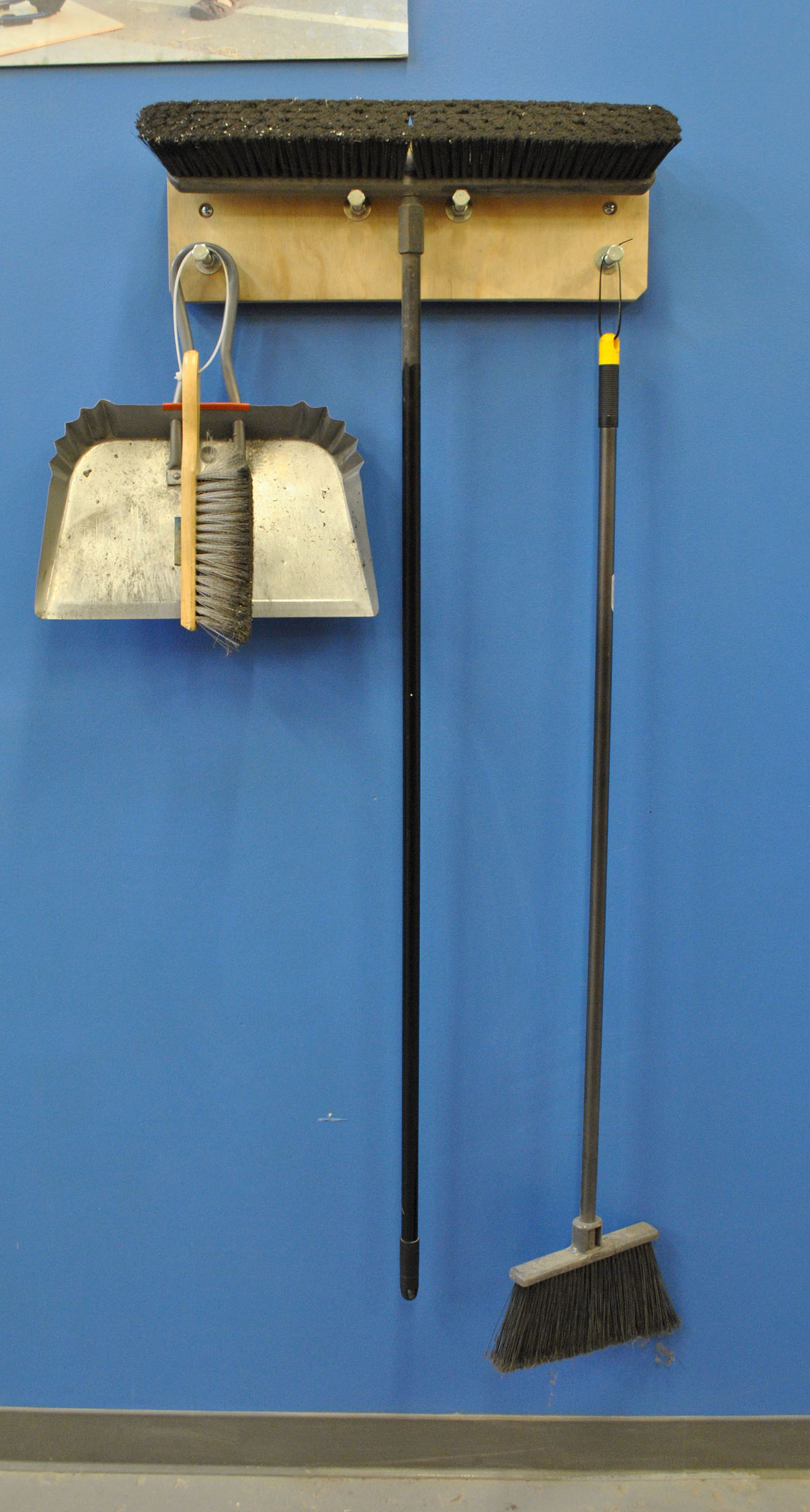

Attach the bolt / nut / washer combo platter. Finger tight should be adequate for this situation and keeping all of the bolt heads horizontal will give a cleaner, more professional look. Mount 67” off the ground with wall zip anchors and clean up your clutter!

Congratulations, your new nickname is officially “Sweepy”.

For more resources, tools, and training, head over to TechShop!
