Bridge for Make It Bridge Student Design Challenge
![kakakakaka.PNG](/proxy/?url=https://content.instructables.com/FAY/B0KZ/LHT57DUQ/FAYB0KZLHT57DUQ.png&filename=kakakakaka.PNG)
![us.PNG](/proxy/?url=https://content.instructables.com/F9L/SUBI/LHT57DUR/F9LSUBILHT57DUR.png&filename=us.PNG)
I used Tinkercad for the designing process and this bridge is designed for pedestrians to walk on and have a good time.
Supplies
![jhnjkhjk.PNG](/proxy/?url=https://content.instructables.com/F37/N0H1/LHT57FER/F37N0H1LHT57FER.png&filename=jhnjkhjk.PNG)
All I used to make my design was tinker CAD and I used it to show the steps to making this bridge.
![Capture.PNG](/proxy/?url=https://content.instructables.com/FWY/0AMN/LHT57FP3/FWY0AMNLHT57FP3.png&filename=Capture.PNG)
![nah.PNG](/proxy/?url=https://content.instructables.com/FAH/VPCI/LHT57FXS/FAHVPCILHT57FXS.png&filename=nah.PNG)
the first step is to make a board with the measurements
width: 40ft
length: 100ft
height:10ft
then put ramps on each side of the board.
![67.PNG](/proxy/?url=https://content.instructables.com/F6K/J40I/LHT57FY4/F6KJ40ILHT57FY4.png&filename=67.PNG)

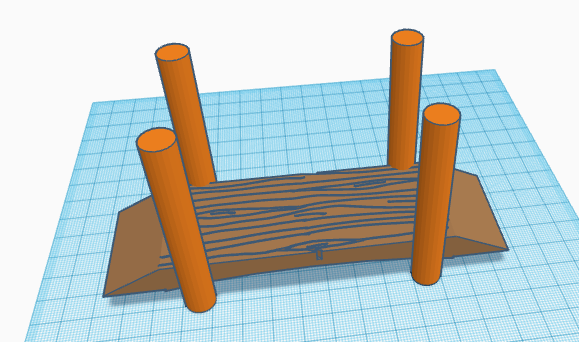

Then add support beams so the bridge can last and hold so much people at once and the measurements are
width: 10ft
length:10ft
height:70ft
After that I had to put a railing that look cool so that people are interested in passing through the bridge and the measurements are
width: 2ft
length:73ft
height:60ft
![kakakakaka.PNG](/proxy/?url=https://content.instructables.com/FSK/K662/LHT57GOM/FSKK662LHT57GOM.png&filename=kakakakaka.PNG)

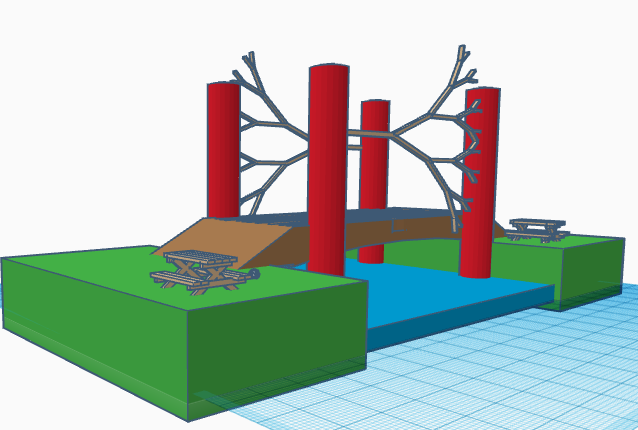

Then I added benches so people can hang out and walk around or spend time with each other.
Conclusion
If I were to do this project again, I would try to put for details on this project to make it look more nice and I would like to learn how to improve on using tinker cad.
