Brick Wide Rocket Stove

Extra wide rocket stove. I tried the smaller half brick chimney but needed a larger cooking area. Works better for me.

my stove was set on a garden turf patch. I inset the slab by cutting a turf patch and ensured it was level.

i used 2 half bricks but you could use 2 whole on rear. Ensure snug fit around internal corners. I made grill out of corner plaster beading which i cut into 3 pieces and hammered flat for tray.

i used full bricks for the 2nd course.

full bricks for subsequent course ensuring snug fit around internal chimney. Alternate brick pattern interlace for each course.

i used an old oven grill tray. for additional height offset i used ceramic tile spacers.

add wood above air grill . light up with paper or fire starters and burn until no smoke.

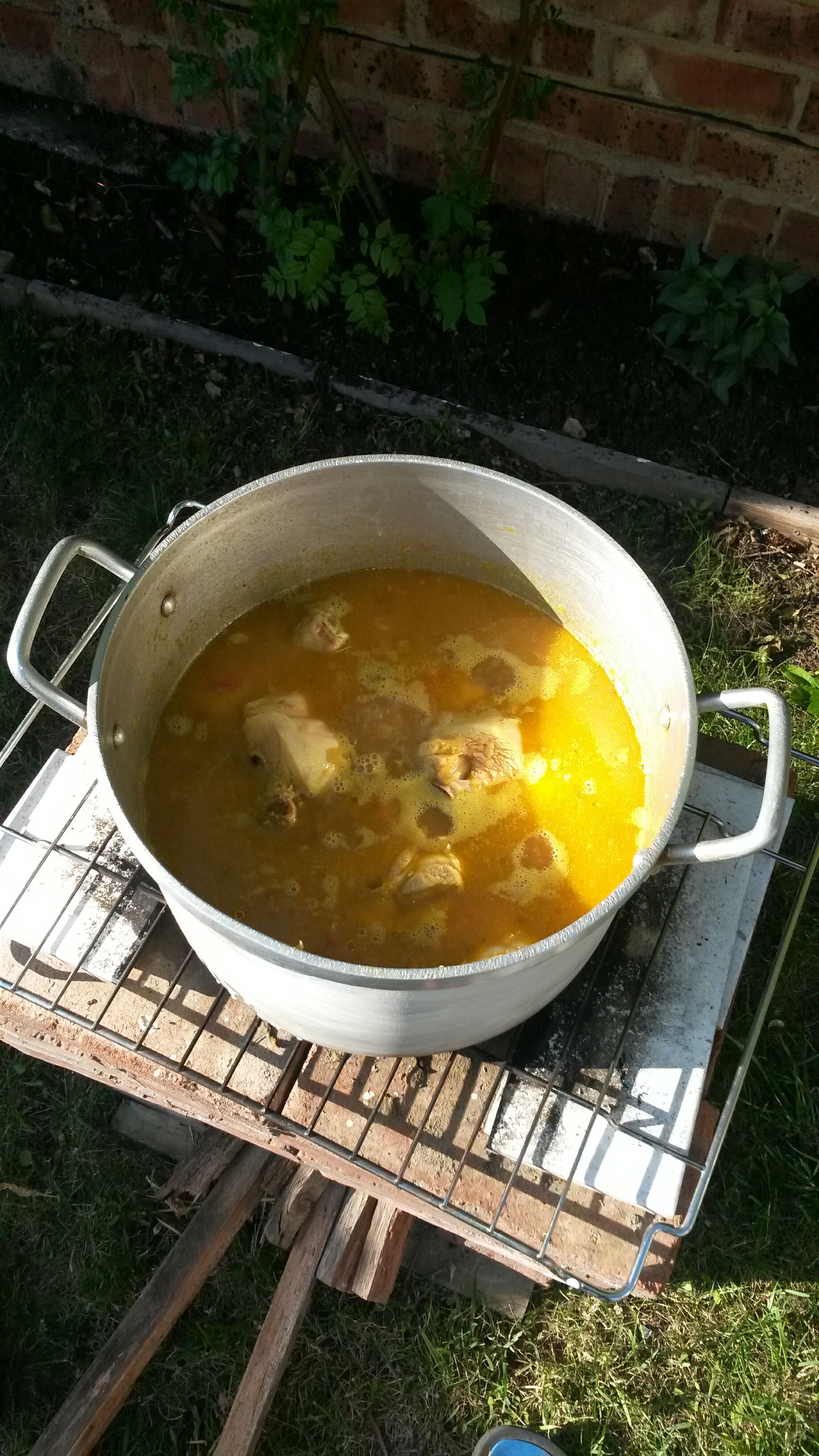

Chicken curry. Yumm.

Heres my rocket powered oven. Its a big oven pot with aluminium trays.

Kebabs n Salmon tikka. Took about an hour in the oven . Yummy!

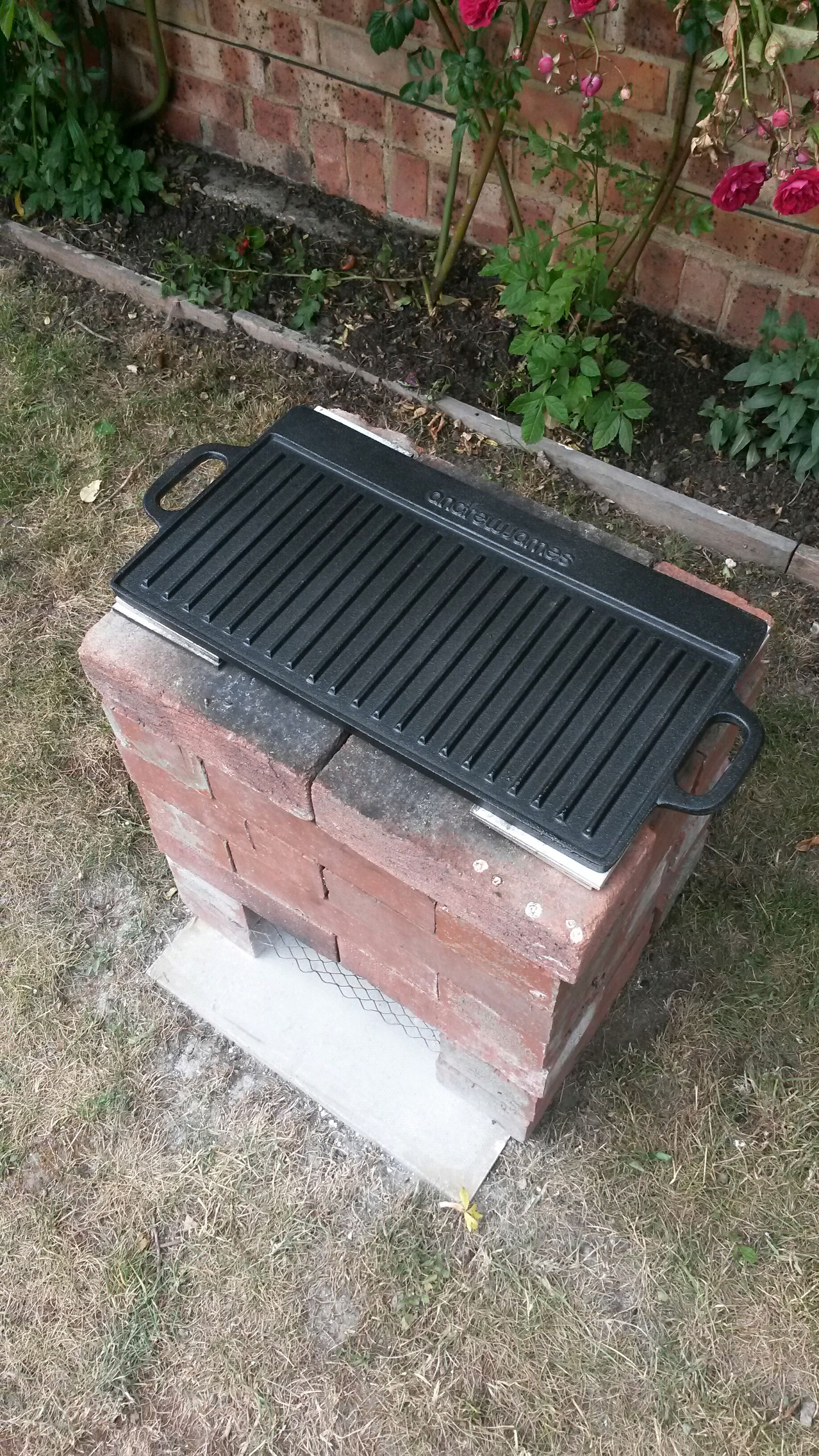

Heres my rocket powered grill.
This cast iron grill cost £20 delivered from Andrew James.

This should keep direct smoke off the food. It has a flat and ribbed side. Ideal for burgers n bangers.

Have yet to try it. Will post pics when I do ☺
